California Air Tools SP-9413 1.0 HP Oil-Free Motor/Pump – 110V, 60Hz, 120 PSI

California Air Tools SP-9413 1.0 HP Ultra Quiet Oil-Free Motor/Pump

The California Air Tools SP-9413 is a replacement motor/pump designed for compatible California Air Tools air compressors. Its oil-free dual-piston pump system is engineered to deliver compressed air with reduced operating noise and maintenance requirements.

The 1.0 HP motor operates at 1,680 RPM and produces a noise level of approximately 60 dB. With an air delivery of 3.10 CFM at 40 PSI and 2.20 CFM at 90 PSI, this motor/pump is designed for compatible compressor systems used in workshops, garages, and other applications requiring a quieter air supply.

Key Features

• 1.0 HP ultra-quiet motor/pump

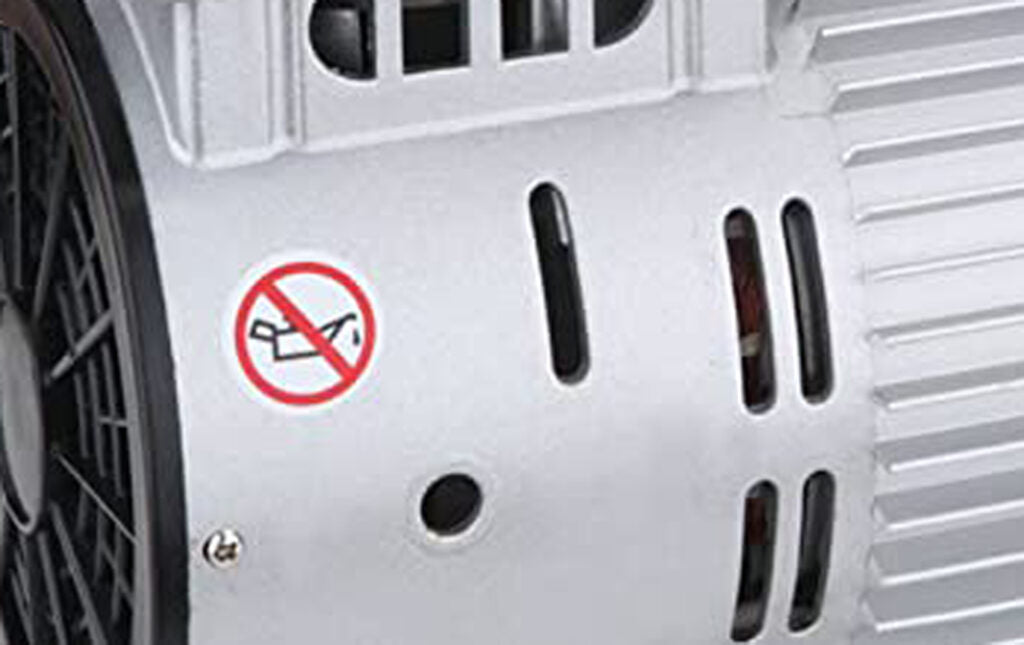

• Oil-free dual-piston pump system
• Noise level of approximately 60 dB
• Air delivery of 3.10 CFM at 40 PSI and 2.20 CFM at 90 PSI
• Maximum pressure rating of 120 PSI
• 110V, 60Hz electrical operation
• Motor speed of 1,680 RPM
• Thermal overload protector

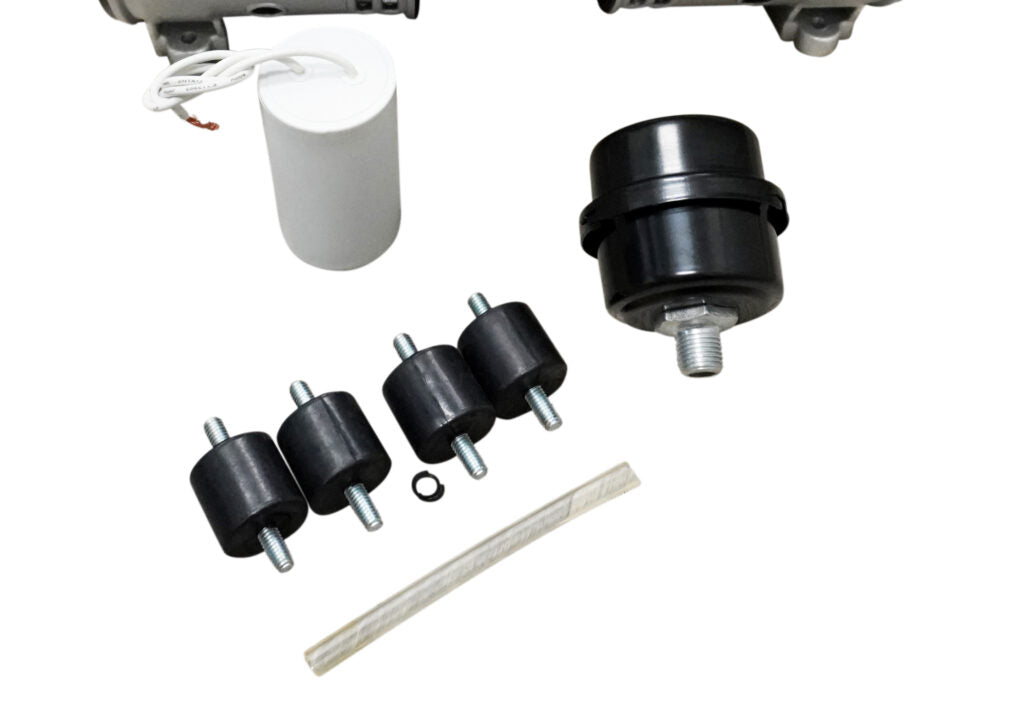

• Includes capacitor, air filter, and four shock struts
• ETL certified

Specifications

Compatible California Air Tools Models

The manufacturer lists the SP-9413 as compatible with the following California Air Tools compressor models:

• CAT-2010A and CAT-2010SP
• CAT-4610, CAT-4610AC, and CAT-4610S
• CAT-4710SQ and CAT-5510SE
• CAT-8010, CAT-8010A, CAT-8010AD, CAT-8010PK, and CAT-8010AAD
• CAT-10010, CAT-10010DC, and CAT-10010DCAD

Verify the exact compressor model and mounting configuration before ordering. Compatibility can vary by model version.

Installation and Safety Note

This product is a replacement motor/pump, not a complete air compressor. The manufacturer requires an appropriately configured unloader or bleeder valve and check valve to release pressure from the pistons and help prevent motor damage. Installation should be performed by someone with suitable electrical and mechanical knowledge.

Maintenance

The manufacturer recommends replacing the air filter every two years, or annually if the compressor operates in a dirty or dusty environment. The pump is designed for more than 3,000 operating hours before repair, according to the manufacturer.
