PRODUCT DESCRIPTION

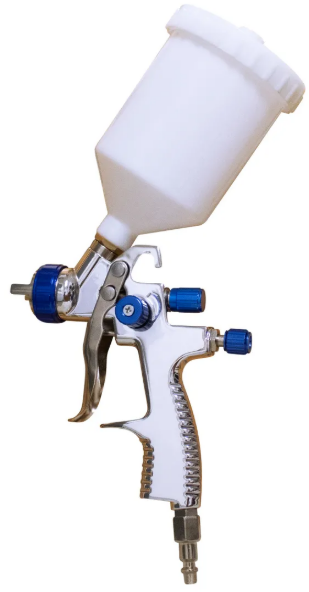

California Air Tools CAT-33000 LVLP Spray Gun with Gravity Feed Cup
The California Air Tools CAT-33000 LVLP (Low Volume Low Pressure) Spray Gun is designed for automotive, industrial, marine, and woodworking applications. Its low-air-consumption design allows it to work with smaller air compressors, making it a practical choice for painting projects where controlled application and reduced overspray are important.
Featuring a lightweight, one-piece aluminum body, a corrosion-resistant stainless steel fluid needle and nozzle, and independently adjustable fluid, fan pattern, and air controls, this spray gun offers greater control over paint application. The included 1.3 mm nozzle is suited to lacquers, enamels, stains, urethanes, and other fast-drying, low-viscosity coatings.

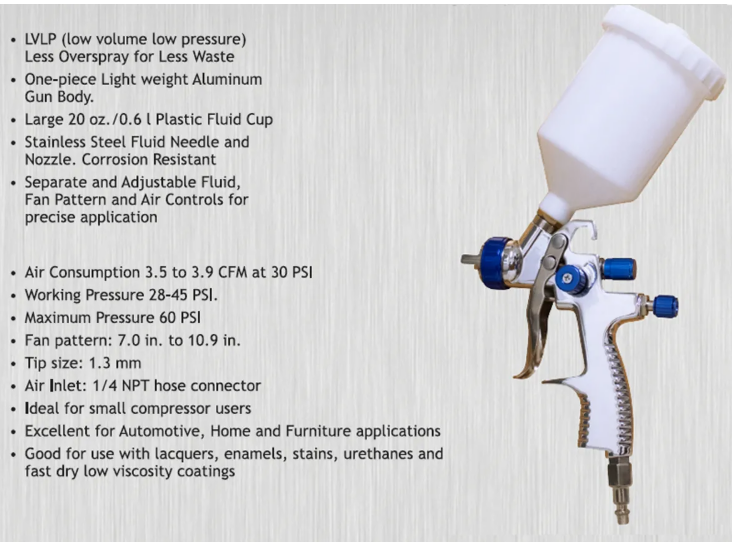

Key Features
- LVLP Technology: Uses lower air volume and pressure to support controlled spraying with compatible smaller air compressors.
- Lightweight Aluminum Body: Designed for comfortable handling during painting tasks.
- Stainless Steel Needle and Nozzle: Provides corrosion resistance for reliable use.
- 1.3 mm Nozzle Included: Suitable for many low-viscosity coatings, including lacquers, enamels, stains, and urethanes.

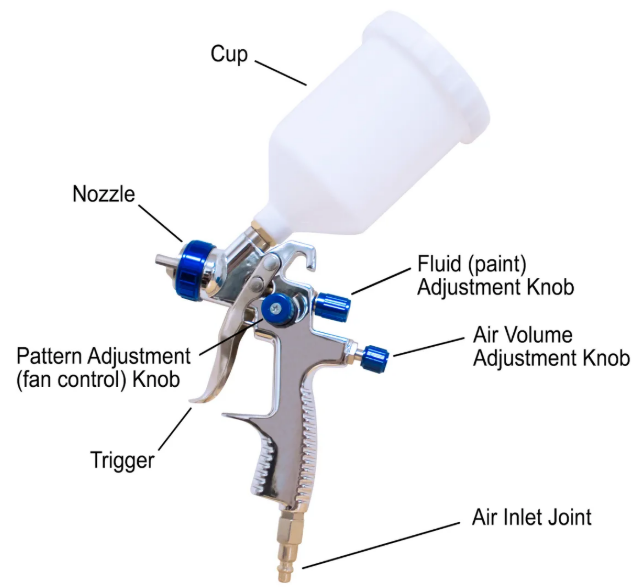

- Adjustable Spray Controls: Separate fluid, fan pattern, and air controls help fine-tune application.
- 20 oz Gravity-Feed Cup: Includes a 600 cc fluid cup with an M16 × 1.5 thread.
- Reduced Overspray: Helps improve paint application efficiency and reduce wasted material.
- Versatile Applications: Suitable for automotive, industrial, marine, and woodworking projects.
Specifications
| Brand | California Air Tools |
| Model | CAT-33000 |
| Product Type | LVLP gravity-feed spray gun |
| Spray Technology | Low Volume Low Pressure (LVLP) |
| Gun Body Material | Aluminum |
| Fluid Needle and Nozzle | Stainless steel |
| Included Nozzle Diameter | 1.3 mm |
| Fluid Cup Capacity | 20 oz / 600 cc / 0.6 L |
| Fluid Cup Thread | M16 × 1.5 |
| Air Inlet | 1/4 inch |
| Maximum Air Consumption | 3.5–3.9 CFM at 30 PSI |
| Working Pressure | 28–45 PSI |
| Maximum Pressure | 60 PSI |
| Spray Pattern Width | 7–10.9 inches |
| Optional Nozzle Sizes | 1.5–2.0 mm |
| Product Weight | 19 oz |
| Shipping Weight | 1 lb |
| Dimensions | 6 × 4 × 13 inches |
| Warranty | 1-year limited manufacturer warranty |
| Manufacturer SKU | CAT-33000 |
Performance and Application Notes
The CAT-33000 is best suited to low-viscosity coatings when used with the included 1.3 mm nozzle. For heavier coatings such as latex, satin paint, and primers, the manufacturer recommends the CAT-33000K kit with larger nozzle options and a 2 HP air compressor. Actual spraying performance depends on the coating, nozzle selection, air supply, and operating pressure.
