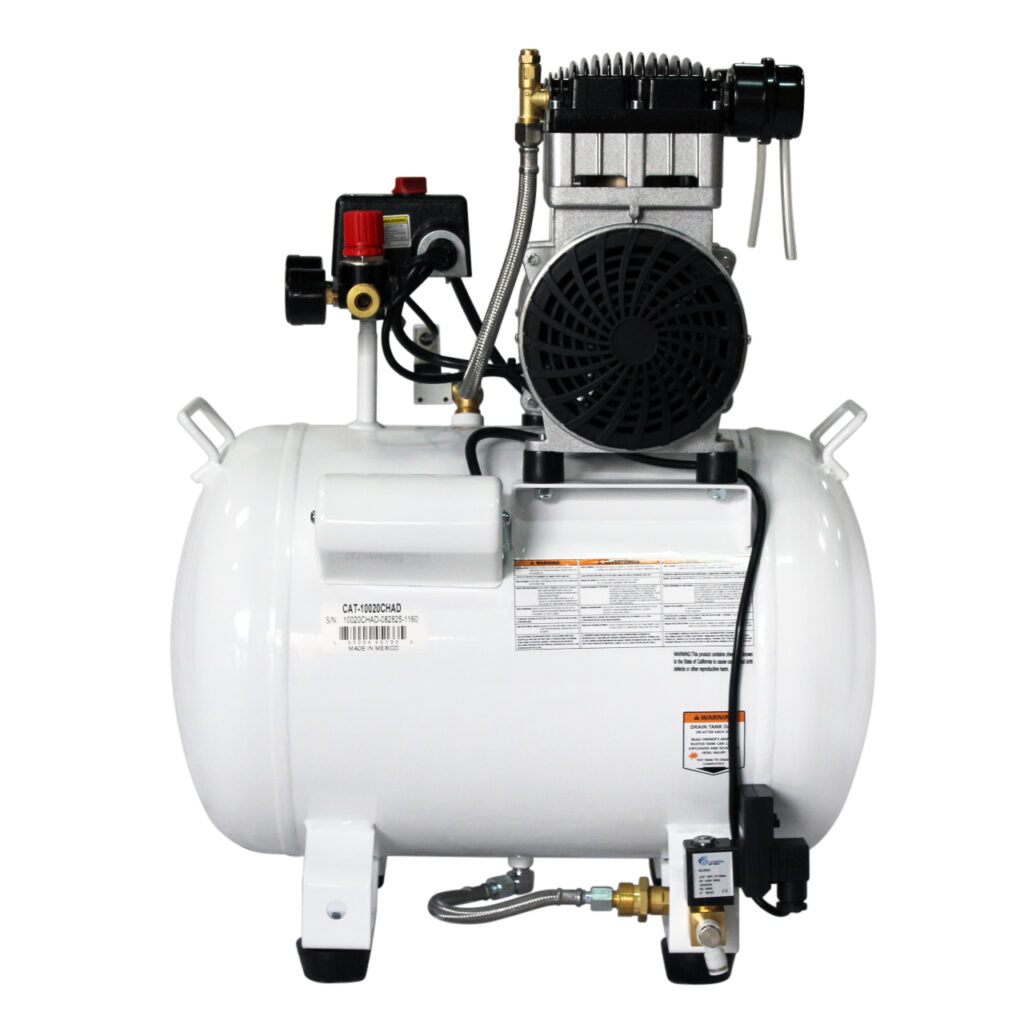

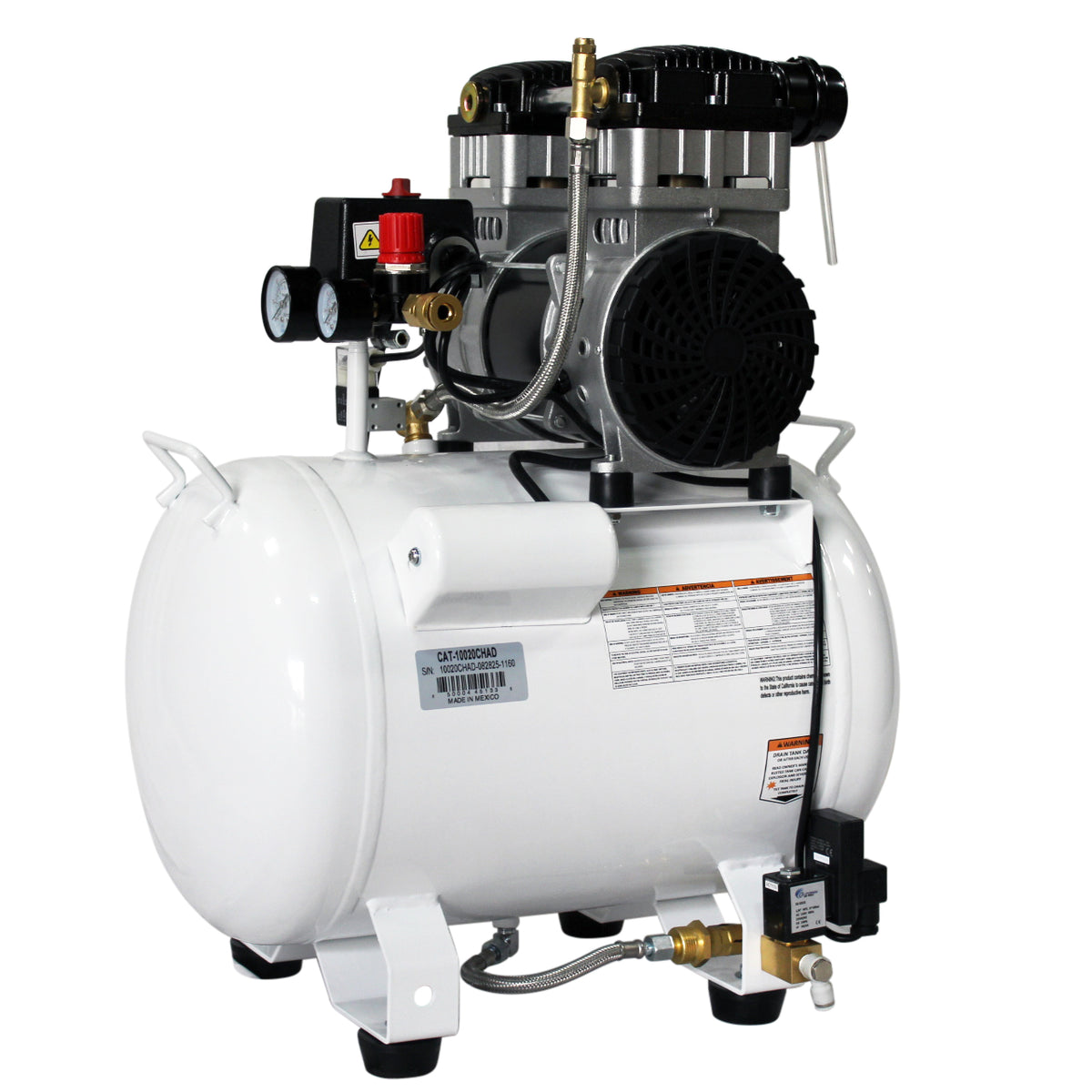

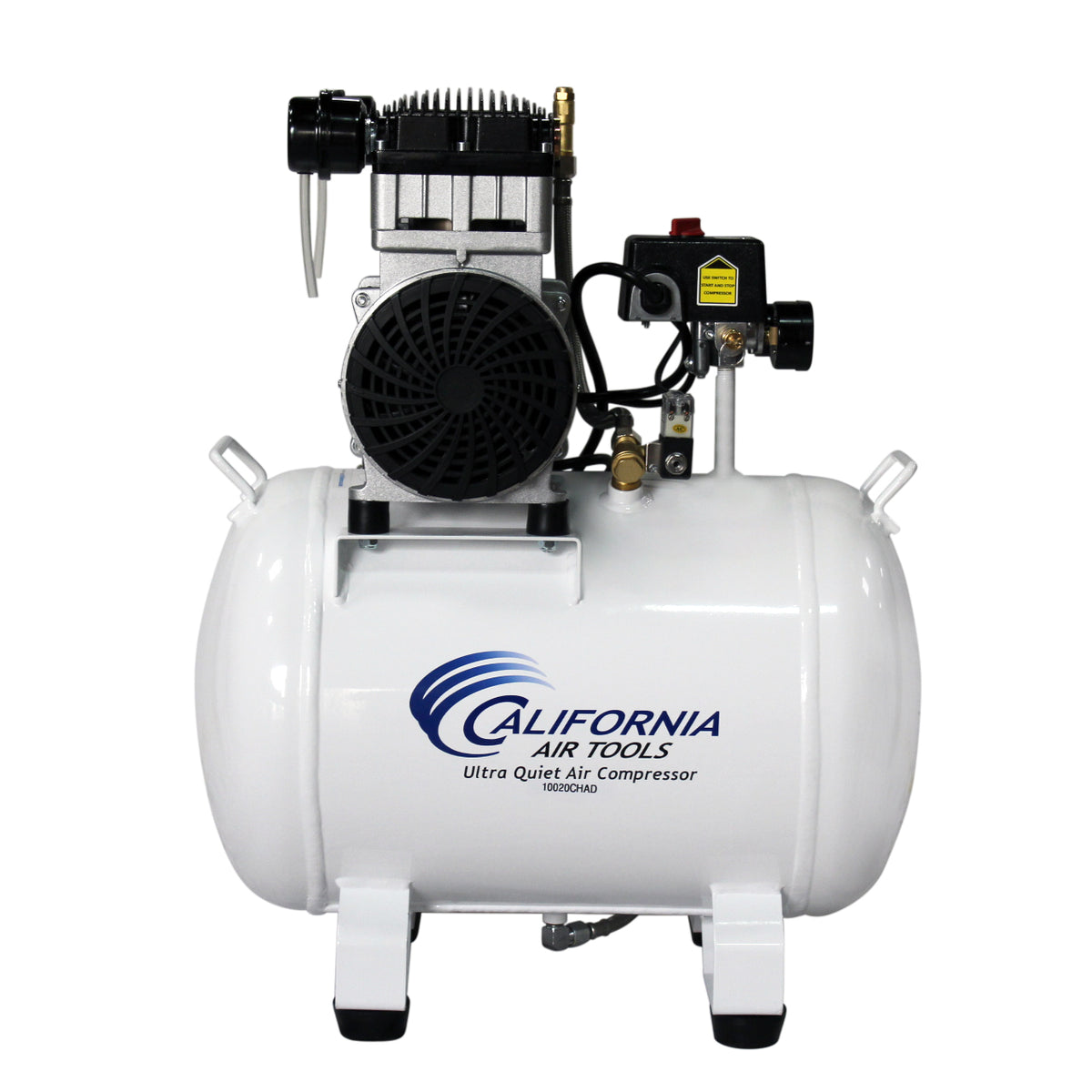

California Air Tools 10020CHAD Ultra Quiet 2.0 HP Oil-Free 10-Gallon Air Compressor with Automatic Drain Valve

Product Description

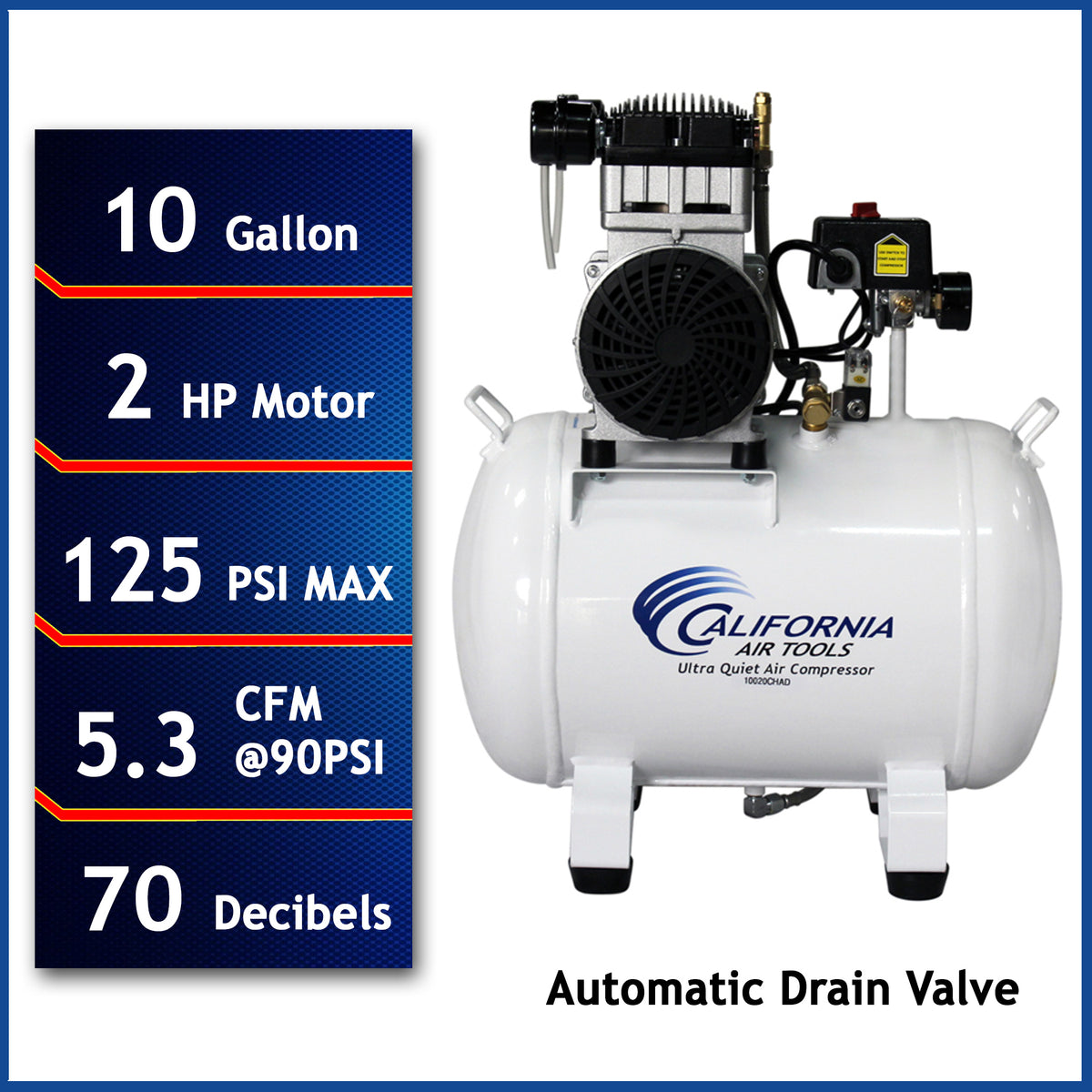

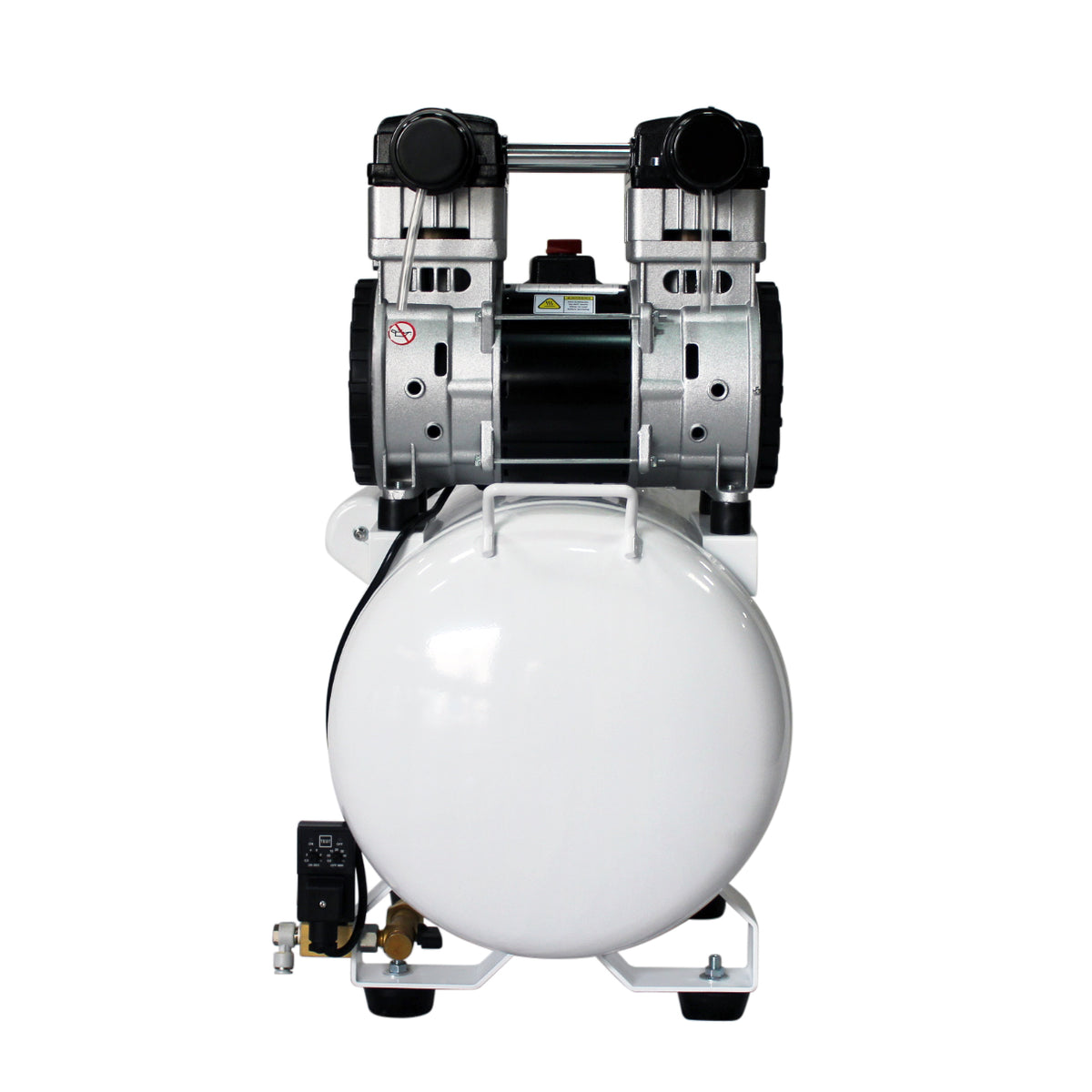

The California Air Tools 10020CHAD is a 2.0 HP ultra-quiet, oil-free air compressor featuring a low-profile 10-gallon horizontal steel tank and a factory-installed EZ-1 automatic drain valve. It operates at 70 dB and delivers 6.40 CFM at 40 PSI and 5.30 CFM at 90 PSI.

The oil-free dual-piston pump is designed for high performance and durability, with a stated life cycle of more than 3,000 hours before wear. The 1,680 RPM motor and Easy Start Valve are designed to reduce noise, wear, and starting amperage.

The horizontal tank's low-profile design makes it suitable for placement under a workbench, desk, or shelf. The automatic drain valve uses an adjustable timer to control the frequency and duration of tank drainage, reducing the need for manual draining.

Key Features

• 2.0 HP rated/running motor
• Ultra-quiet 70 dB operation
• Oil-free dual-piston pump
• 10-gallon horizontal steel tank
• Low-profile design for under-bench or under-shelf placement
• 6.40 CFM at 40 PSI
• 5.30 CFM at 90 PSI
• 130 PSI maximum pressure
• 100–130 PSI working pressure
• 1,680 RPM motor
• Factory-installed EZ-1 automatic drain valve
• Adjustable automatic drain frequency and duration

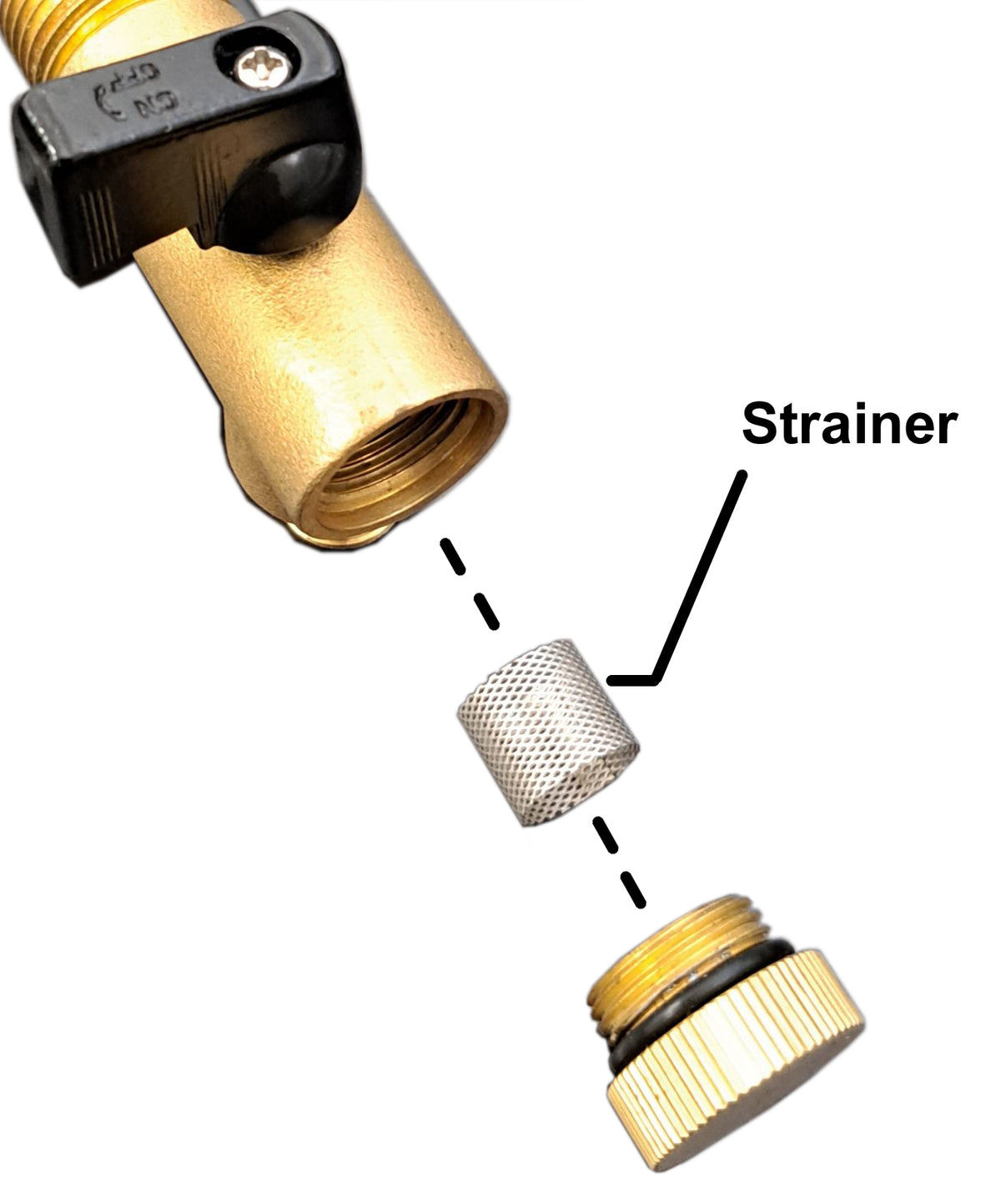

• Manual drain with strainer for easier drain maintenance

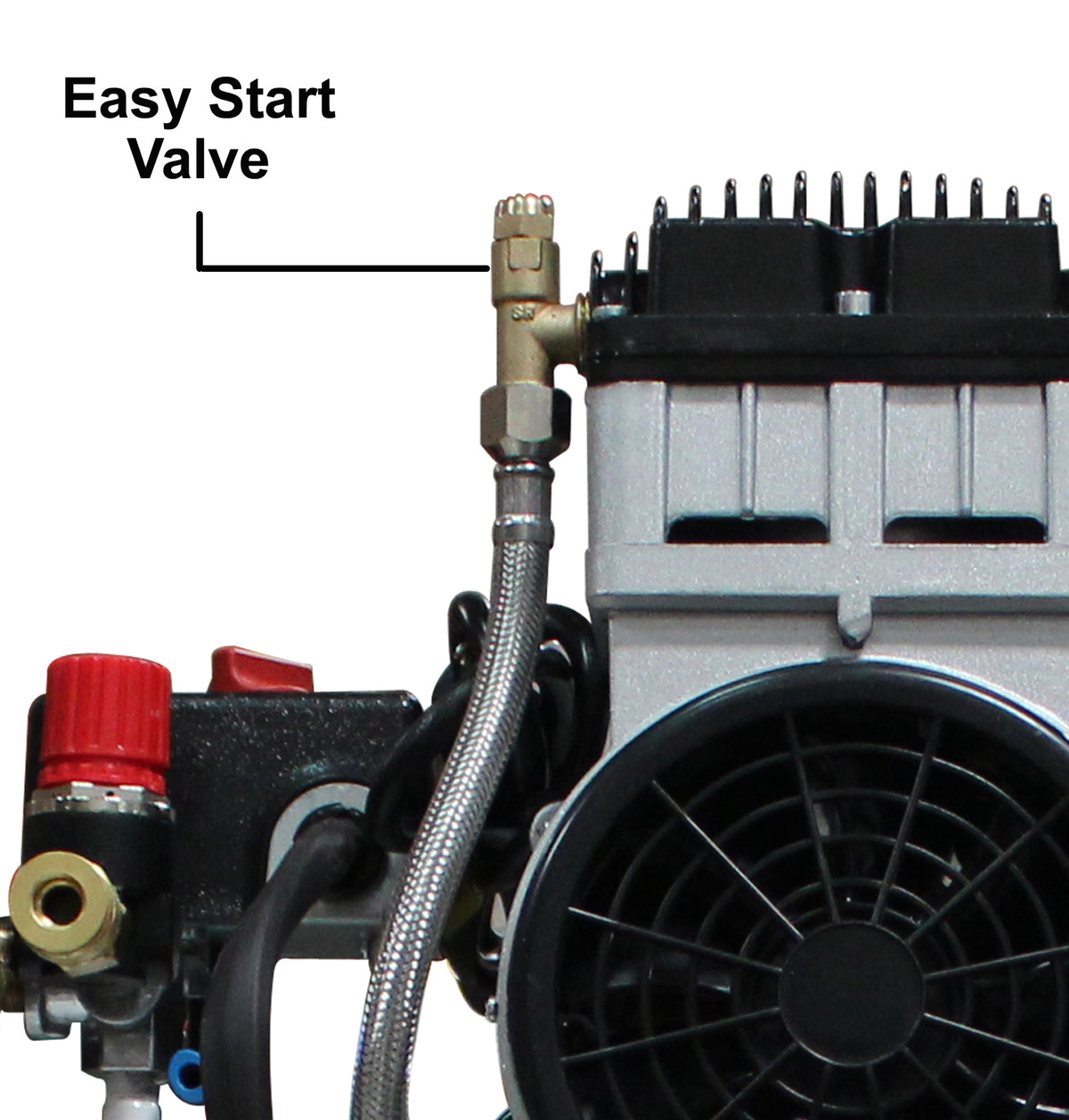

• Easy Start Valve for reduced starting amperage
• Two pressure control gauges
• Industrial push-to-connect quick connector
• Thermal overload protection
• 110V / 60 Hz operation
• 14-amp draw
• 70/30 duty cycle
• Two air filters
• Non-ASME air tank

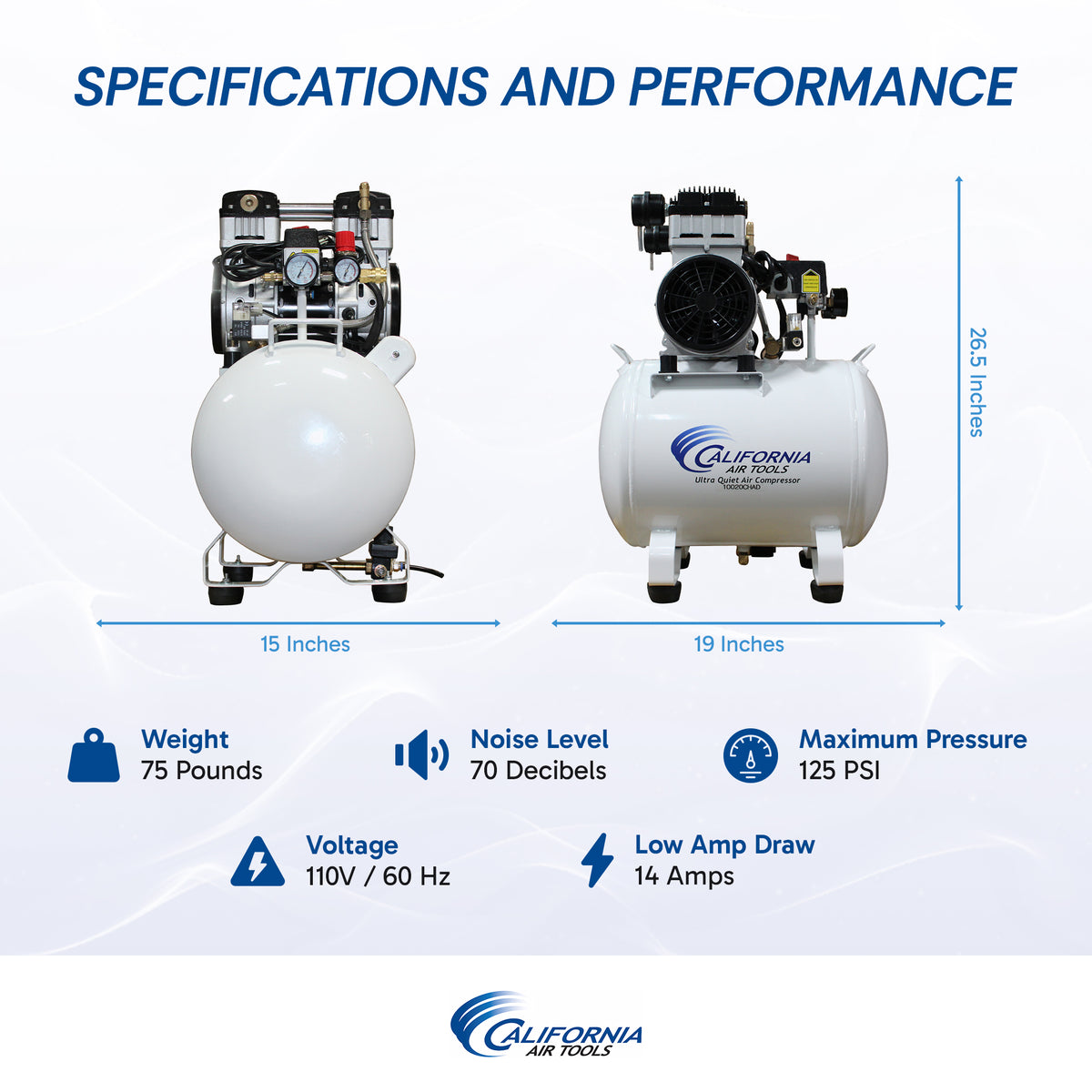

Specifications

What's Included

• California Air Tools 10020CHAD air compressor
• 10-gallon horizontal steel air tank
• Factory-installed EZ-1 automatic drain valve
• Manual drain with strainer
• Two air filters

Applications

The 10020CHAD is suitable for:

• General workshop use
• Garages
• Pneumatic tools
• General tire inflation
• General use and laser cutting
• Tabletop CNC applications
• CNC and heat press applications
• Lathe applications
• Applications requiring a low-profile compressor
• Locations where regular manual tank draining is difficult

California Air Tools specifically lists the 10020CHAD for general use/laser cutting and tabletop CNC applications.

Maintenance

The oil-free pump eliminates the need for routine pump oil changes.

California Air Tools specifies replacing the 2 HP air filters every two years, or annually when the compressor is exposed to dirty or dusty conditions. The specified replacement filter is Part 90260.

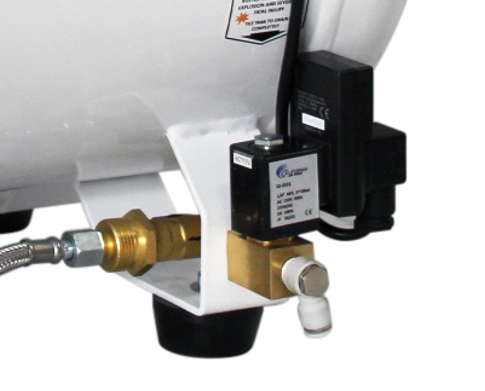

The factory-installed EZ-1 automatic drain valve is designed to remove accumulated water from the tank automatically. Its timer can be adjusted for the required drainage frequency and duration. The integrated manual drain with strainer allows easier cleaning and maintenance of the drain system.
