California Air Tools 10020C Ultra Quiet 2.0 HP Oil-Free 10-Gallon Air Compressor
California Air Tools 10020C Ultra Quiet 2.0 HP Oil-Free 10-Gallon Air Compressor
- Regular price
- Price: $435.00
- Regular price
- List Price:
- Sale price
- Price: $435.00
- Unit price
- per
Couldn't load pickup availability
12 in stock
PRODUCT DESCRIPTION
Product Description

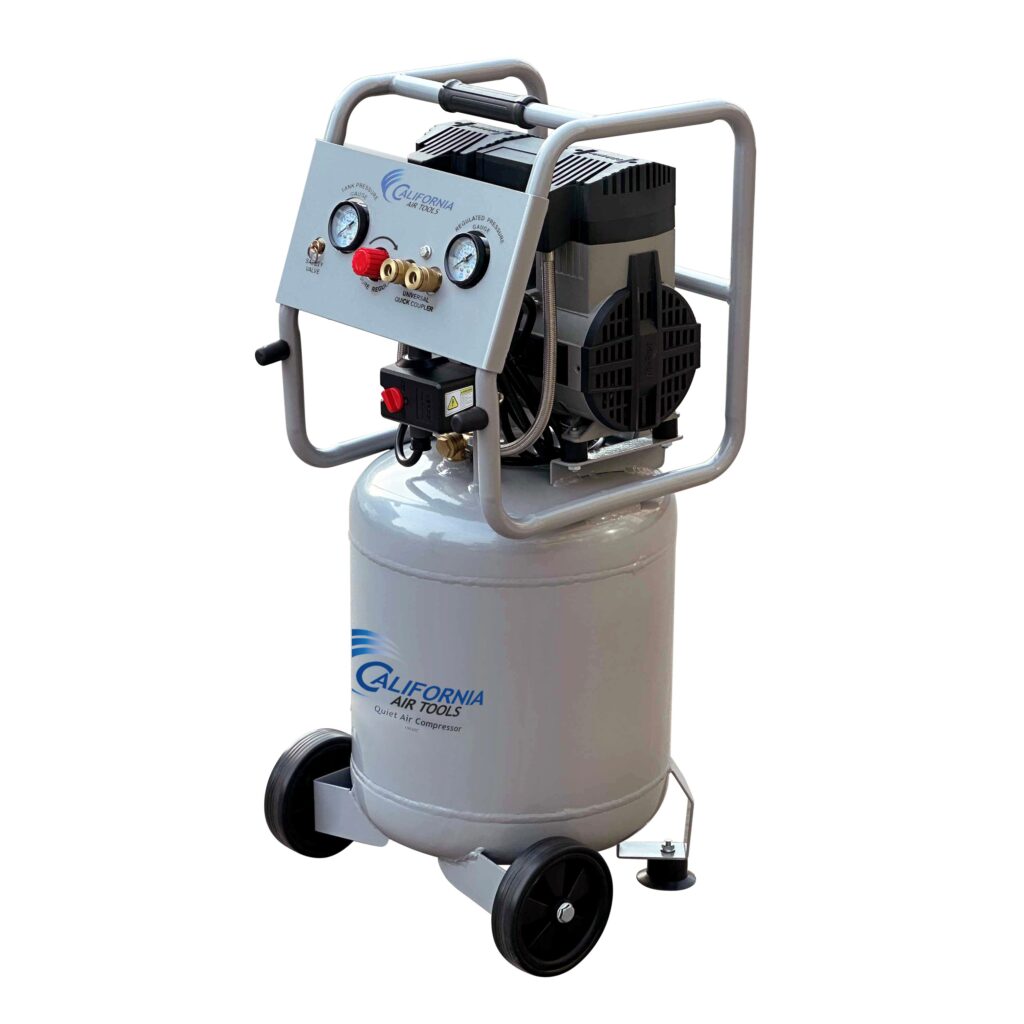

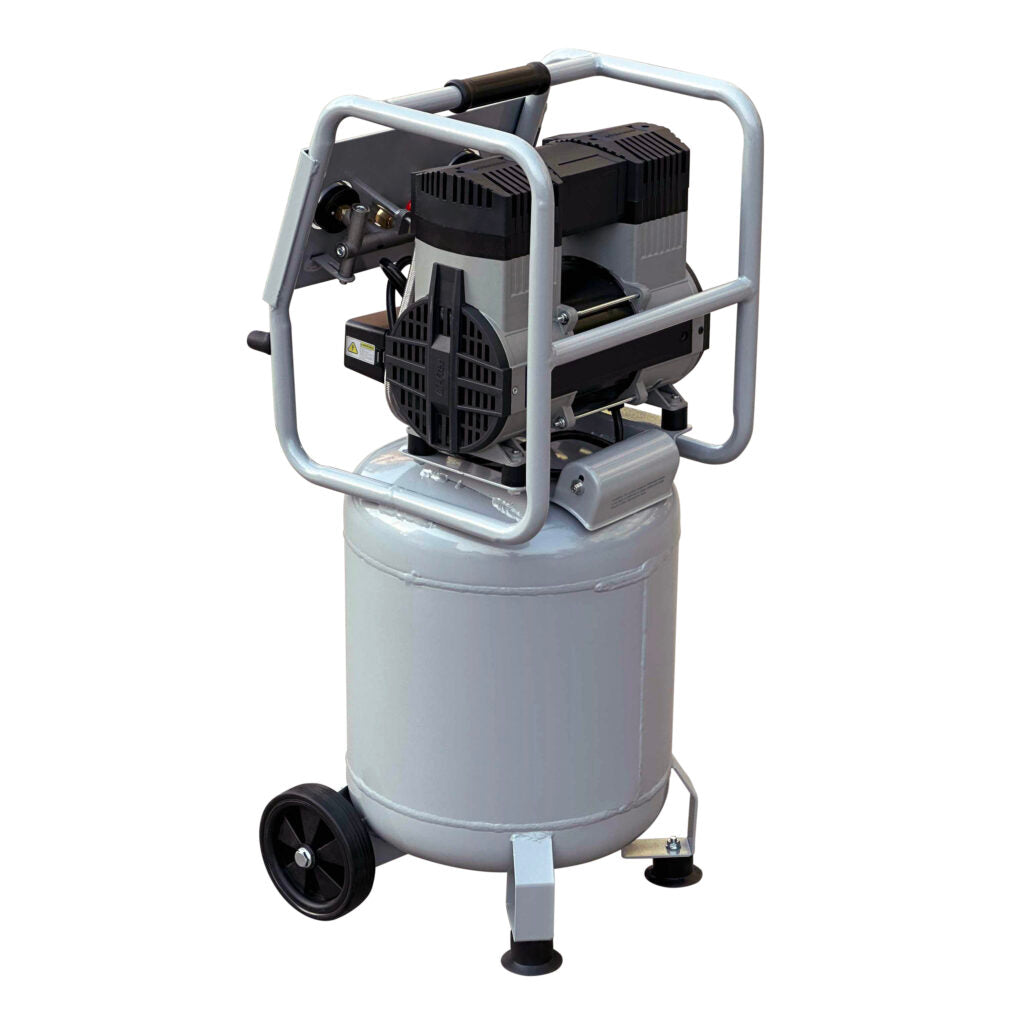

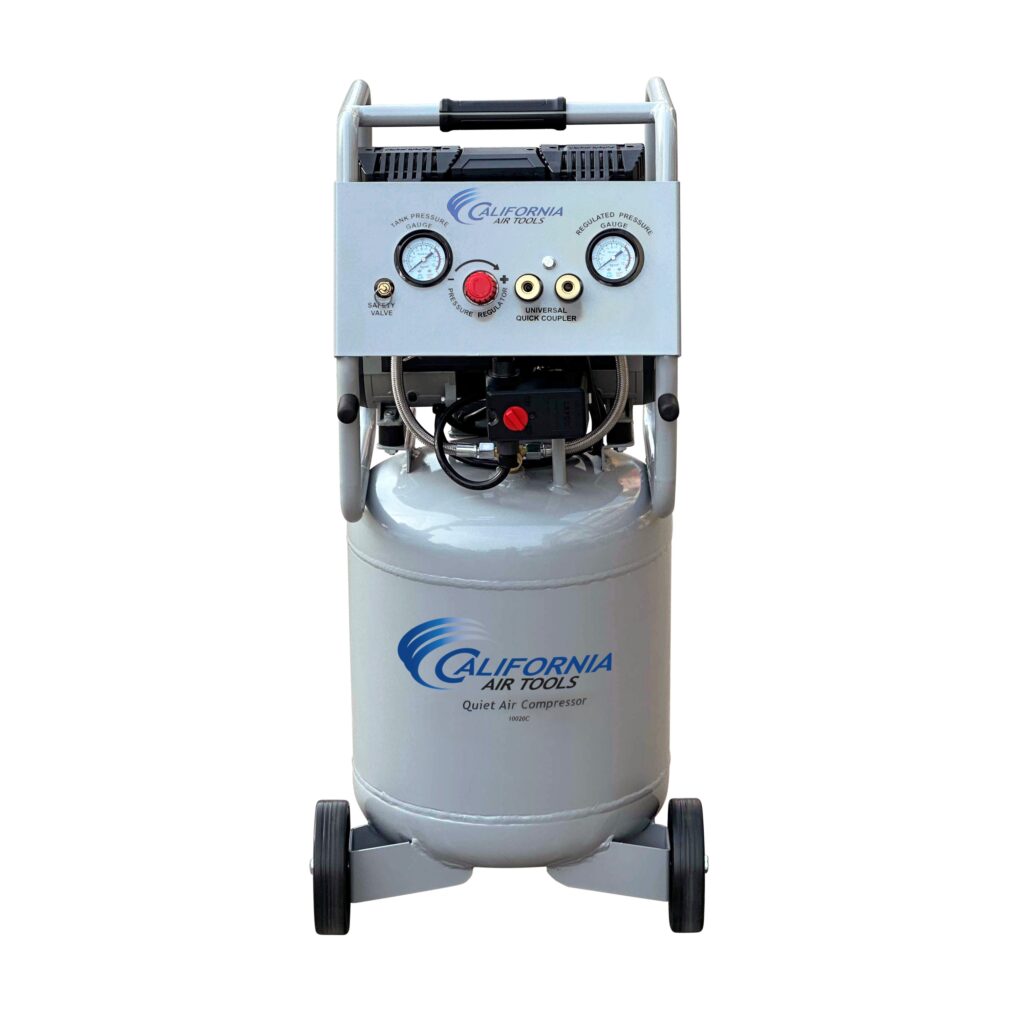

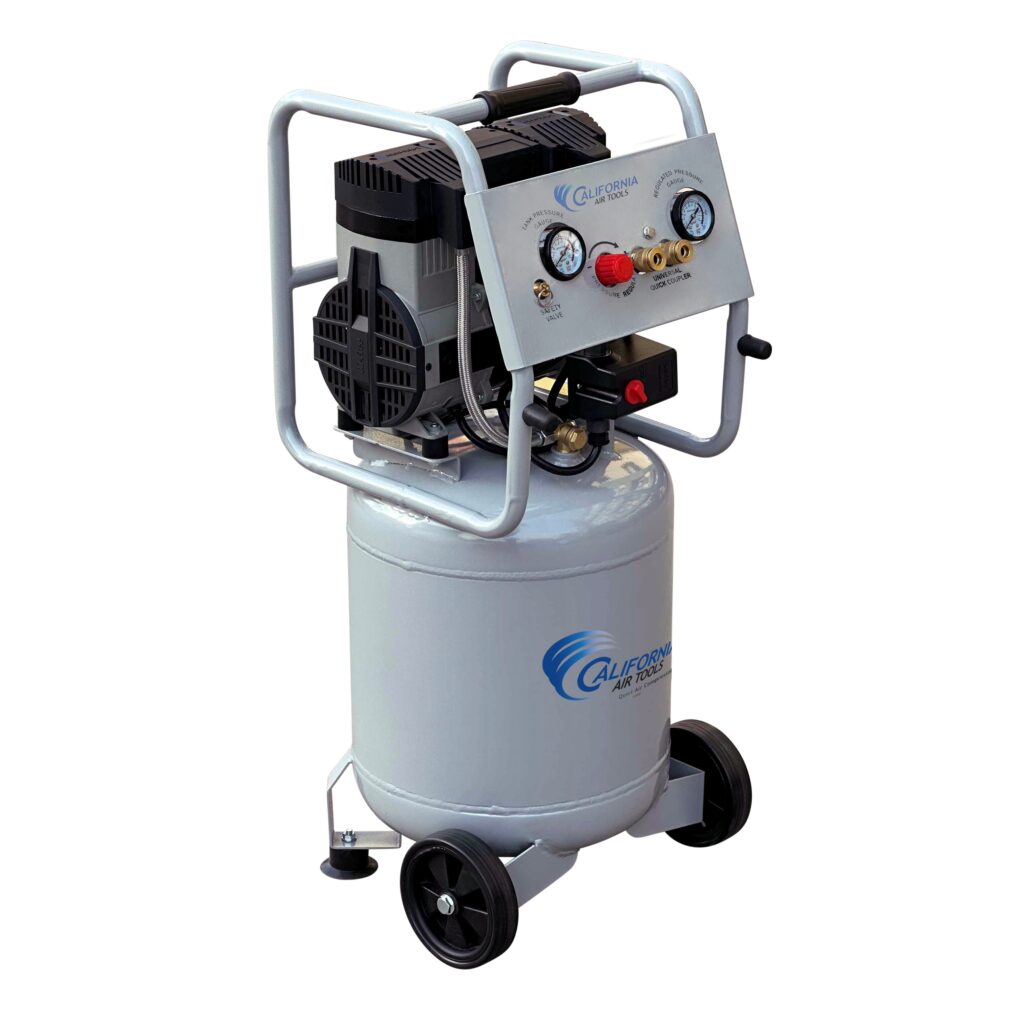

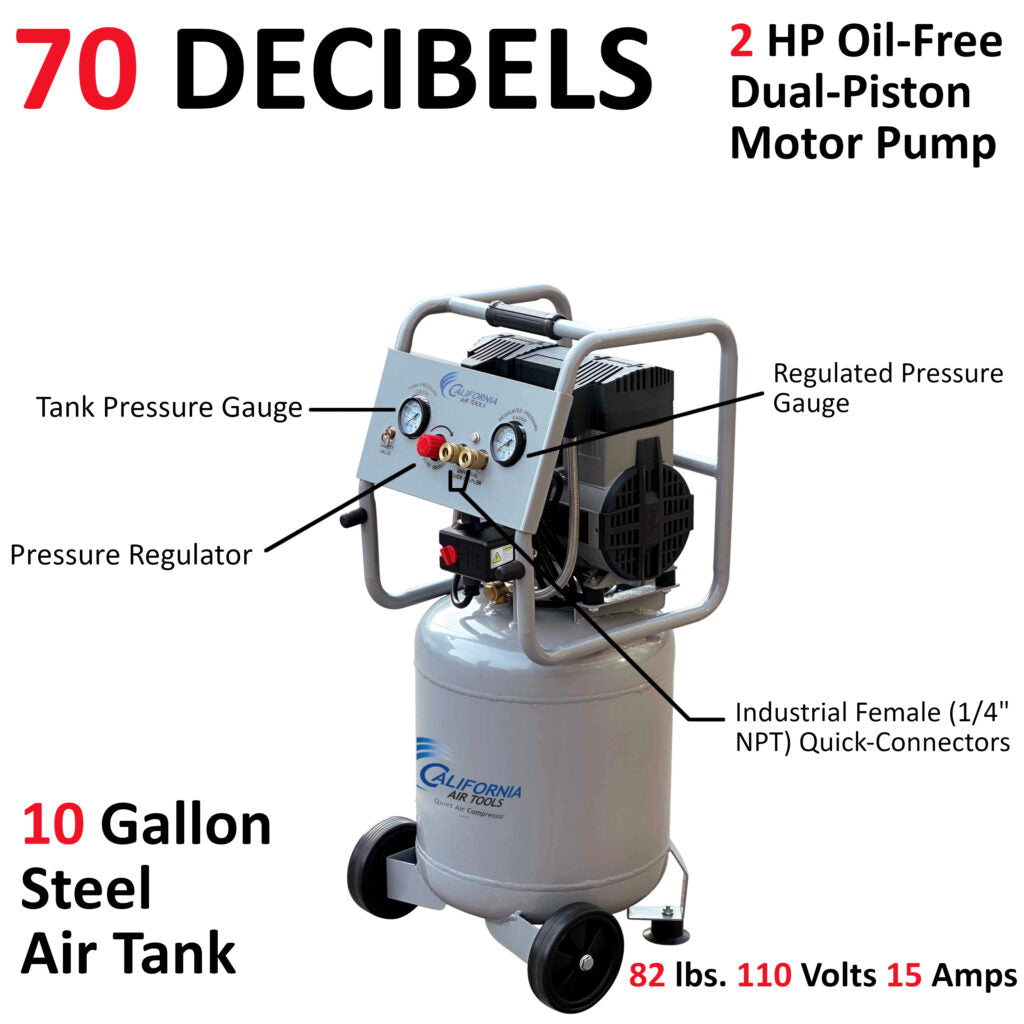

The California Air Tools 10020C is a powerful 2.0 HP ultra-quiet, oil-free air compressor with a 10-gallon steel tank. It delivers 6.40 CFM at 40 PSI and 5.30 CFM at 90 PSI, while operating at approximately 70 dB.
The SP-9421 motor operates at 1,680 RPM to reduce noise, vibration, and wear. Its oil-free dual-piston pump is designed for a life cycle of more than 3,000 hours before wear. The Easy Start Valve also reduces starting amperage by creating a no-load condition during startup.
The 10-gallon steel tank is equipped with a wheel kit for easier movement around a garage, workshop, jobsite, or shop. California Air Tools positions the 10020C for applications including framing, roofing, flooring, stapling, nailing, general tire inflation, autobody work, and general use/laser cutting.

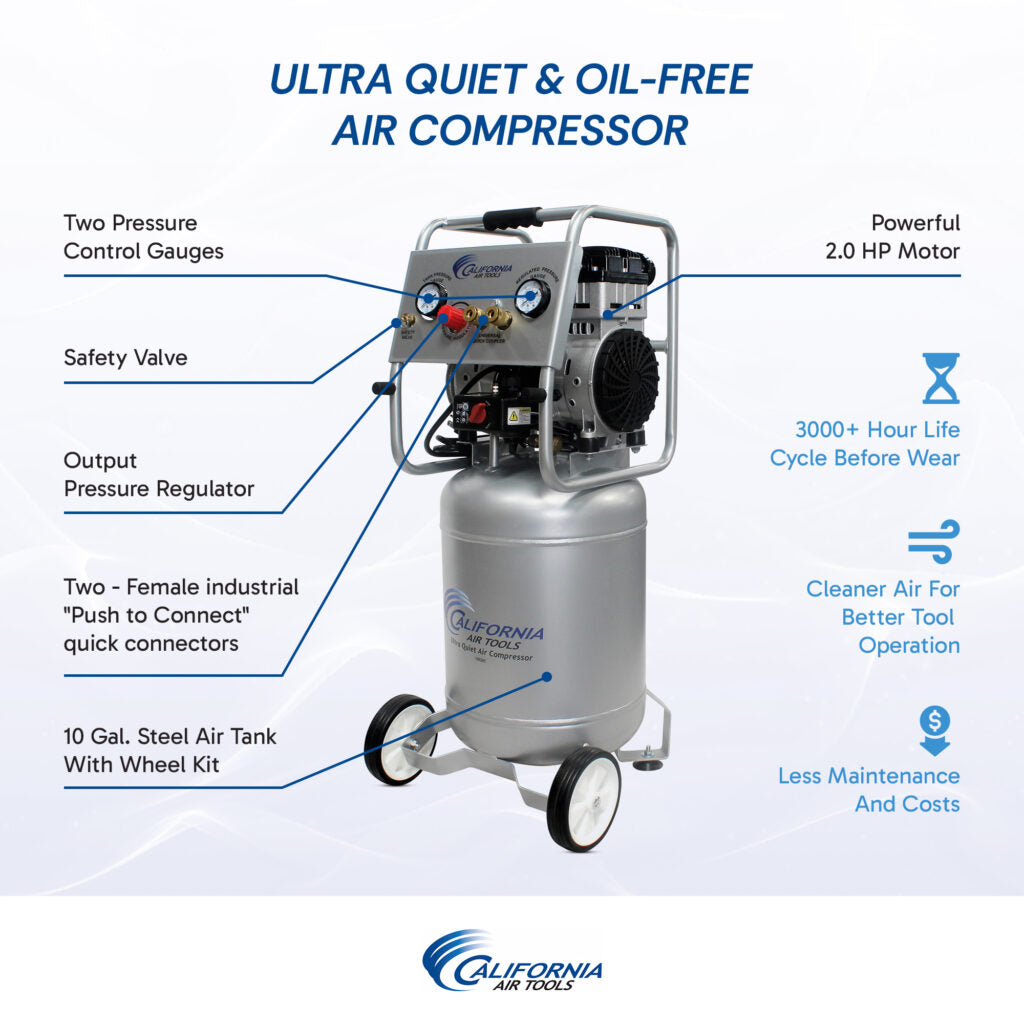

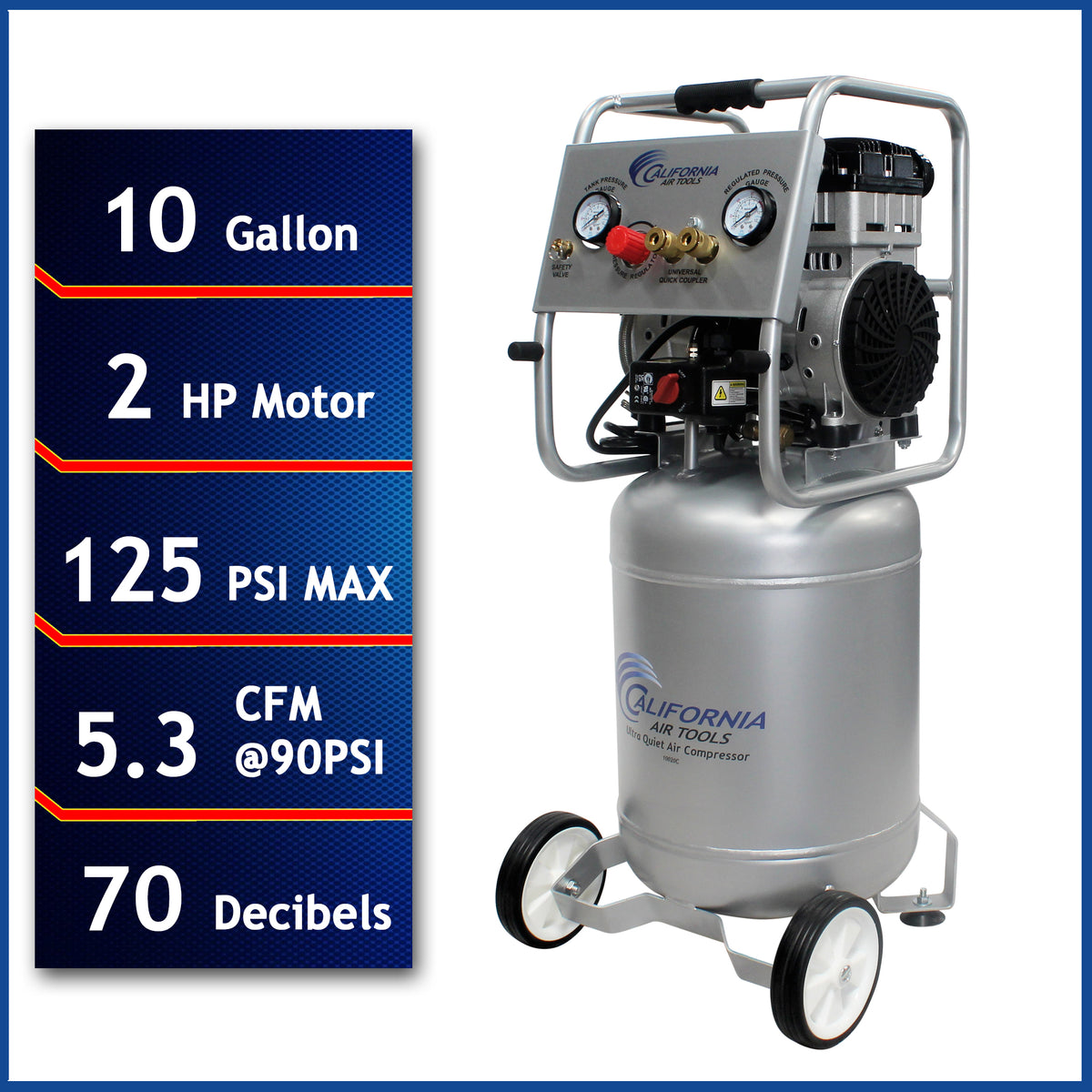

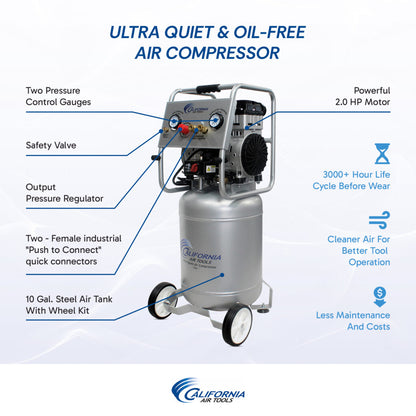

Key Features
- 2.0 HP rated/running motor
- Ultra-quiet 70 dB operation
- Oil-free dual-piston pump
- 10-gallon steel air tank
- 6.40 CFM at 40 PSI
- 5.30 CFM at 90 PSI
- 125 PSI maximum pressure
- SP-9421 motor operating at 1,680 RPM
- Easy Start Valve for reduced starting amperage

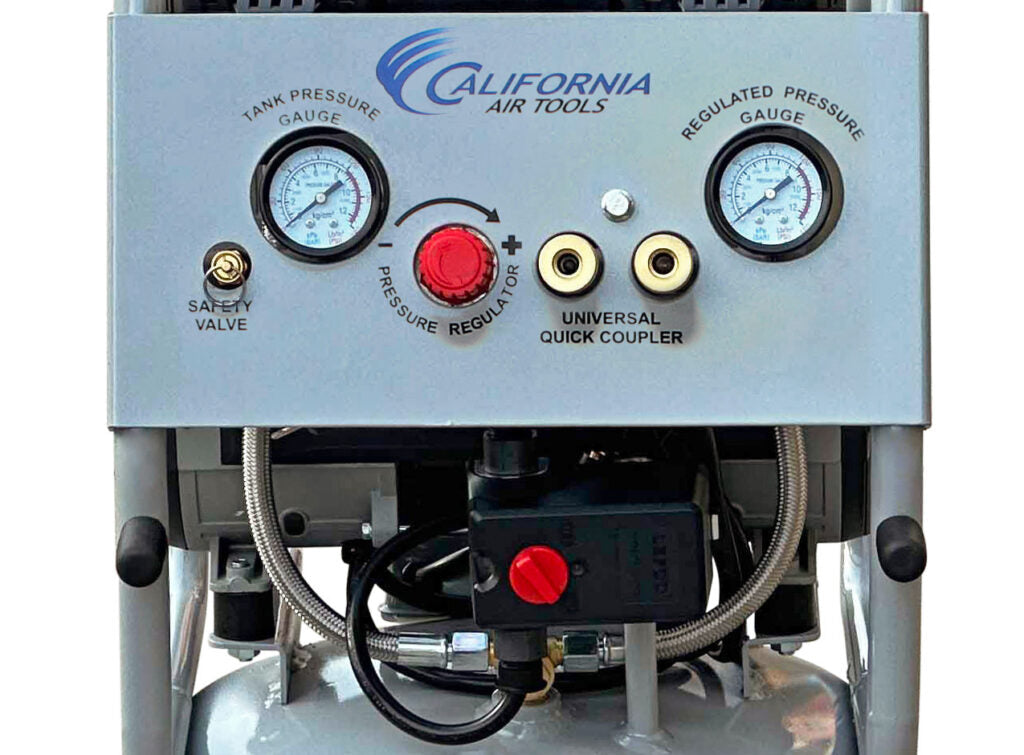

- Two pressure control gauges

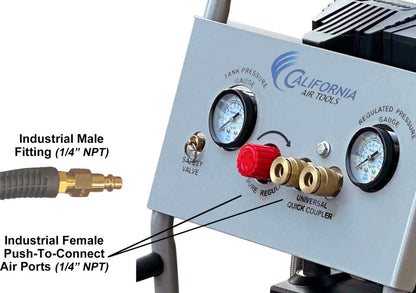

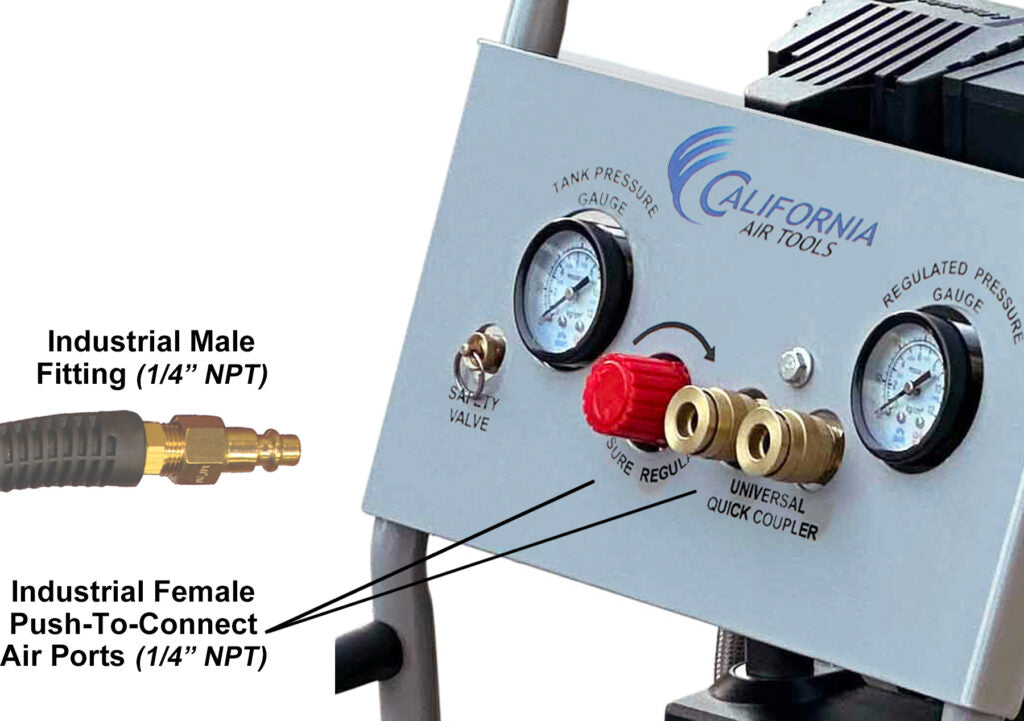

- Two female industrial push-to-connect quick connectors
- Condor pressure switch
- Thermal overload protection
- 110V / 60 Hz operation
- 14-amp draw
- Dedicated 15-amp outlet recommended
- 25-foot, 14-gauge power cord
- 5,500-watt minimum generator requirement
- 70/30 duty cycle
- Wheel kit for portability
- UL certified
- Non-ASME air tank
- 1-year limited warranty
Specifications
| Specification | Details |
|---|---|
| Model | 10020C |
| SKU | 10020C-3 |
| Rated/Running HP | 2.0 HP |
| Pump Type | Oil-Free Dual Piston |
| Motor | SP-9421 |
| Motor Speed | 1,680 RPM |
| Tank Capacity | 10 Gallons |
| Tank Material | Steel |
| Air Delivery @ 40 PSI | 6.40 CFM |
| Air Delivery @ 90 PSI | 5.30 CFM |
| Maximum Pressure | 125 PSI |
| Noise Level | 70 dB |
| Voltage | 110V |
| Frequency | 60 Hz |
| Amp Draw | 14 Amps |
| Power Cord | 25 ft, 14 Gauge |
| Minimum Generator | 5,500 Watts |
| Tank Fill Time | 120 seconds |
| Recovery Time, 95–125 PSI | 25 seconds |
| Duty Cycle | 70/30 |

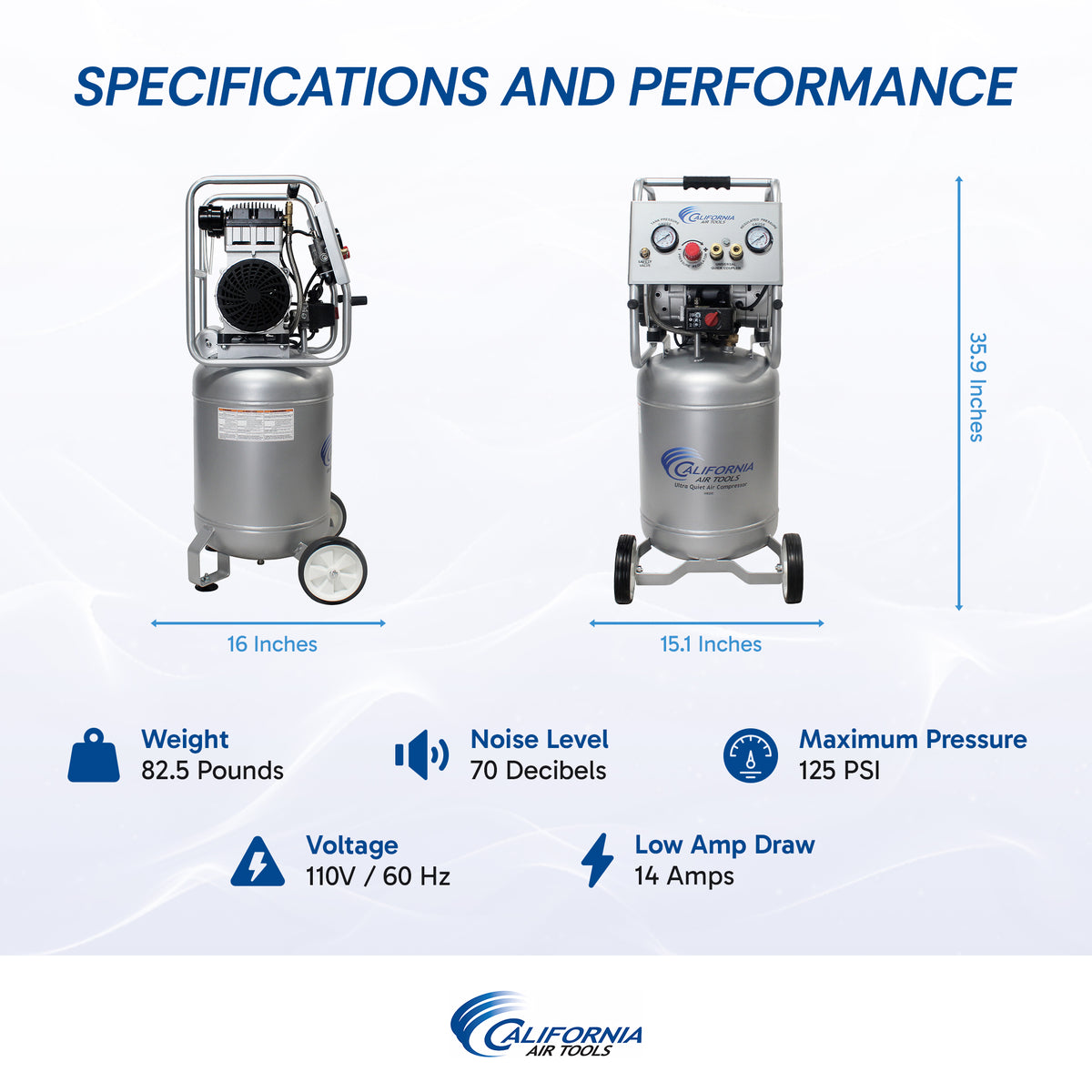

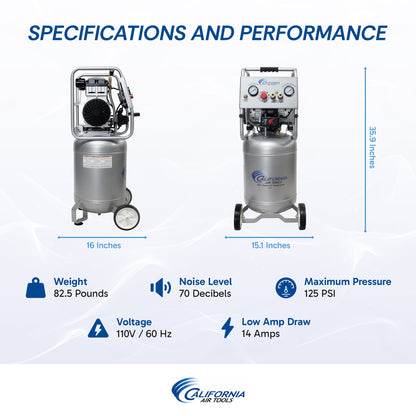

| Dimensions | 16 × 15.1 × 36 in |
| Weight | 82.5 lbs |
| Tank Type | Non-ASME |
| Certification | UL |
| Warranty | 1-Year Limited Warranty |
What's Included
- California Air Tools 10020C air compressor
- 10-gallon steel air tank
- Wheel kit
- Two air filters
- 25-foot, 14-gauge power cord
Applications
The 10020C is suitable for:
- Framing
- Roofing
- Flooring
- Stapling
- Nailing
- General construction
- General tire inflation
- Auto body and restoration work
- Workshops and garages
- General use
- Laser cutting applications
- Pneumatic tools requiring up to 5.3 CFM at 90 PSI
California Air Tools specifically recommends the 10020C for framing, roofing, flooring, stapling/nailing, general tire inflation, autobody restoration, and general use/laser cutting.
Maintenance
The 10020C uses an oil-free dual-piston pump, eliminating the need for routine pump oil changes.
California Air Tools specifies replacing the 2 HP air filters every two years, or every year if the compressor is exposed to a dirty or dusty environment. The specified replacement filter is Part 90260.
The compressor should be operated within its specified 70/30 duty cycle and pressure limits. Optional accessories listed by CAT include an air hose and tool kit, moisture/oil separator, refrigerated air dryer, and automatic drain valve extension kit; these are not included with the standard 10020C.
