California Air Tools 10020CHAD-22060 Ultra Quiet 2.0 HP Oil-Free 10-Gallon Air Compressor with Automatic Drain Valve – 220V

Product Description

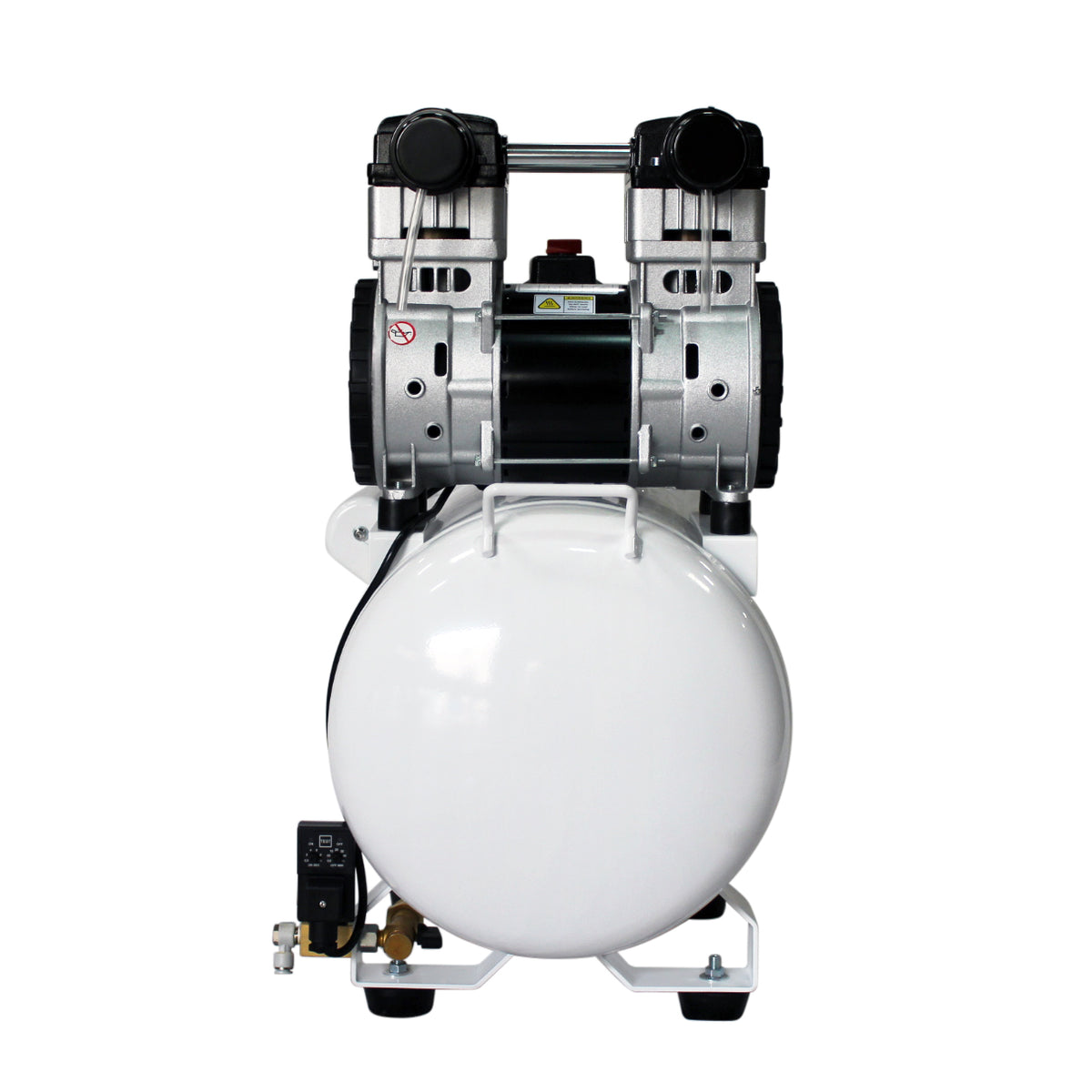

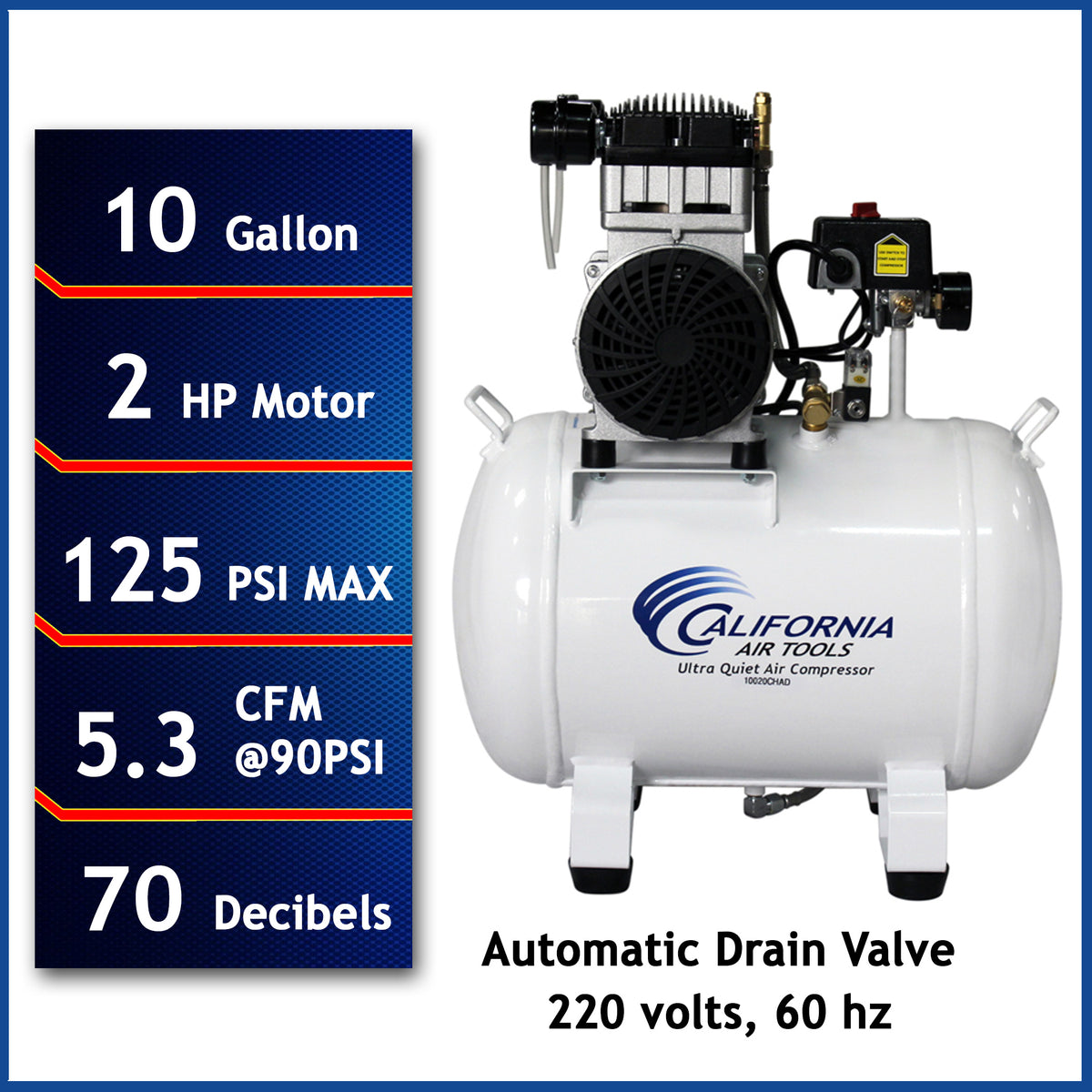

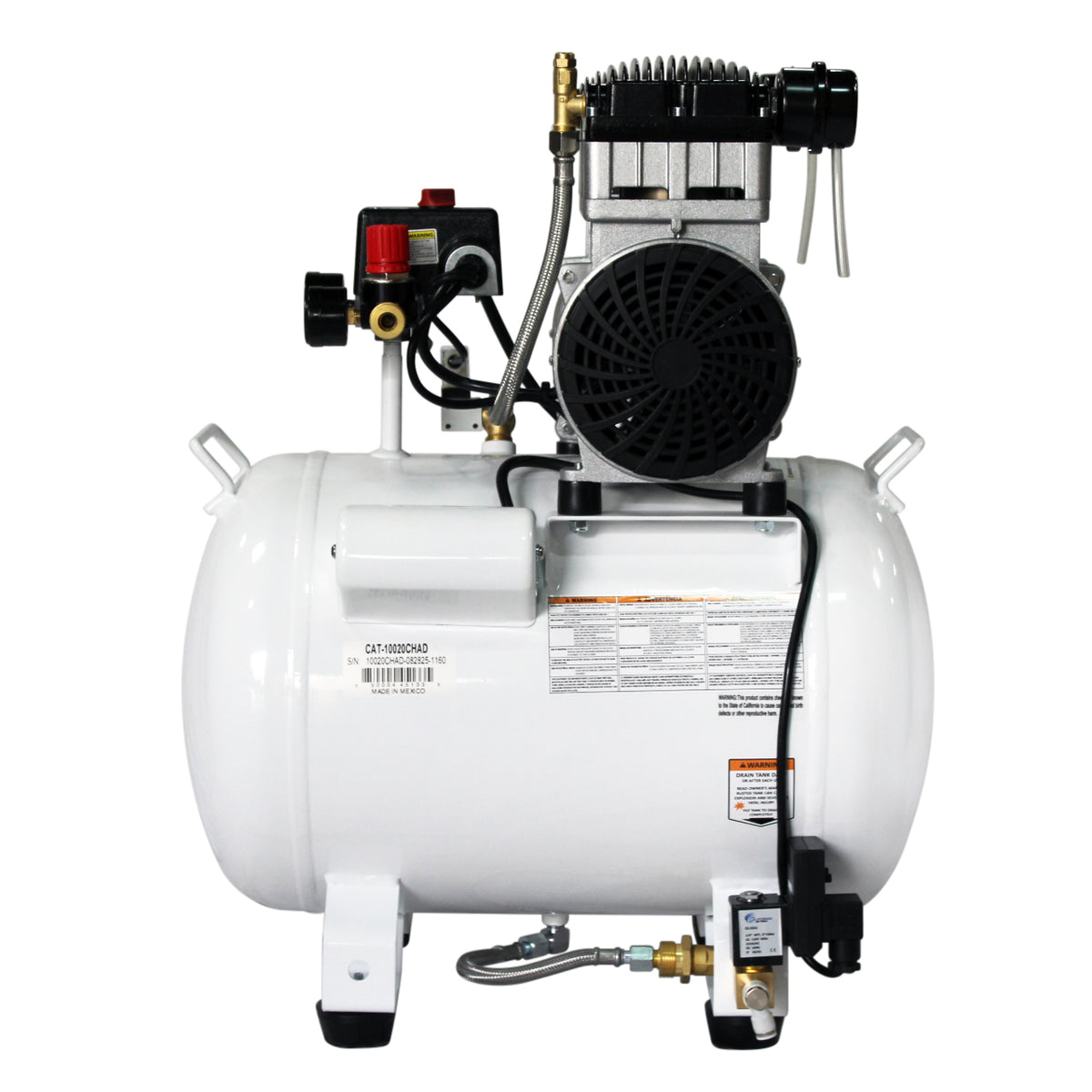

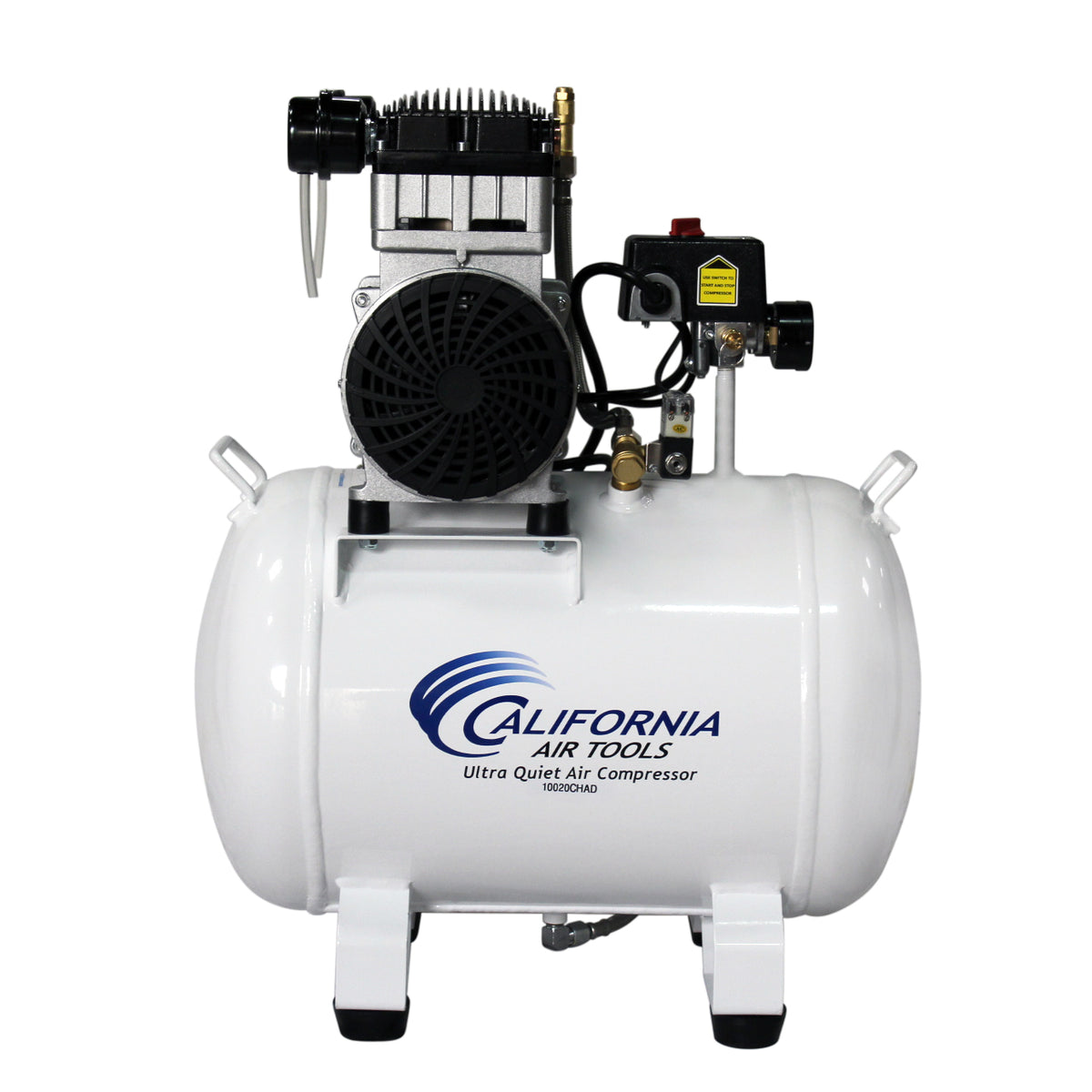

The California Air Tools 10020CHAD-22060 is a 2.0 HP ultra-quiet, oil-free air compressor with a 10-gallon horizontal steel tank and factory-installed EZ-1 automatic drain valve. Designed for 220V, 60 Hz, single-phase power, it delivers 6.40 CFM at 40 PSI and 5.30 CFM at 90 PSI while operating at approximately 70 dB.

The oil-free dual-piston pump is designed for a service life of more than 3,000 hours before wear. Its low-profile horizontal tank can be positioned under a bench, desk, or shelf, while the automatic drain valve helps remove accumulated water without requiring frequent manual draining.

Key Features

• 2.0 HP rated/running motor
• 220V / 60 Hz / single-phase operation
• Ultra-quiet 70 dB operation
• Oil-free dual-piston pump
• 10-gallon horizontal steel tank
• 6.40 CFM at 40 PSI
• 5.30 CFM at 90 PSI
• 130 PSI maximum pressure
• 100–130 PSI working pressure
• Factory-installed EZ-1 automatic drain valve
• Adjustable automatic drain frequency and duration
• Manual drain with strainer for easier cleaning

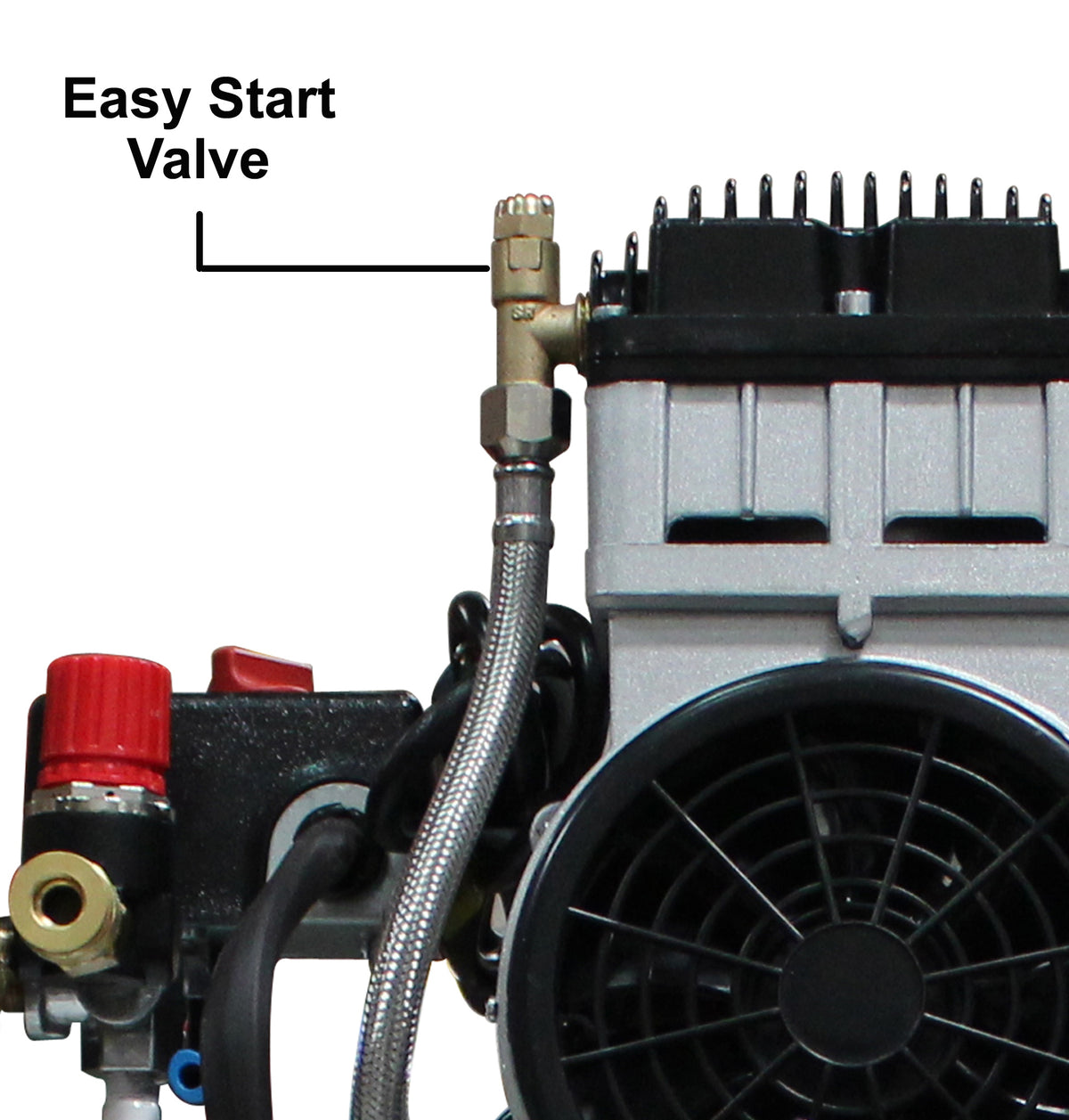

• Easy Start Valve for reduced starting amperage
• Two pressure control gauges
• Industrial push-to-connect quick connector
• Thermal overload protection
• 70/30 duty cycle
• Low-profile design
• 7.0-amp draw
• NEMA 6-15P plug
• Non-ASME air tank
• Two air filters

Specifications

What's Included

• California Air Tools 10020CHAD-22060 air compressor
• 10-gallon horizontal steel air tank
• Factory-installed EZ-1 automatic drain valve
• Manual drain with strainer
• Two air filters
• NEMA 6-15P power plug

Applications

The 10020CHAD-22060 is suitable for:

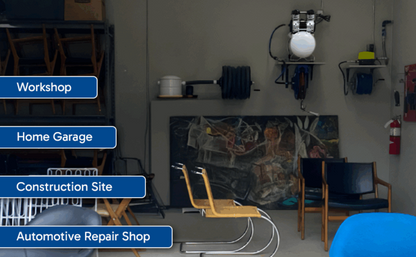

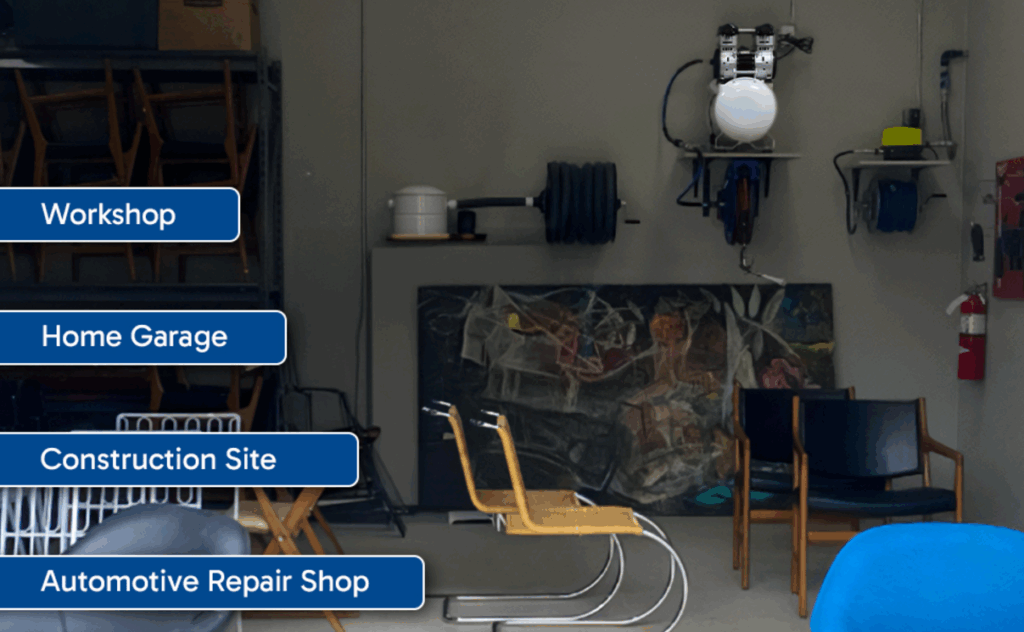

• Workshops and garages
• General pneumatic applications
• General shop use
• Tire inflation
• Automotive applications
• Applications requiring 5.3 CFM at 90 PSI
• Locations with limited space
• Under-bench or under-shelf installations
• Applications where automatic tank drainage is beneficial

California Air Tools identifies this model within its compressor application guidance and specifically lists the 10020CHAD-22060 as a 10-gallon, 2.0 HP, 5.3 CFM @ 90 PSI model with automatic drainage.

Maintenance

The oil-free pump eliminates the need for routine pump oil changes. California Air Tools specifies replacing the 2 HP air filters every two years, or annually when the compressor is exposed to dirty or dusty conditions. The replacement filter part number is 90260.

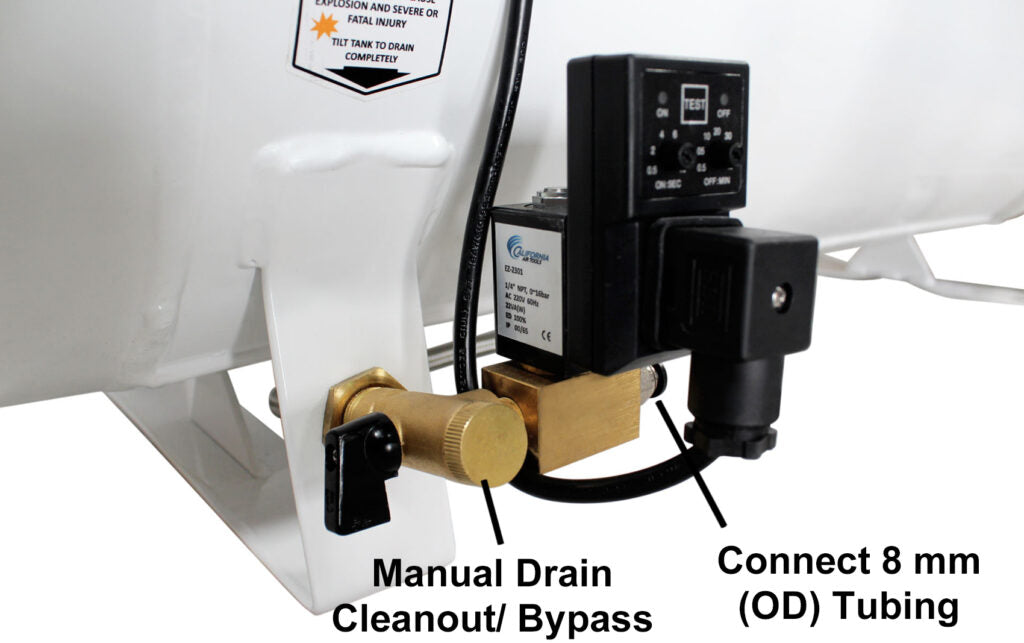

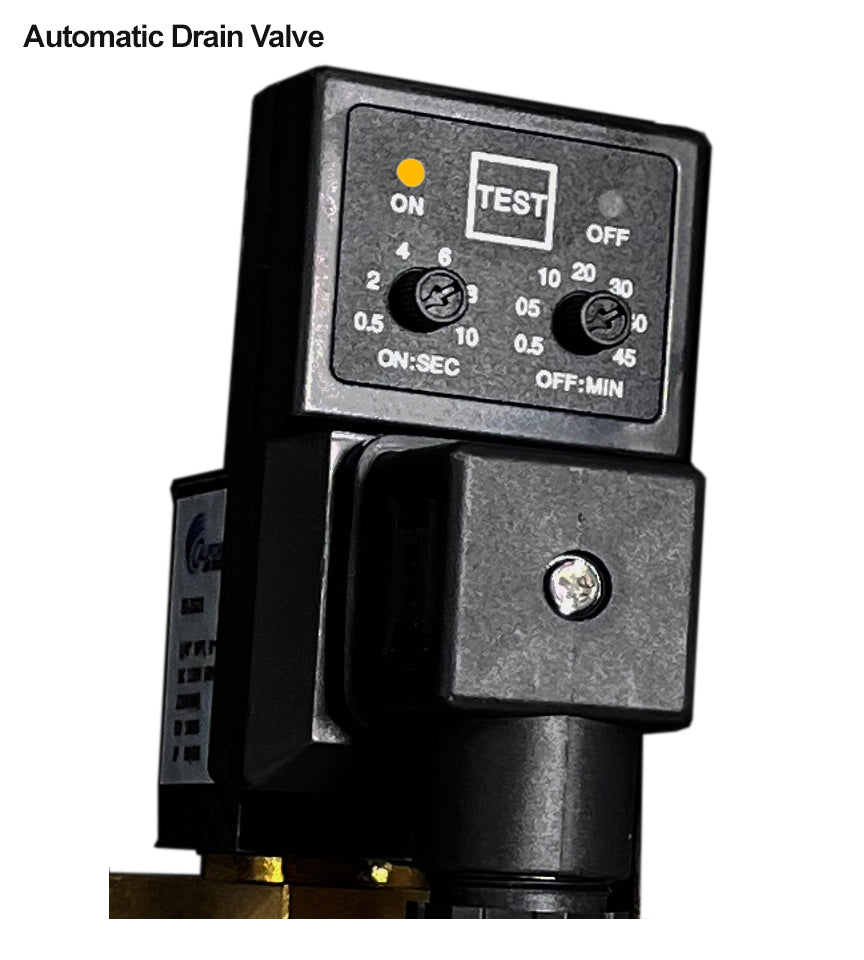

The EZ-1 automatic drain valve automatically removes accumulated water from the tank according to its adjustable timer settings. The integrated manual drain with strainer allows easier cleaning and maintenance of the drain assembly.

The compressor should be operated within its specified pressure limits and 70/30 duty cycle.
