California Air Tools 20015 Ultra Quiet 1.5 HP Oil-Free 20-Gallon Portable Air Compressor
California Air Tools 20015 Ultra Quiet 1.5 HP Oil-Free 20-Gallon Portable Air Compressor
- Regular price
- Price: $680.00
- Regular price
- List Price:
- Sale price
- Price: $680.00
- Unit price
- per
Couldn't load pickup availability
12 in stock
PRODUCT DESCRIPTION
Product Description
The California Air Tools 20015 is a 1.5 HP ultra-quiet, oil-free portable air compressor designed for shops, garages, and applications requiring higher air storage capacity. Its 20-gallon steel tank provides additional air storage for higher-demand pneumatic tools such as spray guns and sanders.
The oil-free dual-piston pump is designed for high performance with reduced maintenance requirements and allows operation across different temperatures and uneven terrain. The compressor operates at 70 dB and features a wheel kit with two no-flat wheels and a handle for easier movement.

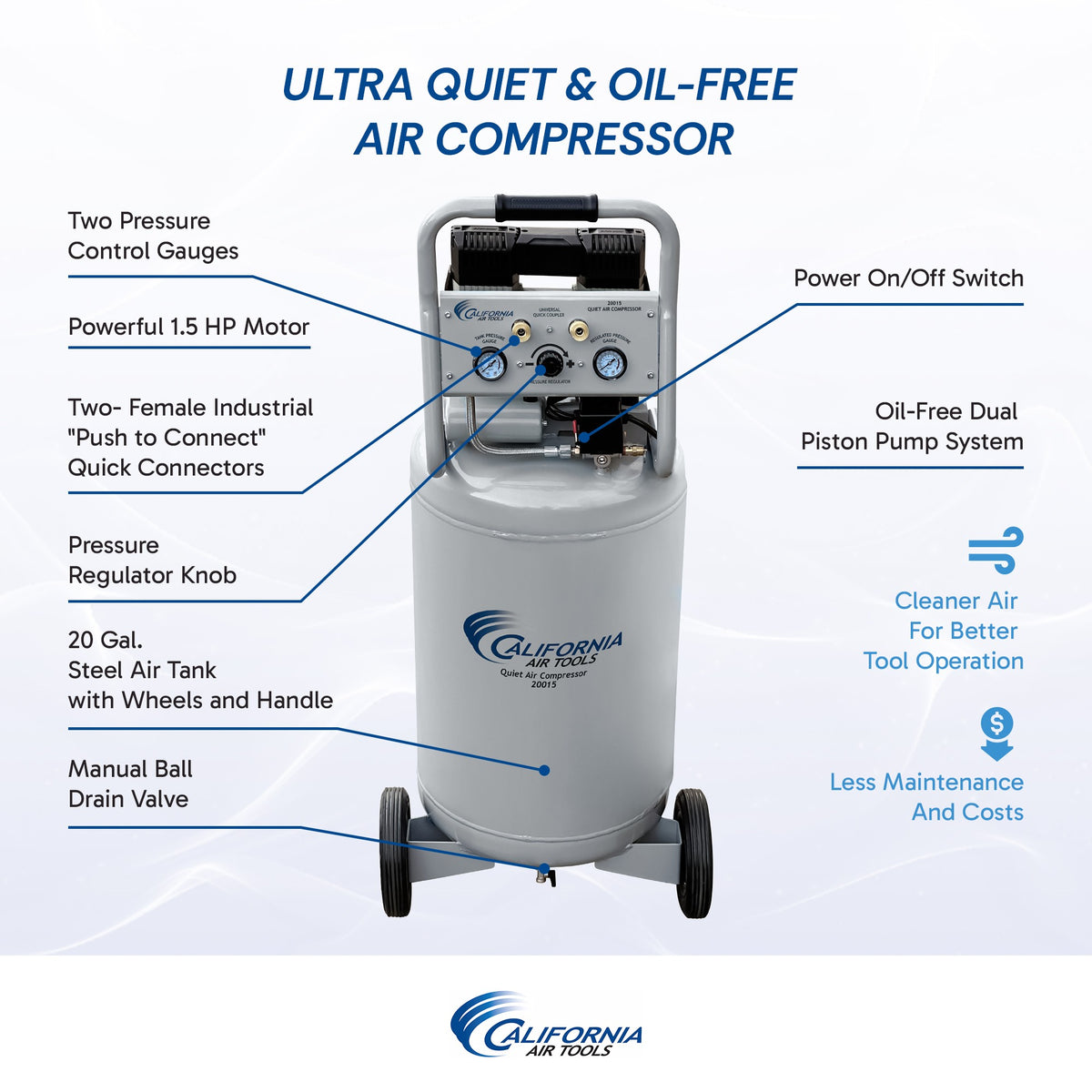

Key Features
- 1.5 HP rated/running motor
- Oil-free dual-piston pump
- Ultra-quiet 70 dB operation
- 20-gallon steel air tank
- 4.20 CFM at 40 PSI
- 2.90 CFM at 90 PSI
- 135 PSI maximum pressure
- Adjustable output pressure regulator from 0–105 PSI
- Working pressure of 105–135 PSI
- Two pressure control gauges

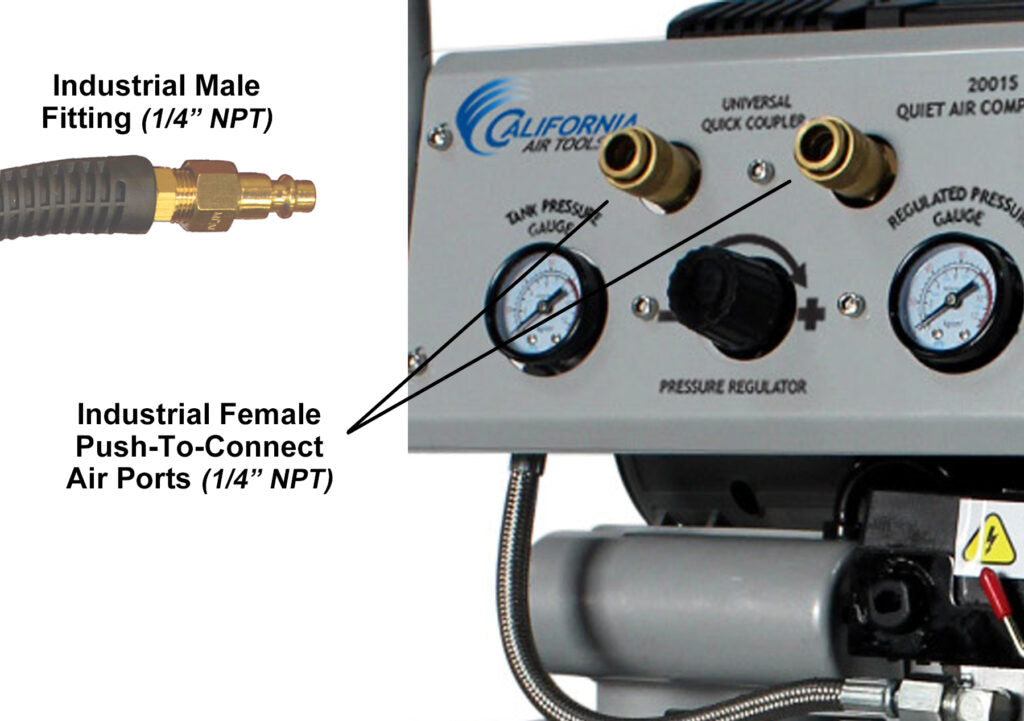

- Two female industrial push-to-connect quick connectors

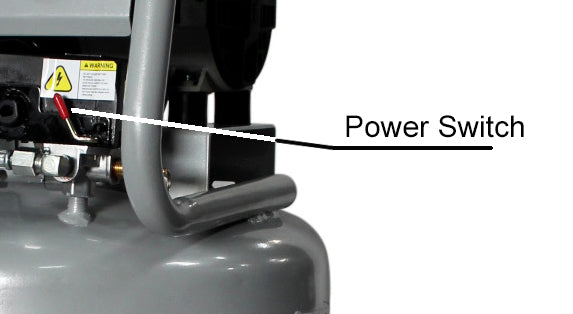

- Easy-to-use start/stop switch
- Automatic pressure switch
- Thermal overload protection

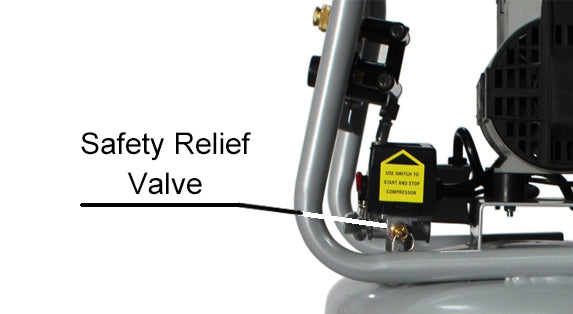

- Safety relief valve opens at 150 PSI
- 110V / 60 Hz operation
- 13-amp draw
- 25-foot, 14-gauge power cord
- Minimum 5,000-watt generator requirement
- 70/30 duty cycle
- Up to 60 minutes maximum continuous running time depending on PSI and CFM
- Two no-flat wheels and handle
- Two air filters
- Non-ASME air tank

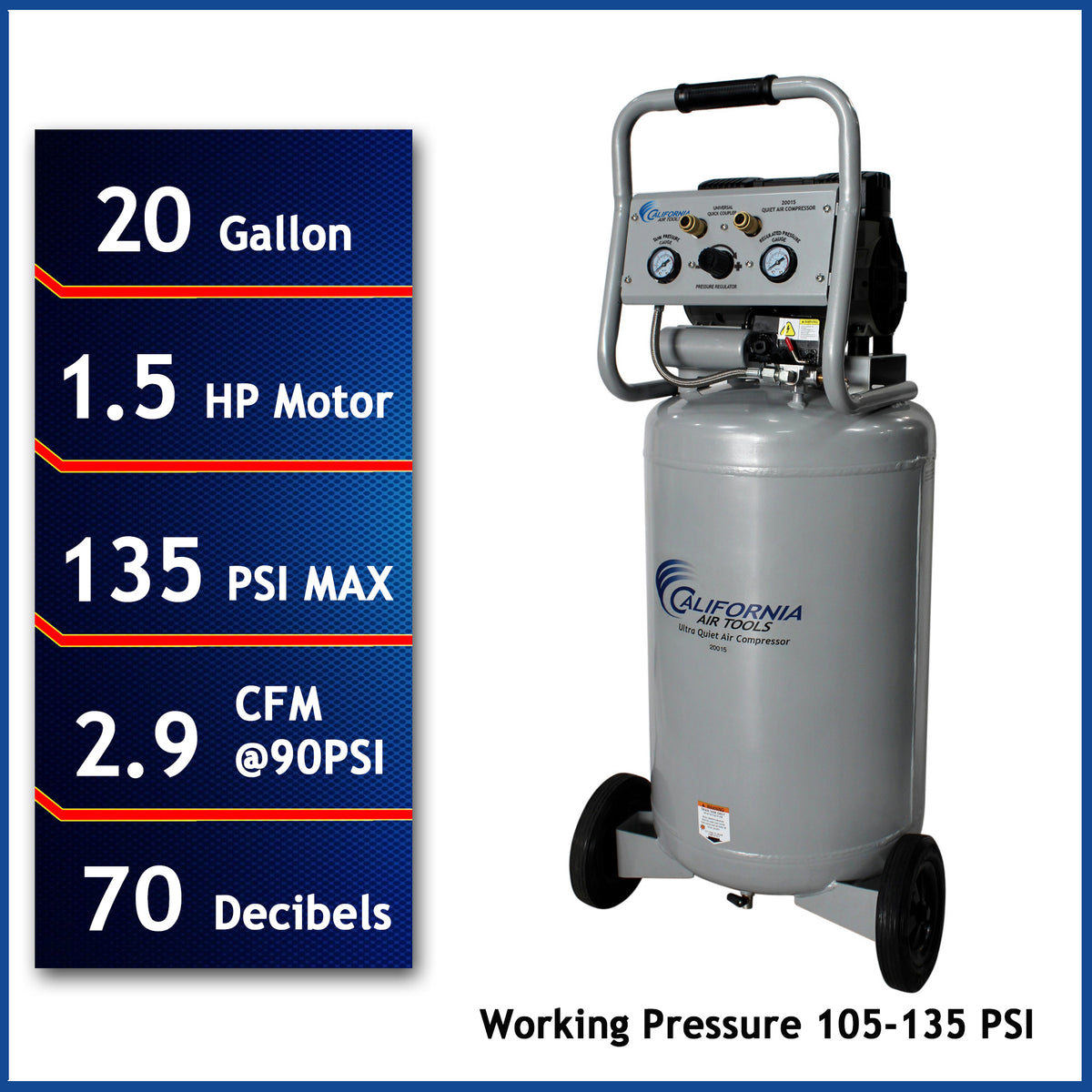

Specifications
| Specification | Details |
|---|---|
| Model | 20015 |
| Rated/Running HP | 1.5 HP |
| Pump Type | Oil-Free Dual Piston |
| Tank Capacity | 20 Gallons |
| Tank Material | Steel |
| Air Delivery @ 40 PSI | 4.20 CFM |
| Air Delivery @ 90 PSI | 2.90 CFM |
| Working Pressure | 105–135 PSI |
| Maximum Pressure | 135 PSI |
| Output Regulator | 0–105 PSI Adjustable |
| Noise Level | 70 dB |
| Voltage | 110V |
| Frequency | 60 Hz |
| Amp Draw | 13 Amps |
| Power Cord | 25 ft, 14 Gauge |
| Generator Requirement | Minimum 5,000 Watts |
| Tank Fill Time | 6.50 minutes |
| Recovery Time | 1.8 minutes from 95–125 PSI |
| Duty Cycle | 70/30 |
| Maximum Continuous Run Time | 60 minutes, depending on PSI and CFM |
| Dimensions | 17 × 19.25 × 45.25 in |
| Weight | 89 lbs |
| Tank Type | Non-ASME |
| Warranty | 1-Year Limited Manufacturer Warranty |
| SKU | 20015 |
| Country of Manufacture | China |
What's Included
- California Air Tools 20015 air compressor
- 20-gallon steel air tank
- Wheel kit with two no-flat wheels
- Handle
- Two air filters
- 25-foot, 14-gauge power cord
Applications
The 20015 is suitable for:
- Professional and home workshops
- Garages
- Spray guns
- Sanders
- General pneumatic tools
- Higher-demand air tools
- Automotive and workshop applications
- Applications requiring greater compressed-air storage
The manufacturer specifically highlights the 20-gallon tank for higher-demand air tools such as spray guns and sanders.
Maintenance
The oil-free dual-piston pump reduces routine maintenance requirements compared with oil-lubricated compressor systems.
The compressor includes two air filters, which should be maintained and replaced as required according to the manufacturer's maintenance instructions. The unit should also be operated within its specified duty cycle and maximum continuous running time.

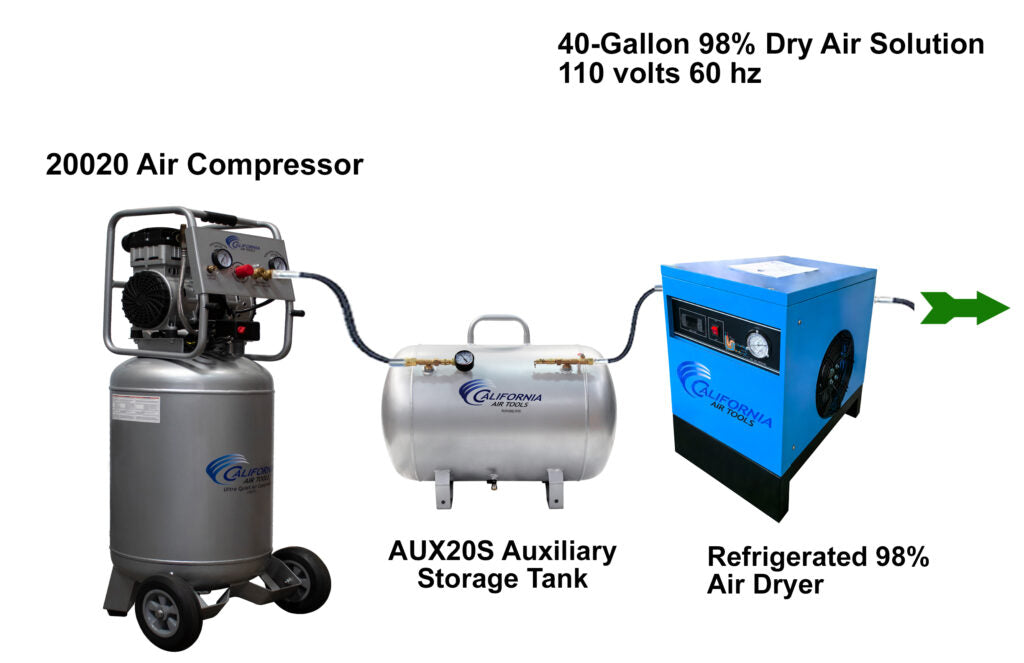

The manufacturer also lists optional accessories including an air hose and tool kit, moisture/oil separator, refrigerated air dryer, and automatic drain valve extension kit. These are add-on options and are not included with the compressor.
