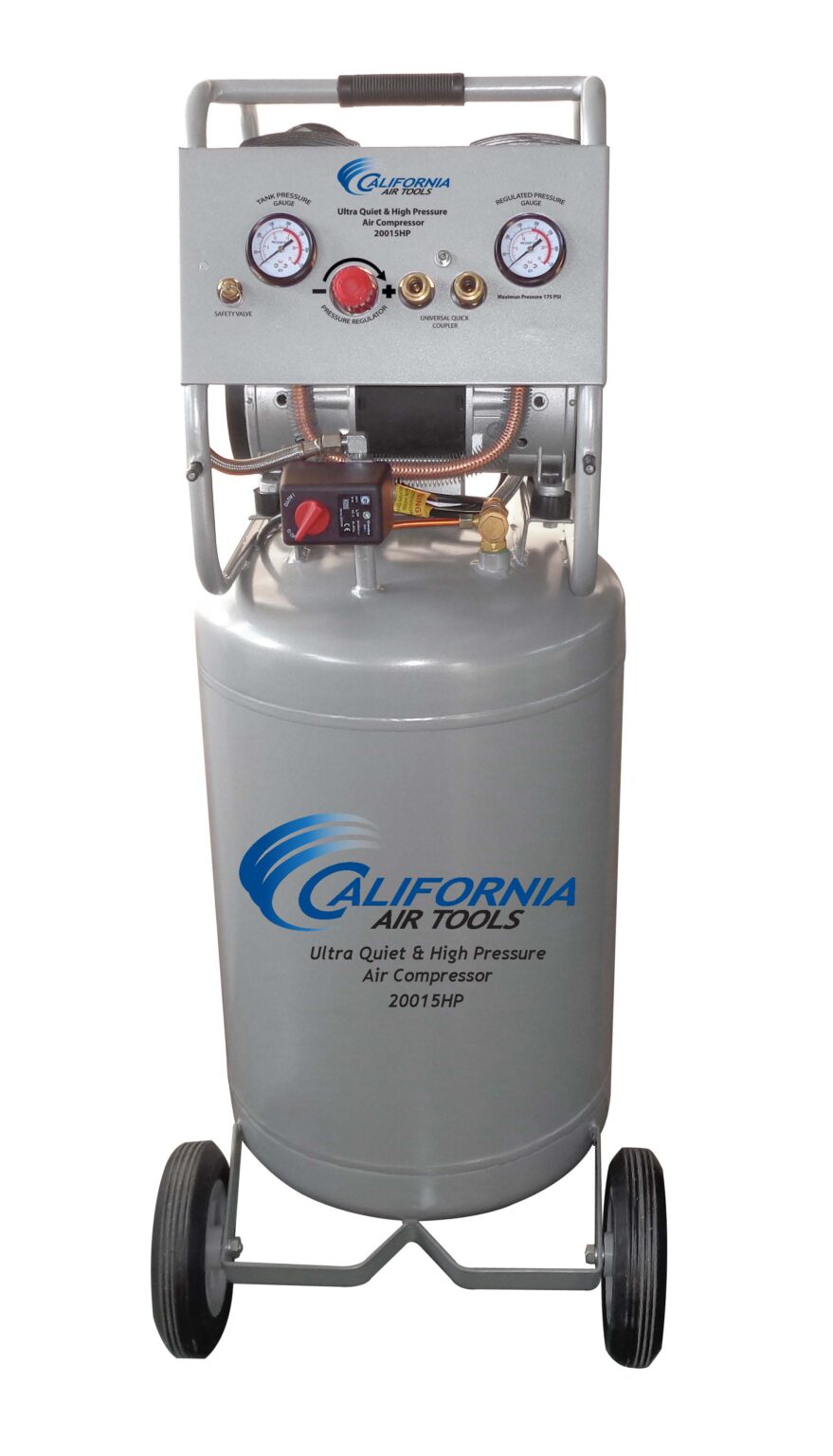

California Air Tools 20015HPAD Ultra Quiet 1.5 HP Oil-Free High-Pressure 20-Gallon Air Compressor with Automatic Drain

Product Description

The California Air Tools 20015HPAD is a 1.5 HP ultra-quiet, oil-free, two-stage high-pressure air compressor designed for applications requiring higher pressure and reliable airflow. It features a 20-gallon steel tank and delivers up to 175 PSI, with 4.00 CFM at 40 PSI and 3.80 CFM at 90 PSI.

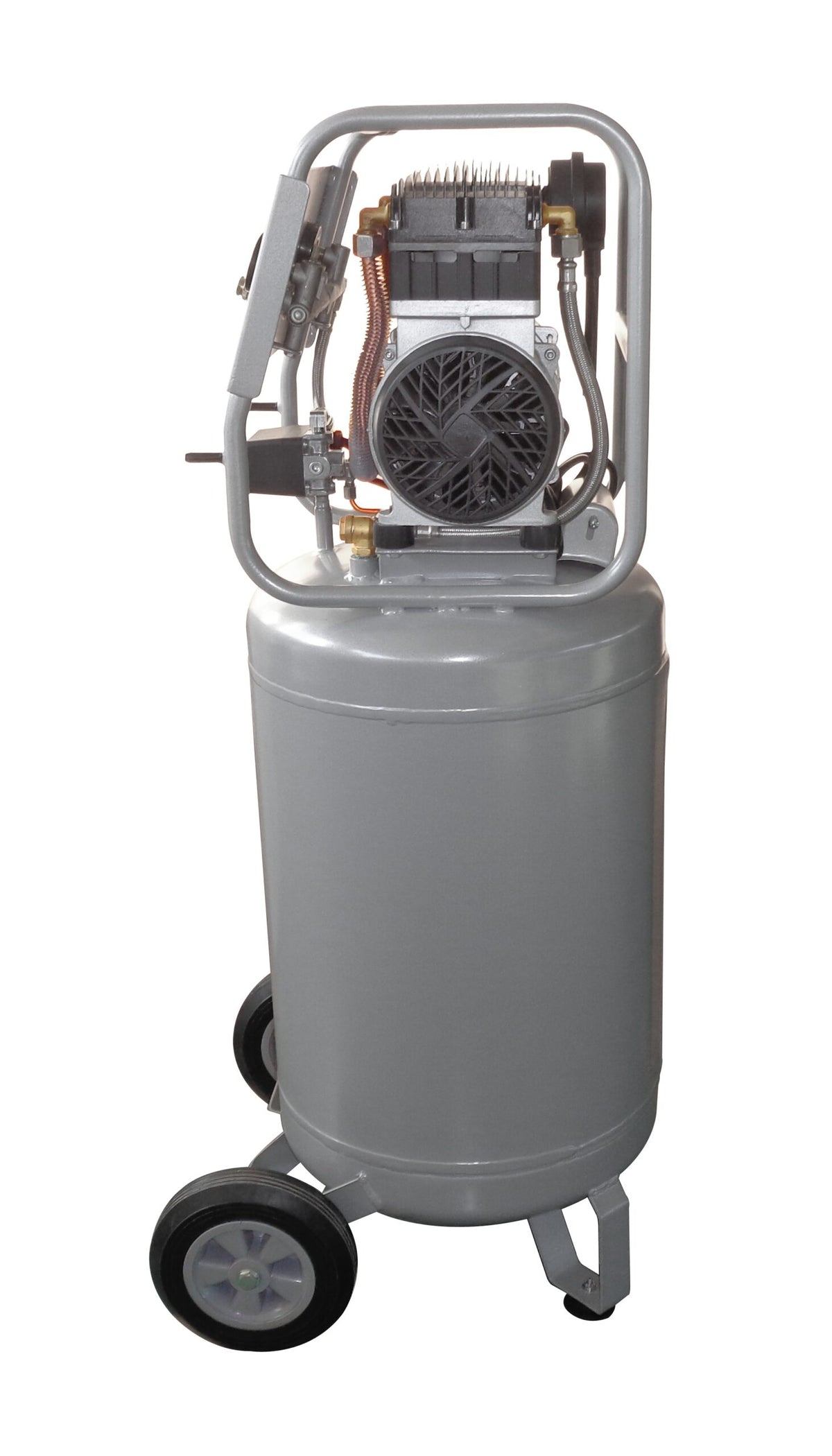

The oil-free dual-piston pump operates at 1,750 RPM and is engineered for a service life of more than 3,000 hours before wear. The pump design also allows operation across different temperatures and uneven terrain without the use of pump oil.

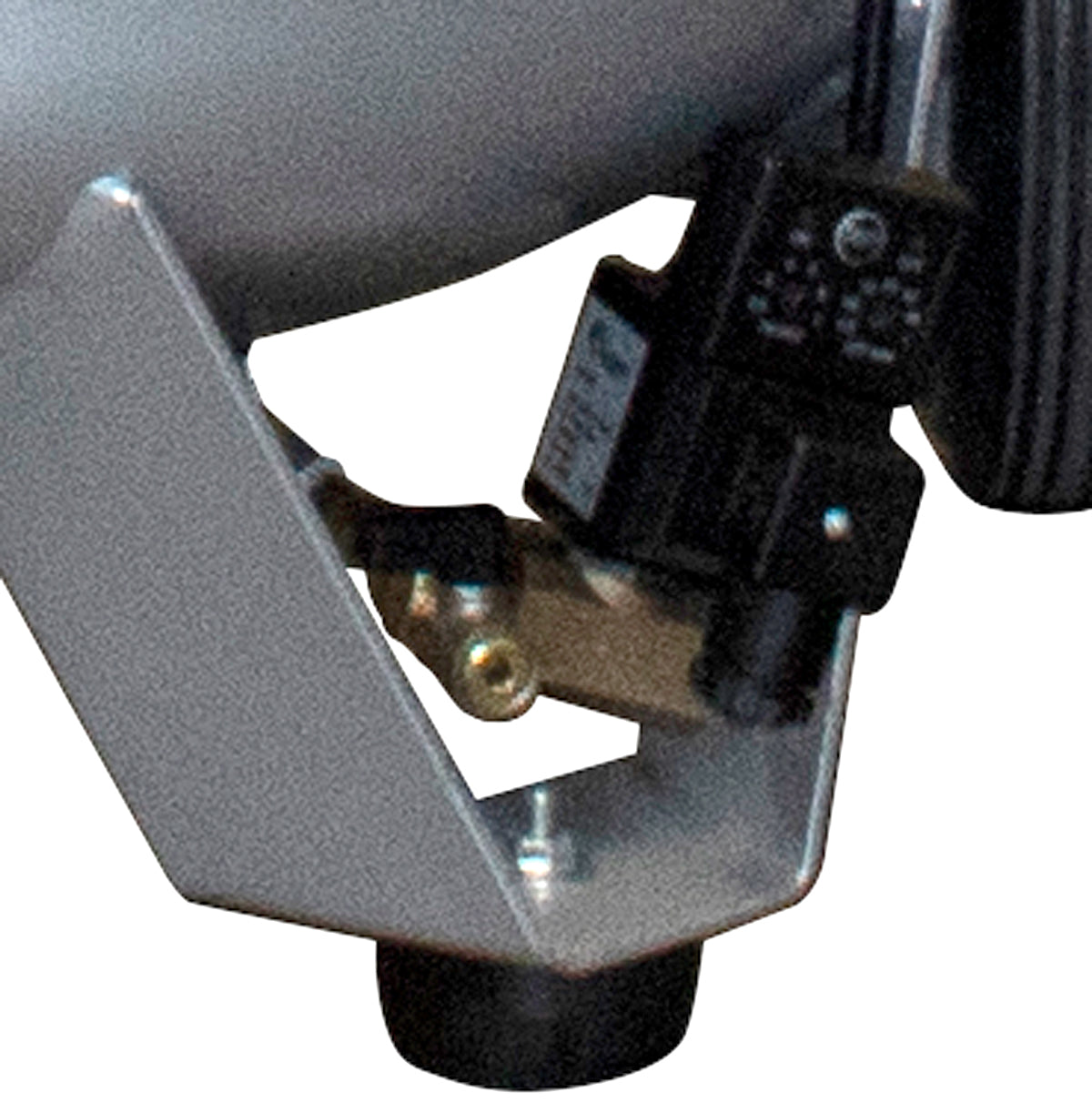

This model includes the California Air Tools EZ-1 Automatic Drain Valve, which automatically removes accumulated water from the air tank. The drain timing is adjustable, helping eliminate the need for manual tank draining.

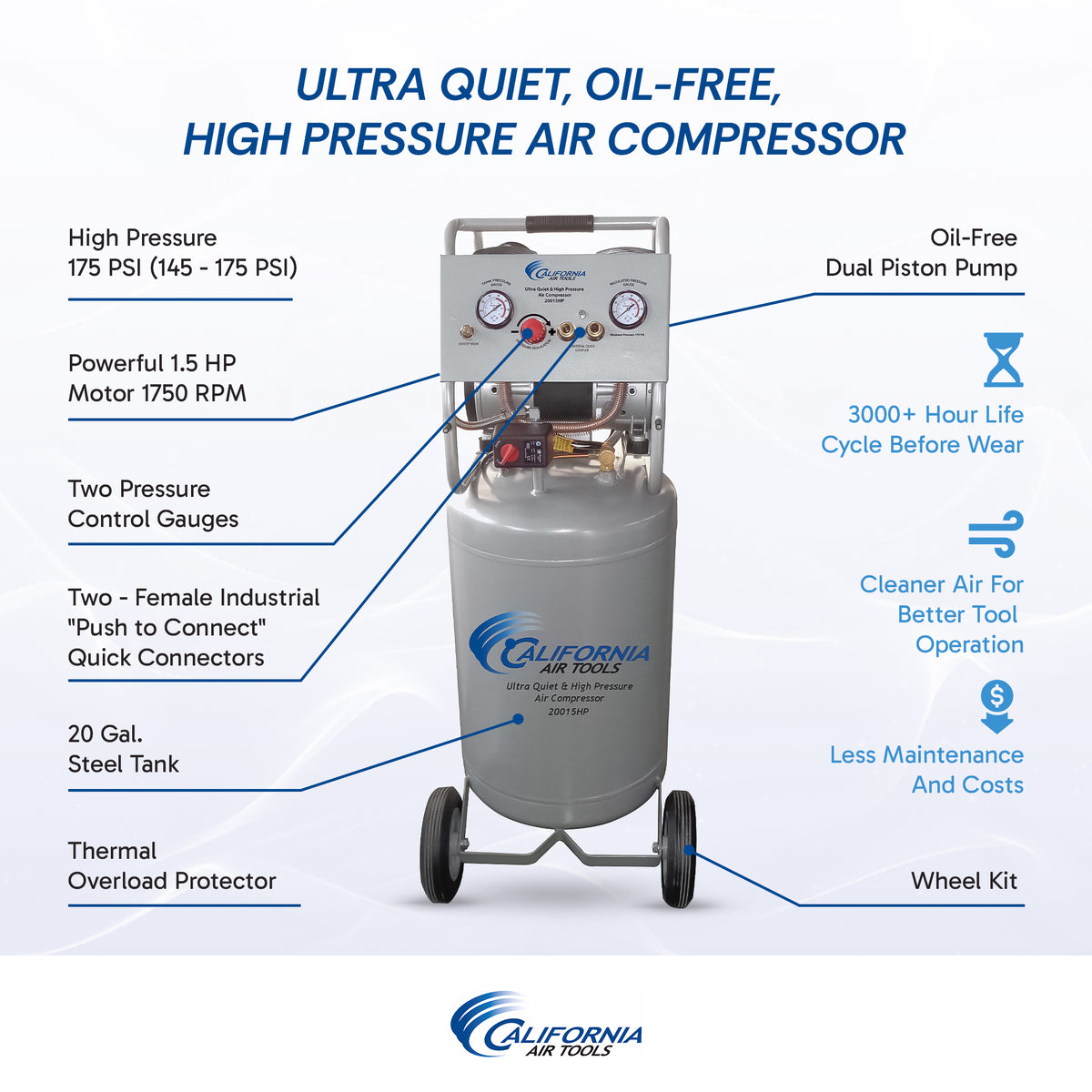

Key Features

• 1.5 HP rated/running motor
• Oil-free two-stage dual-piston pump
• 175 PSI maximum pressure
• 20-gallon steel air tank
• Ultra-quiet 70 dB operation
• 4.00 CFM at 40 PSI
• 3.80 CFM at 90 PSI
• 1,750 RPM motor speed
• EZ-1 automatic drain valve
• Adjustable automatic drain timing
• Two pressure control gauges

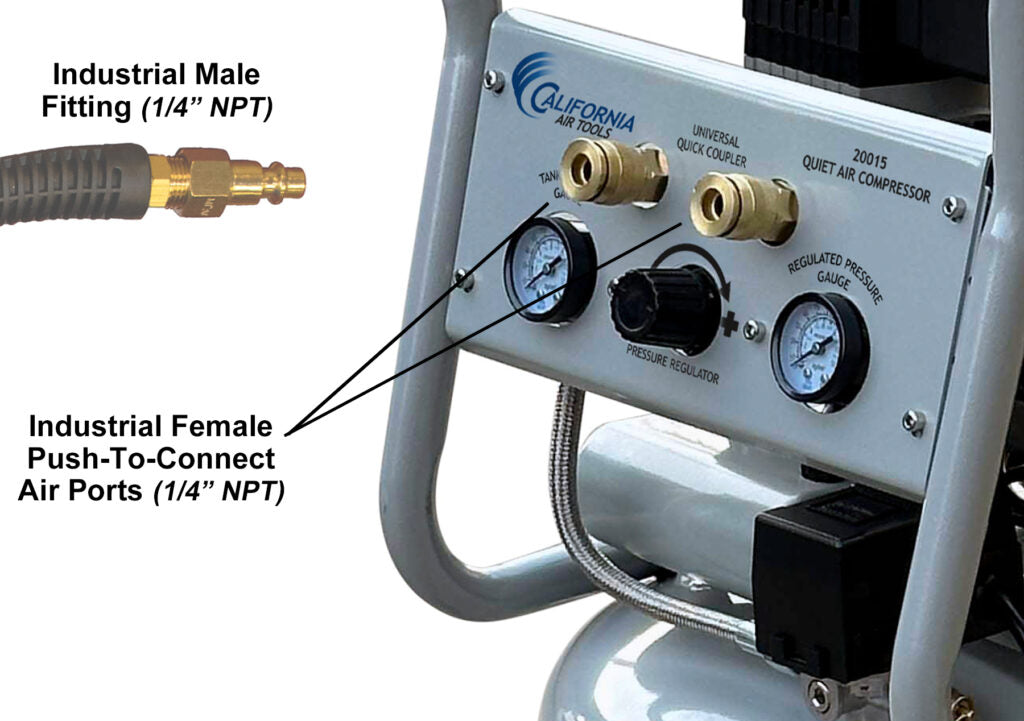

• Two 1/4-inch NPT industrial push-to-connect connectors
• Condor pressure switch
• Thermal overload protection
• 110V / 60 Hz operation
• 12-amp draw
• Wheel kit for portability
• Two-stage compression
• 70/30 duty cycle
• Designed for longer continuous run times
• Oil-free operation for reduced maintenance

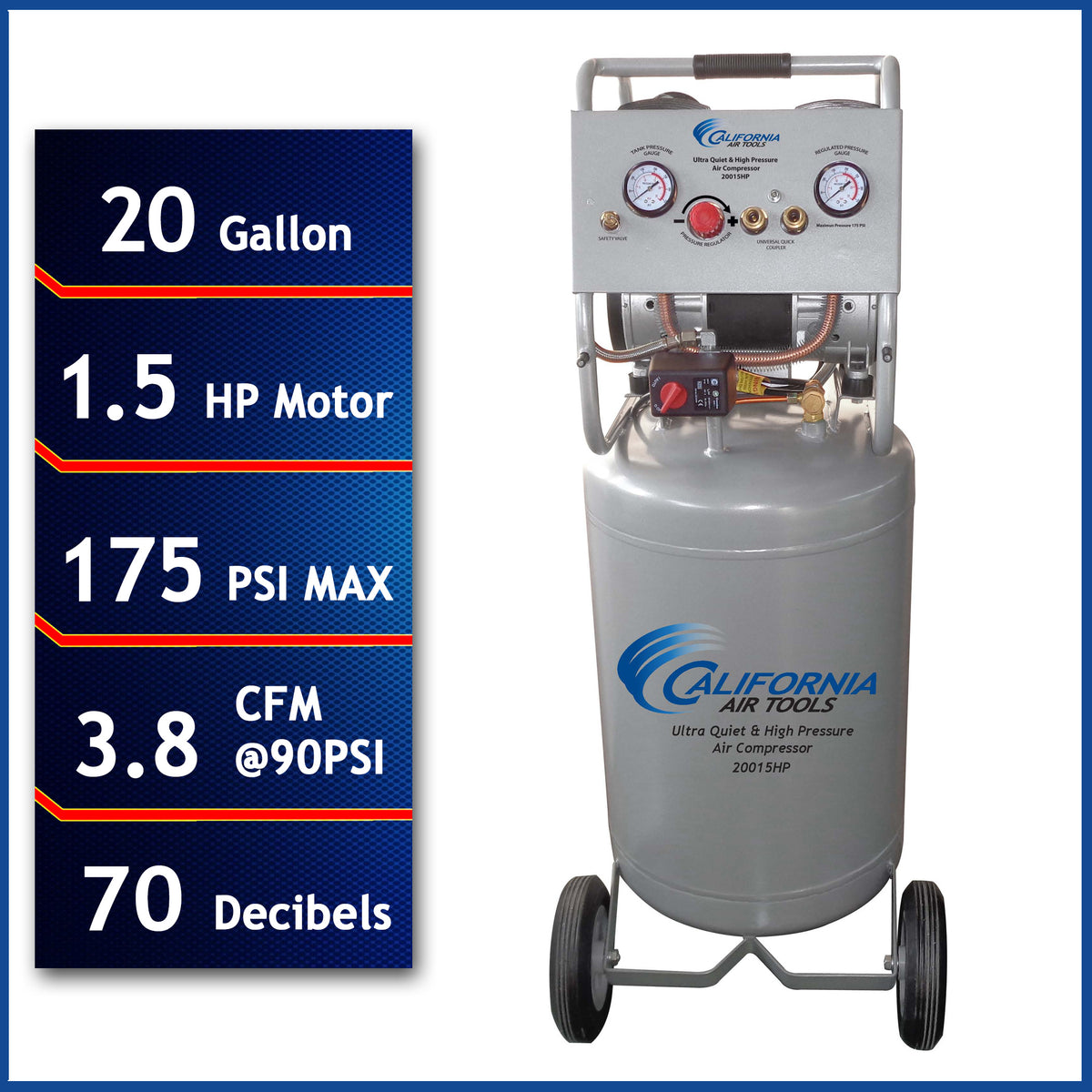

Specifications

What's Included

• California Air Tools 20015HPAD air compressor
• 20-gallon steel air tank
• Wheel kit
• Air filter
• EZ-1 automatic drain valve

Applications

The 20015HPAD is suitable for applications requiring high-pressure compressed air, including:

• Automotive applications
• Tire inflation
• Professional workshops
• Garages
• Pneumatic tools
• High-pressure applications
• Shop and jobsite use
• Applications requiring pressures up to 175 PSI

California Air Tools specifically identifies the 20015HPAD for tire inflation applications up to 175 PSI.

Maintenance

The oil-free pump eliminates the need for routine pump oil changes and is designed to reduce maintenance requirements. The included EZ-1 automatic drain valve automatically removes water from the tank according to its adjustable timing settings.

The compressor includes an air filter, which should be maintained according to the manufacturer's operating and maintenance instructions. The compressor should also be operated within its specified pressure and duty-cycle limits.
