California Air Tools 2010ALFC Ultra Quiet 1.0 HP Oil-Free Lightweight 2-Gallon Air Compressor – Industrial Series

Product Description

The California Air Tools 2010ALFC is an ultra-quiet, oil-free 1.0 HP air compressor designed for applications where low noise, portability, and reliable performance are important. Operating at only 60 dB, it features a lightweight, rust-resistant 2-gallon aluminum tank and a 1.0 HP motor operating at 1,400 RPM to help reduce noise and wear.

The dual-piston pump system produces 25% more air than other 1.0 HP air compressor motors, while the MP100LF motor/pump is tested for a minimum life of 4,000 hours before wear, with an average life of more than 6,000 hours. Its compact and lightweight design makes it suitable for indoor work environments where noise is a concern.

Key Features

• Ultra-quiet operation at only 60 dB
• Oil-free pump for cleaner air and reduced maintenance
• 1.0 HP rated/running motor with 2.0 HP peak power
• 1,400 RPM motor designed for reduced noise and wear
• Dual-piston pump system
• 25% more air output compared with other 1.0 HP air compressor motors
• Lightweight, rust-resistant 2-gallon aluminum tank
• Two pressure control gauges
• Female industrial push-to-connect quick connector
• Thermal overload protection
• Condor pressure switch
• 70/30 duty cycle
• Maximum continuous running time of 30–60 minutes depending on PSI and CFM
• Comes complete with an air filter
• Assembled in the USA with global components
• 1-year limited warranty

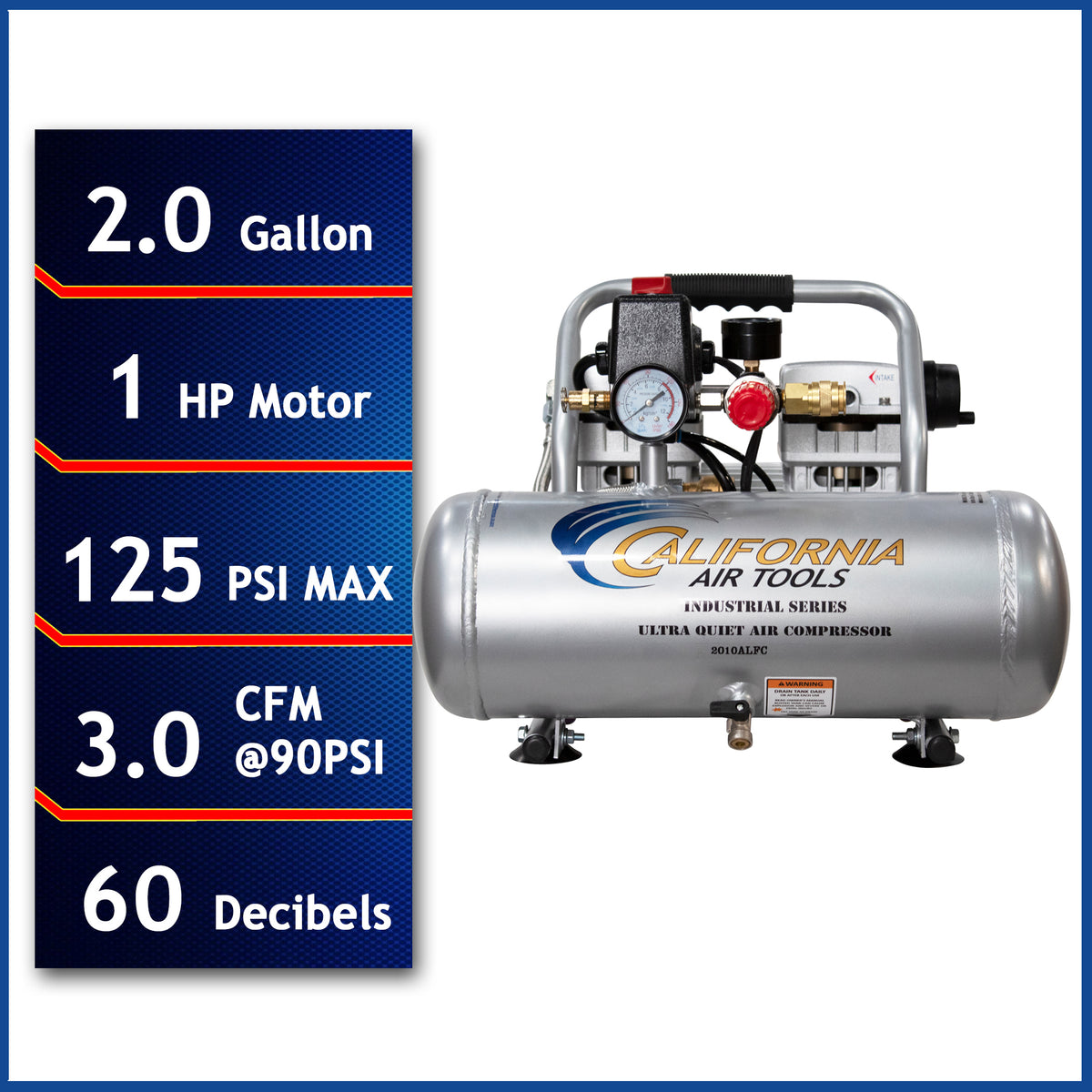

Specifications

• Motor: 1.0 HP rated/running, 2.0 HP peak
• Motor Speed: 1,400 RPM
• Tank Capacity: 2 gallons
• Tank Material: Aluminum, rust-resistant
• Air Delivery: 4.00 CFM @ 40 PSI; 3.00 CFM @ 90 PSI
• Maximum Pressure: 125 PSI
• Noise Level: 60 dB
• Voltage: 110V
• Frequency: 60 Hz
• Amp Draw: 7.6 amps
• Tank Fill Time: 40 seconds
• Recovery Time: 15 seconds from 90 PSI to 120 PSI
• Duty Cycle: 70/30
• Weight: 34.5 lbs
• Dimensions: 18.7" L × 14.2" W × 14.75" H
• Warranty: 1-year limited warranty

What's Included

• California Air Tools 2010ALFC air compressor
• Air filter
• 2-gallon aluminum air tank
• Two pressure control gauges
• Female industrial push-to-connect quick connector

Applications

The 2010ALFC is designed for indoor applications where reduced operating noise is important. Its compact, lightweight construction makes it suitable for portable air-compression needs in home, workshop, contractor, and other light-duty environments.

Maintenance

Replace the 1 HP air filter attached to the motor-pump every 2 years, or every 1 year when the compressor is used in a dirty or dusty environment.

Replacement Air Filter Part Number: 90227
