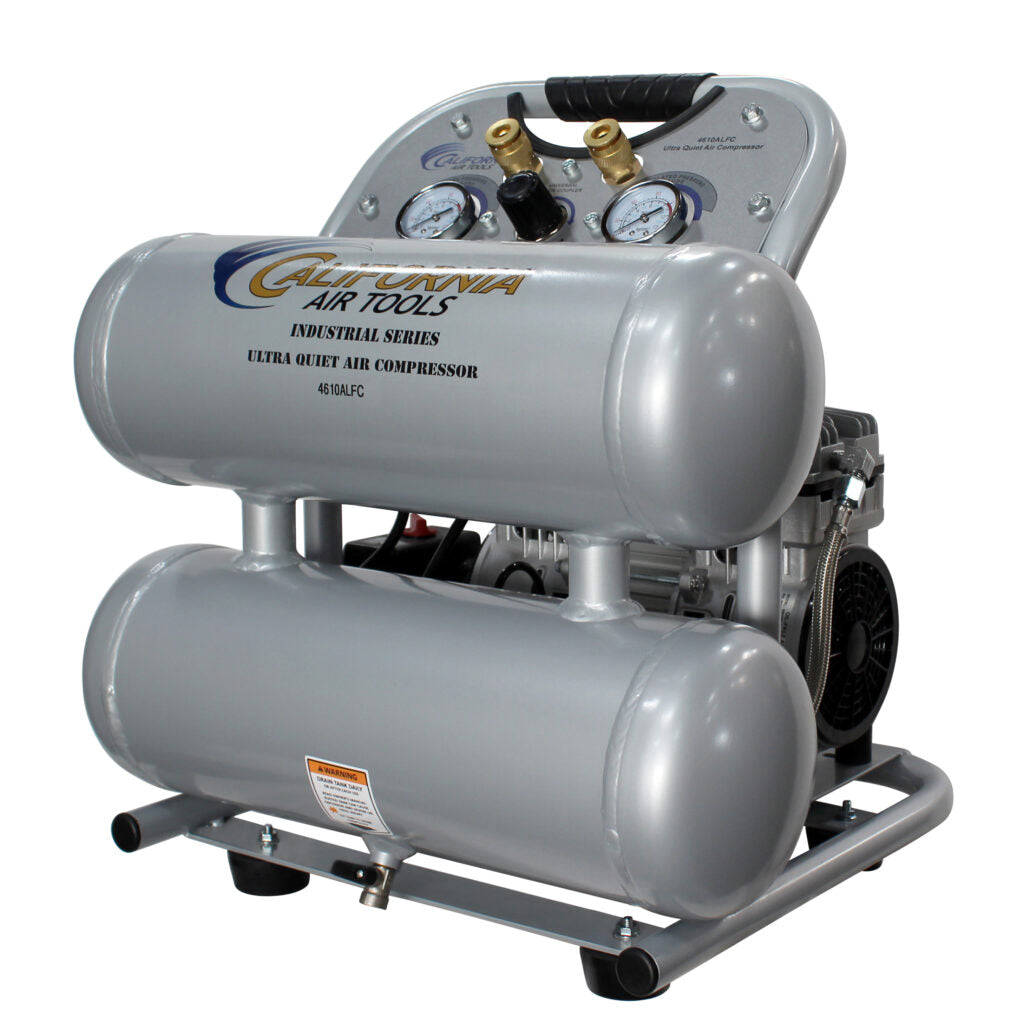

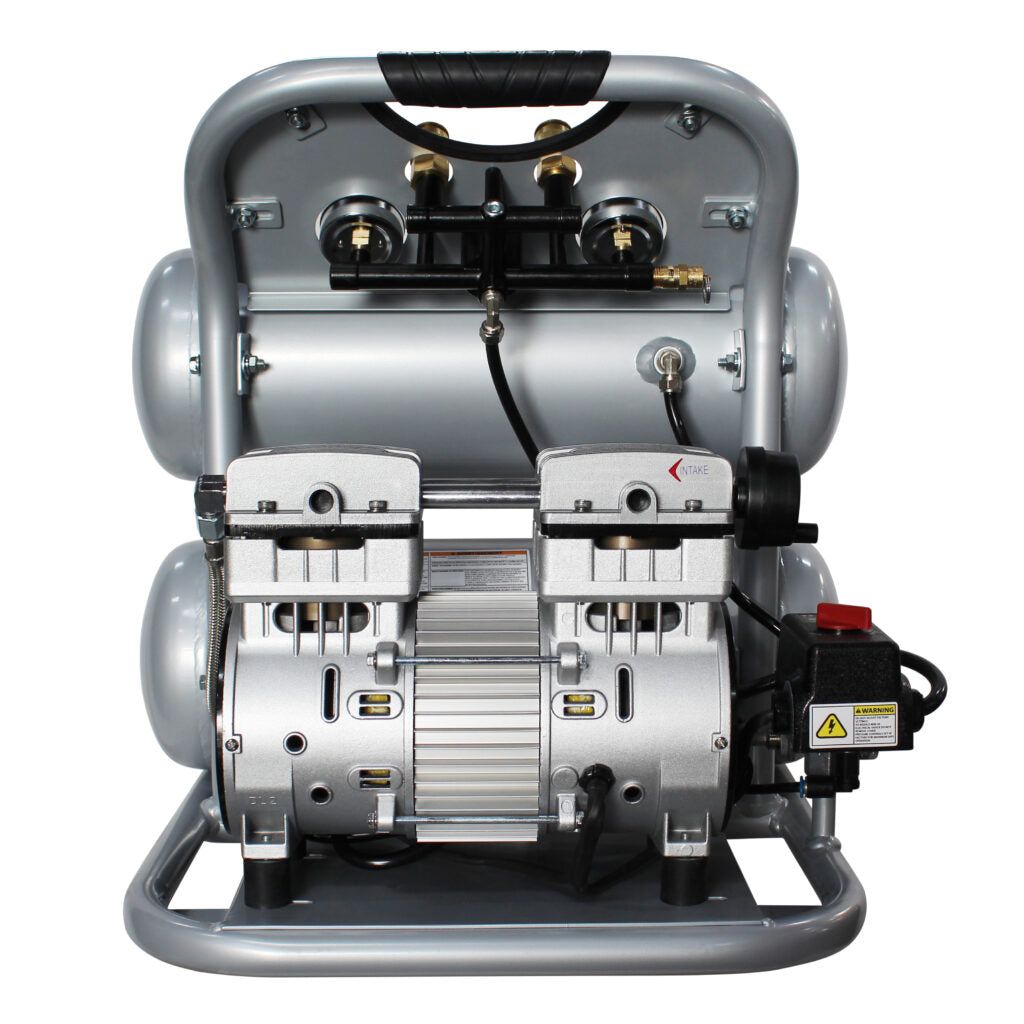

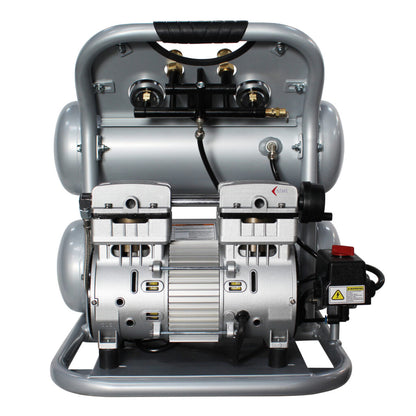

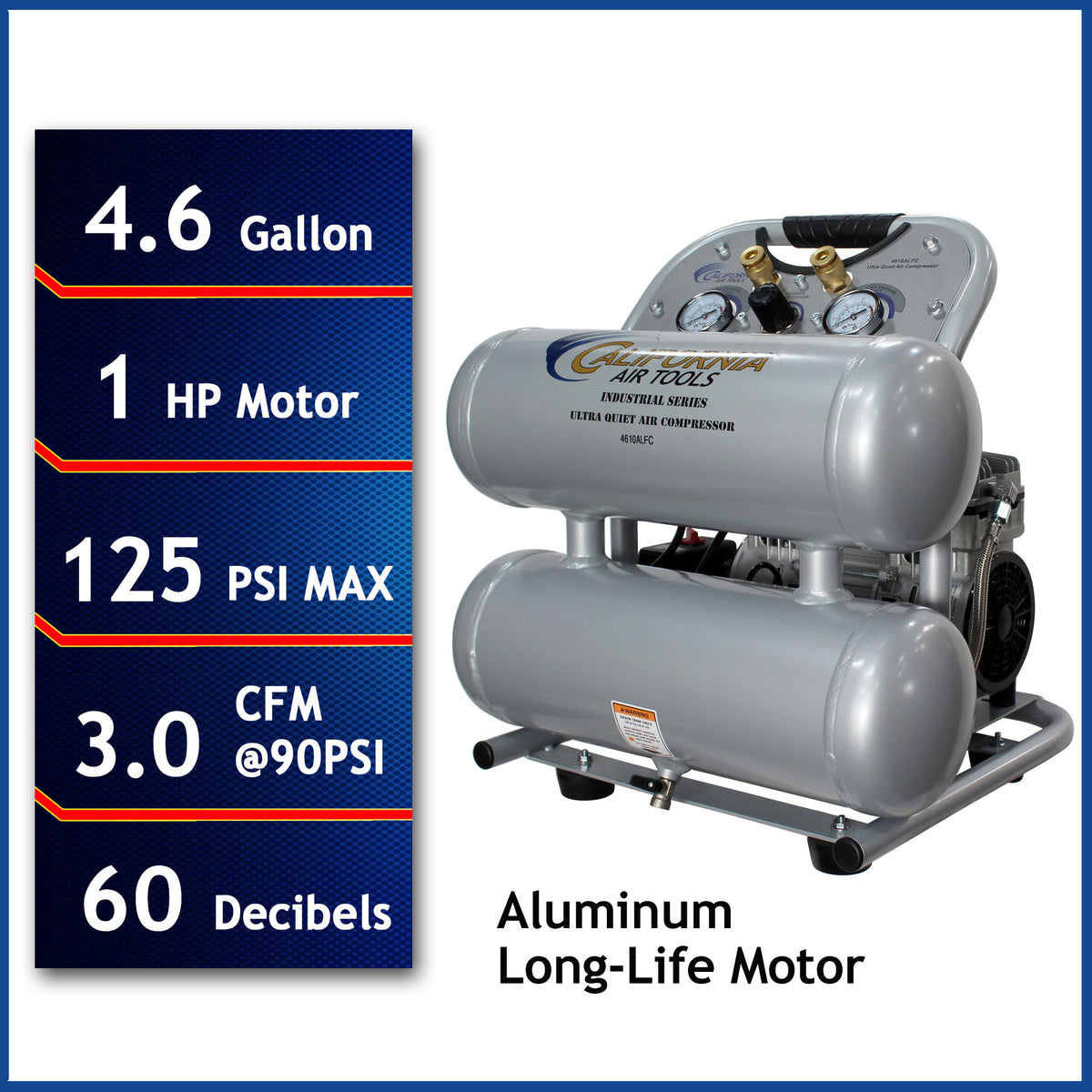

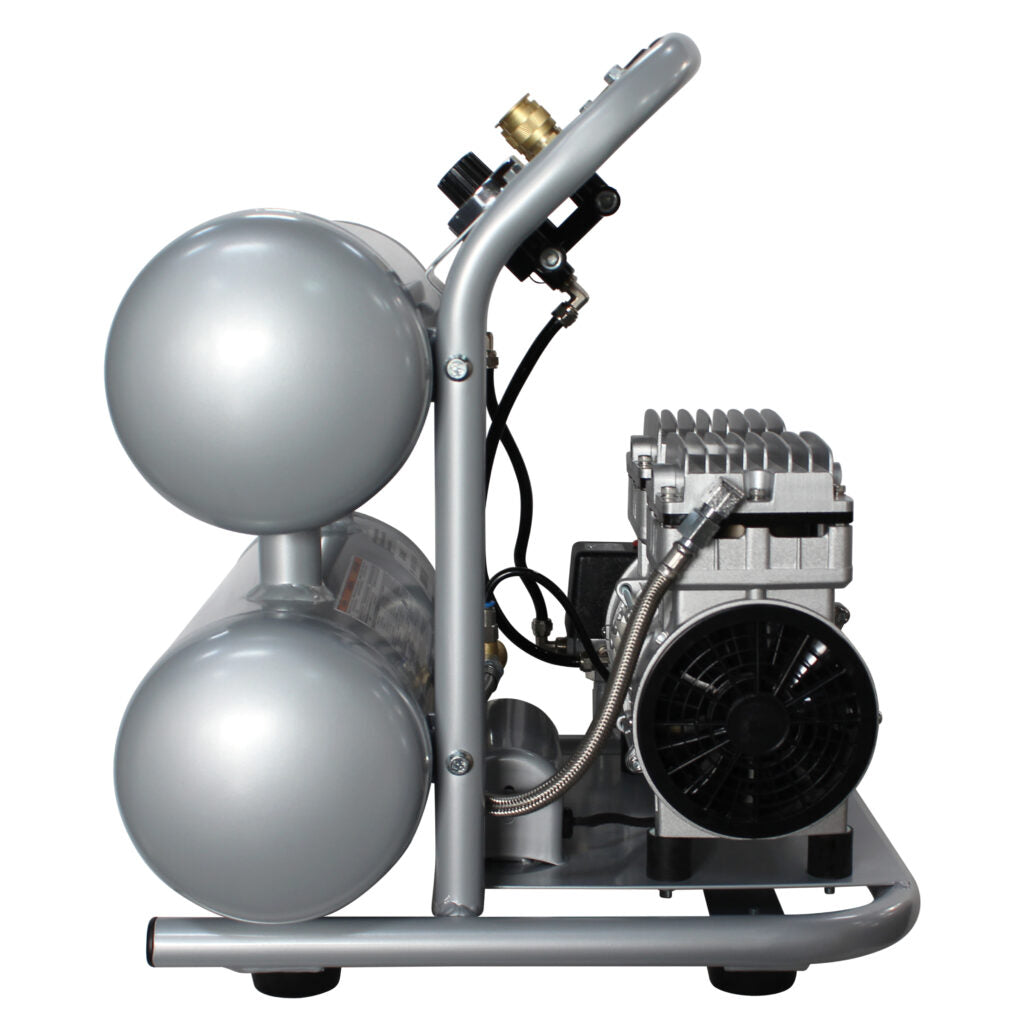

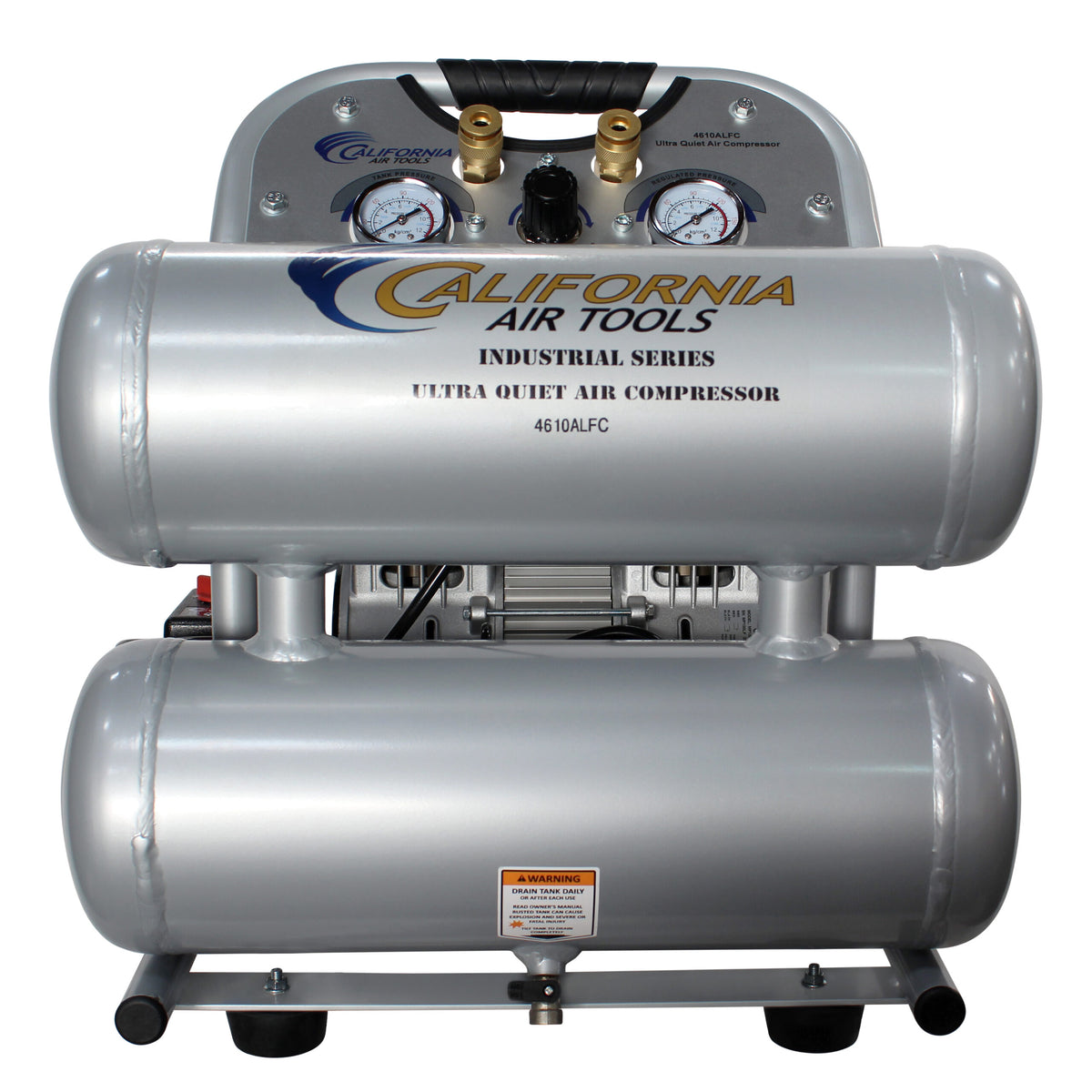

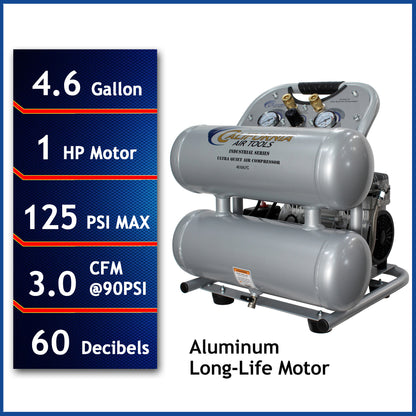

California Air Tools 4610ALFC Ultra Quiet 1.0 HP Oil-Free Lightweight 4.6-Gallon Air Compressor – Industrial Series

Product Description

The California Air Tools 4610ALFC is an ultra-quiet, oil-free 1.0 HP air compressor designed for users who need reliable compressed air with low operating noise. Its 4.6-gallon aluminum tank is rust-resistant and lightweight, making the compressor easier to transport while providing additional air capacity for a range of applications.

The 1.0 HP motor operates at 1,400 RPM to reduce noise and wear. The MP Series motor is designed for increased duty cycle and longer continuous run times, while the dual-piston pump produces 25% more air compared with other 1.0 HP air compressor motors. The MP100LF motor/pump is tested for a minimum life of 4,000 hours before wear, with an average life of more than 6,000 hours.

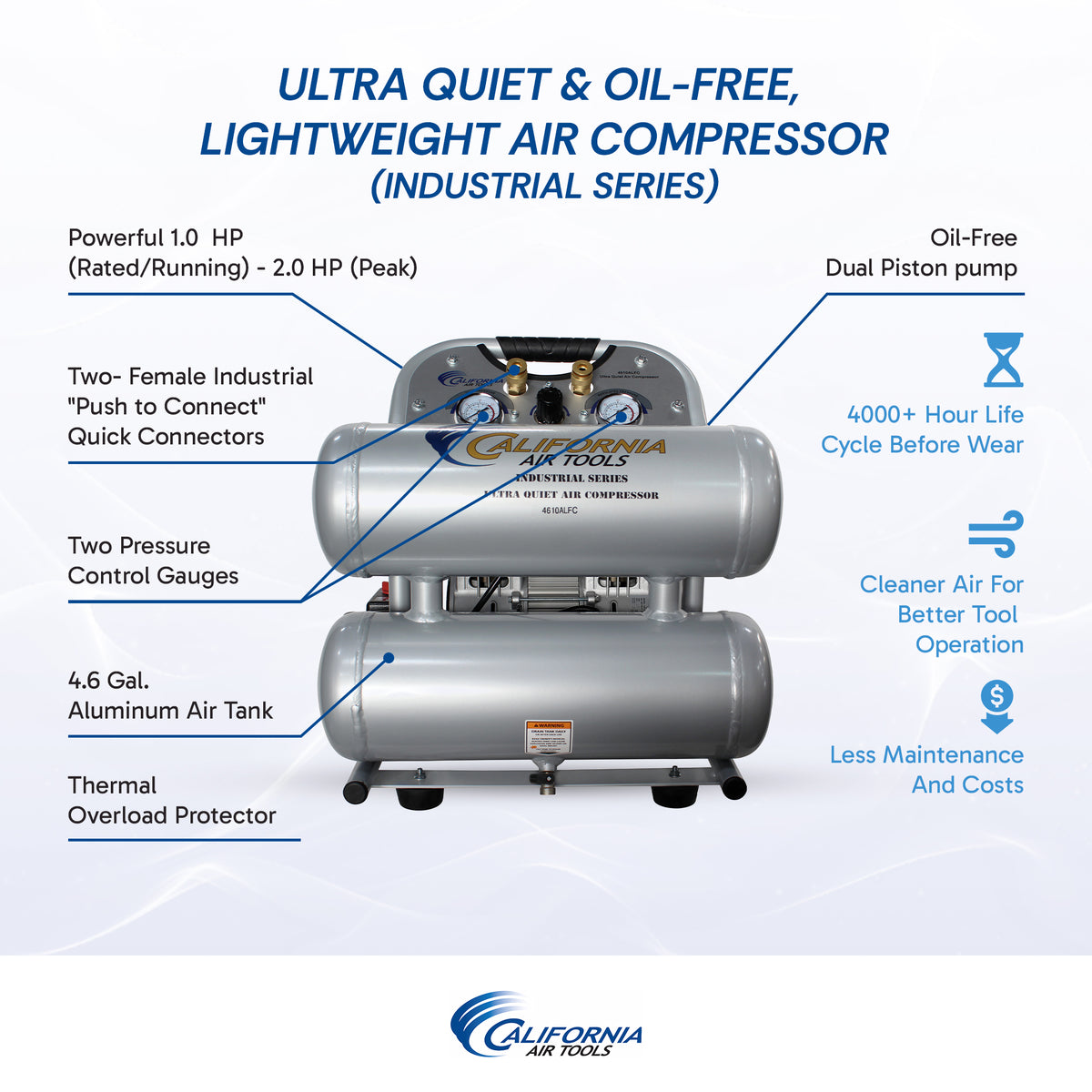

Key Features

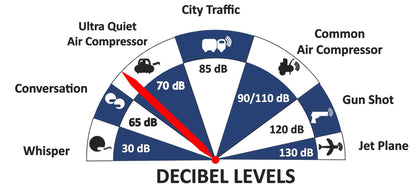

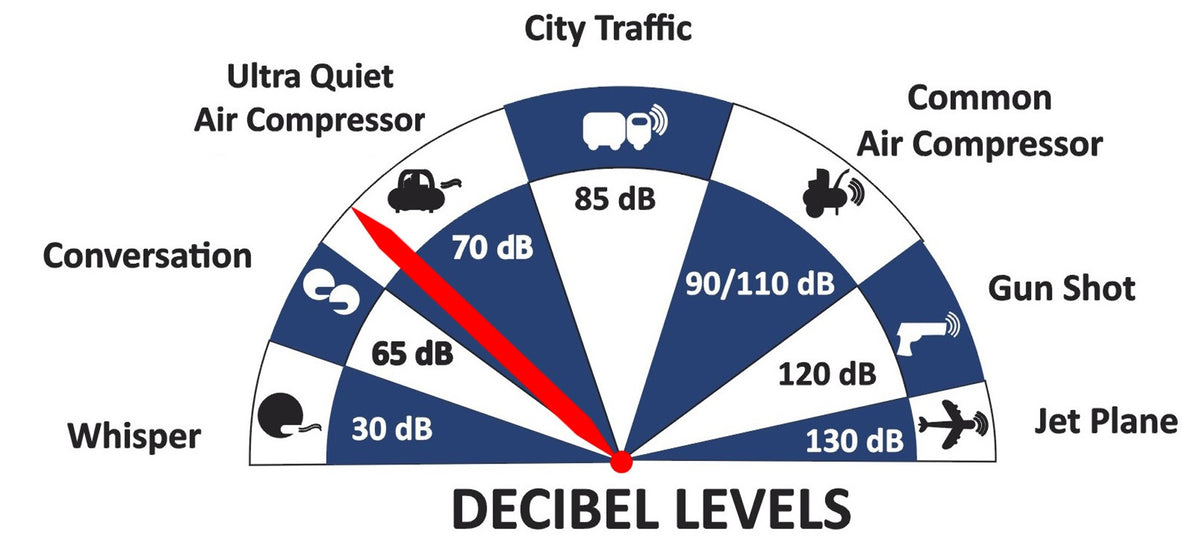

• Ultra-quiet operation at only 60 dB
• Oil-free pump for cleaner air and reduced maintenance
• 1.0 HP rated/running motor
• 2.0 HP peak power
• 1,400 RPM motor speed
• 4.6-gallon rust-resistant aluminum air tank
• Lightweight 44-pound construction
• Dual-piston pump system
• 25% more air output compared with other 1.0 HP air compressor motors

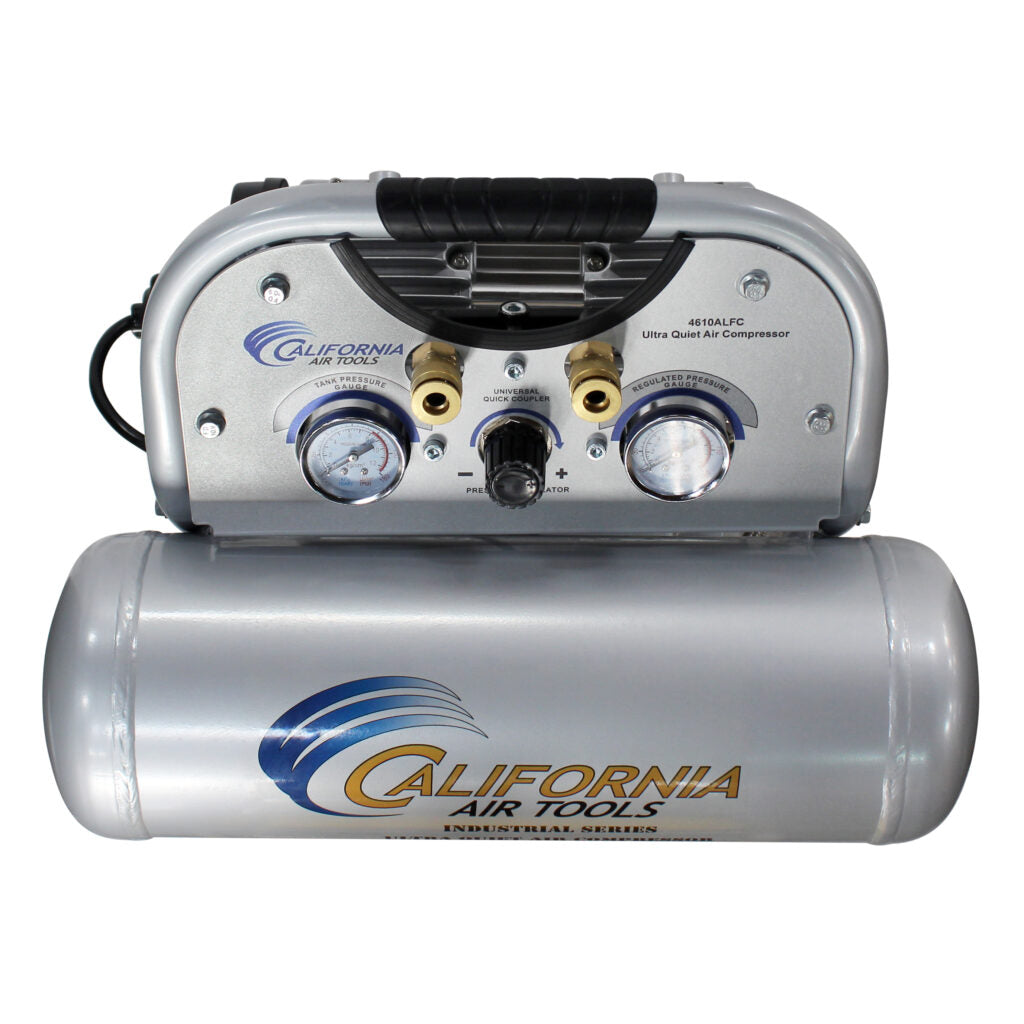

• Two pressure control gauges

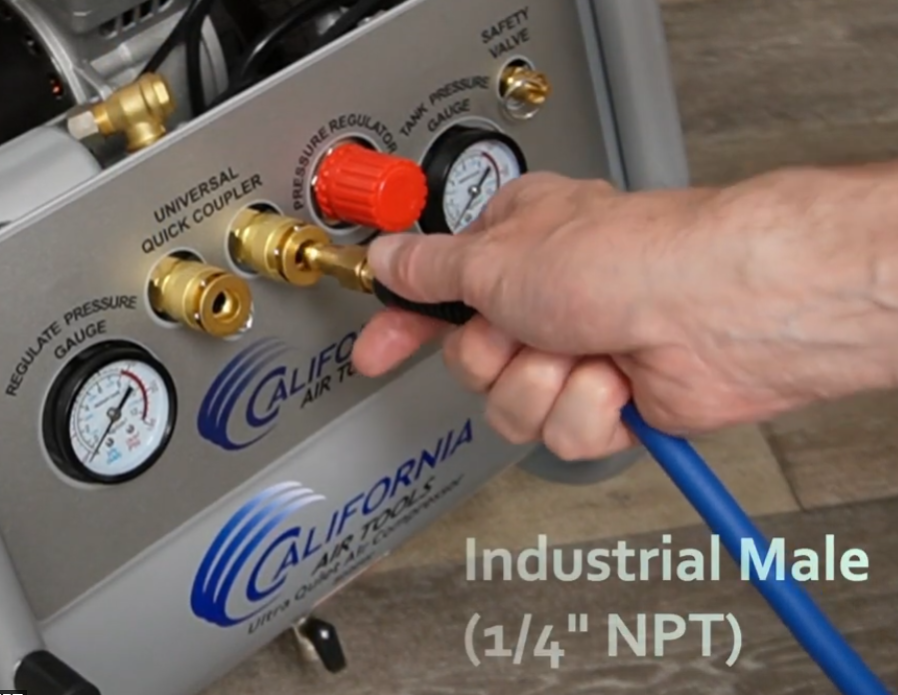

• Two female industrial push-to-connect quick connectors
• Thermal overload protection
• Condor pressure switch
• 125 PSI maximum pressure
• 70/30 duty cycle
• Includes air filter
• Assembled in the USA with global components
• 1-year limited warranty

Specifications

• Motor: 1.0 HP rated/running, 2.0 HP peak
• Motor Speed: 1,400 RPM
• Tank Capacity: 4.6 gallons
• Tank Material: Aluminum, rust-resistant
• Air Delivery: 4.00 CFM @ 40 PSI; 3.00 CFM @ 90 PSI
• Maximum Pressure: 125 PSI
• Noise Level: 60 dB
• Voltage: 110V
• Frequency: 60 Hz
• Amp Draw: 7.6 amps
• Tank Fill Time: 110 seconds
• Recovery Time: 20 seconds from 90 PSI to 120 PSI
• Duty Cycle: 70/30
• Weight: 44 lbs
• Dimensions: 18.75" L × 16.5" W × 19.5" H
• Warranty: 1-year limited warranty
• Assembly: USA with global components

What's Included

• California Air Tools 4610ALFC air compressor
• 4.6-gallon aluminum air tank
• Air filter
• Two pressure control gauges
• Two female industrial push-to-connect quick connectors

Applications

The 4610ALFC is designed for indoor applications where operating noise is a major concern. Its oil-free pump, lightweight aluminum tank, and portable design make it suitable for home, contractor, construction, workshop, and other applications requiring a compact source of compressed air.

Maintenance

Replace the 1 HP air filter attached to the motor-pump every 2 years, or every 1 year if the compressor is exposed to a dirty or dusty environment.

Replacement Air Filter Part Number: 90227
