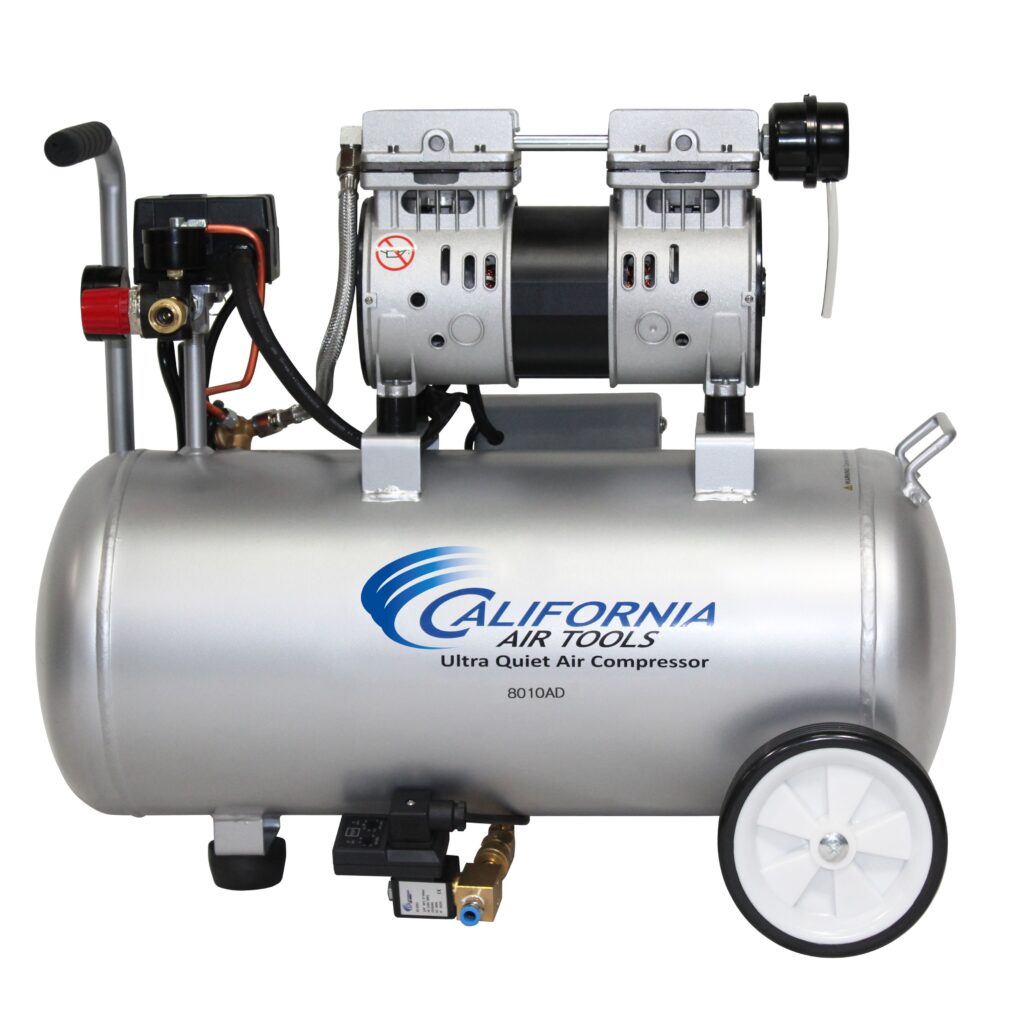

California Air Tools 8010AD Ultra Quiet Oil-Free 1.0 HP 8-Gallon Steel Air Compressor with Automatic Drain Valve

Product Description

The California Air Tools 8010AD is an ultra-quiet, oil-free 1.0 HP air compressor featuring an 8-gallon steel air tank and a factory-installed automatic drain valve. With an operating noise level of just 60 dB, it is designed for indoor environments where reduced noise is important.

Its oil-free dual-piston pump operates at 1,680 RPM and is designed for a life cycle of more than 3,000 hours before wear. The automatic drain valve eliminates the need for manual tank draining, making routine operation more convenient.

The 8010AD includes a wheel kit for easier transportation and delivers 3.10 CFM at 40 PSI and 2.20 CFM at 90 PSI, with a maximum pressure of 120 PSI.

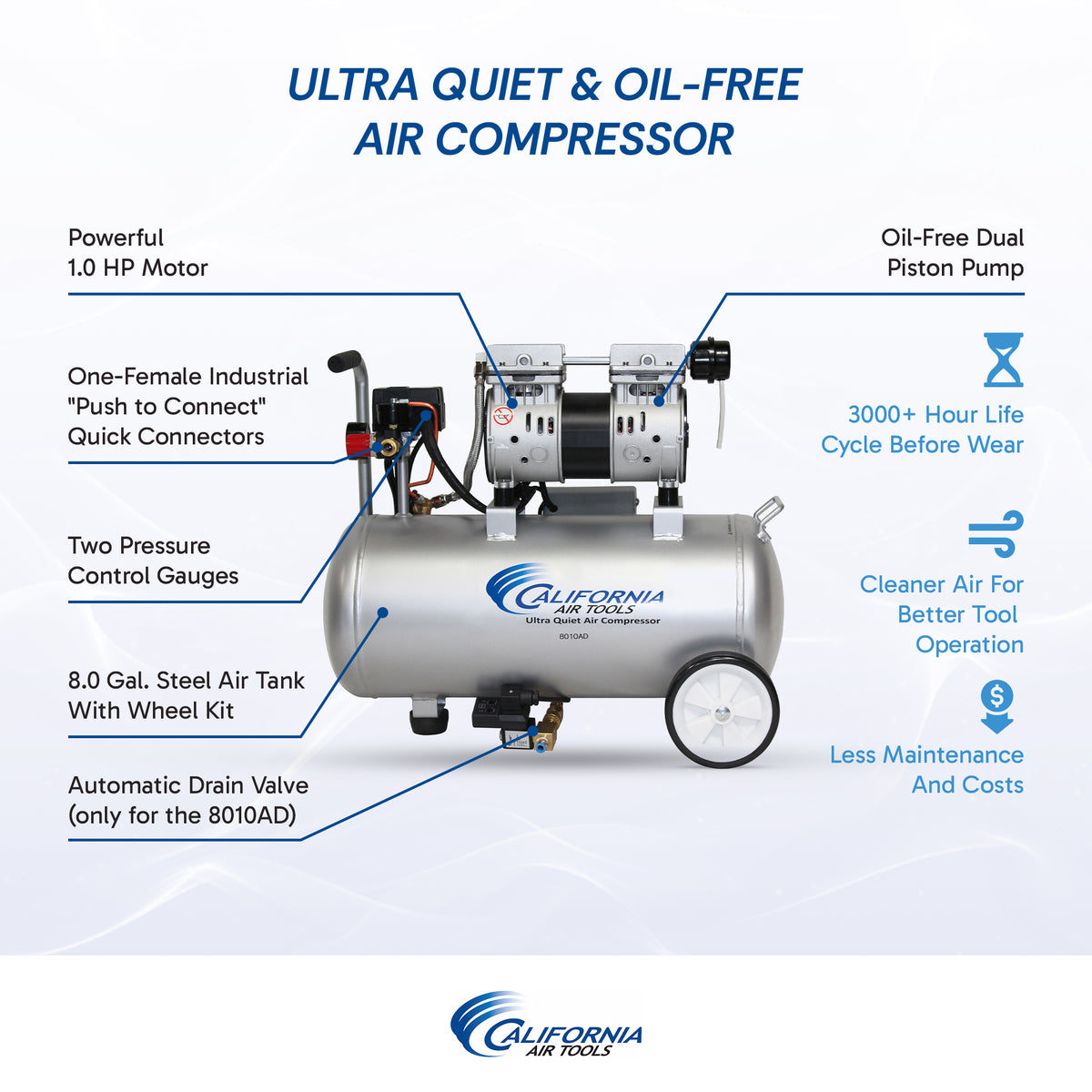

Key Features

• Ultra-quiet 60 dB operation
• 1.0 HP rated/running motor
• 2.0 HP peak output
• Oil-free dual-piston pump
• 8-gallon steel air tank
• Factory-installed automatic drain valve
• No manual tank draining required
• 1,680 RPM motor speed
• 120 PSI maximum pressure
• 3.10 CFM at 40 PSI
• 2.20 CFM at 90 PSI
• Two pressure control gauges
• Universal 1/4-inch quick connector
• Thermal overload protection
• Wheel kit for portability
• 70/30 duty cycle
• 110V / 60 Hz operation
• 8.5-amp draw
• UL/CSA certified

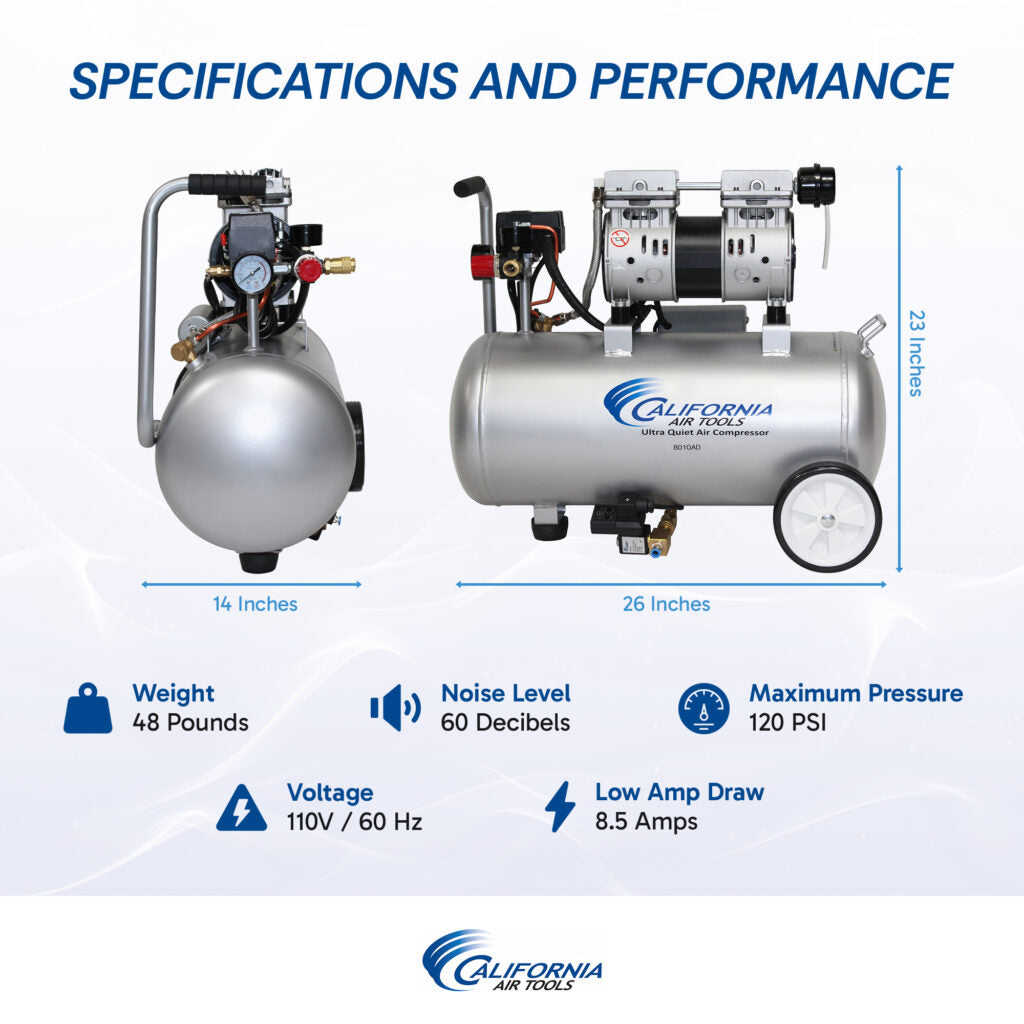

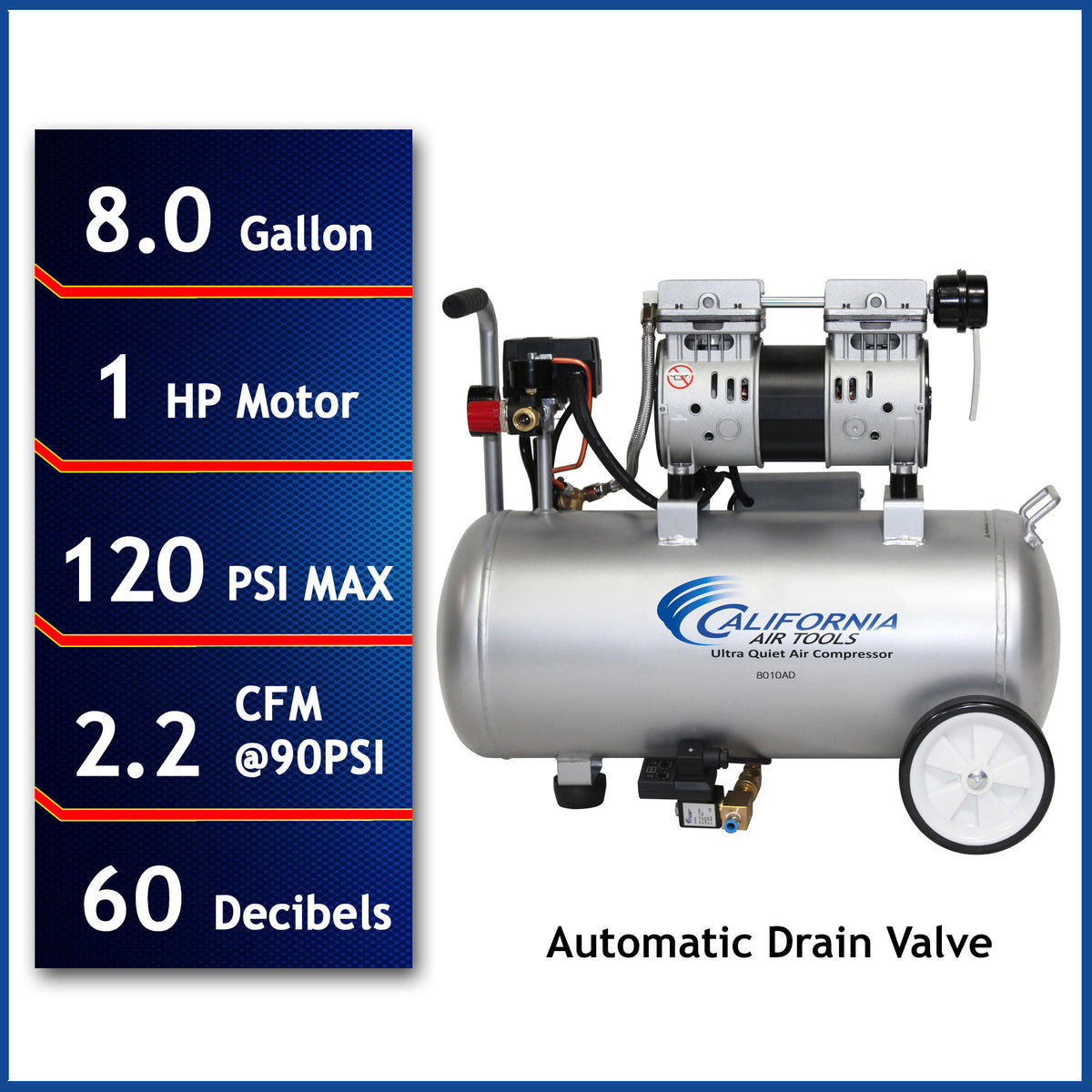

Specifications

What's Included

• California Air Tools 8010AD air compressor
• 8-gallon steel air tank
• Wheel kit
• Air filter
• Factory-installed EZ-1 automatic drain valve

Applications

The 8010AD is suitable for:

• Home workshops
• Indoor workspaces
• Small shops
• General pneumatic applications
• Tire inflation
• Cleaning
• Small pneumatic tools
• Applications where low operating noise is important

Its 60 dB operating level makes it particularly suitable for indoor environments where noise is a concern.

Maintenance

The factory-installed automatic drain valve automatically drains the air tank, eliminating the need for manual tank draining. The oil-free pump also avoids the need for routine pump oil changes.

The unit includes an air filter and should be maintained according to the manufacturer's operating and maintenance instructions.
