California Air Tools 8010PK Ultra Quiet 1.0 HP 8-Gallon Air Compressor & LVLP Spray Painting Kit 2. Product Type

Product Description

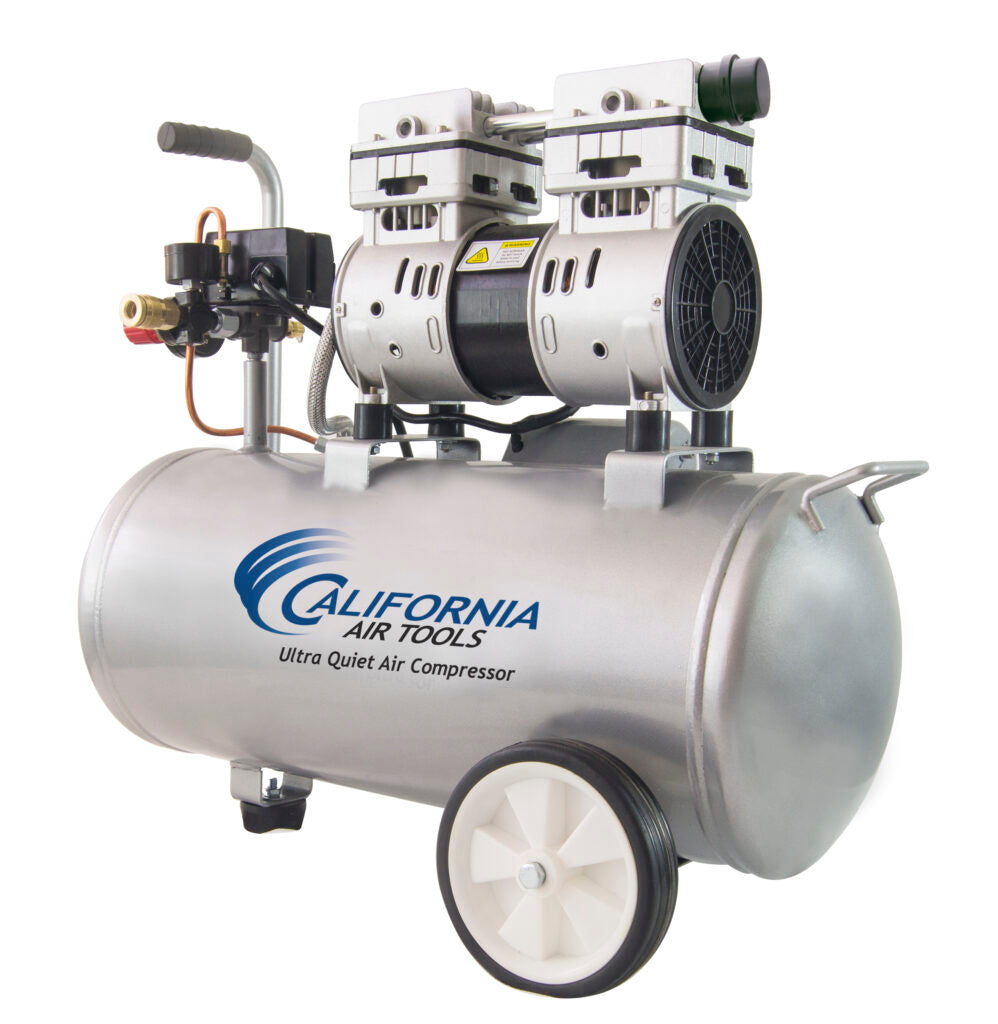

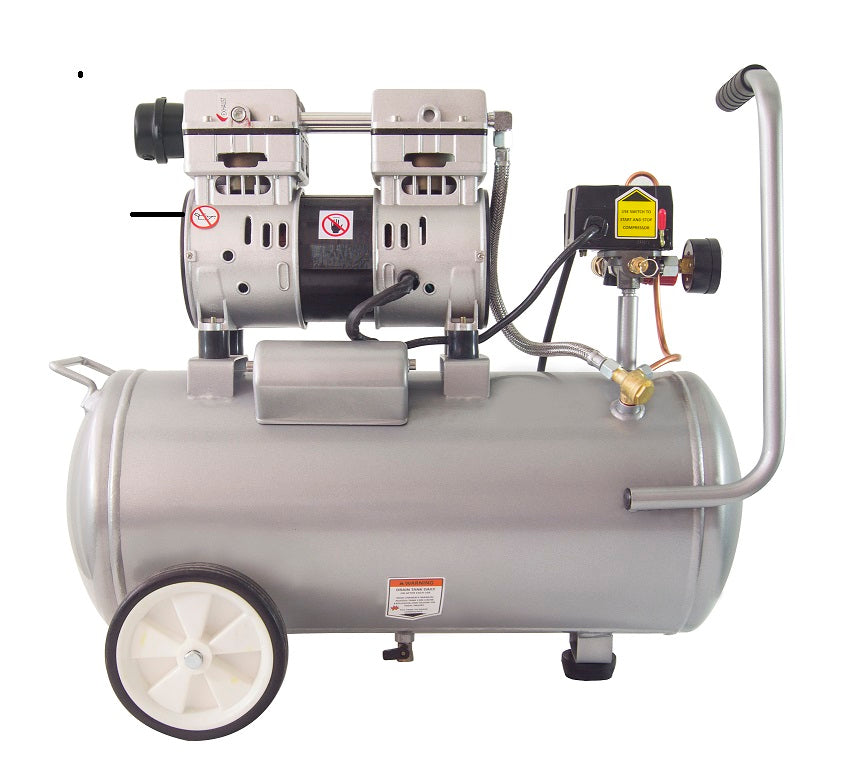

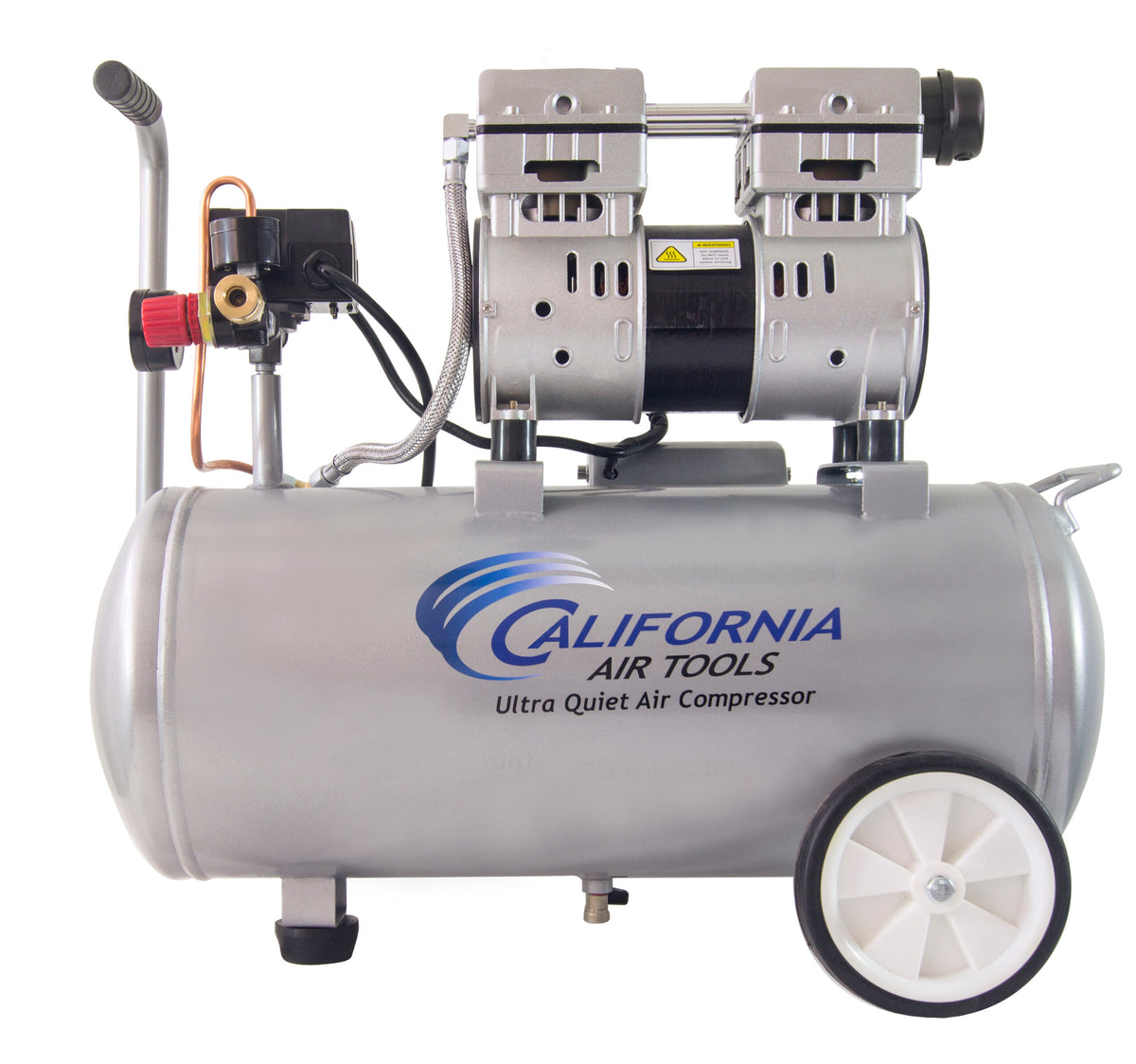

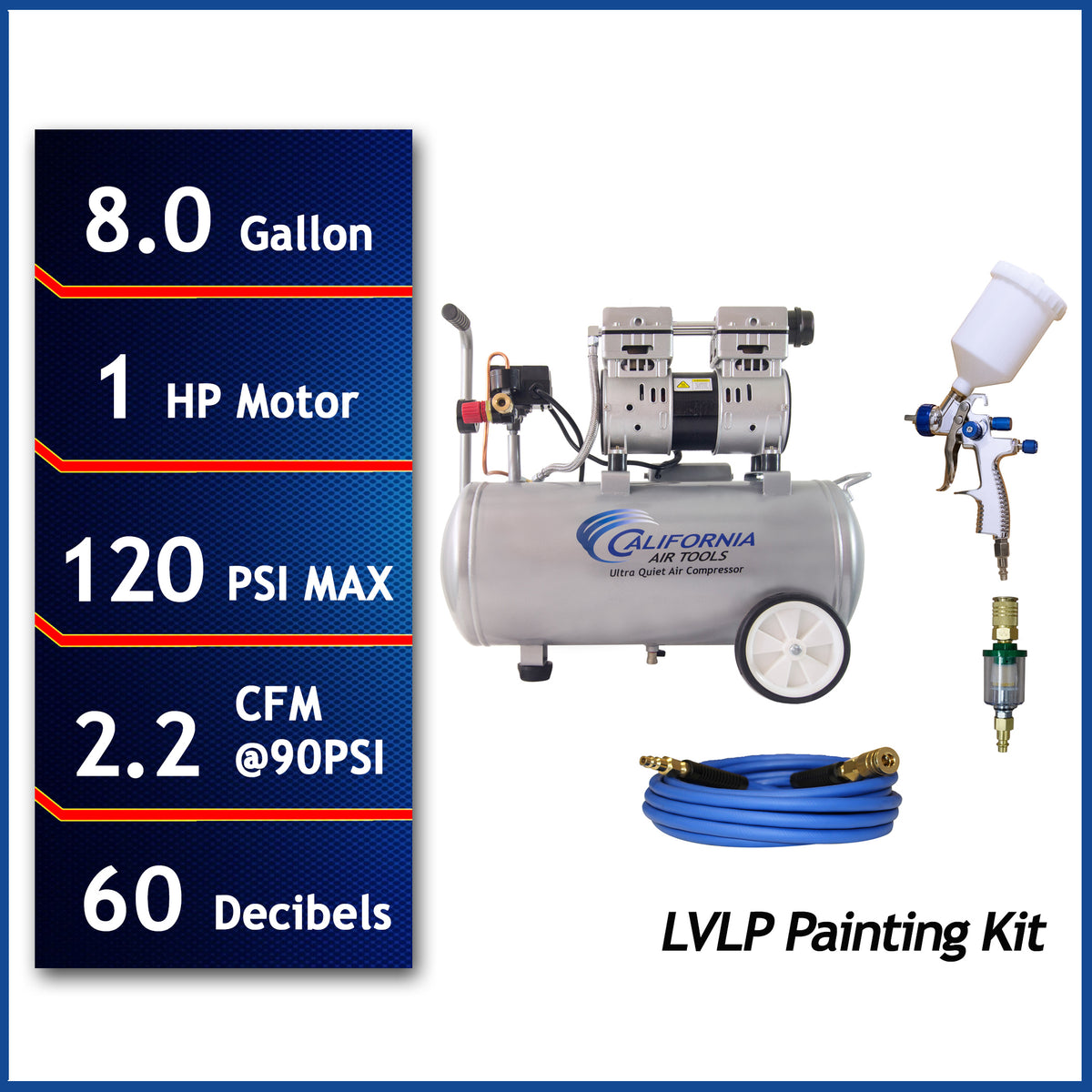

The California Air Tools 8010PK combines the 8010 Ultra Quiet 1.0 HP air compressor with an LVLP gravity-feed spray gun and accessories for a complete light-duty spray painting setup.

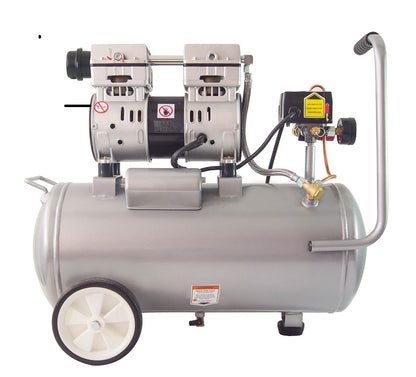

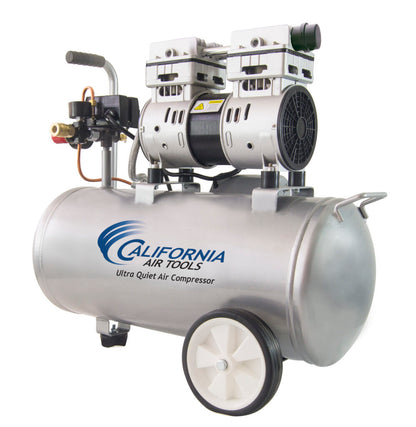

The 8-gallon steel-tank compressor operates at just 60 dB and uses an oil-free dual-piston pump. The included LVLP spray gun requires less air than conventional spray guns, allowing it to be paired with a smaller compressor. The kit is designed for automotive, industrial, marine, woodworking, residential, and specialty painting applications.

Key Features

• 1.0 HP rated/running motor
• 2.0 HP peak motor output
• 8-gallon steel air tank
• Oil-free dual-piston pump
• Ultra-quiet 60 dB operation
• 3.10 CFM at 40 PSI
• 2.20 CFM at 90 PSI
• 120 PSI maximum pressure
• 1,680 RPM motor speed
• LVLP gravity-feed spray gun
• 1.3 mm stainless-steel needle and nozzle
• 20 oz gravity-feed spray cup
• Adjustable fluid, fan-pattern, and air controls
• 25-foot hybrid air hose
• Water separator
• Industrial quick-connect adapters
• Wheel kit for compressor portability
• UL/CSA certified
• 1-year limited warranty

Specifications

What's Included

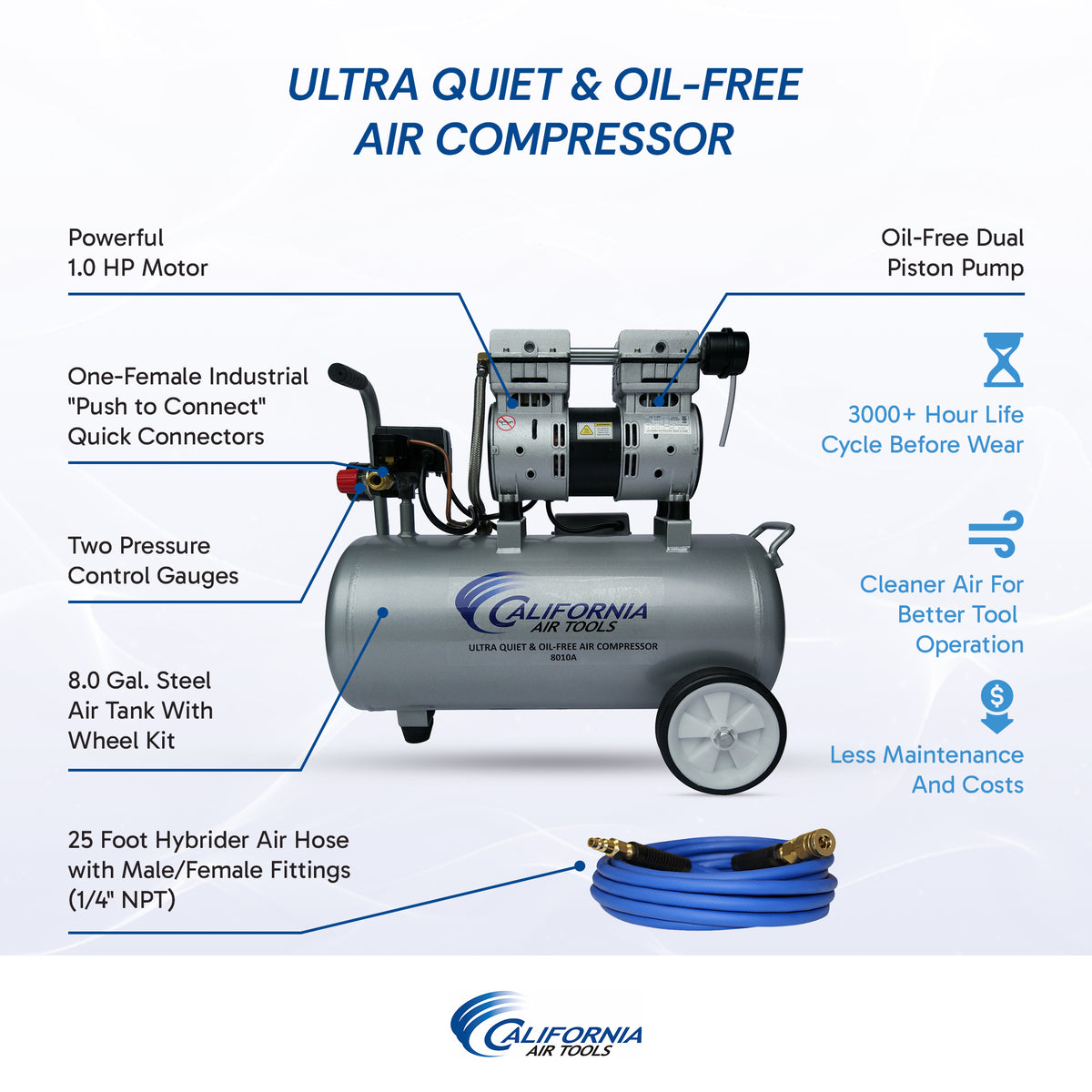

• 8010 Ultra Quiet 1.0 HP air compressor
• 8-gallon steel air tank

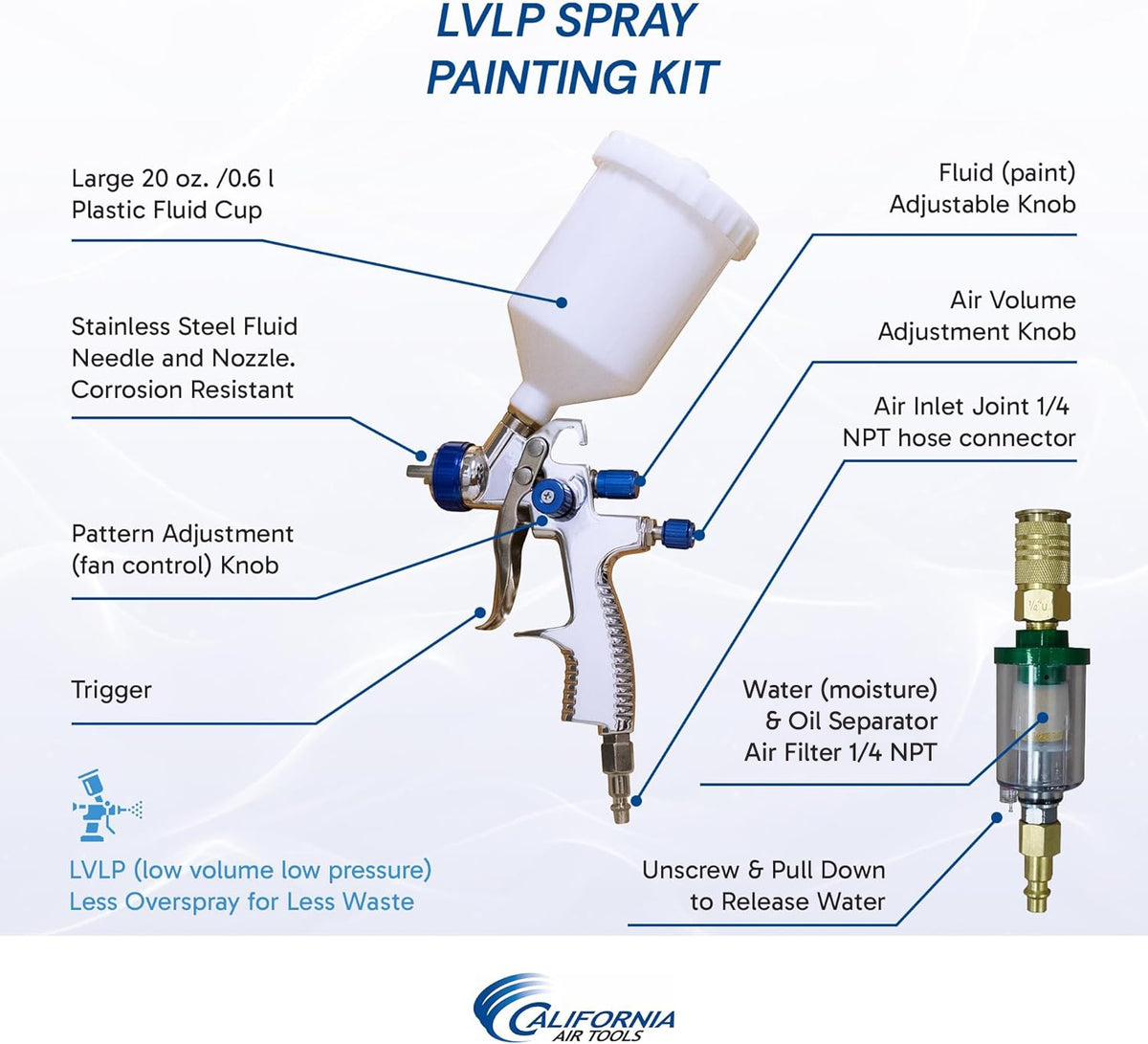

• CAT-33000 LVLP gravity-feed spray gun
• 1.3 mm spray gun nozzle
• 20 oz gravity-feed cup
• 25-foot Hybrider Flex air hose
• 1/4-inch NPT industrial male fitting
• 1/4-inch NPT industrial female fitting

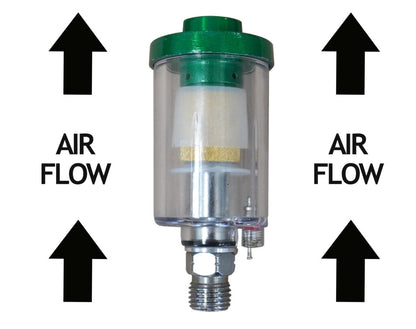

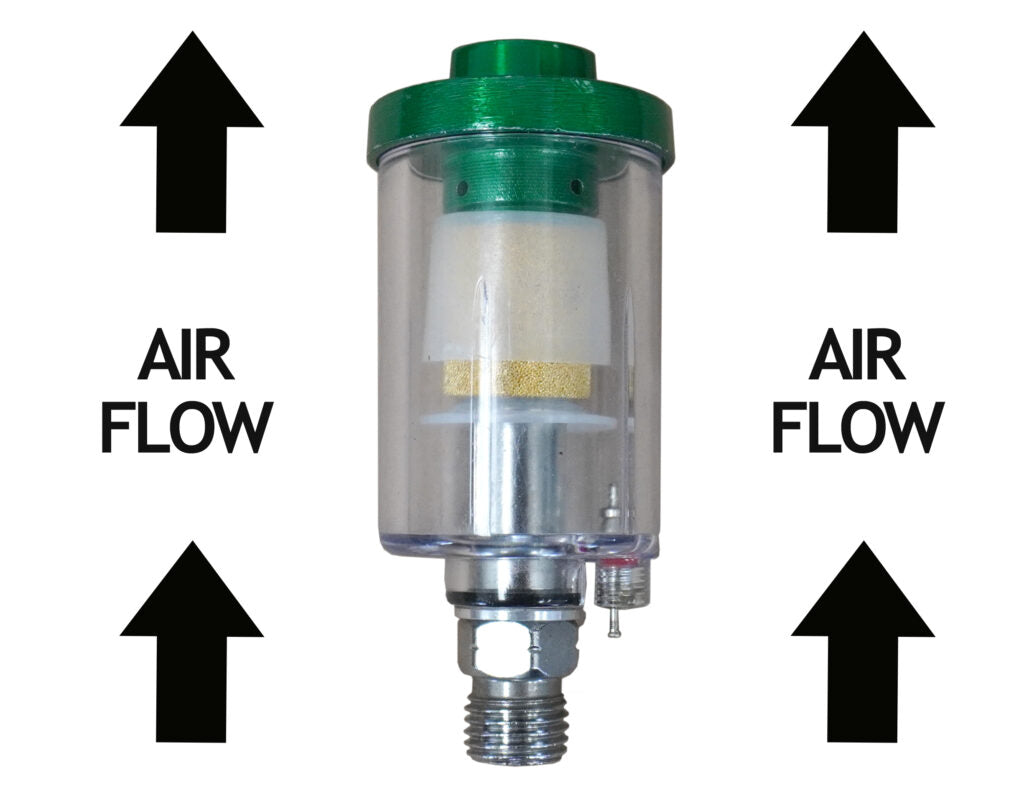

• Water separator (317)
• Wheel kit
• Air filter

Applications

The 8010PK is designed for light-duty and specialty painting applications, including:

• Automotive painting and touch-up
• Automotive restoration
• Marine applications
• Woodworking
• Furniture and woodworking projects
• Residential painting
• LVLP spray painting
• Stains
• Lacquers
• Enamels
• Urethanes
• Acrylic coatings
• Specialty projects
• Low-viscosity, quick-drying coatings

California Air Tools specifically lists the 8010PK for specialty projects, LVLP stain/lacquer painting, residential LVLP painting, automotive panel paint touch-up, and general painting.

Maintenance

The 8010 compressor uses an oil-free dual-piston pump, so routine pump oil changes are not required.

California Air Tools specifies replacing the 1 HP air filter every two years, or annually when the compressor is exposed to dirty or dusty environments. The specified replacement filter is Part 90227.

For the spray gun, clean the gun and fluid components after use according to the manufacturer's instructions, particularly when working with coatings that can dry or cure inside the nozzle and fluid passages.
