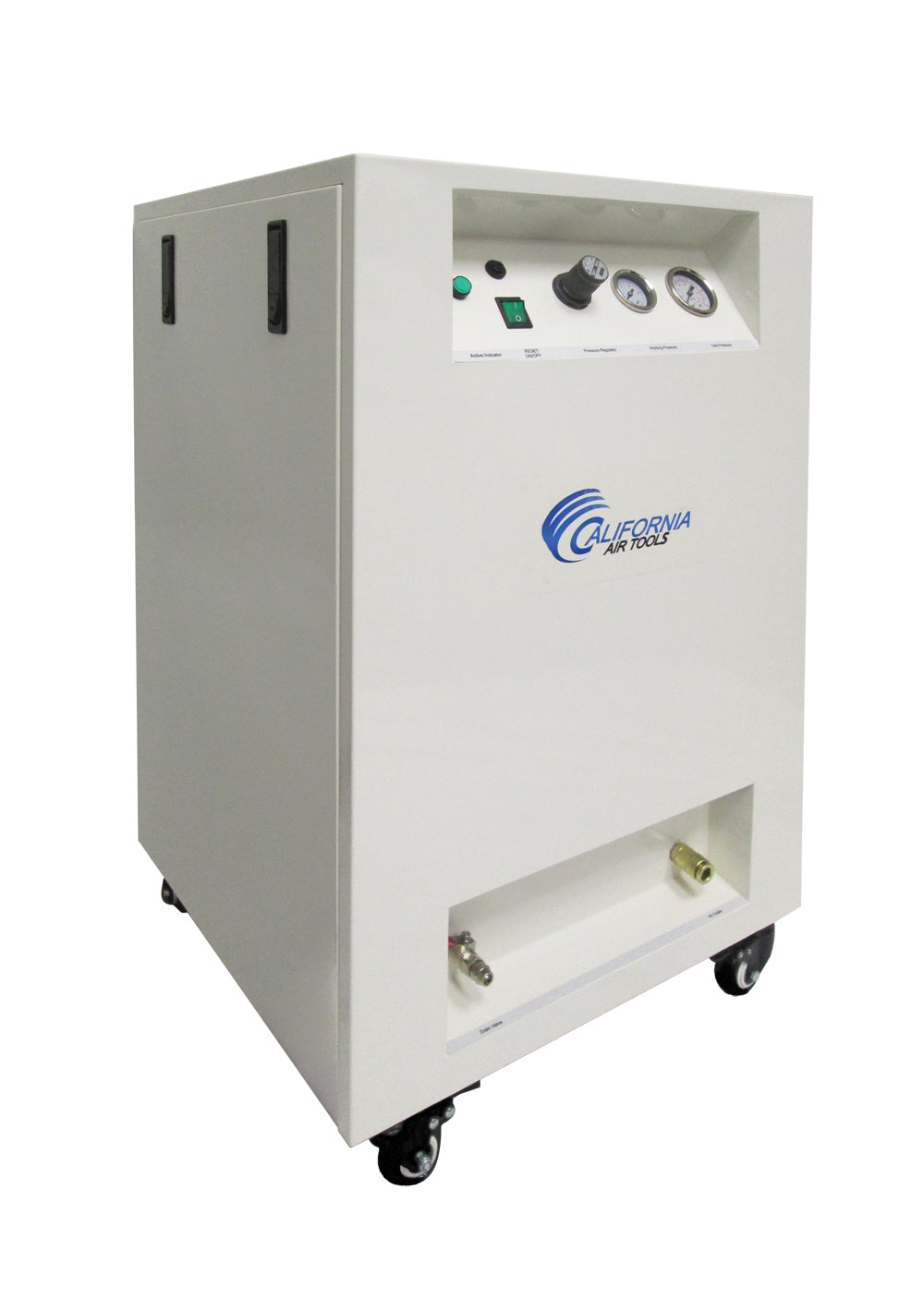

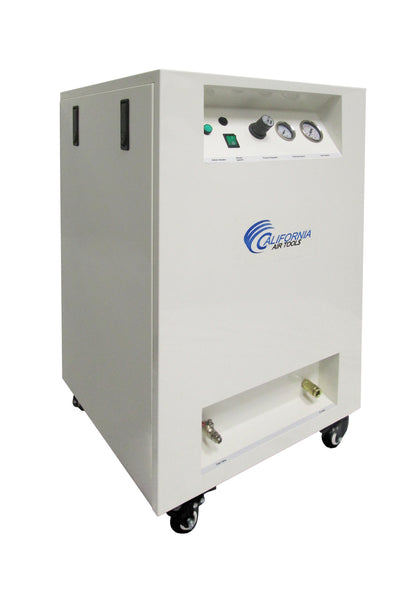

California Air Tools 8010SPCAD 1.0 HP Ultra Quiet Oil-Free 8-Gallon Air Compressor with Soundproof Cabinet and Automatic Drain

Product Description

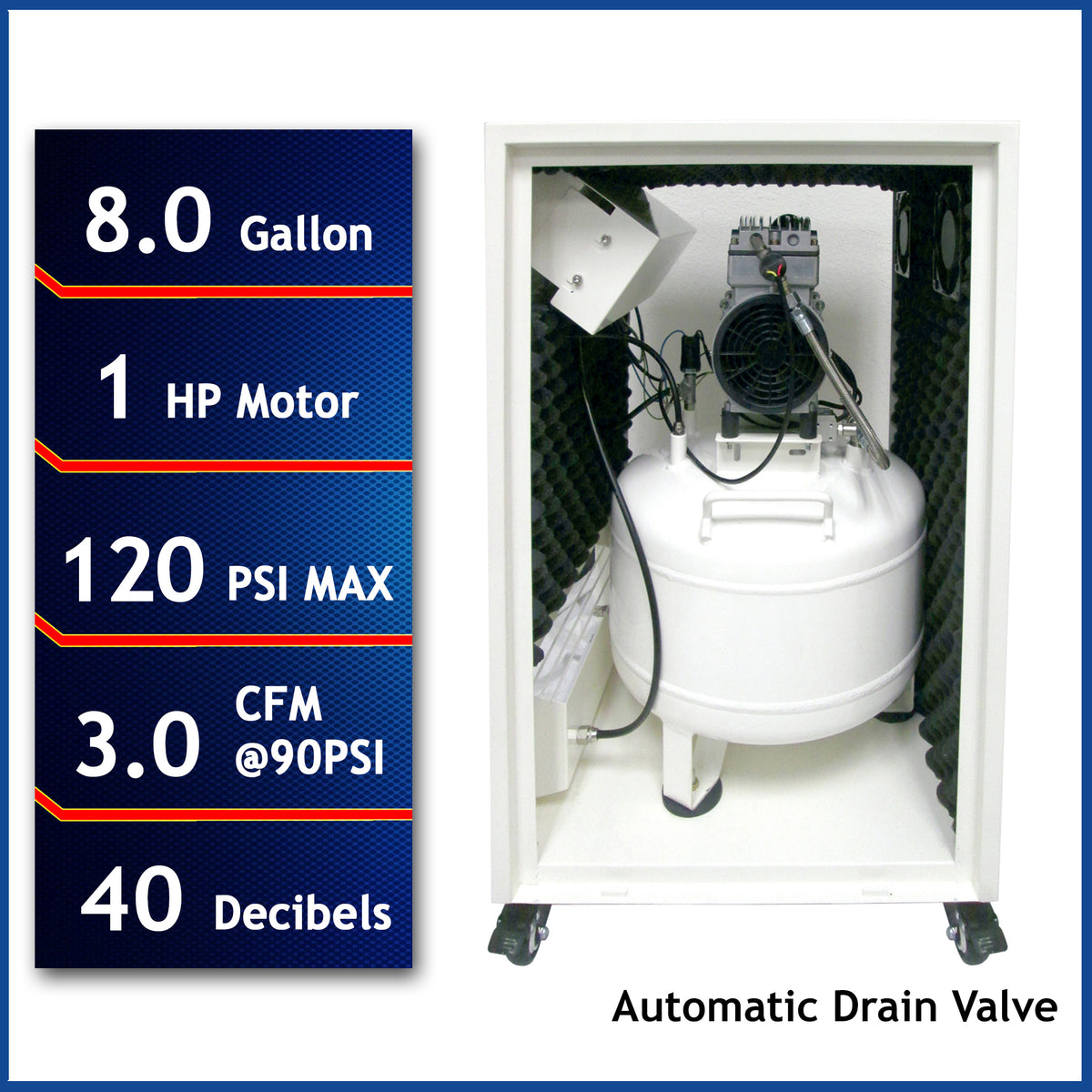

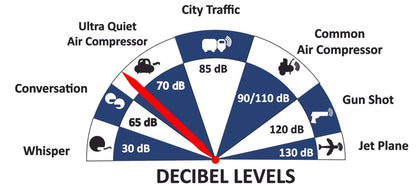

The California Air Tools 8010SPCAD is a 1.0 HP ultra-quiet, oil-free air compressor designed for indoor environments where minimizing operating noise is important. The compressor operates at just 40 dB and features an 8-gallon coated steel air tank housed inside a soundproof cabinet.

The CAT-MP100LF motor operates at 1,400 RPM to reduce noise, vibration, and wear. Its oil-free dual-piston pump is engineered for longevity and is tested for a minimum pump life of 4,000 hours before service.

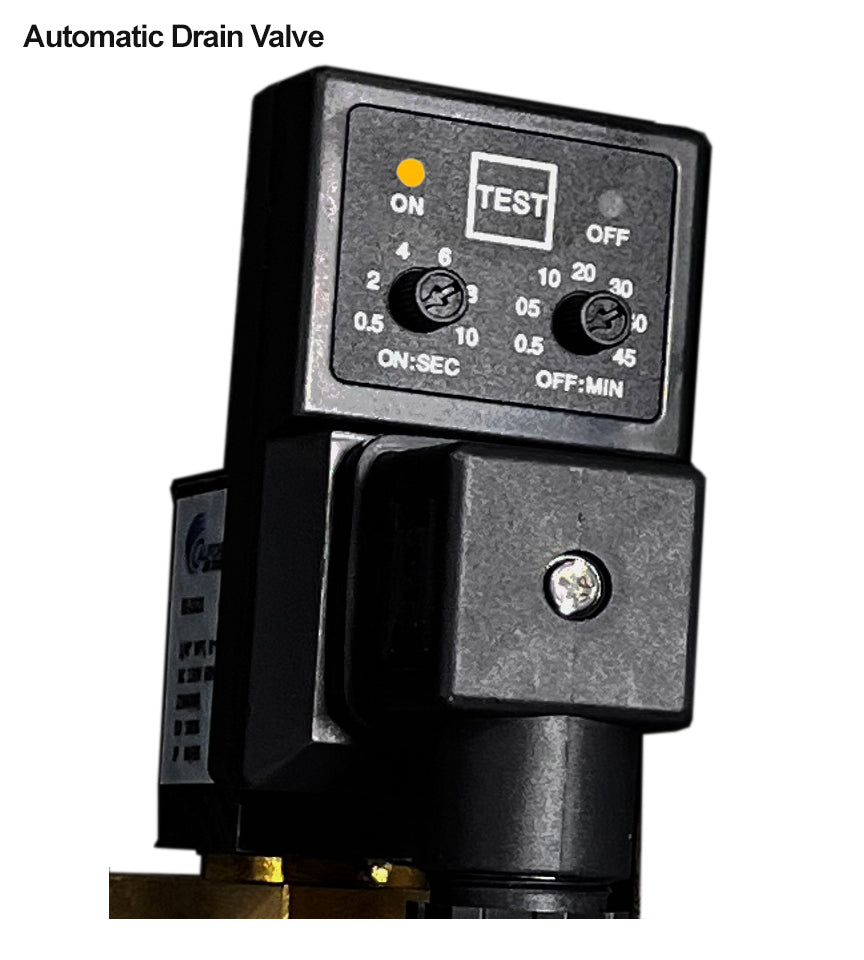

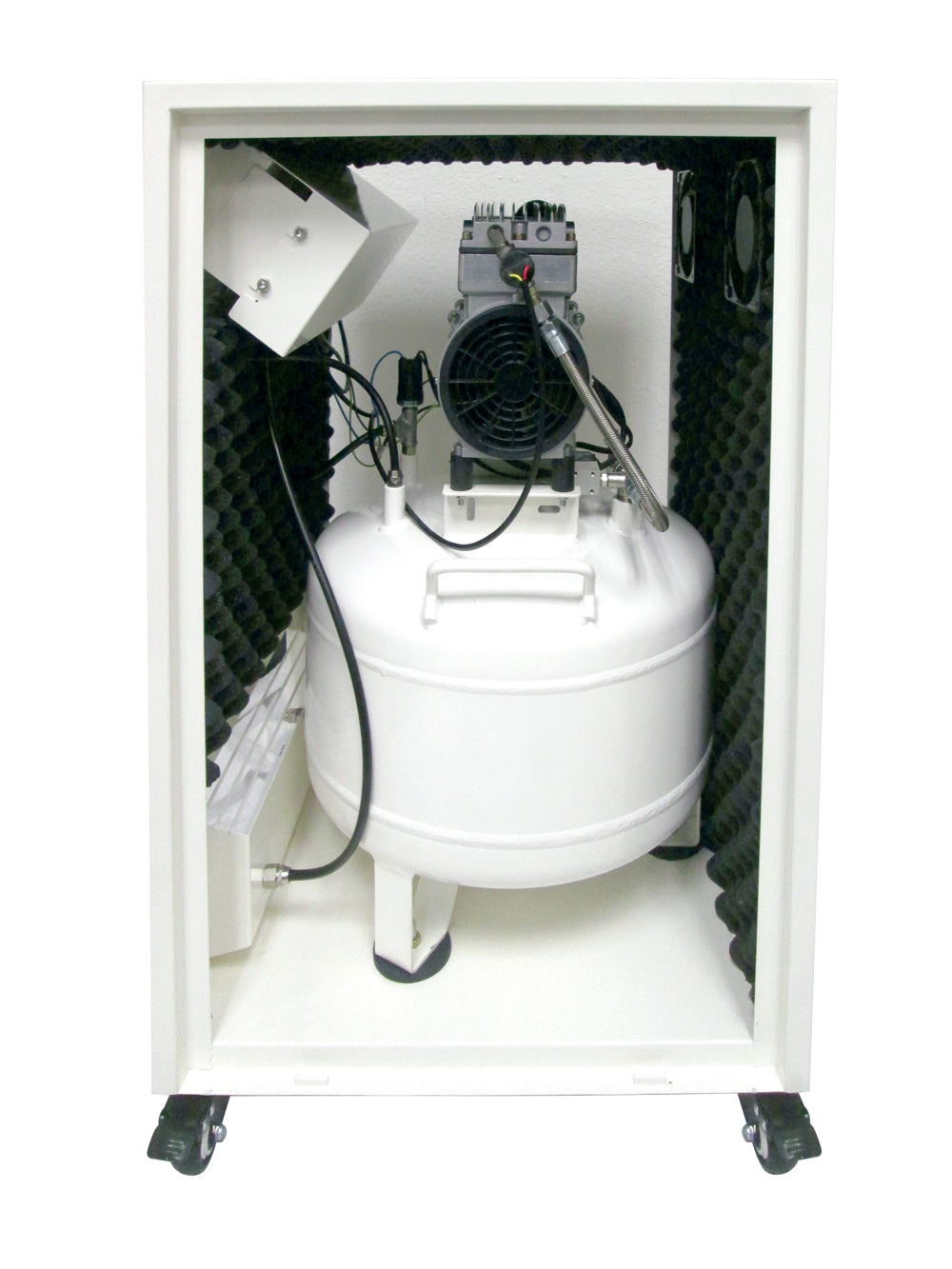

The integrated EZ-1 Automatic Drain Valve eliminates the need to manually drain the tank. A manually set timer controls both the frequency and duration of the automatic draining process. The soundproof cabinet features acoustic foam insulation, two exhaust fans, two latching doors, and four caster wheels.

Key Features

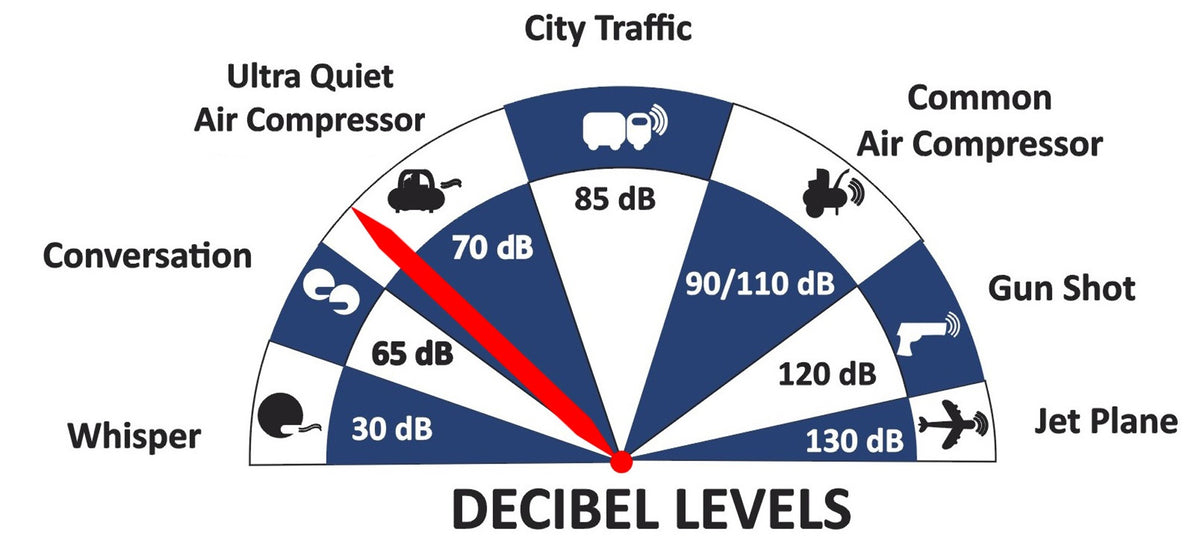

• Ultra-quiet 40 dB operation
• 1.0 HP rated/running motor
• Oil-free dual-piston pump
• CAT-MP100LF motor operating at 1,400 RPM
• Minimum tested pump life of 4,000 hours
• 8-gallon internally epoxy-coated steel air tank
• Integrated EZ-1 automatic drain valve
• Automatic drain timer with adjustable frequency and duration
• Soundproof metal cabinet
• 1/4-inch acoustic soundproofing foam
• Cabinet designed to reduce noise by 30%

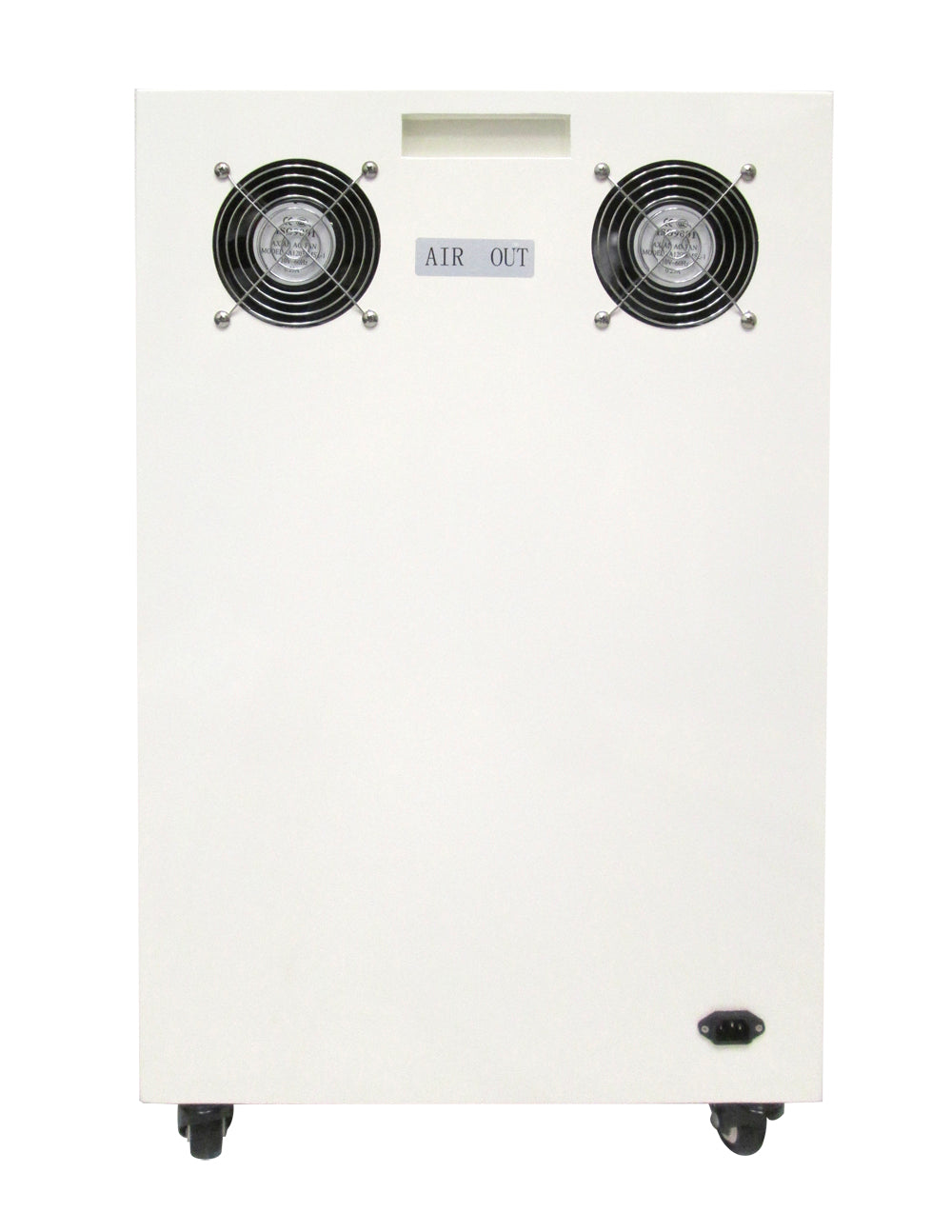

• Two cabinet exhaust fans

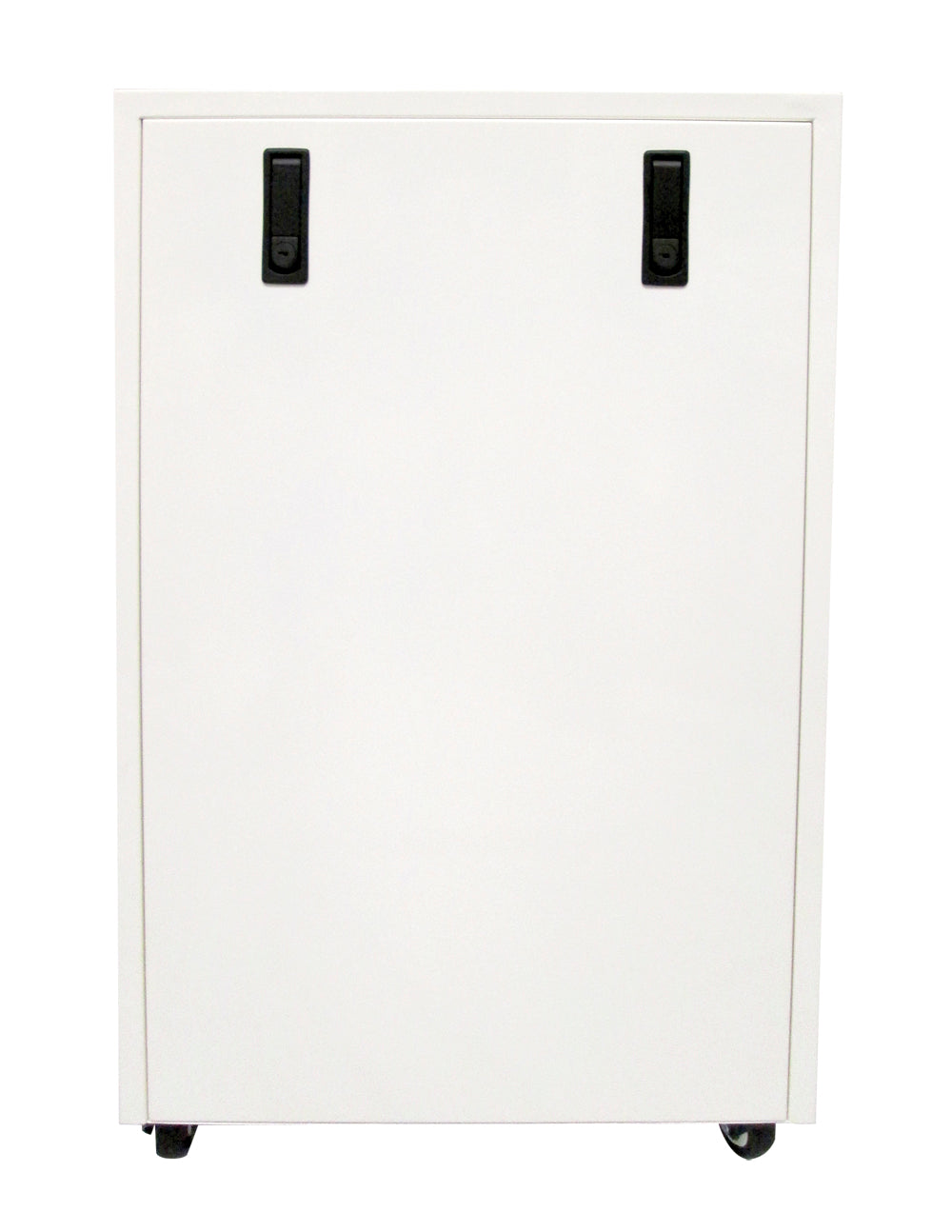

• Two latching cabinet doors
• Four swivel caster wheels
• Two pressure control gauges
• Industrial push-to-connect quick connector
• Thermal overload protection
• 115 PSI maximum pressure
• 85 PSI kick-on / 115 PSI kick-off
• 70/30 duty cycle
• 110V / 60 Hz
• 7.6-amp draw
• Non-ASME air tank
• 18-month limited warranty listed in the product specifications

Specifications

The CAT page also lists separate shipping-package dimensions and weight in its additional information section; those should not be confused with the product's stated 132-lb weight.

What's Included

• California Air Tools 8010SPCAD air compressor
• 8-gallon coated steel air tank
• Soundproof cabinet
• EZ-1 automatic drain valve
• Two cabinet exhaust fans
• Four swivel caster wheels
• Air filter

Applications

The 8010SPCAD is designed for indoor environments where compressor noise is a significant concern, including:

• Offices
• Shops
• Stores
• Warehouses
• Home workshops
• Indoor workspaces
• General pneumatic applications
• Applications requiring low-noise compressed air

The manufacturer specifically identifies office, shop, store, warehouse, and home environments as suitable applications.

Maintenance

The compressor uses an oil-free pump, eliminating the need for routine pump oil changes.

The manufacturer specifies replacing the 1 HP air filter every two years, or every year when the compressor is exposed to dirty or dusty environments. The specified replacement filter part number is 90227.

The EZ-1 automatic drain valve should be configured according to the required drainage frequency and duration. Its timer is manually adjustable, allowing the user to control the automatic tank-draining cycle.
