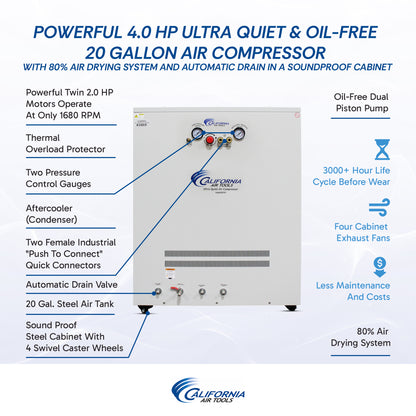

California Air Tools 20040DSPCAD 4.0 HP Ultra Quiet Oil-Free 20 Gallon Air Compressor with 80% Air Dryer, Automatic Drain & Soundproof Cabinet

Product Description

The California Air Tools 20040DSPCAD is a 4.0 HP ultra-quiet, oil-free air compressor designed for professional applications where reduced noise and dry compressed air are important. It combines a 20-gallon steel air tank, an 80% air drying system, a factory-installed automatic drain valve, and a soundproof cabinet into one complete compressed-air system.

Operating at only 65 dB, the 20040DSPCAD is designed for indoor environments such as offices, shops, stores, warehouses, and other workspaces where compressor noise is a concern. The powerful twin 2.0 HP motors operate at 1680 RPM to help reduce noise, vibration, and wear.

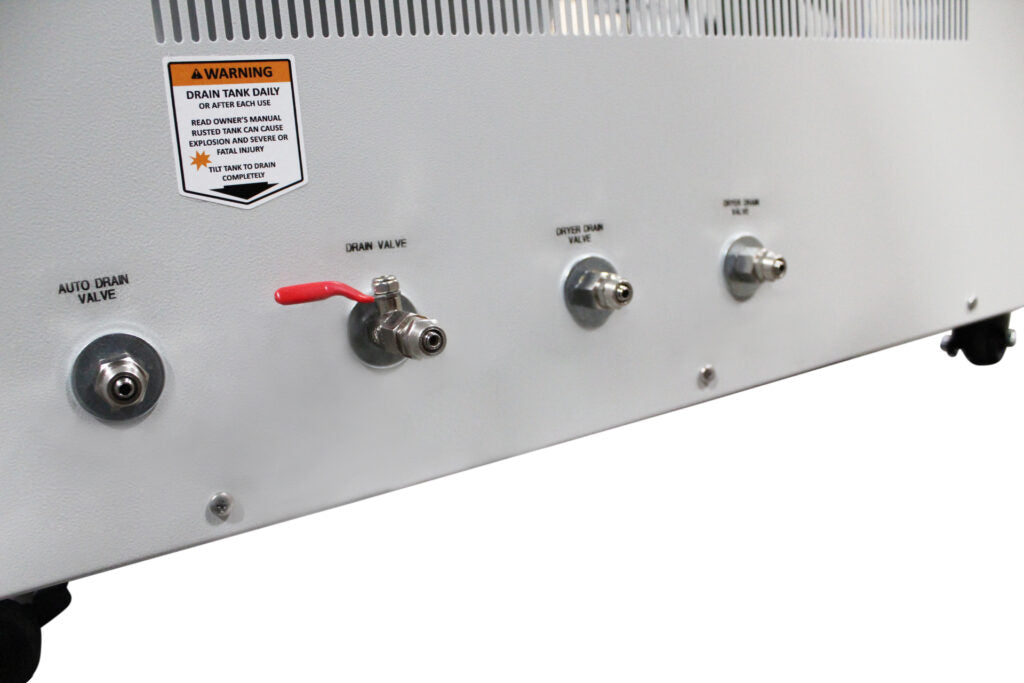

The oil-free dual piston pump system is engineered for high performance, durability, and long service life. The integrated 80% air drying system helps remove water vapor from compressed air to protect sensitive tools and machinery, while the EZ-1 automatic drain valve eliminates the need to manually drain accumulated moisture from the air tank.

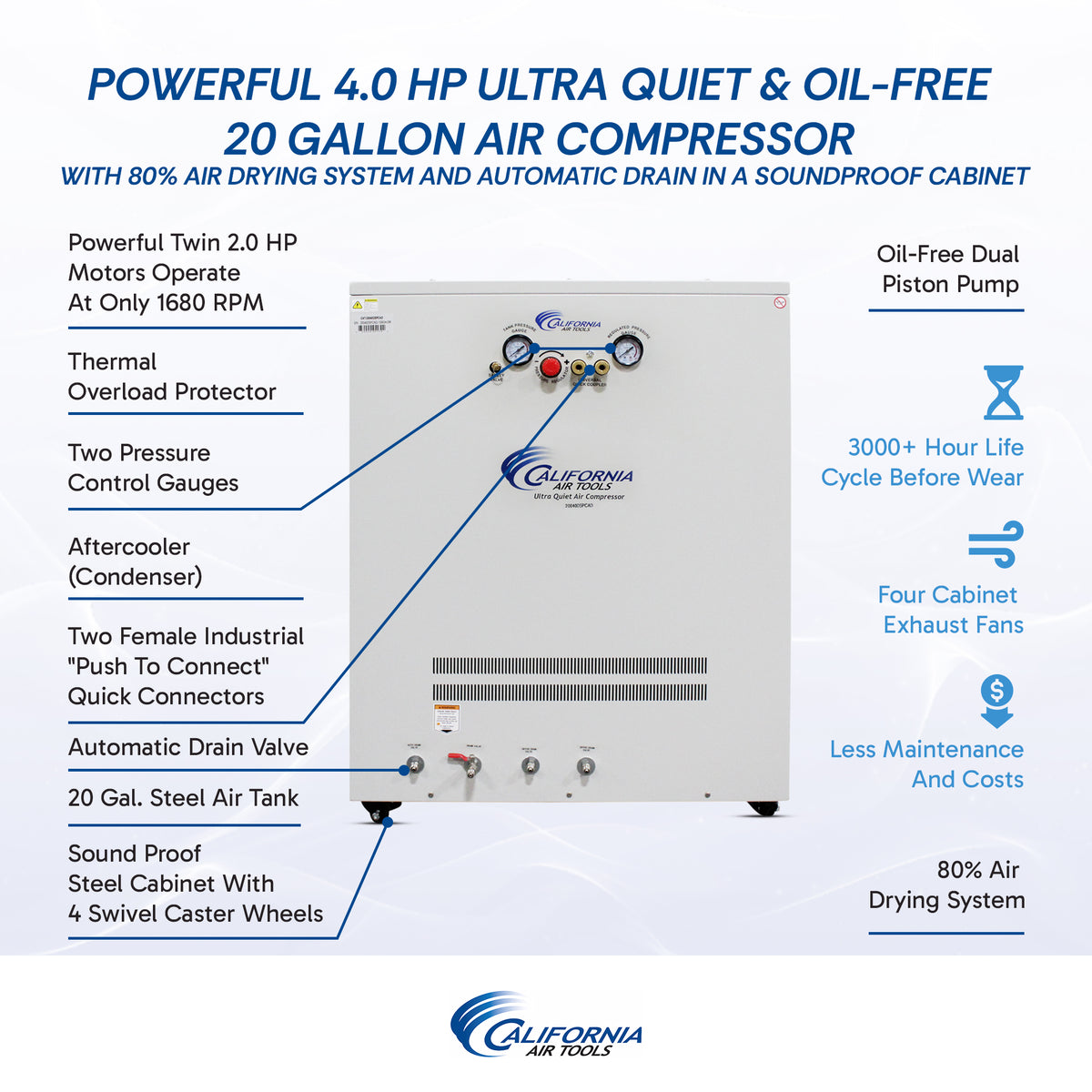

Key Features

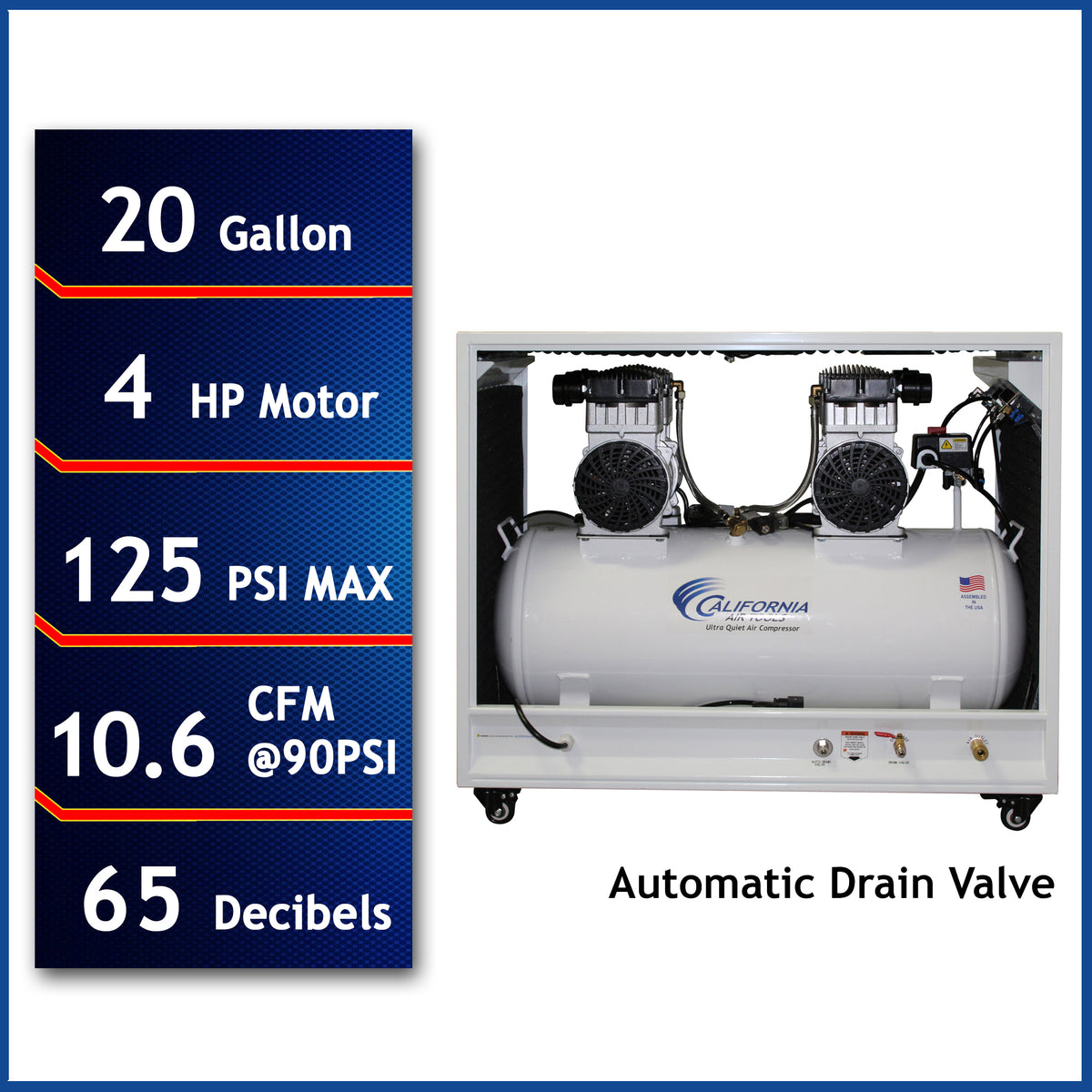

• 4.0 HP rated/running power
• Twin 2.0 HP oil-free motors
• Ultra-quiet 65 dB operation
• 20-gallon steel air tank

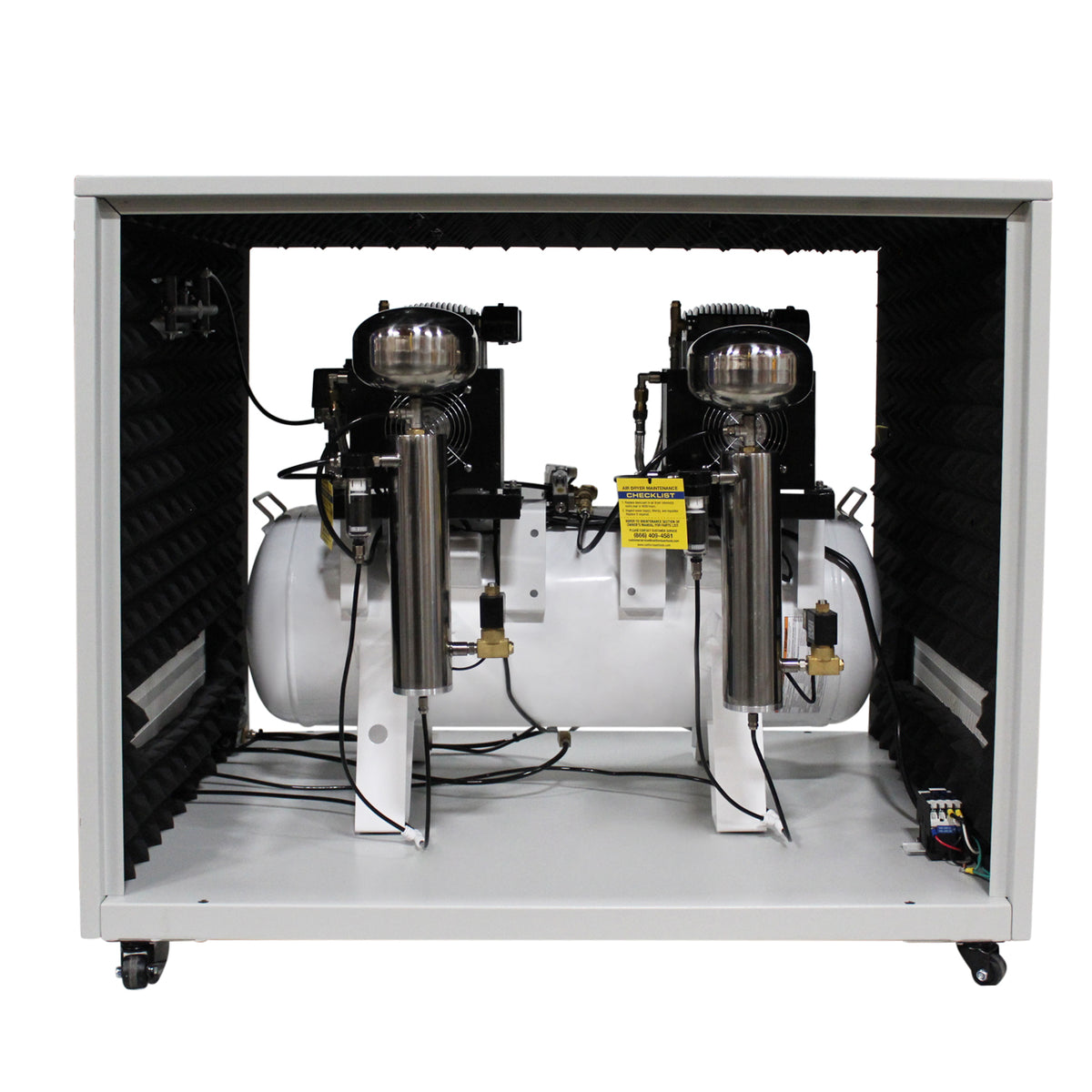

• 80% air drying system
• Factory-installed EZ-1-2321 automatic drain valve

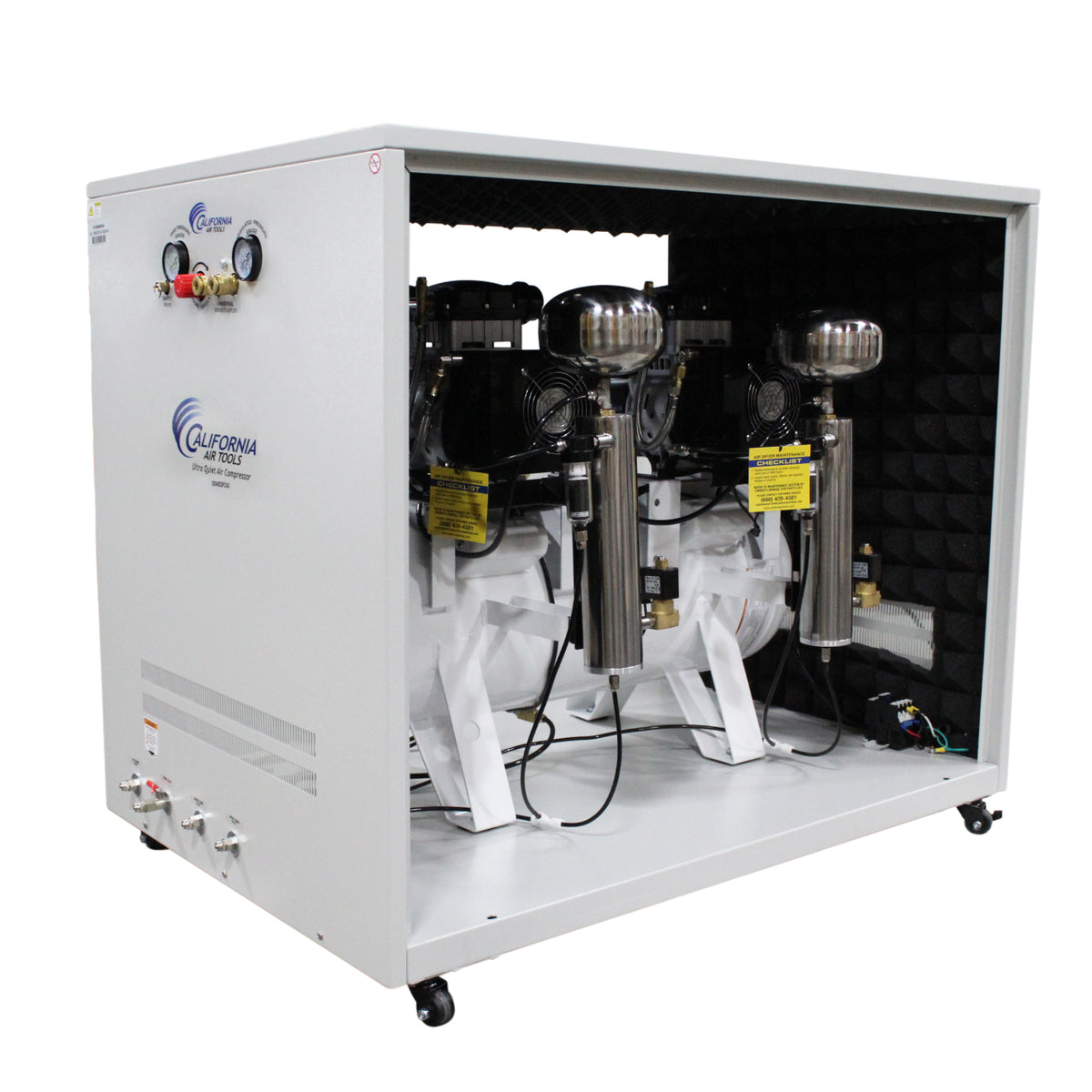

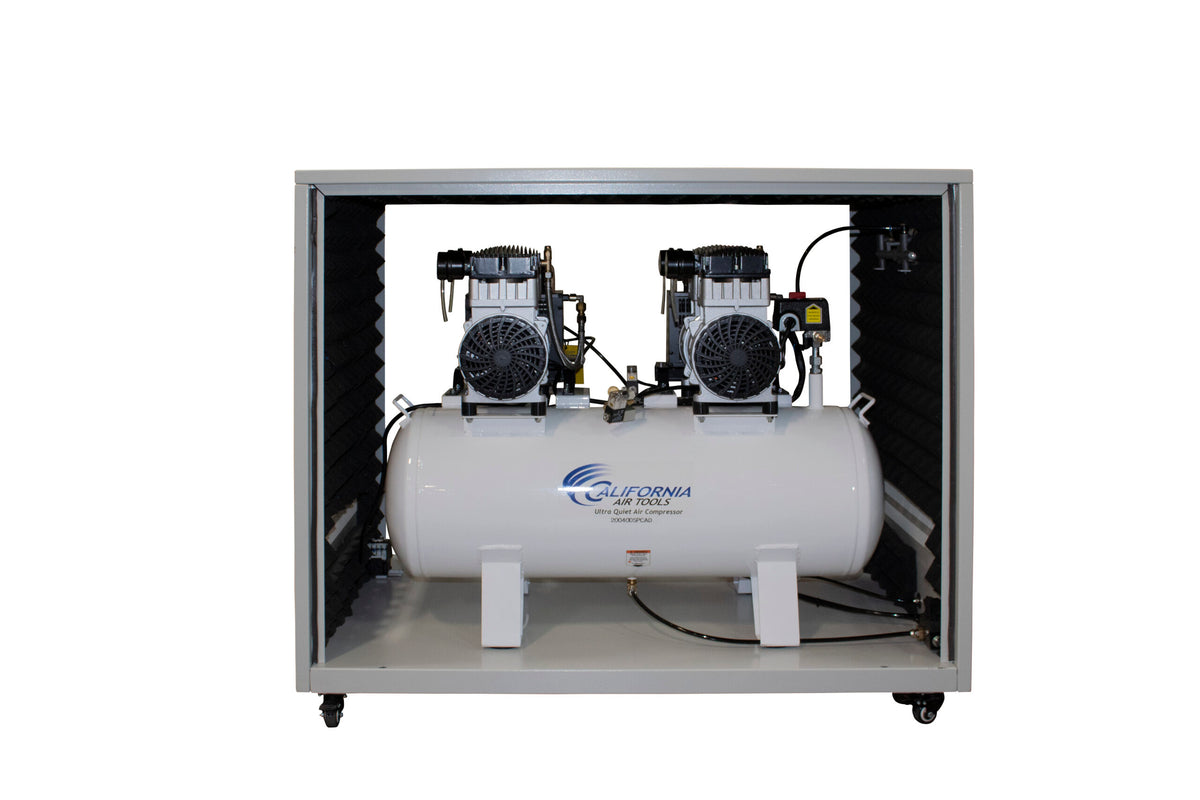

• Soundproof cabinet with acoustic insulation
• Oil-free dual piston pump system
• 1680 RPM motor speed
• 12.80 CFM at 40 PSI
• 10.60 CFM at 90 PSI
• 220V, 60Hz, single-phase power

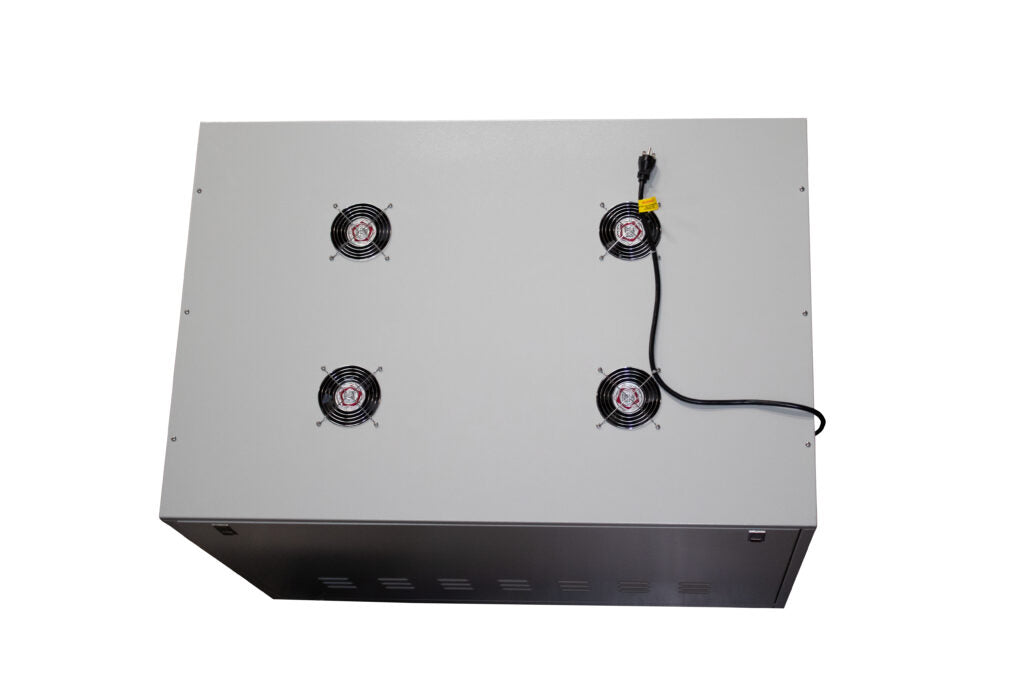

• Four cabinet exhaust fans for heat removal
• Two latching cabinet doors for convenient access
• Caster wheels for easier movement
• 70/30 duty cycle
• Four air filters included

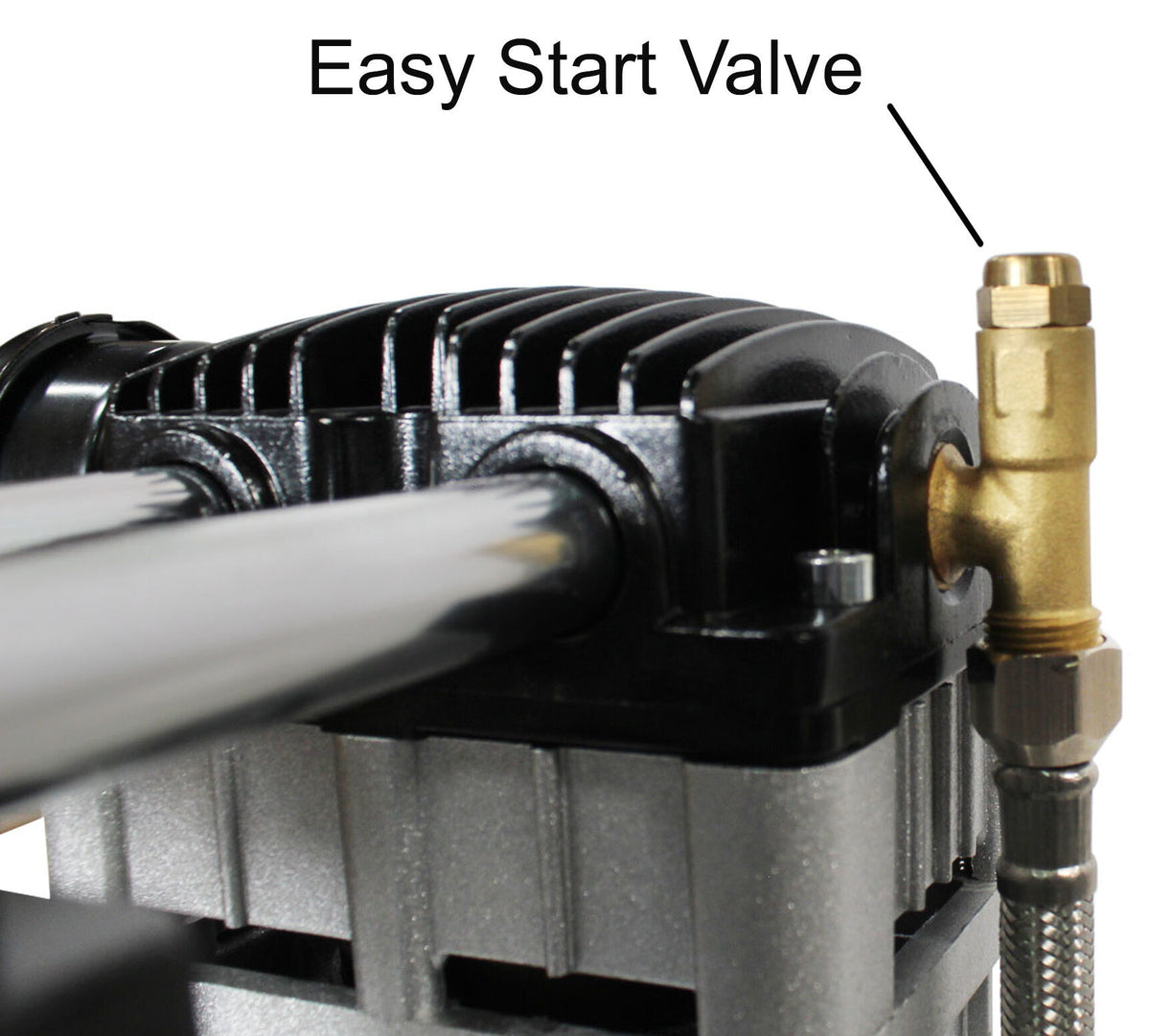

• Easy-start operation designed to reduce starting amperage

Specifications

• Model: 20040DSPCAD
• Motor Power: 4.0 HP
• Motor Configuration: Twin 2.0 HP Motors
• Pump Type: Oil-Free Dual Piston
• Tank Capacity: 20 Gallons
• Tank Material: Steel
• Cabinet: Soundproof
• Noise Level: 65 dB
• Voltage: 220V
• Frequency: 60 Hz
• Phase: Single Phase
• Airflow: 12.80 CFM @ 40 PSI
• Airflow: 10.60 CFM @ 90 PSI
• Air Drying: 80%
• Automatic Drain: EZ-1-2321 Factory Installed
• Motor Speed: 1680 RPM
• Duty Cycle: 70/30
• Tank Type: Non-ASME
• Weight: 370 lbs
• Dimensions: 31" L x 46" W x 39" H
• Plug Type: NEMA 6-15P
• Warranty: 1 Year Manufacturer Limited Warranty
• Assembly: Assembled in USA with global components

What's Included

• California Air Tools 20040DSPCAD Air Compressor
• 20-gallon steel air tank
• Soundproof cabinet
• 80% air drying system
• EZ-1-2321 automatic drain valve
• Four air filters
• Four cabinet exhaust fans
• Two latching cabinet doors
• Caster wheels

Applications

The California Air Tools 20040DSPCAD is suitable for automotive painting, dental milling, workshops, shops, stores, warehouses, offices, and other indoor professional environments where quiet operation and reduced moisture in compressed air are important. The 80% drying system is also designed to help protect sensitive pneumatic tools and machinery from water vapor.

Maintenance

The 80% dry air system uses desiccant that should be replaced approximately every 3,000–4,000 motor or pump operating hours, typically every 1–2 years depending on usage. California Air Tools recommends replacing the two 2 HP motor-pump air filters every 2 years, or annually when the compressor is operated in dusty or dirty environments. The automatic drain valve should also be checked periodically to ensure proper operation, while the cabinet exhaust fans and ventilation areas should be kept clean.
