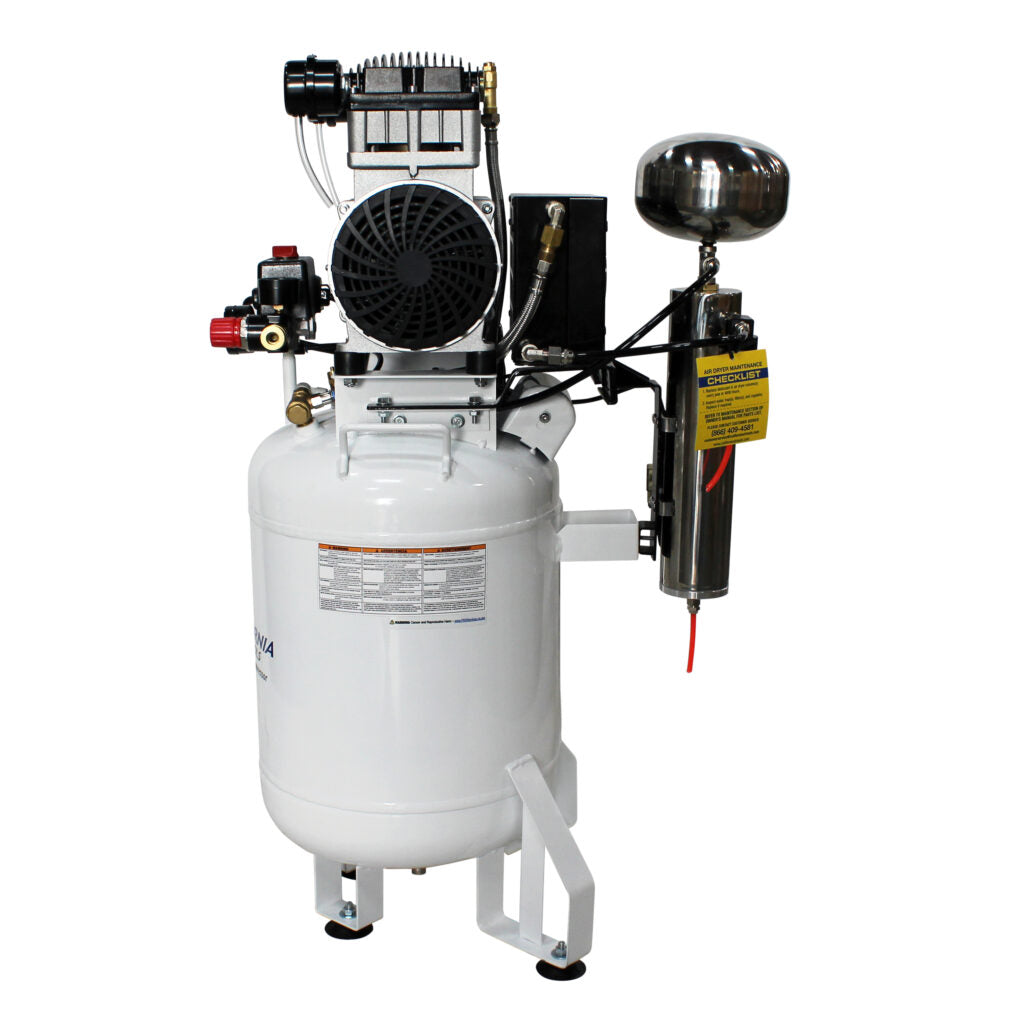

California Air Tools 10020DC-22060 Ultra Quiet 2.0 HP Oil-Free 10-Gallon Air Compressor with 80% Air Dryer – 220V 60Hz

Product Description

The California Air Tools 10020DC-22060 is a 2.0 HP ultra-quiet, oil-free air compressor designed to provide compressed air with integrated moisture reduction for applications where cleaner and drier air is important.

The compressor operates at 70 dB and uses an oil-free dual-piston pump system designed for long service life and reduced maintenance. The integrated 80% Air Dryer is designed to remove water vapor from compressed air, helping protect sensitive tools and machinery.

The unit features a 10-gallon steel vertical air tank, a 220V single-phase electrical system, an Easy Start Valve for reduced starting amperage, and a 125 PSI maximum operating pressure.

CAT specifically identifies this model as part of its 80% Air Dryer Series / Dry Air Compressor range and lists it as a 10-gallon, 2.0 HP, steel vertical-tank compressor with 80% air drying.

Key Features

• 2.0 HP oil-free air compressor
• Ultra-quiet 70 dB operation
• Oil-free dual-piston pump system
• Integrated 80% Air Dryer
• 10-gallon steel vertical air tank
• 220V / 60Hz / single-phase operation
• 6.40 CFM at 40 PSI
• 5.30 CFM at 90 PSI
• 125 PSI maximum pressure
• Easy Start Valve for reduced starting amperage
• 1680 RPM motor/pump speed
• Thermal overload protection
• Two pressure-control gauges
• One female industrial push-to-connect quick connector
• Activated alumina desiccant drying system
• Designed for indoor environments where noise is a concern
• Non-ASME air tank
• 1-year manufacturer's limited warranty

Specifications

All specifications above are taken from the current CAT product page.

What's Included

• California Air Tools 10020DC-22060 air compressor
• Integrated 80% Air Dryer
• 10-gallon steel vertical air tank
• Integrated oil-free dual-piston pump system
• Activated alumina desiccant drying system
• Industrial push-to-connect quick connector
• NEMA 6-15P power plug

Important: CAT lists the hoses, accessory kit, and automatic drain extension as add-on options, so they should not be listed as included with the product.

Applications

CAT states that this model is suitable for indoor environments including:

• Offices
• Shops
• Stores
• Warehouses
• Homes

It is particularly suited to environments where noise is a concern and where reduced moisture in compressed air is important for protecting sensitive tools and machinery. CAT also lists the 10020DC-22060 in its Dry Air Compressors and Dental 1–2 Chairs categories.

Maintenance

The integrated 80% Air Dryer uses activated alumina desiccant.

CAT recommends replacing the 1 lb bag of desiccant every 3,000–4,000 motor/pump running hours, approximately every 1–2 years under average usage.

The two 2 HP air filters should be replaced every 2 years, or annually if the compressor operates in a dirty or dusty environment.

Air filter replacement part: 90260.
