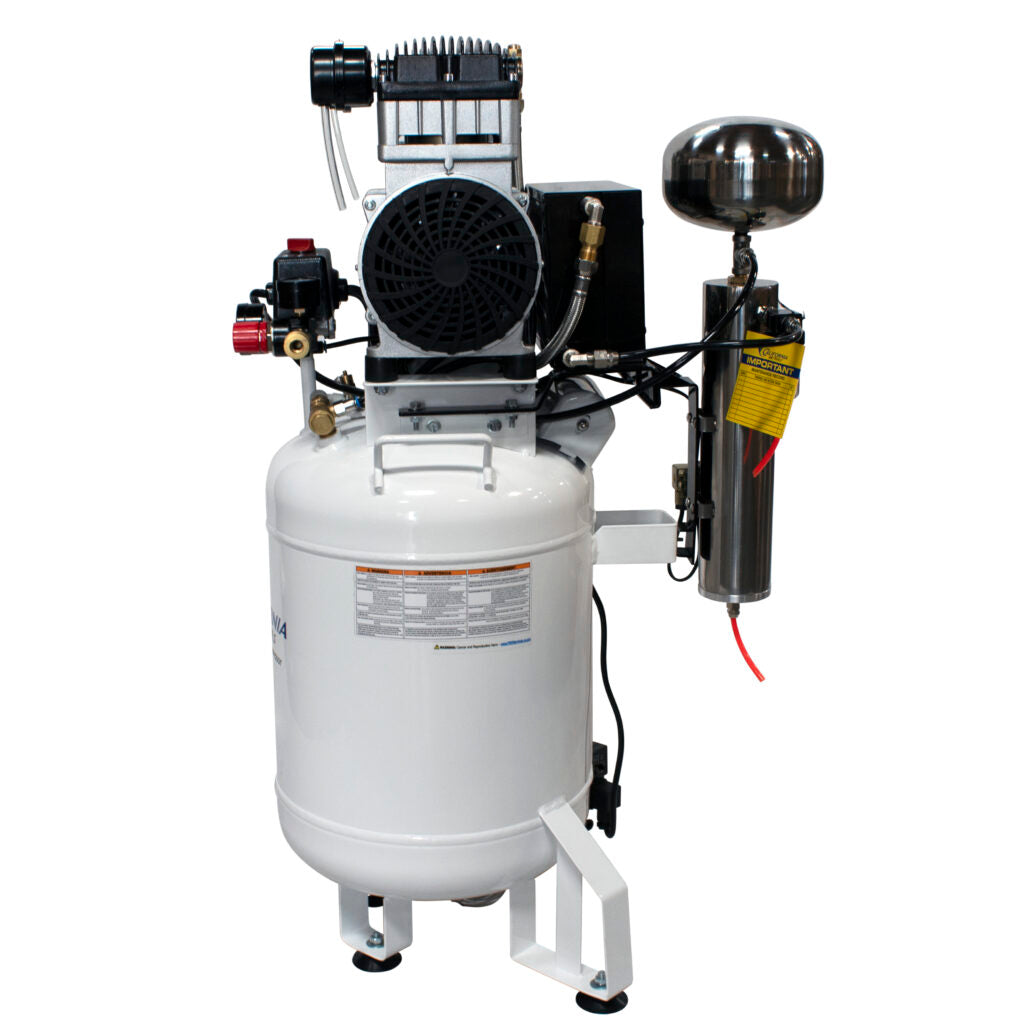

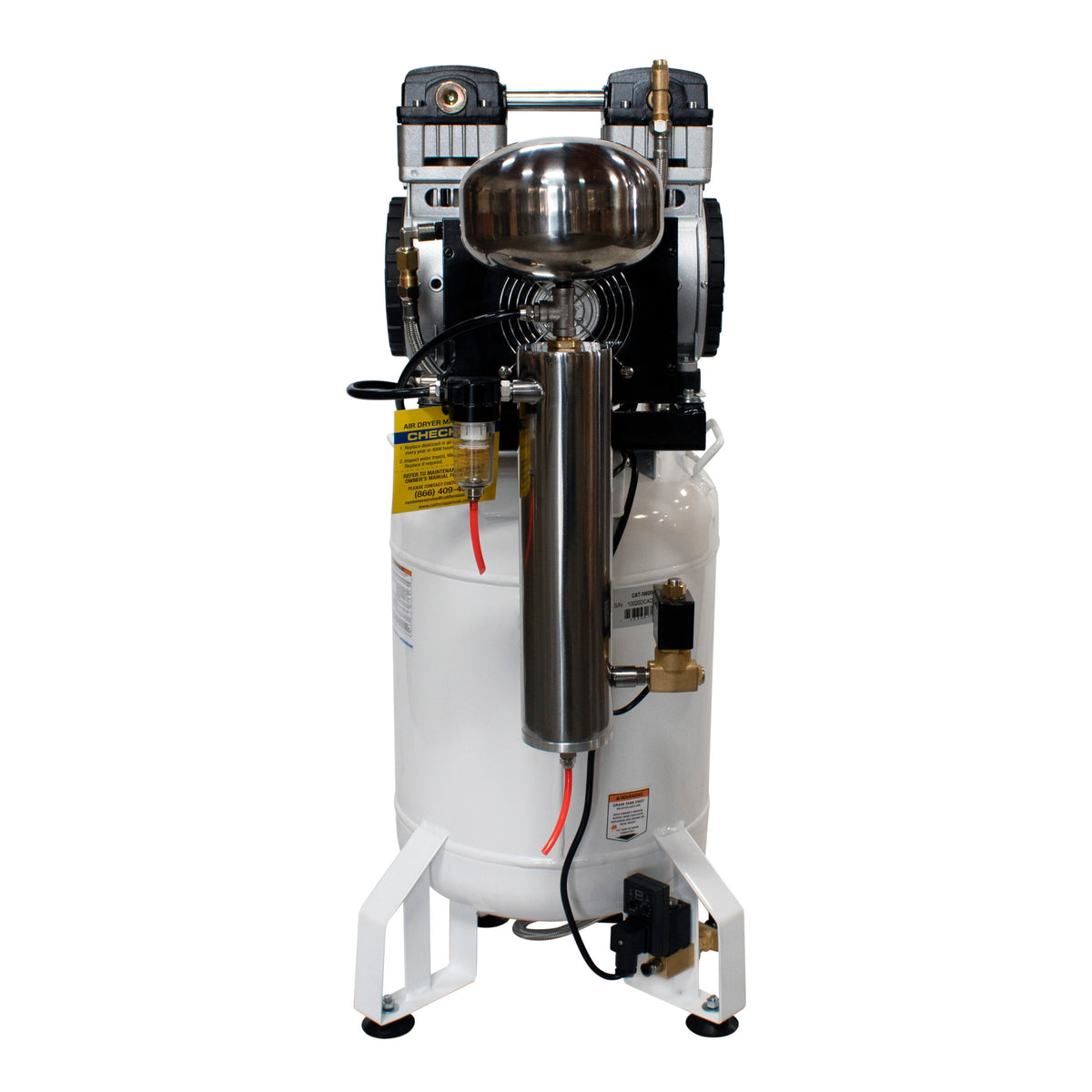

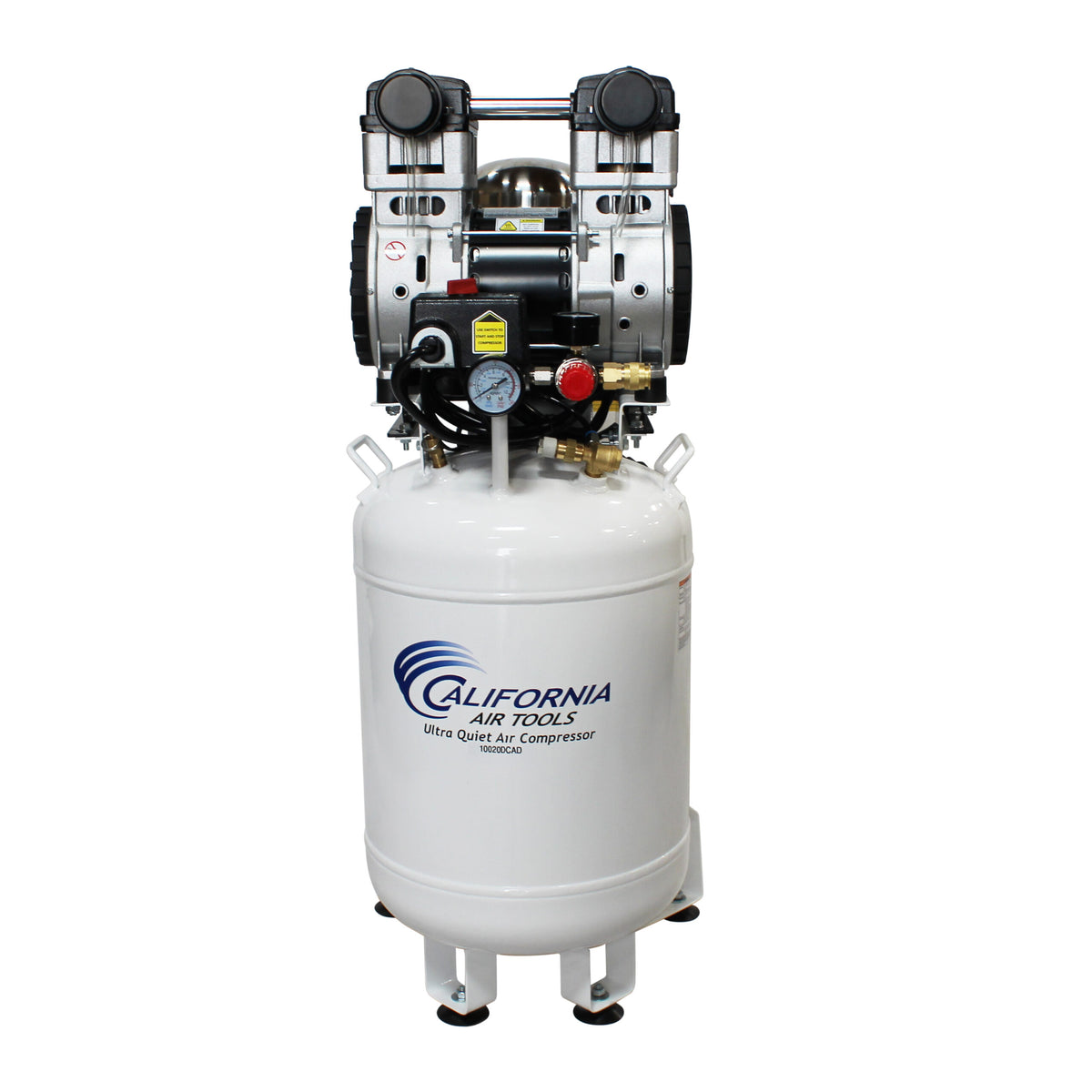

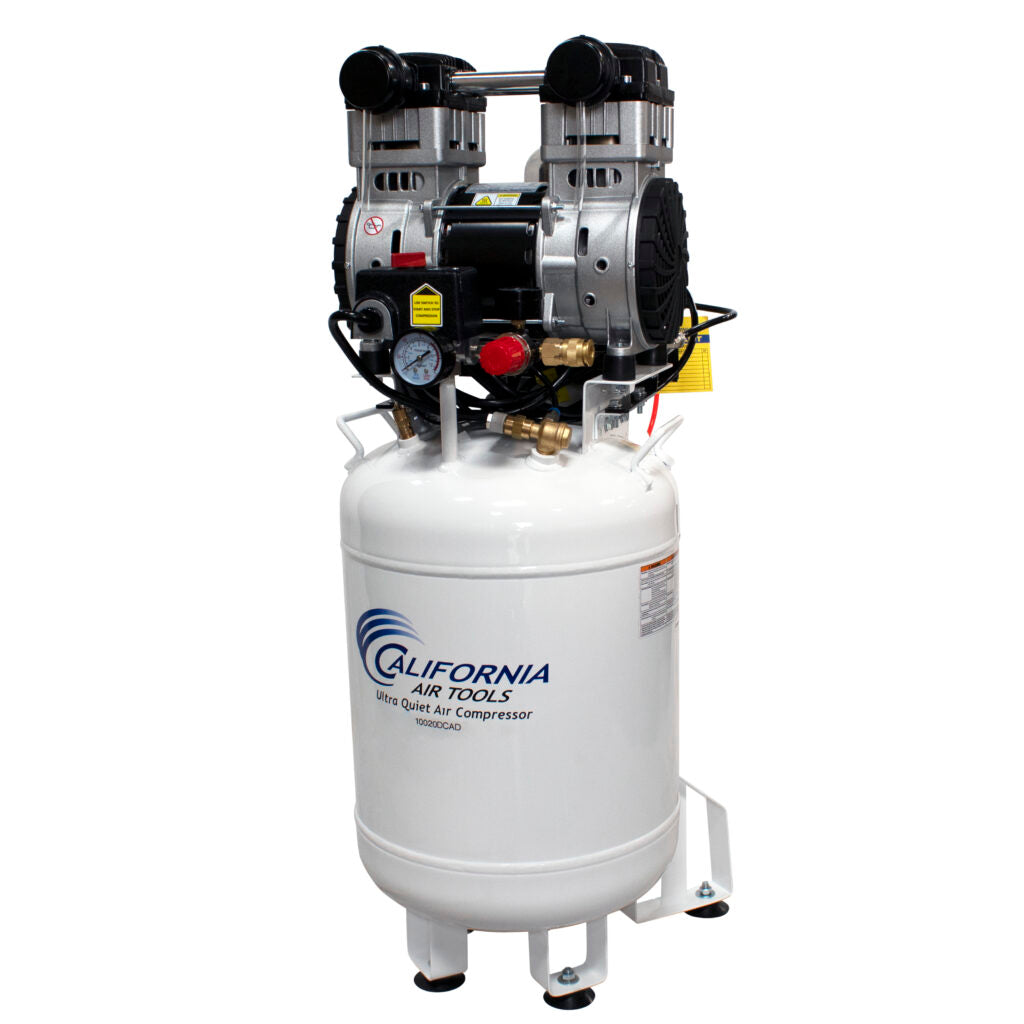

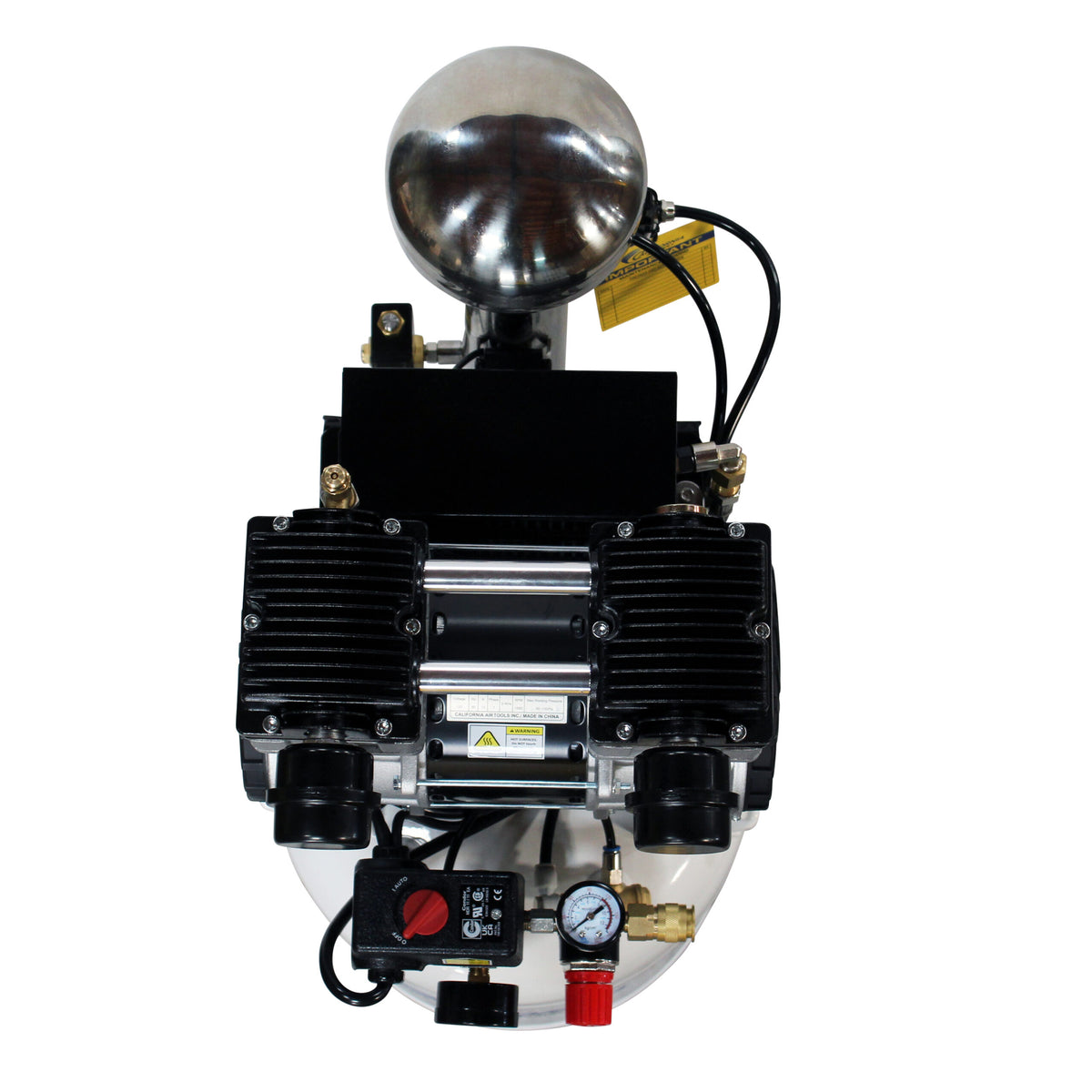

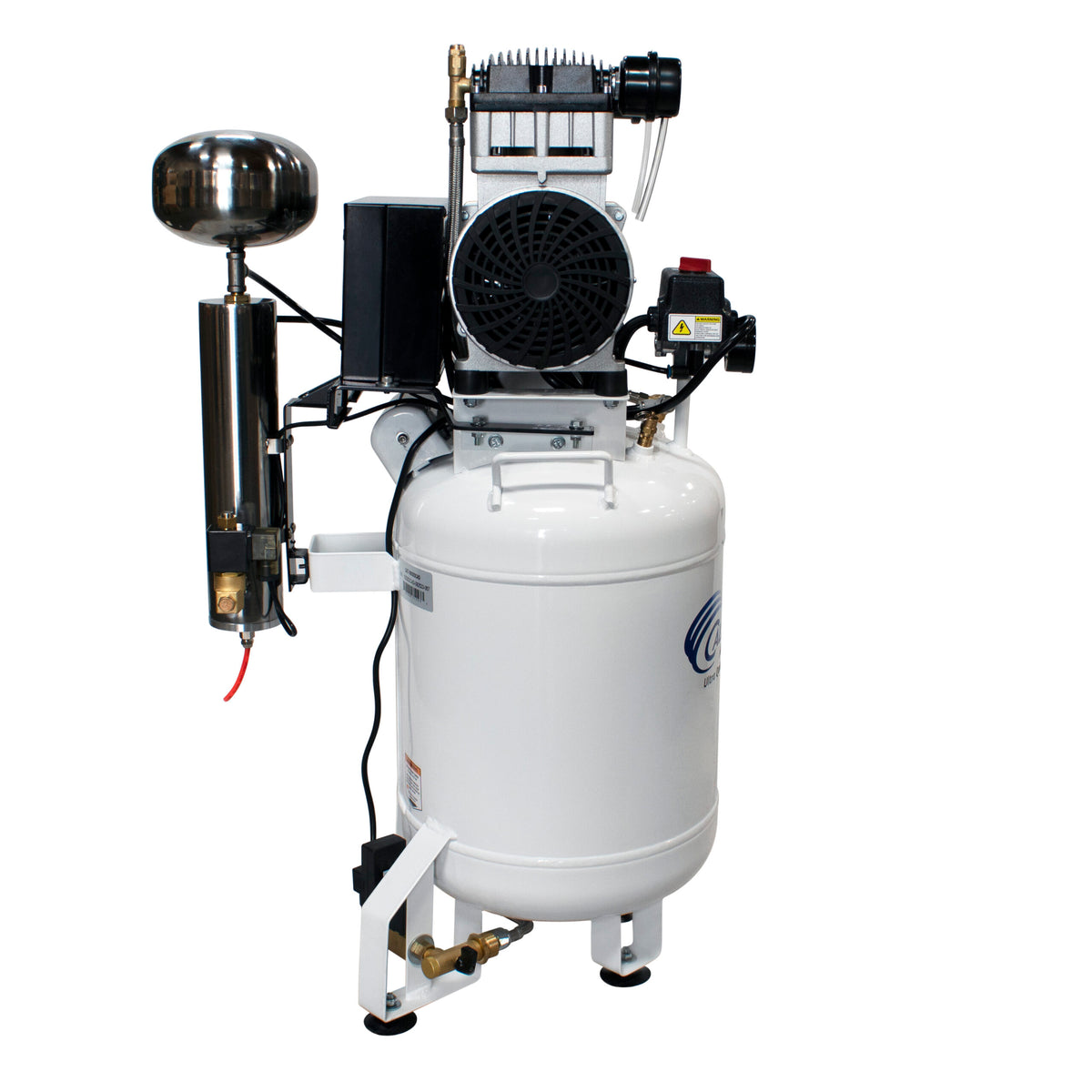

California Air Tools 10020DCAD-22060 Ultra Quiet 2.0 HP Oil-Free 10-Gallon Air Compressor with 80% Air Dryer and Automatic Drain – 220V 60Hz

Product Description

The California Air Tools 10020DCAD-22060 is a 2.0 HP ultra-quiet, oil-free air compressor equipped with a 10-gallon steel air tank, integrated 80% Air Dryer, and factory-installed automatic drain valve.

The compressor operates at just 70 dB and uses an oil-free dual-piston pump system. The 2.0 HP motor operates at 1680 RPM, while the SP-9421 motor/pump is tested for a minimum pump life of 3,000 hours before service.

The integrated 80% Air Dryer is designed to remove water vapor from compressed air to help protect sensitive tools and machinery. CAT uses an aftercooler to condense water vapor before the air passes through the dryer system.

The factory-installed EZ-1-2321 Automatic Drain Valve is designed to eliminate the need to manually drain the compressor's air tank.

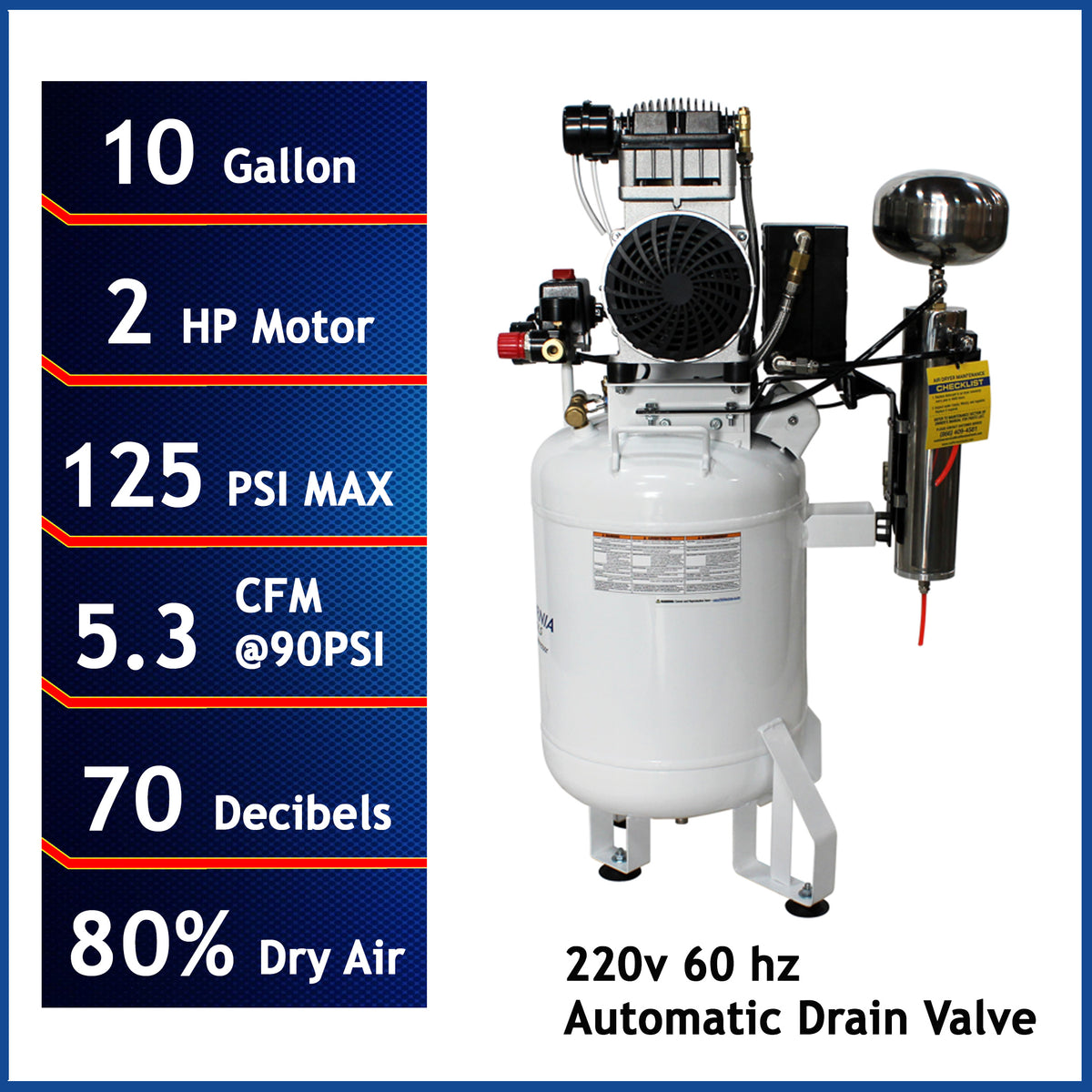

Key Features

• 2.0 HP motor
• Ultra-quiet 70 dB operation
• Oil-free dual-piston pump
• 10-gallon steel air tank
• Integrated 80% Air Dryer
• Activated alumina desiccant
• Factory-installed EZ-1-2321 Automatic Drain Valve
• 220V / 60Hz / single-phase operation
• 6.40 CFM @ 40 PSI
• 5.30 CFM @ 90 PSI
• 125 PSI maximum pressure
• Easy Start Valve for reduced starting amperage
• 1680 RPM motor/pump speed
• Thermal overload protection
• Two pressure-control gauges
• 1/4" NPT female industrial push-to-connect connector
• 70/30 duty cycle
• 30–60 minute maximum continuous running time depending on PSI and CFM
• Non-ASME air tank
• Aftercooler/condenser
• Assembled in USA with global components

Specifications

CAT's current 80% Air Dryer model list identifies the 10020DCAD-22060 as a 10-gallon steel vertical-tank, 2.0 HP, 80% Air Dryer model.

What's Included

Based strictly on CAT's product page, the product includes:

• 10020DCAD-22060 air compressor
• 10-gallon steel air tank
• Integrated 80% Air Dryer
• Activated alumina desiccant
• Aftercooler/condenser
• Factory-installed EZ-1-2321 Automatic Drain Valve
• Oil-free dual-piston pump system
• 1/4" NPT female industrial push-to-connect connector

Do not list these as included: CAT identifies them as add-on options:

• 8mm PTFE black hose tubing
• 16-piece air hose & air tool accessory kit
• Hybrider Flex 25-foot air hose
• 317 water/moisture & oil separator
• Refrigerated 98% air dryer
• EZ2321ADL automatic drain extension kit

Applications

CAT states that this compressor is ideal for indoor environments where noise is a major concern, including:

• Offices
• Shops
• Stores
• Warehouses
• Homes

CAT also identifies the model within its 80% Dry Air series and lists it under Dry Air Compressors, Dental 1–2 Chairs, and Dental Milling Compressors.

CAT also notes that continuous operation of a dental milling machine typically requires a 2.0 HP or 4.0 HP model depending on the required CFM and average run time.

Maintenance

Dry Air System:
CAT recommends replacing the 1 lb bag of activated alumina desiccant located inside the vertical dry-air tower every 3,000–4,000 motor/pump running hours, approximately every 1–2 years under average use.

Air Filters:
Replace the two 2 HP air filters every 2 years, or annually when the compressor is exposed to a dirty or dusty environment.

Air Filter Part Number: 90260

Automatic Drain:
The EZ-1-2321 automatic drain uses a manually adjustable timer to control the frequency and duration of the draining process.
