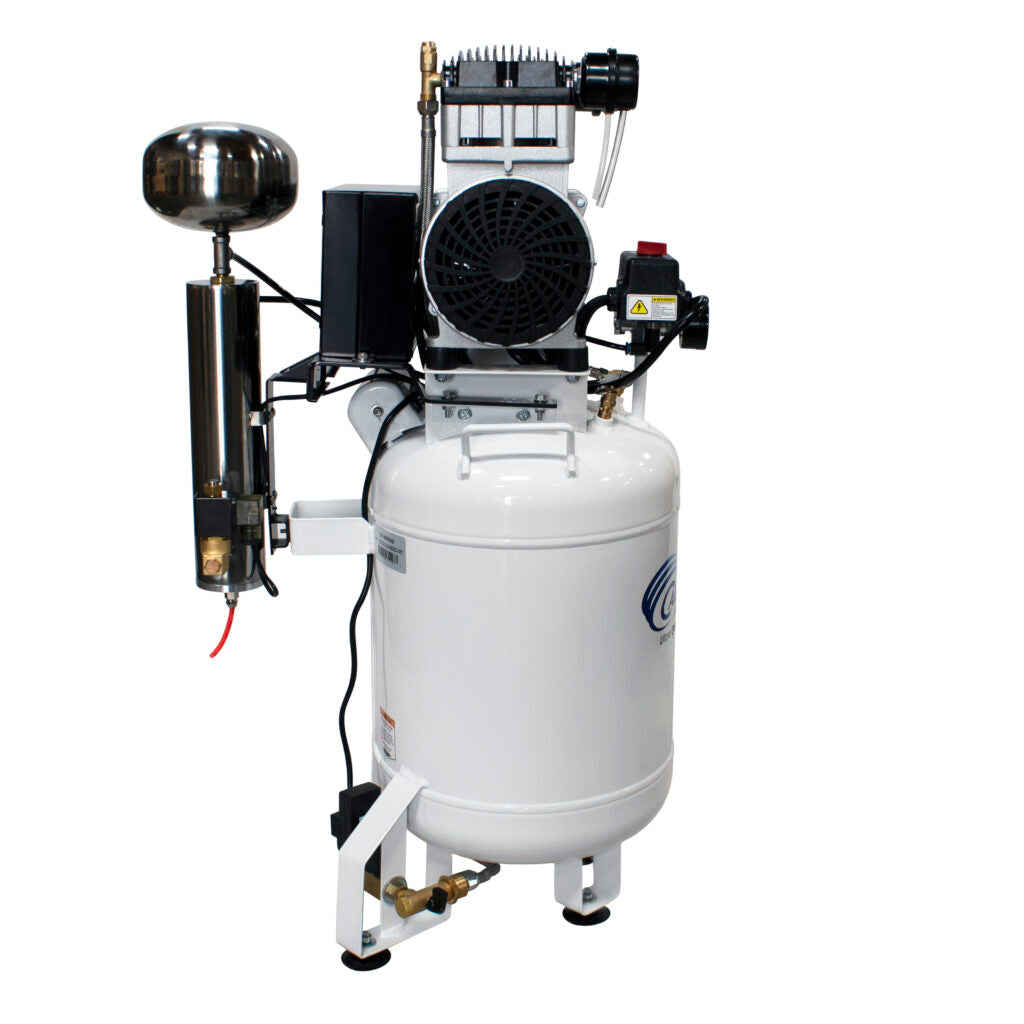

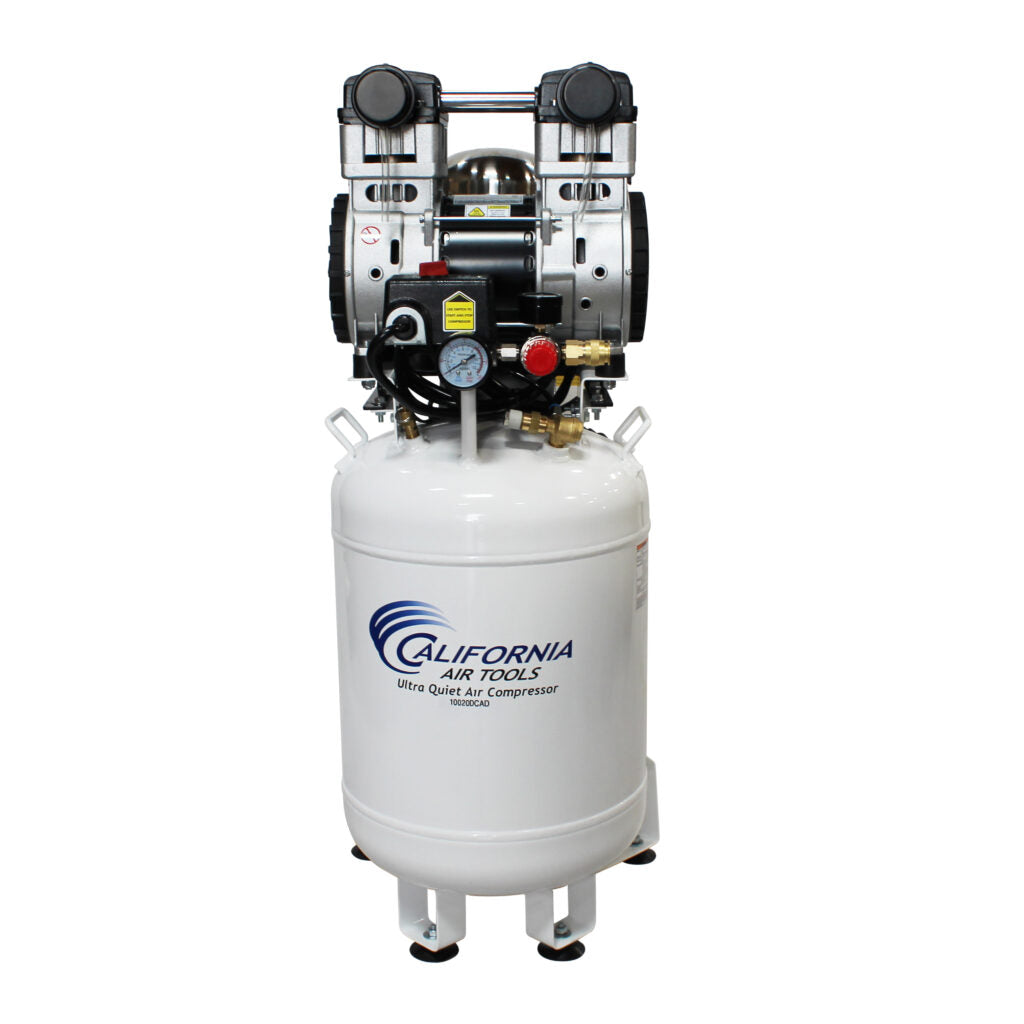

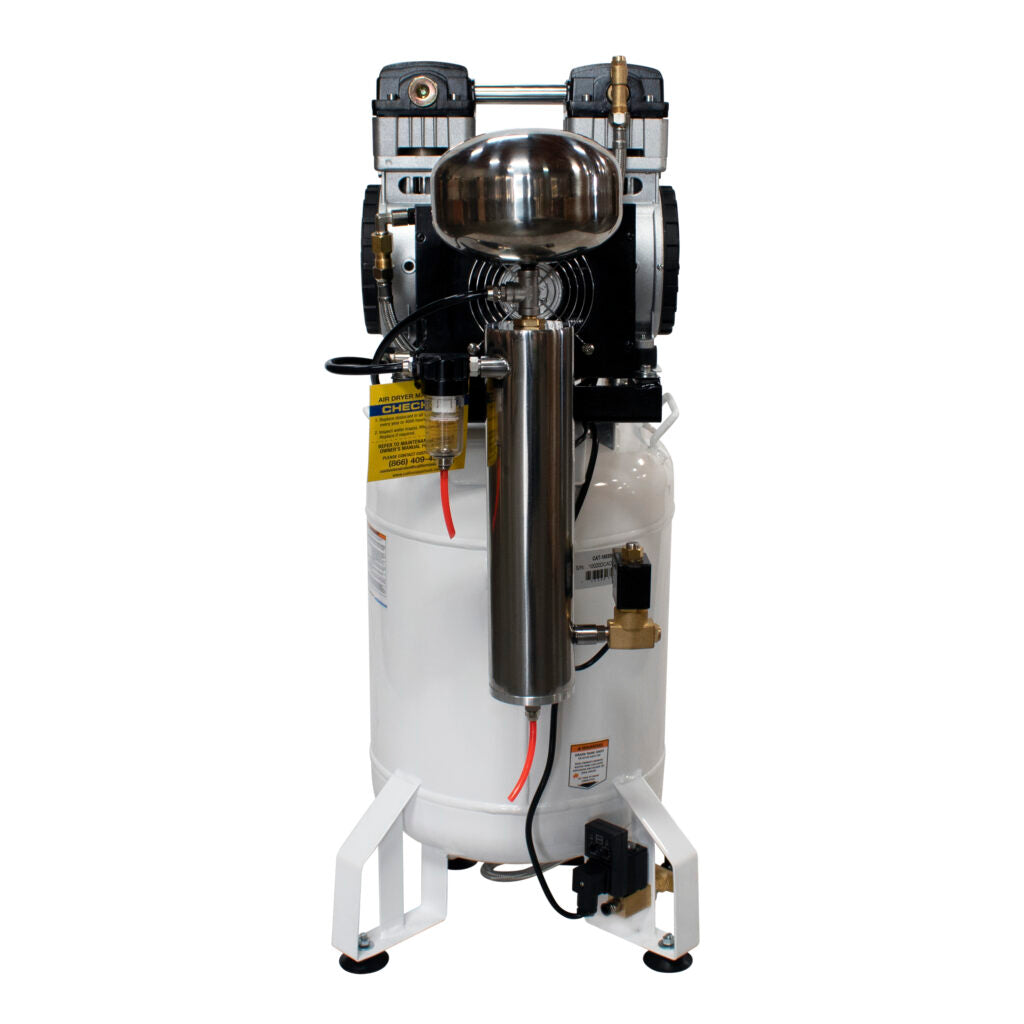

California Air Tools 10020DCAD Ultra Quiet 2.0 HP Oil-Free 10-Gallon Air Compressor with 80% Air Dryer and Automatic Drain – 110V 60Hz

Product Description

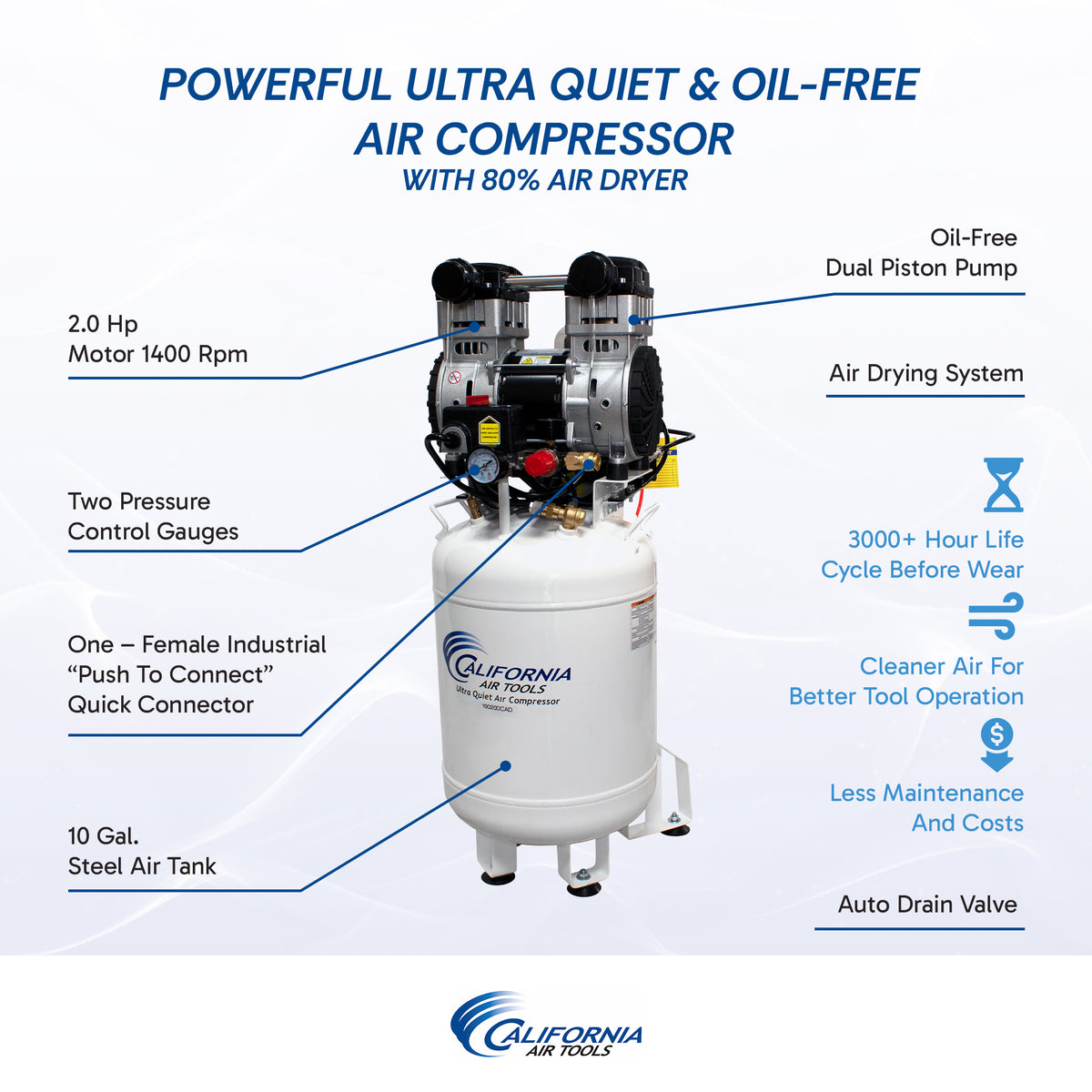

The California Air Tools 10020DCAD is a 2.0 HP ultra-quiet, oil-free air compressor featuring a 10-gallon steel horizontal air tank, integrated 80% air drying system, and factory-installed automatic drain valve.

Operating at approximately 70 dB, the compressor is designed for indoor environments where reducing operating noise is important. Its oil-free dual-piston pump is designed for longevity, performance, and reduced maintenance.

The integrated 80% Air Dryer uses an aftercooler and dryer system to remove water vapor from compressed air. The factory-installed EZ-1-2321 automatic drain valve helps eliminate the need to manually drain the air tank.

Key Features

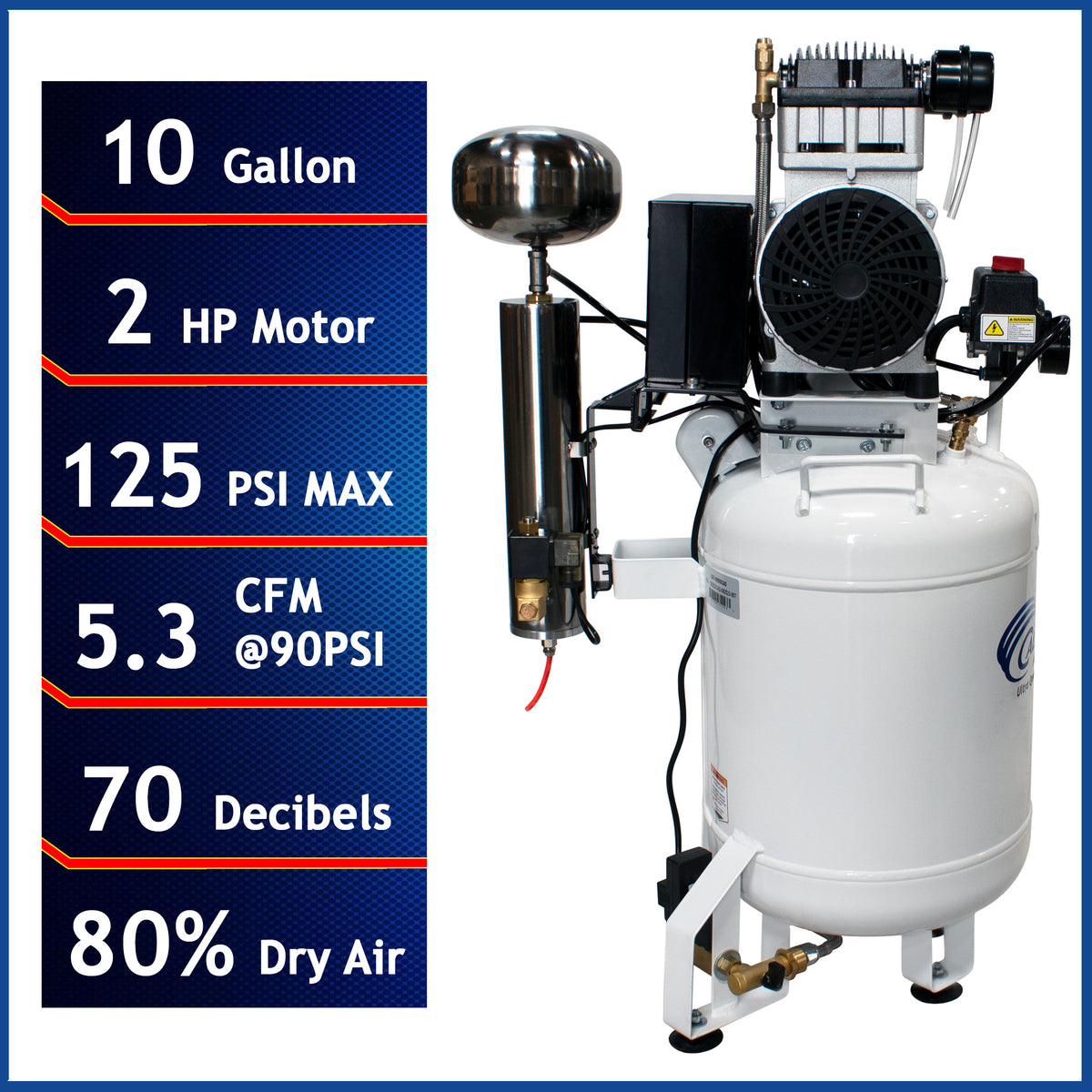

• 2.0 HP rated/running motor
• Ultra-quiet 70 dB operation
• Oil-free dual-piston pump
• 10-gallon steel horizontal air tank
• Integrated 80% Air Drying System
• Factory-installed EZ-1-2321 automatic drain valve
• Aftercooler/condenser system
• Activated alumina desiccant
• Easy Start Valve for reduced starting amperage
• 125 PSI maximum pressure
• 6.40 CFM @ 40 PSI
• 5.30 CFM @ 90 PSI
• Two pressure-control gauges
• 1/4-inch NPT female industrial push-to-connect connector
• Thermal overload protection
• 70/30 duty cycle
• Non-ASME air tank
• Designed for indoor use
• 1-year limited manufacturer's warranty
• Assembled in the USA with global components

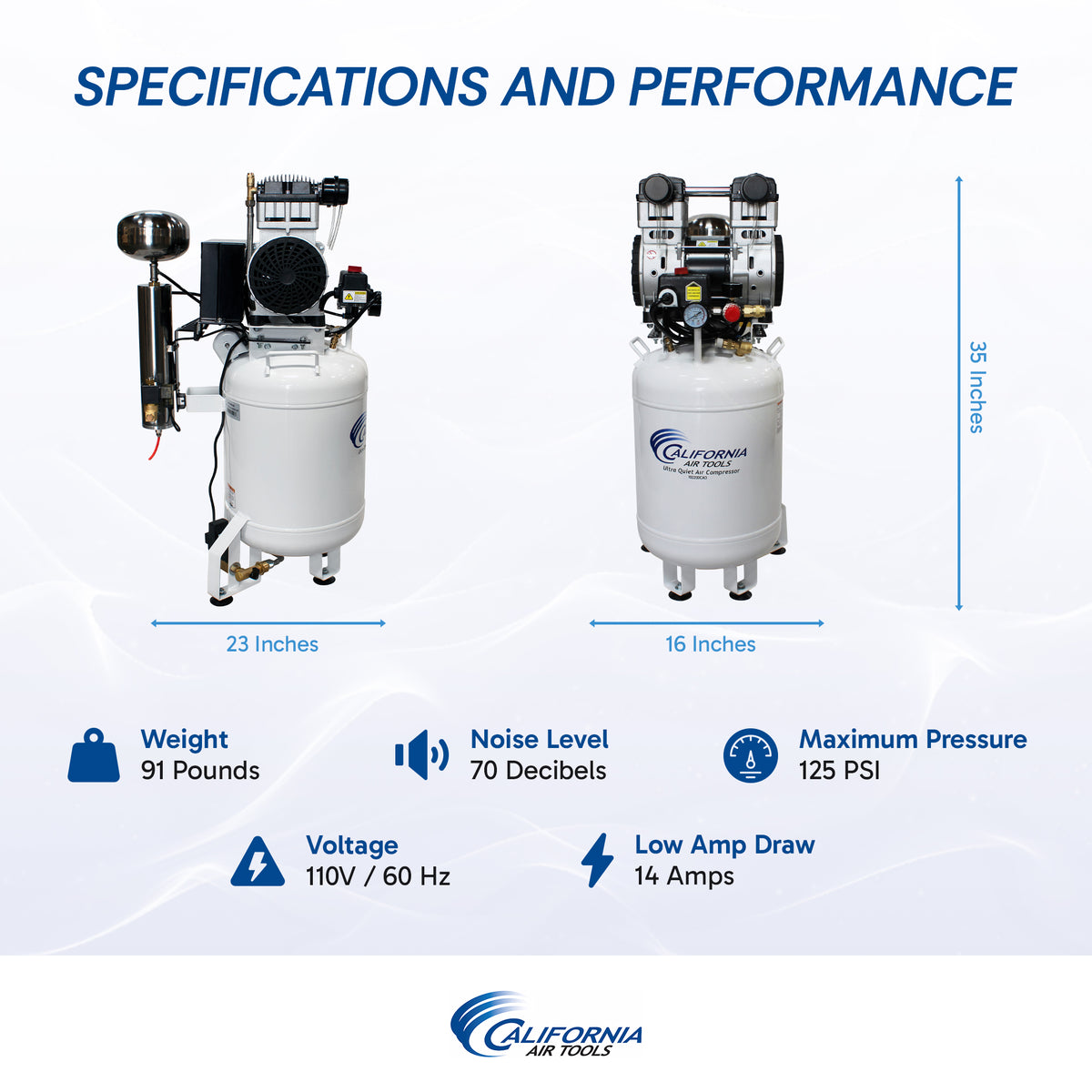

Specifications

What's Included

The product includes:

• California Air Tools 10020DCAD air compressor
• 10-gallon steel horizontal air tank
• Integrated 80% Air Dryer
• Activated alumina desiccant
• Factory-installed EZ-1-2321 automatic drain valve
• Integrated aftercooler/condenser
• Oil-free dual-piston pump
• Industrial 1/4" NPT push-to-connect air connector

Do not list these as included: CAT specifically identifies the following as add-on options:

• 8mm PTFE black hose tubing
• 16-piece air hose & air tool accessory kit
• Hybrider Flex 25-foot air hose
• 317 moisture/oil separator
• Refrigerated 98% air dryer
• EZ2321ADL automatic drain extension kit

Applications

CAT states this compressor is designed for indoor environments where noise is a concern, including:

• Offices
• Shops
• Stores
• Warehouses
• Homes

CAT also includes the 10020DCAD in its 80% Air Dryer Series and Dry Air Compressor range. The model is also listed under CAT's Dental 1–2 Chairs category.

The integrated drying system is intended to remove water vapor from compressed air to help protect sensitive tools and machinery.

Maintenance

Air Dryer Maintenance

CAT recommends replacing the 1 lb bag of activated alumina desiccant located inside the vertical dry-air tower every 3,000–4,000 motor/pump running hours, approximately every 1–2 years under average use.

Air Filter Maintenance

The two 2 HP air filters should be replaced every 2 years, or annually if the compressor is used in a dirty or dusty environment.

Air filter replacement part: 90260.

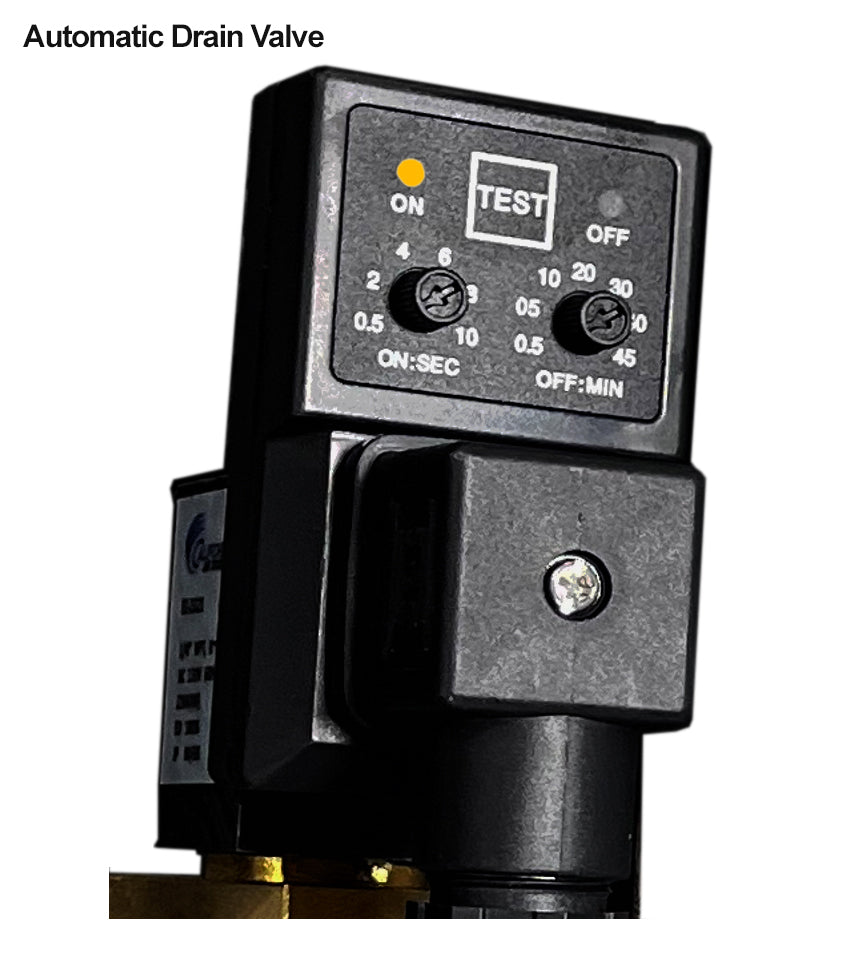

Automatic Drain

The factory-installed EZ-1-2321 automatic drain valve uses a manually adjustable timer to control the frequency and duration of automatic tank draining.
