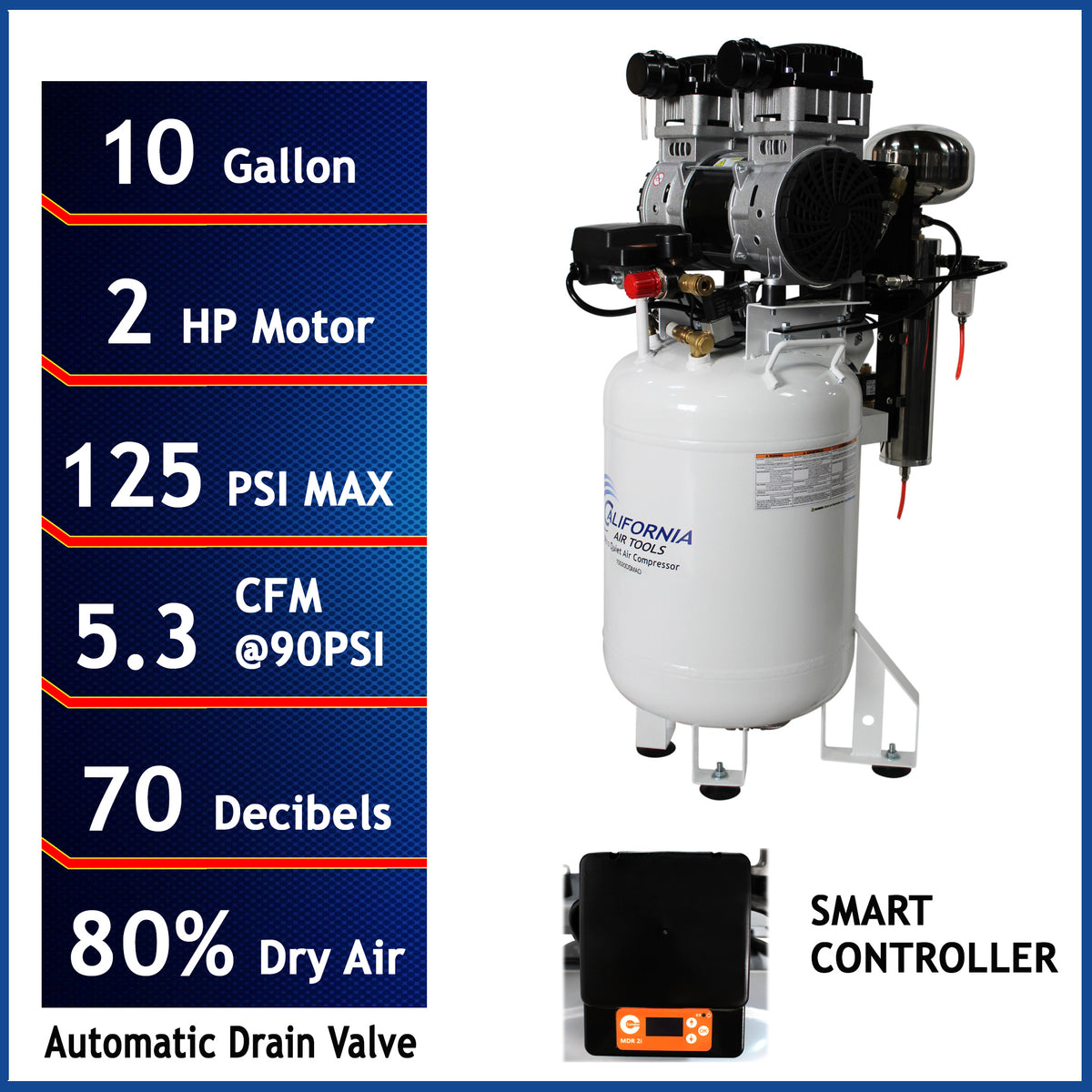

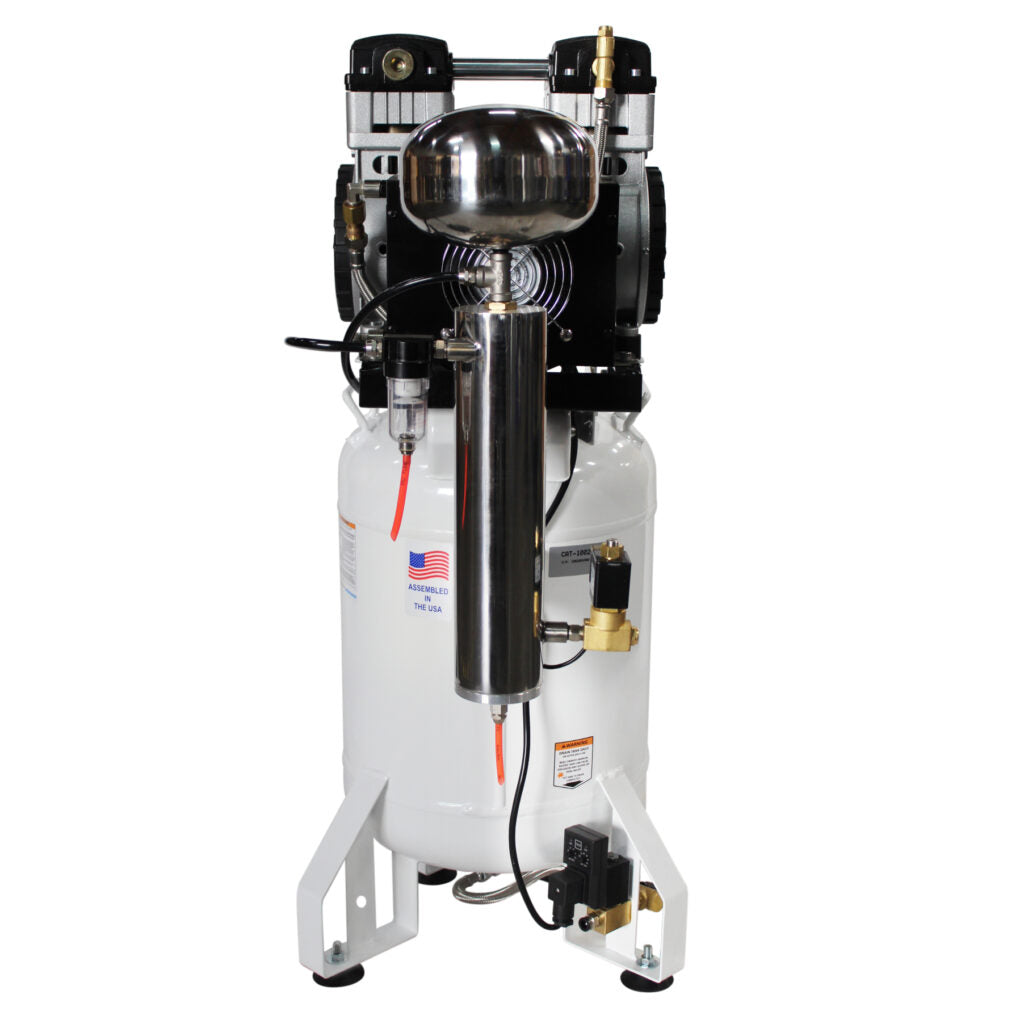

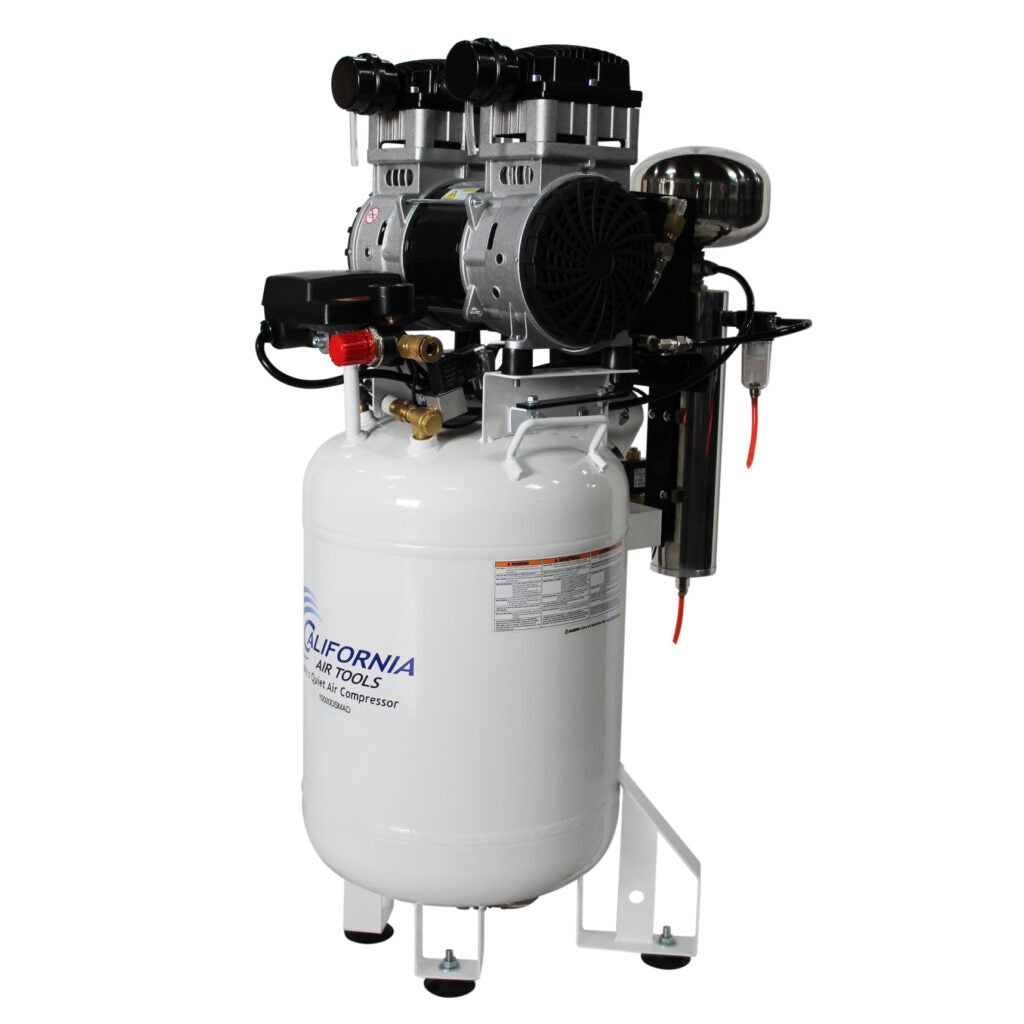

California Air Tools 10020DSMAD 2.0 HP SMART Ultra Quiet Oil-Free 10 Gallon Air Compressor with 80% Air Dryer & Automatic Drain, 110V

Product Description

The California Air Tools 10020DSMAD is a 2.0 HP SMART ultra-quiet, oil-free air compressor designed for applications requiring reliable compressed air, reduced maintenance, dry air, and remote monitoring capabilities. It features a 10-gallon steel vertical air tank, an integrated 80% air drying system, a factory-installed automatic drain valve, and the MDR2i OLED SMART Controller.

The SMART Controller can connect to mobile phones, tablets, notebooks, or computers through Wi-Fi or as an access point. Users can remotely monitor and control compressor operation, program ON/OFF times, adjust pressure settings, configure automatic drain settings, and monitor motor-pump running hours.

The oil-free dual piston pump operates at 1680 RPM and is designed for high performance, durability, and reduced maintenance. The compressor delivers 6.40 CFM at 40 PSI and 5.30 CFM at 90 PSI. The integrated aftercooler and 80% air drying system help remove water vapor from compressed air to protect sensitive tools and equipment.

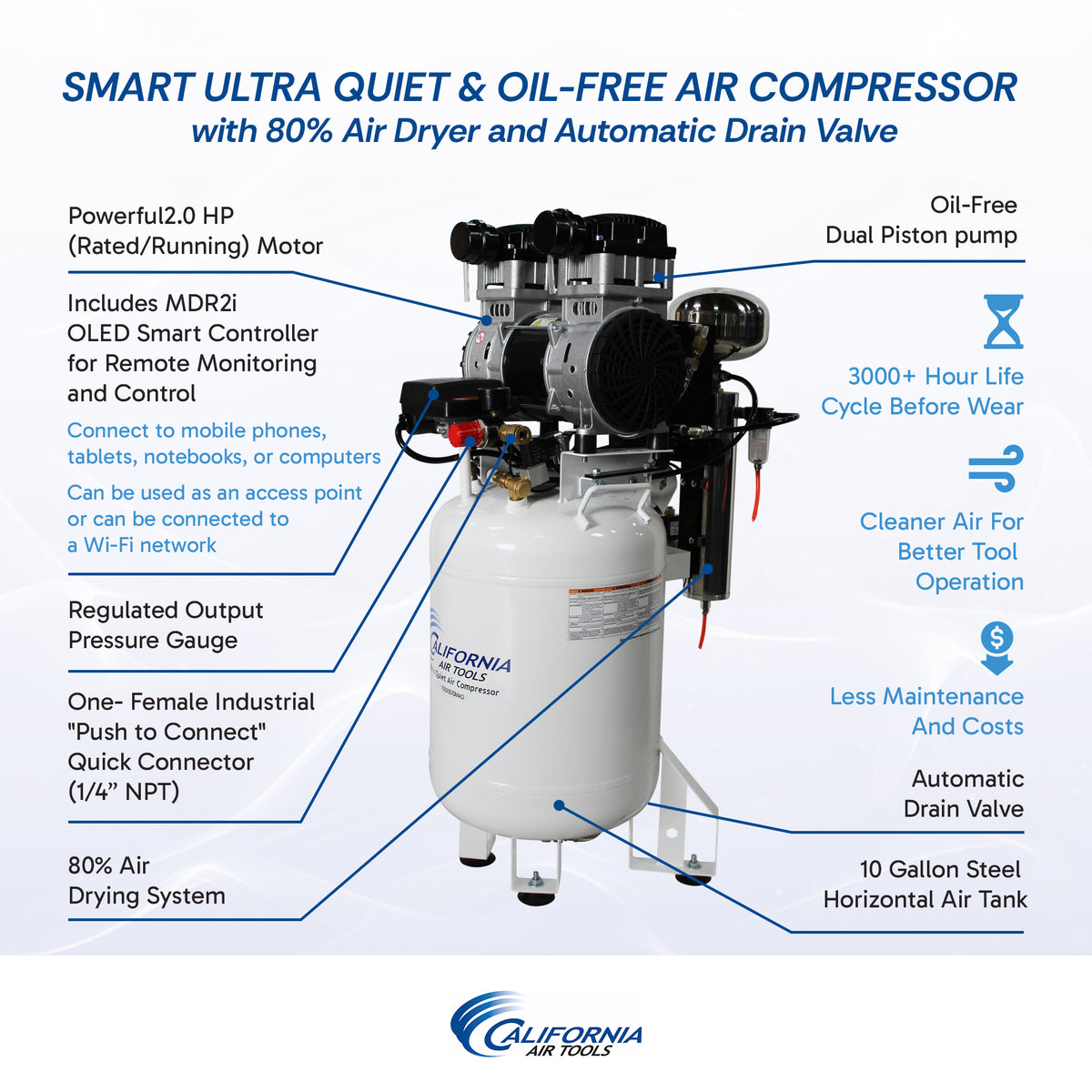

Key Features

• 2.0 HP rated/running motor

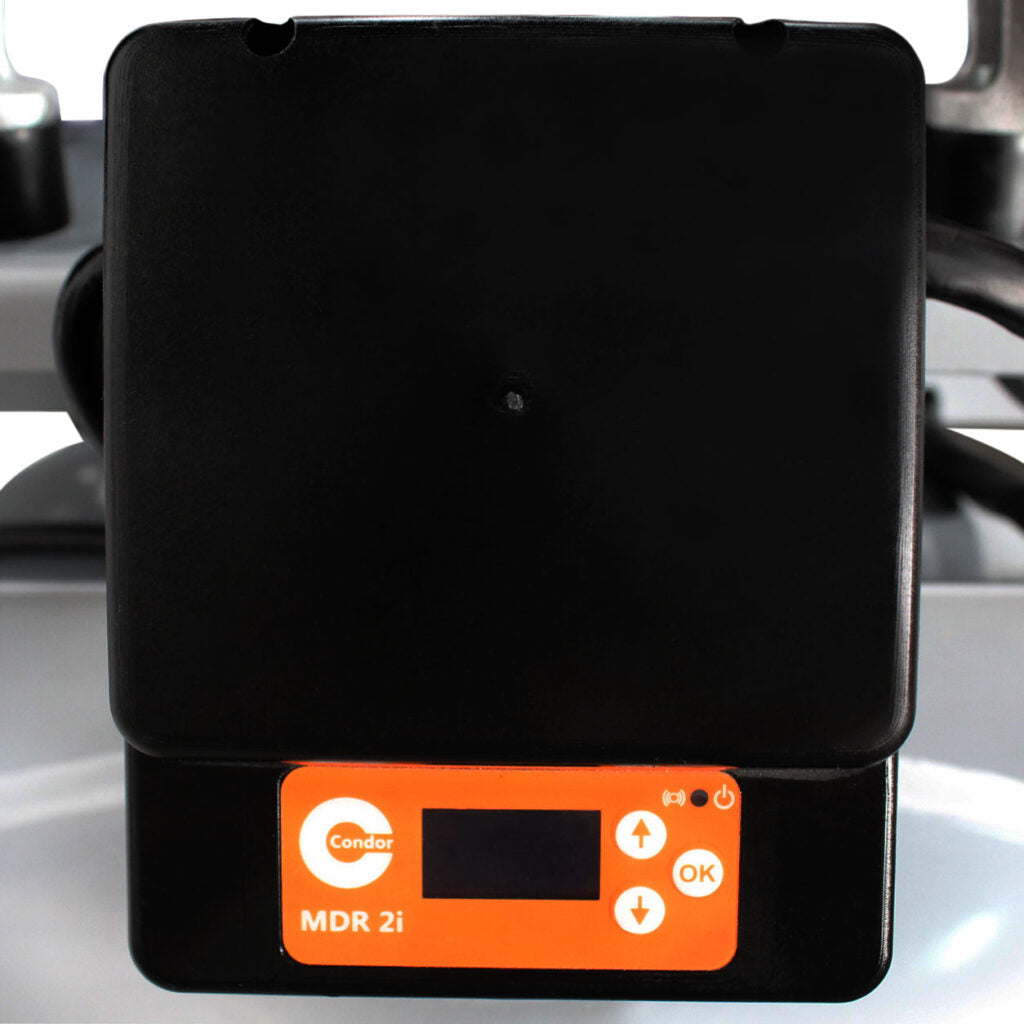

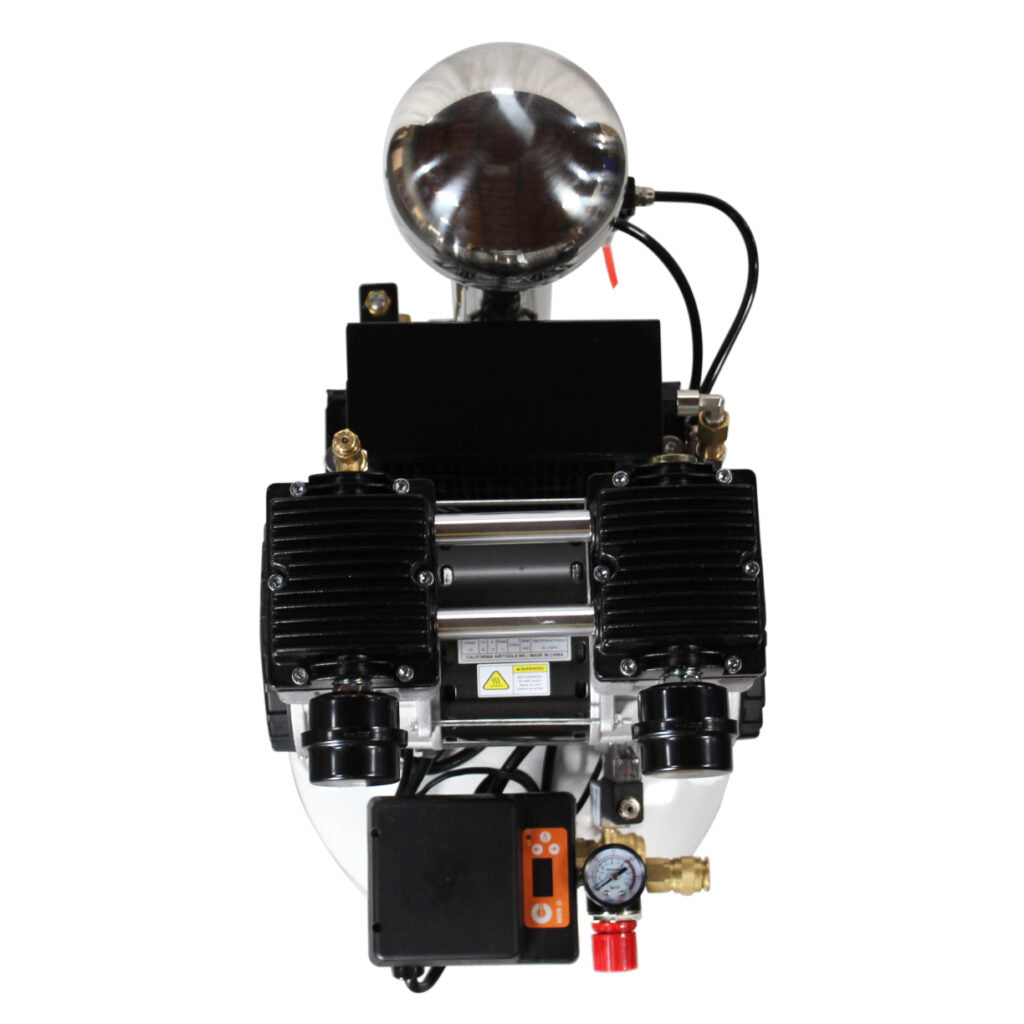

• SMART MDR2i OLED Controller
• Remote monitoring and control
• Programmable compressor ON/OFF times
• Adjustable pressure ON and OFF levels
• Automatic drain timing controls
• Ultra-quiet 70 dB operation
• Oil-free dual piston pump
• 10-gallon steel vertical air tank
• 80% air drying system
• Integrated aftercooler

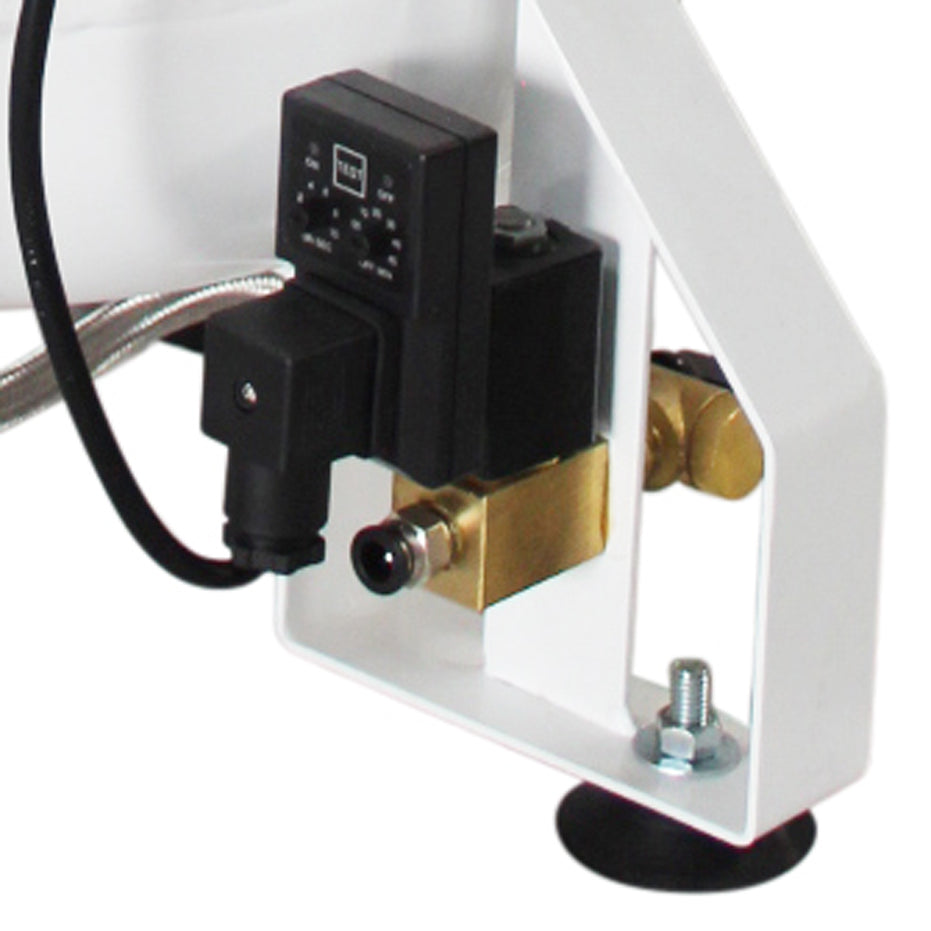

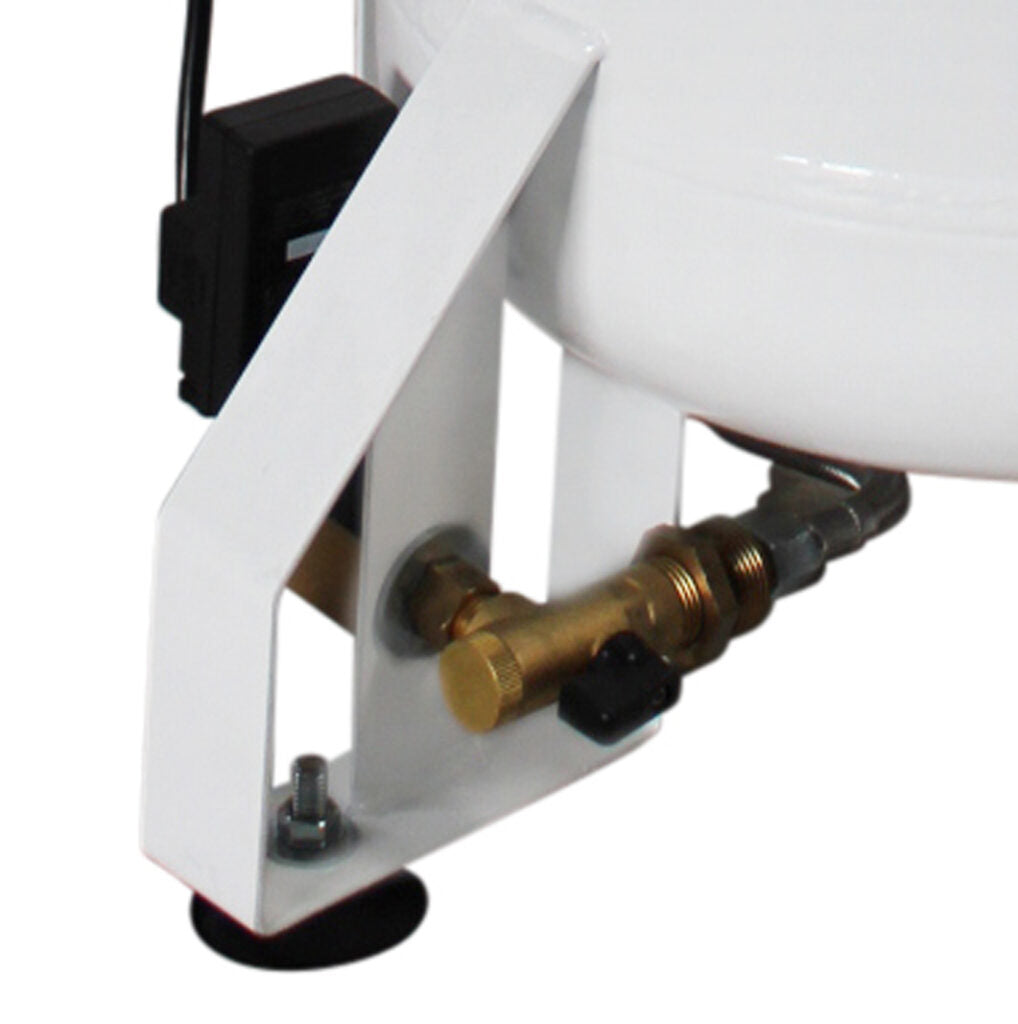

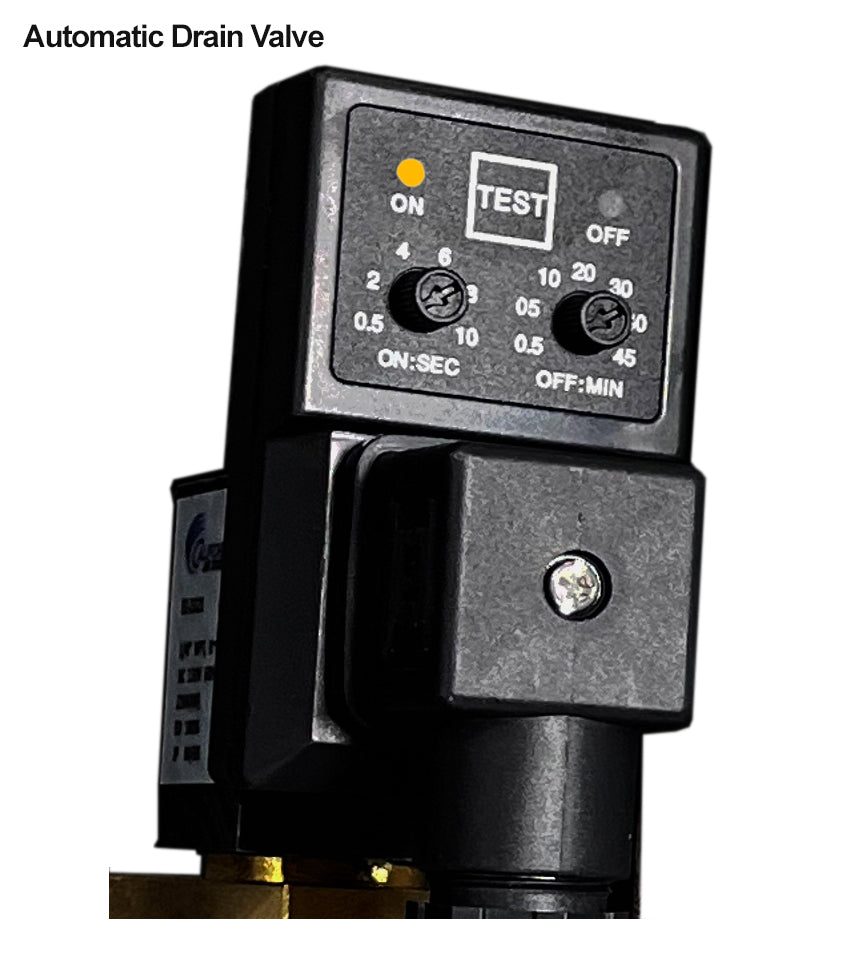

• Factory-installed EZ-1-2321 automatic drain valve
• 6.40 CFM at 40 PSI
• 5.30 CFM at 90 PSI
• 1680 RPM motor speed

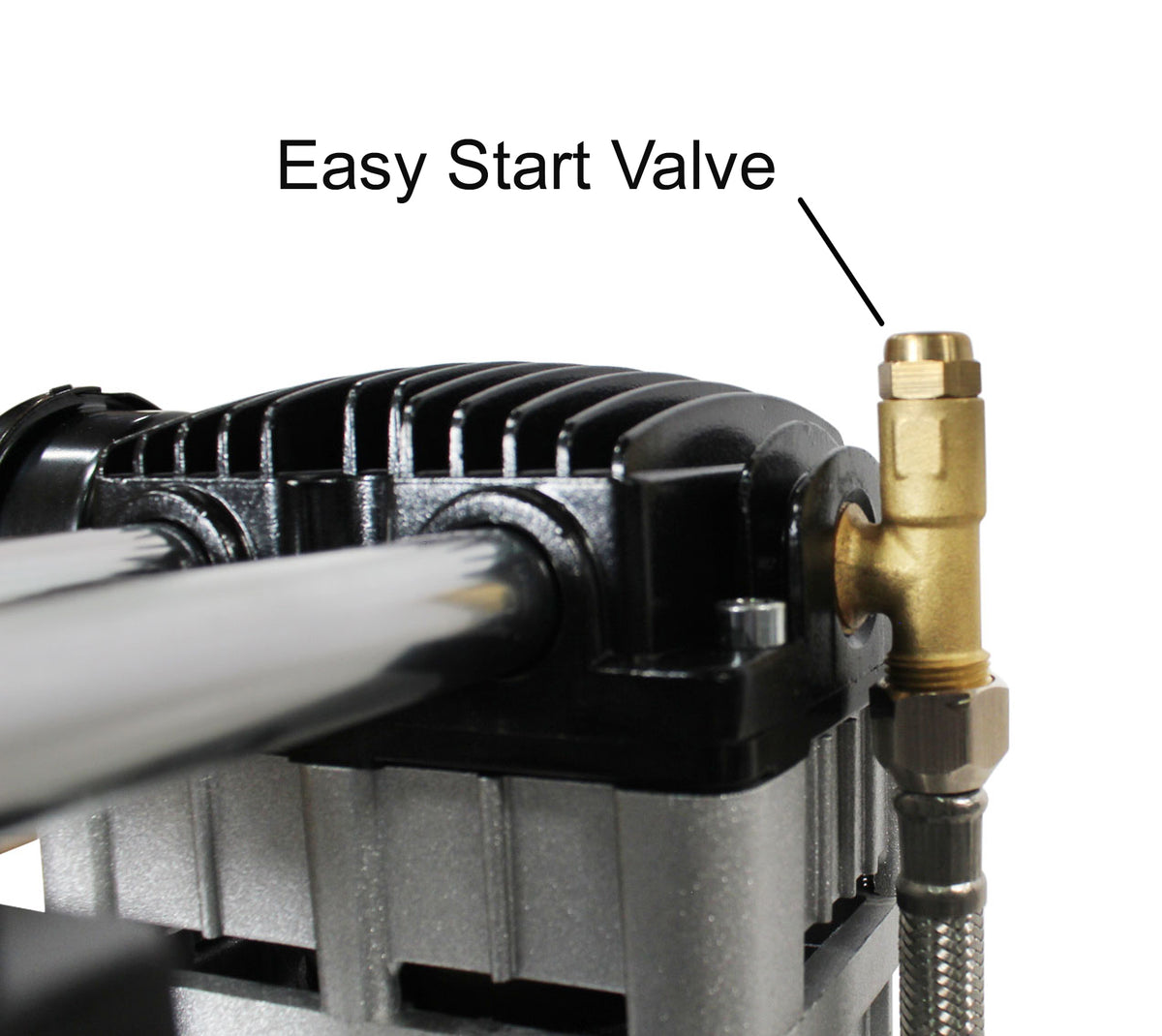

• Easy Start Valve for reduced starting amperage
• Output pressure regulator with 5-micron filtration
• Thermal overload protection
• 70/30 duty cycle

Specifications

• Model: 10020DSMAD
• Motor Power: 2.0 HP
• Pump Type: Oil-Free Dual Piston
• Motor/Pump: SP-9421
• Tank Capacity: 10 Gallons
• Tank Type: Steel Vertical
• Tank Certification: Non-ASME
• Noise Level: 70 dB
• Voltage: 110V
• Frequency: 60 Hz
• Phase: Single Phase
• Amperage: 14.0A
• Airflow: 6.40 CFM @ 40 PSI
• Airflow: 5.30 CFM @ 90 PSI
• Working Pressure: 90–120 PSI
• Maximum Kick-On Pressure: 105 PSI
• Maximum Kick-Off Pressure: 130 PSI
• Motor Speed: 1680 RPM
• Air Drying: 80%
• Duty Cycle: 70/30
• Automatic Drain: EZ-1-2321 Factory Installed
• Air Dryer Desiccant: Activated Alumina
• Desiccant Life: Approximately 3,000–4,000 motor-pump hours
• Dimensions: 16" L x 23" W x 35" H
• Weight: 95 lbs
• Warranty: 1 Year Limited Warranty
• Manufacturing: Manufactured in Mexico-USA; assembled in USA using global components

What's Included

• California Air Tools 10020DSMAD Air Compressor
• 10-gallon steel vertical air tank
• MDR2i OLED SMART Controller
• 80% air drying system
• Aftercooler
• EZ-1-2321 automatic drain valve
• Activated alumina desiccant
• Output air pressure regulator
• 5-micron air filtration
• Easy Start Valve

Applications

The California Air Tools 10020DSMAD is designed for applications requiring quiet, oil-free and dry compressed air. Suitable applications include dental offices, dental laboratories, milling, biotechnology, manufacturing, packaging, restaurants, general engineering, workshops, and other professional environments where moisture control and compressor monitoring are important.

Maintenance

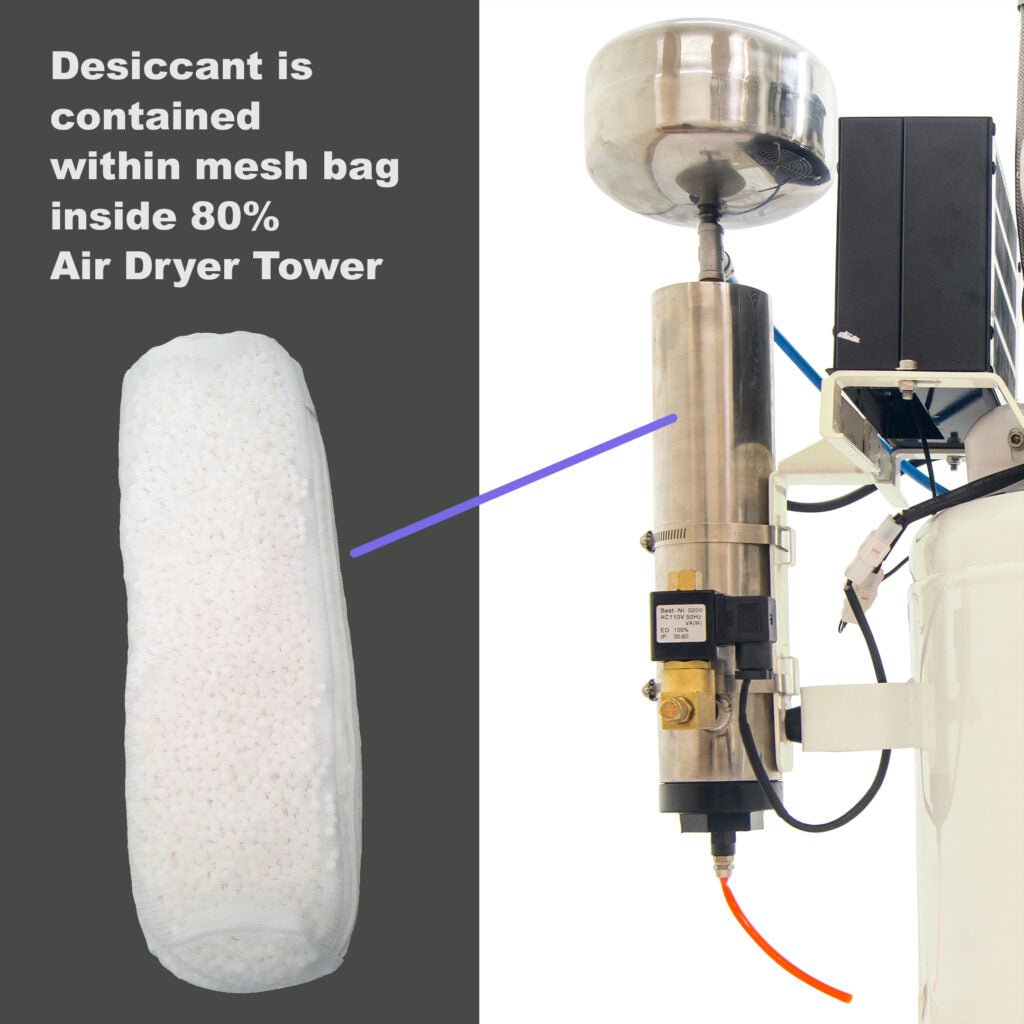

The 80% air drying system uses activated alumina desiccant, which should generally be replaced every 3,000–4,000 motor-pump operating hours, typically every 1–2 years depending on usage. The air filters attached to the motor-pump should generally be replaced every 2 years, or annually when the compressor is operated in dusty or dirty environments. The EZ-1 automatic drain valve should also be checked periodically, including cleaning the inner drain valve approximately every 2 years.
