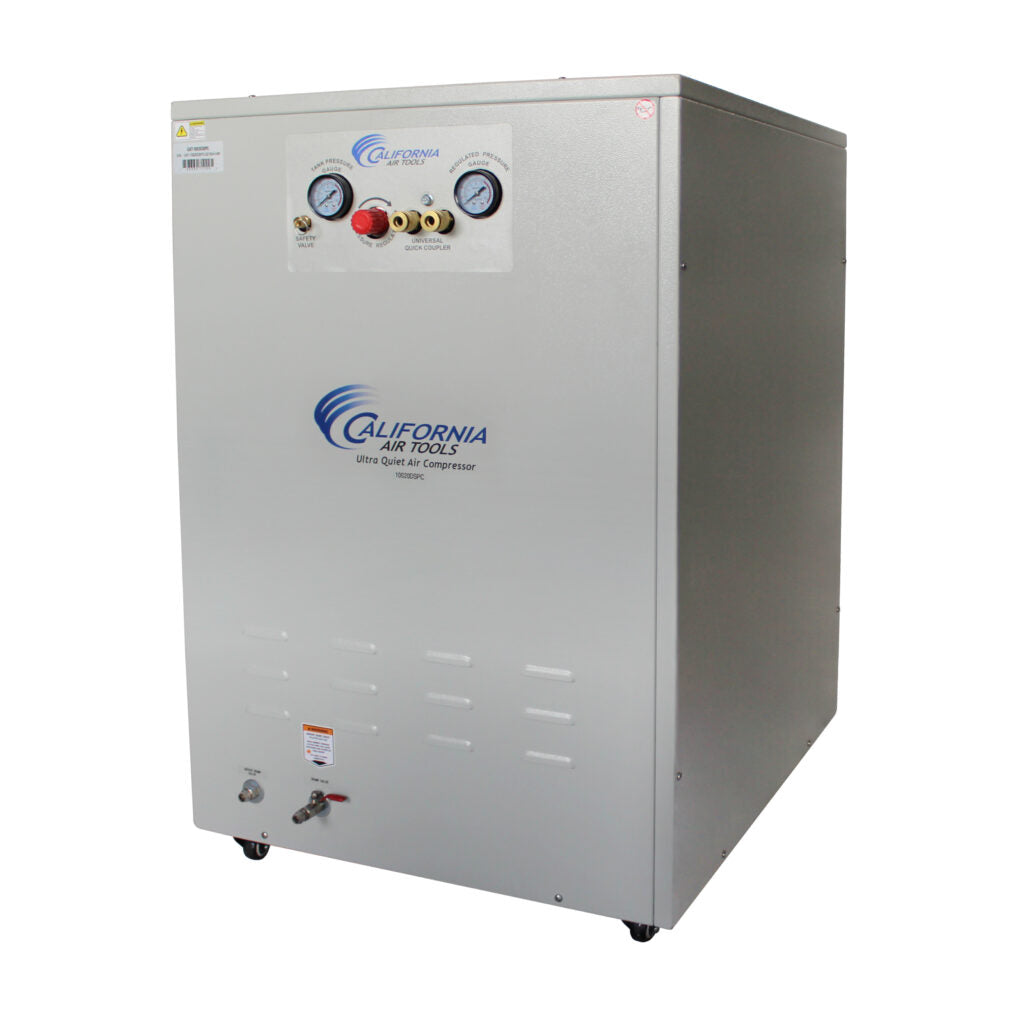

California Air Tools 10020DSPC Ultra Quiet 2.0 HP Oil-Free 10-Gallon Air Compressor with 80% Air Dryer & Soundproof Cabinet

Product Description

The California Air Tools 10020DSPC is a 2.0 HP ultra-quiet, oil-free air compressor combining a 10-gallon steel air tank, 80% air-drying system, aftercooler, and soundproof cabinet in one compressed-air system.

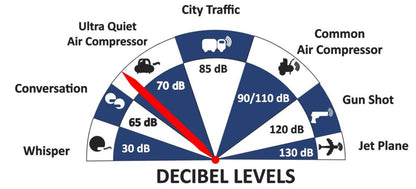

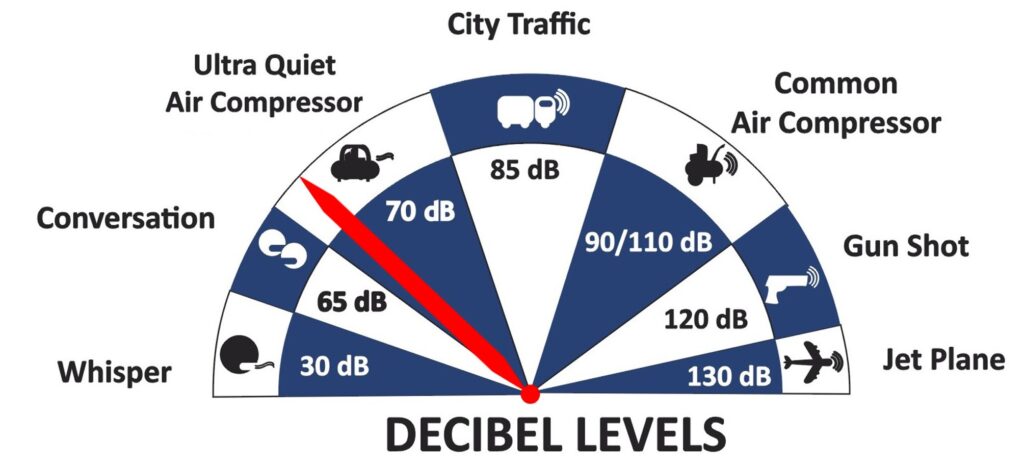

Operating at only 58 dB, the compressor is designed for indoor environments where noise is a major concern. The soundproof steel cabinet is lined with acoustic foam insulation to help reduce compressor noise and vibration. It also includes caster wheels for mobility, two latching doors for access, and two exhaust fans to help remove heat from the enclosure.

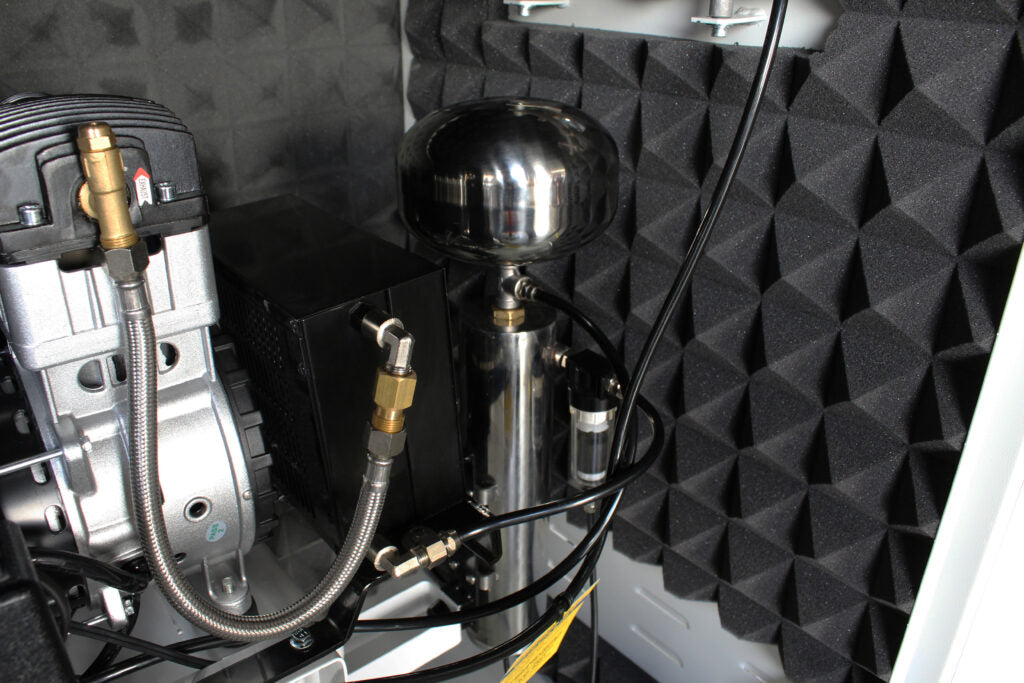

The integrated drying system uses an aftercooler and 80% Air Dryer to reduce water vapor in the compressed air, helping protect sensitive tools and machinery.

Key Features

• 2.0 HP rated/running motor
• Ultra-quiet 58 dB operation
• Oil-free pump

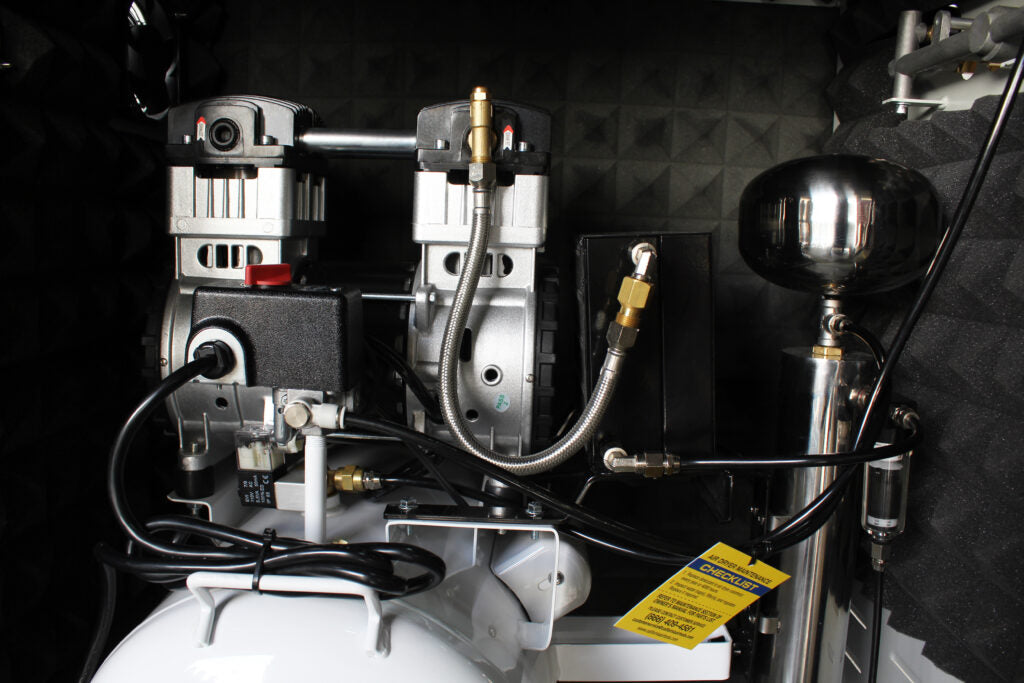

• Dual-piston compressor design
• 10-gallon steel air tank
• Integrated 80% Air Dryer
• Aftercooler/condenser
• Activated alumina desiccant

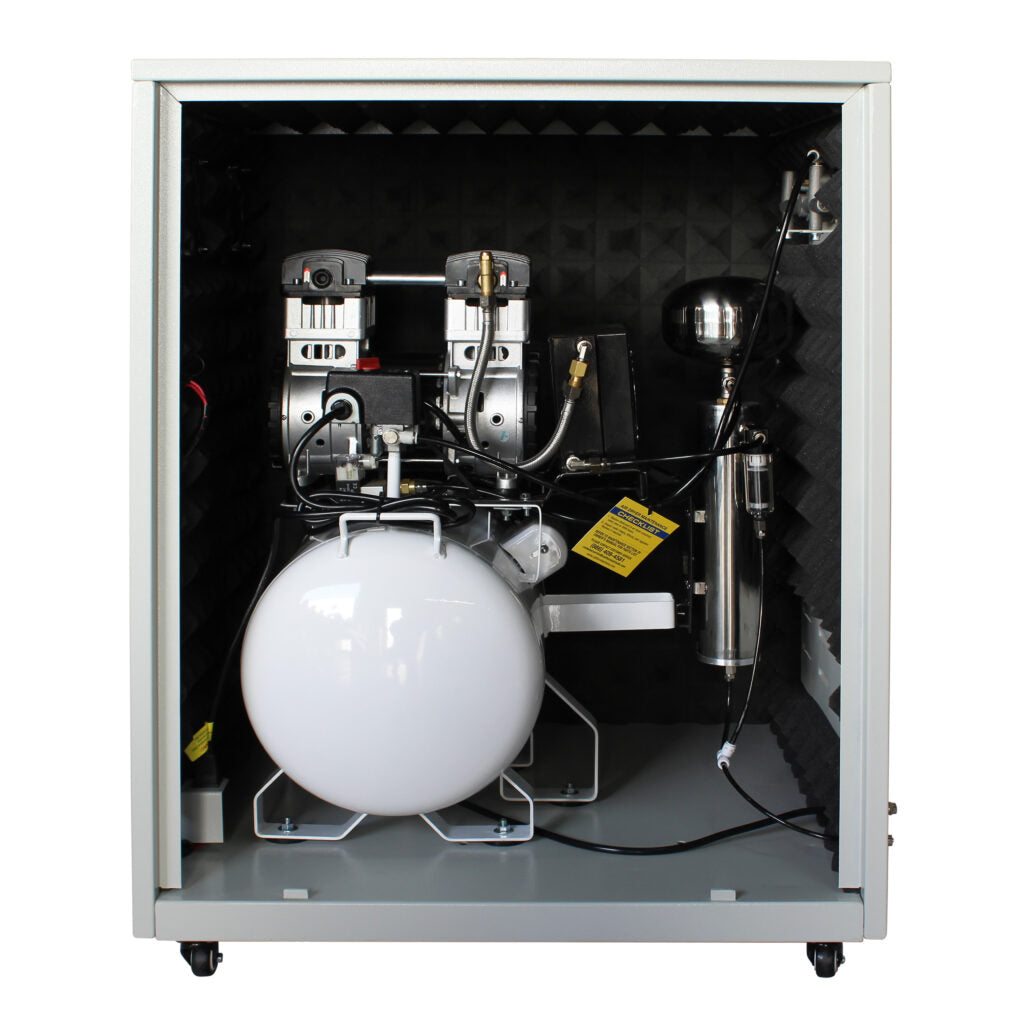

• Soundproof steel cabinet
• Acoustic soundproofing foam insulation

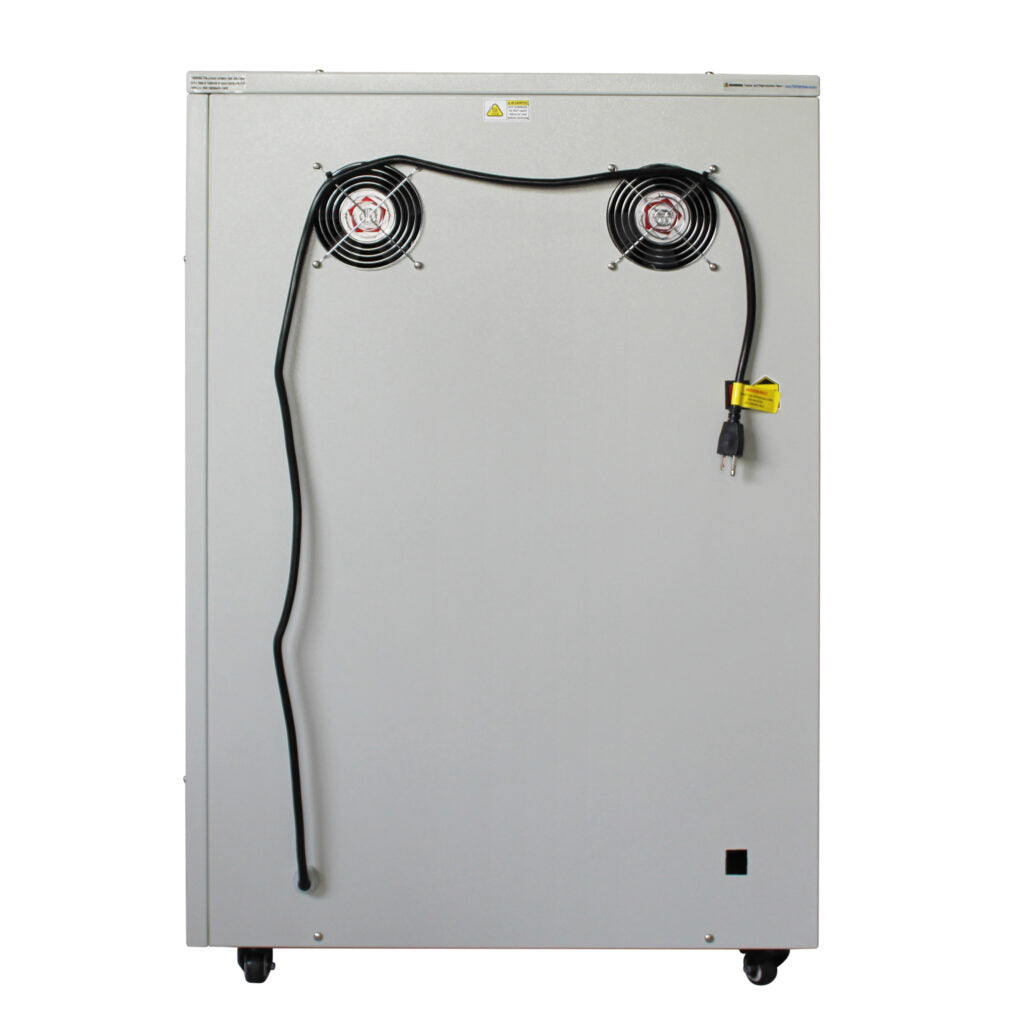

• Two cabinet exhaust fans
• Caster wheels for easier movement
• Two latching cabinet doors
• Easy Start Valve

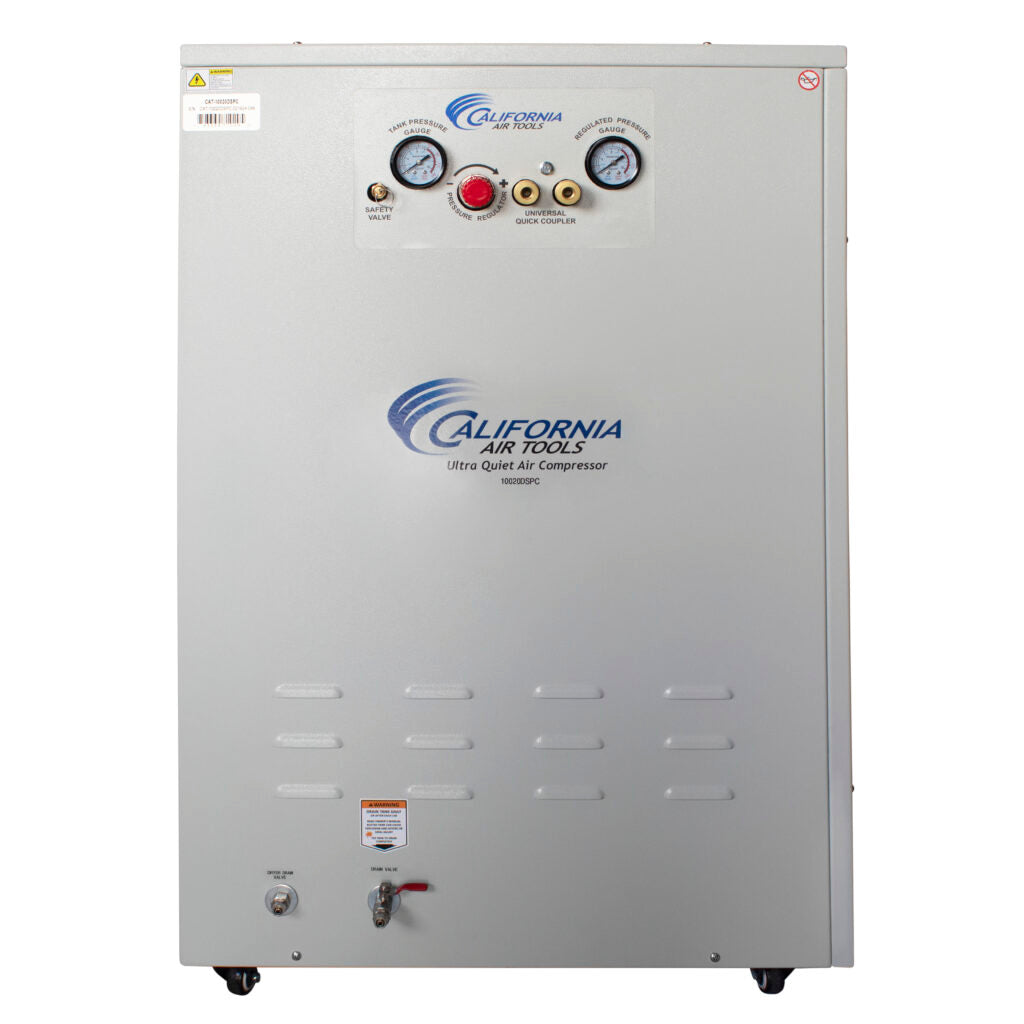

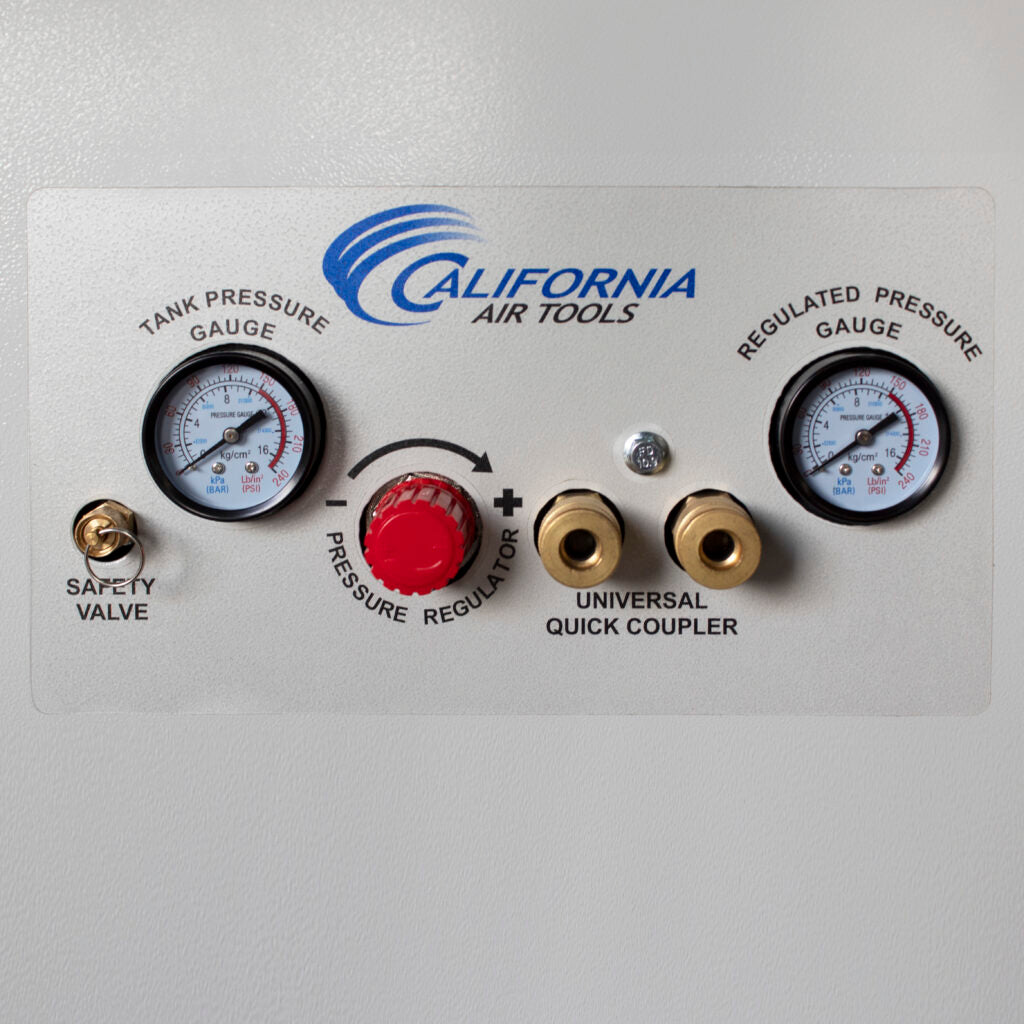

• Two pressure-control gauges
• Two 1/4" NPT female industrial push-to-connect air ports
• Thermal overload protection

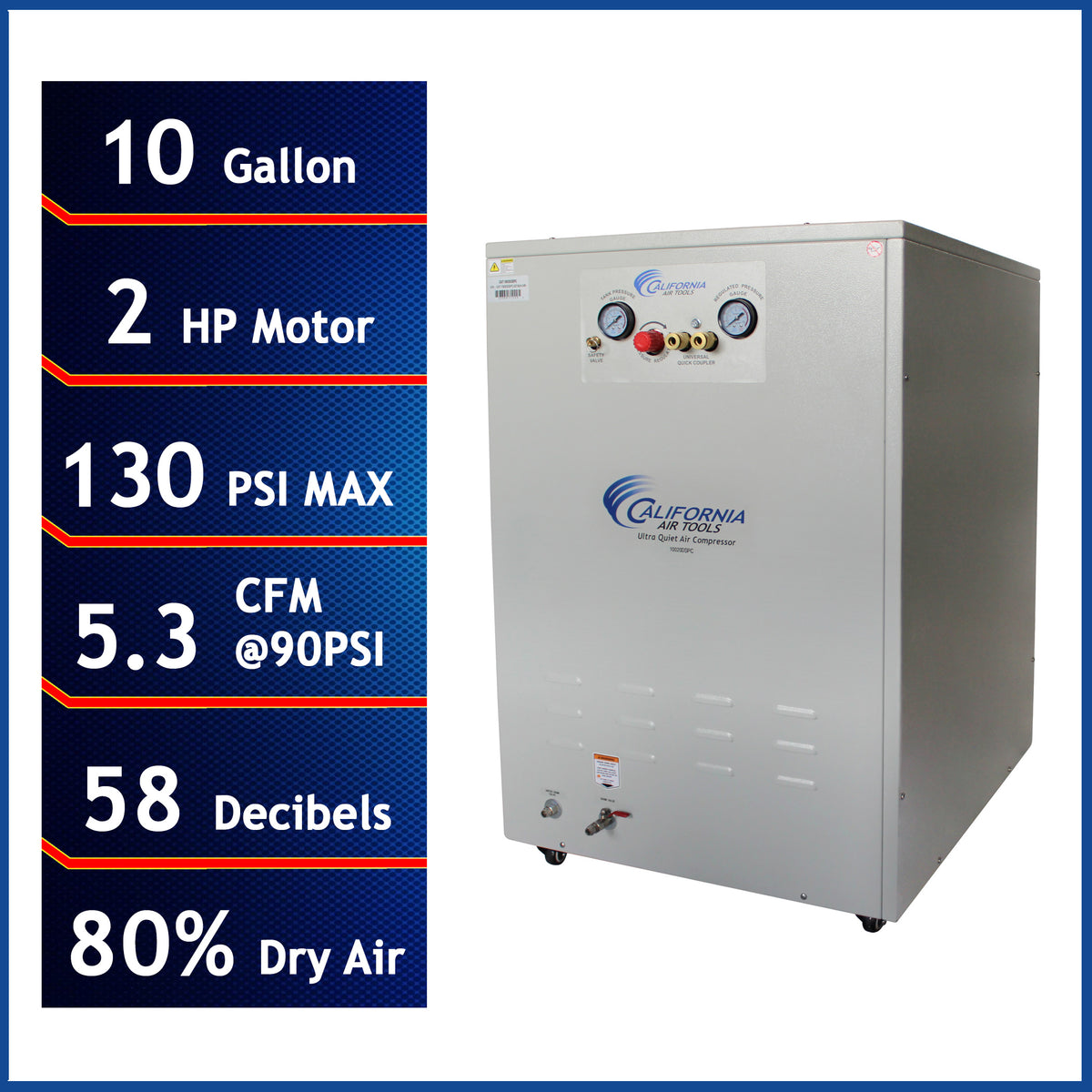

• 130 PSI maximum pressure
• 6.40 CFM @ 40 PSI
• 5.30 CFM @ 90 PSI
• 70/30 duty cycle
• Non-ASME air tank
• Assembled in USA with global components
• 1-year limited warranty

Specifications

CAT states that the SP-9421 motor/pump has been tested for a minimum pump life of 3,000 hours before service.

What's Included

Based on the CAT product page, the system incorporates:

• California Air Tools 10020DSPC compressor
• 10-gallon steel air tank
• Soundproof steel cabinet
• Caster wheels
• Acoustic foam insulation
• Two exhaust fans
• Integrated 80% Air Dryer
• Activated alumina desiccant
• Aftercooler/condenser
• Two pressure-control gauges
• Two 1/4" NPT female industrial push-to-connect air ports

CAT separately identifies the 25-foot Hybrider Flex hose, accessory kit, moisture/oil separator, refrigerated 98% air dryer and automatic-drain extension kit as add-on options, so these should not be represented as standard included equipment.

Applications

CAT specifically describes the 10020DSPC as suitable for indoor environments where compressor noise is a major concern, including:

• Offices
• Shops
• Stores
• Warehouses
• Homes

CAT also categorizes this exact model under Dental 1–2 Chairs, Dental Milling Compressors, Dry Air Compressors, 80% Dry Air, and Sound Proof Cabinets.

Maintenance

Dry Air System: Replace the 1 lb bag of activated alumina desiccant in the vertical dry-air tower approximately every 3,000–4,000 motor/pump running hours, which CAT describes as roughly 1–2 years under average use.

Air Filters: Replace the two 2 HP air filters every 2 years, or every year when operating in dirty or dusty conditions.

Replacement Air Filter Part Number: 90260.
