California Air Tools 10020DSPCAD 2.0 HP Ultra Quiet Oil-Free 10 Gallon Air Compressor with 80% Air Dryer & Automatic Drain, Soundproof Cabinet
California Air Tools 10020DSPCAD 2.0 HP Ultra Quiet Oil-Free 10 Gallon Air Compressor with 80% Air Dryer & Automatic Drain, Soundproof Cabinet
- Regular price
- Price: $2,880.00
- Regular price
- List Price:
- Sale price
- Price: $2,880.00
- Unit price
- per
Couldn't load pickup availability
12 in stock
PRODUCT DESCRIPTION
Product Description

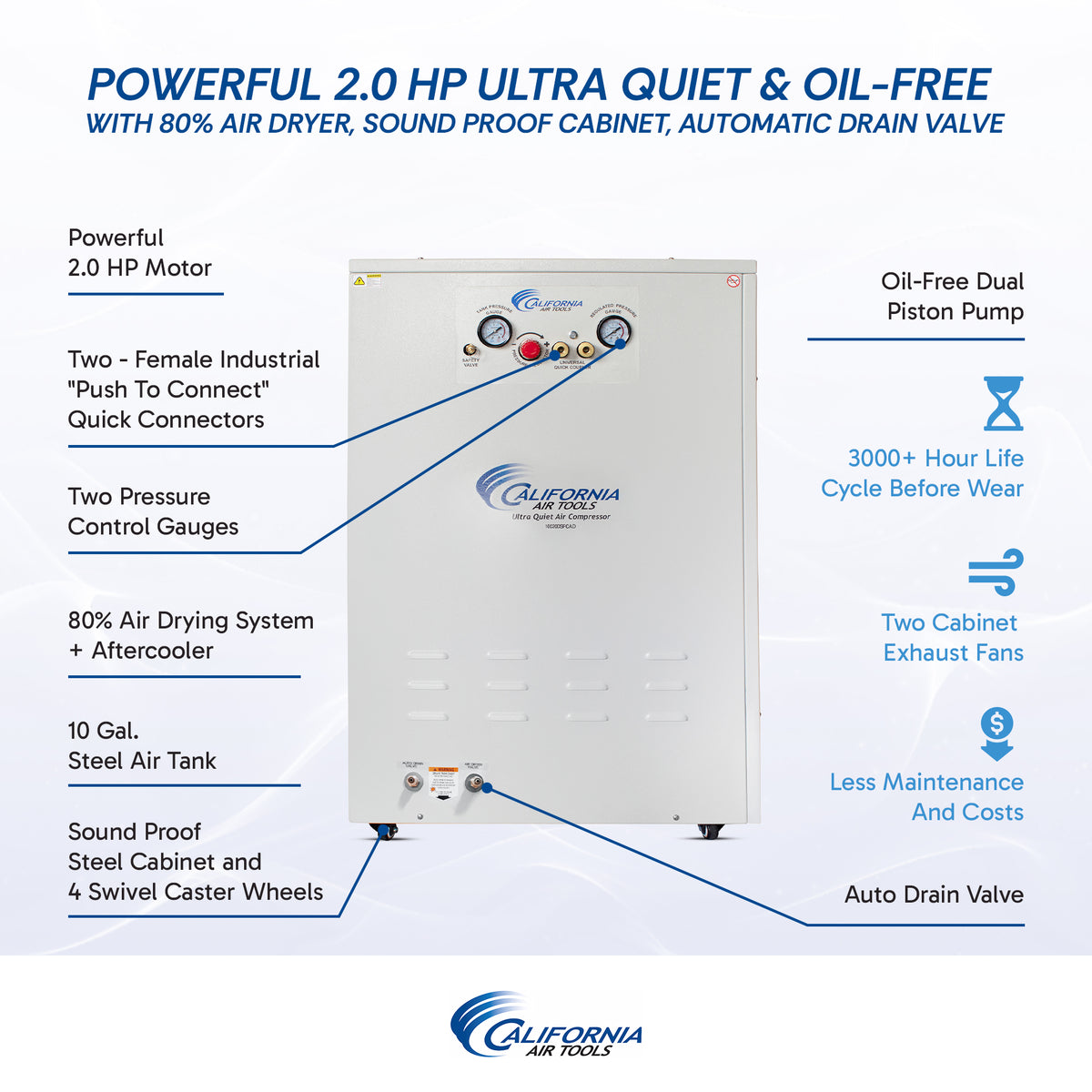

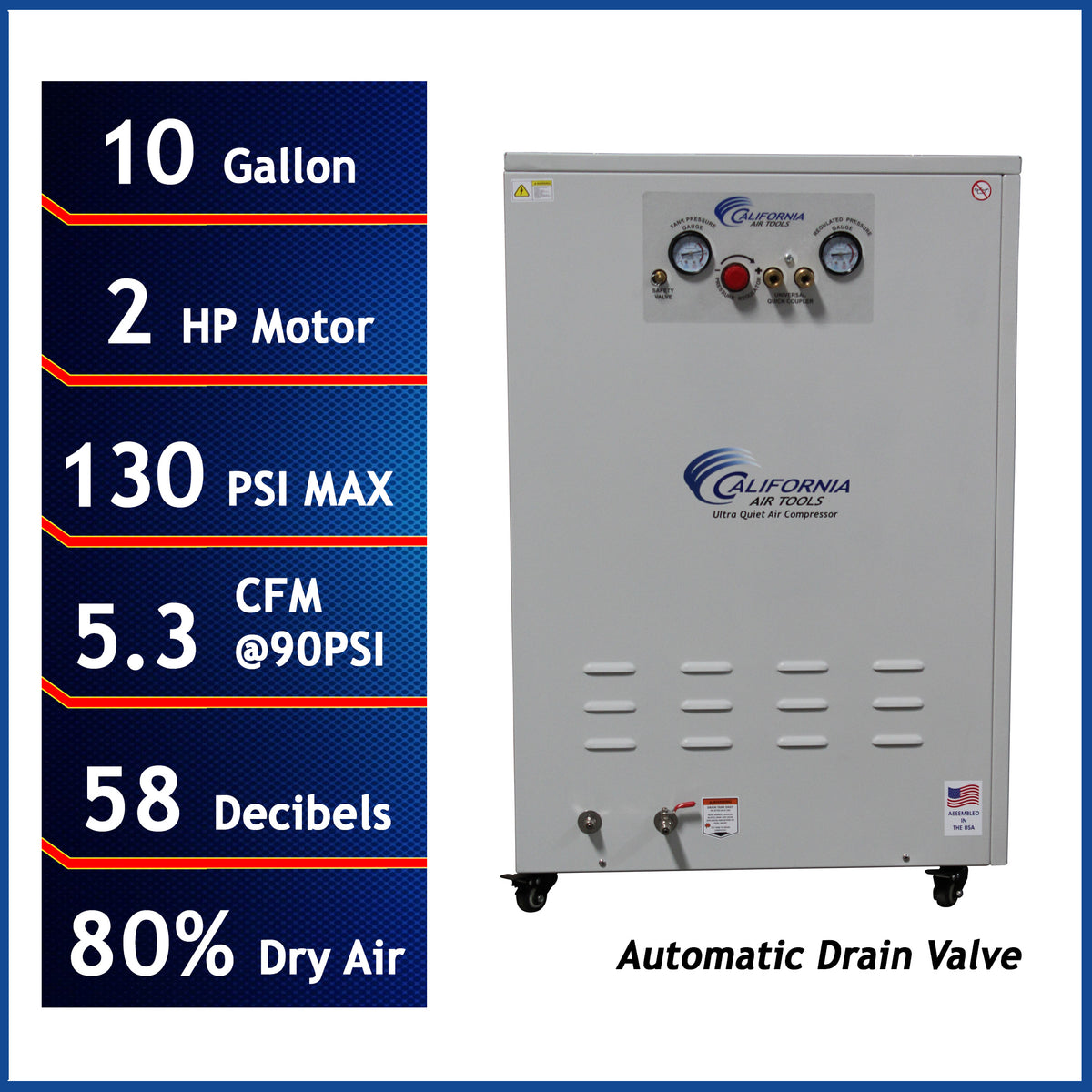

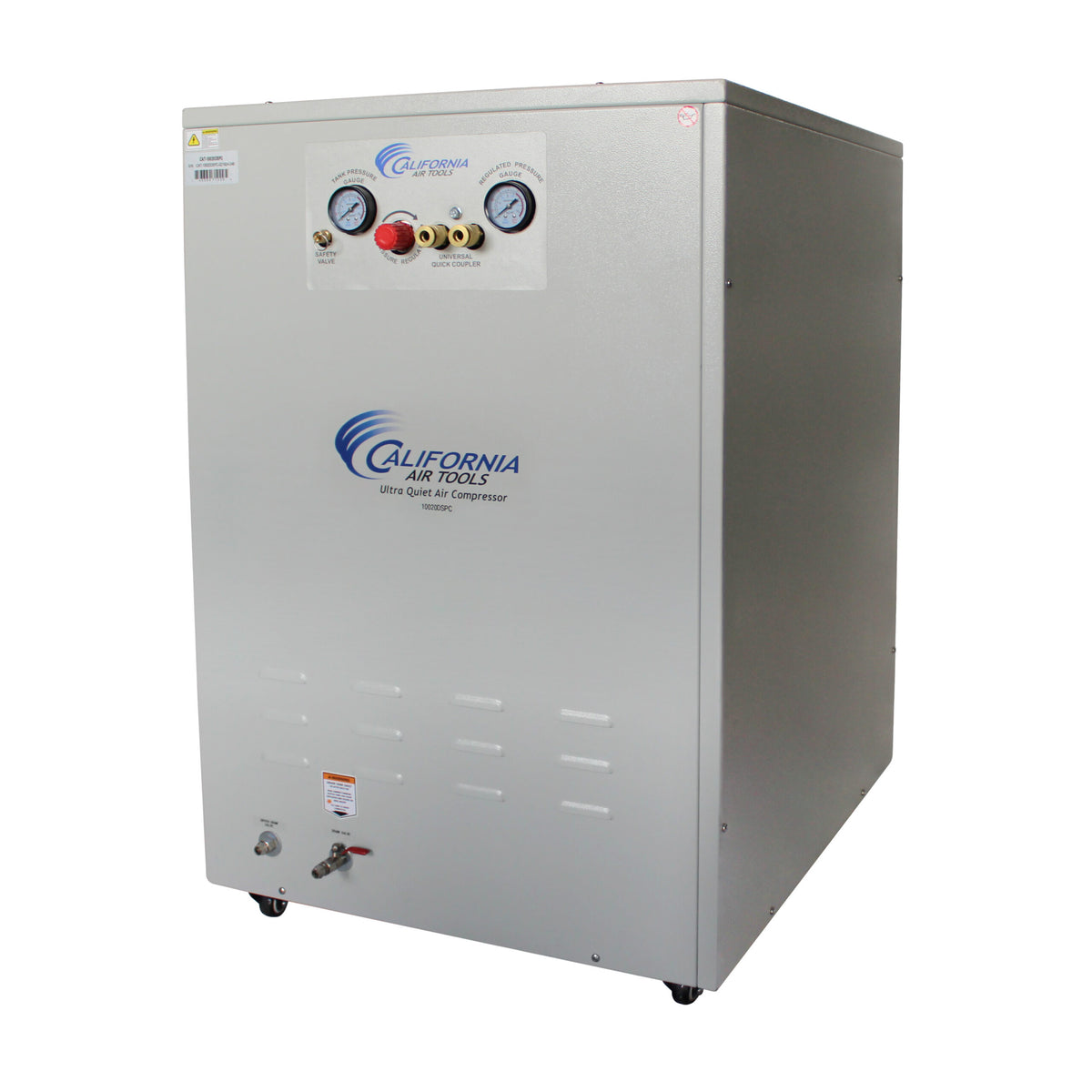

The California Air Tools 10020DSPCAD is a 2.0 HP ultra-quiet, oil-free air compressor featuring a 10-gallon steel air tank, integrated 80% air drying system, soundproof cabinet, and factory-installed EZ-1 automatic drain valve. Operating at just 58 dB, it is designed for indoor environments where low noise and clean, dry compressed air are important. The soundproof cabinet is mounted on caster wheels and includes acoustic insulation and exhaust fans for quieter, cooler operation.

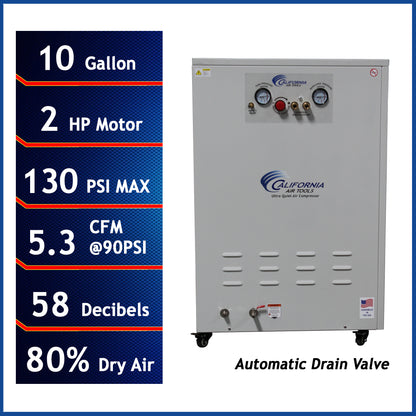

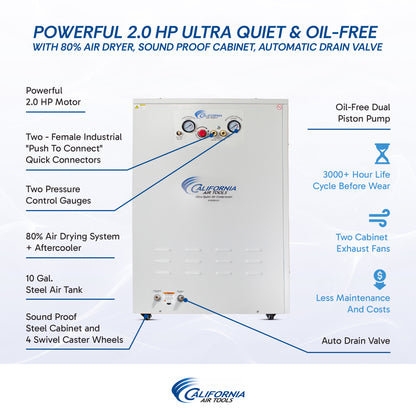

Key Features

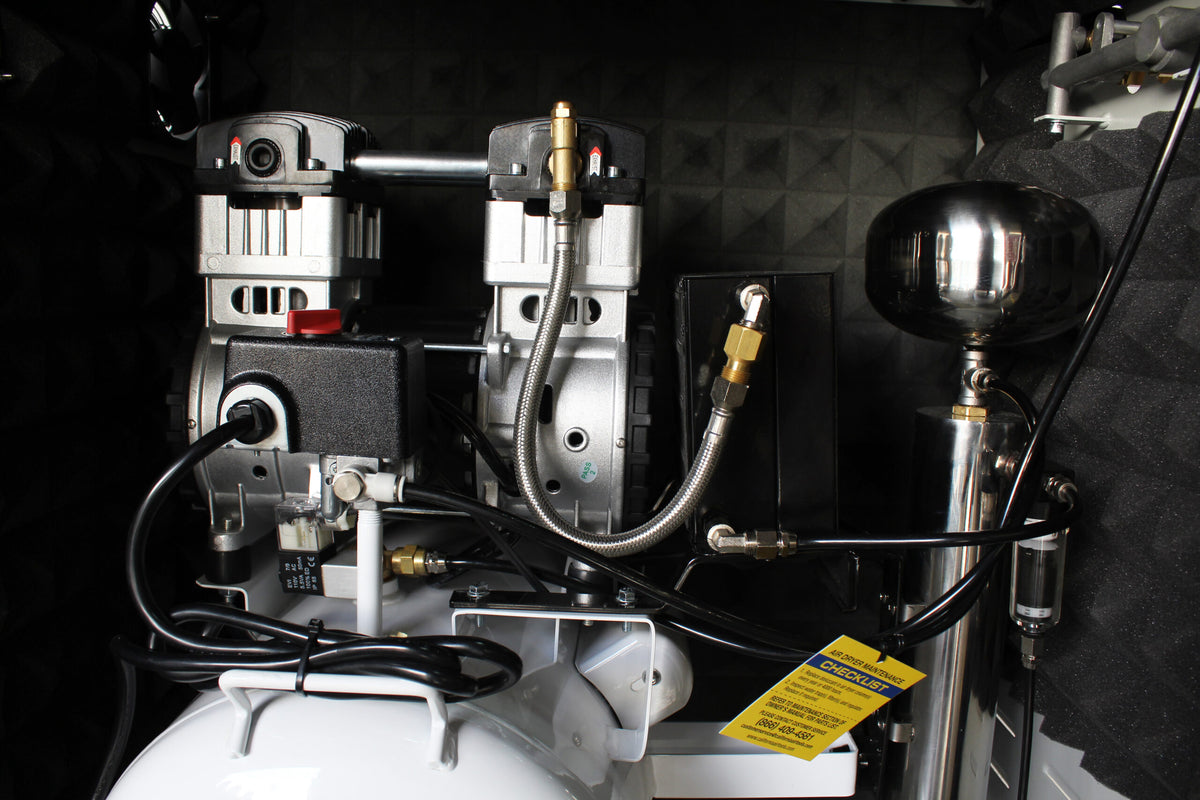

- 2.0 HP oil-free dual piston pump
- Ultra-quiet 58 dB operation
- 10-gallon steel air tank
- Integrated 80% air drying system

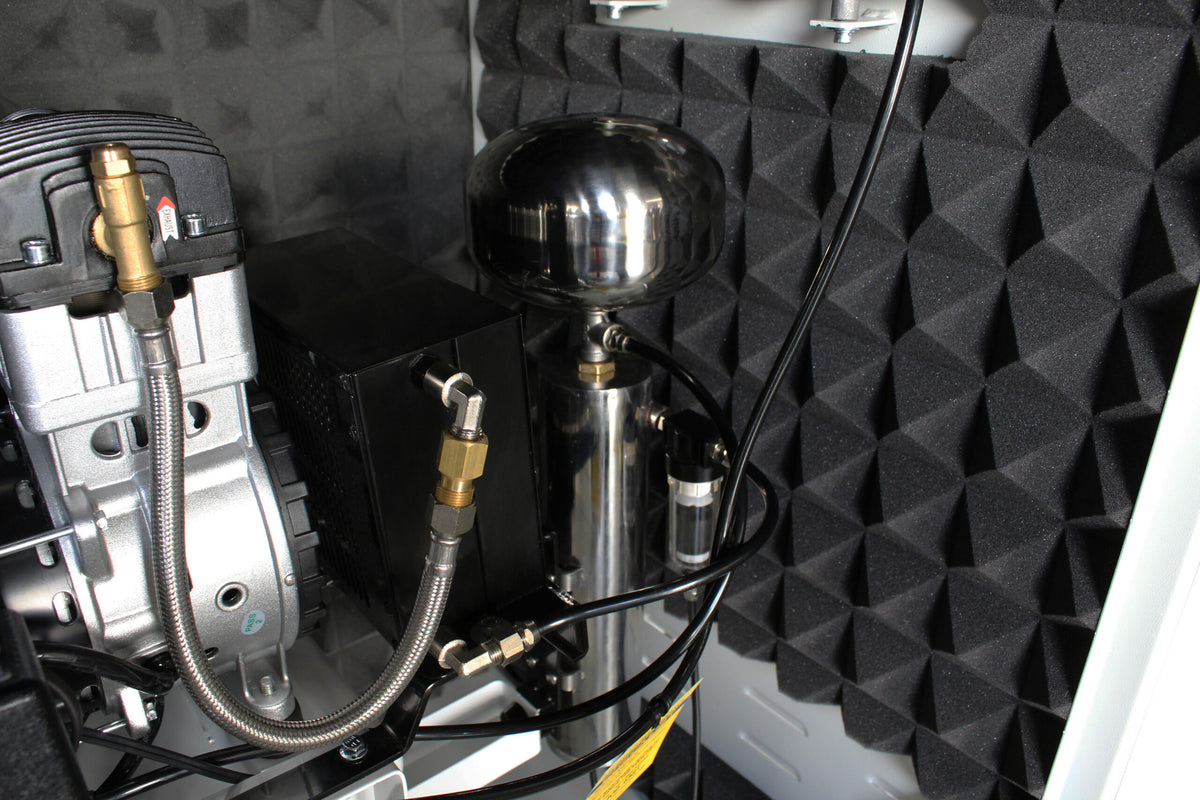

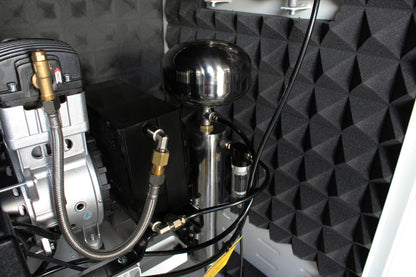

- Aftercooler and activated alumina desiccant dryer
- Soundproof cabinet with acoustic insulation
- Factory-installed EZ-1-2321 automatic drain valve
- 6.40 CFM at 40 PSI and 5.30 CFM at 90 PSI
- 130 PSI maximum pressure

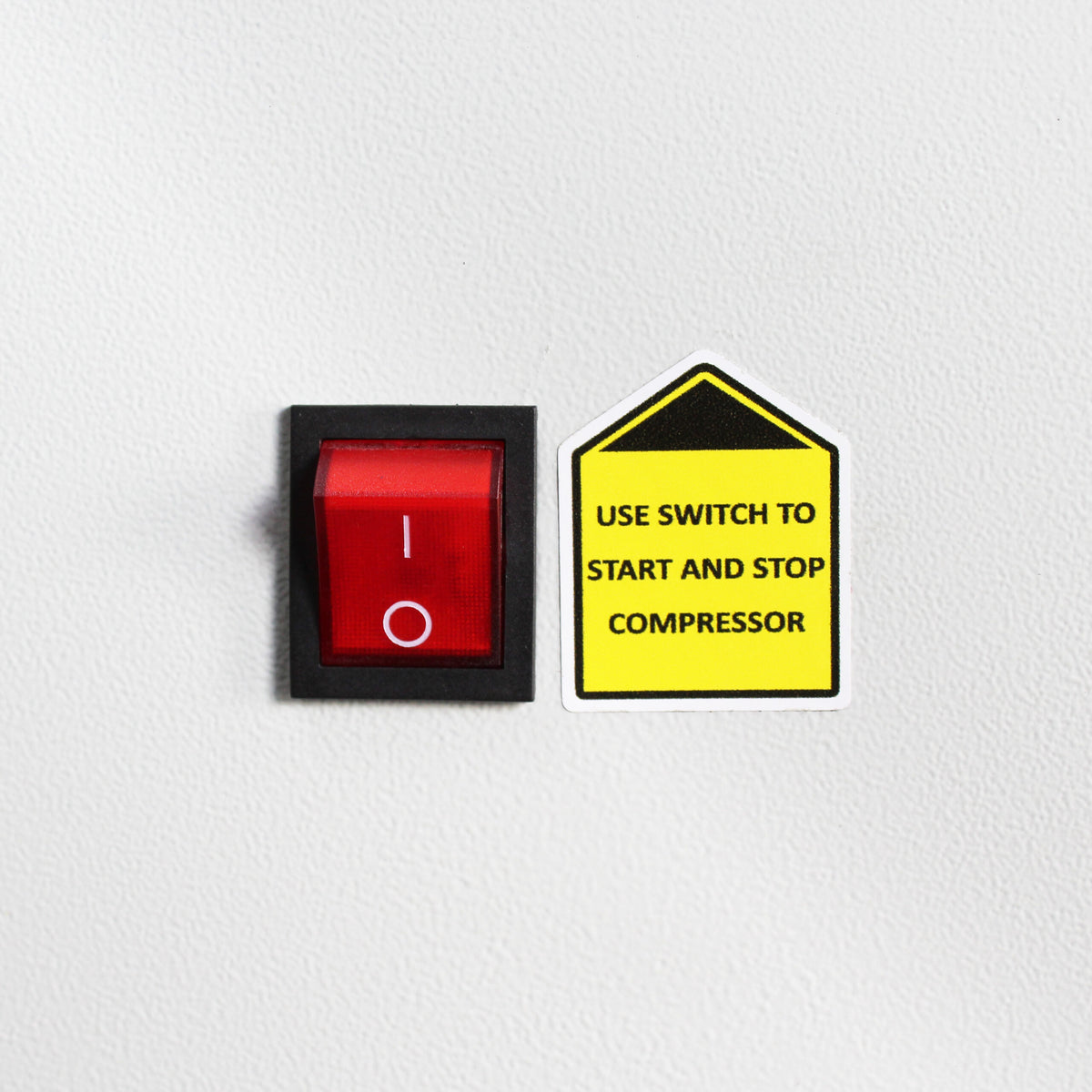

- Easy Start Valve for reduced starting amperage

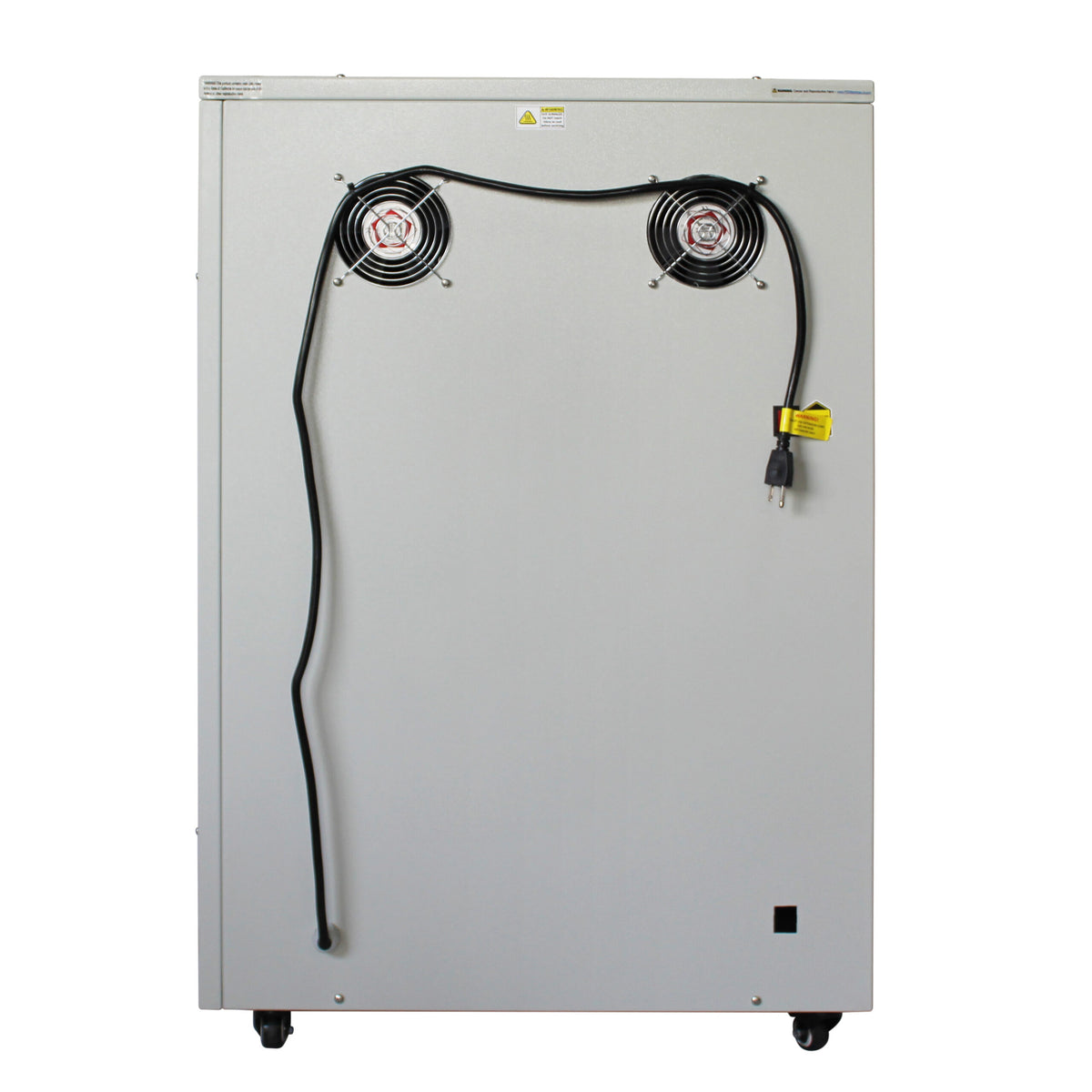

- Two cabinet exhaust fans
- Cabinet mounted on caster wheels
- 70/30 duty cycle
Specifications
| Model | 10020DSPCAD |
| Motor | 2.0 HP |
| Pump Type | Oil-Free Dual Piston |
| Tank Size | 10 Gallon |
| Tank Type | Steel |
| Noise Level | 58 dB |
| Voltage | 110V |
| Frequency | 60 Hz |
| Amperage | 14.0 Amps |
| CFM @ 40 PSI | 6.40 CFM |
| CFM @ 90 PSI | 5.30 CFM |
| Maximum Pressure | 130 PSI |
| Kick-On Pressure | 100 PSI |
| Kick-Off Pressure | 130 PSI |
| Air Drying | 80% |
| Duty Cycle | 70/30 |
| Tank Fill Time | 130 Seconds |
| Recovery Time | 40 Seconds from 100 to 130 PSI |

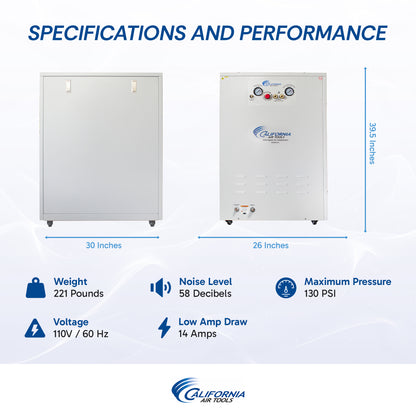

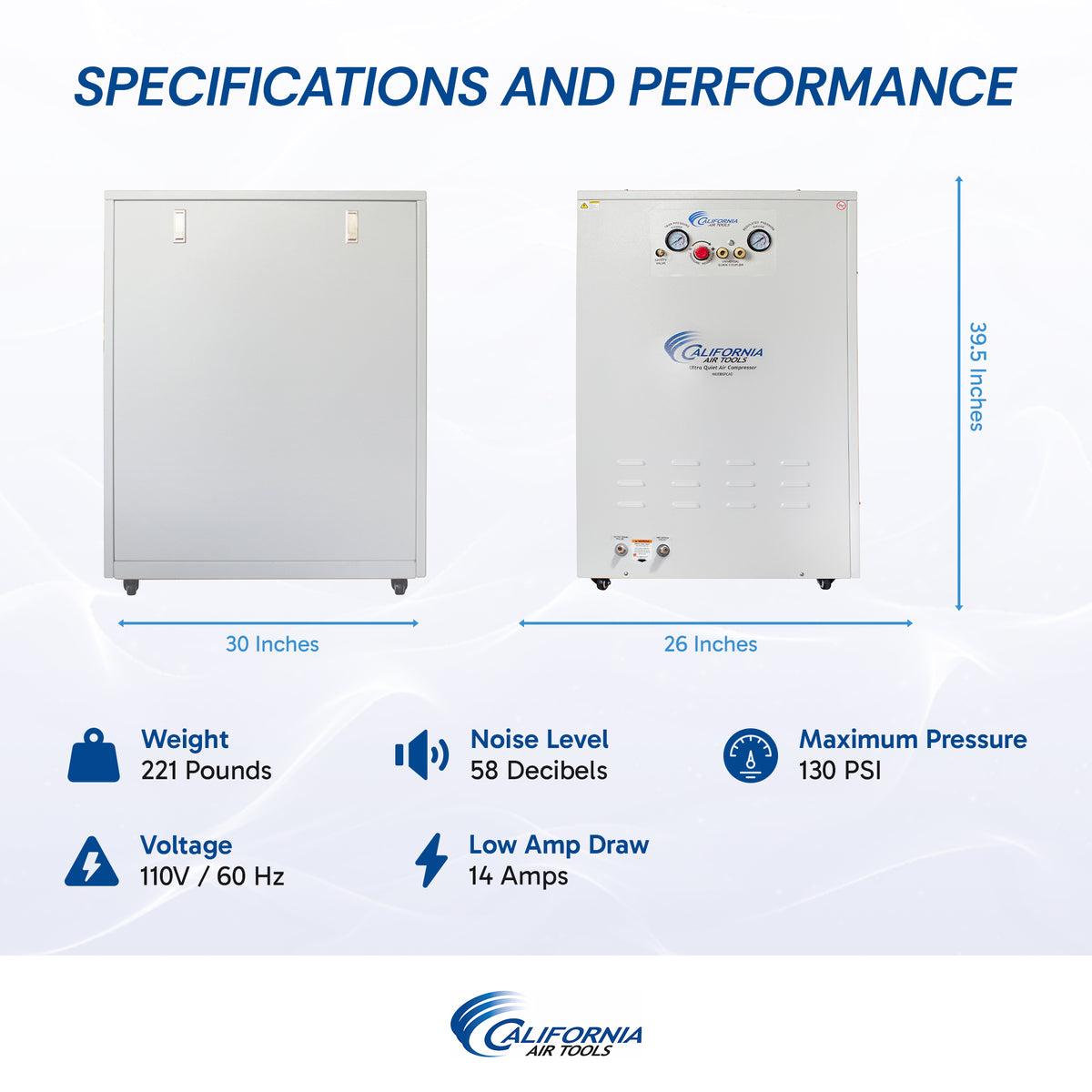

| Dimensions | 26" L × 33" W × 39" H |
| Weight | 221 lbs. |
| Pump Life | 3,000+ Hours |
| Warranty | 1 Year Limited Manufacturer Warranty |
What's Included
- California Air Tools 10020DSPCAD Air Compressor
- 10-Gallon Steel Air Tank
- 80% Air Drying System
- Aftercooler
- Activated Alumina Desiccant
- EZ-1-2321 Automatic Drain Valve
- Soundproof Cabinet
- Two Cabinet Exhaust Fans

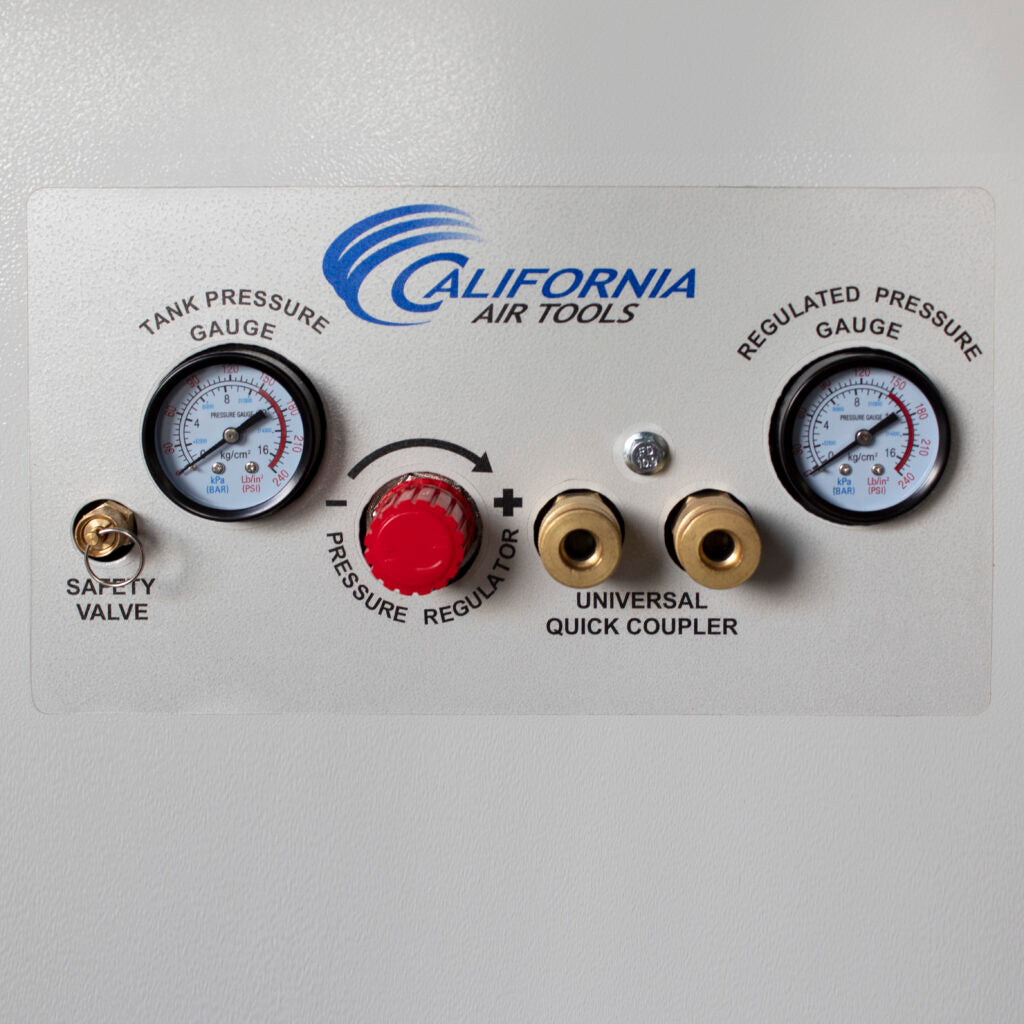

- Two Pressure Control Gauges
- Two 1/4" NPT Female Industrial Push-to-Connect Air Ports
Applications
Ideal for dental offices, dental laboratories, dental milling applications, offices, shops, stores, warehouses, and other indoor environments where quiet operation and clean, dry compressed air are important.
Maintenance
Replace the activated alumina desiccant approximately every 3,000–4,000 motor/pump running hours, typically every 1–2 years depending on usage. Replace the two motor-pump air filters every 2 years, or annually when operating in dirty or dusty environments. The EZ-1 automatic drain valve helps eliminate manual tank draining by automatically removing accumulated moisture.
