California Air Tools 10020DSPCAD Ultra Quiet 2.0 HP Oil-Free 10-Gallon Air Compressor with 80% Air Dryer, Automatic Drain & Soundproof Cabinet

Product Description

The California Air Tools 10020DSPCAD is a 2.0 HP ultra-quiet, oil-free air compressor combining a 10-gallon steel air tank, 80% air drying system, aftercooler, automatic drain valve, and soundproof cabinet into one compressed-air system.

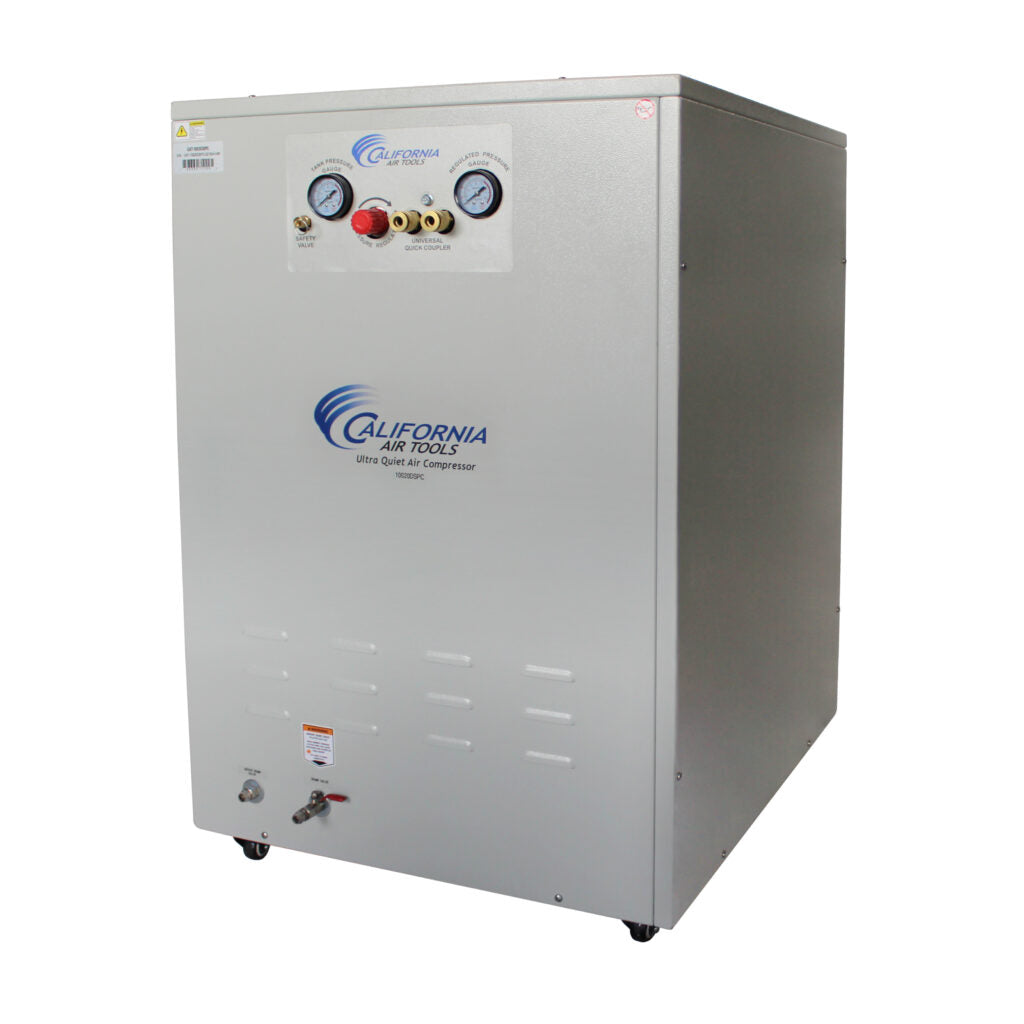

Operating at only 58 dB, it is designed for indoor environments where noise is a major concern. The steel cabinet is mounted on caster wheels and lined with acoustic soundproofing foam to reduce compressor noise and vibration.

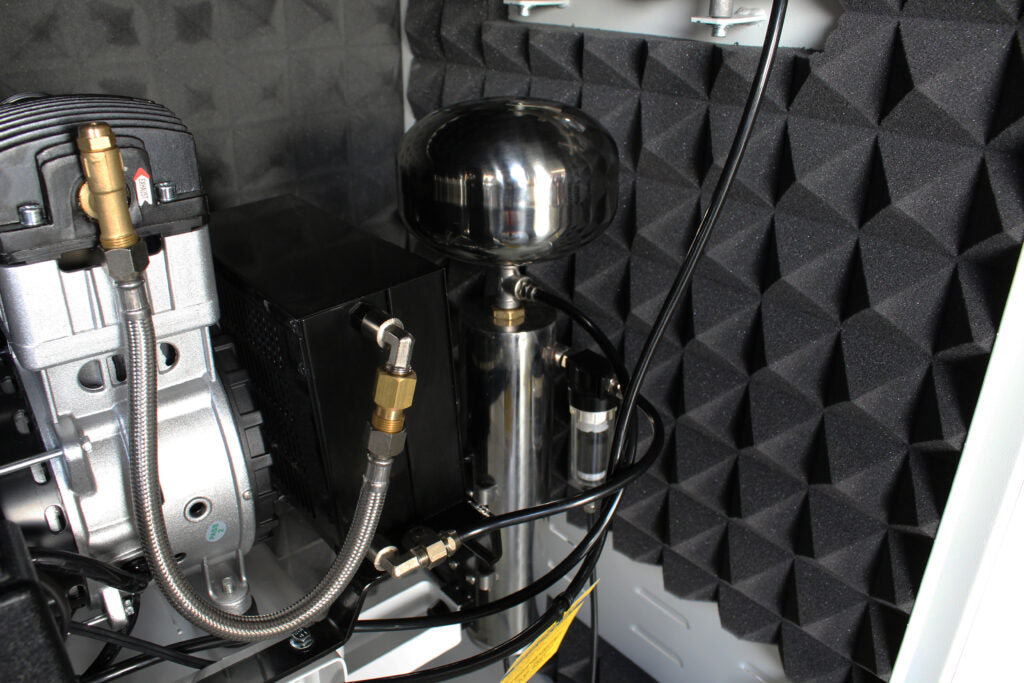

The integrated 80% Air Dryer uses an aftercooler and dryer system to remove water vapor from compressed air. The factory-installed EZ-1-2321 Automatic Drain Valve eliminates the need to manually drain the air tank and uses an adjustable timer for drain frequency and duration.

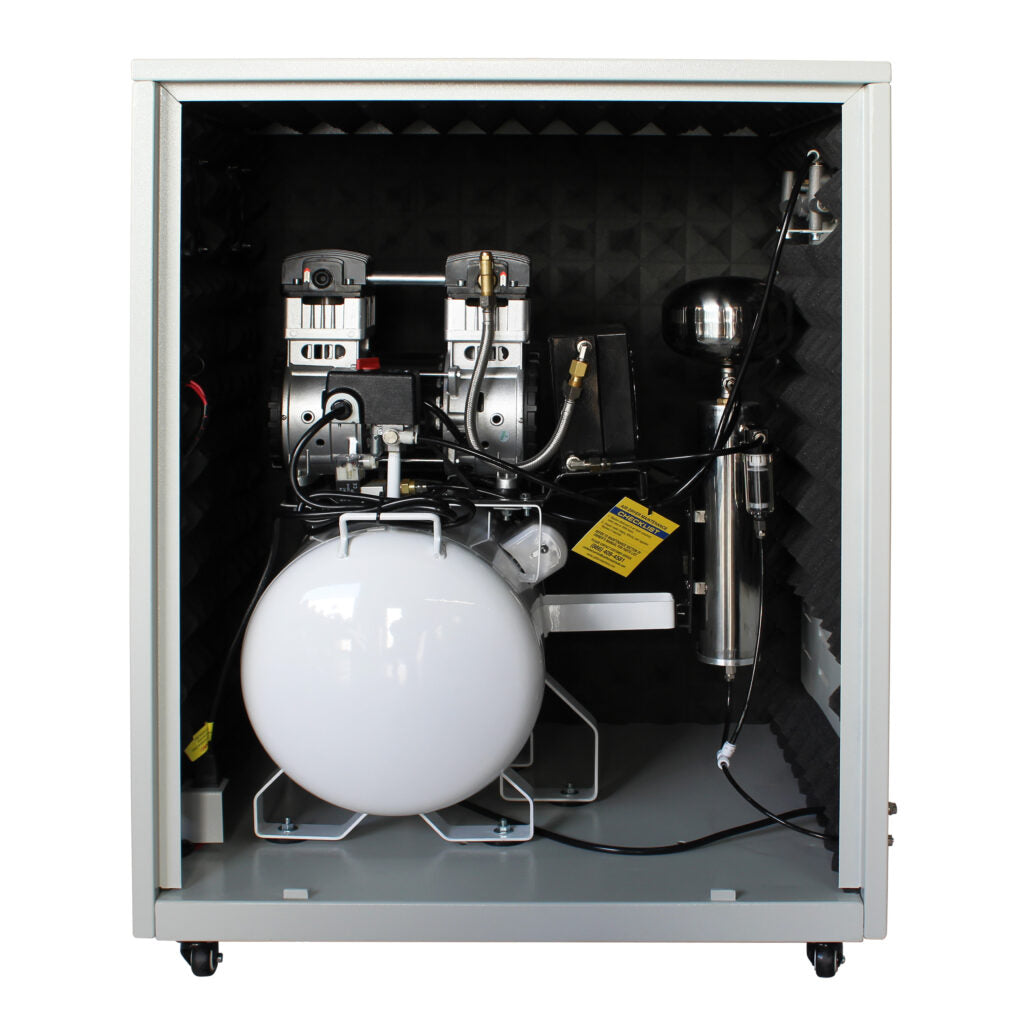

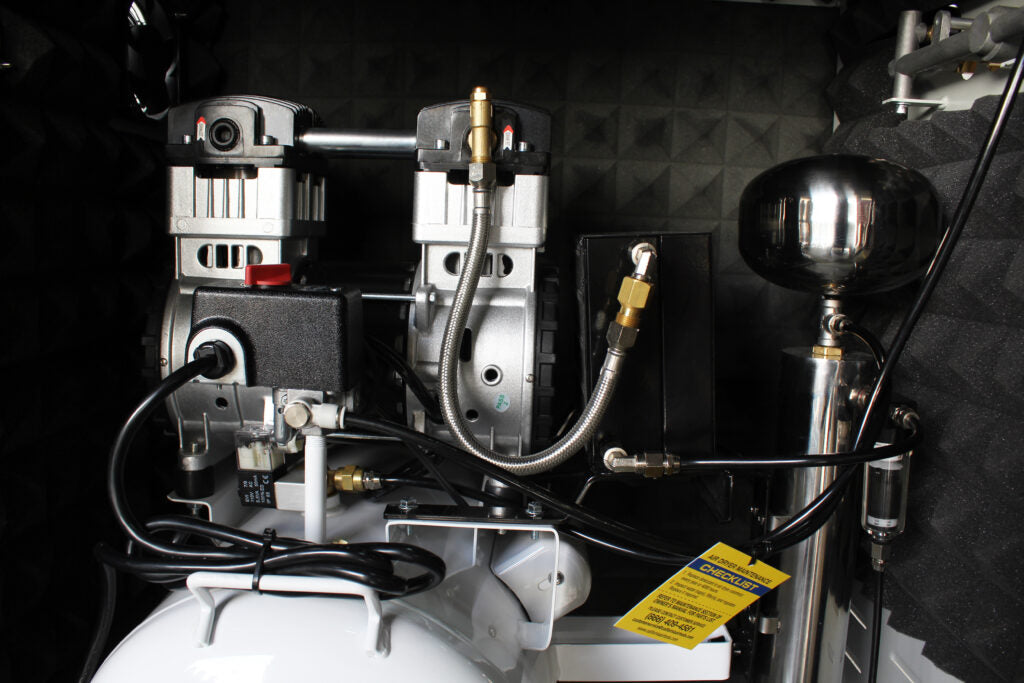

The oil-free dual-piston pump is designed for longevity, performance, and reduced maintenance. CAT states that the SP-9421 motor/pump is tested for a minimum pump life of 3,000 hours before service. 

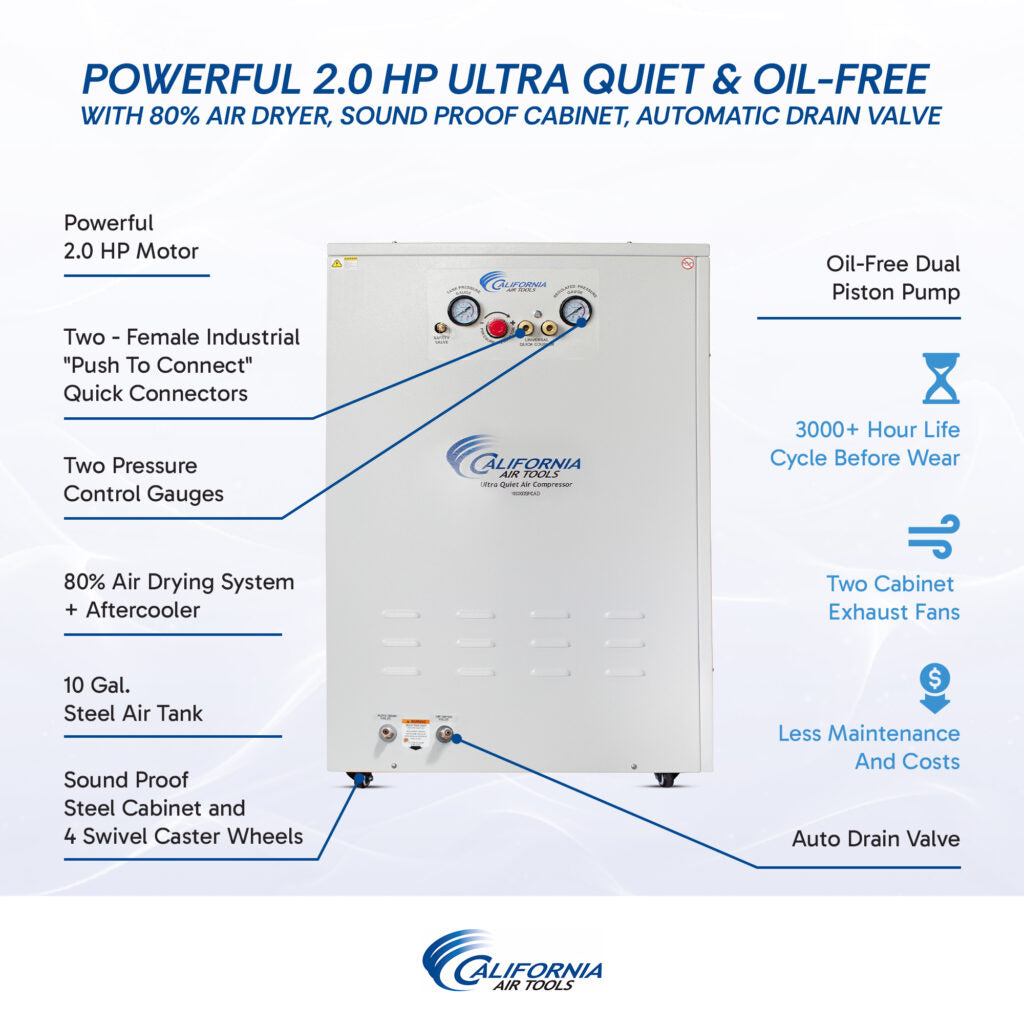

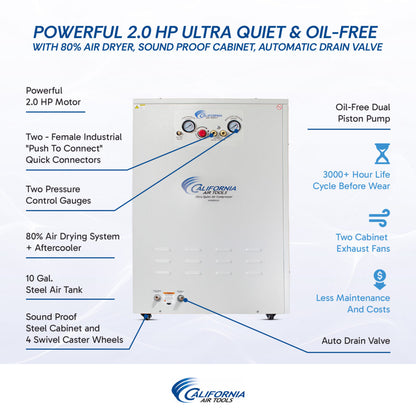

Key Features

• 2.0 HP rated/running motor
• Ultra-quiet 58 dB operation
• Oil-free dual-piston pump
• 10-gallon steel air tank
• Integrated 80% Air Dryer
• Aftercooler/condenser
• Activated alumina desiccant
• Factory-installed EZ-1-2321 automatic drain valve
• Soundproof steel cabinet
• Acoustic soundproofing foam insulation
• Caster wheels
• Two latching cabinet doors

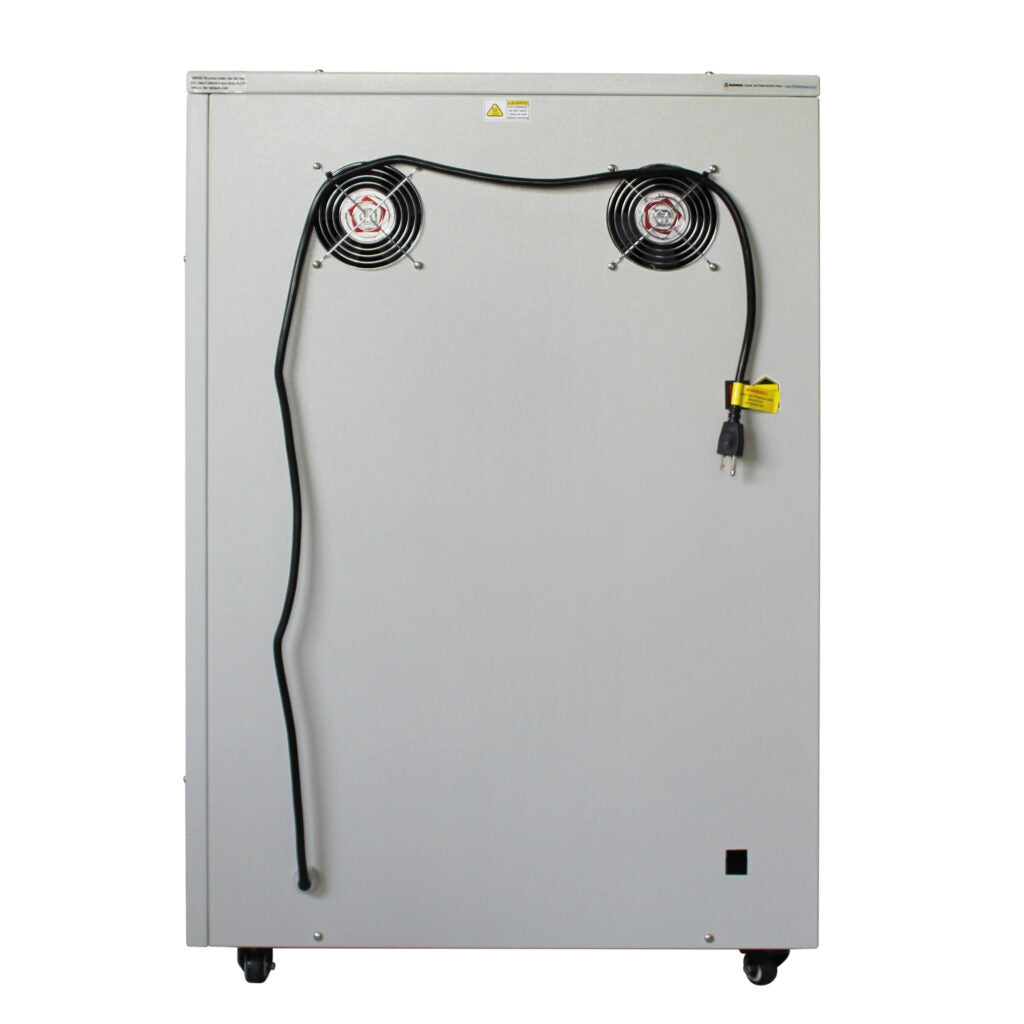

• Two cabinet exhaust fans
• Easy Start Valve
• Two pressure-control gauges
• Two 1/4" NPT female industrial push-to-connect air ports
• Thermal overload protection

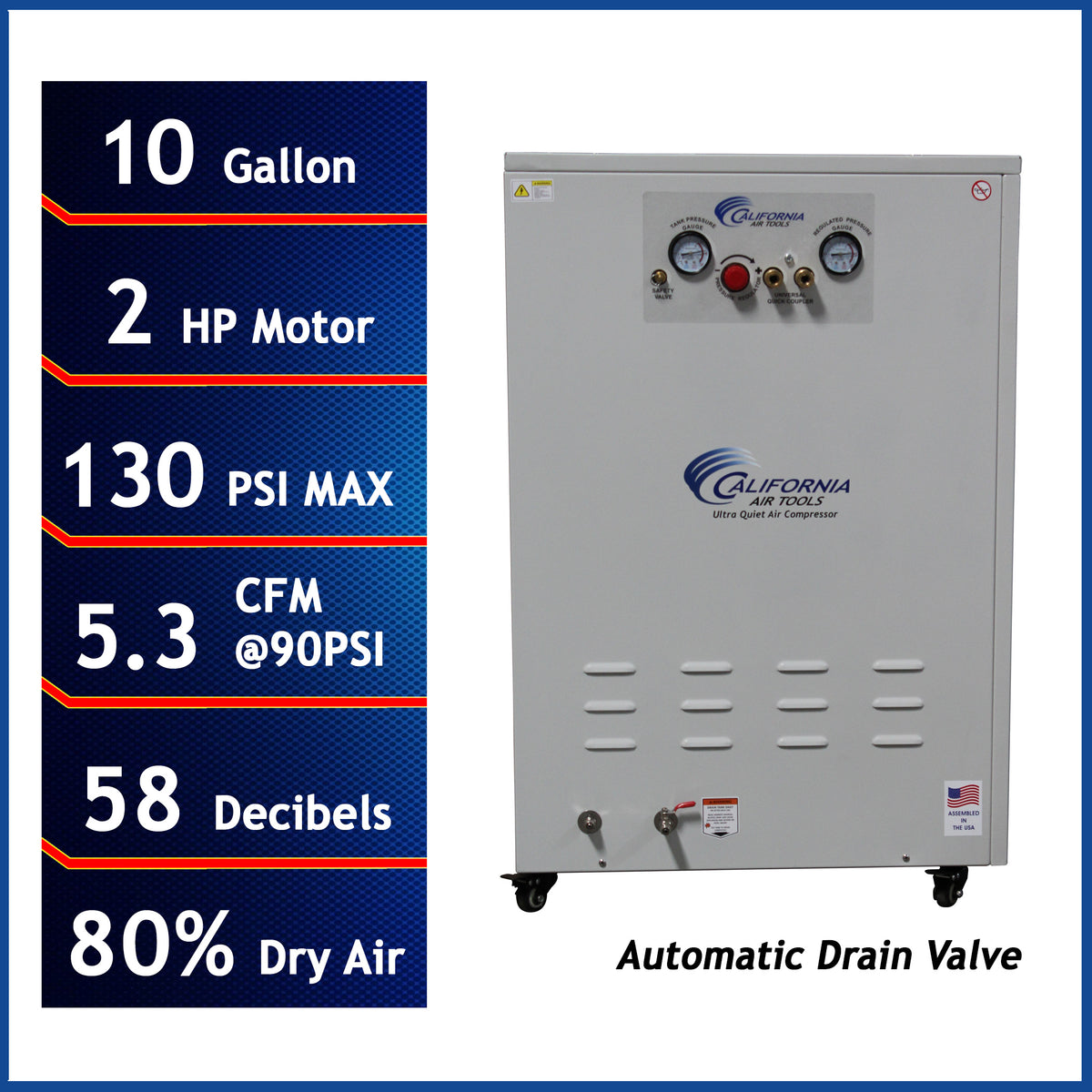

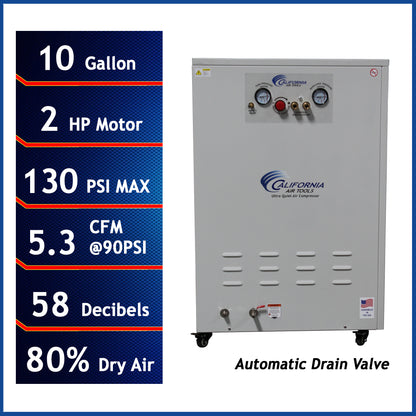

• 130 PSI maximum pressure
• 70/30 duty cycle
• Non-ASME tank
• Designed for indoor environments
• 1-year manufacturer limited warranty 

Specifications

These specifications are from CAT's current product page. 

What's Included

• California Air Tools 10020DSPCAD compressor
• 10-gallon steel air tank
• Soundproof steel cabinet
• Caster wheels
• Acoustic soundproofing foam
• Two cabinet exhaust fans
• Integrated 80% Air Dryer
• Activated alumina desiccant
• Aftercooler/condenser
• Factory-installed EZ-1-2321 Automatic Drain Valve
• Oil-free dual-piston pump
• Two pressure gauges
• Two 1/4" NPT female industrial push-to-connect air ports

Do not list as included: CAT identifies the following as add-on options:

• 8mm PTFE black hose tubing
• 16-piece air hose & air tool accessory kit
• Hybrider Flex 25-foot air hose

Applications

CAT specifically states that this compressor is designed for indoor environments where noise is a major concern, including:

• Offices
• Shops
• Stores
• Warehouses
• Homes

CAT also specifically categorizes the 10020DSPCAD under:

• 2.0 HP Air Compressors
• 80% Dry Air
• Dental 1–2 Chairs
• Dental Milling Compressors
• Dry Air Compressors
• Sound Proof Cabinets

CAT's dental milling guidance also specifically recommends the 10020DSPCAD for certain dental milling applications.

Maintenance

Air Dryer:
Replace the 1 lb bag of activated alumina desiccant located inside the vertical dry-air tower every 3,000–4,000 motor/pump running hours, approximately every 1–2 years under average use.

Air Filters:
Replace the two 2 HP air filters every 2 years, or annually if the compressor operates in a dirty or dusty environment.

Air Filter Replacement Part: 90260

Automatic Drain:
The factory-installed EZ-1-2321 automatic drain uses a manually adjustable timer to control the frequency and duration of the draining process.
