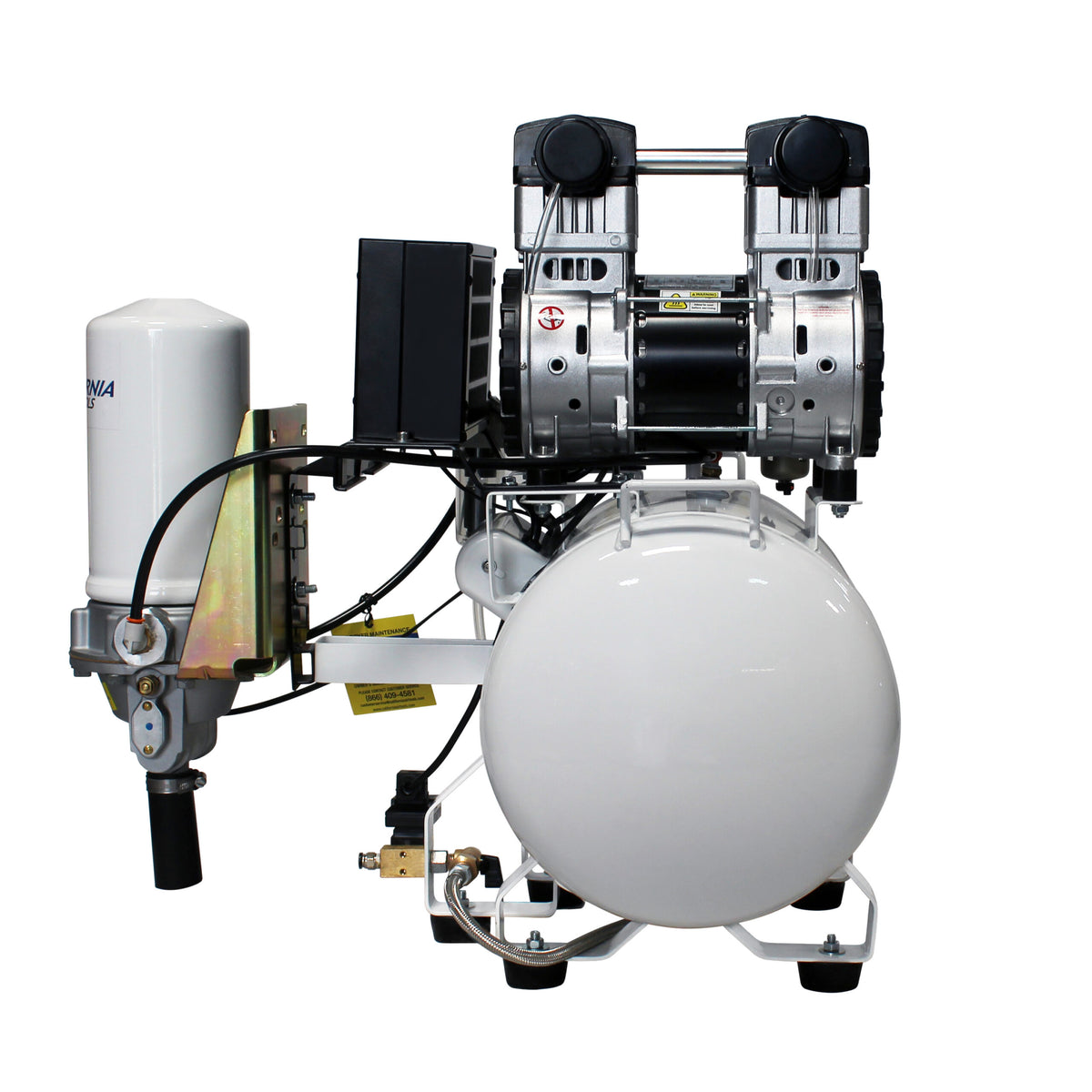

California Air Tools 10020HDCADC 2.0 HP Ultra Quiet Oil-Free 10 Gallon Horizontal Air Compressor with 98% Air Dryer & Automatic Drain, 110V

Product Description

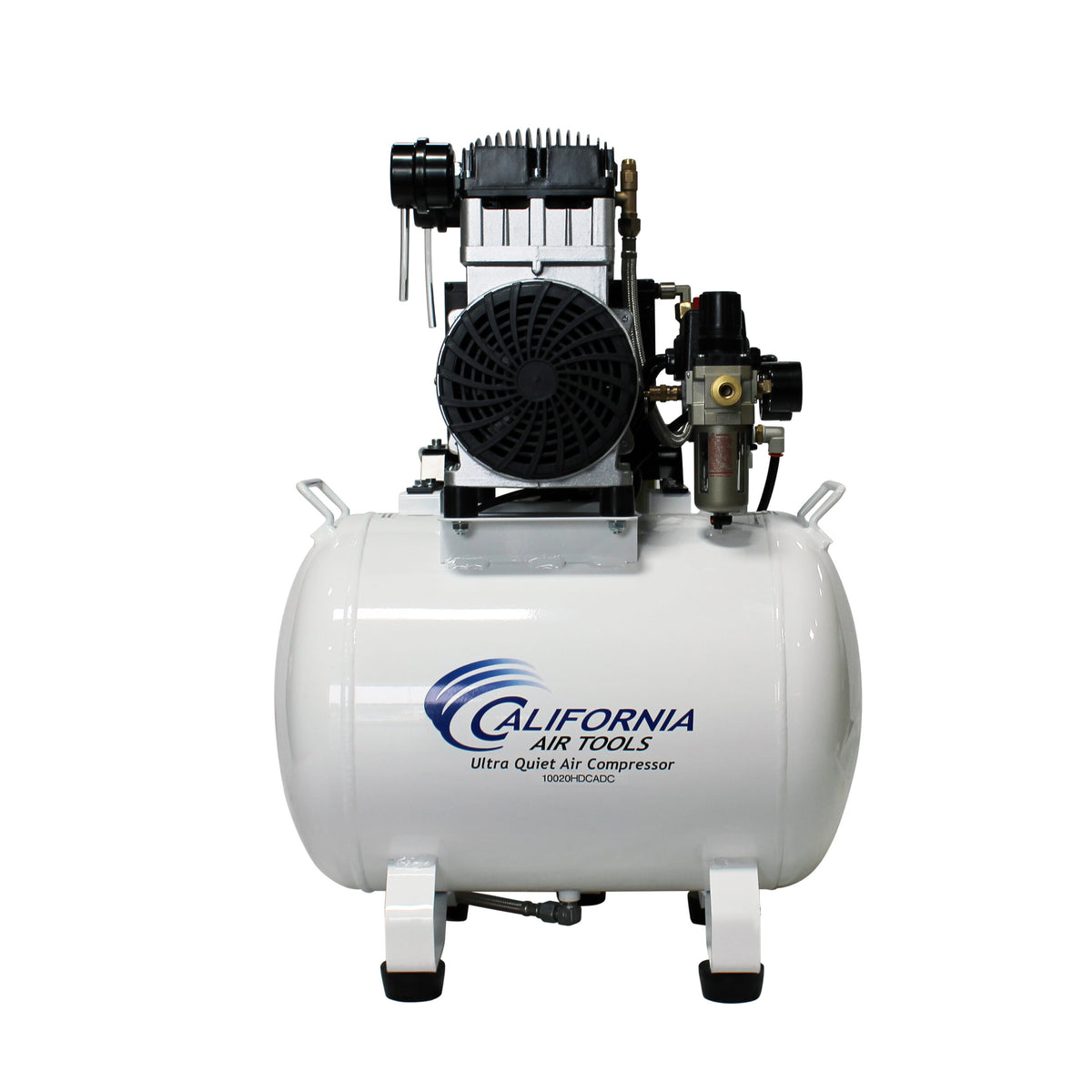

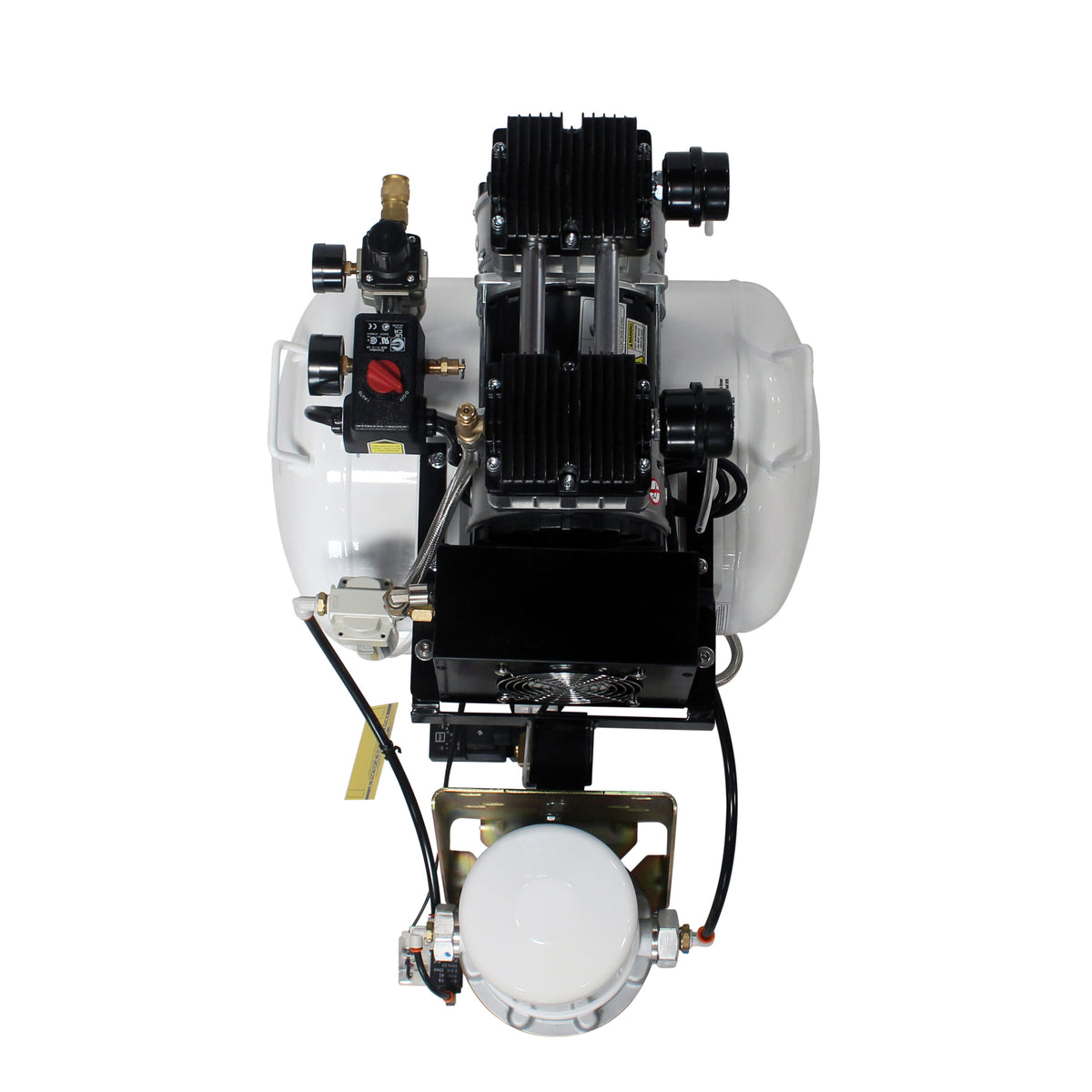

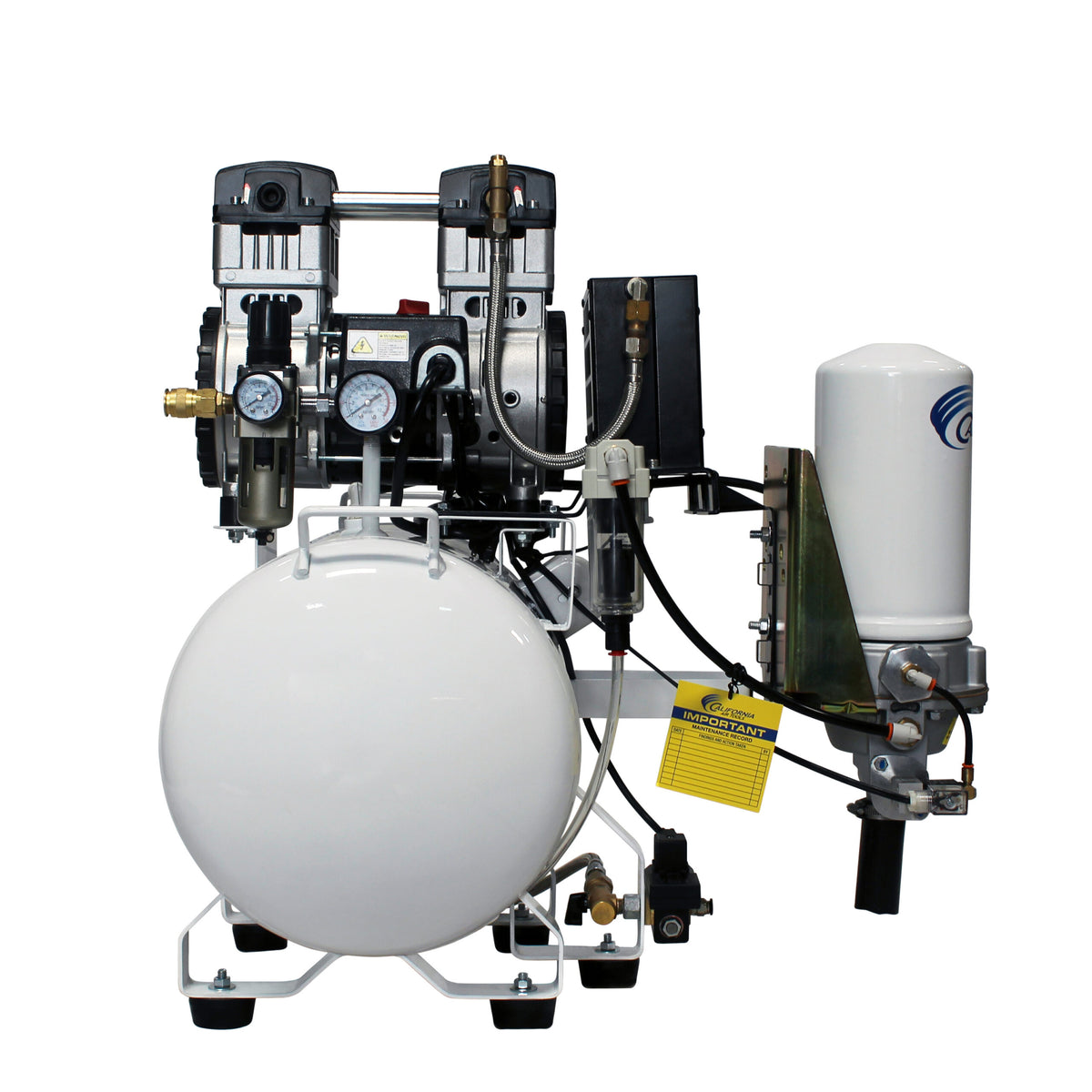

The California Air Tools 10020HDCADC is a powerful 2.0 HP ultra-quiet, oil-free air compressor designed for applications requiring clean, dry compressed air. It features a 10-gallon horizontal steel air tank, 98% air drying system, automatic drain valve, and a low 70 dB noise level. The oil-free dual-piston pump provides clean compressed air without introducing oil into the air stream.

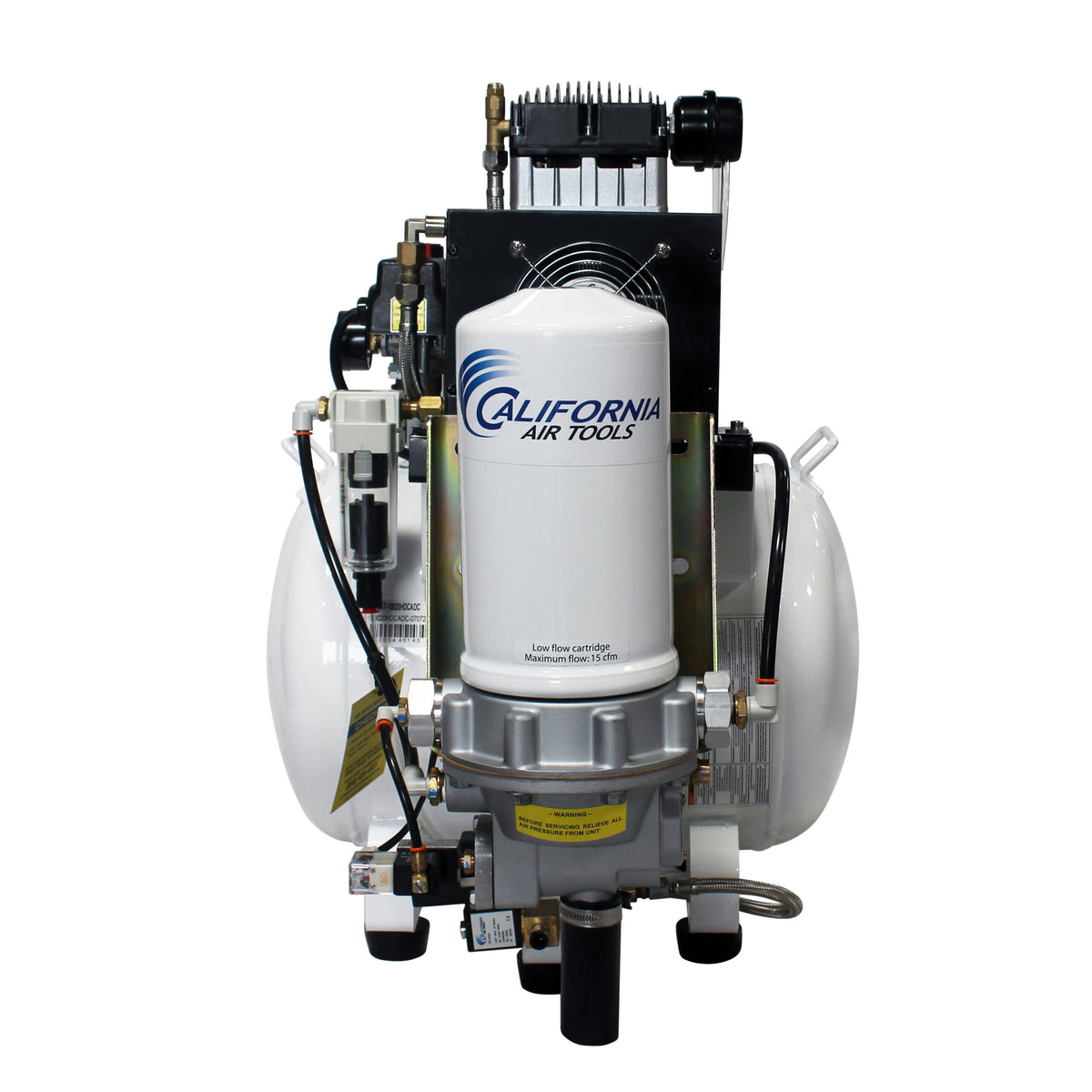

The integrated 98% air drying system uses an aftercooler and high-temperature molecular sieve desiccant cartridge to remove moisture from compressed air. With ISO 8573 Class 2.3.1 air quality, this compressor is well suited for dental, milling, manufacturing clean room, restaurant, and general engineering applications.

Key Features

• 2.0 HP oil-free dual-piston pump
• Ultra-quiet 70 dB operating noise level
• 10-gallon horizontal steel air tank
• 98% air drying system for low-dew-point compressed air
• ISO 8573 Class 2.3.1 air quality

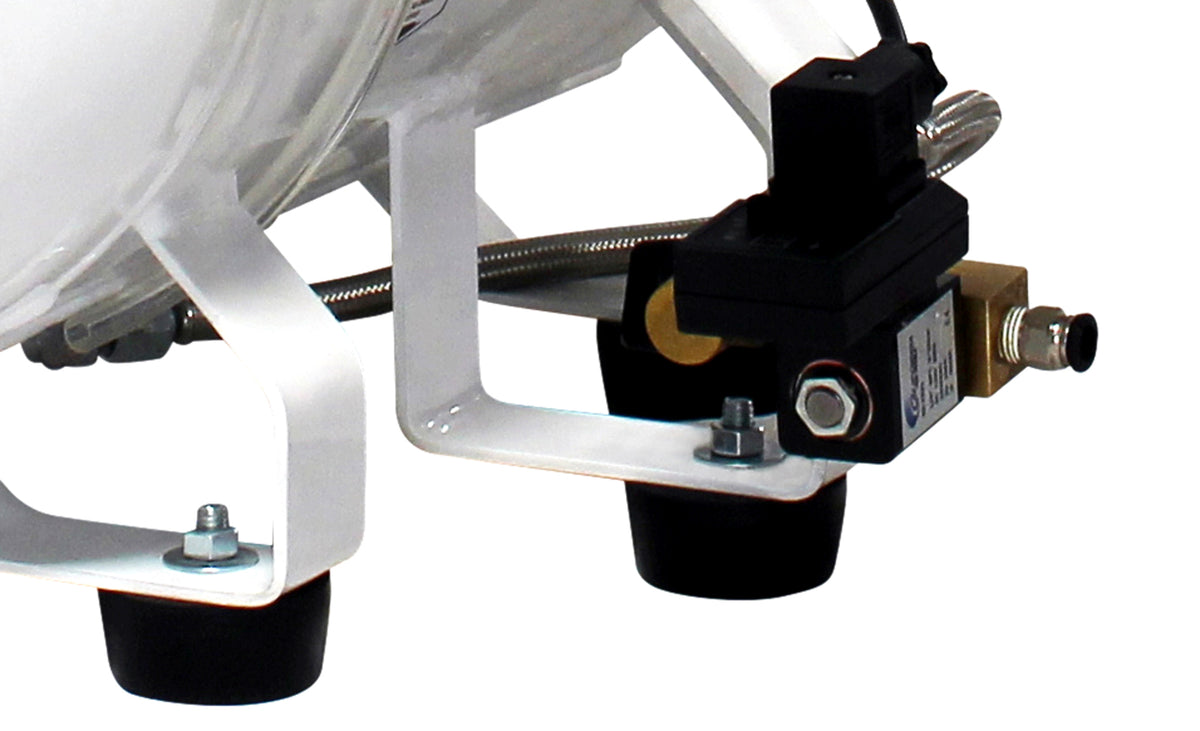

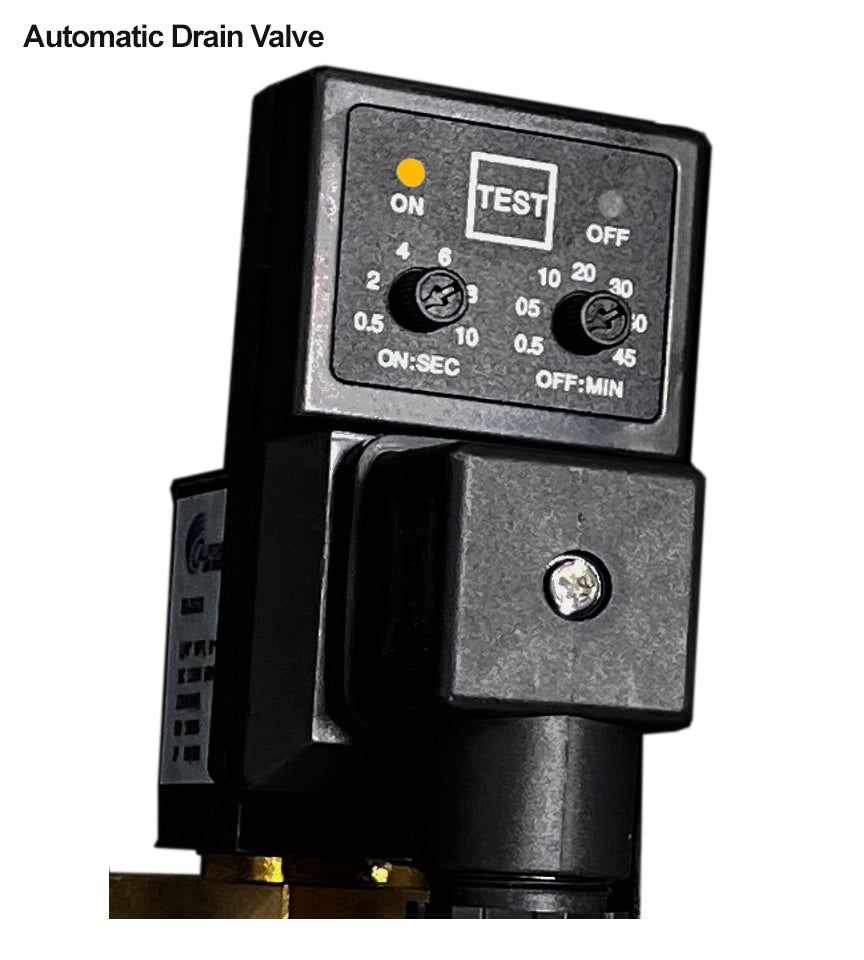

• EZ-1-2321 factory-installed automatic drain valve
• Aftercooler and molecular sieve desiccant dryer
• 0.01 micron prefilter
• 5.0 micron air filter and regulator
• Easy Start Valve for reduced starting amperage
• 125 PSI maximum pressure
• 70/30 duty cycle
• Oil-free pump helps provide clean compressed air
• Two pressure control gauges
• Low 14-amp electrical draw

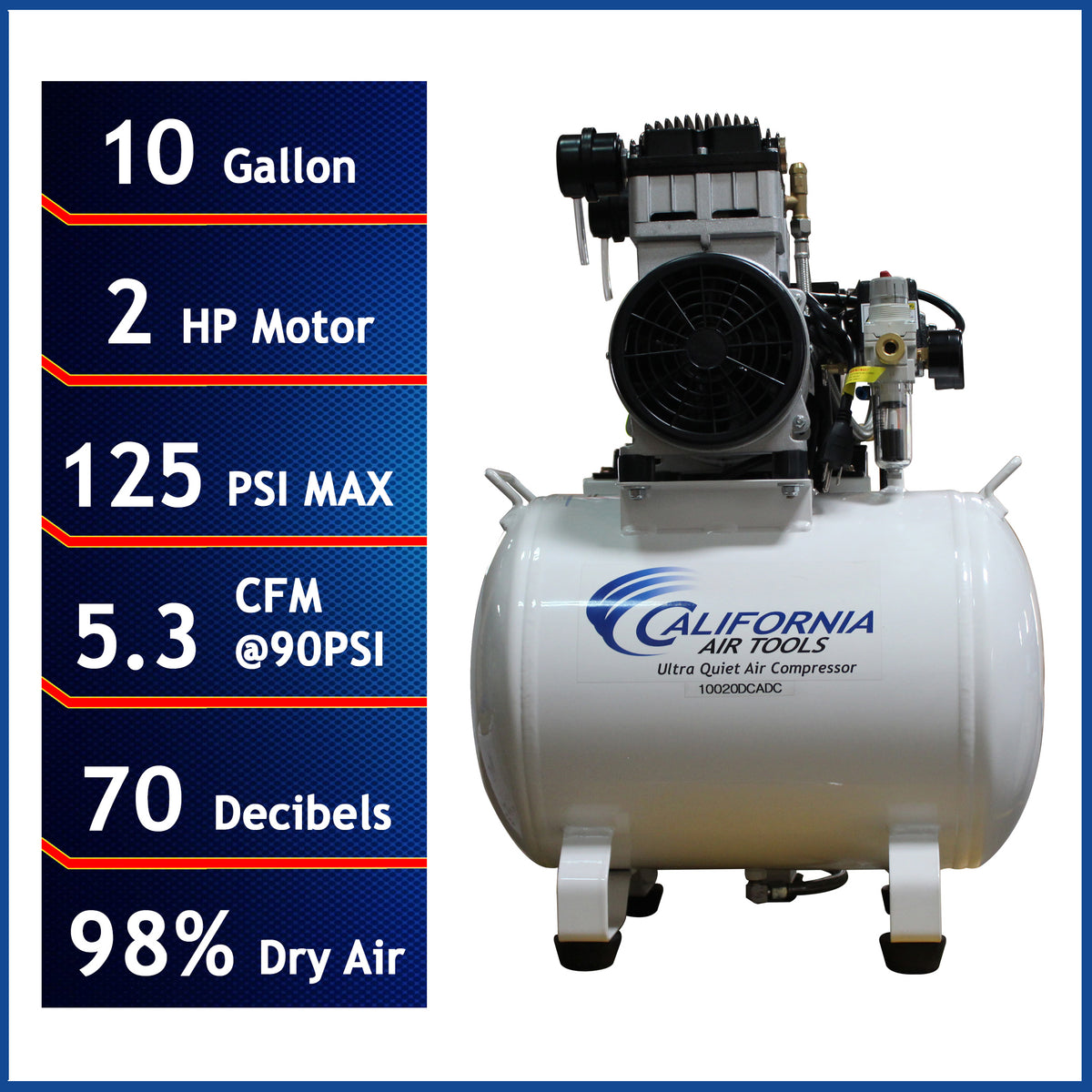

Specifications

• Model: 10020HDCADC
• Motor: 2.0 HP
• Pump: Oil-Free Dual Piston
• Tank Size: 10 Gallons
• Tank Orientation: Horizontal
• Tank Material: Steel
• Maximum Pressure: 125 PSI
• Airflow: 6.40 CFM @ 40 PSI
• Airflow: 5.30 CFM @ 90 PSI
• Noise Level: 70 dB
• Voltage: 110V
• Frequency: 60 Hz
• Phase: Single Phase
• Current: 14 Amps
• Air Drying: 98%
• Air Quality: ISO 8573 Class 2.3.1
• Duty Cycle: 70/30
• Fill Time: 120 seconds
• Recovery Time: 25 seconds from 95 to 125 PSI
• Dimensions: 20" L × 28" W/D × 26" H
• Weight: 100 lbs
• Tank Certification: Non-ASME
• Warranty: 1 Year Limited Manufacturer Warranty
• Assembly: Assembled in USA with global components

What's Included

• California Air Tools 10020HDCADC Air Compressor
• Factory-installed EZ-1-2321 Automatic Drain Valve
• 98% Air Dryer Cartridge
• Aftercooler
• Two Air Filters
• Air Filter & Regulator
• Industrial Push-to-Connect Quick Connector

Applications

• Dental offices and dental laboratories
• Dental milling applications
• Surgical applications
• Manufacturing clean rooms
• Restaurant applications
• General engineering
• Pneumatic tools and equipment requiring clean, dry air

Maintenance

The 98% air dryer cartridge uses a high-temperature molecular sieve desiccant and should be replaced every 4,000 operating hours, approximately every 2 years under average use. The two 2 HP air filters should be replaced every 2 years, or annually when operating in a dirty or dusty environment.
