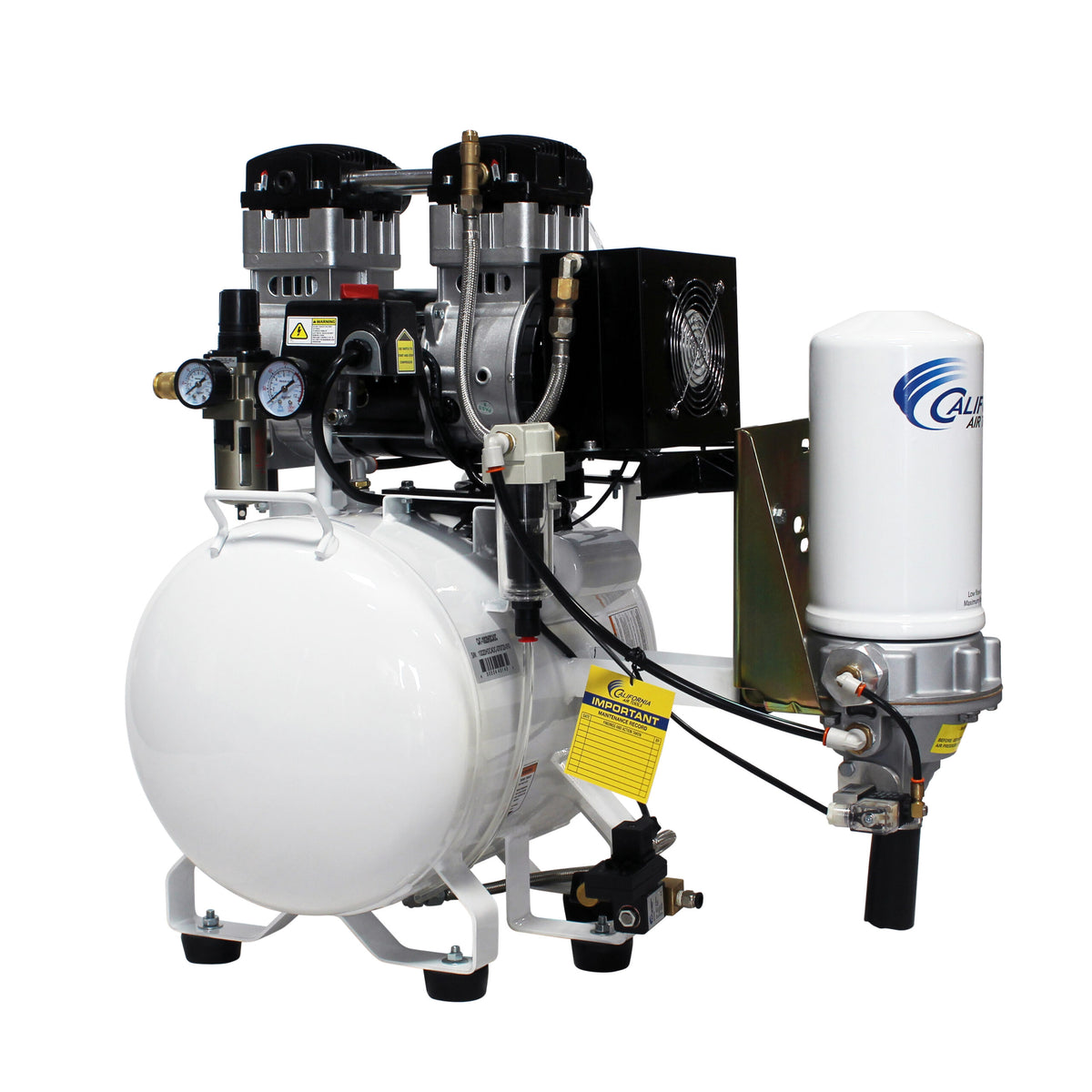

California Air Tools 10020HDCADC-22060 2.0 HP Ultra Quiet Oil-Free 10 Gallon Horizontal Air Compressor with 98% Air Dryer & Automatic Drain, 220V

Product Description

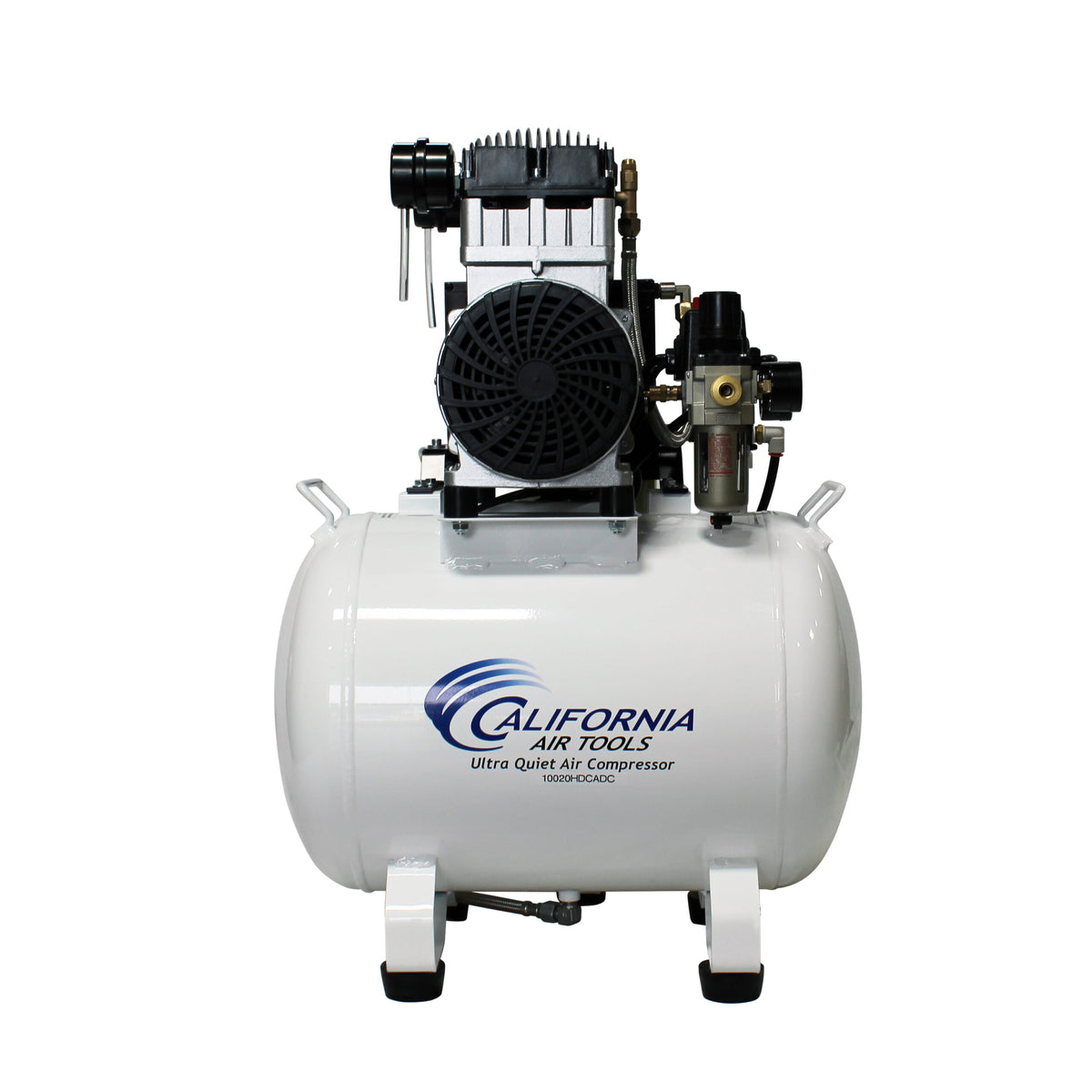

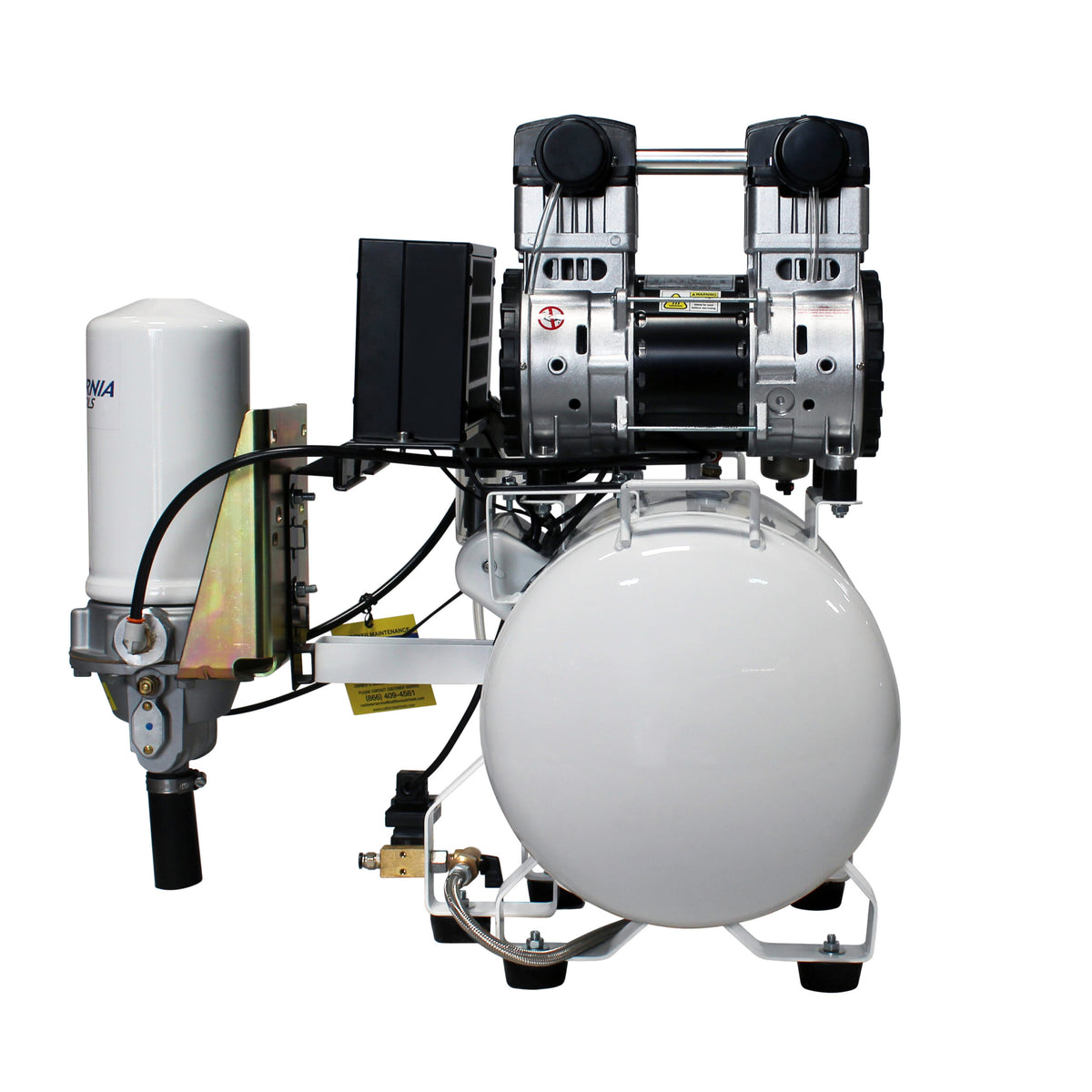

The California Air Tools 10020HDCADC-22060 is a 2.0 HP ultra-quiet, oil-free air compressor designed for applications requiring clean, dry compressed air. It features a 10-gallon horizontal steel air tank, integrated 98% air drying system, automatic drain valve, and a low 70 dB operating noise level.

The oil-free dual-piston pump operates at 1680 RPM and is designed for a pump life of 3,000+ hours before wear. The integrated aftercooler and molecular sieve air dryer remove up to 98% of water vapor from compressed air, producing ISO 8573 Class 2.3.1 air quality.

This 220V version is ideal for dental, dental milling, surgical, manufacturing clean room, restaurant, general engineering, and other applications requiring clean and dry compressed air.

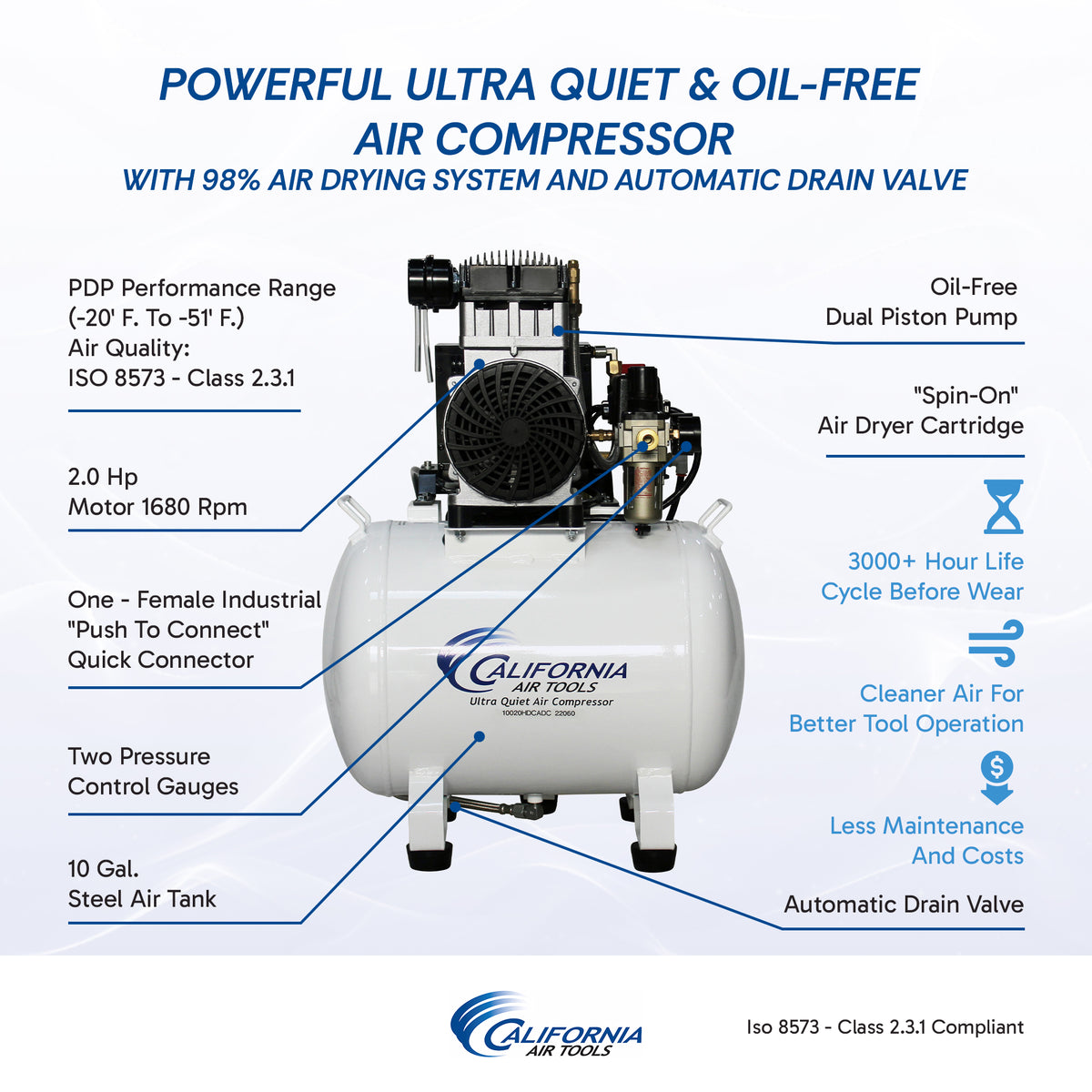

Key Features

• 2.0 HP oil-free dual-piston pump
• Ultra-quiet 70 dB operation
• 10-gallon horizontal steel air tank
• 98% air drying system
• ISO 8573 Class 2.3.1 air quality

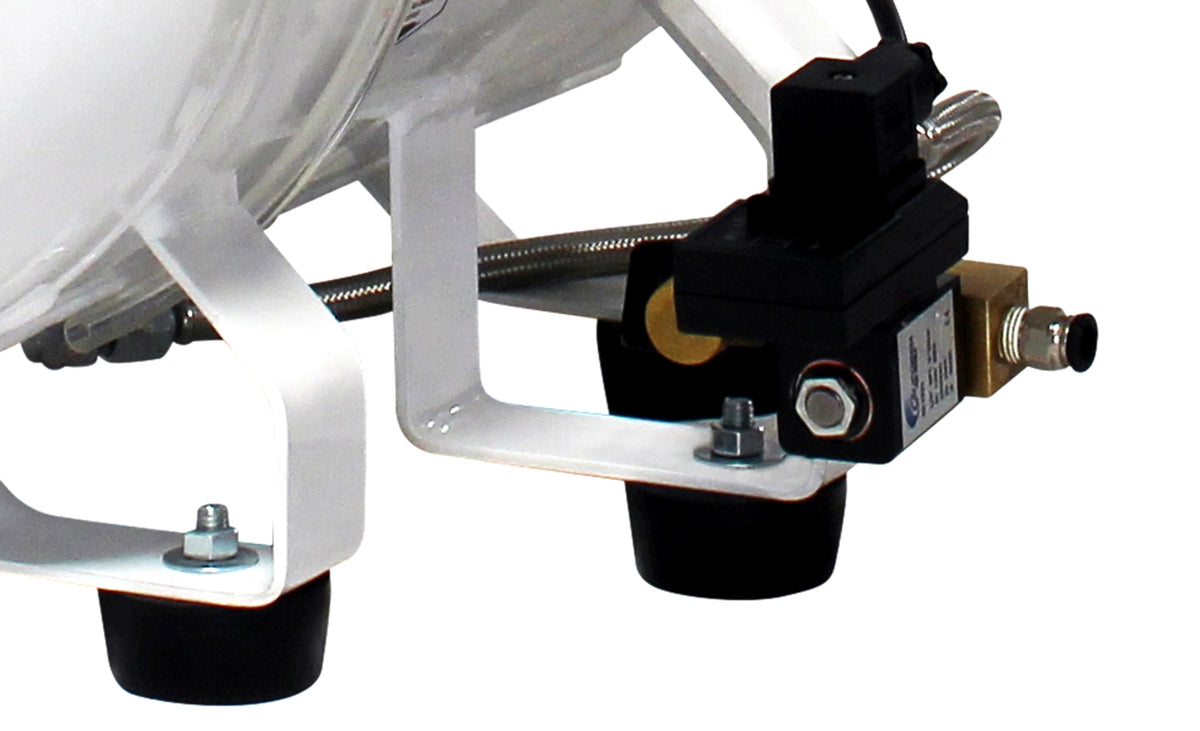

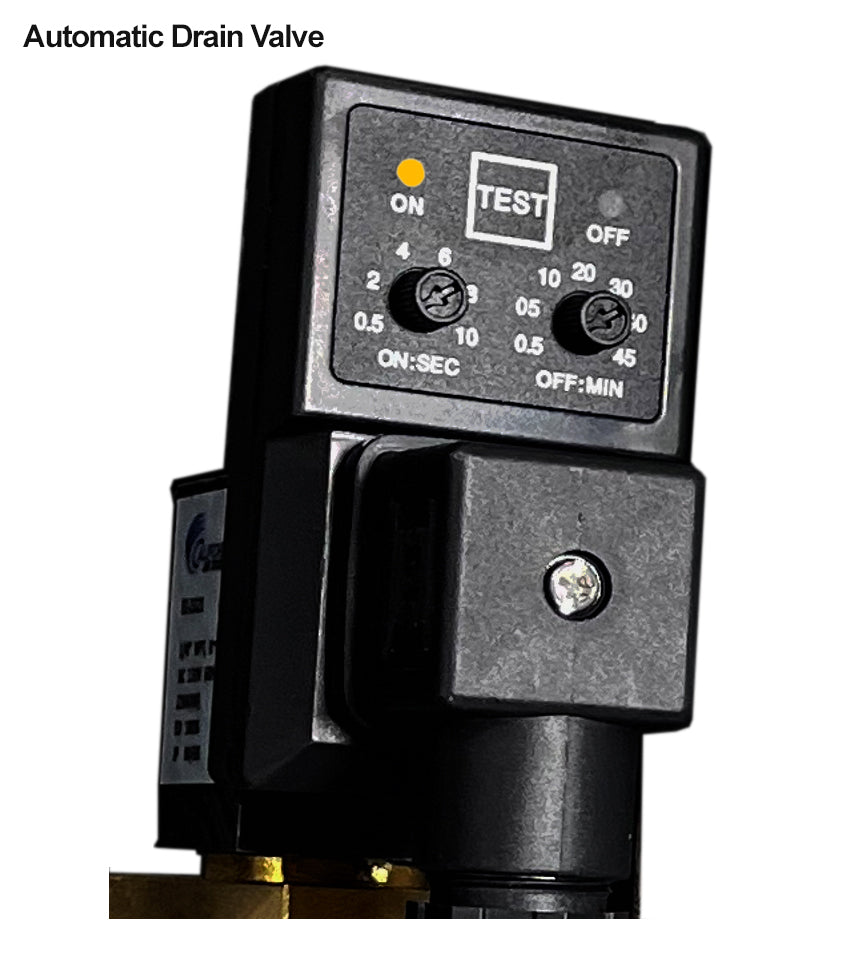

• EZ-1-2321 factory-installed automatic drain valve

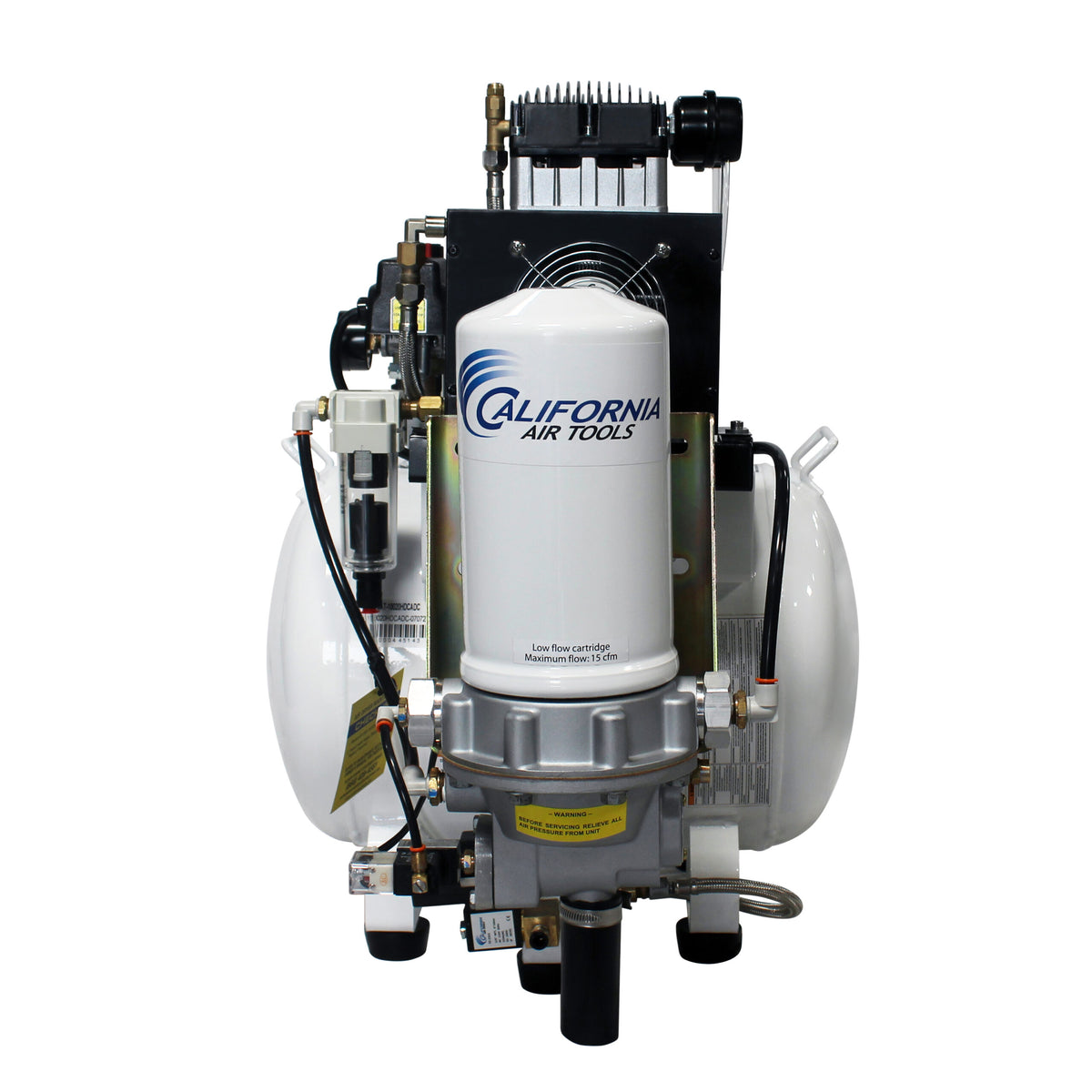

• Aftercooler with high-temperature molecular sieve desiccant dryer
• 0.01 micron prefilter
• 5.0 micron air filter and regulator
• Easy Start Valve for reduced starting amperage
• 125 PSI maximum pressure
• 70/30 duty cycle
• Two pressure control gauges
• Low 7.5-amp draw
• NEMA 6-15P plug

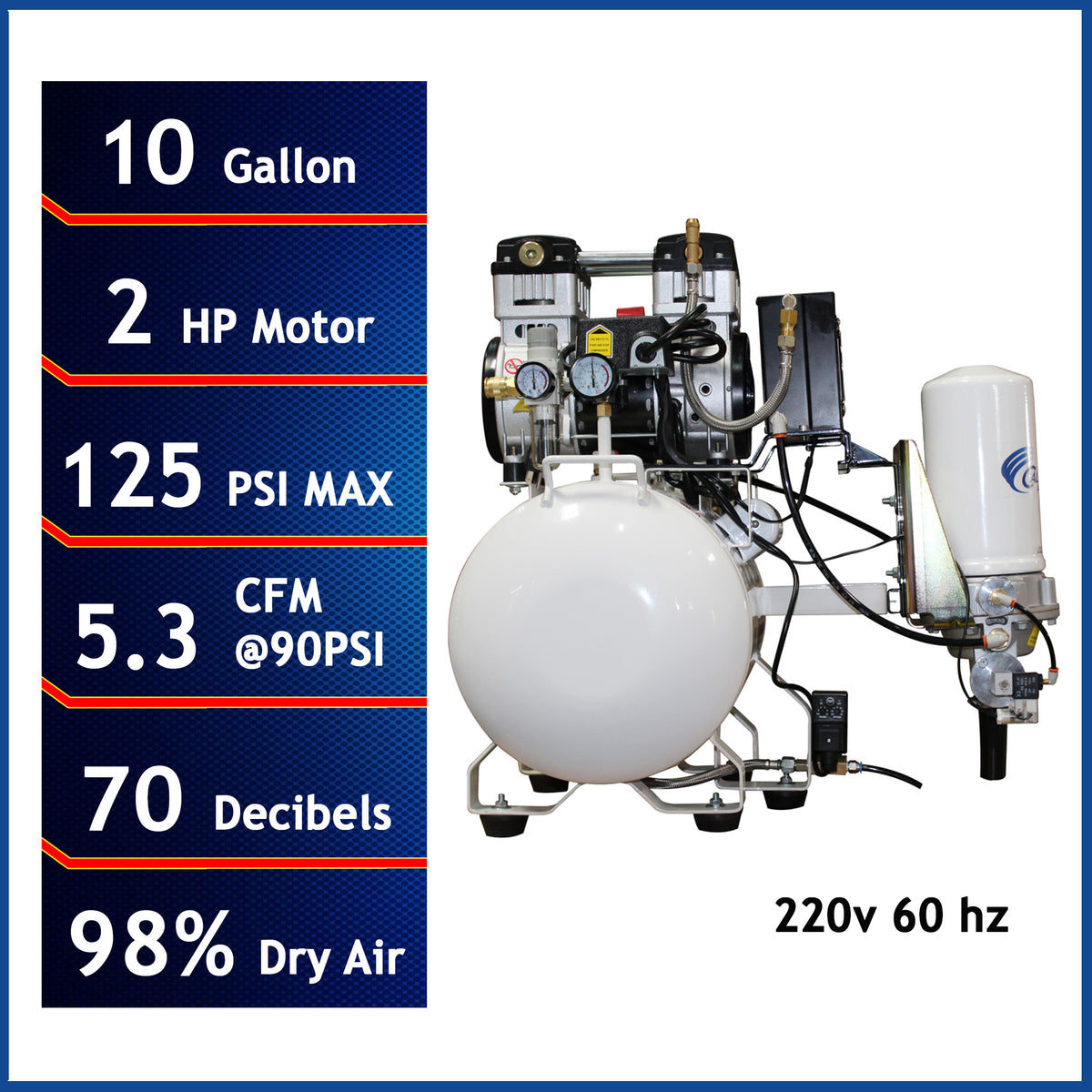

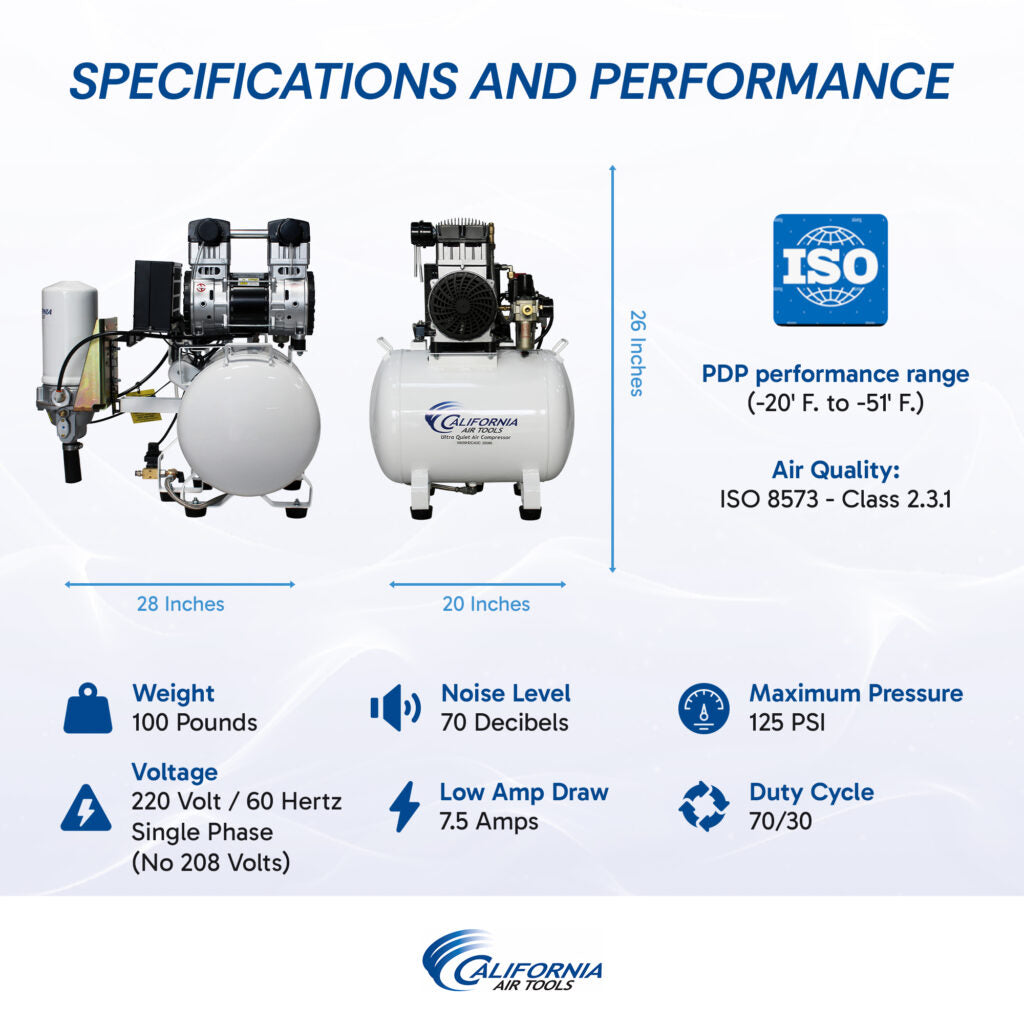

Specifications

• Model: 10020HDCADC-22060
• Motor: 2.0 HP
• Pump: Oil-Free Dual Piston
• Pump Speed: 1680 RPM
• Tank Size: 10 Gallons
• Tank Orientation: Horizontal
• Tank Material: Steel
• Maximum Pressure: 125 PSI
• Airflow: 6.40 CFM @ 40 PSI
• Airflow: 5.30 CFM @ 90 PSI
• Noise Level: 70 dB
• Voltage: 220V
• Frequency: 60 Hz
• Phase: Single Phase
• Current Draw: 7.5 Amps
• Air Drying: 98%
• Air Quality: ISO 8573 Class 2.3.1
• Duty Cycle: 70/30
• Fill Time: 120 seconds
• Recovery Time: 25 seconds from 95 to 125 PSI
• Dimensions: 20" L × 28" W/D × 26" H
• Weight: 100 lbs
• Tank Certification: Non-ASME
• Plug Type: NEMA 6-15P
• Warranty: 1 Year Limited Manufacturer Warranty
• Assembly: Assembled in USA with global components

What's Included

• California Air Tools 10020HDCADC-22060 Air Compressor
• EZ-1-2321 Automatic Drain Valve
• 98% Air Dryer Cartridge
• Aftercooler
• Two Air Filters
• Air Filter & Regulator
• Industrial Push-to-Connect Quick Connector

Applications

• Dental offices and dental laboratories
• Dental milling
• Surgical applications
• Manufacturing clean rooms
• Restaurant applications
• General engineering
• Pneumatic equipment requiring clean, dry compressed air

Maintenance

Replace the 98% air dryer cartridge every 4,000 operating hours, approximately every 2 years under average use. Replace the two 2 HP air filters every 2 years, or annually when the compressor is exposed to a dirty or dusty environment.
