California Air Tools 10020HDCADC-22060 Ultra Quiet 2.0 HP Oil-Free 10-Gallon Air Compressor with 98% Air Drying System and Automatic Drain – 220V 60Hz

Product Description

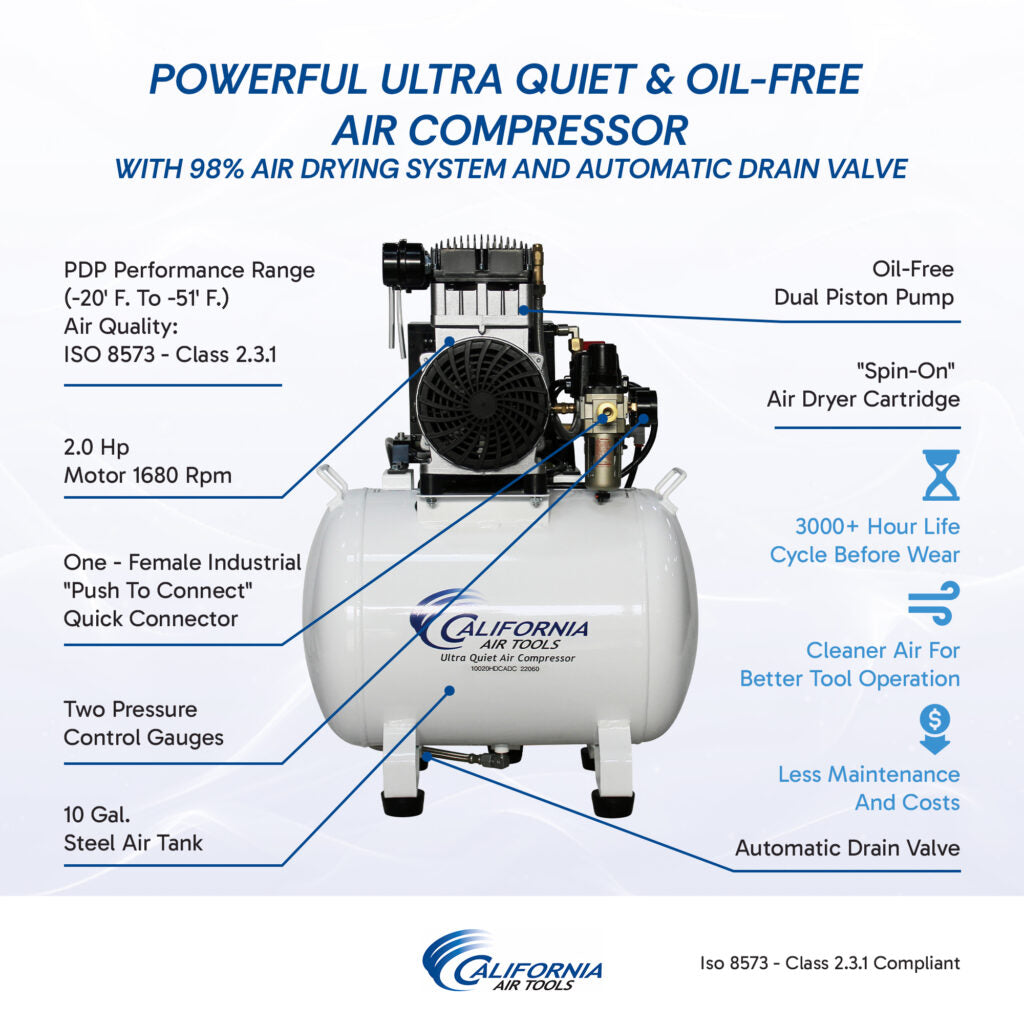

The California Air Tools 10020HDCADC-22060 is a 2.0 HP ultra-quiet, oil-free air compressor equipped with a 10-gallon steel horizontal air tank, 98% air drying system, aftercooler, and factory-installed automatic drain valve.

Operating at 70 dB, this compressor is designed for applications requiring clean, dry compressed air while maintaining relatively quiet operation. The oil-free dual-piston pump operates at 1680 RPM and is designed for a service life of more than 3,000 hours before wear.

The integrated 98% air drying system removes up to 98% of water vapor from compressed air. CAT specifies ISO 8573 Class 2.3.1 air quality and a pressure dew point performance range of -20°F to -51°F.

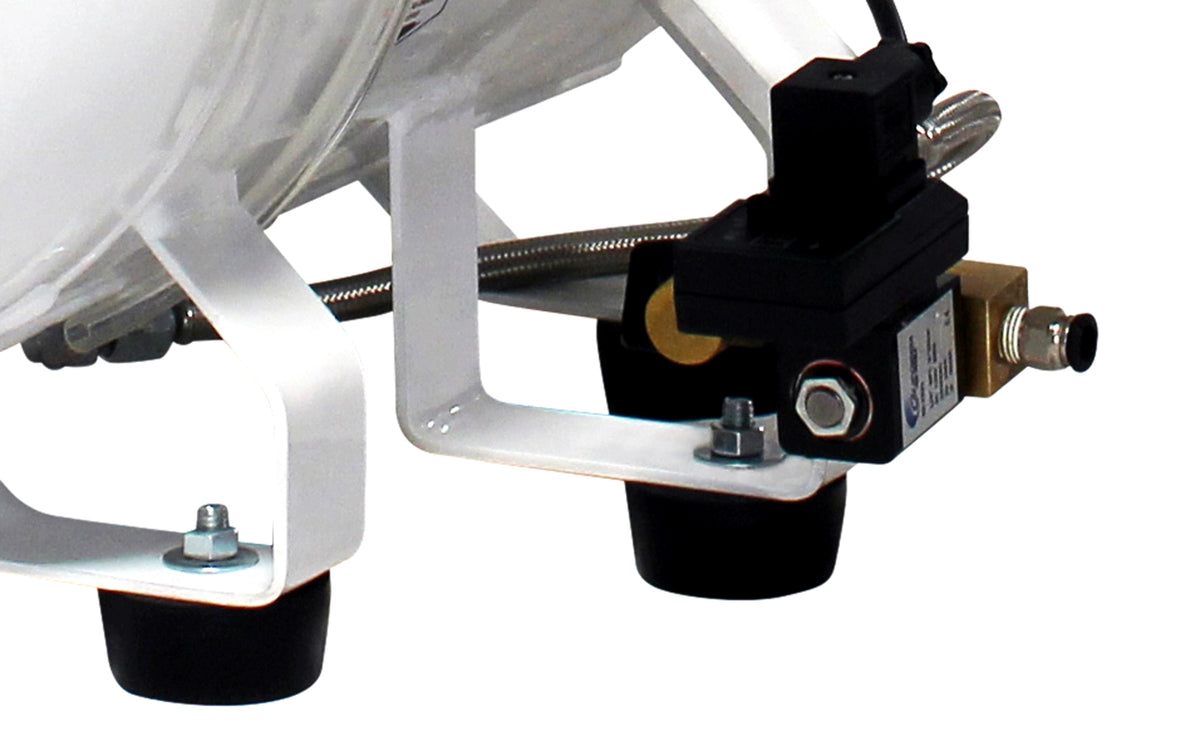

The drying system uses an aftercooler and a replaceable spin-on cartridge containing high-temperature molecular sieve desiccant. The factory-installed EZ-1-2321 automatic drain valve helps remove accumulated moisture from the air tank automatically.

Key Features

• 2.0 HP rated/running motor
• Ultra-quiet 70 dB operation
• Oil-free dual-piston pump
• 10-gallon steel horizontal air tank
• Integrated 98% Air Drying System
• ISO 8573 Class 2.3.1 compliant
• Pressure dew point range of -20°F to -51°F
• Aftercooler/condenser
• High-temperature molecular sieve desiccant
• Replaceable spin-on air dryer cartridge
• Factory-installed EZ-1-2321 Automatic Drain Valve
• Easy Start Valve
• 0.01 micron prefilter
• 5.0 micron Class 2 air filter and regulator
• Two pressure-control gauges
• Thermal overload protection
• Condor pressure switch
• 125 PSI maximum pressure
• Non-ASME tank
• NEMA 6-15P plug
• Assembled in USA with global components
• 1-year limited warranty

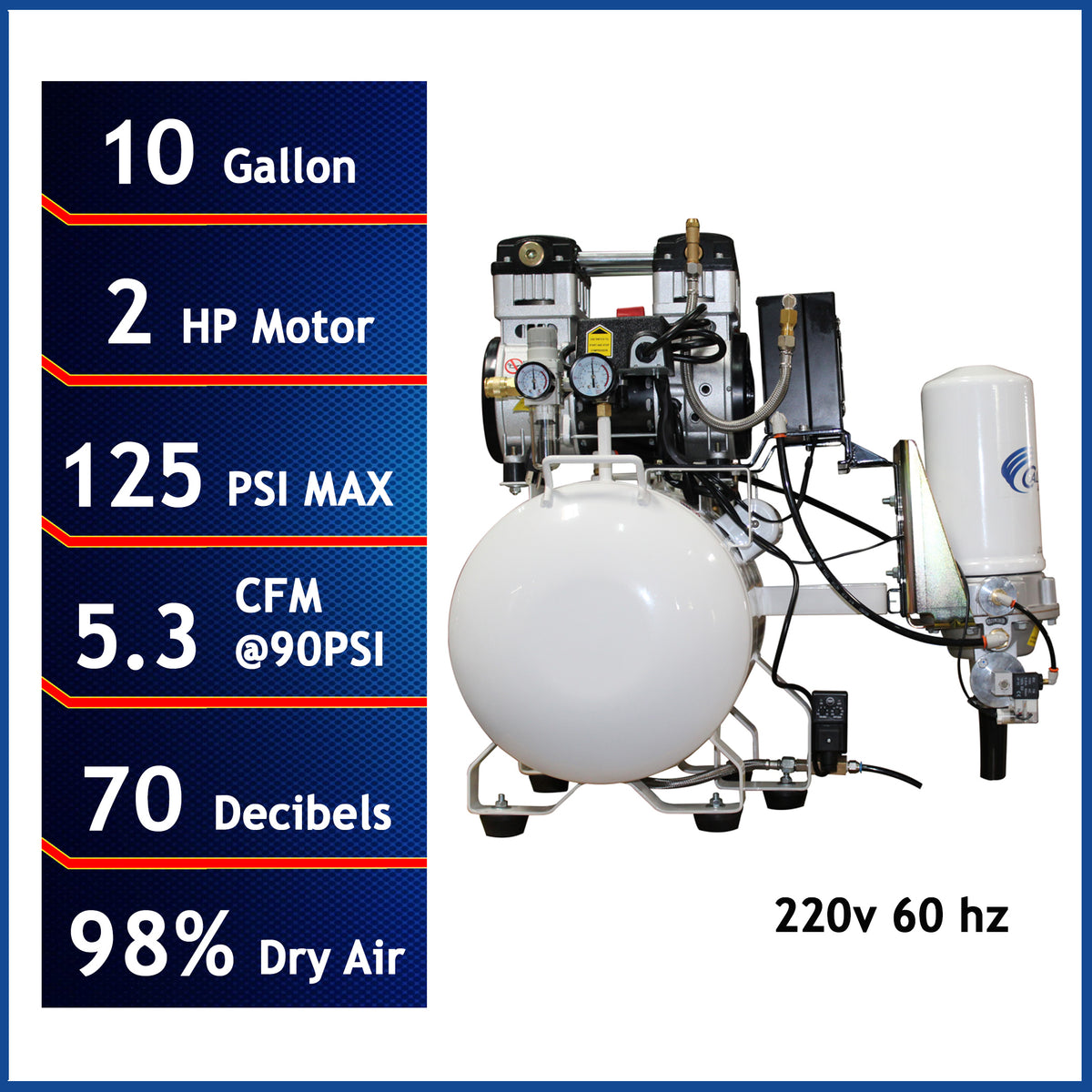

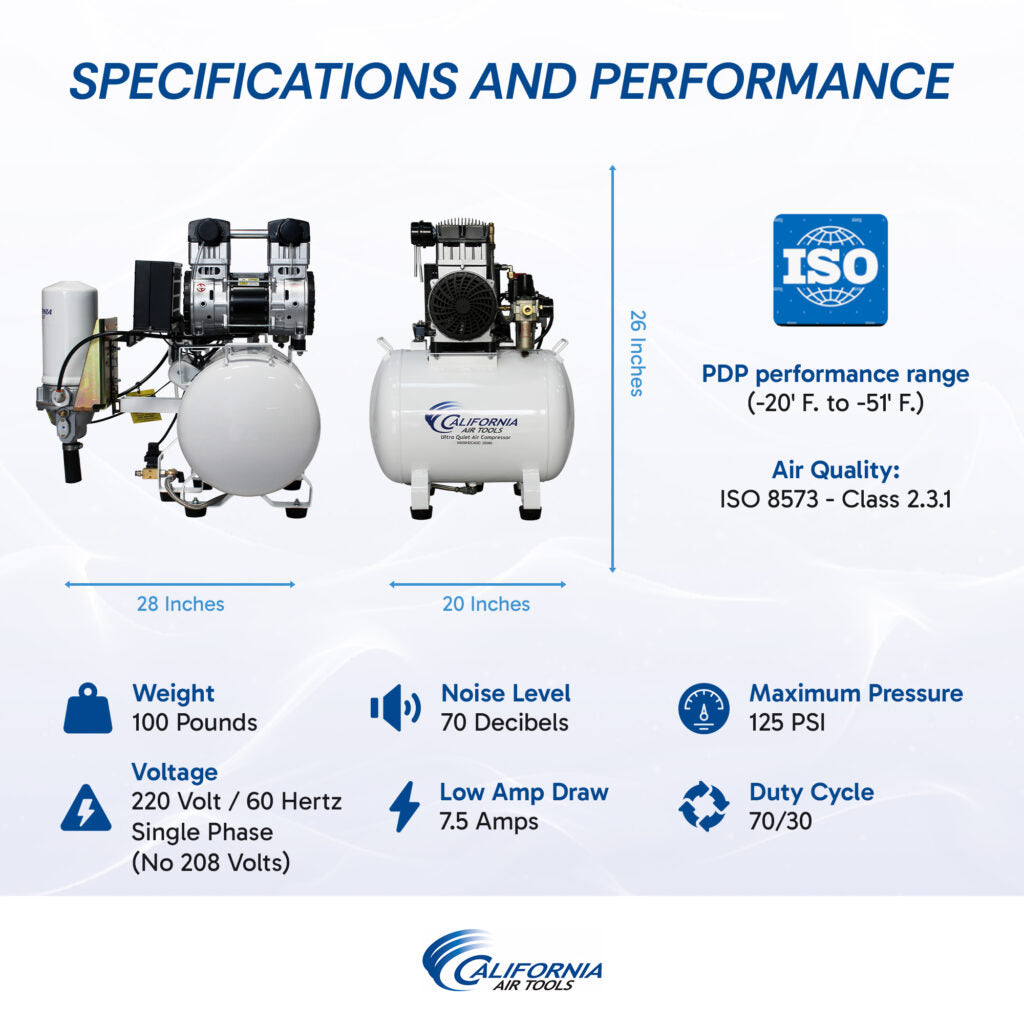

Specifications

What's Included

• 10020HDCADC-22060 air compressor
• 10-gallon steel horizontal air tank
• Integrated 98% Air Drying System
• Aftercooler/condenser
• High-temperature molecular sieve desiccant cartridge
• Factory-installed EZ-1-2321 Automatic Drain Valve
• 0.01 micron prefilter
• 5.0 micron Class 2 air filter/regulator
• Two air filters
• Easy Start Valve
• Female industrial push-to-connect connector
• NEMA 6-15P plug

Do not list as included: 8mm PTFE tubing, CAT-376 16-piece accessory kit, Hybrider Flex 25-foot hose, 317 moisture/oil separator, refrigerated 98% dryer, or EZ2321ADL extension kit. CAT lists these as add-on options. 

Applications

CAT's application information specifically identifies the 10020HDCADC-22060 for:

• Dental offices — 1–2 chairs, 98% dry air
• Automotive/specialty painting
• Applications requiring clean and dry compressed air
• Applications requiring low dew-point air

CAT's application page specifically lists the 220V model for Dental Office 1–2 Chairs / 98% Dry Air and automotive/specialty painting.

Maintenance

• Replace the 98% Air Dryer cartridge approximately every 4,000 operating hours / 2 years on average.
• Replace the two 2 HP air filters every 2 years, or annually when operating in dirty/dusty conditions.
• CAT air-filter replacement part: 90260.

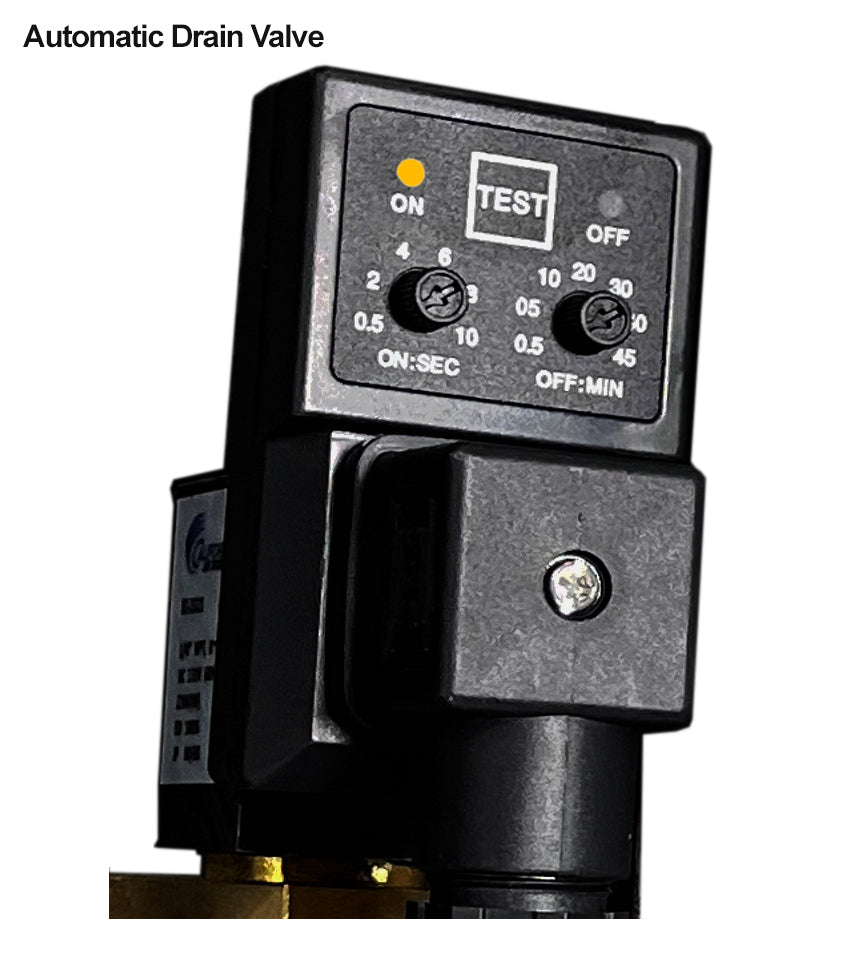

• The EZ-1-2321 automatic drain uses an adjustable timer to control drain frequency and duration.
