California Air Tools 10020HDCADC Ultra Quiet 2.0 HP Oil-Free 10-Gallon Air Compressor with 98% Air Drying System and Automatic Drain – 110V

Product Description

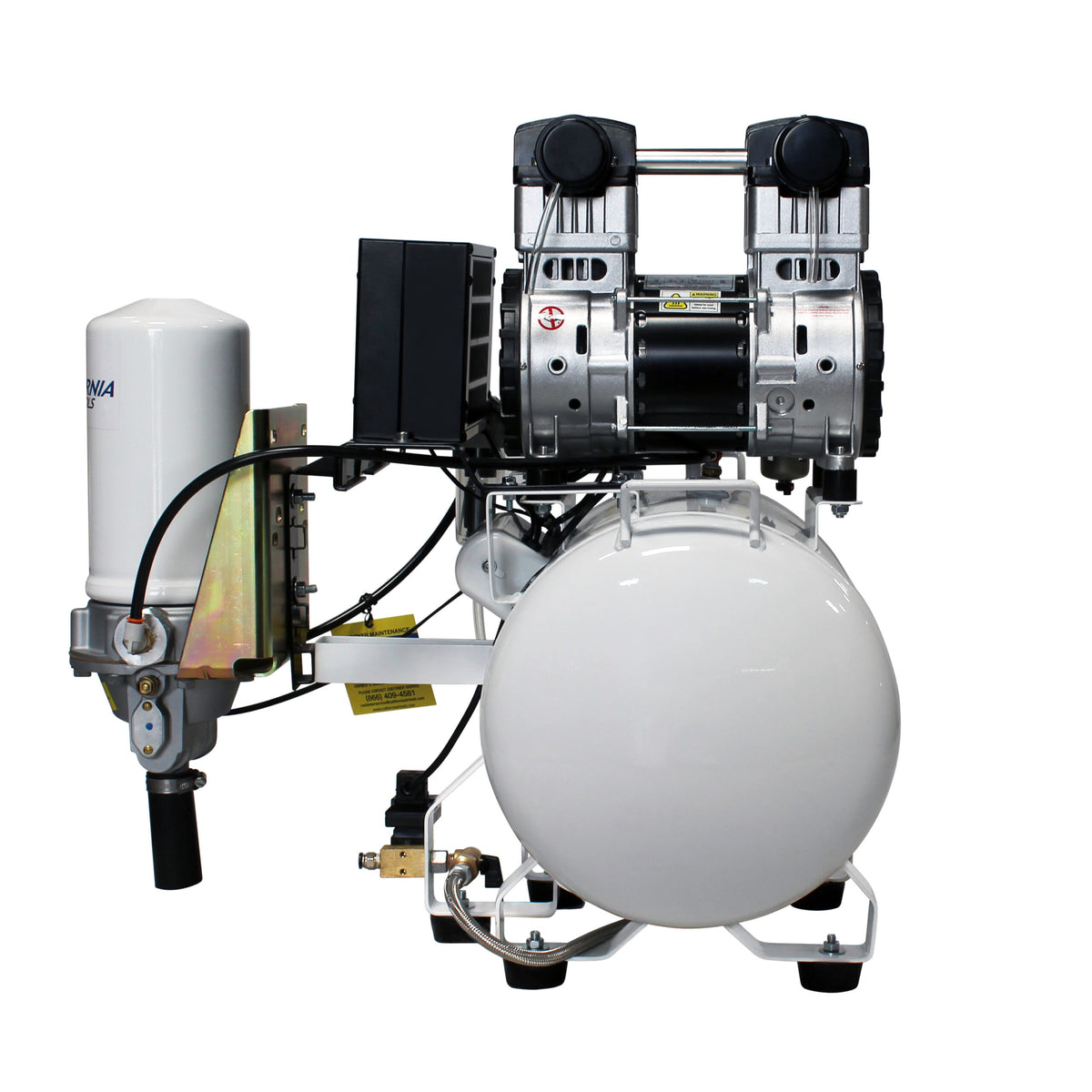

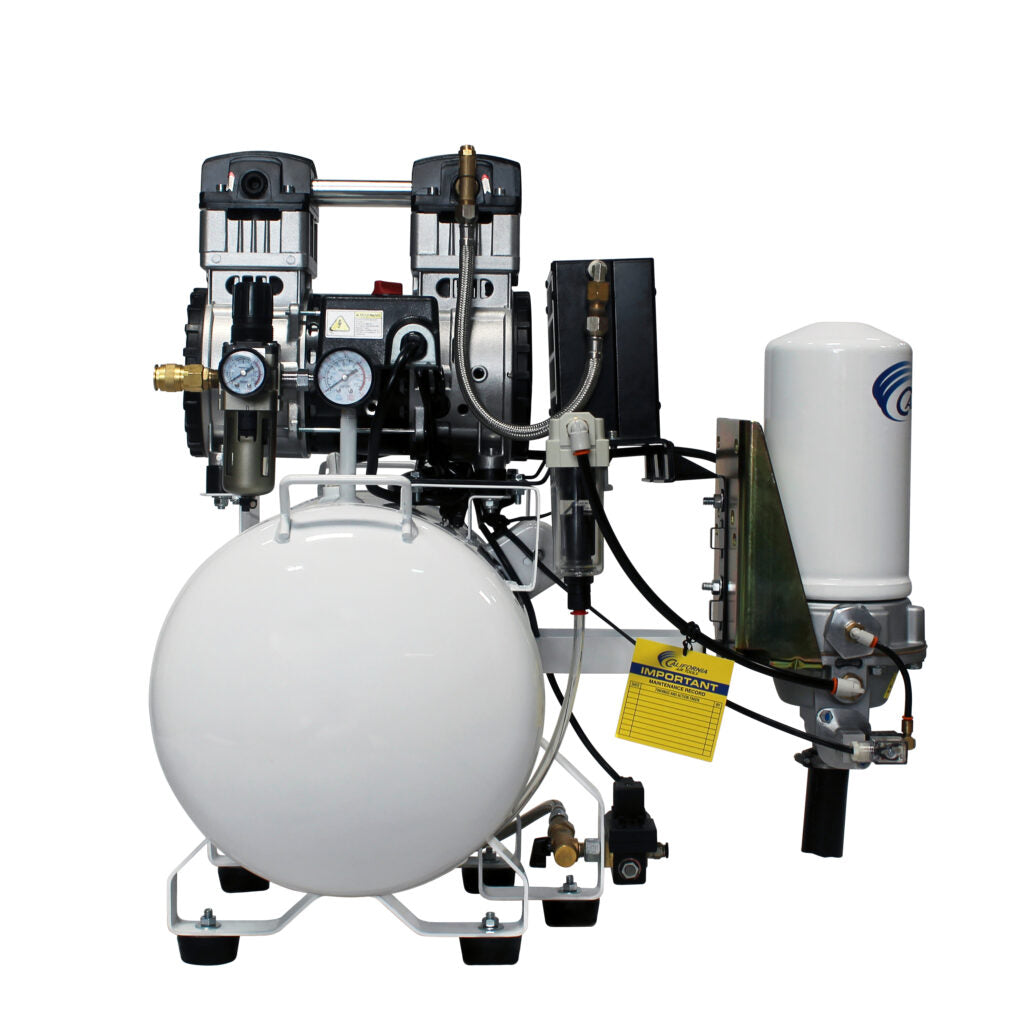

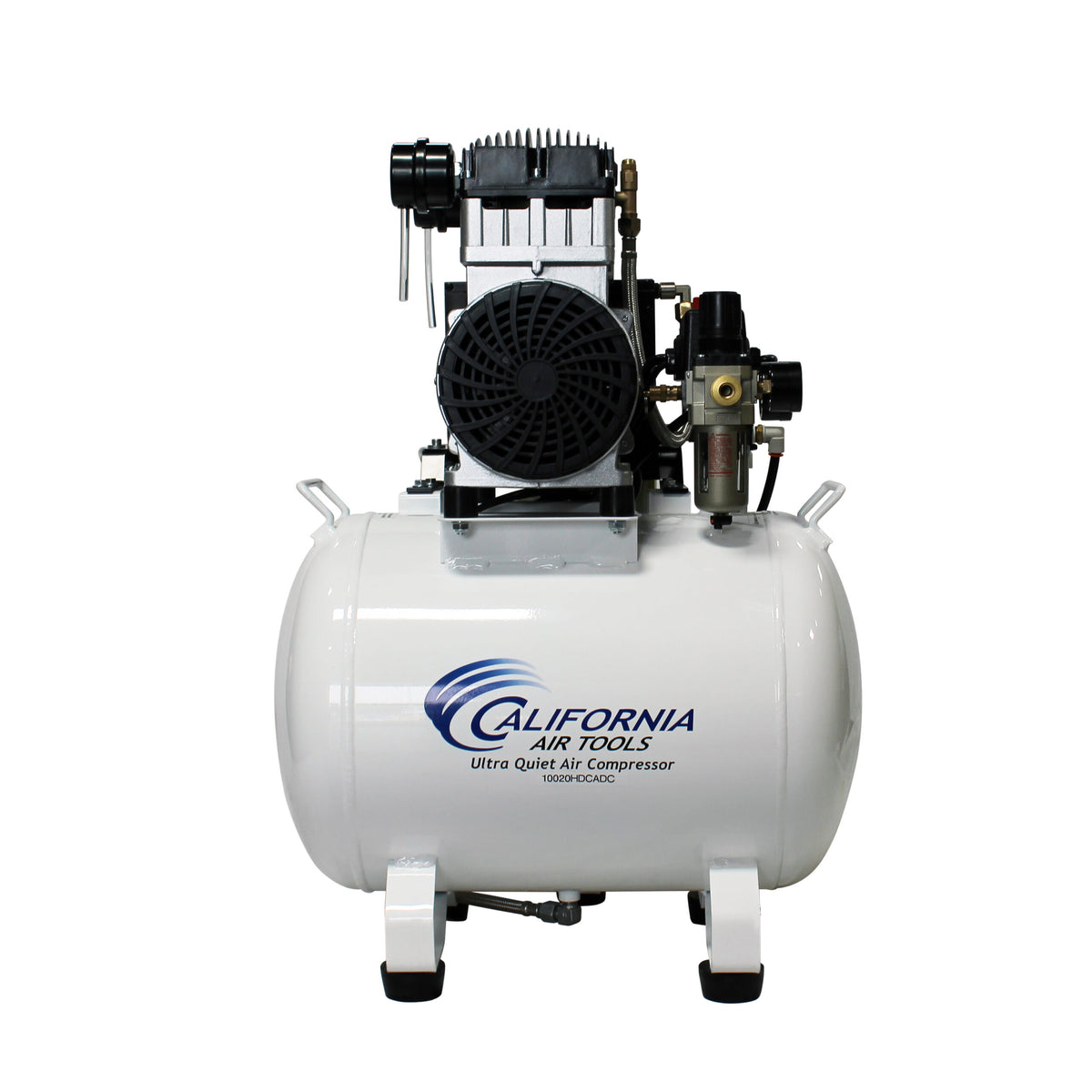

The California Air Tools 10020HDCADC is a 2.0 HP ultra-quiet, oil-free air compressor with a 10-gallon horizontal steel air tank, integrated 98% Air Drying System, aftercooler, and factory-installed automatic drain valve.

Operating at 70 dB, the compressor is designed for applications requiring clean, dry compressed air while keeping operating noise relatively low. Its oil-free dual-piston pump is designed for performance and durability, with CAT stating a life cycle of 3,000+ hours before wear.

The integrated 98% air-drying system is designed to remove up to 98% of water vapor from compressed air. CAT states that the system is ISO 8573 Class 2.3.1 compliant, with a pressure dew point performance range of -20°F to -51°F.

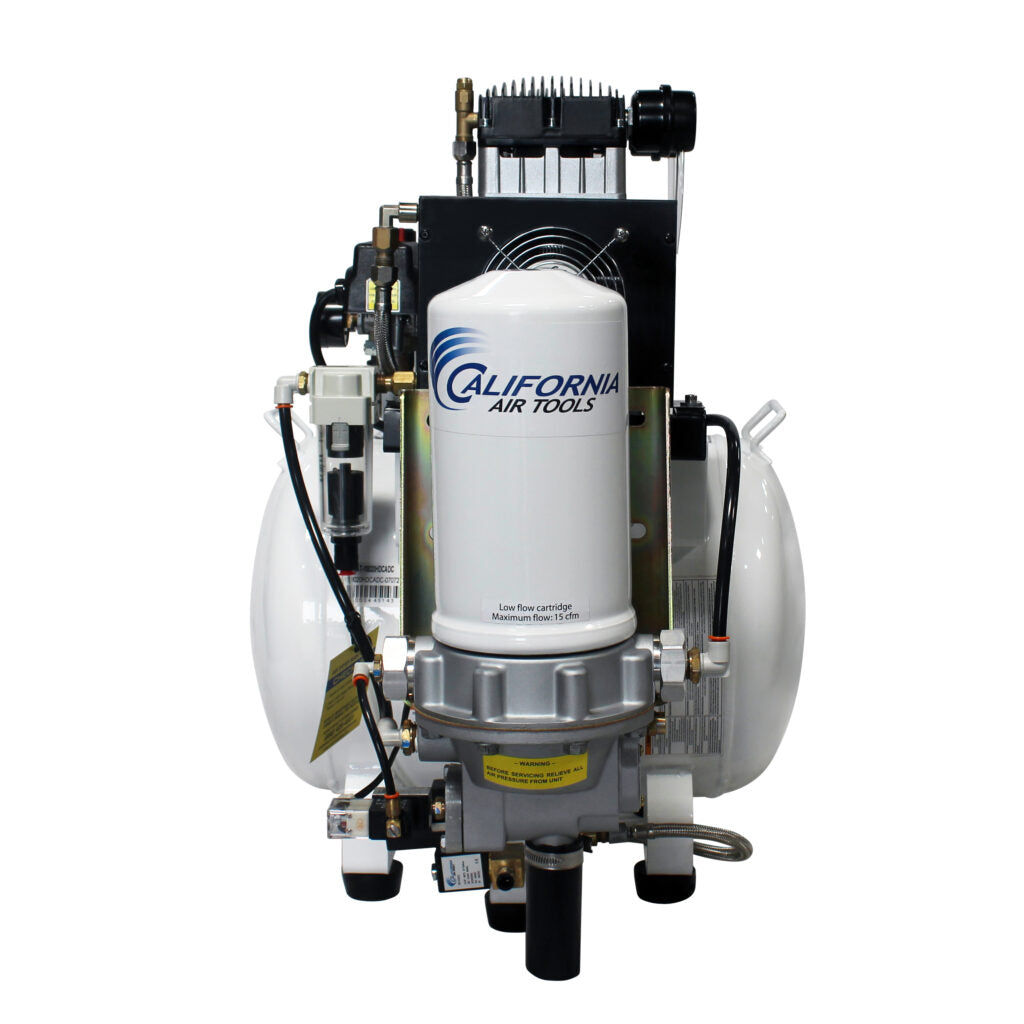

The system uses an aftercooler and a replaceable spin-on air dryer cartridge containing high-temperature molecular sieve desiccant. The cartridge is designed for approximately two years of service under average operating conditions.

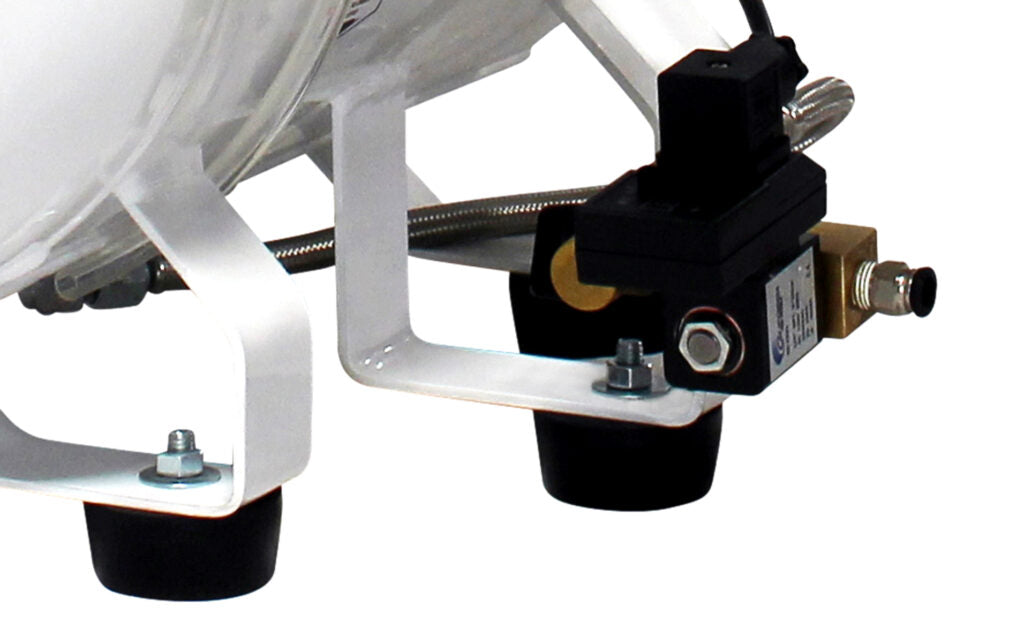

A factory-installed EZ-1-2321 Automatic Drain Valve automatically drains accumulated moisture from the tank according to the frequency and duration set on its timer.

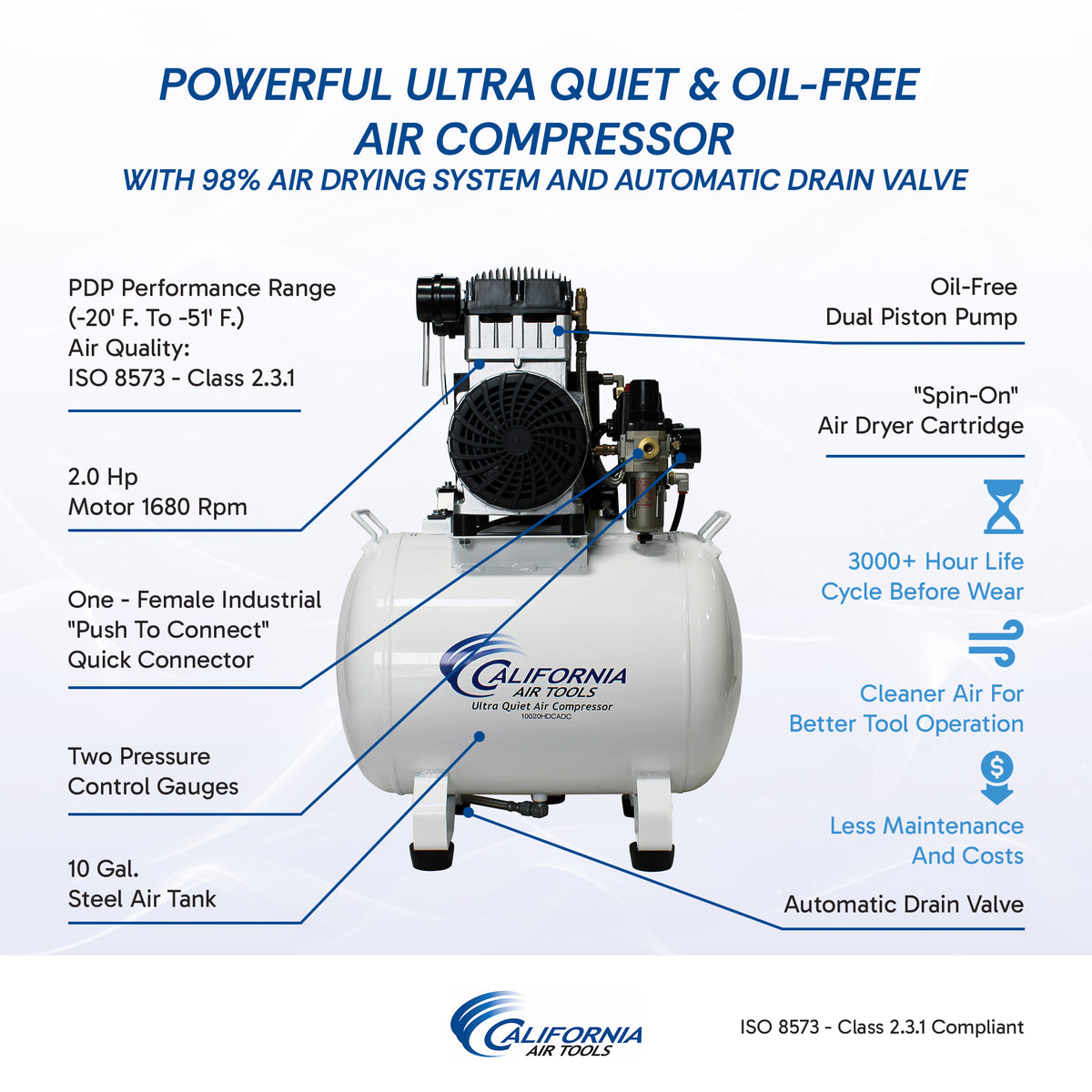

Key Features

• 2.0 HP rated/running motor
• Ultra-quiet 70 dB operation
• Oil-free dual-piston pump
• 10-gallon steel horizontal air tank
• Integrated 98% Air Drying System
• ISO 8573 Class 2.3.1 compliant
• Pressure dew point performance range of -20°F to -51°F
• Aftercooler/condenser
• High-temperature molecular sieve desiccant
• Replaceable spin-on air dryer cartridge
• Factory-installed EZ-1-2321 automatic drain valve
• Easy Start Valve
• Two pressure-control gauges
• 0.01 micron prefilter
• 5.0 micron Class 2 air filter and regulator
• Condor pressure switch
• Thermal overload protection
• 125 PSI maximum pressure
• 70/30 duty cycle
• Non-ASME steel air tank
• Assembled in USA with global components
• 1-year limited warranty

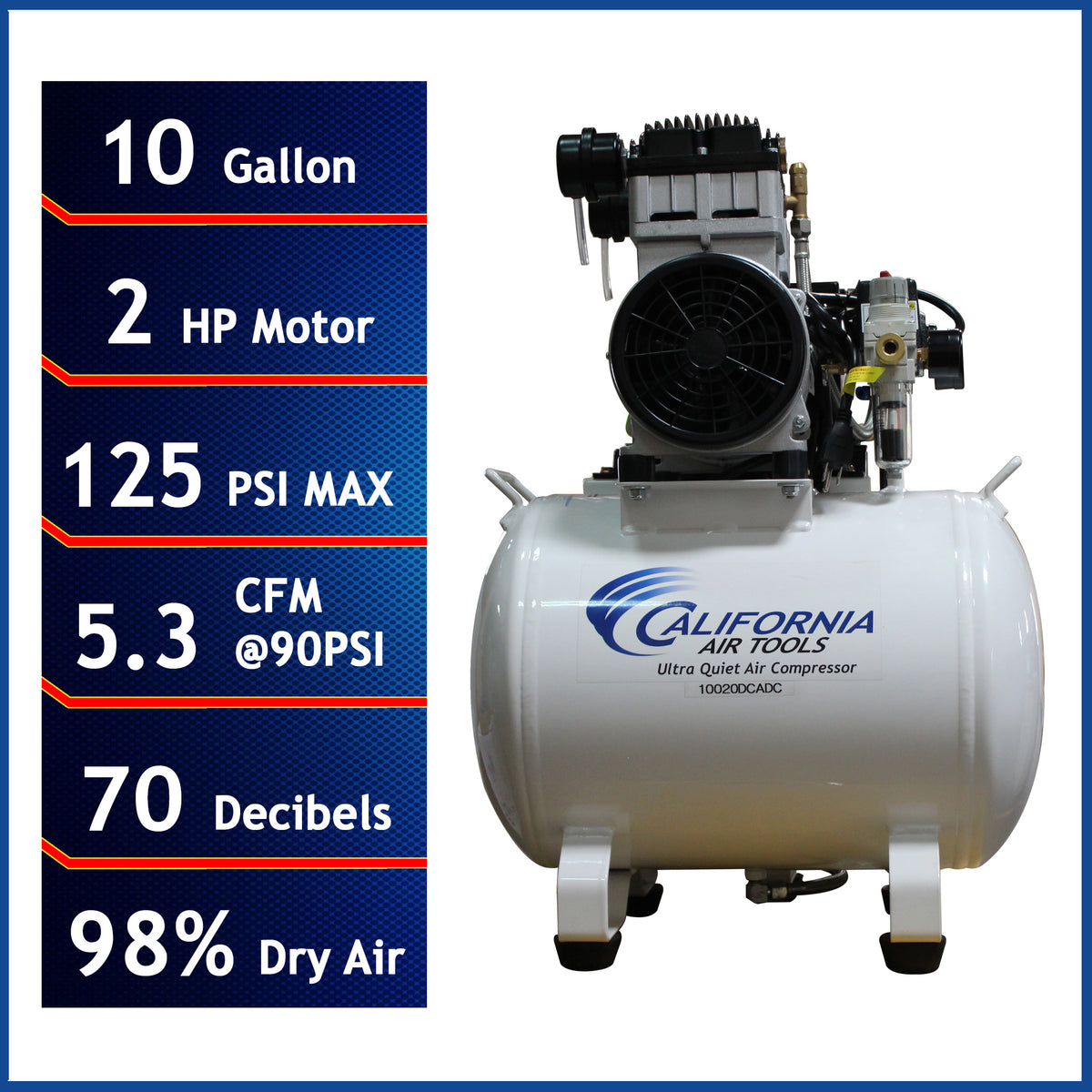

Specifications

What's Included

• California Air Tools 10020HDCADC air compressor
• 10-gallon steel horizontal air tank
• Integrated 98% Air Drying System
• Aftercooler/condenser
• High-temperature molecular sieve desiccant cartridge
• Factory-installed EZ-1-2321 Automatic Drain Valve
• 0.01 micron prefilter
• 5.0 micron Class 2 air filter/regulator
• Two air filters
• Easy Start Valve
• Industrial push-to-connect air connector

Do not list these as included: CAT identifies the following as add-on options:

• 8mm PTFE black hose tubing
• 16-piece air hose and air tool accessory kit
• California Air Tools Hybrider Flex 25-foot air hose
• 317 moisture/oil separator
• Refrigerated 98% air dryer
• EZ2321ADL automatic drain extension kit

Applications

CAT specifically describes this model for applications requiring 98% dry air, including:

• Dental applications
• Dental offices
• Dental milling
• Surgical applications
• Manufacturing clean rooms
• Restaurants
• General engineering applications

CAT's application guide specifically identifies the 10020HDCADC for Dental Office – 1–2 Chairs with 98% Dry Air.

The product page also states that it is designed for applications requiring power, 98% dry air, low dew-point airflow, and reduced service requirements.

Maintenance

98% Air Dryer Cartridge:
Replace the Ultra Dry spin-on air dryer cartridge every approximately 4,000 operating hours / 2 years on average.

The replacement uses CAT's Ultra Dry Cartridge Service Kit. CAT identifies the replacement cartridge/service kit as Part Number 619003.

Air Filters:
Replace the two 2 HP air filters every 2 years, or every year if the compressor operates in a dirty or dusty environment.

Air Filter Part Number: 90260

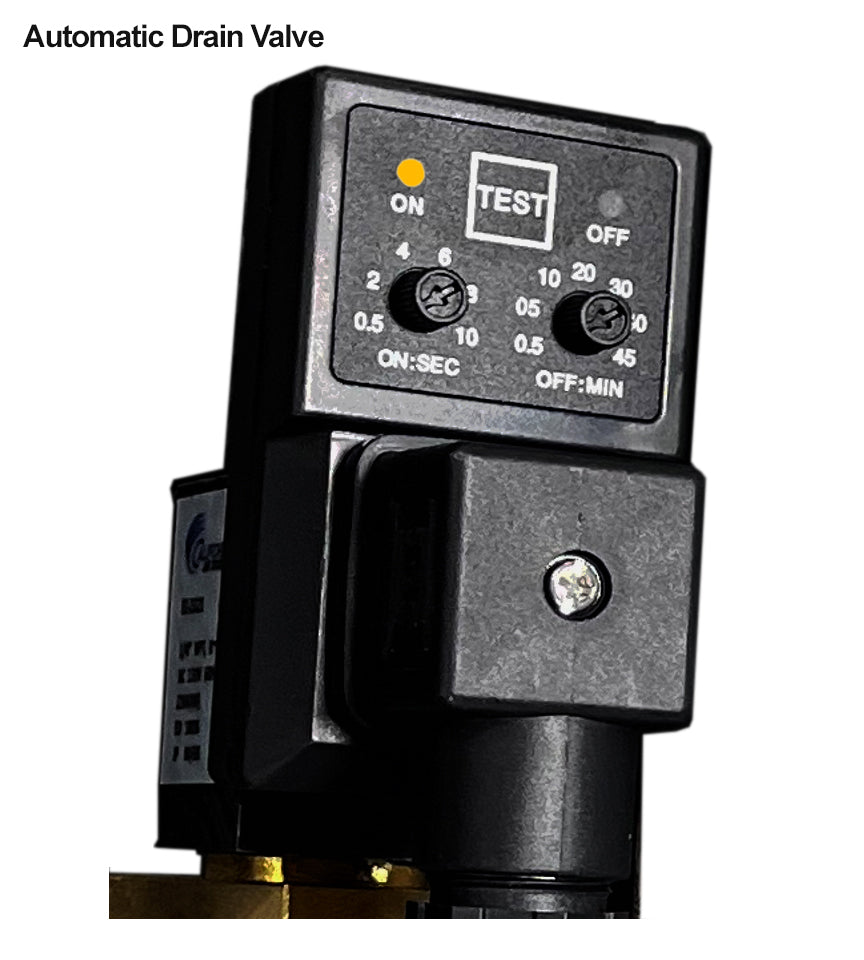

Automatic Drain:
The EZ-1-2321 automatic drain valve uses an adjustable timer to control the frequency and duration of the draining process.
