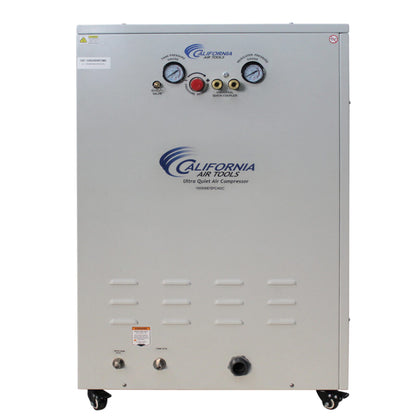

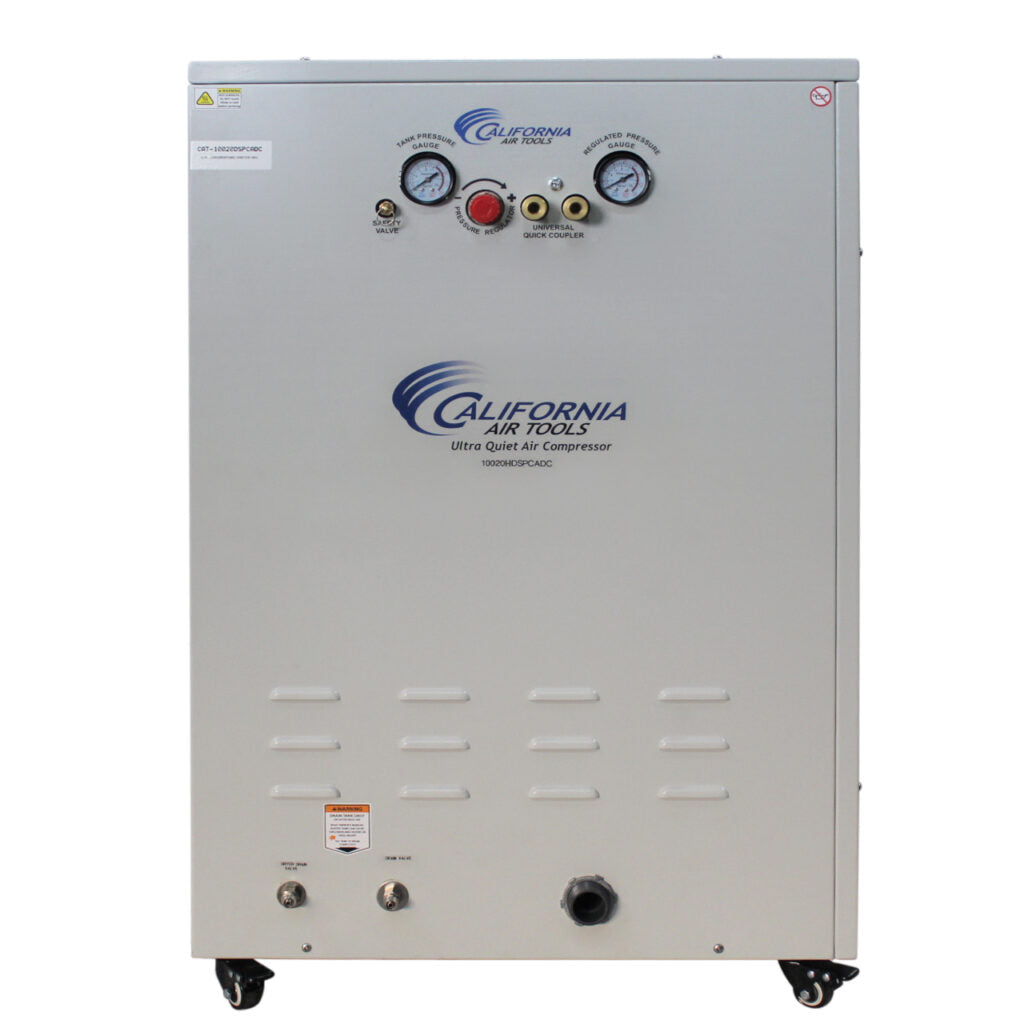

California Air Tools 10020HDSPCADC 2.0 HP Ultra Quiet Oil-Free 10 Gallon Horizontal Air Compressor with 98% Air Dryer & Automatic Drain, Soundproof Cabinet

Product Description

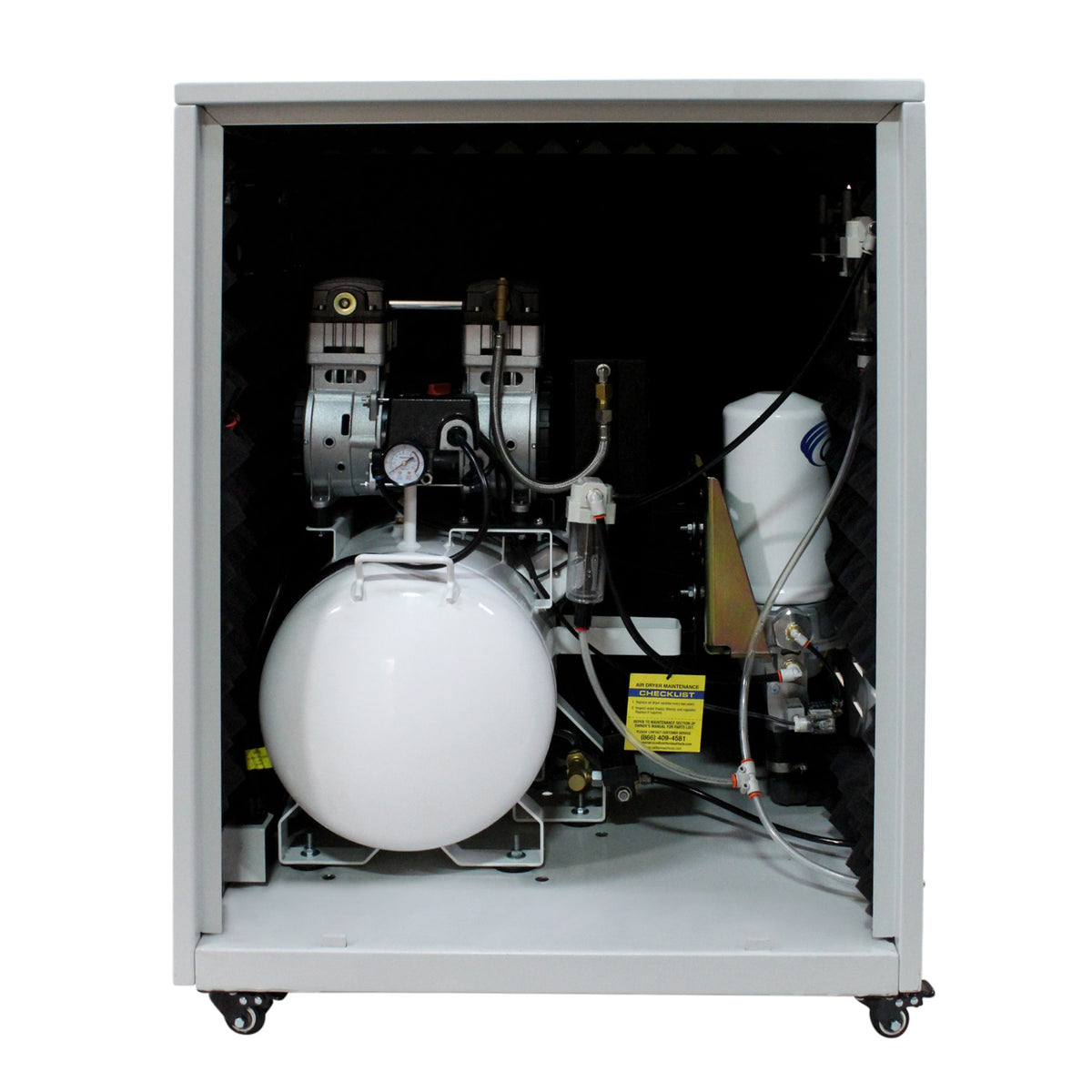

The California Air Tools 10020HDSPCADC is a 2.0 HP ultra-quiet, oil-free air compressor designed for applications requiring clean, dry compressed air with minimal operating noise. It features a 10-gallon horizontal steel air tank, integrated 98% air drying system, automatic drain valve, and an insulated soundproof cabinet that reduces compressor noise and vibration.

Operating at only 58 dB, this compressor is designed for environments where noise is a major concern. The oil-free dual-piston pump operates at 1680 RPM and is designed for a pump life of 3,000+ hours before wear. The integrated aftercooler and 98% air dryer help remove water vapor and provide ISO 8573 Class 2.3.1 air quality.

Key Features

• 2.0 HP oil-free dual-piston pump
• Ultra-quiet 58 dB operation
• 10-gallon horizontal steel air tank
• 98% air drying system
• ISO 8573 Class 2.3.1 compliant air quality

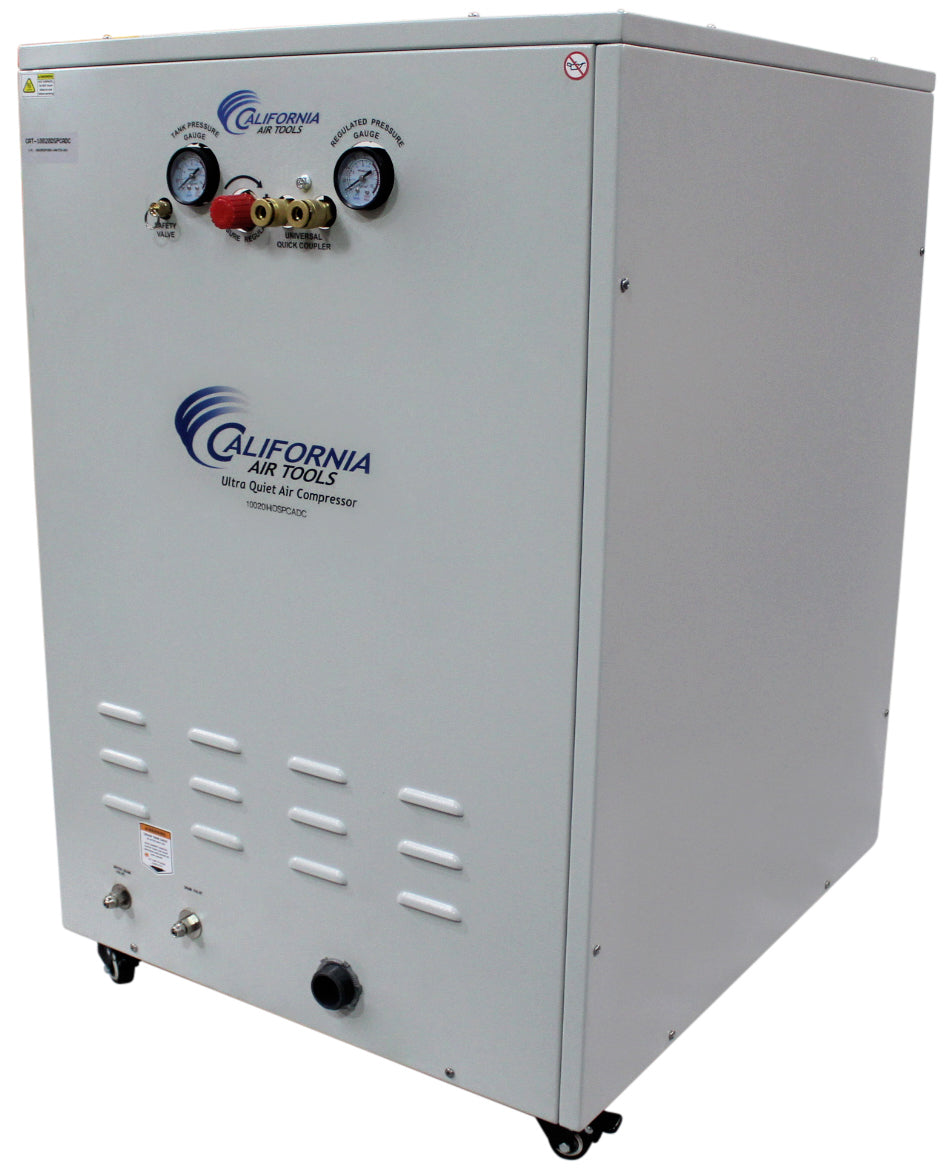

• Soundproof insulated steel cabinet
• Cabinet mounted on caster wheels for easier movement

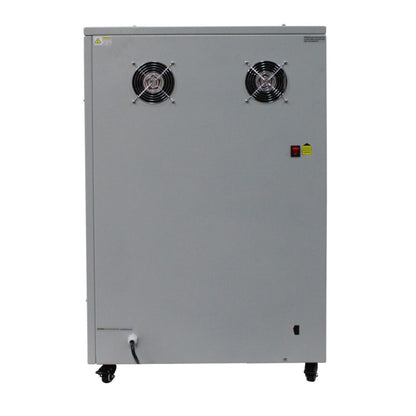

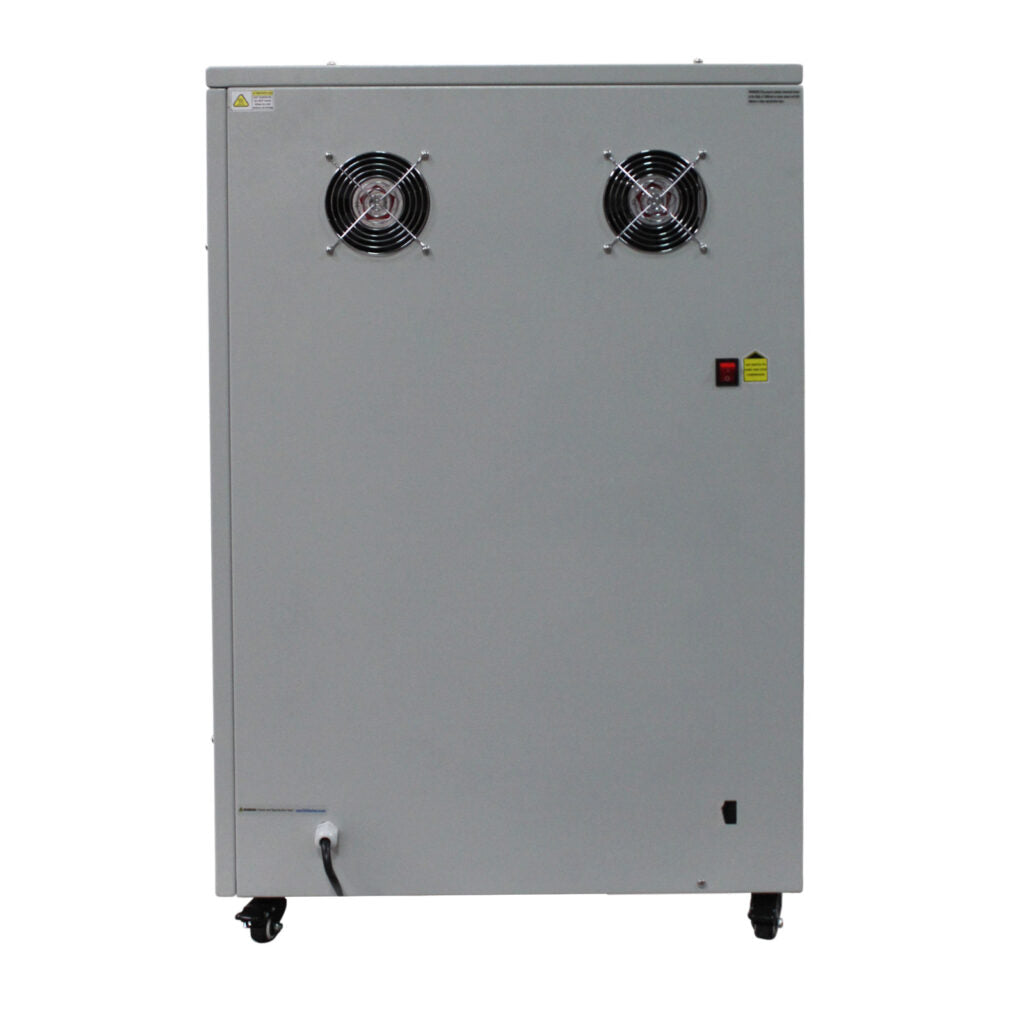

• Two cabinet exhaust fans for cooling

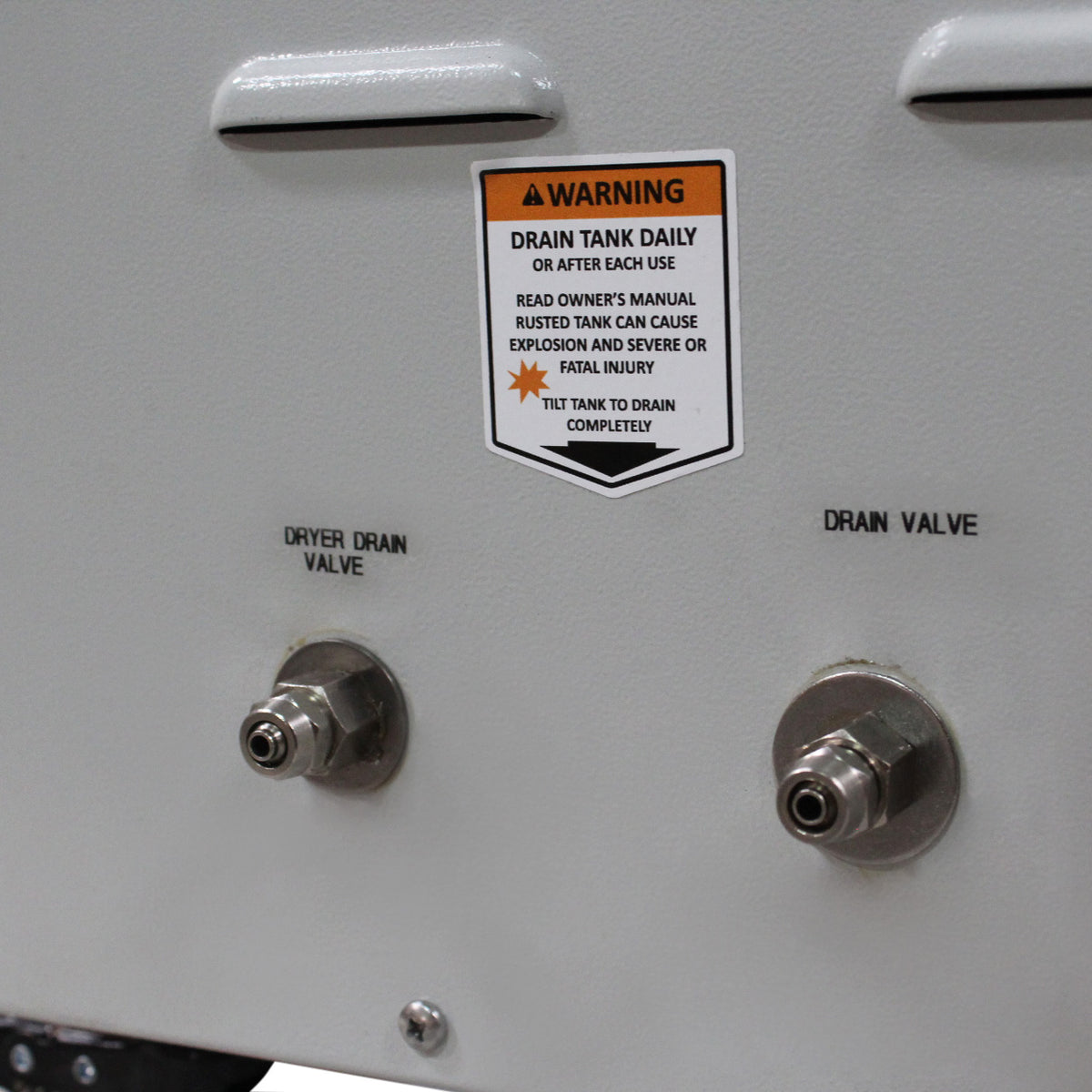

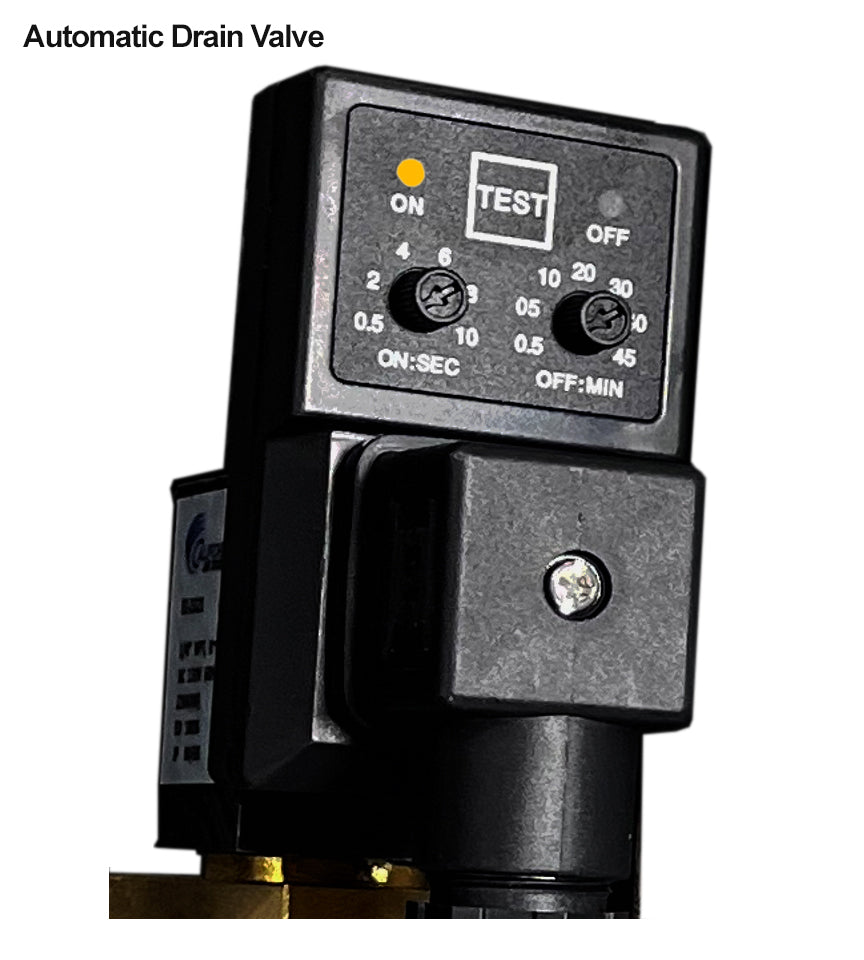

• EZ-1-2321 factory-installed automatic drain valve
• Aftercooler and high-temperature molecular sieve desiccant dryer
• 0.01 micron prefilter
• 5.0 micron air filter and regulator
• 125 PSI maximum pressure
• 70/30 duty cycle

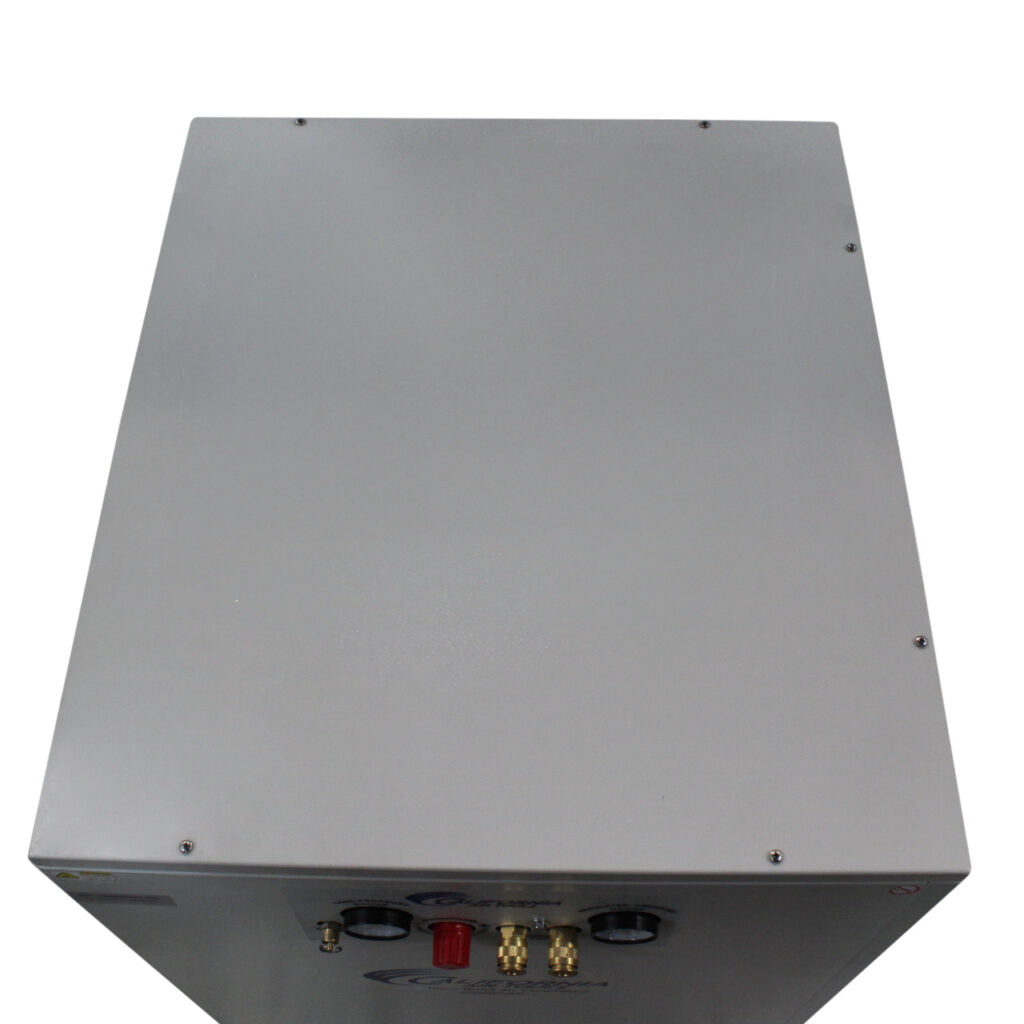

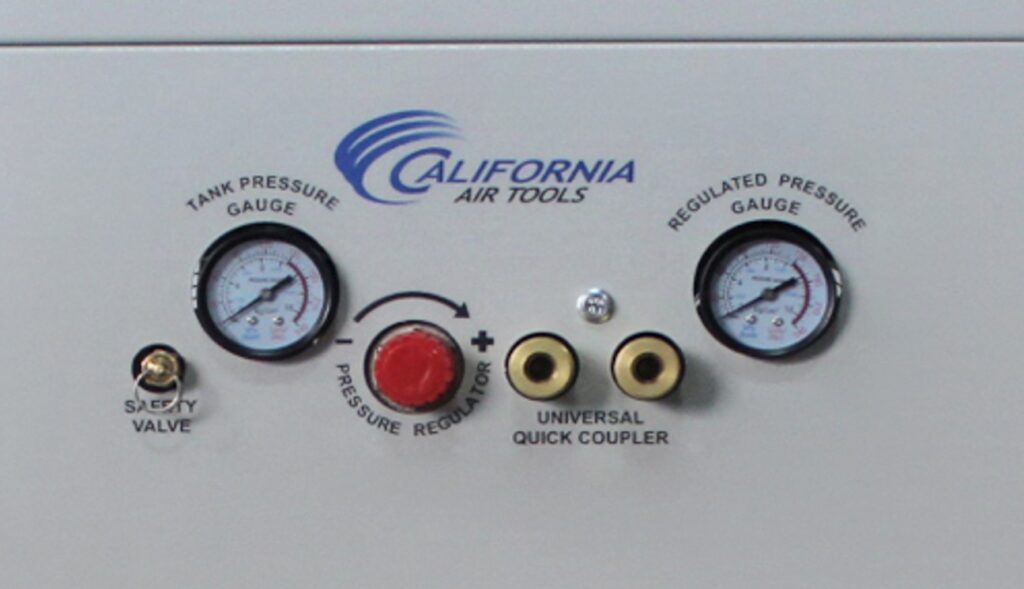

• Two pressure control gauges
• Two 1/4-inch NPT industrial push-to-connect air ports
• Thermal overload protection

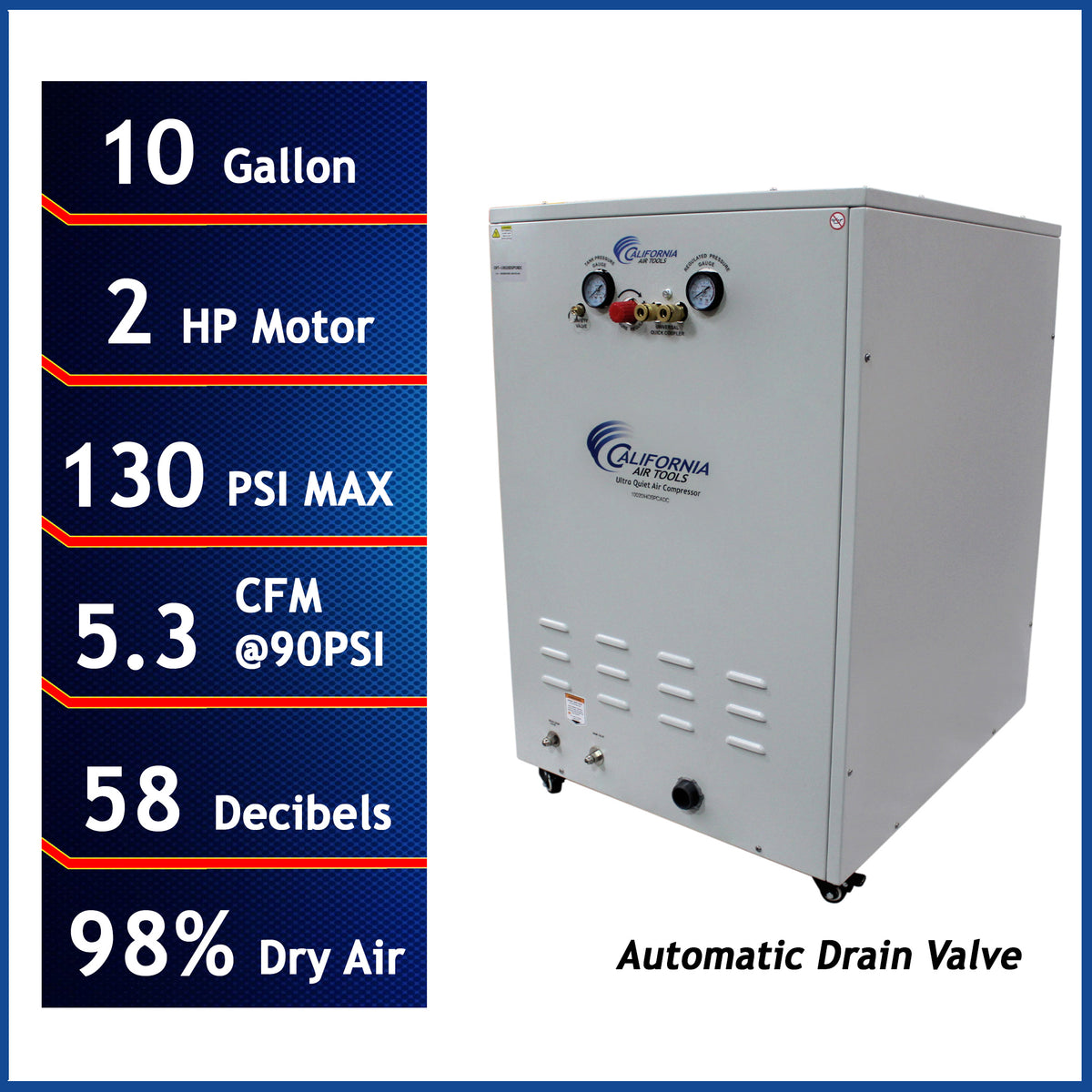

Specifications

• Model: 10020HDSPCADC
• Motor: 2.0 HP
• Pump: Oil-Free Dual Piston
• Pump Speed: 1680 RPM
• Tank Size: 10 Gallons
• Tank Orientation: Horizontal
• Tank Material: Steel
• Maximum Pressure: 125 PSI
• Airflow: 6.40 CFM @ 40 PSI
• Airflow: 5.30 CFM @ 90 PSI
• Noise Level: 58 dB
• Voltage: 110V
• Frequency: 60 Hz
• Phase: Single Phase
• Current Draw: 14 Amps
• Air Drying: 98%
• Air Quality: ISO 8573 Class 2.3.1
• Duty Cycle: 70/30
• Fill Time: 120 seconds
• Recovery Time: 25 seconds from 95 to 125 PSI
• Dimensions: 26" L × 30" W × 39.5" H
• Weight: 220 lbs
• Tank Certification: Non-ASME
• Cabinet: Insulated Soundproof Steel Cabinet
• Warranty: 1 Year Limited Manufacturer Warranty
• Assembly: Assembled in Mexico and USA with global components

What's Included

• California Air Tools 10020HDSPCADC Air Compressor
• Soundproof steel cabinet
• EZ-1-2321 Automatic Drain Valve
• 98% Air Dryer Cartridge
• Aftercooler
• Two Air Filters
• Air Filter & Regulator
• Two 1/4-inch NPT industrial push-to-connect air ports

Applications

• Dental offices and dental laboratories
• Dental milling
• Surgical applications
• Biotechnology facilities
• Manufacturing clean rooms
• Restaurants
• Offices, shops, stores and warehouses
• General engineering
• Applications where low noise and clean, dry air are important

Maintenance

Replace the 98% air dryer cartridge every 4,000 operating hours, approximately every 2 years under average use. Replace the two 2 HP air filters every 2 years, or annually if the compressor is exposed to a dirty or dusty environment.
