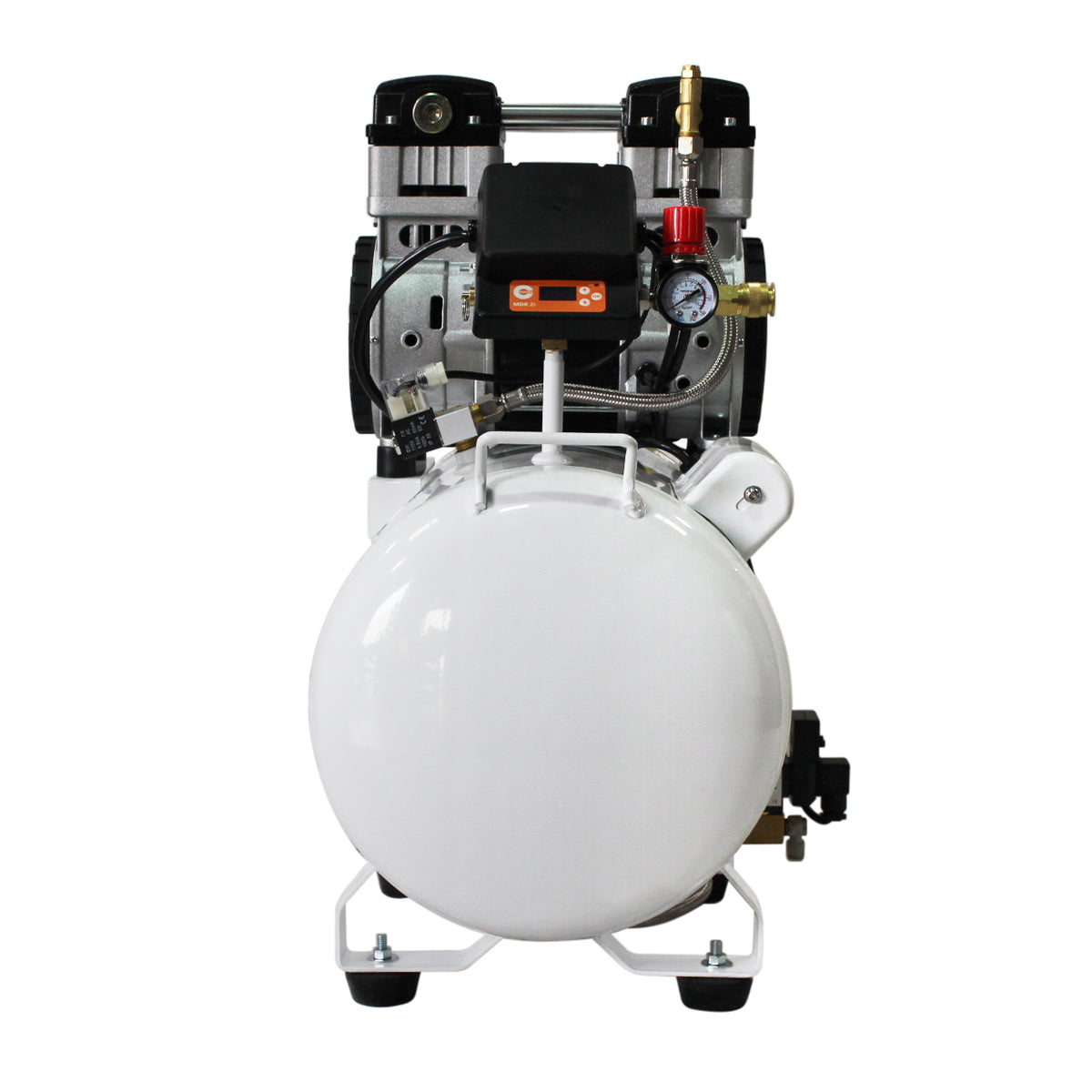

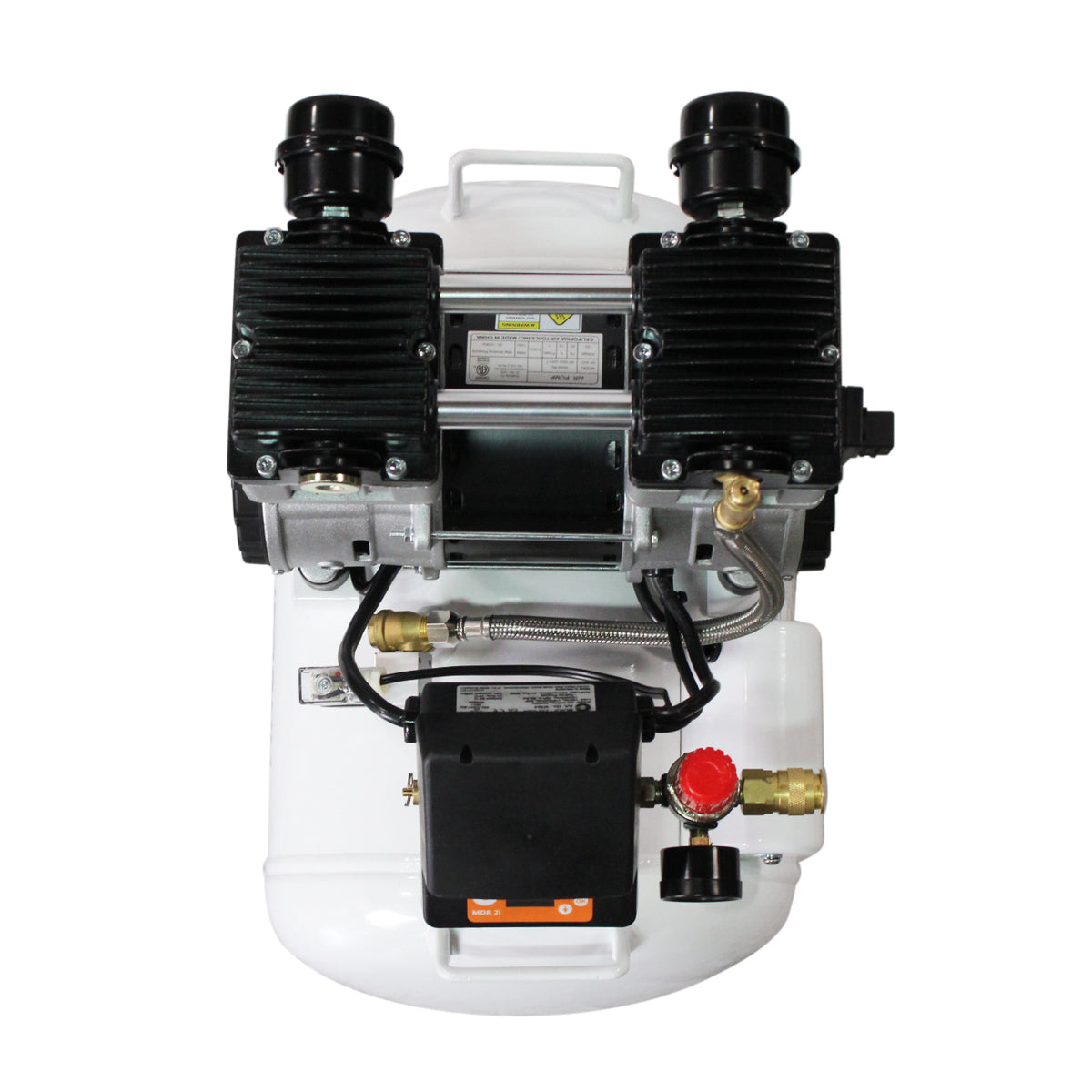

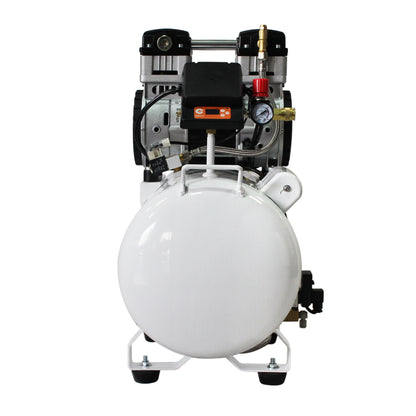

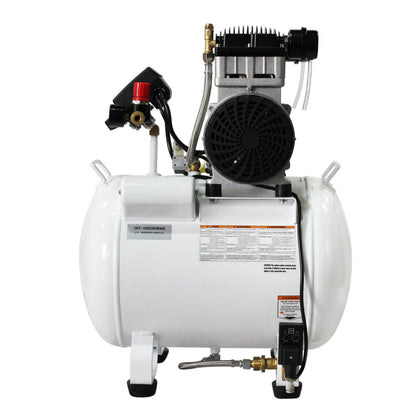

California Air Tools 10020SMHAD 2.0 HP SMART Ultra Quiet & Oil-Free 10 Gallon Air Compressor with Automatic Drain Valve

Product Description

The California Air Tools 10020SMHAD is a 2.0 HP SMART ultra-quiet, oil-free air compressor featuring a 10-gallon low-profile horizontal steel air tank and an automatic drain valve. Operating at only 70 dB, it is designed to provide powerful airflow with reduced noise and maintenance requirements.

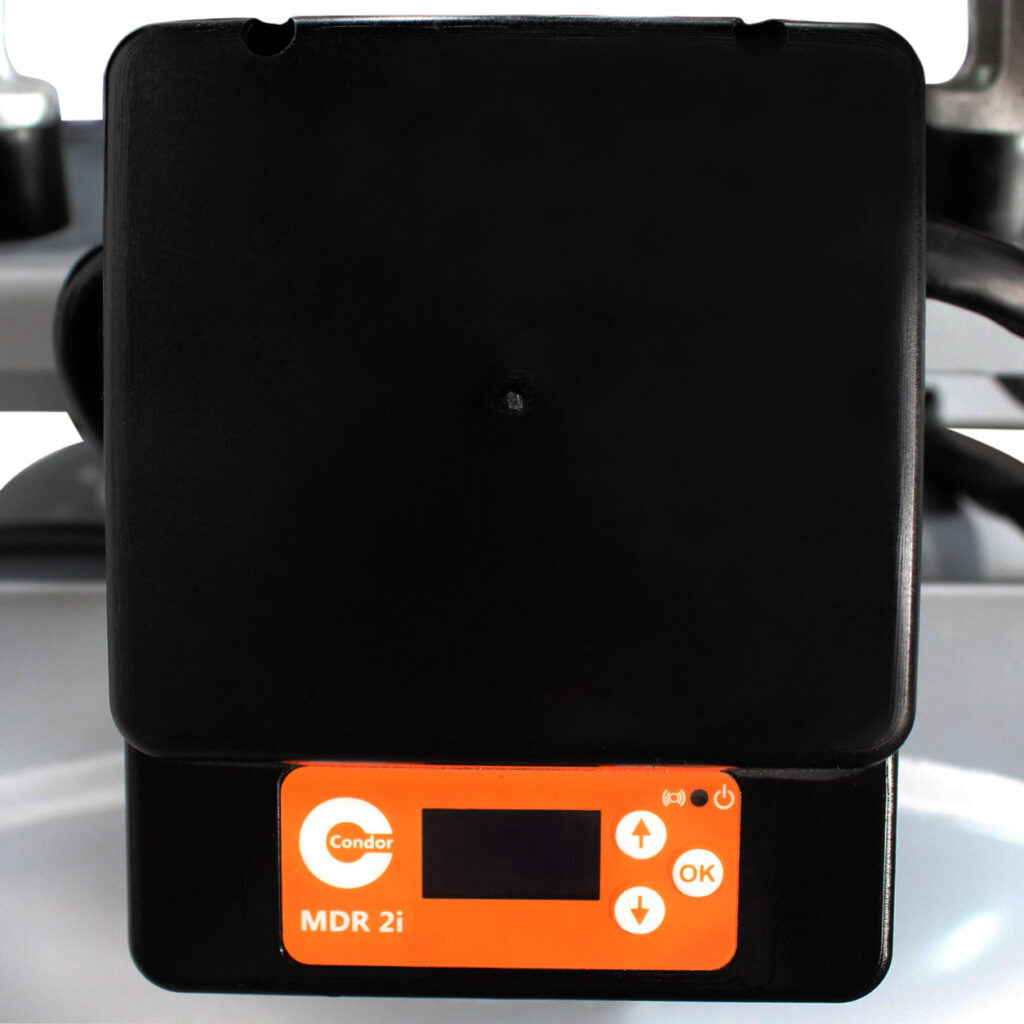

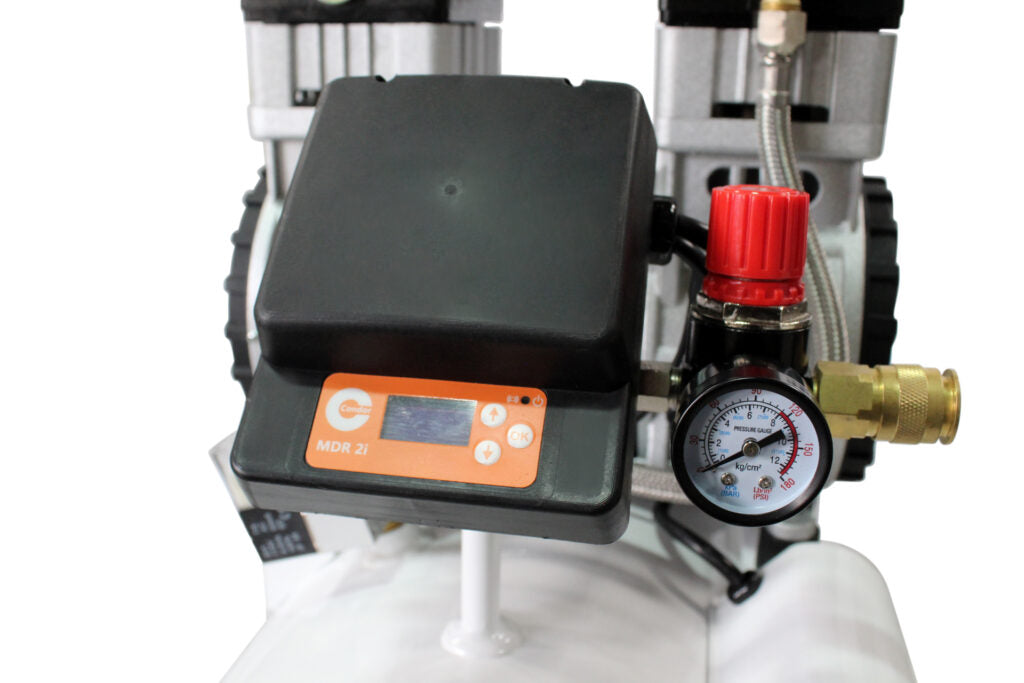

The compressor includes the MDR2i OLED Smart Controller, allowing users to monitor and control compressor functions remotely through mobile phones, tablets, notebooks, or computers. The controller can connect directly as an access point or through a Wi-Fi network.

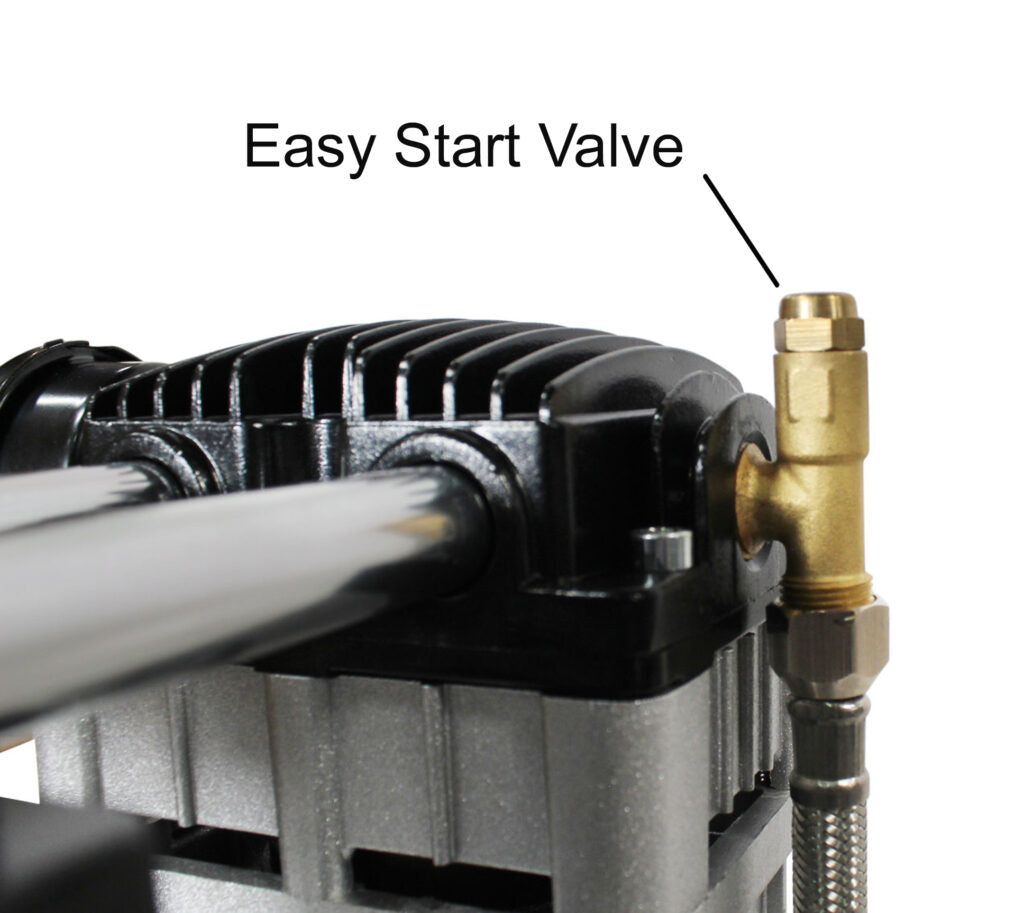

The oil-free dual-piston pump operates at 1680 RPM and is designed for a 3000+ hour life cycle before wear. The Easy Start Valve reduces starting amperage by allowing the motor to start under a no-load condition.

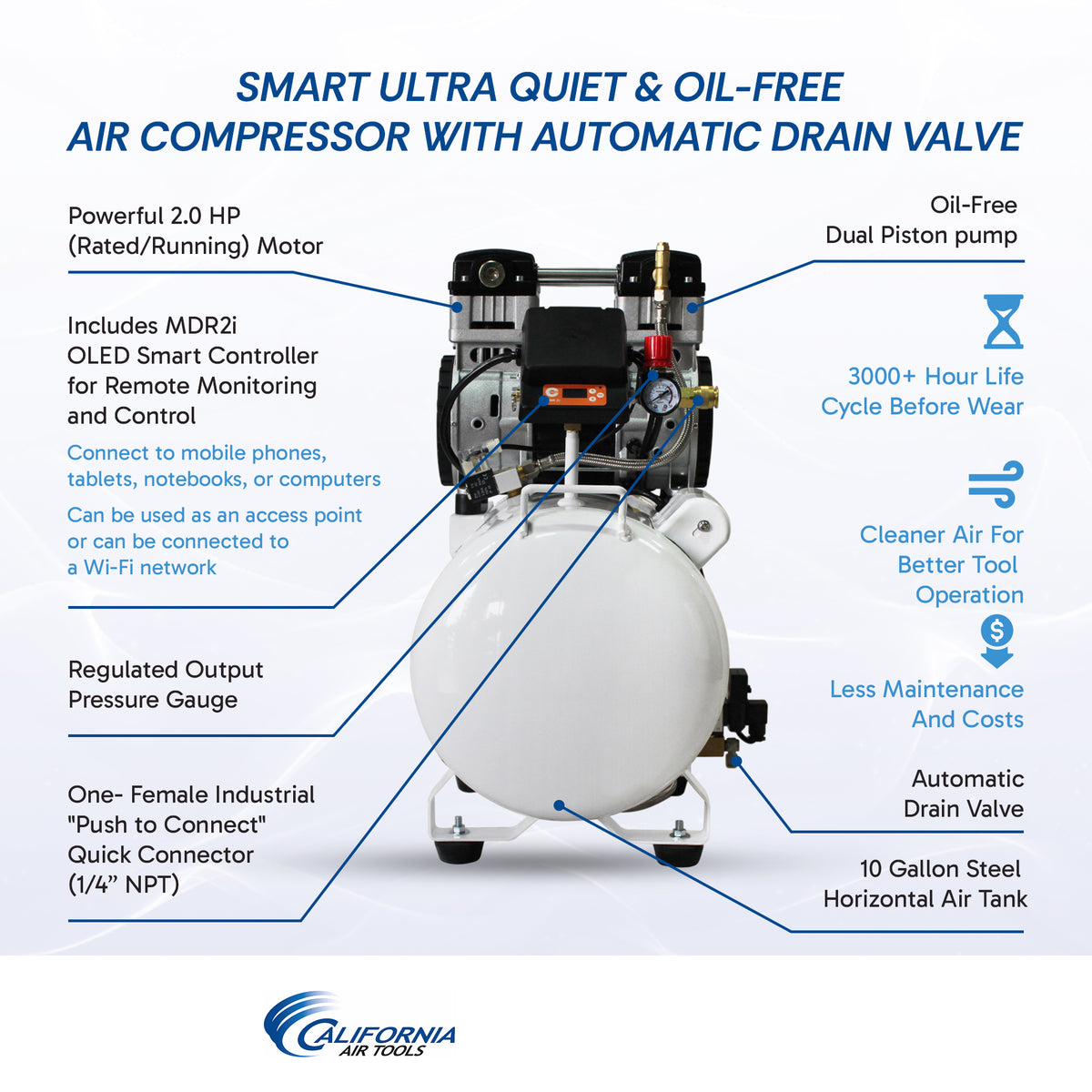

Key Features

• 2.0 HP rated/running motor
• Ultra-quiet 70 dB operation
• Oil-free dual-piston pump
• 10-gallon low-profile horizontal steel air tank
• MDR2i OLED Smart Controller
• Remote monitoring and control
• Programmable ON/OFF times
• Adjustable pressure ON and OFF levels
• Programmable automatic drain settings
• Overcurrent limit control
• Pressure display in PSI or bar
• Easy Start Valve for reduced starting amperage
• Factory-installed EZ-1 automatic drain valve
• Regulated output pressure gauge
• 0–120 PSI pressure regulator
• 1/4-inch NPT female industrial push-to-connect quick connector
• Thermal overload protection
• 70/30 duty cycle
• 25-foot, 14-gauge power cord
• Two air filters included

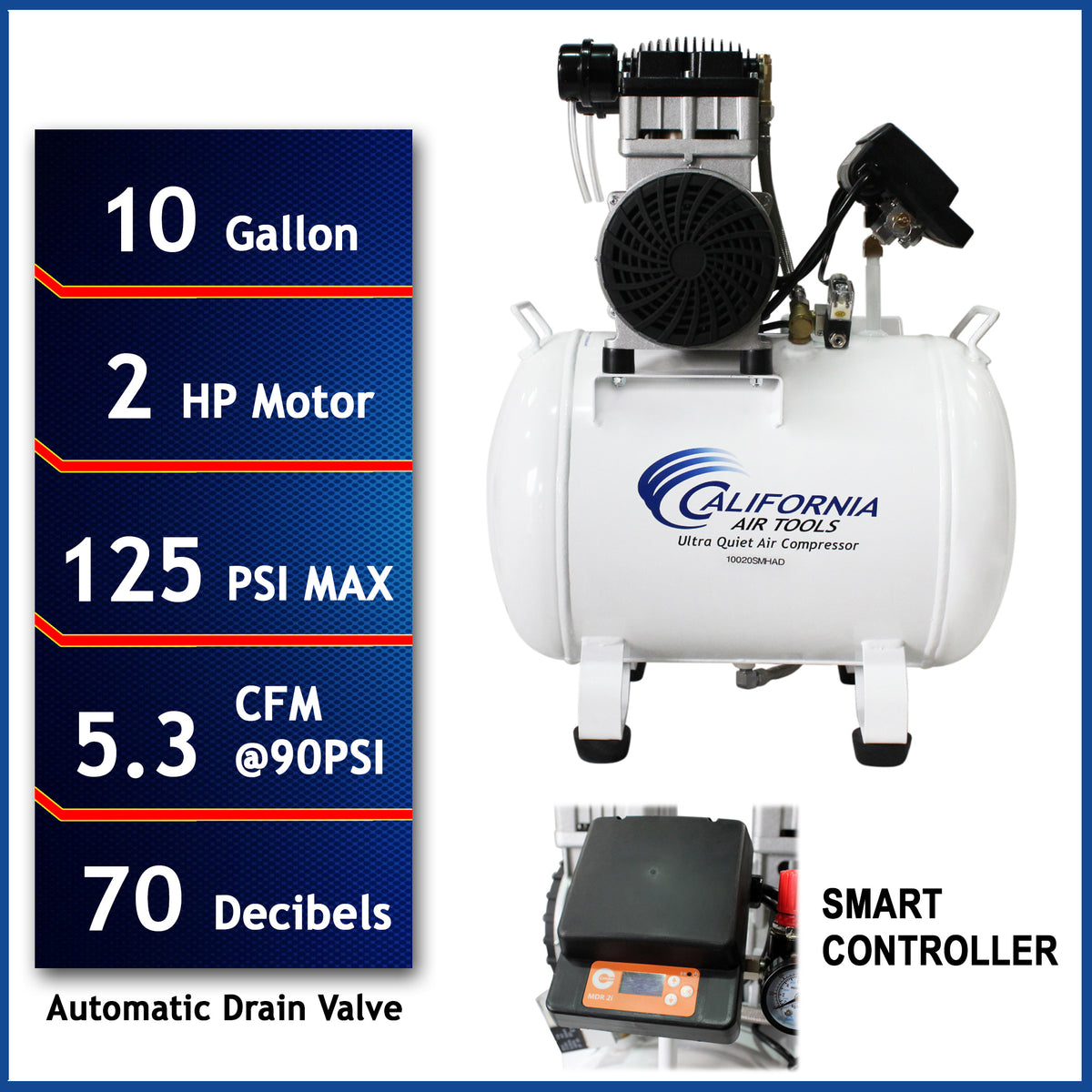

Specifications

• Model: 10020SMHAD
• Motor: 2.0 HP
• Motor Speed: 1680 RPM
• Pump: Oil-Free Dual Piston
• Air Tank Capacity: 10 gallons
• Tank Material: Steel
• Tank Configuration: Horizontal, low-profile
• Noise Level: 70 dB
• Voltage: 110V
• Frequency: 60 Hz
• Current Draw: 14 Amps
• Air Delivery: 6.40 CFM @ 40 PSI
• Air Delivery: 5.30 CFM @ 90 PSI
• Working Pressure: 90–120 PSI ±5 PSI
• Maximum Kick-On: 105 PSI
• Maximum Kick-Off: 130 PSI
• Tank Fill Time: 120 seconds
• Recovery Time: 25 seconds from 95 to 125 PSI
• Duty Cycle: 70/30
• Automatic Drain: EZ-1-2301
• Tank Rating: Non-ASME

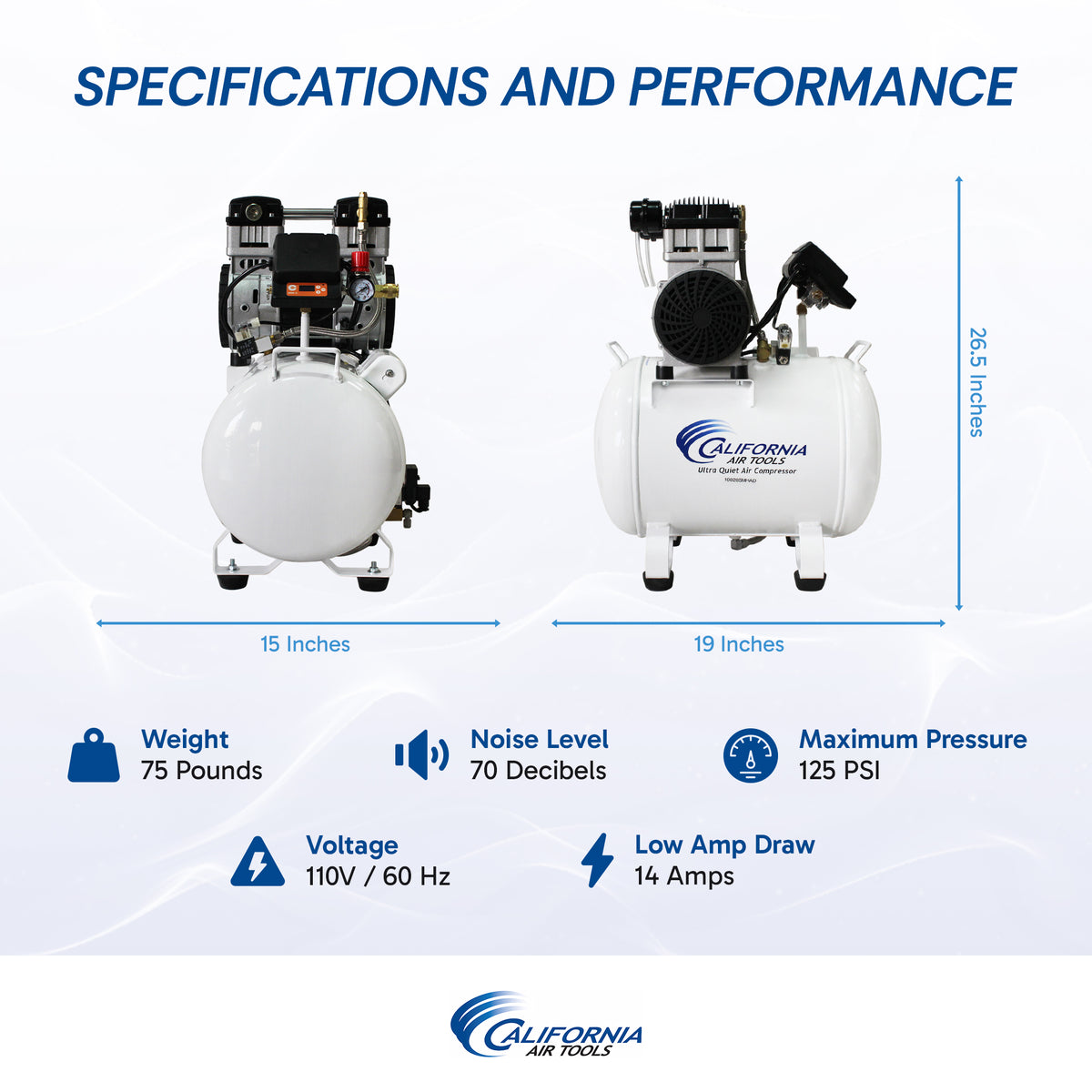

• Dimensions: 19 × 15 × 26.5 inches
• Weight: 75 lbs
• Warranty: 1-Year Limited Warranty
• Air Filters: 2 included
• Power Cord: 25 ft, 14 gauge
• Recommended Outlet: Dedicated 15 Amp outlet
• Minimum Generator: 5,500 watts

What's Included

• California Air Tools 10020SMHAD Air Compressor
• MDR2i OLED Smart Controller
• EZ-1-2301 Automatic Drain Valve
• Manual Drain Valve
• Two Air Filters
• 25-foot, 14-gauge power cord
• Regulated output pressure gauge
• 1/4-inch NPT female industrial push-to-connect quick connector

Applications

• Contractor and workshop applications
• Pneumatic tools and equipment
• Applications requiring reduced operating noise
• Workspaces where compact horizontal tank storage is beneficial
• Professional and commercial applications where applicable
• Remote compressor monitoring and control applications

Maintenance

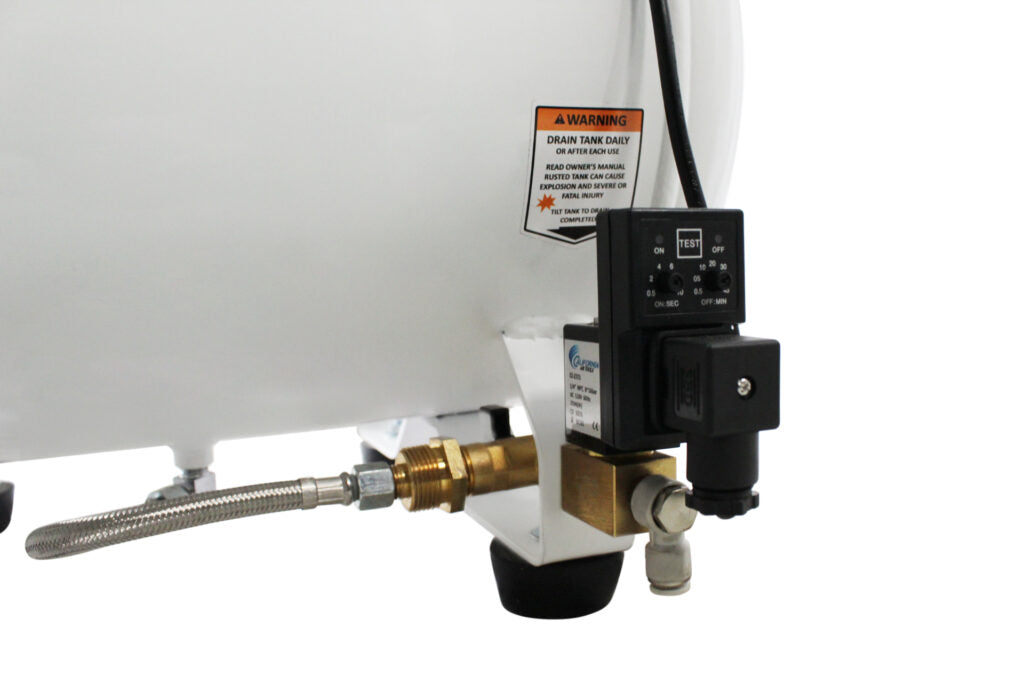

The automatic drain valve is designed to remove accumulated water from the air tank on a scheduled basis, reducing the need for manual tank draining.

The two motor-pump air filters should be replaced every two years, or annually when the compressor is operated in a dirty or dusty environment. Filter part number: 90260.
