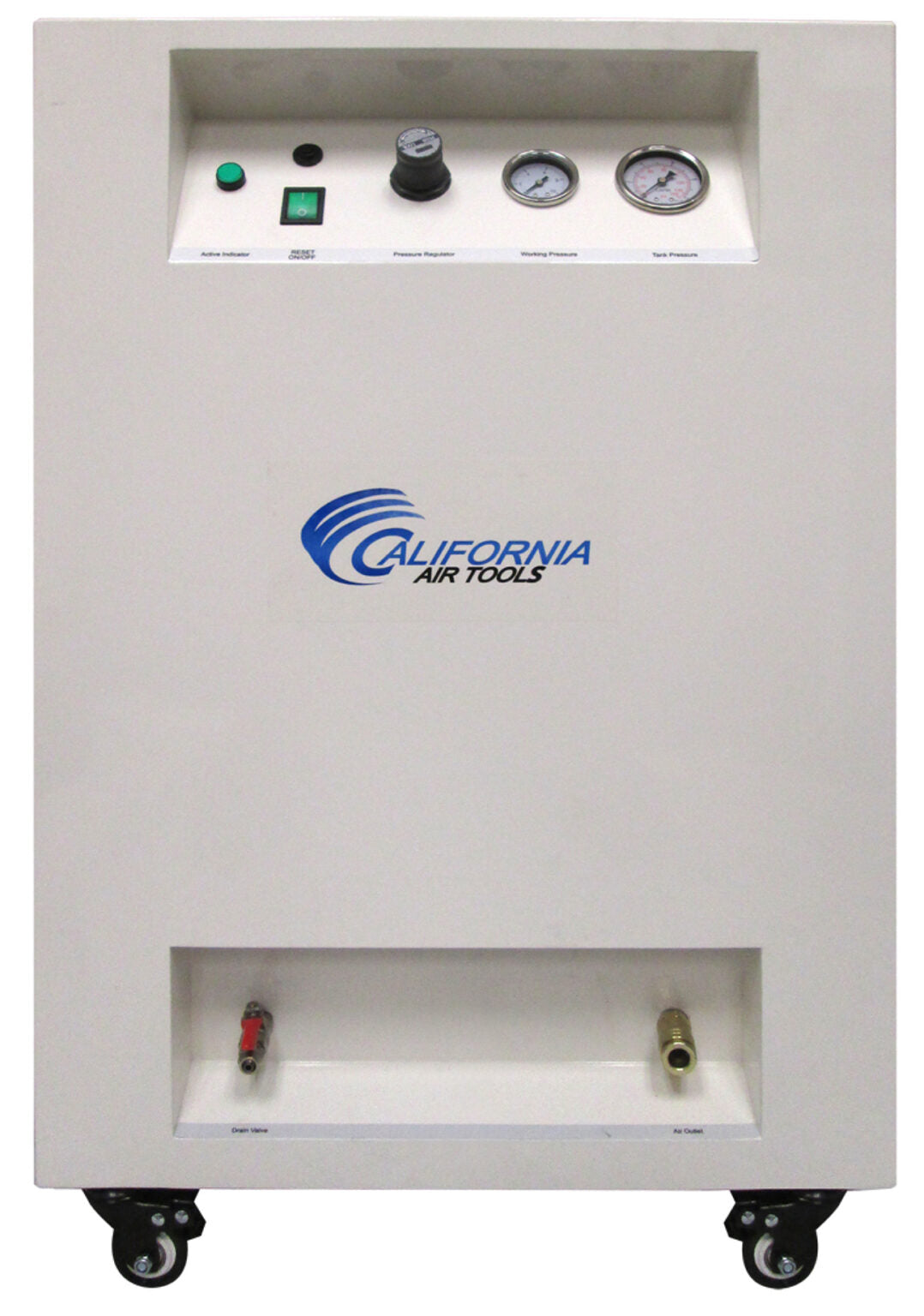

California Air Tools 10020SMSPC 2.0 HP SMART Ultra-Quiet Oil-Free 10 Gallon Air Compressor with Sound Proof Cabinet

Product Description

The California Air Tools 10020SMSPC is a 2.0 HP SMART ultra-quiet and oil-free air compressor designed for applications where low noise, clean compressed air, durability, and remote monitoring are important. The compressor operates at just 58 dB and features a 10-gallon steel air tank enclosed in a sound proof cabinet.

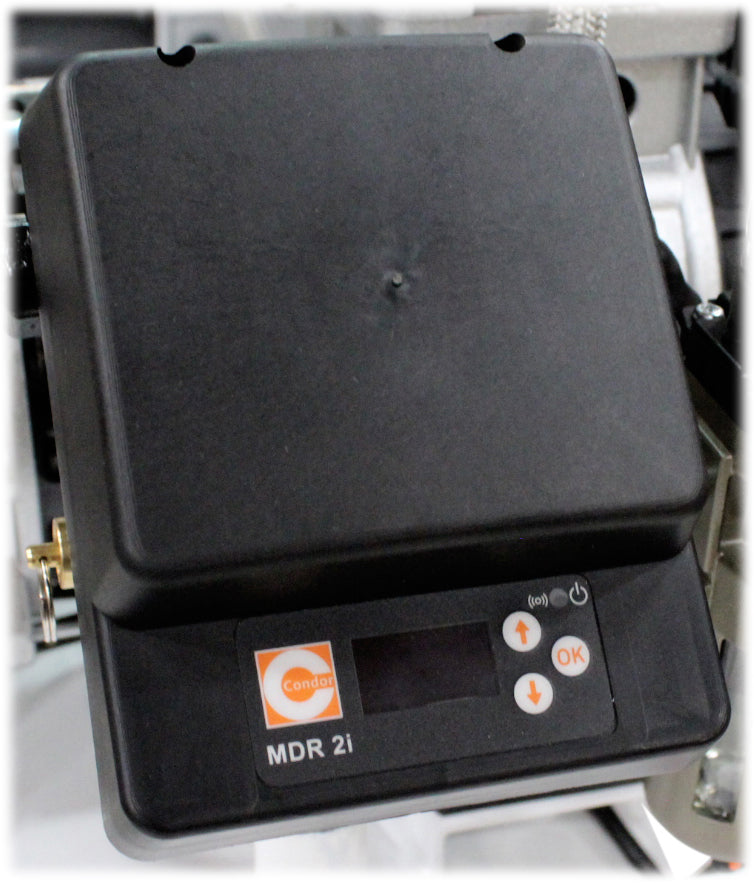

The integrated MDR2i OLED Smart Controller can connect to mobile phones, tablets, notebooks, or computers through an access point or Wi-Fi network. It provides remote monitoring and control of compressor operation, including ON/OFF scheduling and adjustable pressure settings.

The oil-free dual-piston pump operates at 1680 RPM and is designed for a 3000+ hour life cycle before wear. The sound proof cabinet includes two exhaust fans to help remove heat, while four caster wheels make the unit easier to move.

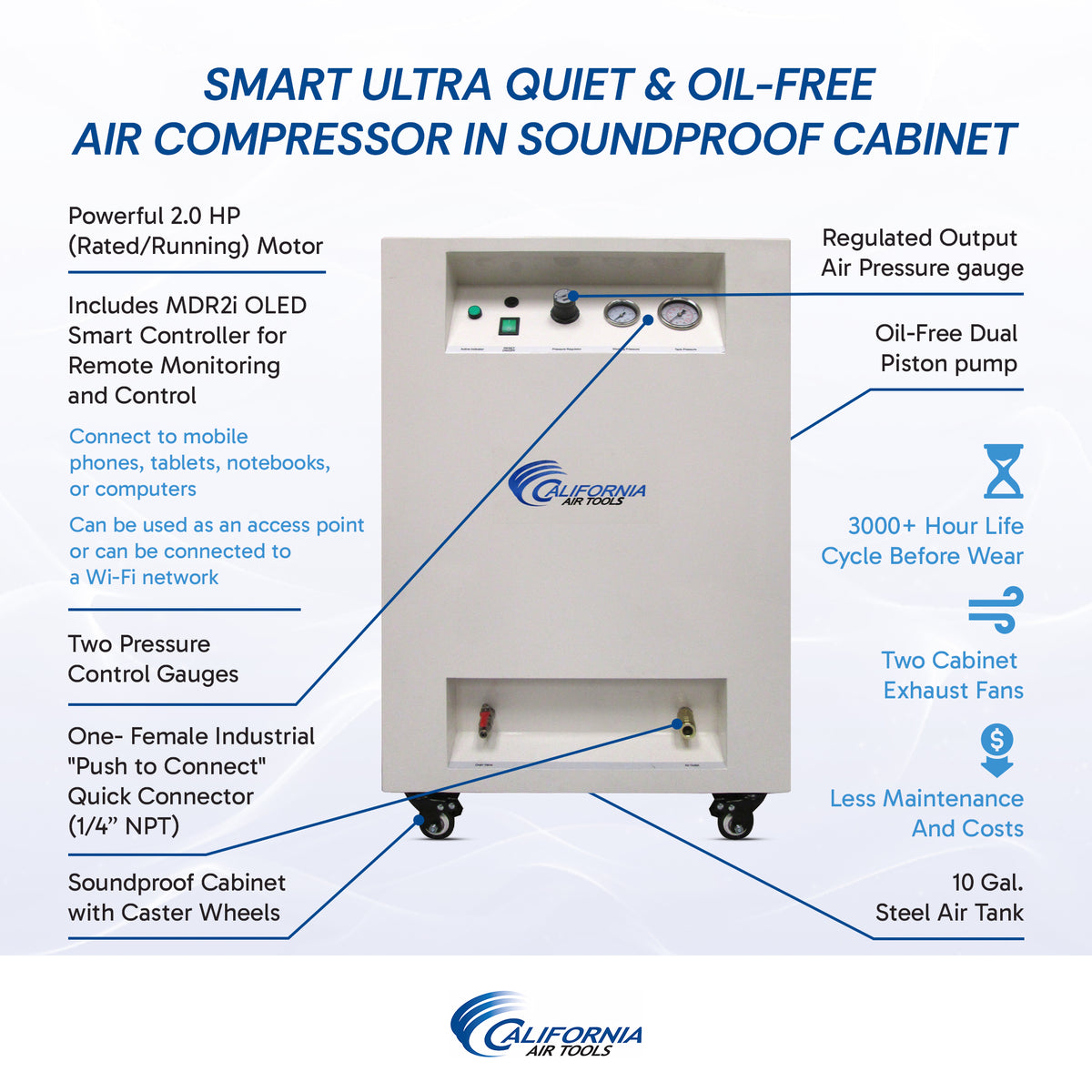

Key Features

- 2.0 HP rated/running motor
- Ultra-quiet 58 dB operation
- Oil-free dual-piston pump
- 10-gallon steel air tank
- Sound proof cabinet
- MDR2i OLED SMART Controller
- Remote monitoring and control
- Wi-Fi connectivity or direct access-point connection
- Programmable compressor ON/OFF times
- Adjustable pressure ON and OFF levels
- Remote output pressure adjustment

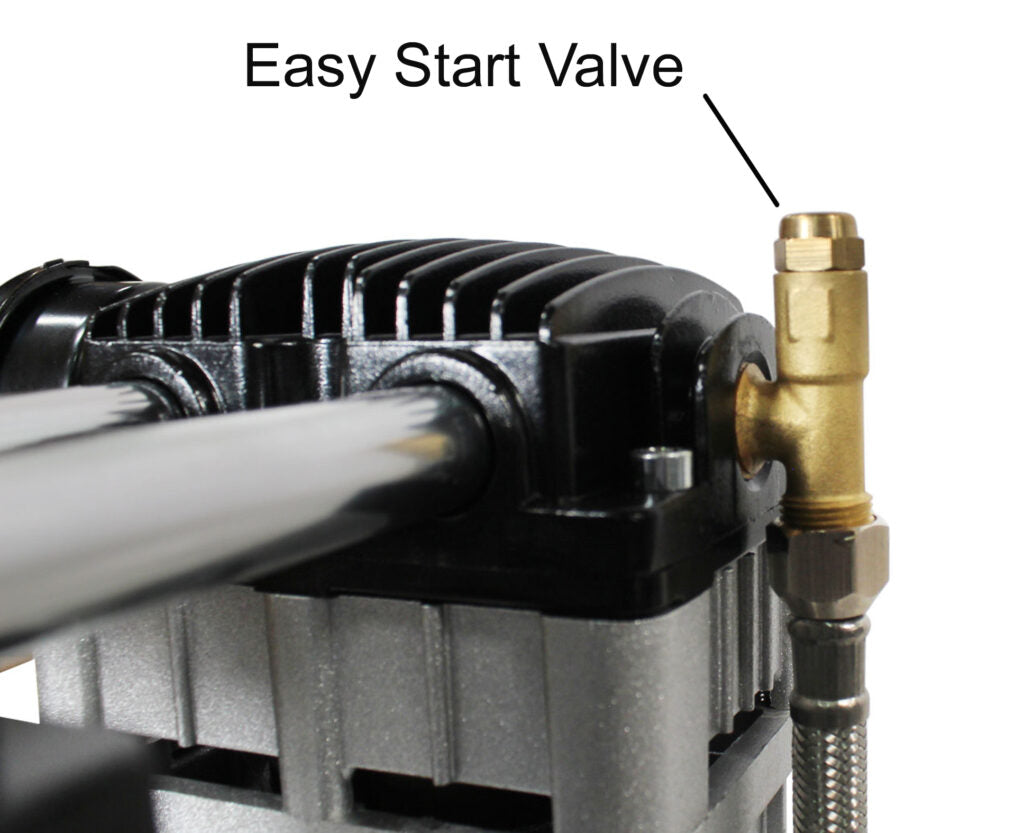

- Easy Start Valve for reduced starting amperage

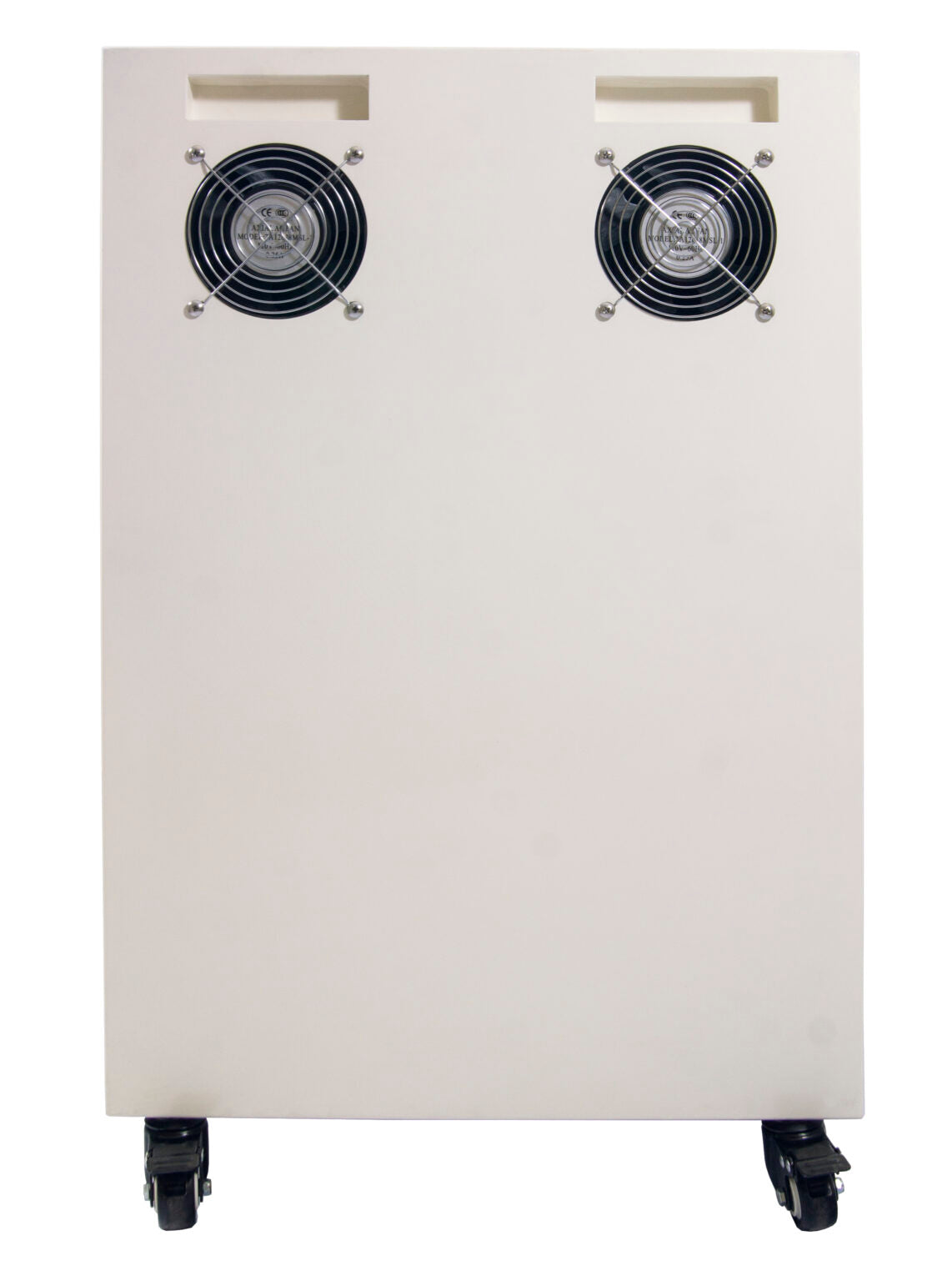

- Two cabinet exhaust fans for heat removal
- Four caster wheels for mobility
- Tank pressure gauge
- Regulated output pressure gauge
- 0–120 PSI pressure regulator
- 1/4-inch NPT female industrial push-to-connect quick connector
- Thermal overload protection
- 70/30 duty cycle

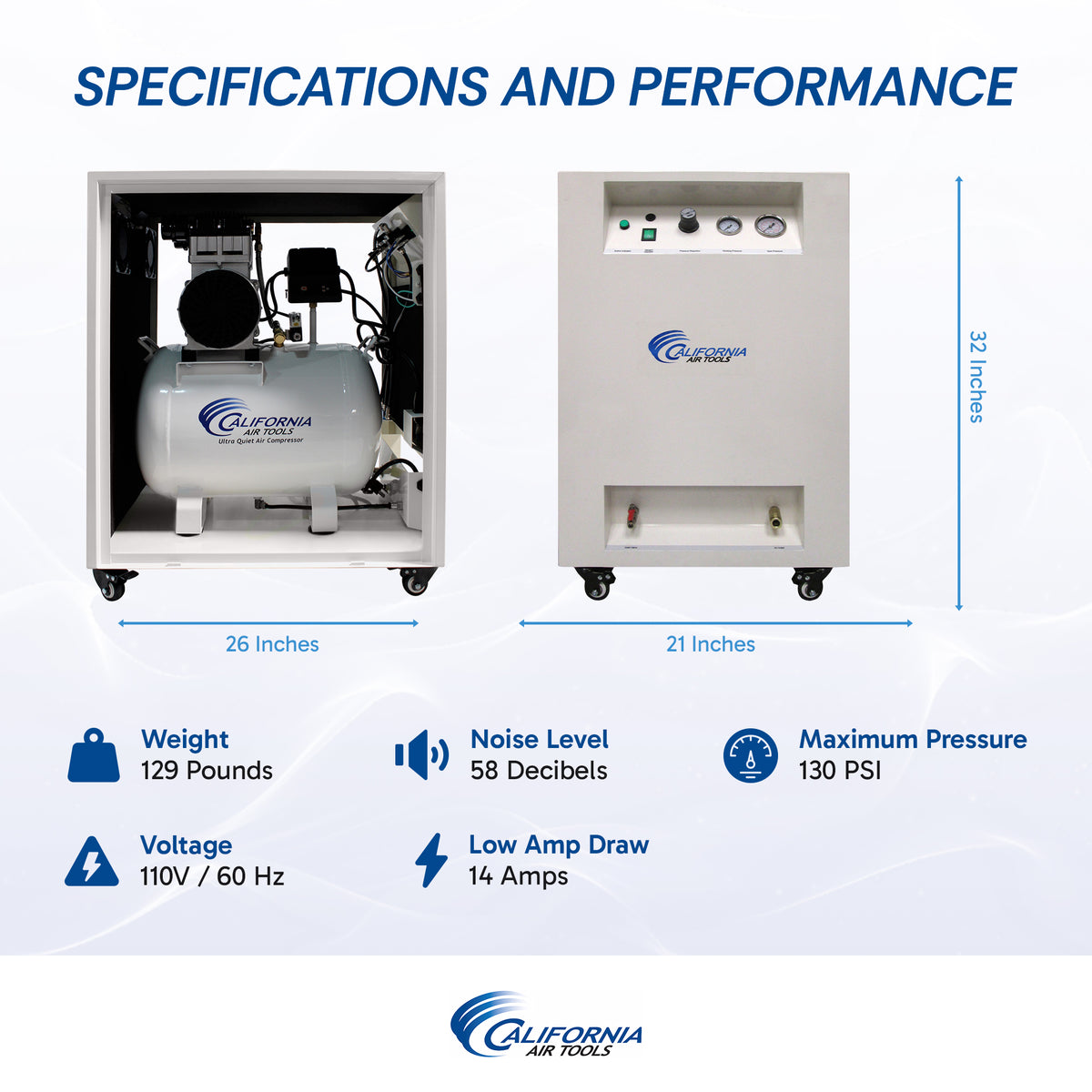

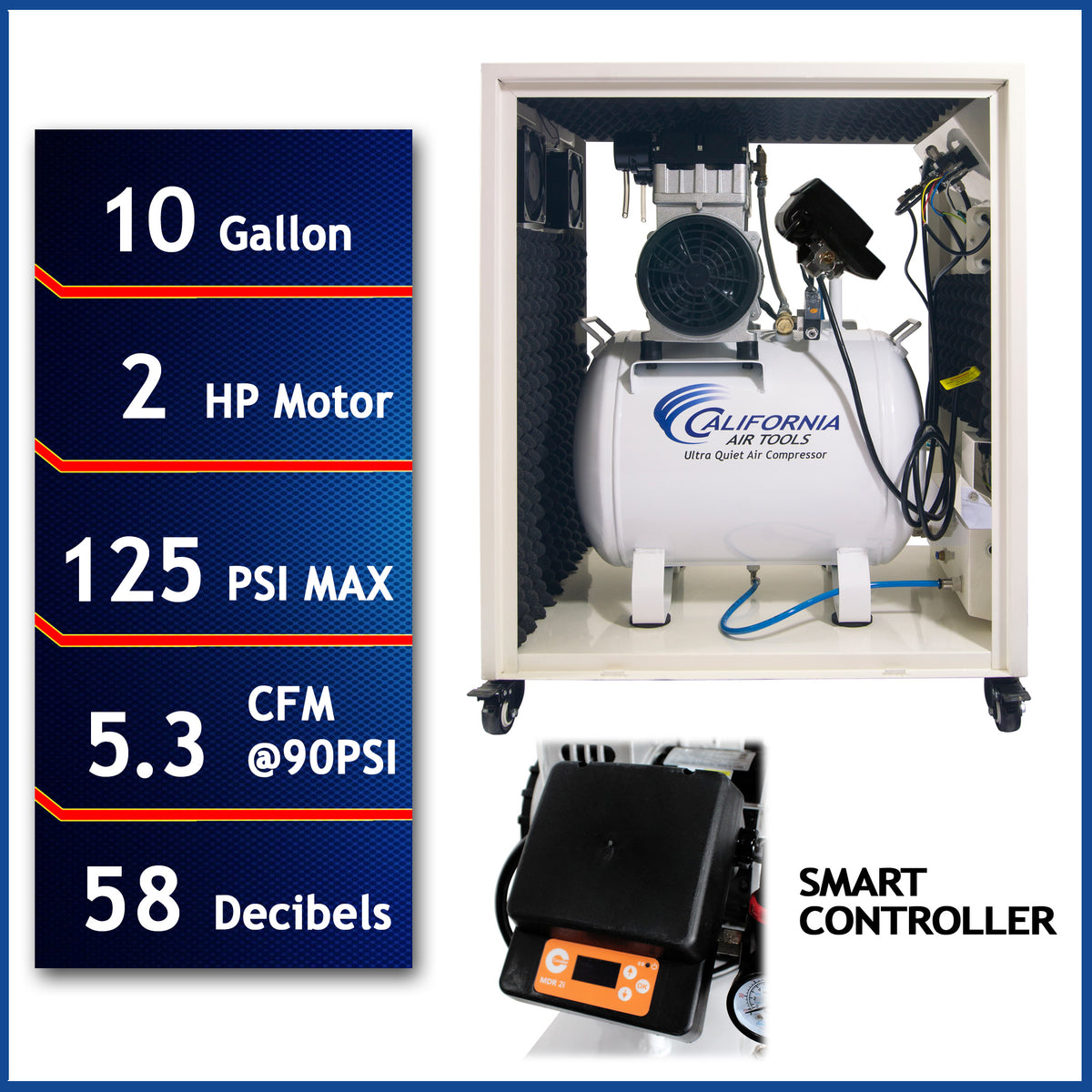

Specifications

- Model: 10020SMSPC
- Motor: 2.0 HP rated/running
- Motor Speed: 1680 RPM
- Pump: Oil-Free Dual Piston
- Tank Capacity: 10 gallons
- Tank Material: Steel
- Cabinet: Sound Proof
- Noise Level: 58 dB
- Voltage: 110V
- Frequency: 60 Hz
- Current Draw: 14 Amps
- Air Delivery: 6.4 CFM @ 40 PSI
- Air Delivery: 5.30 CFM @ 90 PSI
- Working Pressure: 90–120 PSI ±5 PSI
- Maximum Kick-On: 105 PSI
- Maximum Kick-Off: 130 PSI
- Tank Fill Time: 120 seconds
- Recovery Time: 25 seconds from 95 to 125 PSI
- Duty Cycle: 70/30
- Power Cord: 25 ft, 14 gauge
- Recommended Outlet: Dedicated 15 Amp outlet
- Minimum Generator: 5,500 watts
- Dimensions: 19.75 × 19.75 × 31.5 inches
- Weight: 145 lbs
- Tank Rating: Non-ASME
- Warranty: 1-Year Limited Manufacturer Warranty
- Country of Manufacture/Assembly: Manufactured in Mexico-USA; assembled in USA using global components

What's Included

- California Air Tools 10020SMSPC Air Compressor
- MDR2i OLED Smart Pressure Controller
- Sound Proof Cabinet
- Two Air Filters
- 25-foot, 14-gauge power cord
- Tank pressure gauge
- Regulated output pressure gauge
- 1/4-inch NPT female industrial push-to-connect quick connector
- Swivel caster wheels

Applications

- Contractor applications
- Workshop applications
- Professional pneumatic tool applications
- Dental compressor applications
- Dental milling applications
- Workspaces requiring low-noise compressed air
- Applications requiring remote compressor monitoring and control
- Applications where clean, oil-free compressed air is preferred

Maintenance

Replace the 2 HP air filters every two years, or annually when the compressor is exposed to dirty or dusty environments. The replacement air filter part number is 90260.

The manufacturer also specifies periodic replacement of the 98% Air Dryer Cannister/Cartridge every 4,000 operating hours, approximately every two years on average.

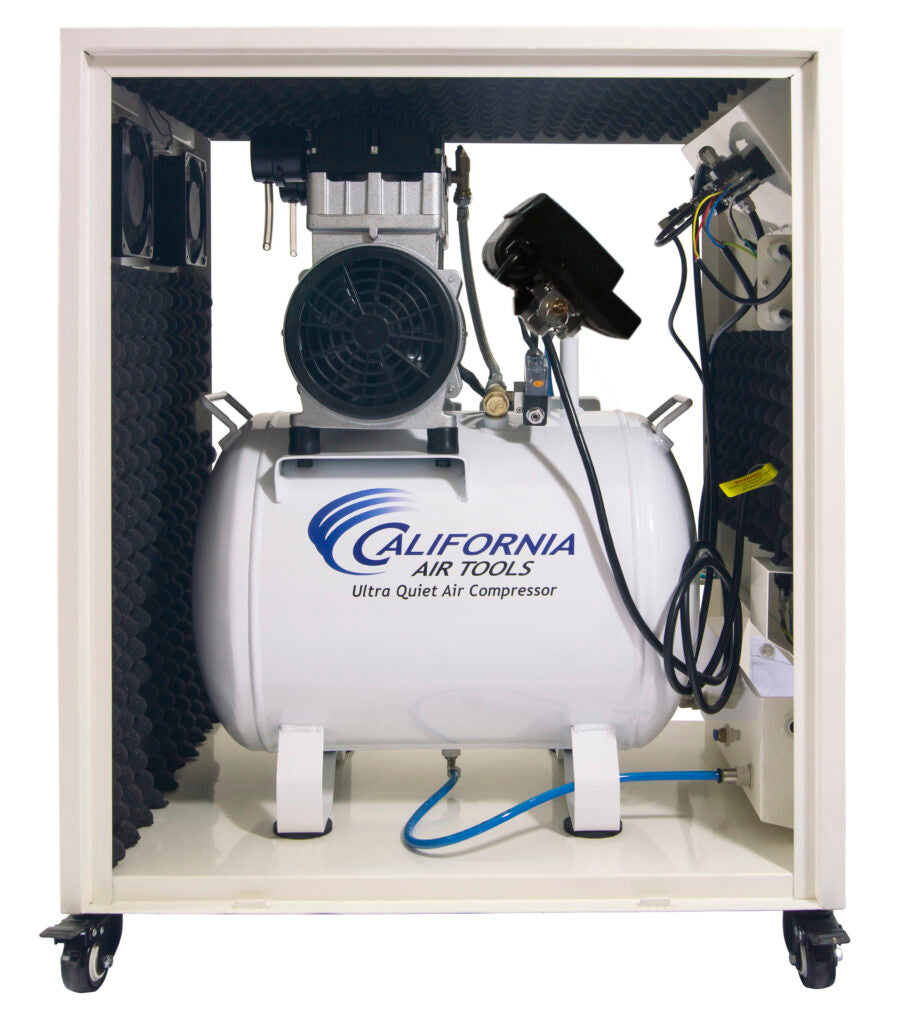

The sound proof cabinet has two latching doors for access to the compressor and components. Keep the cabinet and exhaust areas clear to allow proper airflow and heat dissipation.
