California Air Tools 10020SMSPC 2.0 HP SMART Ultra Quiet Oil-Free 10 Gallon Air Compressor with Soundproof Cabinet, 110V

Product Description

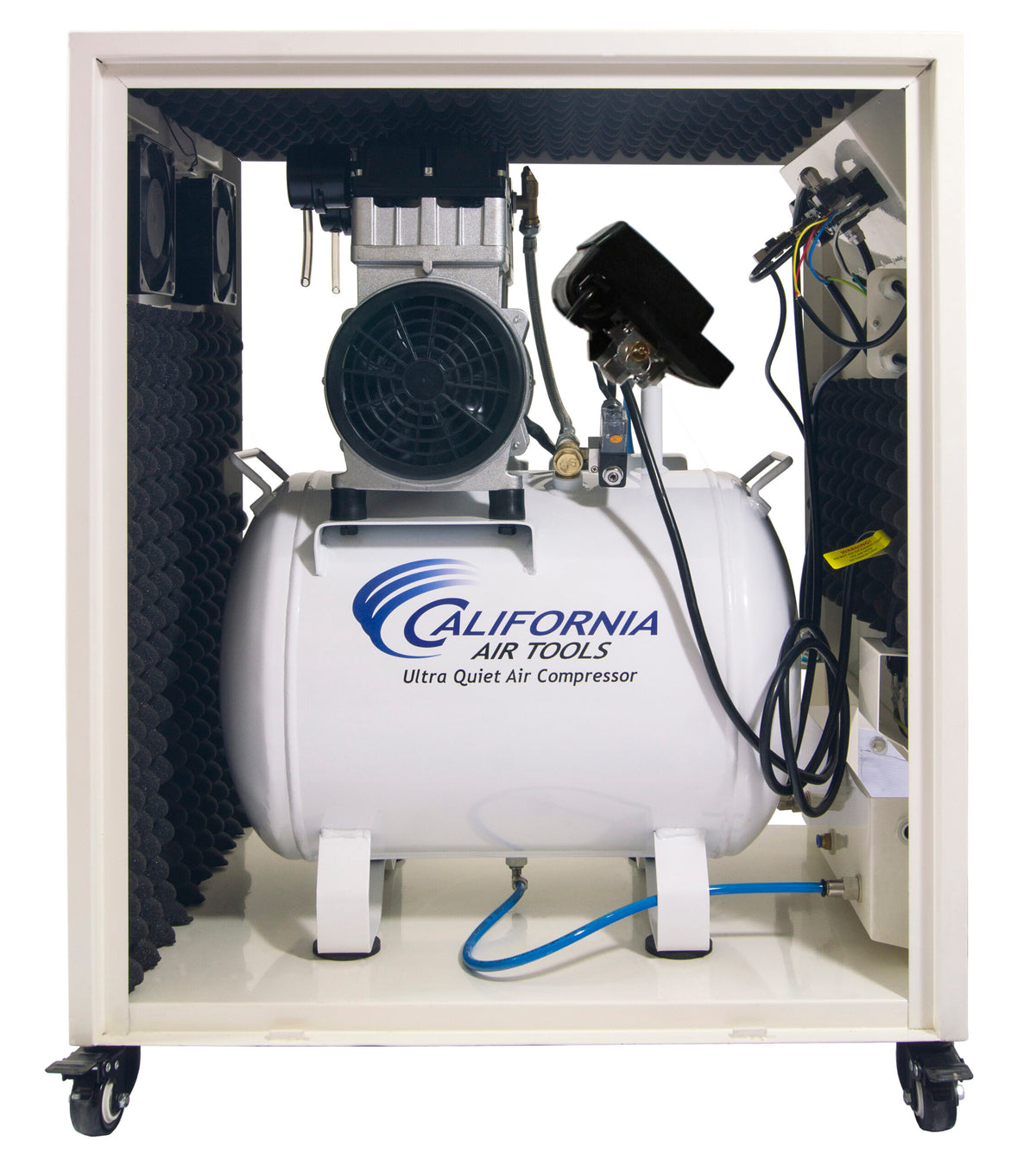

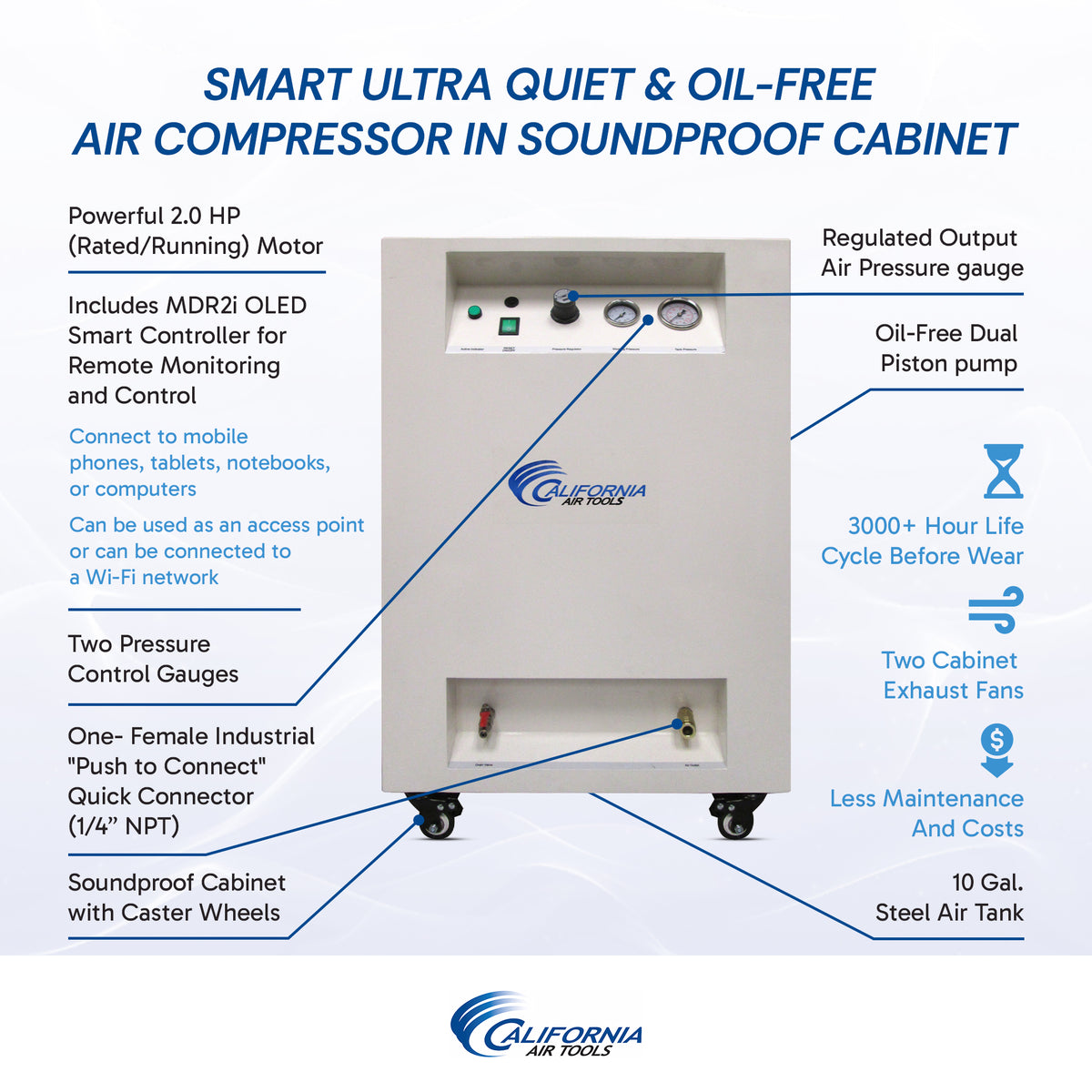

The California Air Tools 10020SMSPC is a 2.0 HP SMART ultra-quiet and oil-free air compressor designed for professional applications where low noise, reliable compressed air, and remote control capabilities are important. It features a 10-gallon steel air tank enclosed in a soundproof cabinet and operates at only 58 dB.

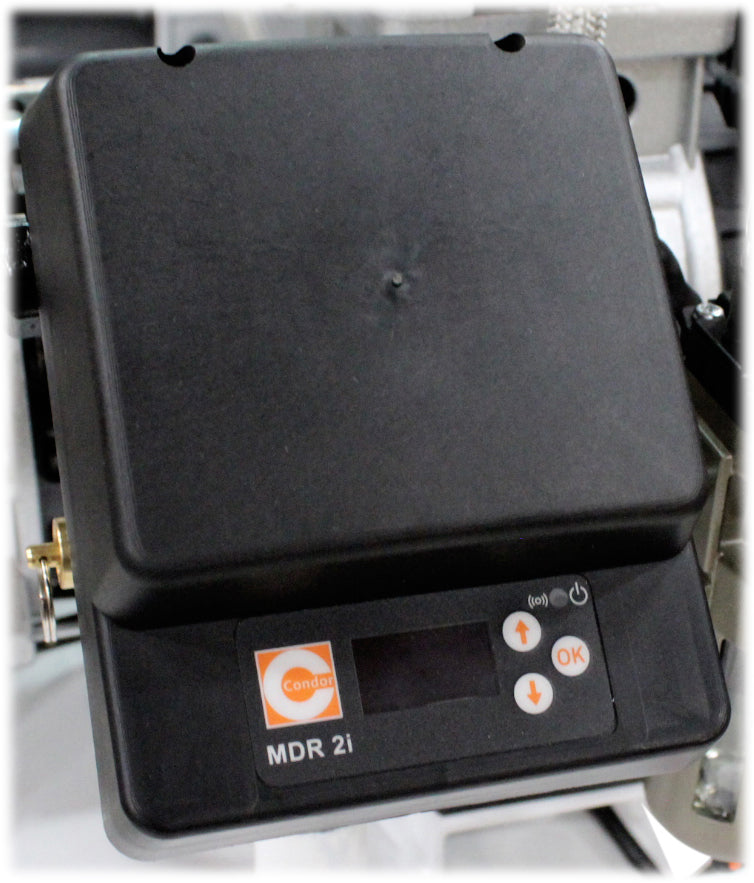

The compressor is equipped with California Air Tools' MDR2i OLED SMART Controller, which can connect to mobile phones, tablets, notebooks, or computers through Wi-Fi or as an access point. The SMART controller allows users to remotely monitor compressor operation, schedule daily ON/OFF times, and adjust output pressure settings without manually adjusting the pressure switch.

The oil-free dual piston pump is powered by a 2.0 HP motor operating at 1680 RPM. The system delivers 6.40 CFM at 40 PSI and 5.30 CFM at 90 PSI, with adjustable working pressure from 90 to 120 PSI and a maximum kick-off pressure of 130 PSI.

Key Features

• 2.0 HP rated/running motor
• SMART MDR2i OLED controller
• Remote monitoring and compressor control
• Programmable ON/OFF scheduling
• Remote pressure adjustment
• Ultra-quiet 58 dB operation
• Oil-free dual piston pump
• 10-gallon steel air tank
• Soundproof cabinet with acoustic insulation
• 1680 RPM motor speed
• 6.40 CFM at 40 PSI
• 5.30 CFM at 90 PSI
• Adjustable working pressure from 90–120 PSI
• Maximum 130 PSI kick-off pressure

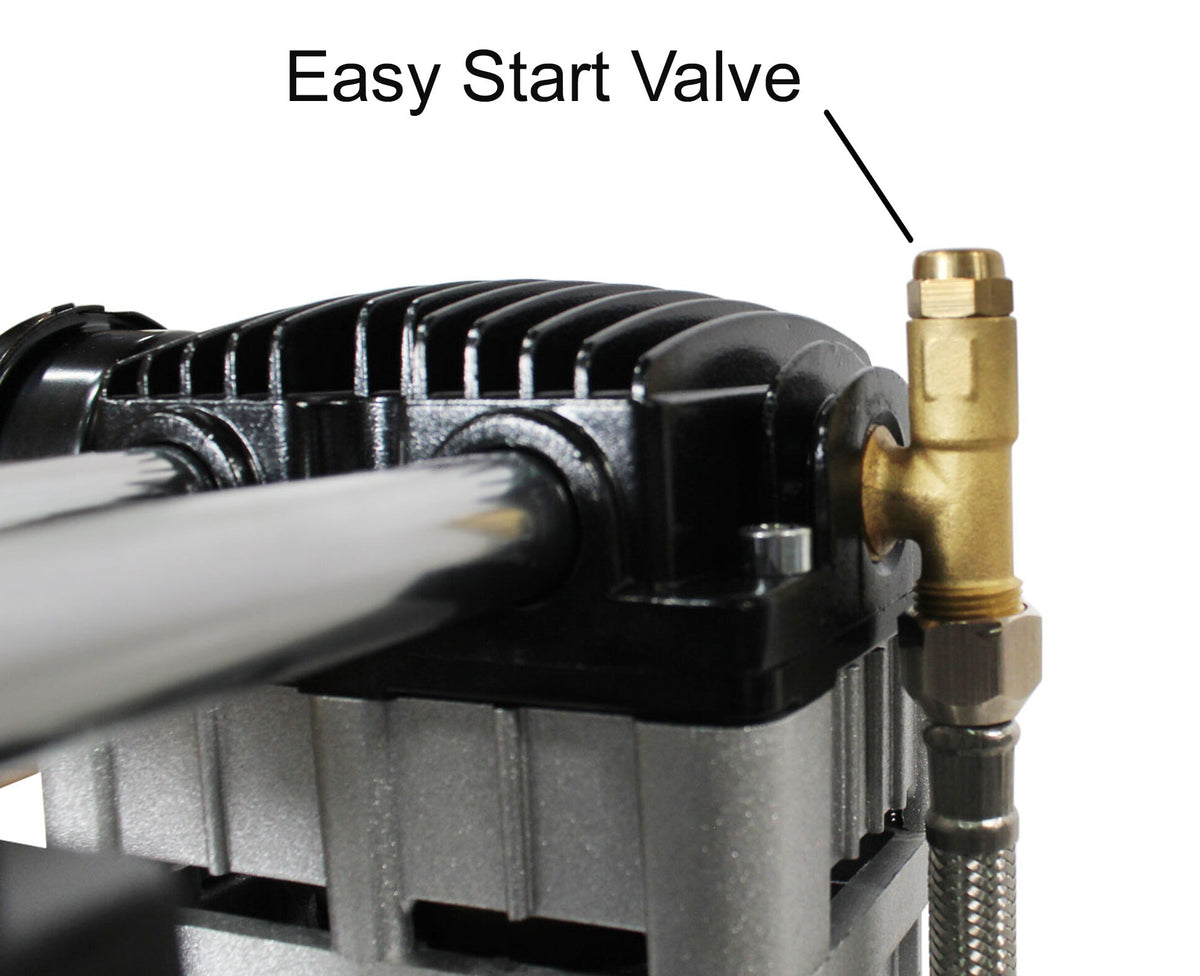

• Easy Start Valve for reduced starting amperage
• Thermal overload protection
• One 1/4-inch NPT female industrial push-to-connect air port
• Tank pressure gauge and regulated output pressure gauge
• Swivel caster wheels
• 70/30 duty cycle

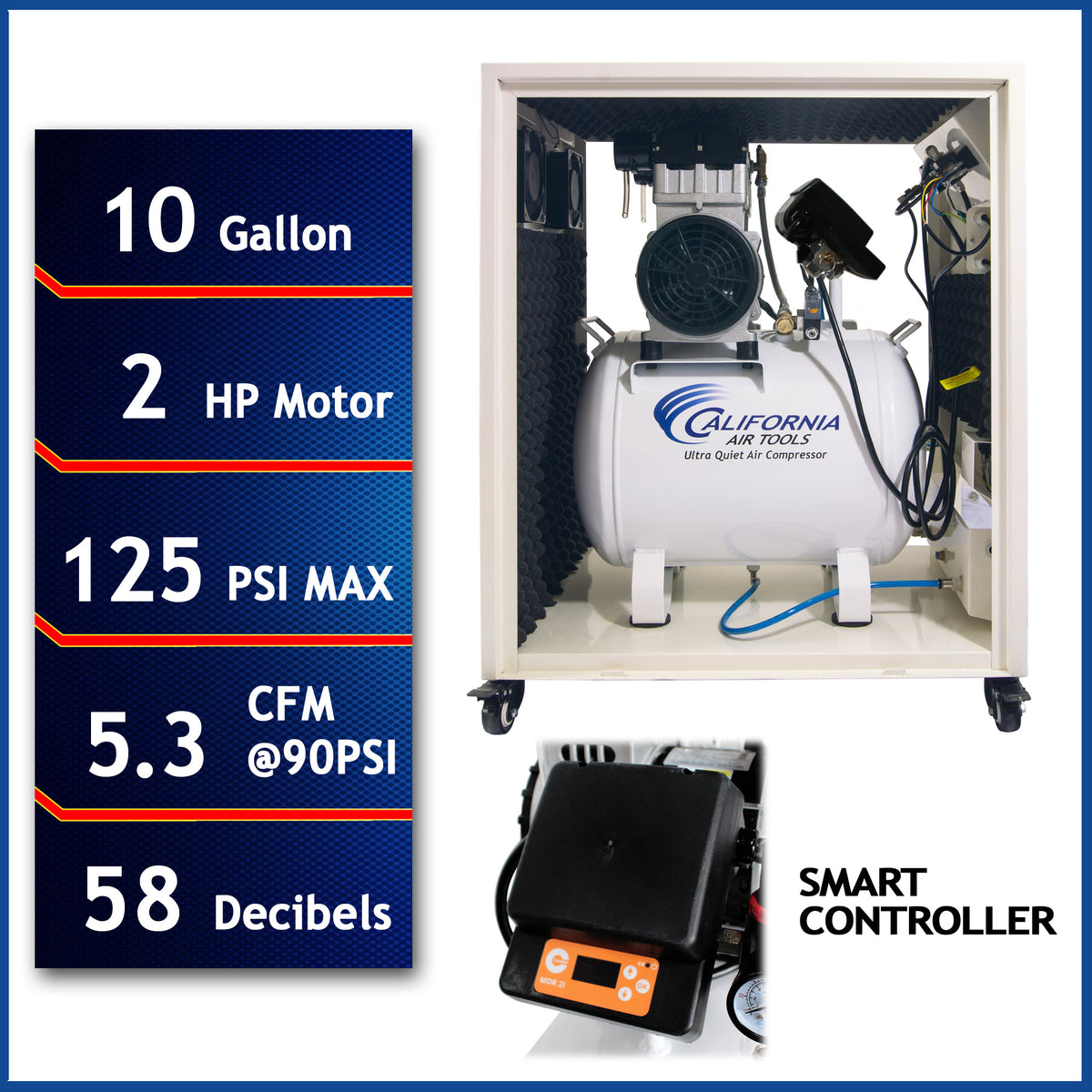

Specifications

• Model: 10020SMSPC
• Motor: 2.0 HP
• Pump Type: Oil-Free Dual Piston
• Tank Capacity: 10 Gallons
• Tank Material: Steel
• Cabinet: Soundproof
• Noise Level: 58 dB
• Voltage: 110V
• Frequency: 60 Hz
• Phase: Single Phase
• Amperage: 14A
• Airflow: 6.40 CFM @ 40 PSI
• Airflow: 5.30 CFM @ 90 PSI
• Working Pressure: 90–120 PSI
• Maximum Kick-Off Pressure: 130 PSI
• Motor Speed: 1680 RPM
• Duty Cycle: 70/30
• Dimensions: 19.75" L x 19.75" W x 31.5" H
• Weight: 145 lbs
• Warranty: 1 Year Limited Warranty
• Controller: MDR2i OLED SMART Controller

What's Included

• California Air Tools 10020SMSPC Air Compressor
• 10-gallon steel air tank
• Soundproof cabinet
• MDR2i OLED SMART Controller
• Two air filters
• Easy Start Valve
• Industrial push-to-connect air port
• Swivel caster wheels

Applications

The California Air Tools 10020SMSPC is suitable for professional workshops, commercial environments, manufacturing areas, dental and laboratory applications, pneumatic tools, light-duty production equipment, and other applications where quiet operation and remote compressor monitoring are beneficial.

Maintenance

The oil-free dual piston pump eliminates the need for routine pump oil changes. California Air Tools recommends replacing the two air filters every 2 years, or annually when the compressor is used in dusty or dirty environments. The SMART controller also provides access to operating parameters and maintenance-related settings for easier monitoring.
