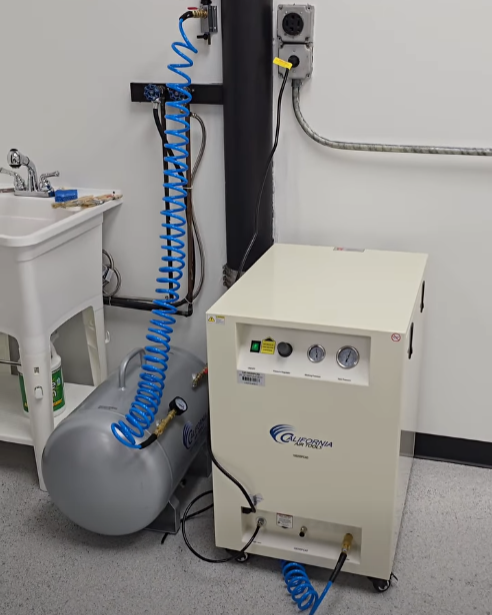

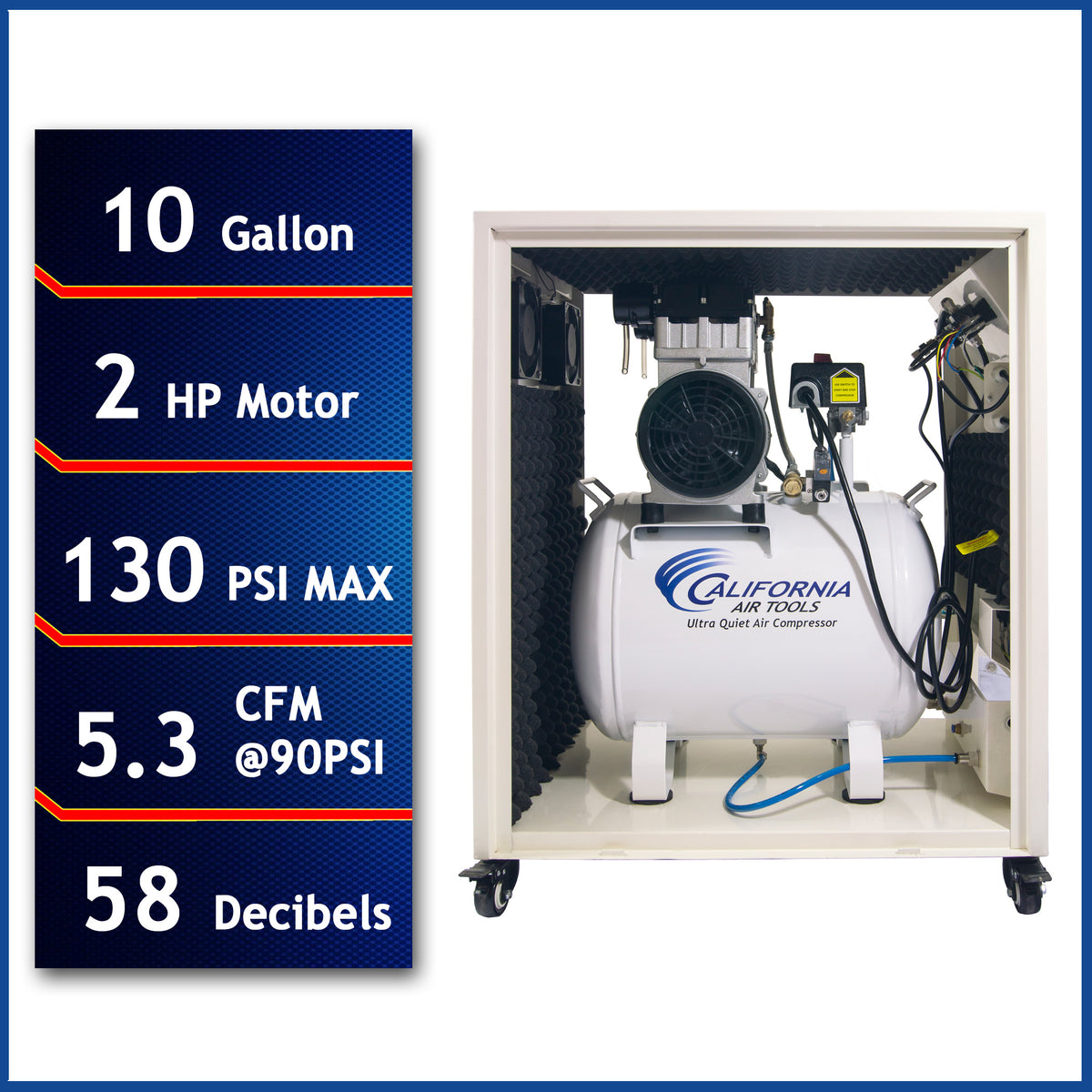

California Air Tools 10020SPC Ultra Quiet 2.0 HP Oil-Free 10 Gallon Air Compressor in Sound Proof Cabinet

Product Description

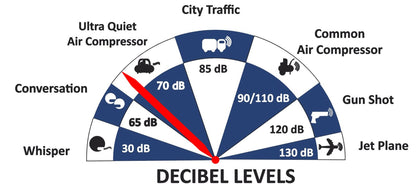

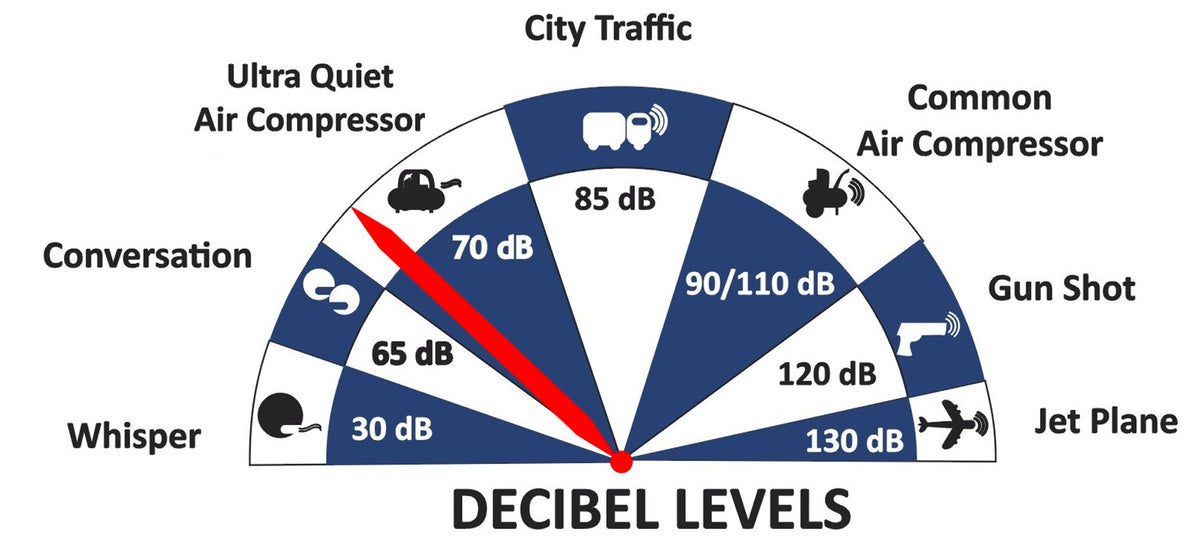

The California Air Tools 10020SPC is a 2.0 HP ultra-quiet, oil-free air compressor designed for users who need reliable compressed air with significantly reduced operating noise. Operating at only 58 dB, the compressor is housed inside a sound proof cabinet to provide a quieter working environment.

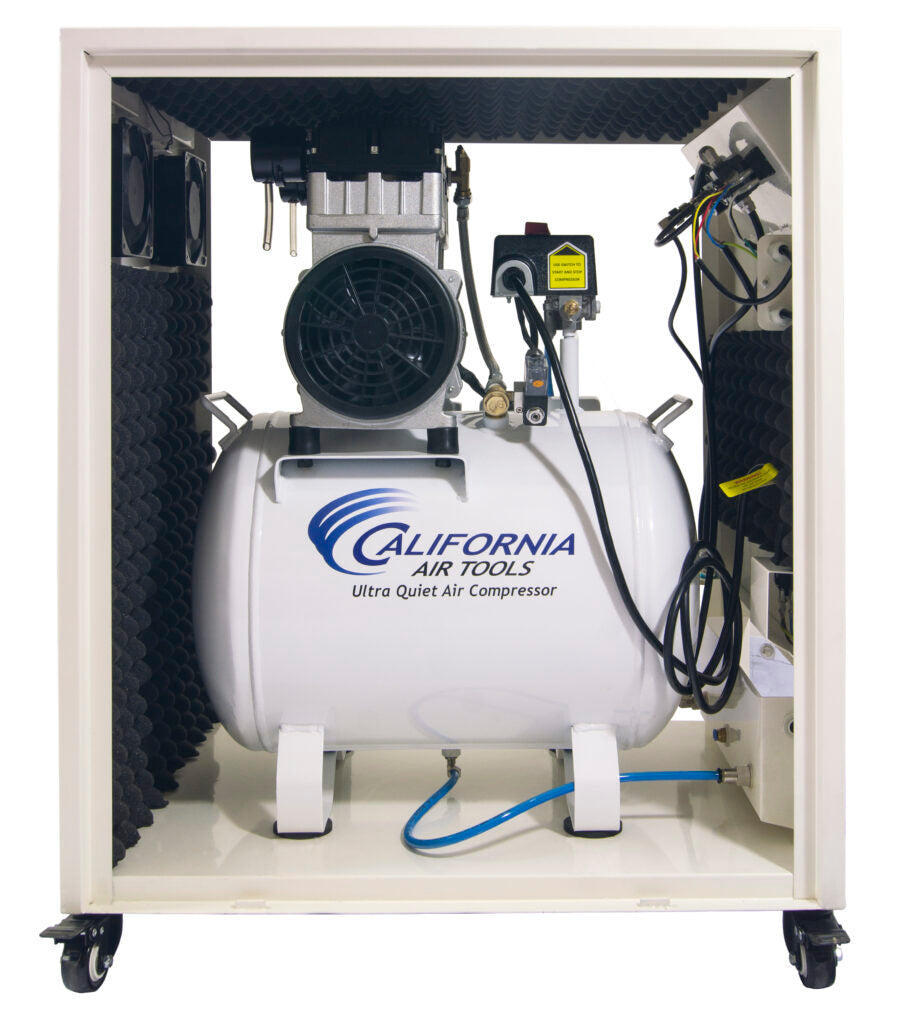

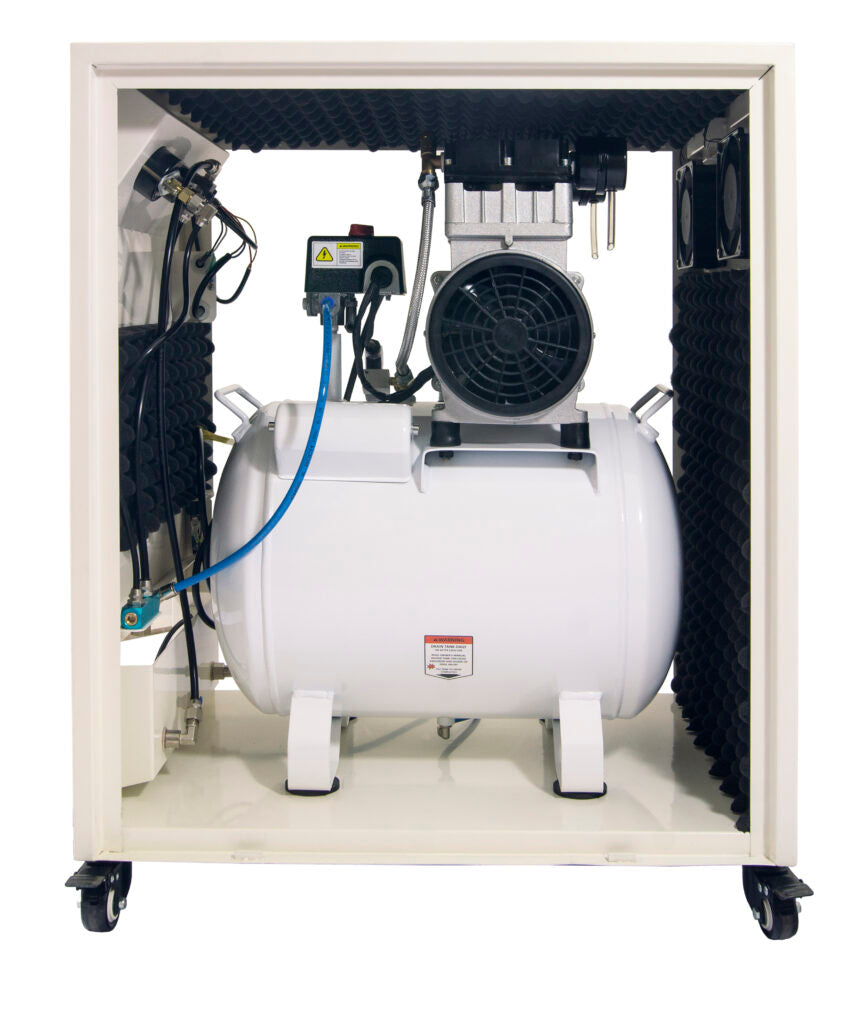

The oil-free dual-piston pump is engineered for high performance and durability, with a designed life cycle of more than 3,000 hours before wear. The 10-gallon steel air tank provides compressed air storage, while the sound proof cabinet includes two exhaust fans to help dissipate heat during operation.

The compressor also features an Easy Start Valve that reduces starting amperage by allowing the motor to start under a no-load condition. Four caster wheels make the unit easier to move between locations.

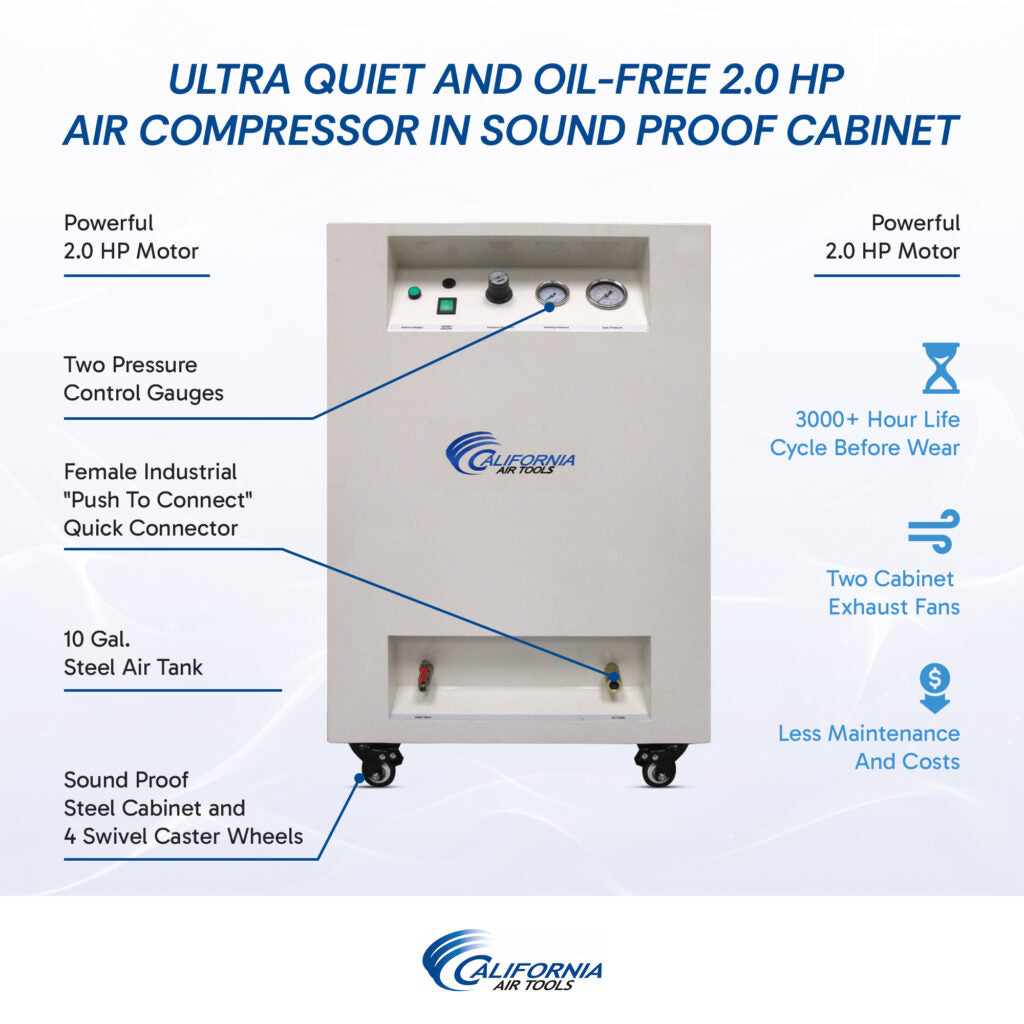

Key Features

• 2.0 HP rated/running motor
• Ultra-quiet 58 dB operation
• Oil-free dual-piston pump
• 10-gallon steel air tank
• Sound proof cabinet
• Designed for 3,000+ hours before pump wear
• Easy Start Valve for reduced starting amperage

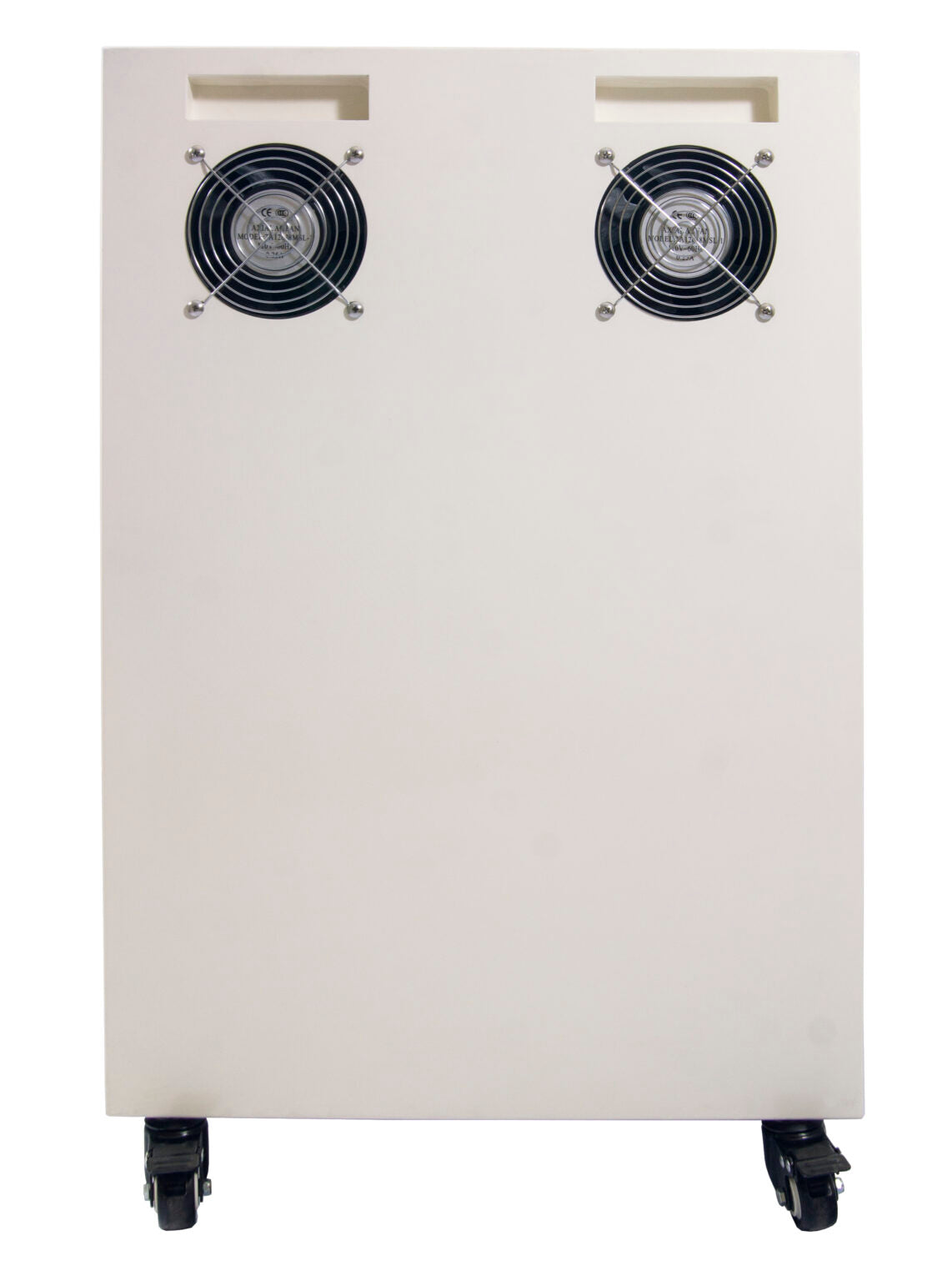

• Two cabinet exhaust fans for heat dissipation
• Four swivel caster wheels for mobility
• Two pressure control gauges
• 1/4-inch NPT industrial push-to-connect quick connector
• Condor pressure switch
• Thermal overload protector
• 130 PSI maximum pressure
• 70/30 duty cycle
• Oil-free operation for reduced maintenance

Specifications

• Model: 10020SPC
• Motor: 2.0 HP rated/running
• Motor Speed: 1680 RPM
• Pump: Oil-Free Dual Piston
• Tank Capacity: 10 gallons
• Tank Material: Steel
• Cabinet: Sound Proof
• Noise Level: 58 dB
• Voltage: 110V
• Frequency: 60 Hz
• Current Draw: 14 Amps
• Air Delivery: 6.40 CFM @ 40 PSI
• Air Delivery: 5.30 CFM @ 90 PSI
• Maximum Pressure: 130 PSI
• Tank Fill Time: 130 seconds
• Recovery Time: 40 seconds from 100 PSI to 130 PSI
• Duty Cycle: 70/30
• Dimensions: 19.75 × 19.75 × 31.5 inches
• Weight: 145 lbs
• Tank Rating: Non-ASME
• Warranty: 1-Year Limited Manufacturer Warranty
• Assembly: Assembled in USA with global components

What's Included

• California Air Tools 10020SPC Air Compressor
• 10-gallon steel air tank
• Sound proof cabinet
• Two air filters
• Four caster wheels
• Pressure control gauges
• 1/4-inch NPT industrial push-to-connect quick connector
• Easy Start Valve

Applications

• Contractor applications
• Workshop applications
• Pneumatic tools
• Professional air-powered equipment
• Applications requiring reduced operating noise
• Applications where oil-free compressed air is preferred
• Airbrushing and spray applications where suitable airflow is required
• Dental and milling applications where applicable

Maintenance

Replace the two 2 HP air filters every two years, or annually if the compressor is exposed to a dirty or dusty environment. Replacement air filter part number: 90260.

The sound proof cabinet has two latching doors that provide access to the compressor and components. Keep the cabinet exhaust areas clear to allow proper airflow and heat dissipation.
