California Air Tools 10020SPC 2.0 HP Ultra Quiet Oil-Free 10 Gallon Air Compressor with Soundproof Cabinet, 110V

Product Description

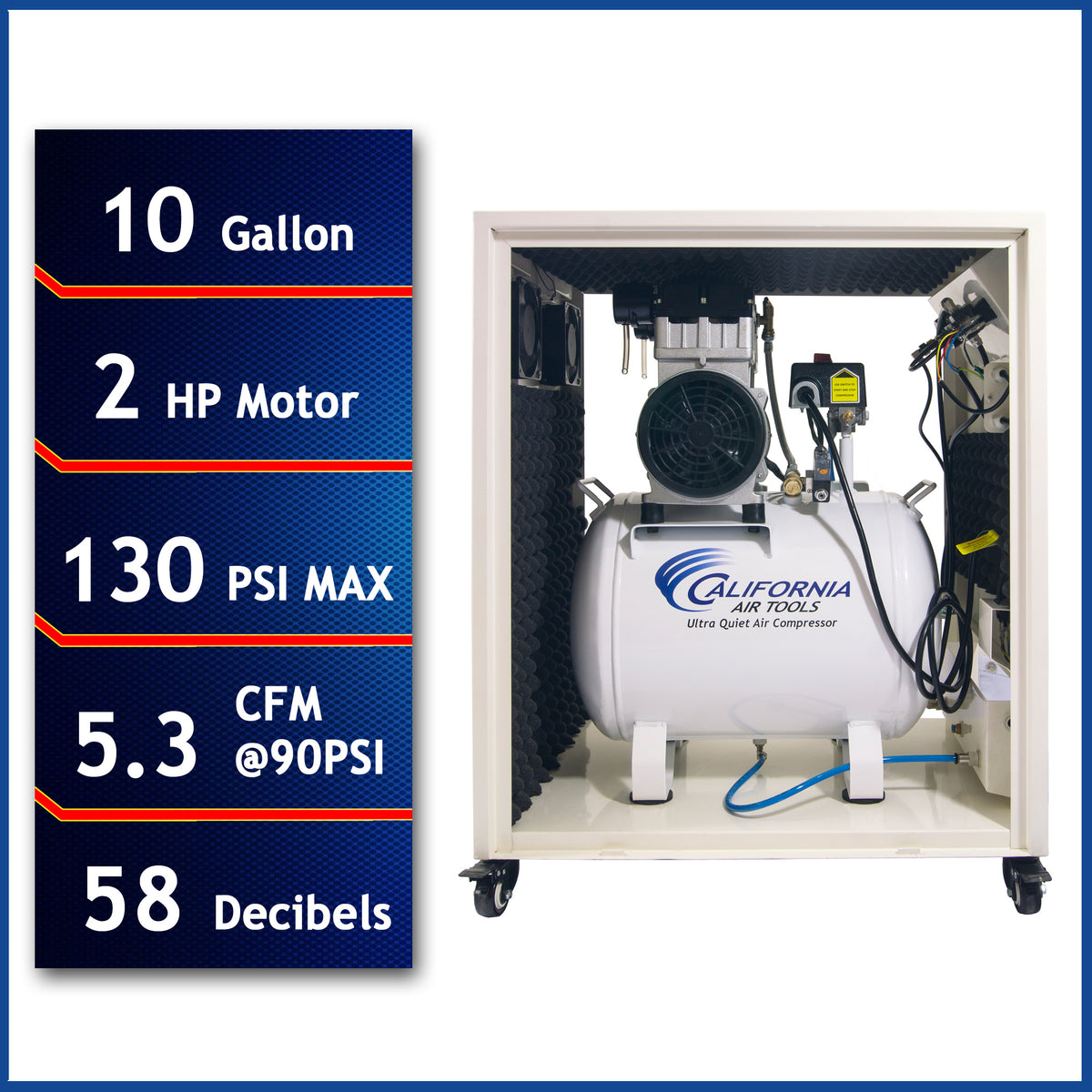

The California Air Tools 10020SPC is a 2.0 HP ultra-quiet, oil-free air compressor designed for professional users who need reliable compressed air with reduced operating noise. It features a 10-gallon steel air tank enclosed in a soundproof cabinet and operates at only 58 dB.

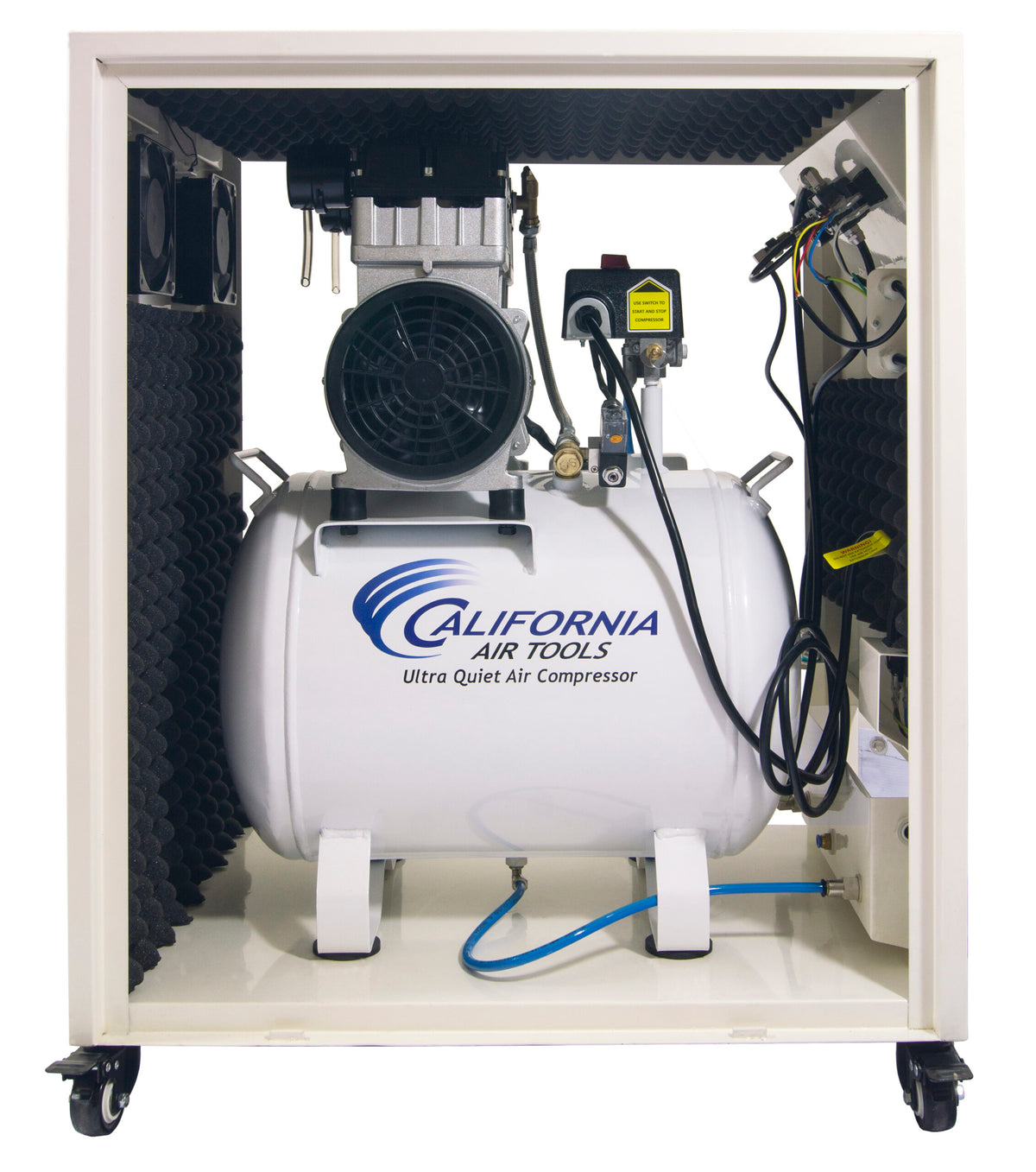

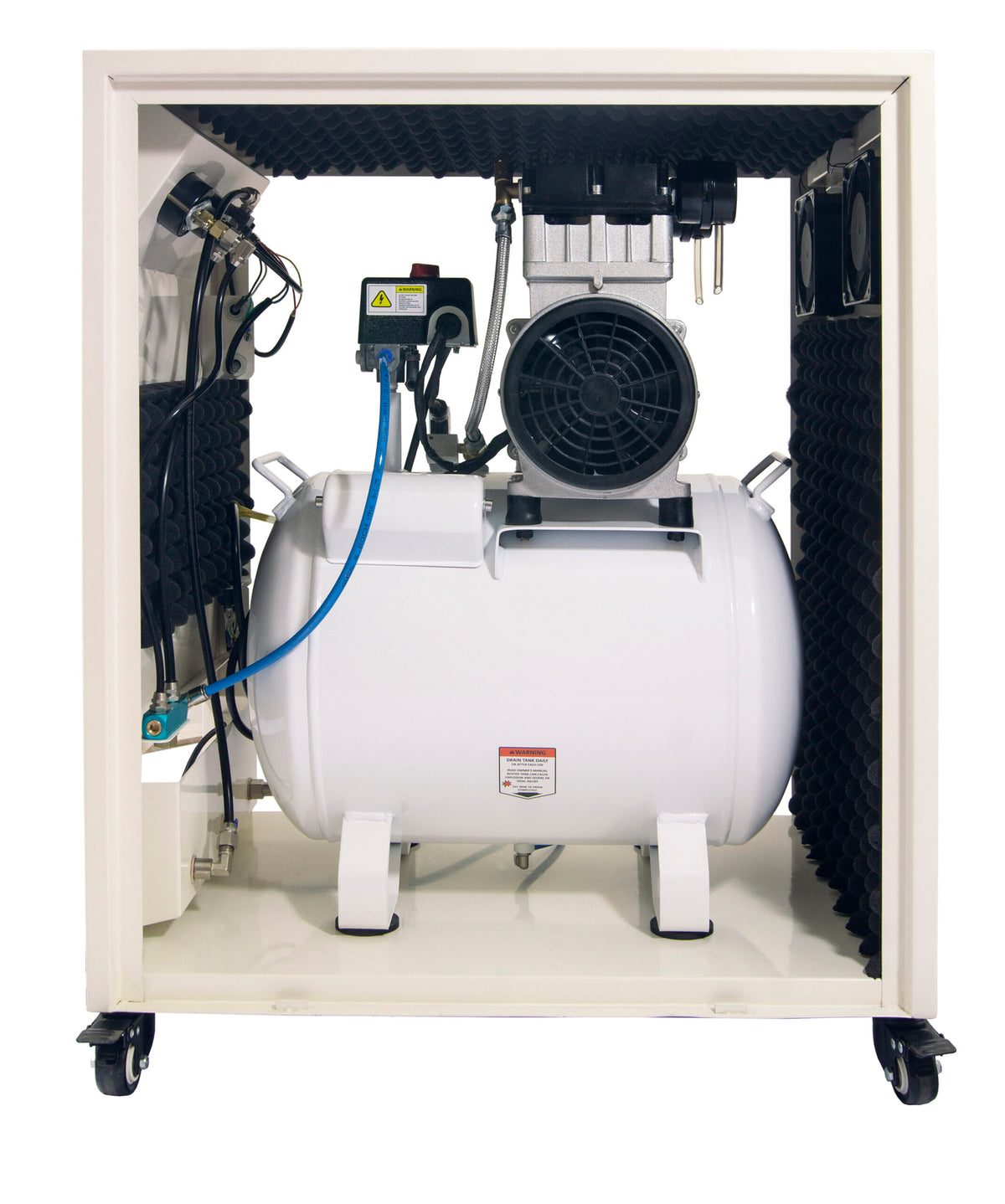

The oil-free dual piston pump is engineered for high performance and durability while eliminating the need for pump oil. The 2.0 HP motor operates at 1680 RPM to help reduce noise and wear. The compressor delivers 6.40 CFM at 40 PSI and 5.30 CFM at 90 PSI, with a maximum pressure of 130 PSI.

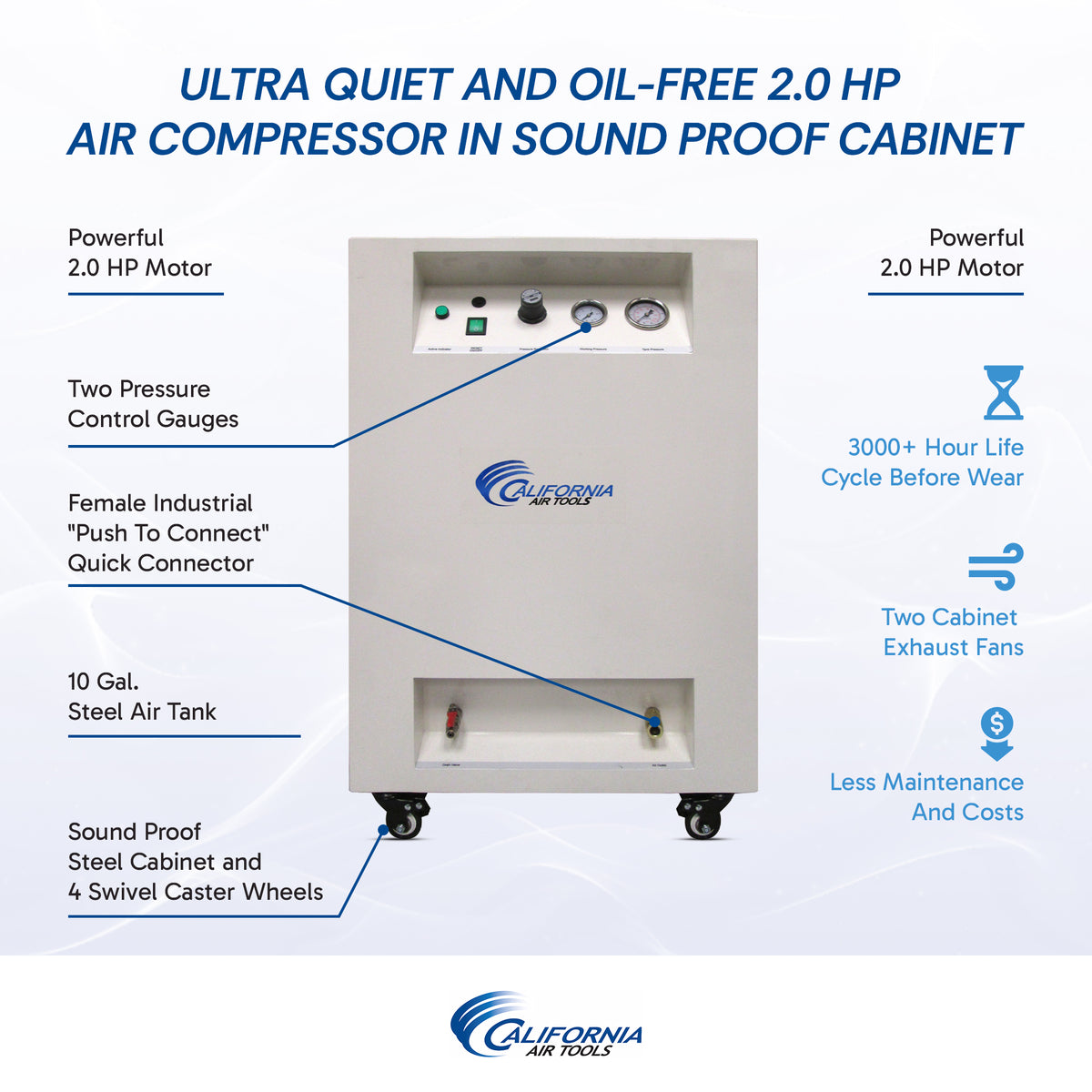

The soundproof cabinet includes two latching doors for convenient access to the compressor components, two exhaust fans to help remove heat, and four swivel caster wheels for easier movement. The Easy Start Valve reduces the starting amperage required by allowing the motor to start under a no-load condition.

Key Features

• 2.0 HP rated/running motor
• Ultra-quiet 58 dB operation
• Oil-free dual piston pump
• 10-gallon steel air tank
• Soundproof cabinet with acoustic insulation
• 1680 RPM motor speed
• 6.40 CFM at 40 PSI
• 5.30 CFM at 90 PSI
• 130 PSI maximum pressure
• Easy Start Valve for reduced starting amperage

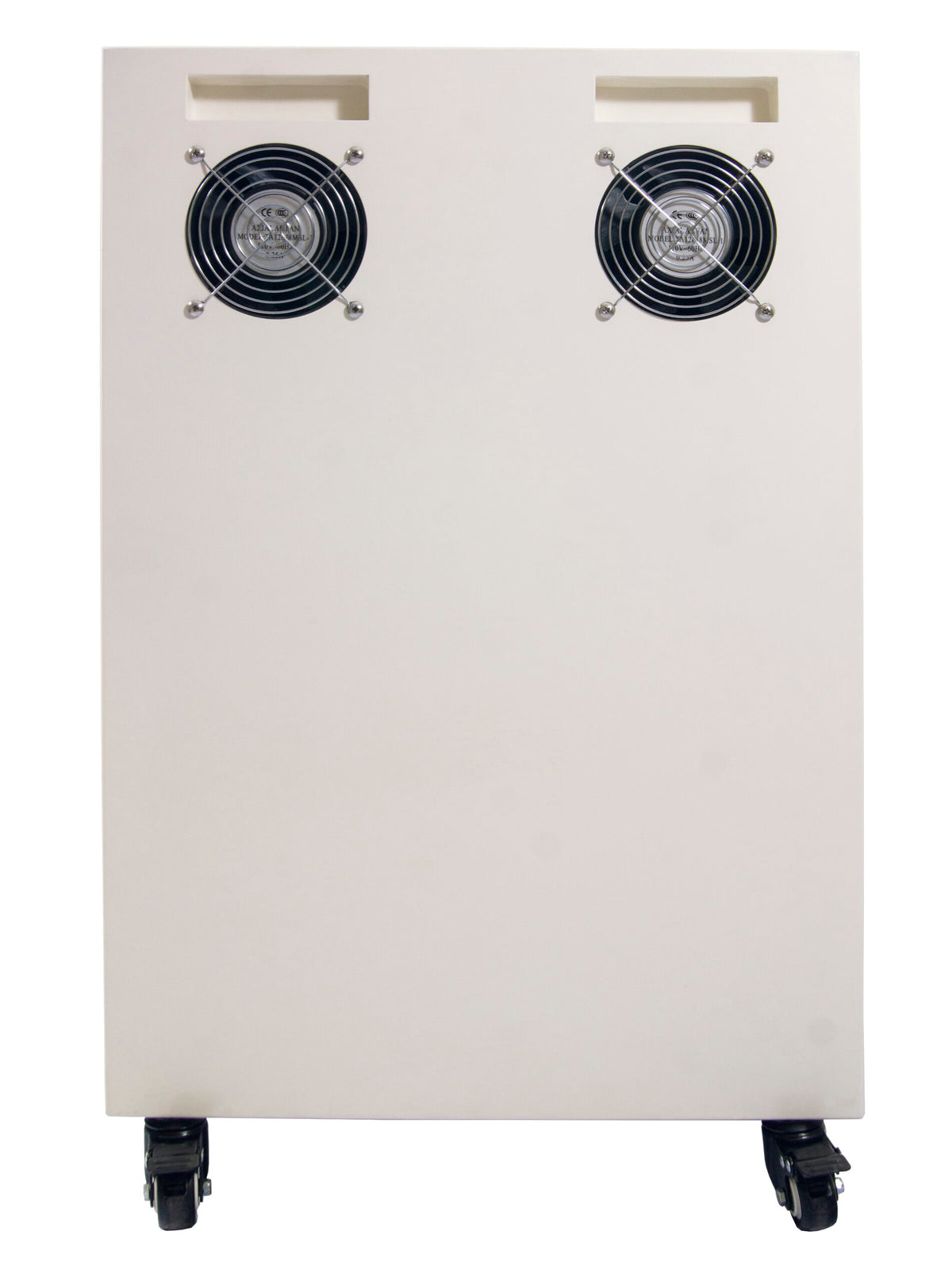

• Two cabinet exhaust fans for heat removal
• Two latching cabinet doors for convenient component access
• Two pressure control gauges
• One 1/4-inch NPT industrial push-to-connect air connector
• Thermal overload protection
• Four swivel caster wheels
• 70/30 duty cycle
• Oil-free operation for reduced pump maintenance

Specifications

• Model: 10020SPC
• Motor: 2.0 HP
• Pump Type: Oil-Free Dual Piston
• Tank Capacity: 10 Gallons
• Tank Material: Steel
• Cabinet: Soundproof
• Noise Level: 58 dB
• Voltage: 110V
• Frequency: 60 Hz
• Phase: Single Phase
• Amperage: 14A
• Airflow: 6.40 CFM @ 40 PSI
• Airflow: 5.30 CFM @ 90 PSI
• Maximum Pressure: 130 PSI
• Motor Speed: 1680 RPM
• Duty Cycle: 70/30
• Fill Time: Approximately 130 seconds
• Recovery Time: Approximately 40 seconds from 100 to 130 PSI
• Dimensions: 19.75" L x 19.75" W x 31.5" H
• Weight: 145 lbs
• Tank Type: Non-ASME
• Warranty: 1 Year Limited Warranty
• Assembly: Assembled in USA with global components

What's Included

• California Air Tools 10020SPC Air Compressor
• 10-gallon steel air tank
• Soundproof cabinet
• Two pressure control gauges
• Industrial 1/4-inch NPT push-to-connect air connector
• Easy Start Valve
• Thermal overload protector
• Four swivel caster wheels
• Two cabinet exhaust fans

Applications

The California Air Tools 10020SPC is suitable for workshops, commercial environments, professional workspaces, pneumatic tools, manufacturing applications, milling applications, and other environments where reliable compressed air and reduced operating noise are important.

Maintenance

The oil-free dual piston pump eliminates the need for routine pump oil changes. California Air Tools recommends replacing the two air filters every 2 years, or annually when the compressor is operated in a dusty or dirty environment. The soundproof cabinet and exhaust fans should also be kept clear of dust and debris to maintain proper airflow and cooling.
