California Air Tools 10020SPCAD Ultra Quiet 2.0 HP Oil-Free 10 Gallon Air Compressor with Automatic Drain Valve in Sound Proof Cabinet

Product Description

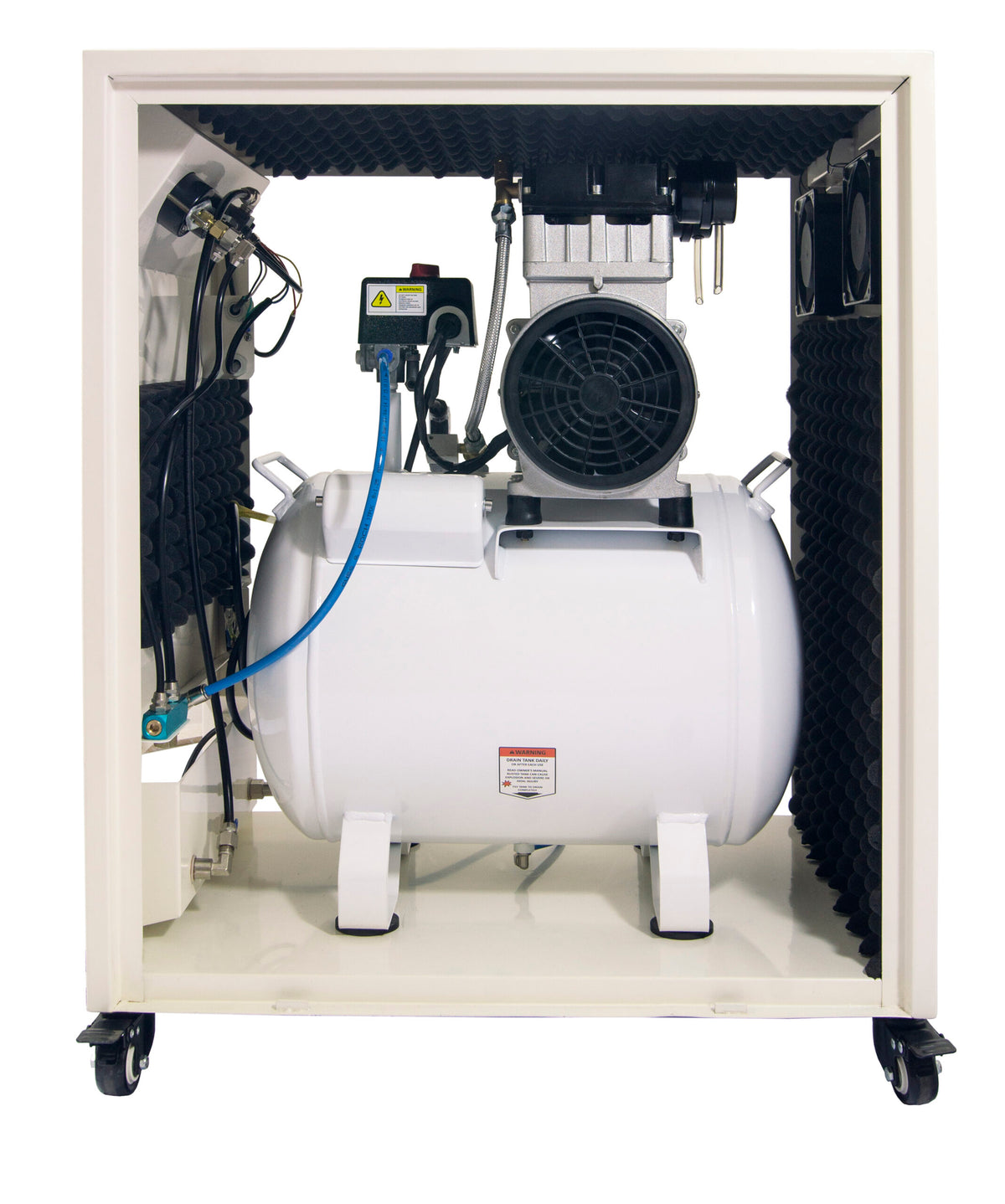

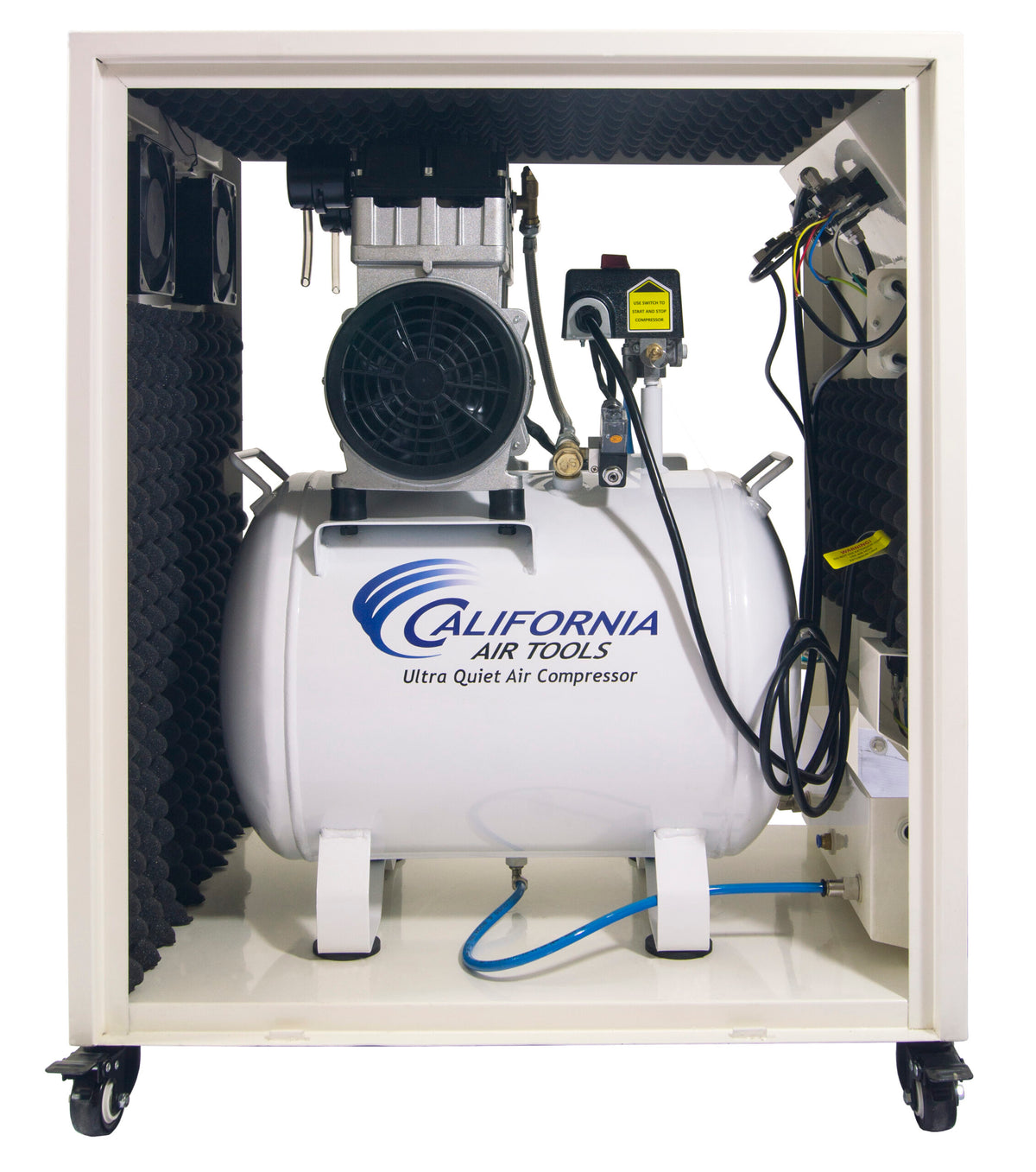

The California Air Tools 10020SPCAD is a 2.0 HP ultra-quiet, oil-free air compressor housed in a sound proof cabinet and equipped with a factory-installed automatic drain valve. Operating at only 58 dB, it is designed to provide powerful compressed air while reducing noise in the working environment.

The oil-free dual-piston pump operates at 1680 RPM and is designed for a life cycle of 3,000+ hours before wear. The 10-gallon steel air tank provides compressed air storage, while the sound proof cabinet uses two exhaust fans to help remove heat and maintain cooler operating conditions.

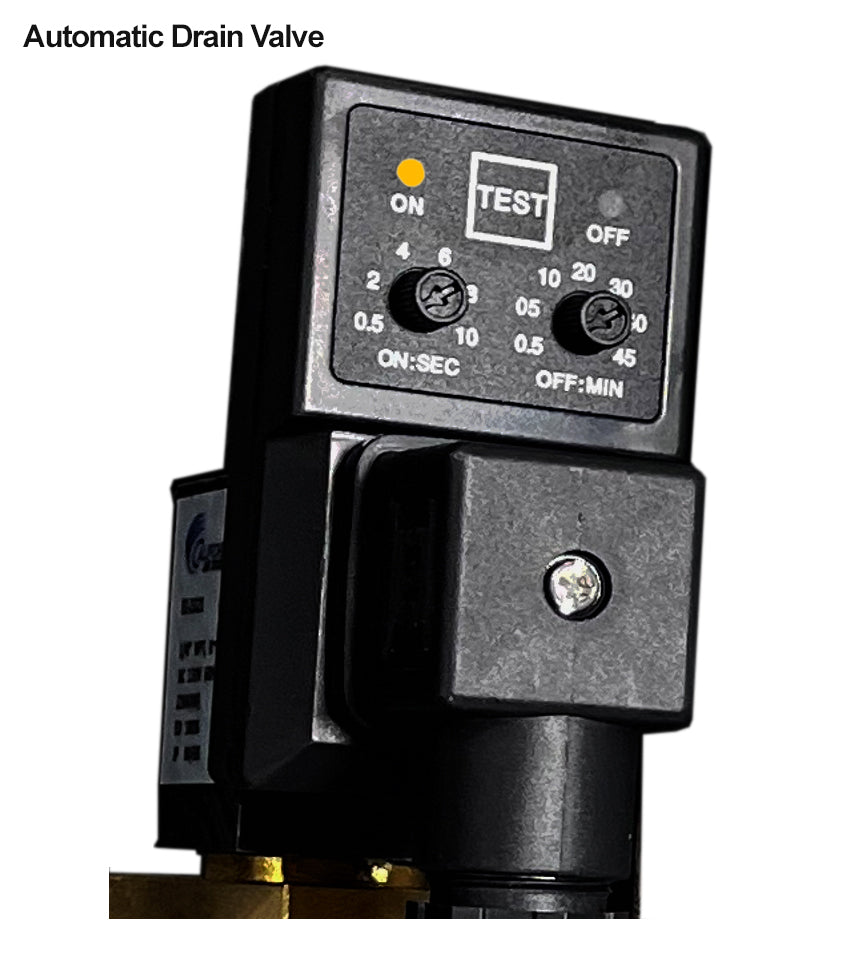

The integrated California Air Tools EZ-1 automatic drain valve eliminates the need for manually draining the air tank. Its programmable timer allows the user to set both the frequency and duration of the automatic draining process.

The compressor also features an Easy Start Valve for easier startup with reduced starting amperage and four caster wheels for convenient mobility.

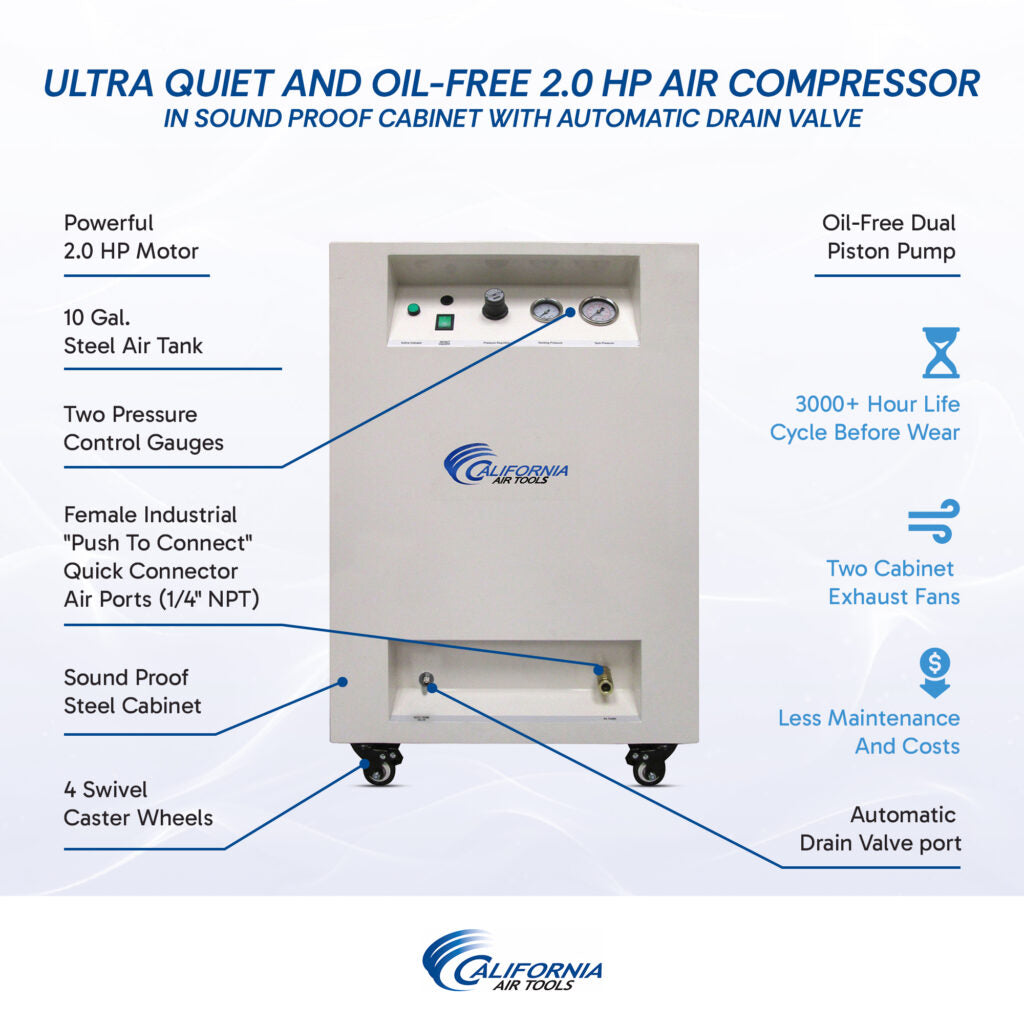

Key Features

• 2.0 HP rated/running motor
• Ultra-quiet 58 dB operation
• Oil-free dual-piston pump
• 10-gallon steel air tank
• Sound proof cabinet
• Factory-installed EZ-1-2321 automatic drain valve
• Programmable automatic drain frequency and duration
• Easy Start Valve for reduced starting amperage

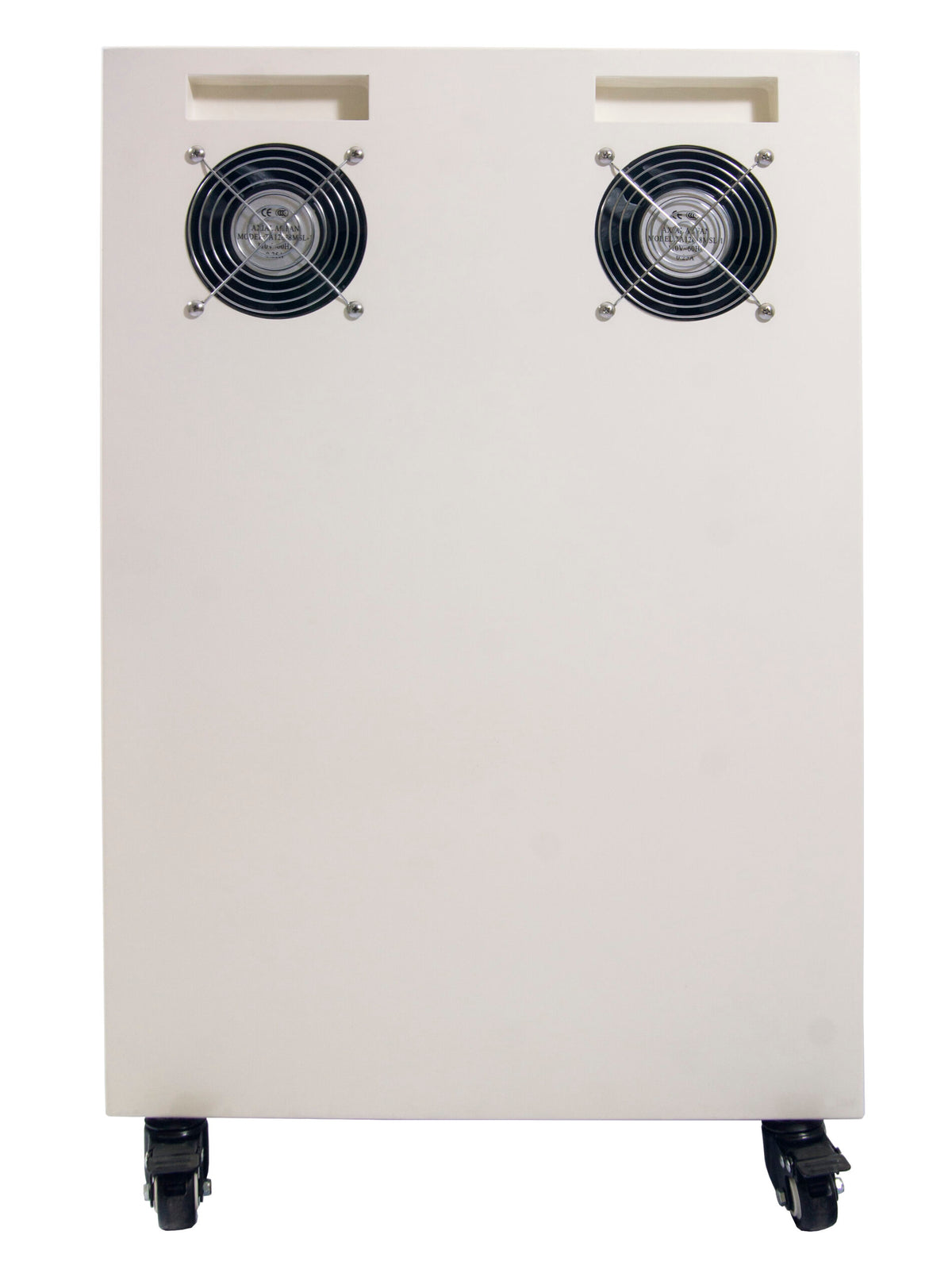

• Two cabinet exhaust fans for heat dissipation
• Four caster wheels for easy movement
• Two pressure control gauges
• 1/4-inch NPT industrial push-to-connect quick connector
• Condor pressure switch
• Thermal overload protector
• 130 PSI maximum pressure
• 70/30 duty cycle
• Oil-free operation for reduced maintenance

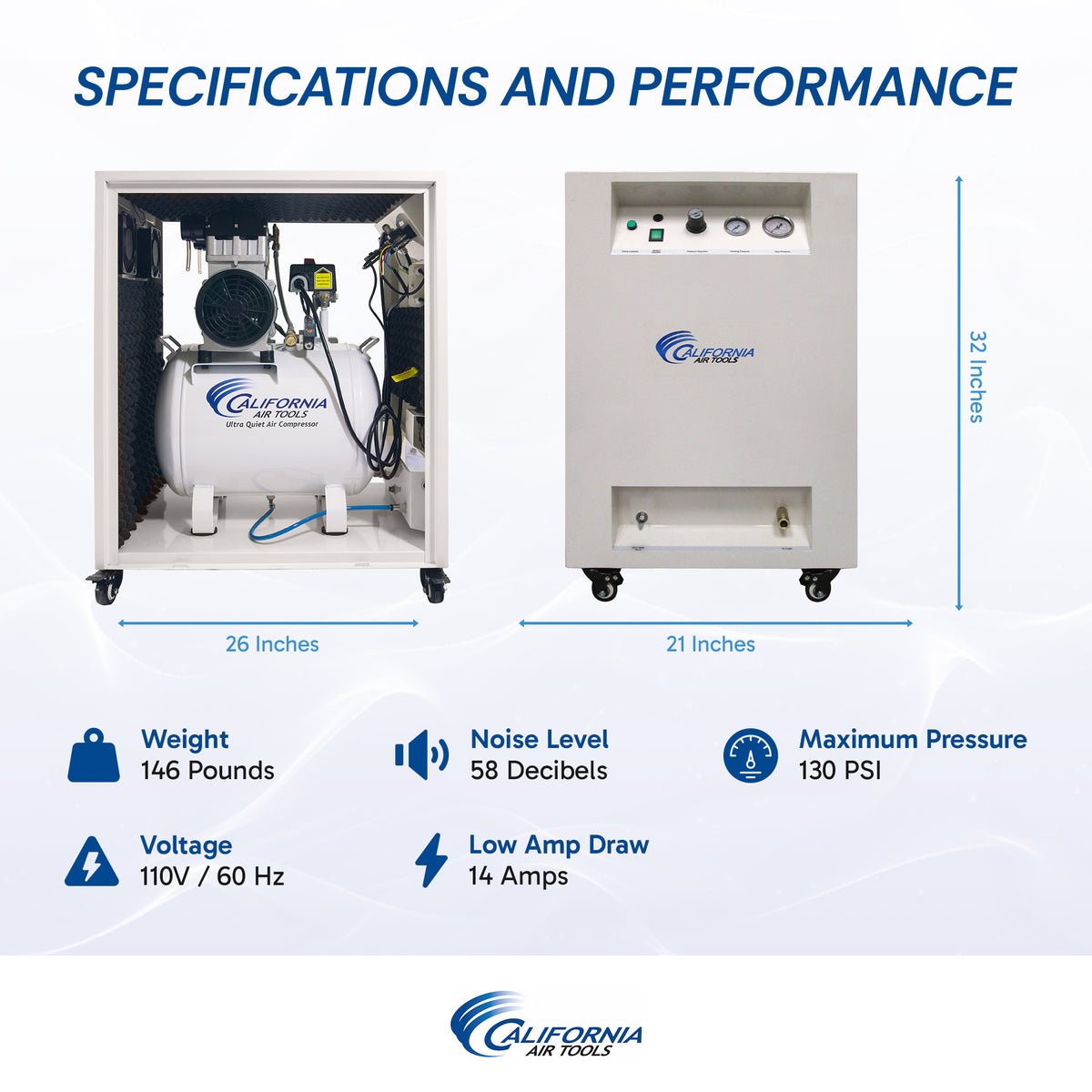

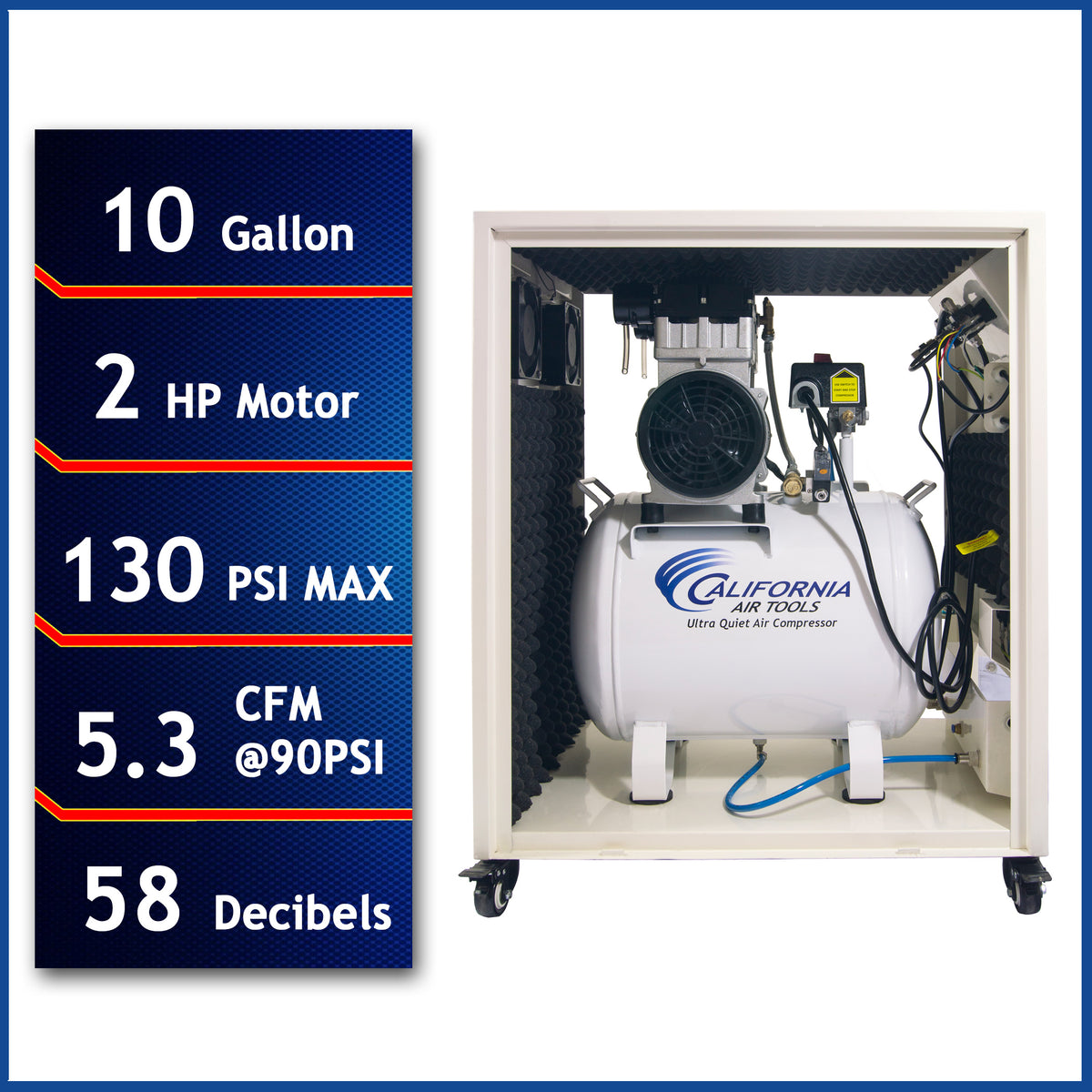

Specifications

• Model: 10020SPCAD
• Motor: 2.0 HP rated/running
• Motor Speed: 1680 RPM
• Pump: Oil-Free Dual Piston
• Tank Capacity: 10 gallons
• Tank Material: Steel
• Cabinet: Sound Proof
• Noise Level: 58 dB
• Voltage: 110V
• Frequency: 60 Hz
• Current Draw: 14 Amps
• Air Delivery: 6.40 CFM @ 40 PSI
• Air Delivery: 5.30 CFM @ 90 PSI
• Maximum Pressure: 130 PSI
• Tank Fill Time: 130 seconds
• Recovery Time: 40 seconds from 100 PSI to 130 PSI
• Duty Cycle: 70/30
• Automatic Drain Valve: EZ-1-2321
• Dimensions: 19.75 × 19.75 × 31.5 inches
• Weight: 146 lbs
• Tank Rating: Non-ASME
• Warranty: 1-Year Limited Manufacturer Warranty

What's Included

• California Air Tools 10020SPCAD Air Compressor
• 10-gallon steel air tank
• Sound proof cabinet
• EZ-1-2321 automatic drain valve
• Two air filters
• Four caster wheels
• Two pressure control gauges
• 1/4-inch NPT industrial push-to-connect quick connector

Applications

• Contractor applications
• Workshop applications
• Pneumatic tools and equipment
• Professional air-powered equipment
• Workspaces requiring reduced operating noise
• Applications where oil-free compressed air is preferred
• Applications requiring automatic air tank drainage

Maintenance

Replace the two 2 HP air filters every two years, or every year if the compressor is exposed to a dirty or dusty environment. Replacement air filter part number: 90260.

The automatic drain valve is designed to eliminate the need for manual tank draining. The programmable timer allows the drain frequency and duration to be adjusted according to operating requirements.

Keep the sound proof cabinet exhaust areas clear to allow proper airflow and heat dissipation during operation.
