California Air Tools 10020SPCAD 2.0 HP Ultra Quiet Oil-Free 10 Gallon Air Compressor with Automatic Drain & Soundproof Cabinet, 110V

Product Description

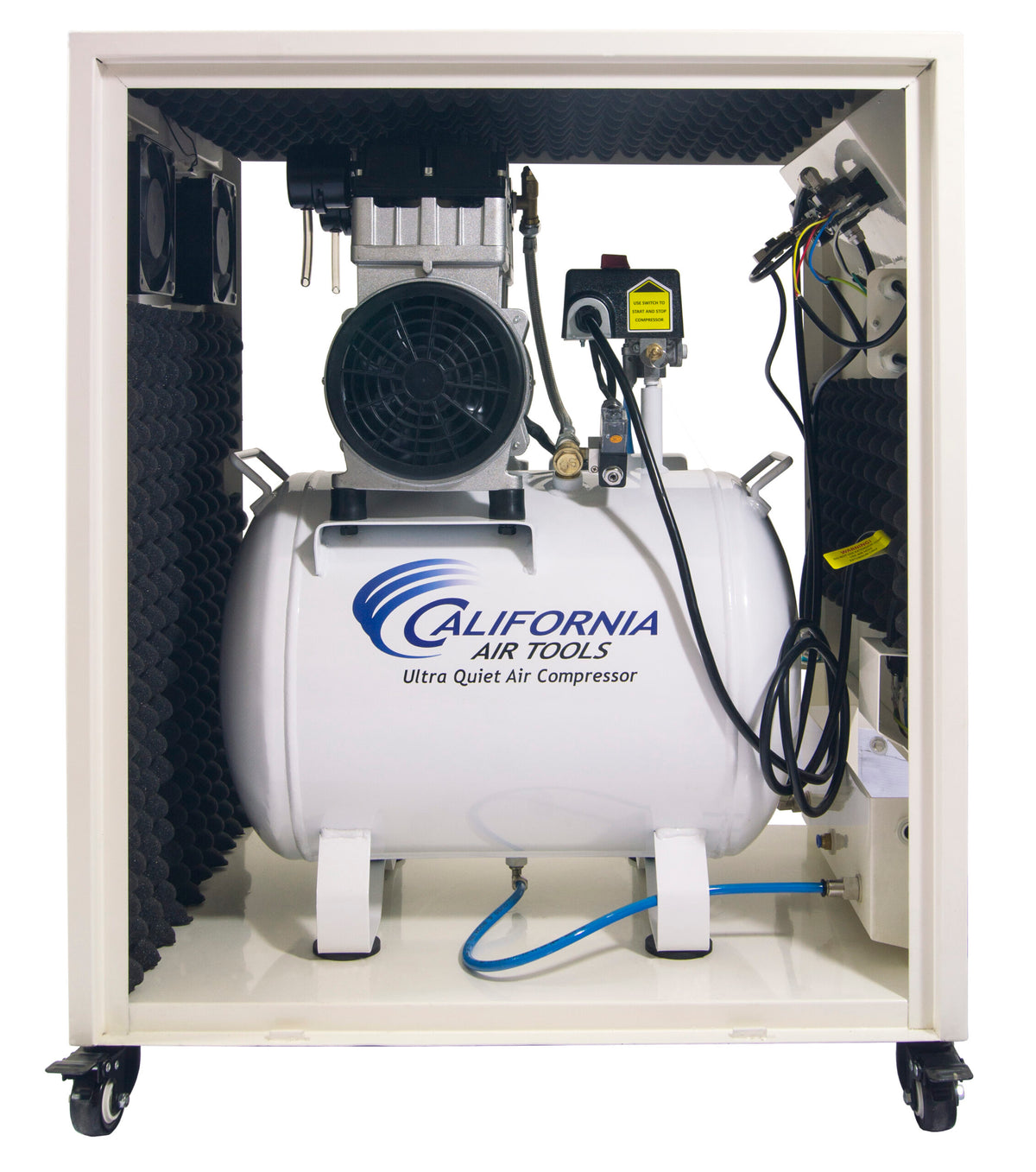

The California Air Tools 10020SPCAD is a 2.0 HP ultra-quiet, oil-free air compressor designed for professional applications where reliable compressed air and reduced operating noise are important. It features a 10-gallon steel air tank enclosed in a soundproof cabinet and operates at only 58 dB.

The oil-free dual piston pump operates at 1680 RPM and is engineered for high performance, durability, and reduced maintenance. The compressor delivers 6.40 CFM at 40 PSI and 5.30 CFM at 90 PSI, with a maximum pressure of 130 PSI.

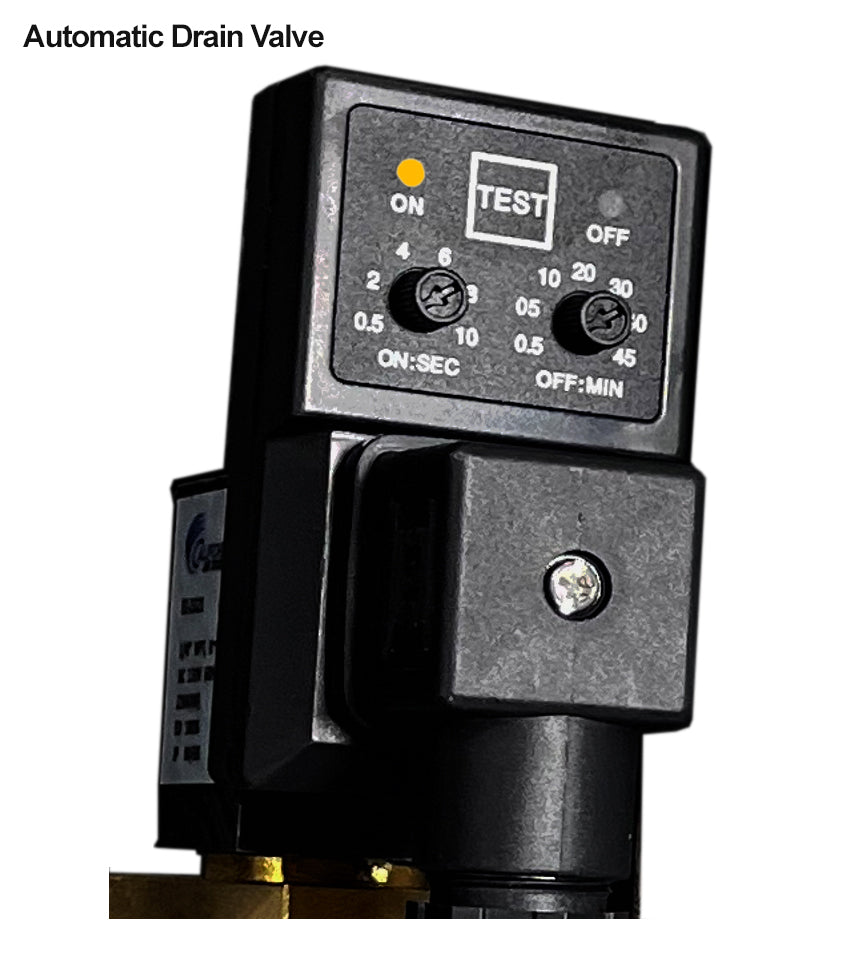

This model includes the factory-installed California Air Tools EZ-1-2321 automatic drain valve, which eliminates the need to manually drain accumulated moisture from the air tank. The automatic drain uses a manually set timer to control the frequency and duration of the draining process.

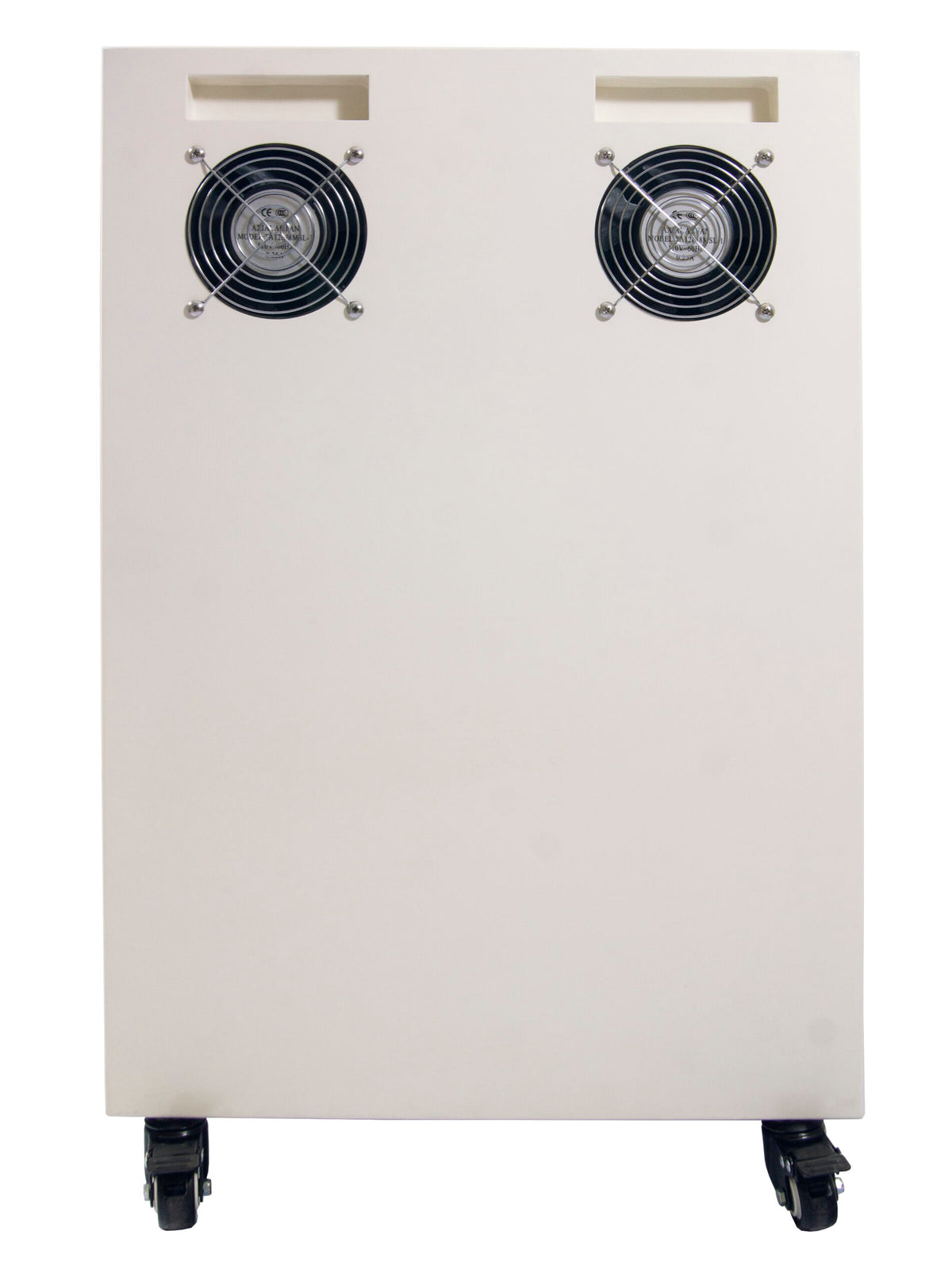

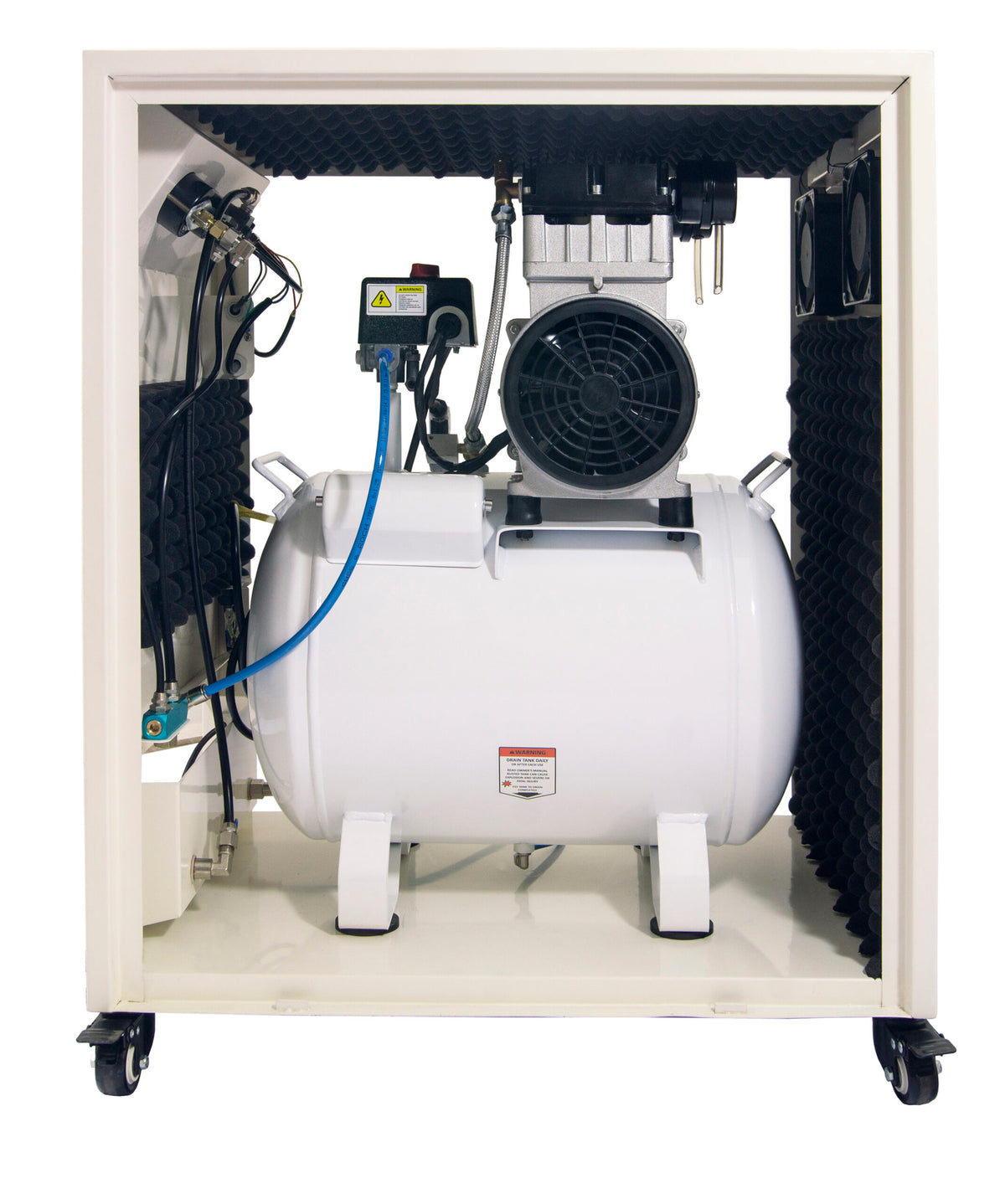

The soundproof cabinet features two latching doors for convenient access to the compressor components, two cabinet exhaust fans for heat removal, and four caster wheels for easier movement.

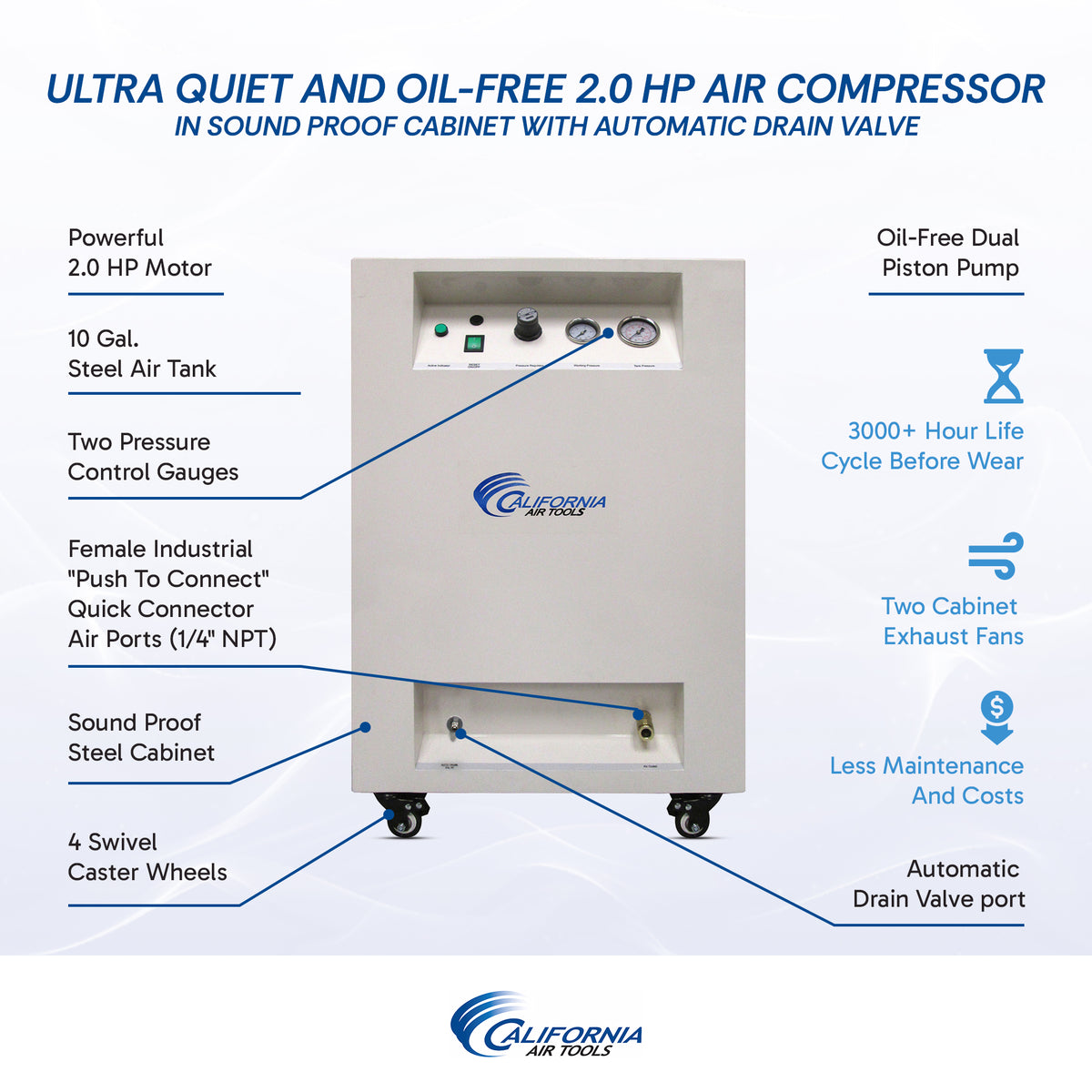

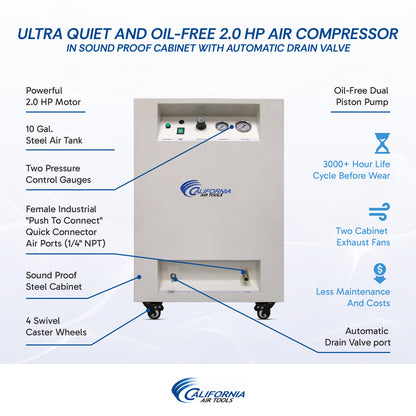

Key Features

• 2.0 HP rated/running motor
• Ultra-quiet 58 dB operation
• Oil-free dual piston pump
• 10-gallon steel air tank
• Soundproof cabinet with acoustic insulation
• Factory-installed EZ-1-2321 automatic drain valve
• Automatic tank draining with adjustable timer
• 1680 RPM motor speed
• 6.40 CFM at 40 PSI
• 5.30 CFM at 90 PSI
• 130 PSI maximum pressure
• Easy Start Valve for reduced starting amperage
• Two cabinet exhaust fans for heat removal
• Two pressure control gauges
• One 1/4-inch NPT industrial push-to-connect air connector
• Thermal overload protection
• Four caster wheels
• 70/30 duty cycle

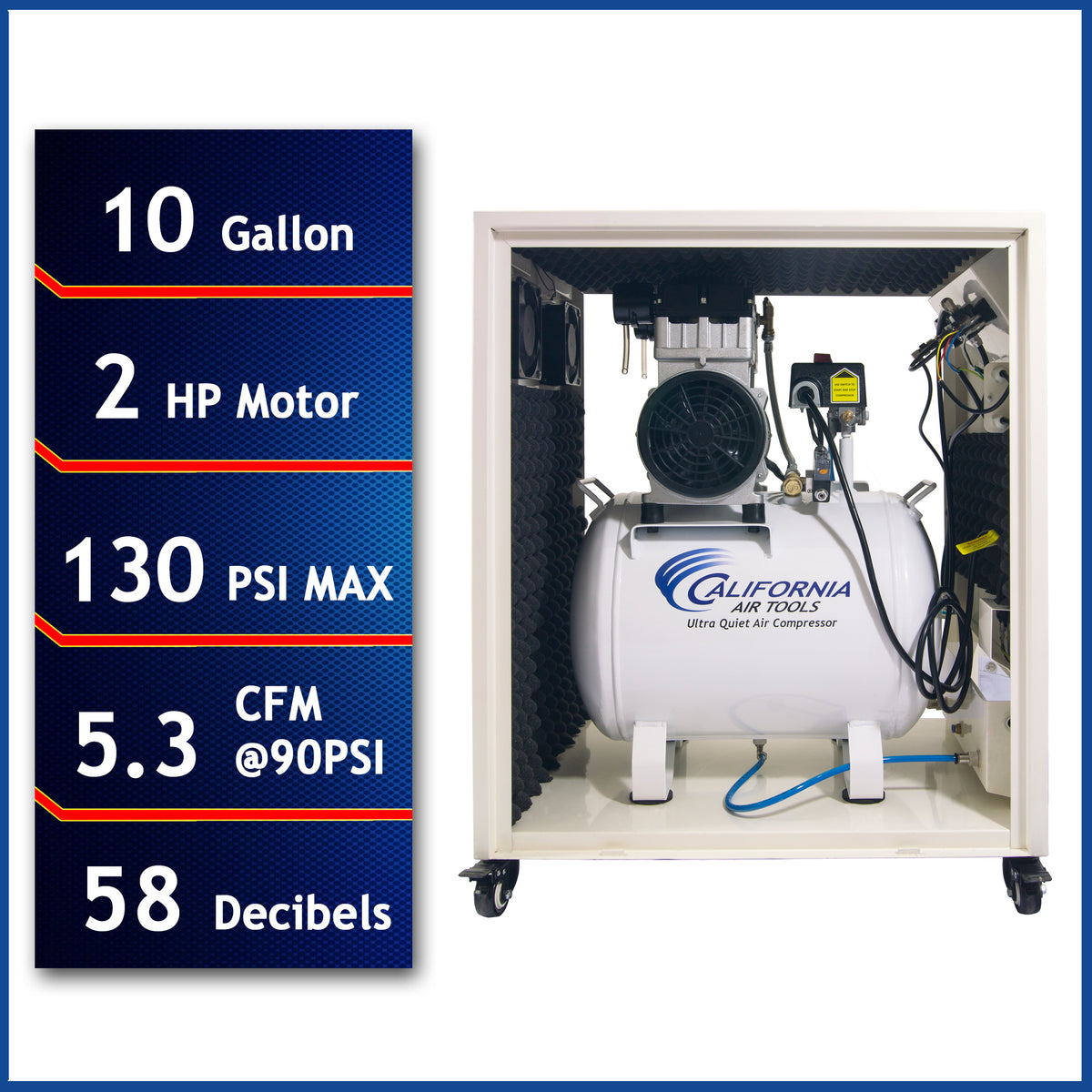

Specifications

• Model: 10020SPCAD
• Motor: 2.0 HP
• Pump Type: Oil-Free Dual Piston
• Tank Capacity: 10 Gallons
• Tank Material: Steel
• Cabinet: Soundproof
• Noise Level: 58 dB
• Voltage: 110V
• Frequency: 60 Hz
• Phase: Single Phase
• Amperage: 14A
• Airflow: 6.40 CFM @ 40 PSI
• Airflow: 5.30 CFM @ 90 PSI
• Maximum Pressure: 130 PSI
• Motor Speed: 1680 RPM
• Duty Cycle: 70/30
• Tank Fill Time: Approximately 130 seconds
• Recovery Time: Approximately 40 seconds from 100 to 130 PSI
• Dimensions: 19.75" L x 19.75" W x 31.5" H
• Weight: 146 lbs
• Automatic Drain: EZ-1-2321, Factory Installed
• Warranty: 1 Year Limited Warranty

What's Included

• California Air Tools 10020SPCAD Air Compressor
• 10-gallon steel air tank
• Soundproof cabinet
• EZ-1-2321 automatic drain valve
• Two pressure control gauges
• 1/4-inch NPT industrial push-to-connect air connector
• Easy Start Valve
• Thermal overload protector
• Four caster wheels
• Two cabinet exhaust fans

Applications

The California Air Tools 10020SPCAD is suitable for workshops, commercial workspaces, professional environments, pneumatic tools, manufacturing applications, milling applications, and other locations where reliable compressed air, quiet operation, and automatic tank drainage are beneficial.

Maintenance

The oil-free dual piston pump eliminates the need for routine pump oil changes. California Air Tools recommends replacing the two air filters every 2 years, or annually when the compressor is exposed to a dirty or dusty environment. The EZ-1 automatic drain valve should be checked periodically to ensure the drain tubing and valve remain clear and operate correctly. The soundproof cabinet exhaust fans and ventilation areas should also be kept free of dust and debris.
