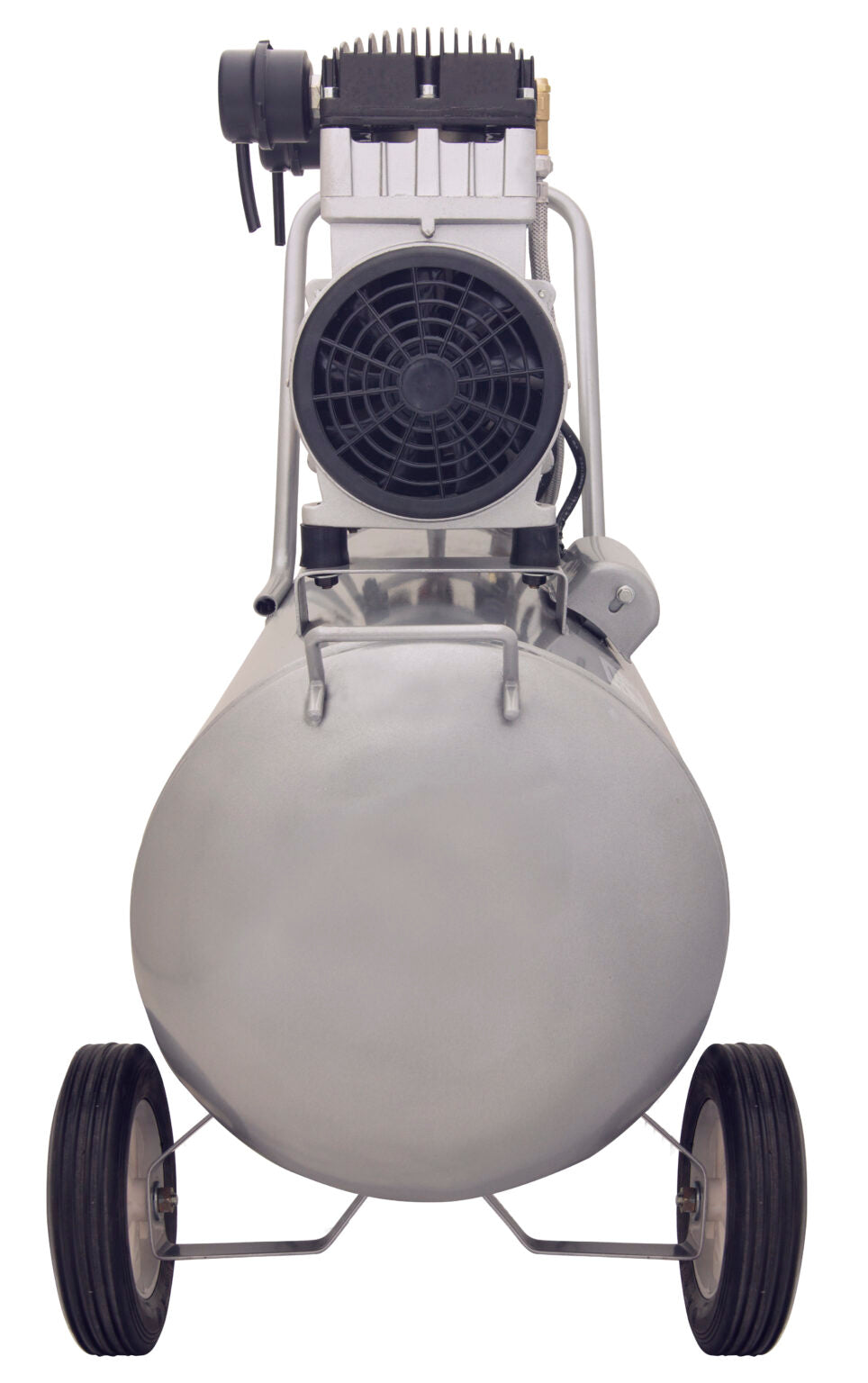

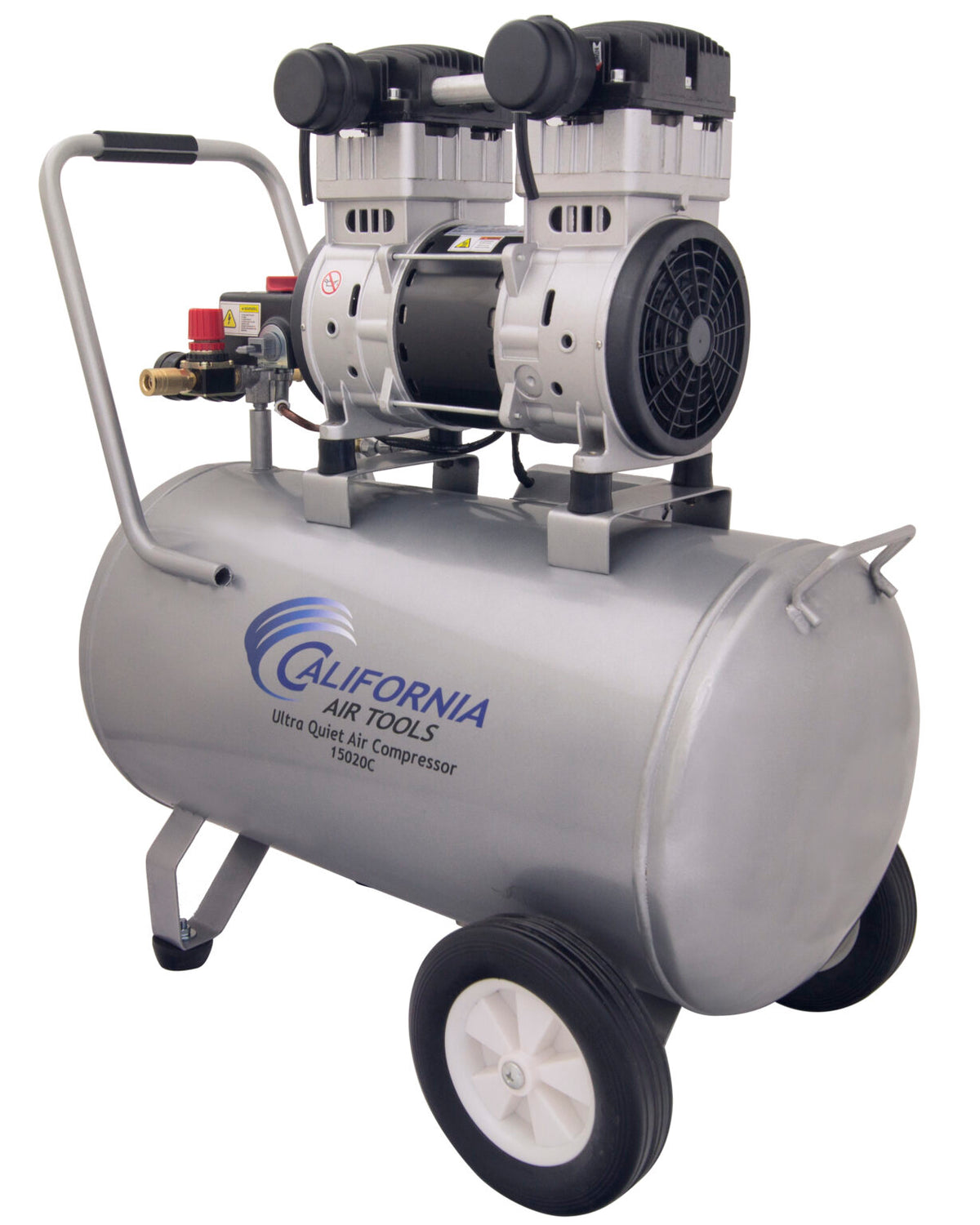

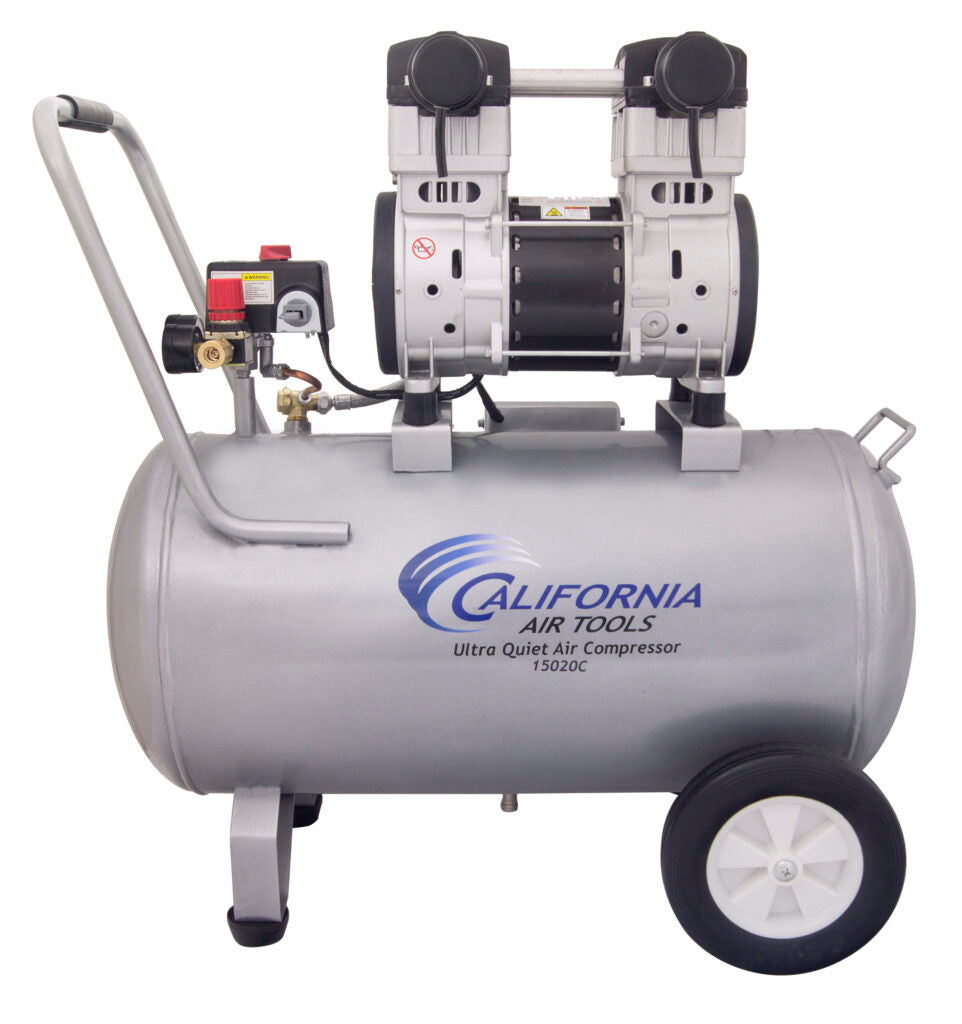

California Air Tools 15020C Ultra Quiet 2.0 HP Oil-Free 15 Gallon Air Compressor

Product Description

The California Air Tools 15020C is a powerful 2.0 HP ultra-quiet and oil-free air compressor with a 15-gallon steel air tank. Operating at only 70 dB, it is designed to provide strong airflow while producing less noise than many comparable compressors.

The SP-9421 2.0 HP motor operates at 1680 RPM, helping reduce noise and wear while supporting longer continuous run times. The oil-free dual-piston pump is engineered for high performance and durability, with a designed life cycle of more than 3,000 hours before wear.

The 15-gallon steel tank includes a wheel kit for easier movement around a jobsite, workshop, or garage. An Easy Start Valve reduces the starting amperage by allowing the motor to start under a no-load condition.

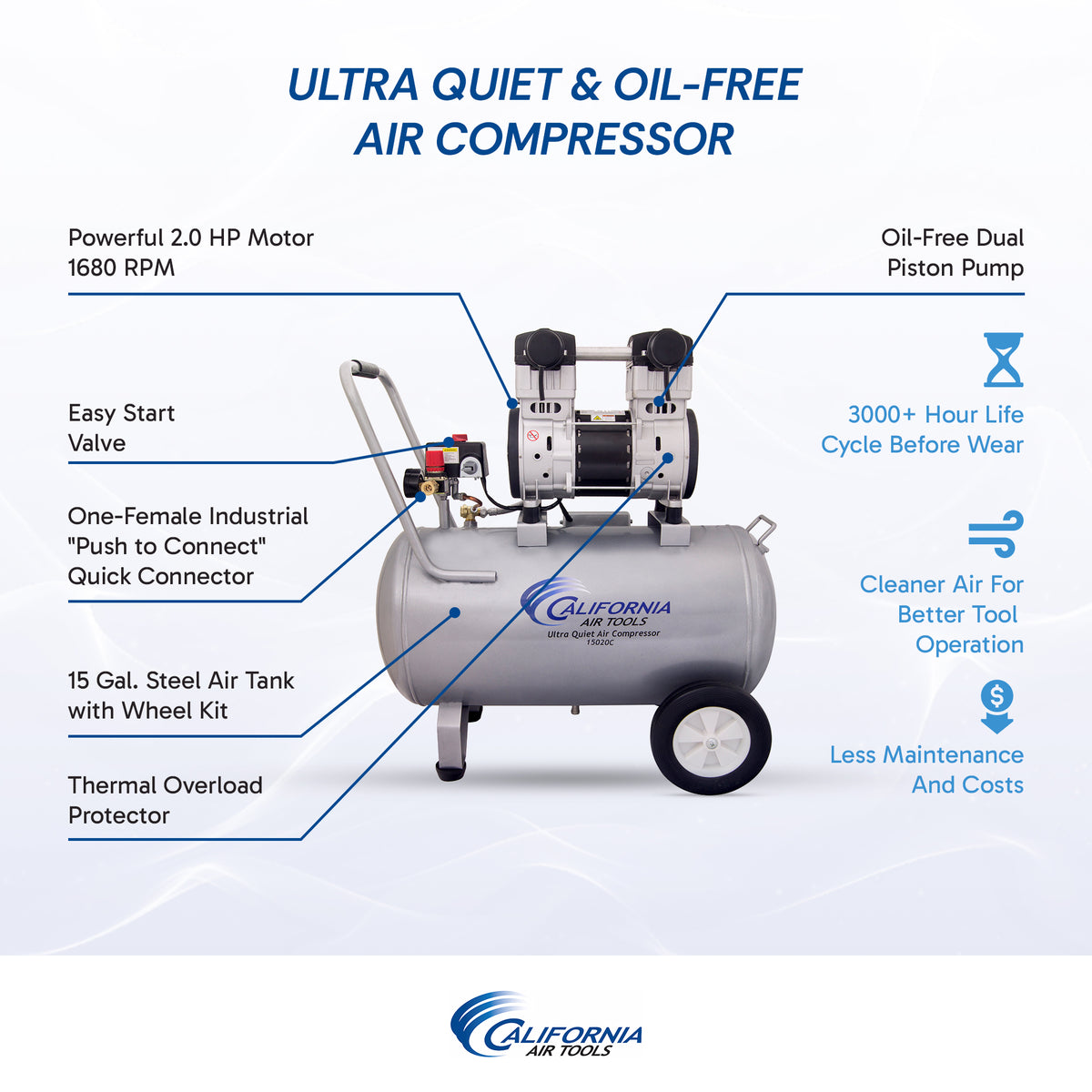

Key Features

• 2.0 HP rated/running motor
• Ultra-quiet 70 dB operation
• Oil-free dual-piston pump
• 15-gallon steel air tank
• Designed for 3,000+ hours before pump wear
• SP-9421 motor operating at 1680 RPM
• Easy Start Valve for reduced starting amperage

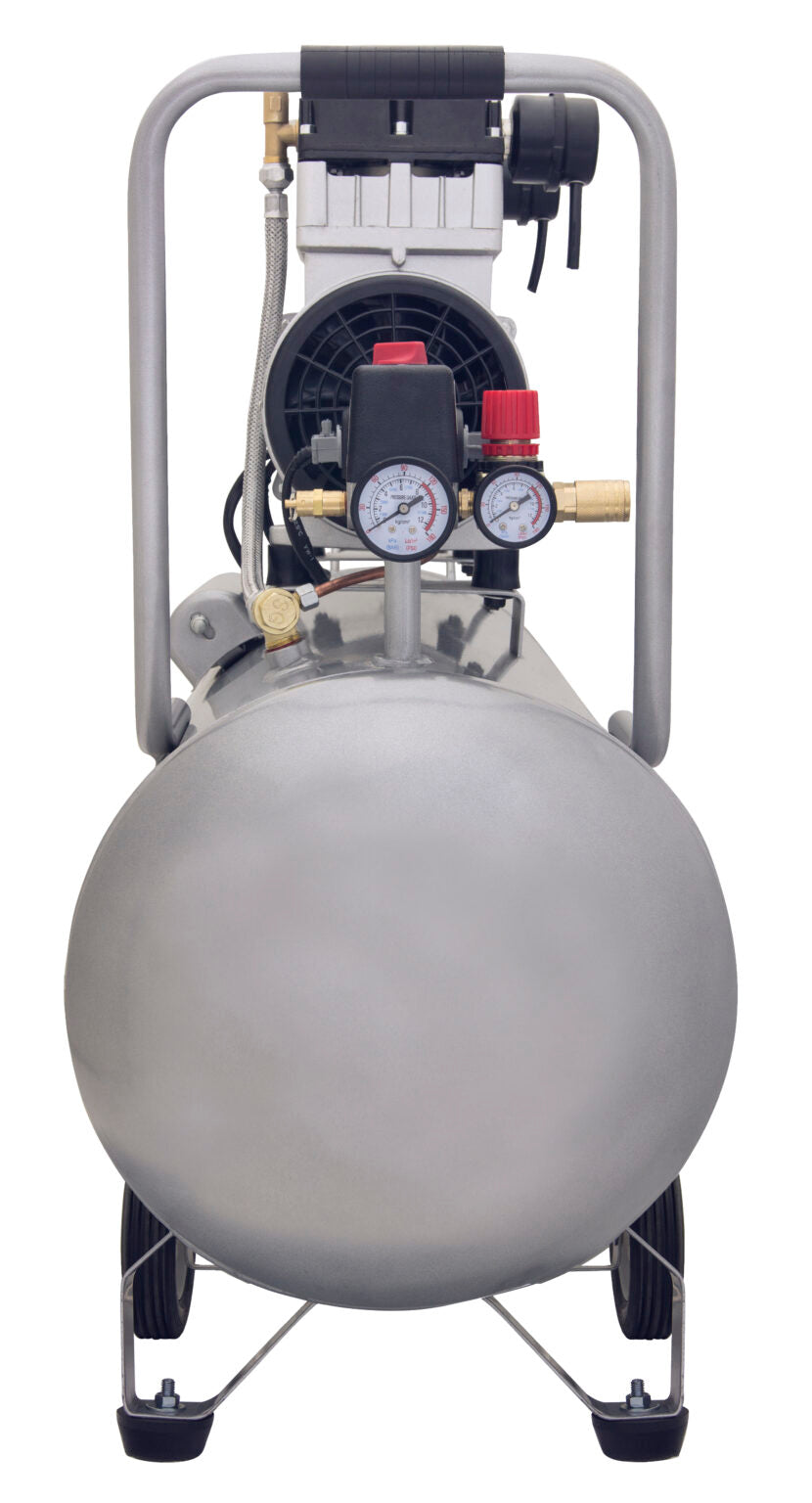

• Two pressure control gauges
• Adjustable output pressure regulator from 0–100 PSI
• 1/4-inch NPT female industrial push-to-connect quick connector
• Condor pressure switch
• Thermal overload protector
• 130 PSI maximum pressure
• 70/30 duty cycle
• Wheel kit for easier mobility
• Oil-free operation for reduced maintenance

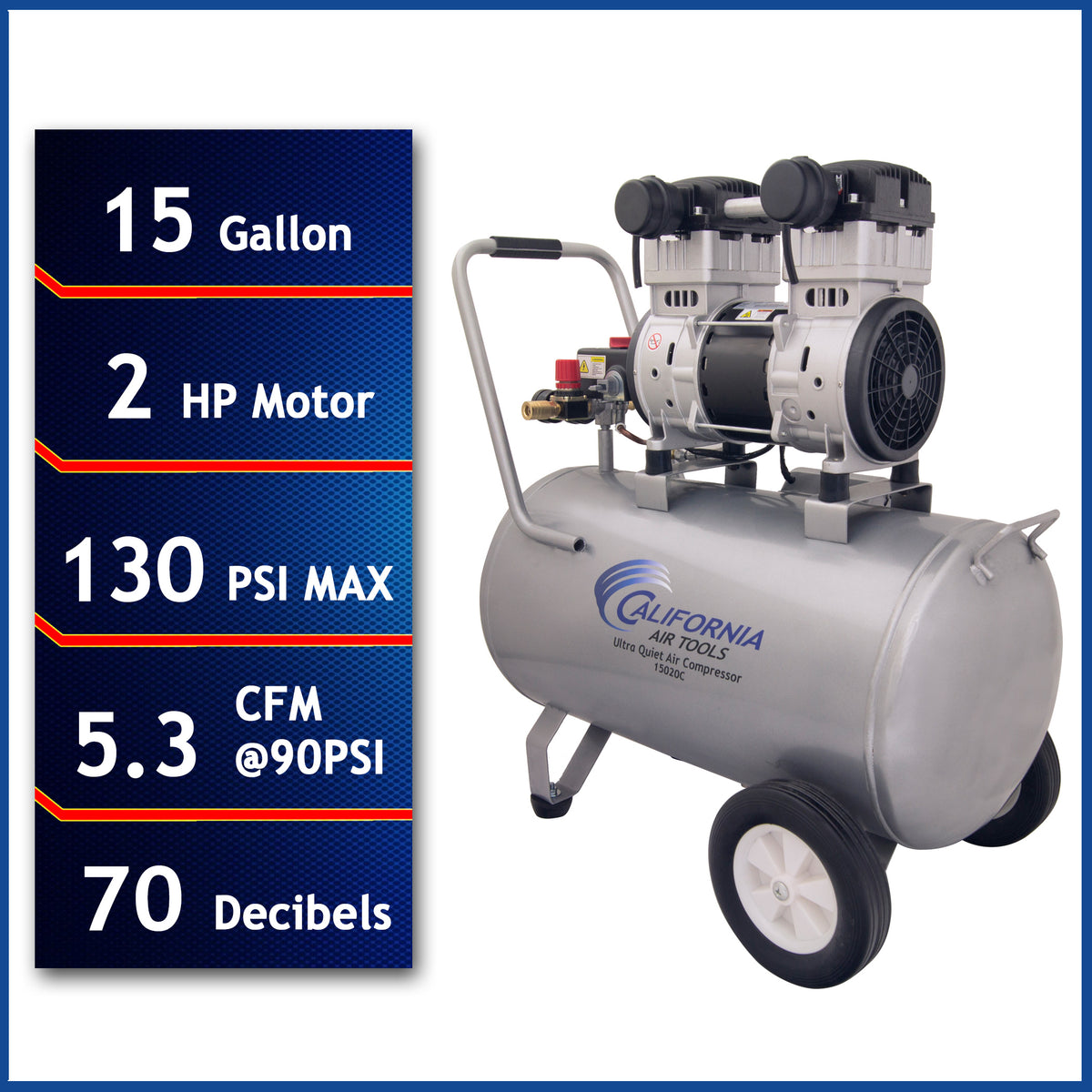

Specifications

• Model: 15020C
• Motor: 2.0 HP rated/running
• Motor Model: SP-9421
• Motor Speed: 1680 RPM
• Pump: Oil-Free Dual Piston
• Tank Capacity: 15 gallons
• Tank Material: Steel
• Noise Level: 70 dB
• Voltage: 110V
• Frequency: 60 Hz
• Current Draw: 14 Amps
• Air Delivery: 6.40 CFM @ 40 PSI
• Air Delivery: 5.30 CFM @ 90 PSI
• Operating Pressure Range: 100–130 PSI
• Maximum Pressure: 130 PSI
• Output Pressure Regulator: 0–100 PSI adjustable
• Tank Fill Time: 230 seconds
• Recovery Time: 50 seconds from 100 PSI to 130 PSI
• Duty Cycle: 70/30
• Power Cord: 25 ft, 14 gauge
• Recommended Outlet: Dedicated 15 Amp outlet
• Minimum Generator: 5,500 watts
• Dimensions: 28 × 17 × 30 inches
• Weight: 90 lbs
• Tank Rating: Non-ASME
• Warranty: 1-Year Limited Manufacturer Warranty
• Wheel Kit: Included
• Air Filters: 2 included

What's Included

• California Air Tools 15020C Air Compressor
• 15-gallon steel air tank
• Wheel kit
• Two air filters
• 25-foot, 14-gauge power cord
• Two pressure control gauges
• Output air pressure regulator
• 1/4-inch NPT female industrial push-to-connect quick connector
• Easy Start Valve

Applications

• General shop use
• Medium pneumatics
• CNC applications up to 5.3 CFM
• LVLP latex painting
• Vehicle panel work
• Dent removal
• Mobile detailing
• Automotive cleaning
• Truck and tractor tire inflation
• Blowing debris and dust from equipment
• General laser cutting and CO2 systems up to 5.3 CFM
• Heavy-duty engraving applications up to 5.3 CFM

Maintenance

Replace the two 2 HP air filters every two years, or annually if the compressor is exposed to a dirty or dusty environment. Replacement air filter part number: 90260.

The oil-free pump eliminates the need for regular pump oil changes. Keep the compressor clean and ensure the air intake and ventilation areas remain unobstructed during operation.
