California Air Tools 15020C-22060 Ultra Quiet 2.0 HP Oil-Free 15 Gallon Air Compressor – 220V

Product Description

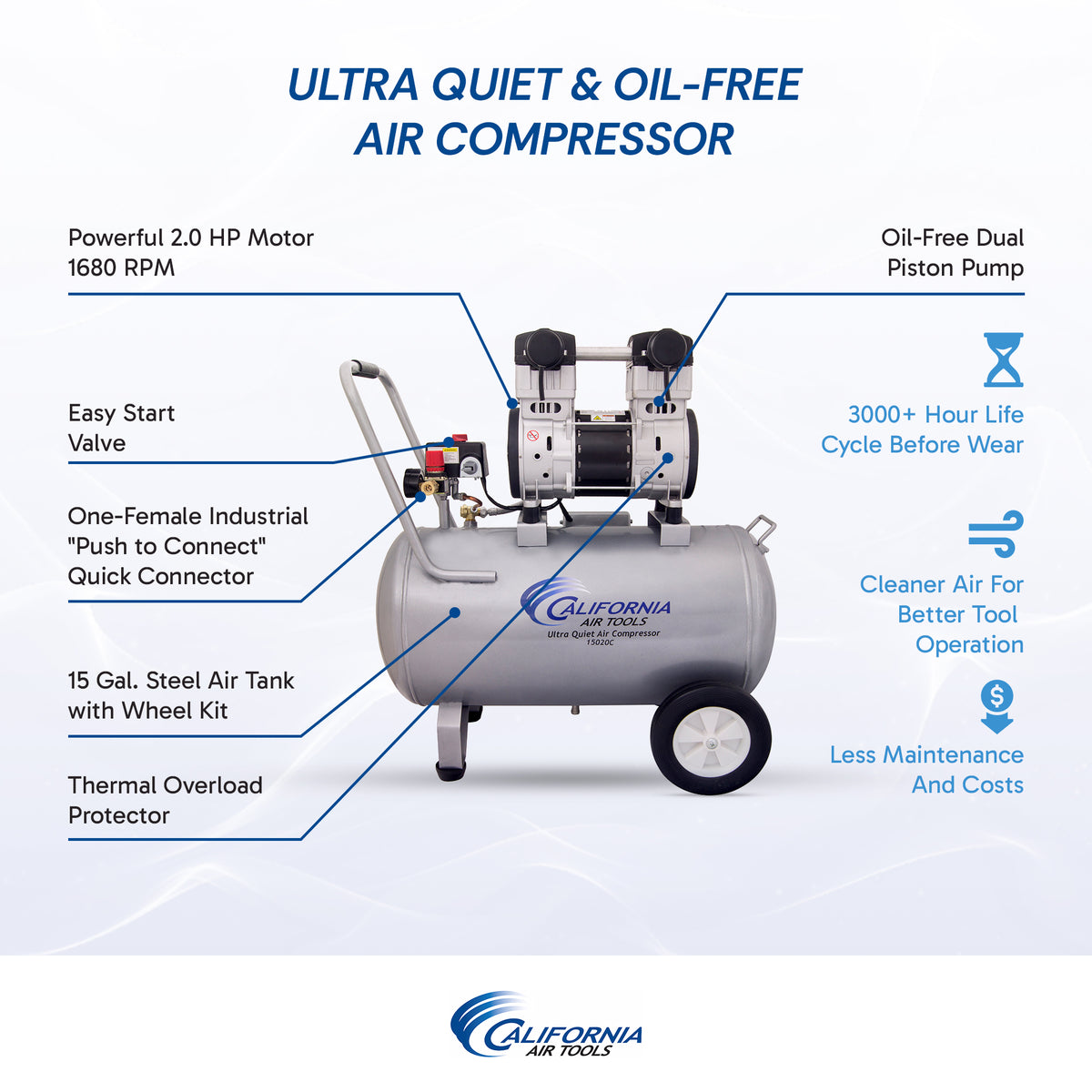

The California Air Tools 15020C-22060 is a 2.0 HP ultra-quiet and oil-free air compressor designed to deliver strong airflow with reduced noise and maintenance requirements. Operating at only 70 dB, this compressor is designed for users looking for power, airflow, lower service requirements, and quieter operation.

The 220V 60 Hz SP-9421-22060 motor operates at 1680 RPM, helping reduce noise and wear while supporting longer continuous run times. The oil-free dual-piston pump is engineered for high performance and durability and is designed for a life cycle of 3,000+ hours before wear.

The 15-gallon steel air tank is equipped with a wheel kit for easier movement around the jobsite, shop, or garage. The Easy Start Valve helps reduce starting amperage by allowing the motor to start under a no-load condition.

Key Features

• 2.0 HP rated/running motor
• Ultra-quiet 70 dB operation
• Oil-free dual-piston pump
• 15-gallon steel air tank
• 220V, 60 Hz, single-phase operation
• SP-9421-22060 motor operating at 1680 RPM
• Designed for a 3,000+ hour pump life cycle before wear
• Easy Start Valve for reduced starting amperage

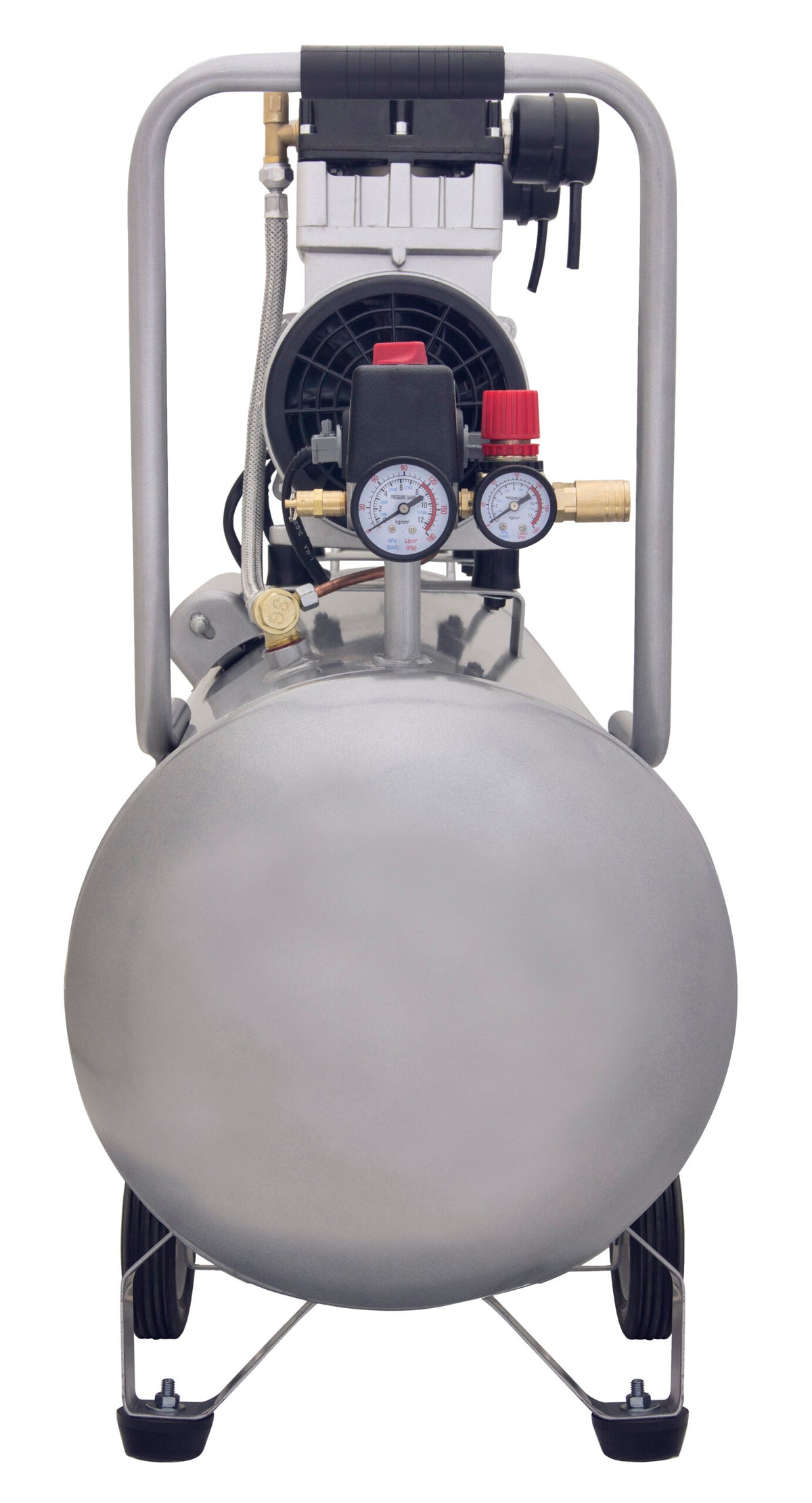

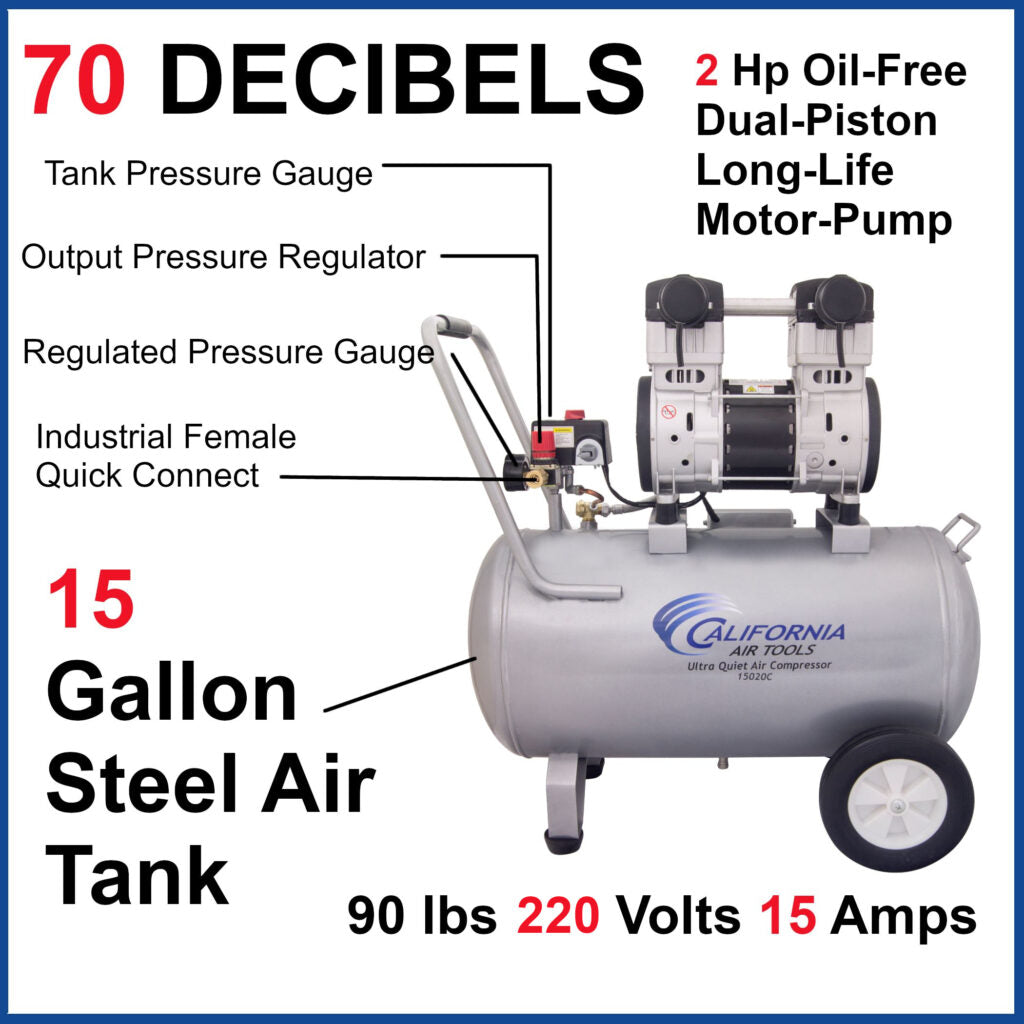

• Two pressure control gauges
• Female industrial push-to-connect quick connector
• Condor pressure switch
• Thermal overload protector
• 130 PSI maximum pressure
• 70/30 duty cycle
• Wheel kit for easier mobility
• Oil-free operation for reduced maintenance
• NEMA 6-15P plug

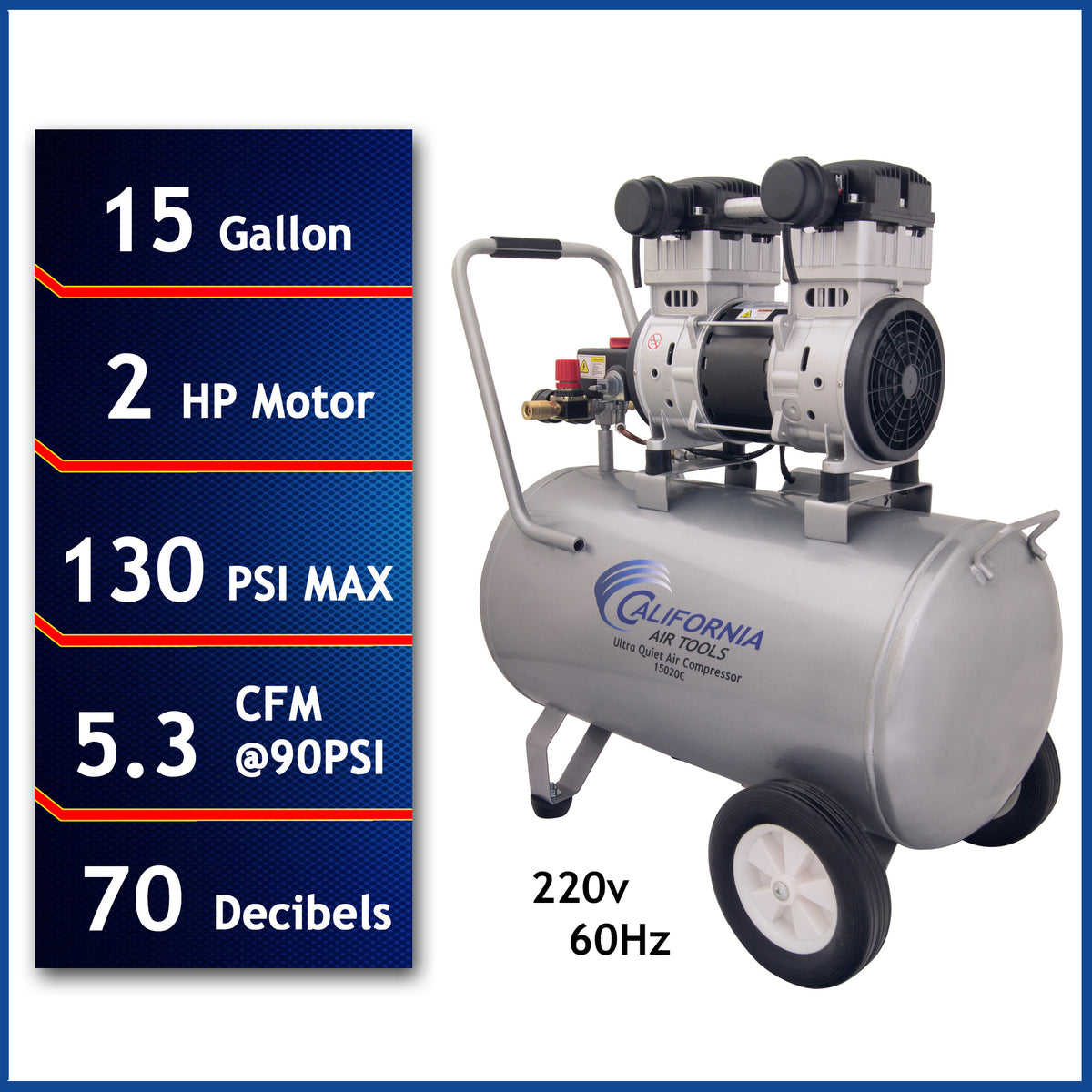

Specifications

• Model: 15020C-22060
• Motor: 2.0 HP rated/running
• Motor Model: SP-9421-22060
• Motor Speed: 1680 RPM
• Pump: Oil-Free Dual Piston
• Tank Capacity: 15 gallons
• Tank Material: Steel
• Noise Level: 70 dB
• Voltage: 220V
• Frequency: 60 Hz
• Phase: Single Phase
• Current Draw: 7.5 Amps
• Air Delivery: 6.40 CFM @ 40 PSI
• Air Delivery: 5.30 CFM @ 90 PSI
• Operating Pressure Range: 100–130 PSI
• Maximum Pressure: 130 PSI
• Tank Fill Time: 230 seconds
• Recovery Time: 50 seconds from 100 PSI to 130 PSI
• Duty Cycle: 70/30
• Generator Requirement: 3,000 running watts
• Dimensions: 28 × 17 × 30 inches
• Weight: 90 lbs
• Tank Rating: Non-ASME
• Plug Type: NEMA 6-15P
• Warranty: 1-Year Limited Manufacturer Warranty
• Assembly: Assembled in USA

What's Included

• California Air Tools 15020C-22060 Air Compressor
• 15-gallon steel air tank
• Wheel kit
• Air filter
• Two pressure control gauges
• Female industrial push-to-connect quick connector
• Easy Start Valve

Applications

• Jobsites
• Workshops
• Garages
• General pneumatic applications
• Air-powered tools
• Applications requiring reduced operating noise
• Applications where oil-free compressed air is preferred

Maintenance

Replace the 2 HP air filters every two years, or every year if the compressor is exposed to a dirty or dusty environment.

The oil-free dual-piston pump eliminates the need for regular pump oil changes. Keep the compressor clean and ensure the air intake and surrounding ventilation areas remain unobstructed during operation.

The manufacturer recommends following applicable state and city codes for commercial use.
