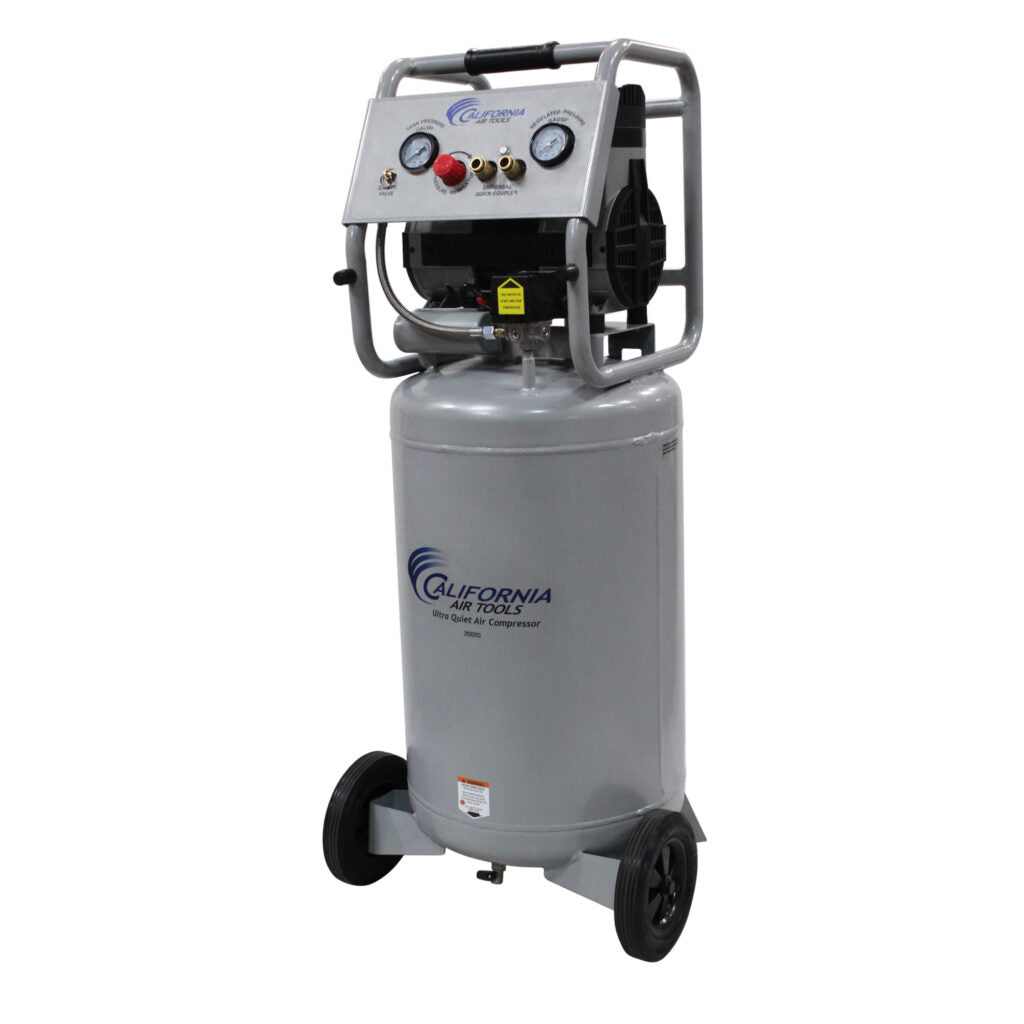

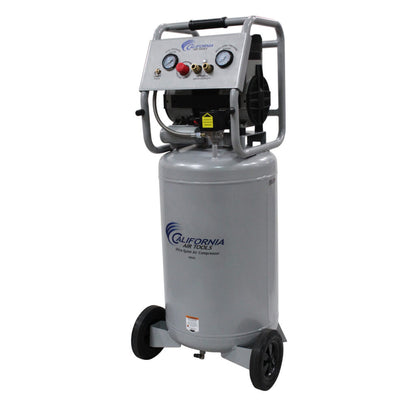

California Air Tools 20020 Ultra Quiet 2.0 HP Oil-Free Portable 20 Gallon Air Compressor

Product Description

The California Air Tools 20020 is a powerful 2.0 HP ultra-quiet and oil-free portable air compressor with a large 20-gallon steel air tank. Operating at only 70 dB, it is designed to provide reliable compressed air for higher-demand pneumatic applications while producing less noise and requiring less maintenance.

The 2.0 HP motor operates at 1680 RPM, while the oil-free dual-piston pump is engineered for high performance and durability with a designed life cycle of more than 3,000 hours before wear. The large 20-gallon steel tank provides increased air storage for higher-demand air tools such as spray guns and sanders.

The compressor features two no-flat wheels and a handle for easier mobility. The Easy Start Valve helps reduce starting amperage by allowing the motor to start under a no-load condition, making startup easier, including in colder temperatures.

Key Features

• 2.0 HP rated/running motor

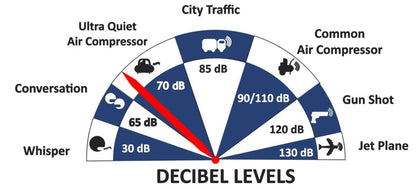

• Ultra-quiet 70 dB operation
• Oil-free dual-piston pump
• 20-gallon steel air tank
• Designed for a 3,000+ hour pump life cycle before wear
• Two no-flat wheels and handle for mobility
• Easy Start Valve for reduced starting amperage
• Two pressure control gauges

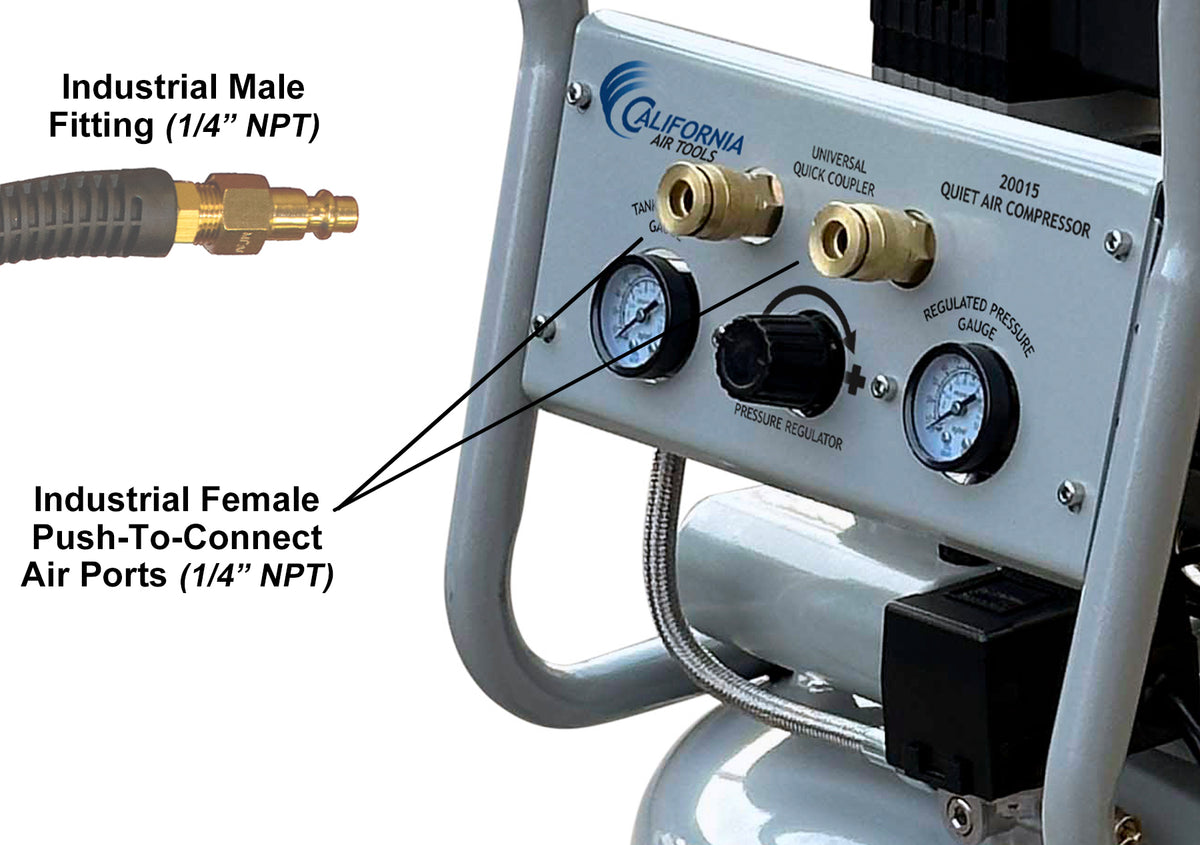

• Two 1/4-inch NPT female industrial push-to-connect quick connectors
• Pressure switch
• Thermal overload protector
• 125 PSI maximum pressure
• Working pressure of 90–120 PSI ±5 PSI
• 90 PSI default regulated output pressure
• 70/30 duty cycle
• Oil-free operation for reduced maintenance
• Two air filters included

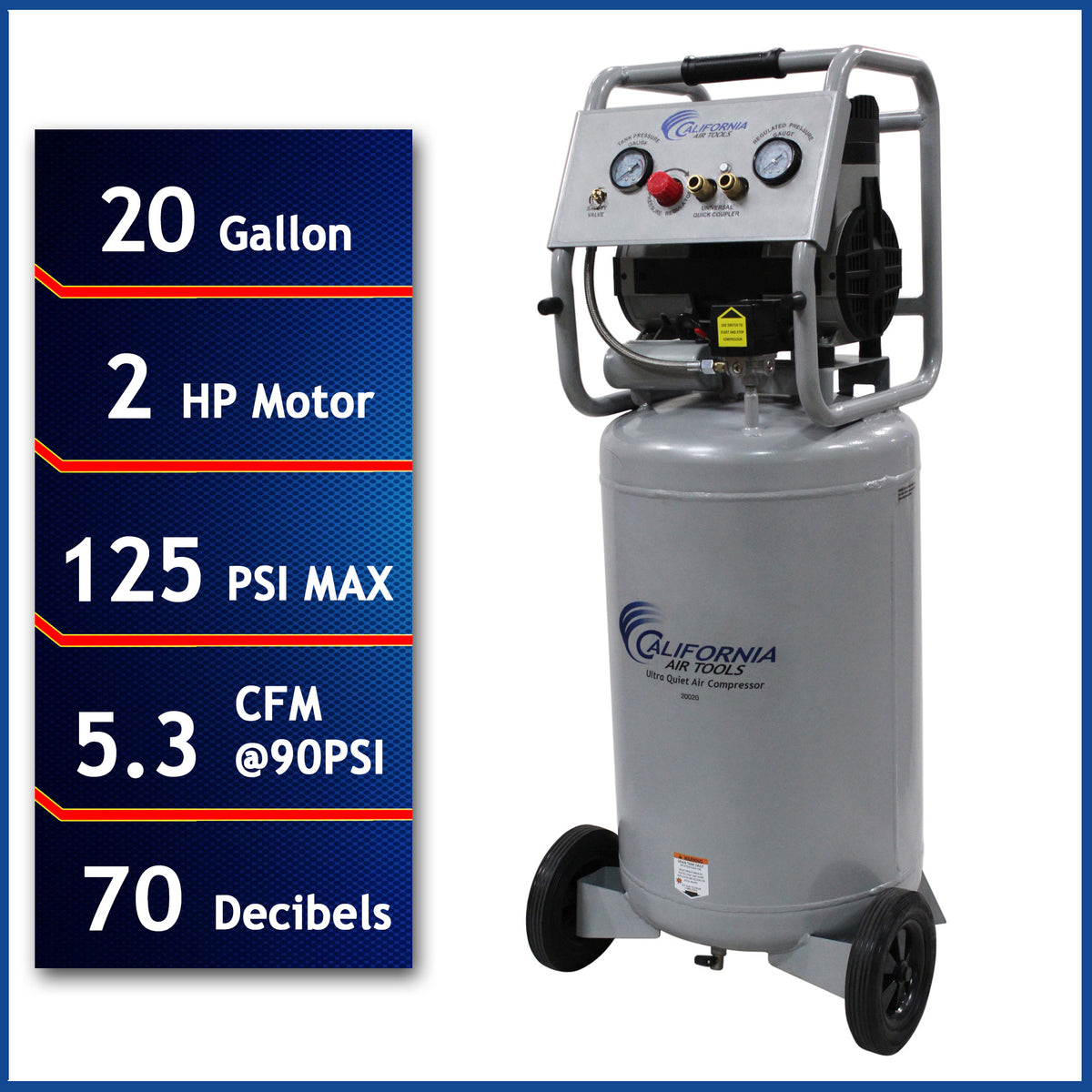

Specifications

• Model: 20020
• Motor: 2.0 HP rated/running
• Motor Speed: 1680 RPM
• Pump: Oil-Free Dual Piston
• Tank Capacity: 20 gallons
• Tank Material: Steel

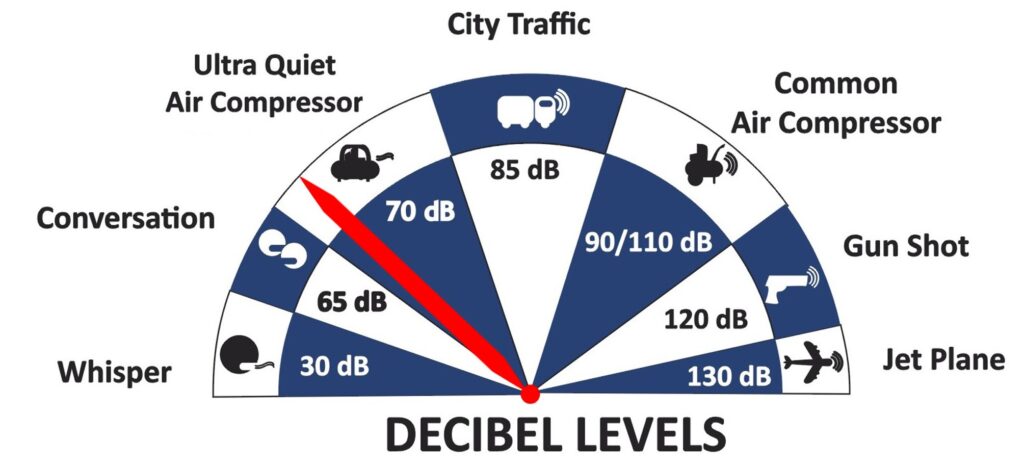

• Noise Level: 70 dB
• Voltage: 110V
• Frequency: 60 Hz
• Current Draw: 14 Amps
• Air Delivery: 6.40 CFM @ 40 PSI
• Air Delivery: 5.30 CFM @ 90 PSI
• Maximum Pressure: 125 PSI
• Working Pressure: 90–120 PSI ±5 PSI
• Default Regulated Output Pressure: 90 PSI
• Tank Fill Time: 4 minutes
• Recovery Time: 1 minute from 90 PSI to 120 PSI
• Duty Cycle: 70/30
• Maximum Continuous Running Time: 60 minutes, depending on PSI and CFM
• Power Cord: 25 ft, 14 gauge
• Recommended Outlet: Dedicated 15 Amp outlet
• Minimum Generator: 5,500 watts
• Dimensions: 20 × 20 × 45 inches
• Weight: 114 lbs
• Tank Rating: Non-ASME
• Warranty: 1-Year Limited Manufacturer Warranty

What's Included

• California Air Tools 20020 Air Compressor
• 20-gallon steel air tank
• Wheel kit with two no-flat wheels
• Handle
• Two air filters
• Two pressure control gauges
• Two 1/4-inch NPT female industrial push-to-connect quick connectors
• Easy Start Valve

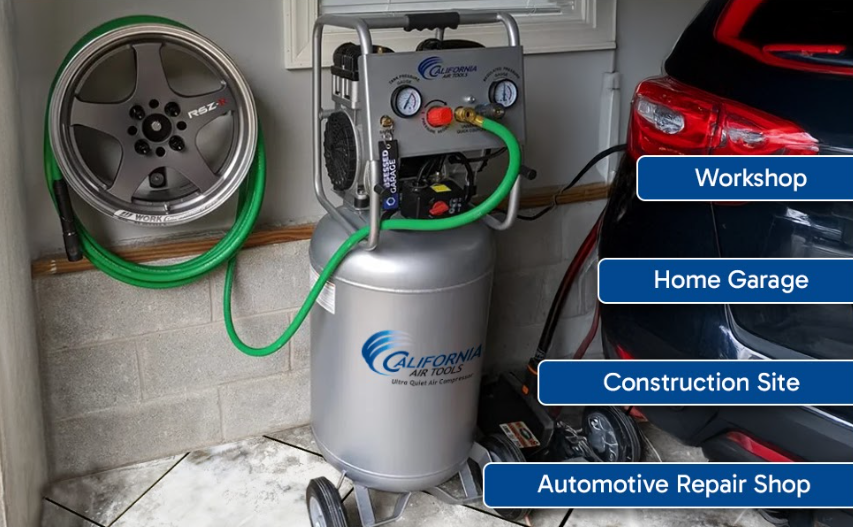

Applications

• General shop use
• Medium pneumatic applications
• Heavy-use tire services up to 5.3 CFM
• General vehicle painting with LVLP systems
• Motorcycle and small car lifts up to 5.3 CFM
• General laser cutting up to 5.3 CFM
• Heavy-use engraving up to 5.3 CFM
• Mobile tire repair
• Roadside service
• Truck air service
• Blowing debris and dust from equipment
• Spray guns and sanders requiring higher air storage capacity

Maintenance

Replace the two 2 HP air filters every two years, or annually if the compressor is exposed to a dirty or dusty environment. Replacement air filter part number: 90260.

The oil-free dual-piston pump eliminates the need for regular pump oil changes. Keep the compressor clean and ensure the air intake and surrounding ventilation areas remain unobstructed during operation.
