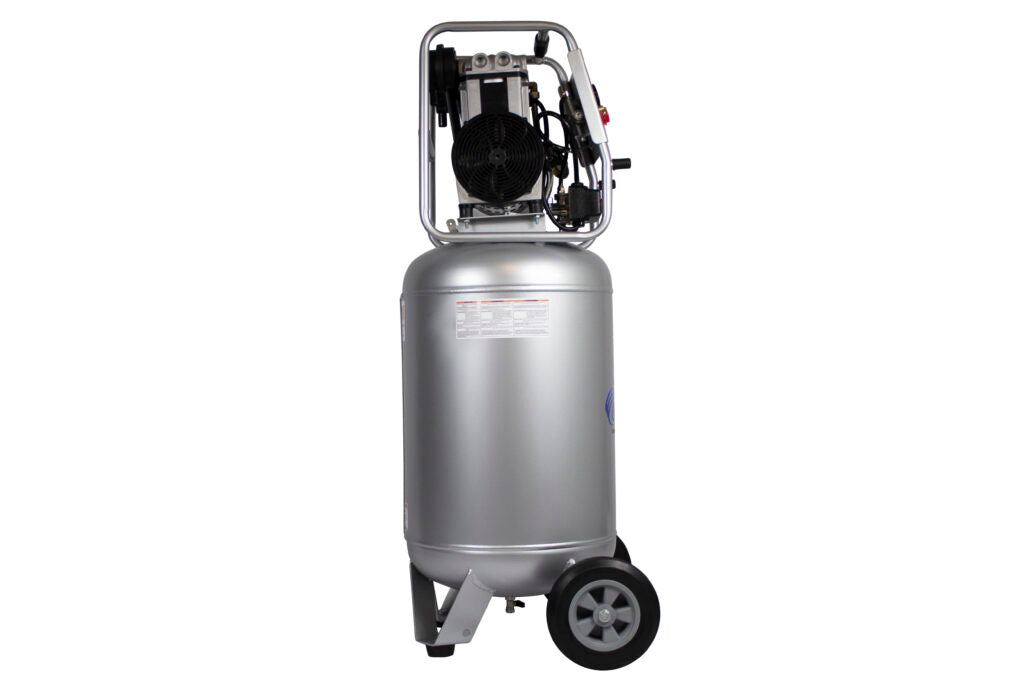

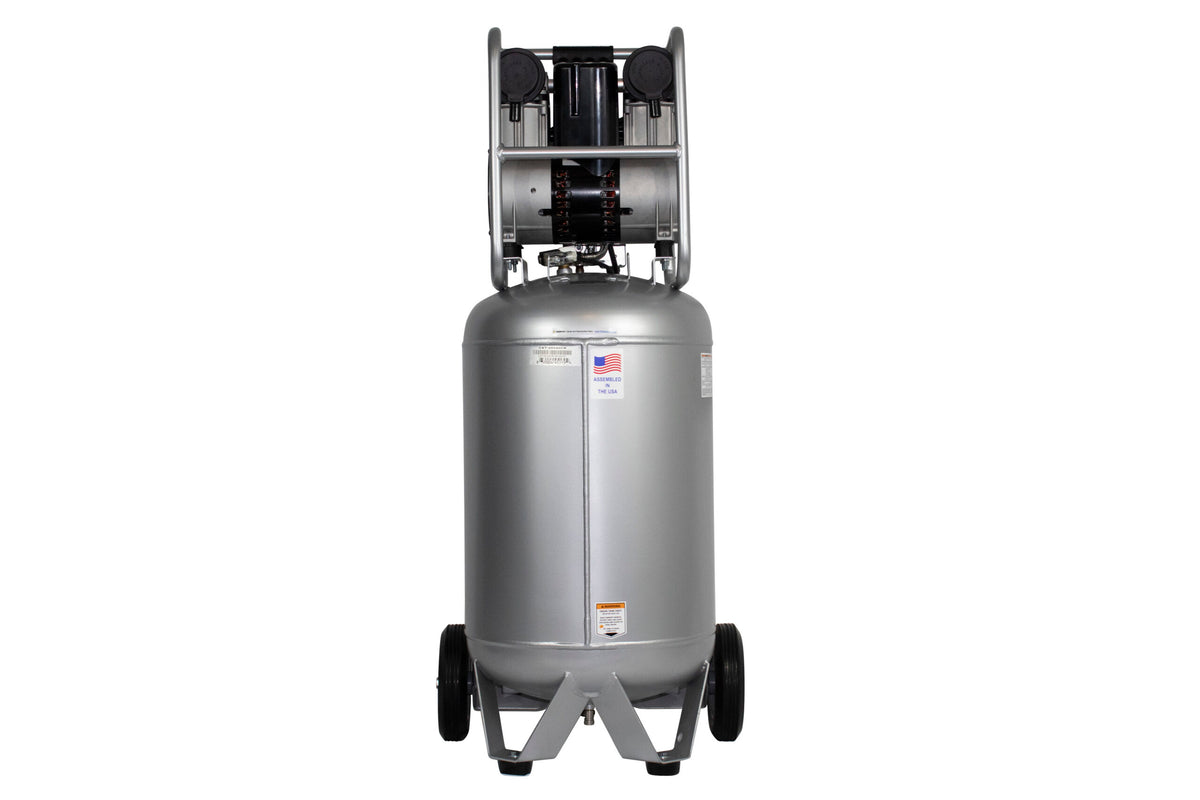

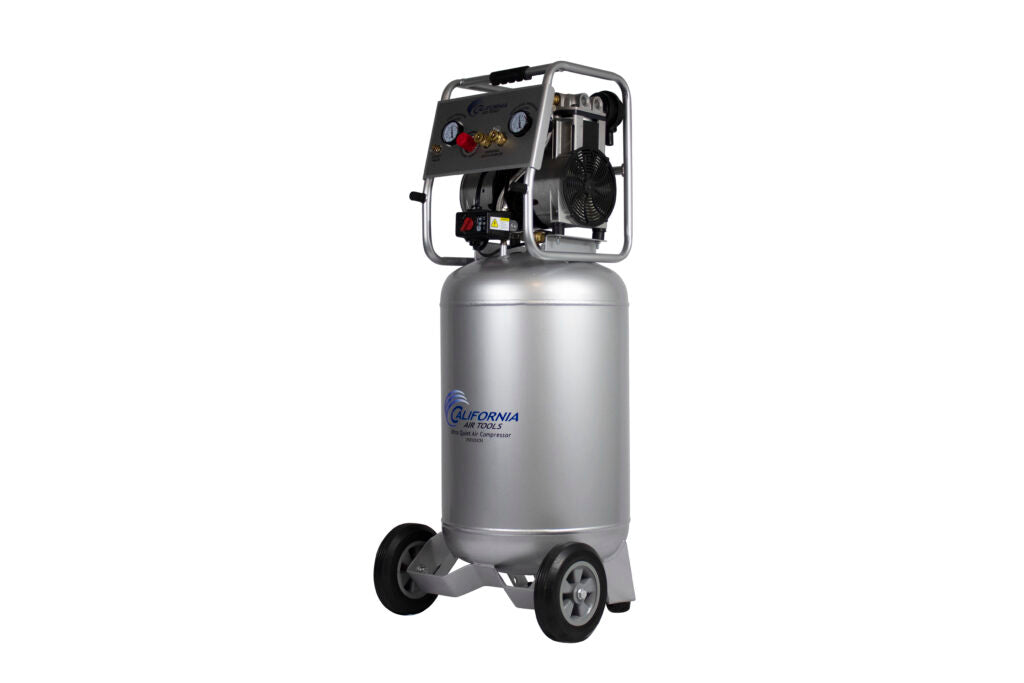

California Air Tools 20020CR Ultra Quiet & Oil-Free Continuous Run 2.0 HP 20 Gallon Air Compressor – 100% Duty Cycle

Product Description

The California Air Tools 20020CR is a 2.0 HP ultra-quiet and oil-free continuous-run air compressor designed for applications requiring extended operation. With a 100% duty cycle and a 20-gallon steel air tank, it is engineered to provide continuous compressed air for professional applications.

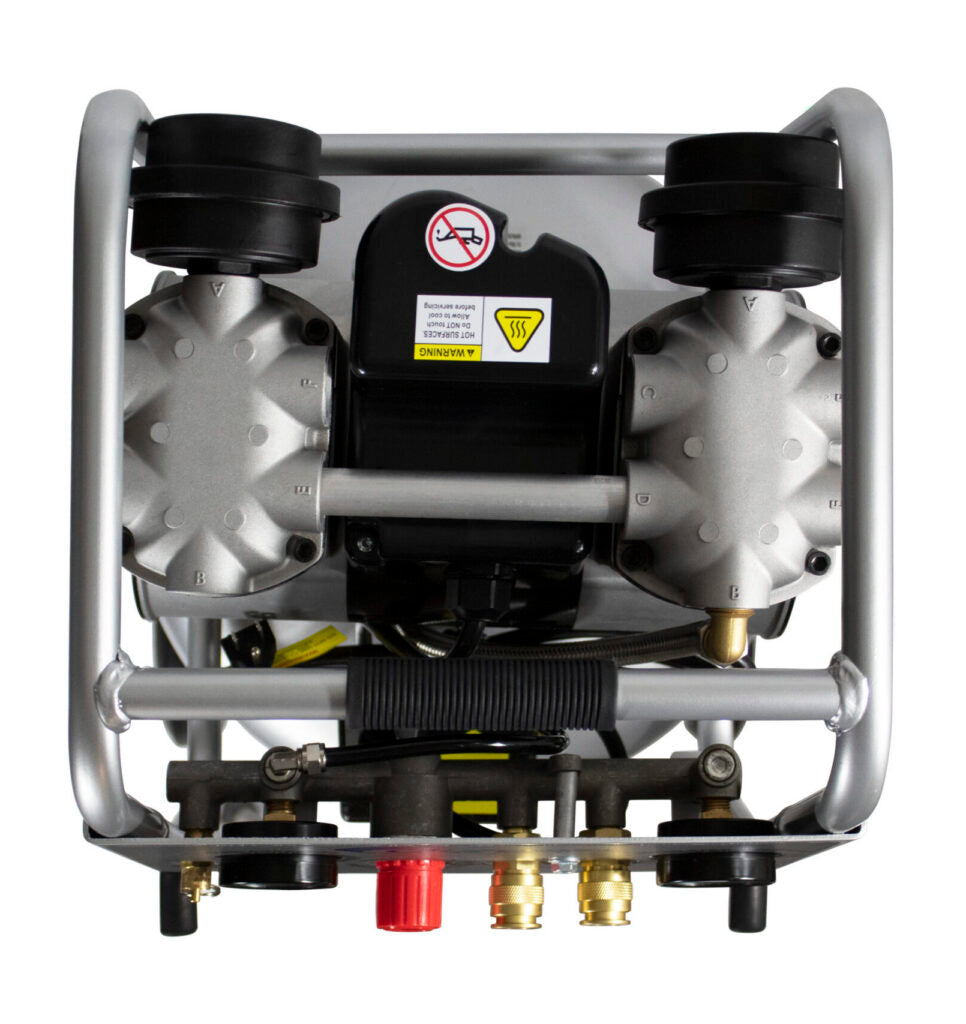

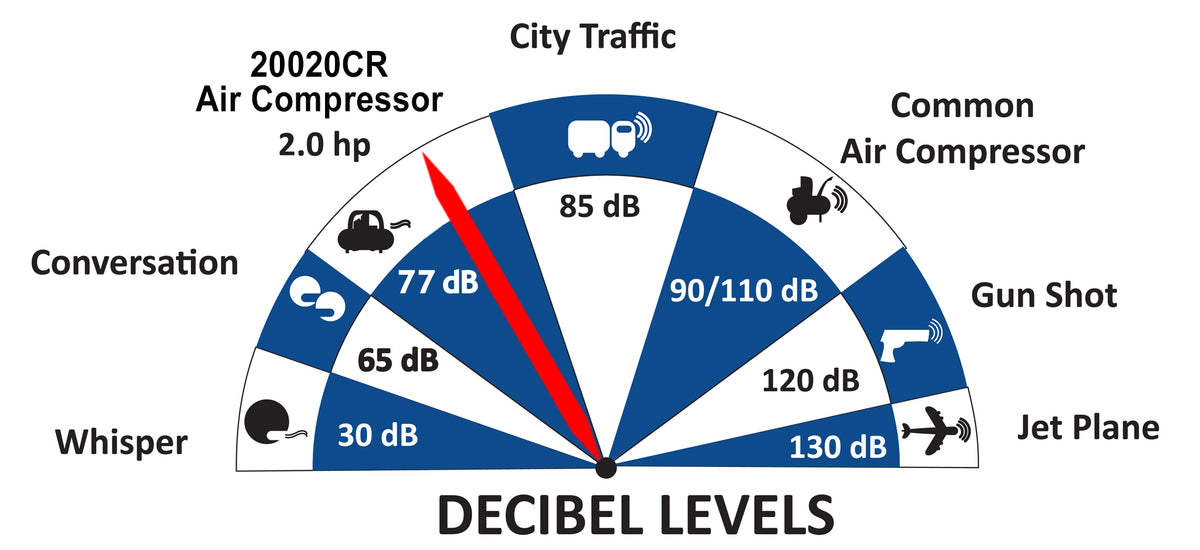

The 200CR continuous-run motor and oil-free dual-piston pump are designed for reduced noise, heat, and wear. The compressor operates at 77 dB and delivers 5.00 CFM at 90 PSI, with a maximum pressure of 125 PSI.

The compressor is designed for continuous operation for up to 8–12 hours depending on operating pressure and airflow requirements. A wheel kit provides mobility, while the Easy Start Valve helps reduce starting amperage.

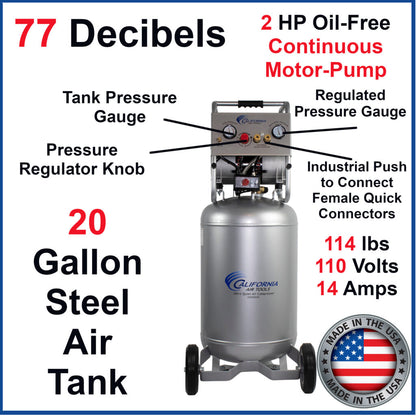

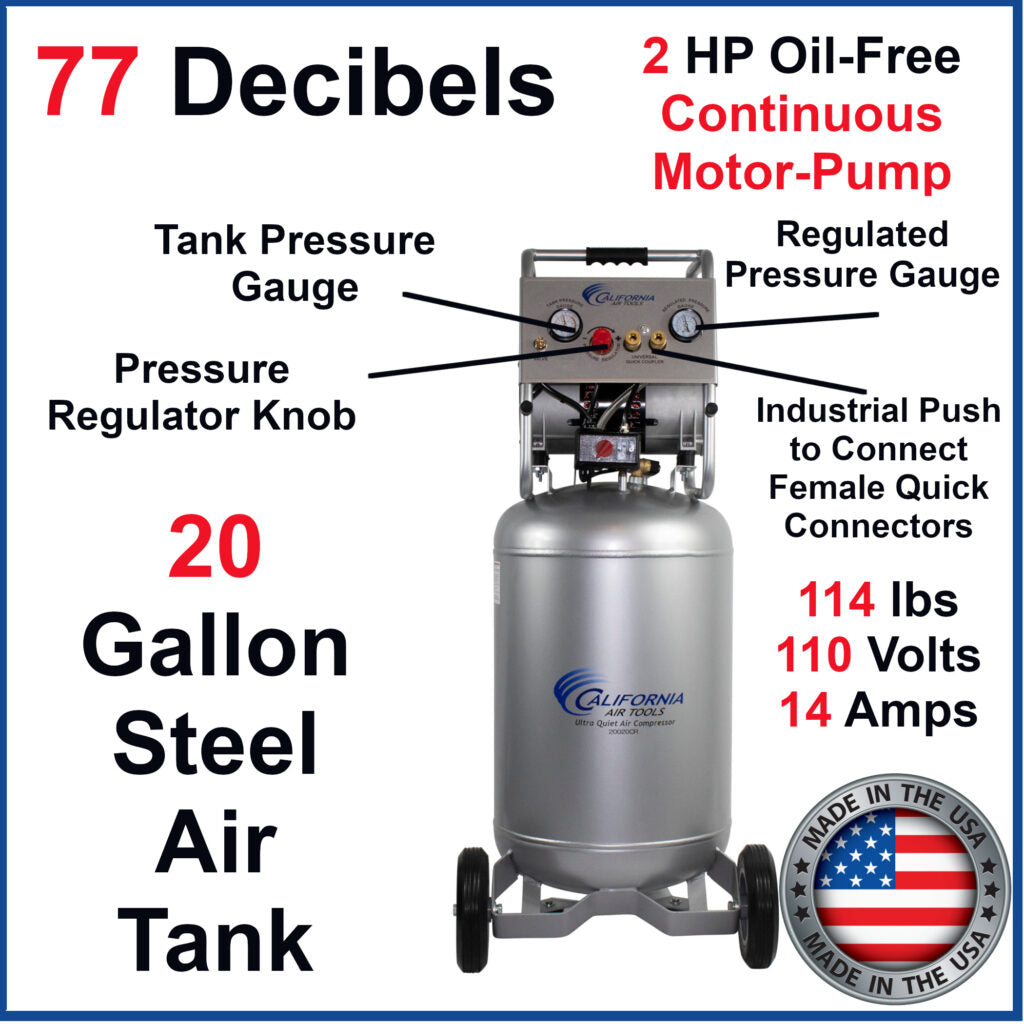

Key Features

• 2.0 HP continuous-run motor
• 100% duty cycle
• Ultra-quiet 77 dB operation
• Oil-free dual-piston pump system
• 20-gallon steel air tank
• 5.00 CFM @ 90 PSI
• 6.50 CFM @ 40 PSI
• 125 PSI maximum pressure
• 110V, 60 Hz, single-phase operation
• Designed for extended continuous operation
• Easy Start Valve for reduced starting amperage
• Thermal overload protector
• Two air filters
• Wheel kit for mobility
• Dedicated 15 Amp outlet recommended

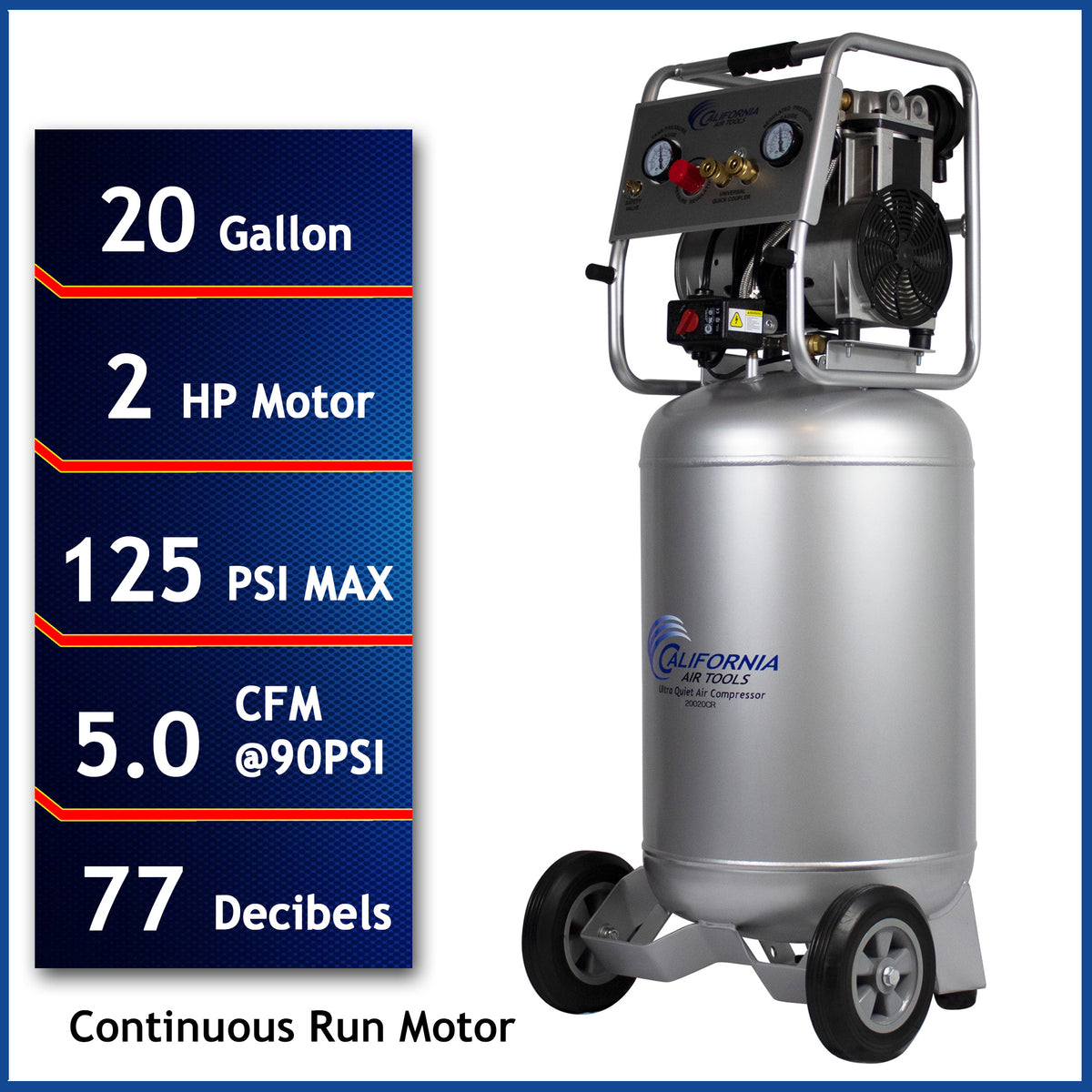

Specifications

• Model: 20020CR
• Motor: 2.0 HP
• Motor Type: Continuous Run
• Duty Cycle: 100%
• Pump: Oil-Free Dual Piston
• Tank Capacity: 20 gallons
• Tank Material: Steel
• Noise Level: 77 dB
• Voltage: 110V
• Frequency: 60 Hz
• Phase: Single Phase
• Current Draw: 14 Amps
• Air Delivery: 6.50 CFM @ 40 PSI
• Air Delivery: 5.00 CFM @ 90 PSI
• Maximum Pressure: 125 PSI
• Continuous Operation: Up to 8 hours at 90 PSI or up to 12 hours at 40 PSI
• Power Requirement: Dedicated 15 Amp outlet
• Generator Requirement: 3,000 running watts
• Power Cord: 14 gauge, 25 ft
• Tank Rating: Steel

What's Included

• California Air Tools 20020CR Air Compressor
• 20-gallon steel air tank
• Continuous-run 200CR motor/pump
• Wheel kit
• Two air filters
• Easy Start Valve
• Thermal overload protector

Applications

• Professional workshop applications
• Continuous compressed-air applications
• Pneumatic equipment requiring extended operation
• Applications requiring up to 5.0 CFM at 90 PSI
• Applications requiring extended air compressor run time
• Industrial and professional pneumatic applications

Maintenance

The oil-free dual-piston pump eliminates the need for regular pump oil changes. The compressor uses an oil-free pump system designed to reduce maintenance requirements.

Inspect and maintain the air filters regularly. Replace the filters according to operating conditions, particularly when the compressor is used in dirty or dusty environments.

Keep the compressor and surrounding ventilation areas clean and unobstructed during operation to allow proper heat dissipation.
