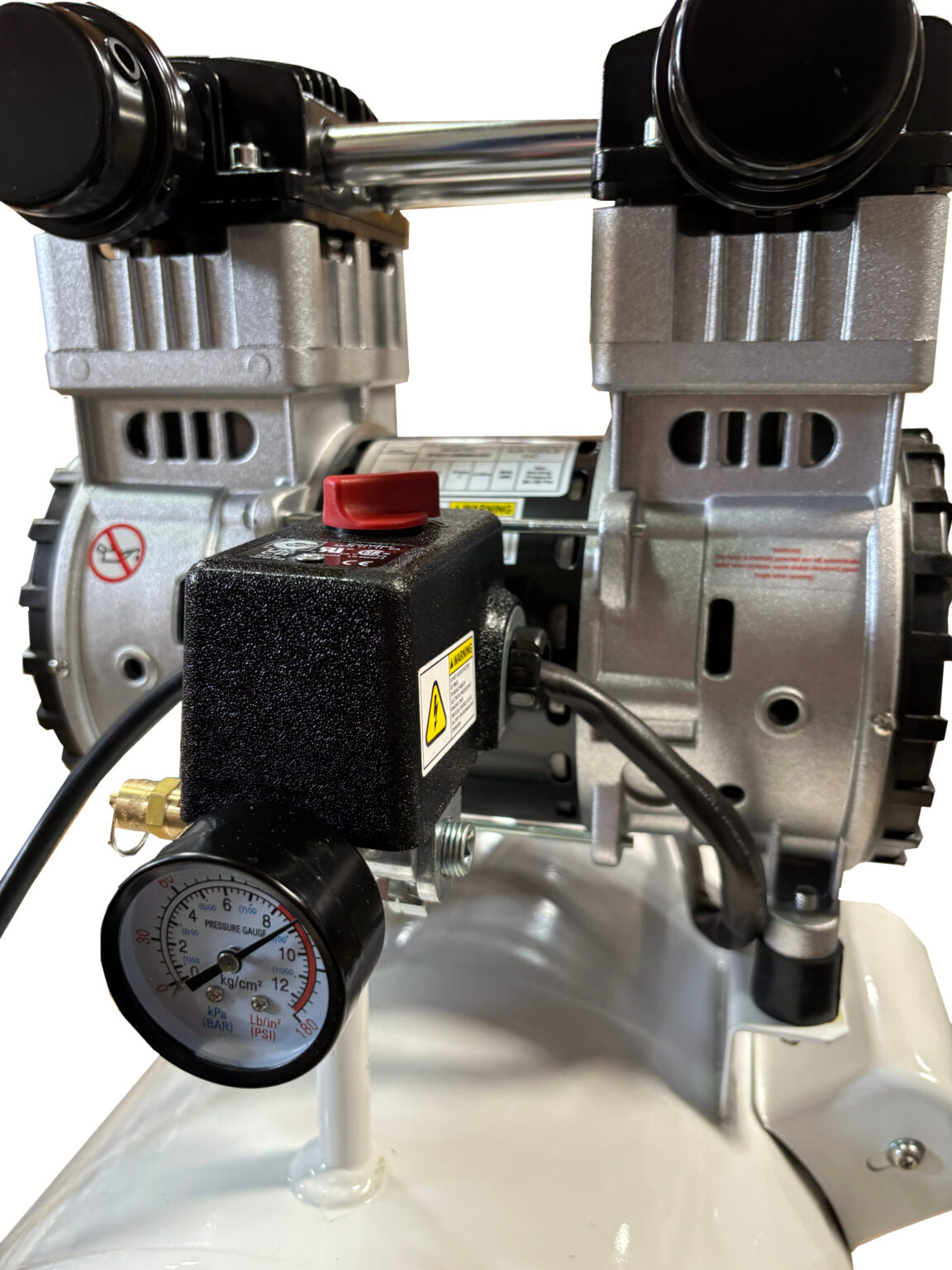

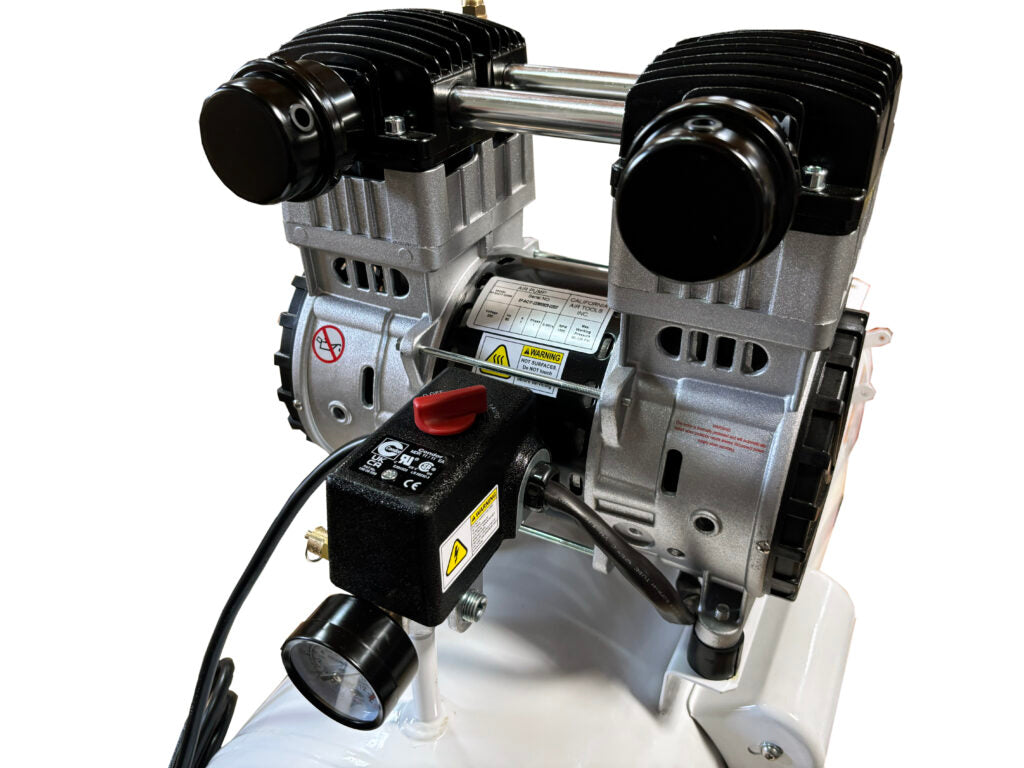

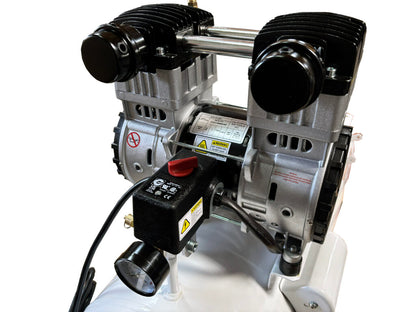

California Air Tools 20020CTR Ultra Quiet 70 dB 2.0 HP Oil-Free 20 Gallon Horizontal Air Compressor – 110V 60Hz

Product Description

The California Air Tools 20020CTR is a 2.0 HP ultra-quiet and oil-free air compressor featuring a 20-gallon horizontal steel air tank. Operating at only 70 dB, it is designed for applications that require reliable airflow, lower operating noise, and reduced maintenance.

The 2.0 HP SP-9421 motor operates at 1680 RPM and is designed to increase duty cycle and support longer continuous run times. The oil-free dual-piston pump is engineered for high performance and durability with a designed life cycle of 3,000+ hours before wear.

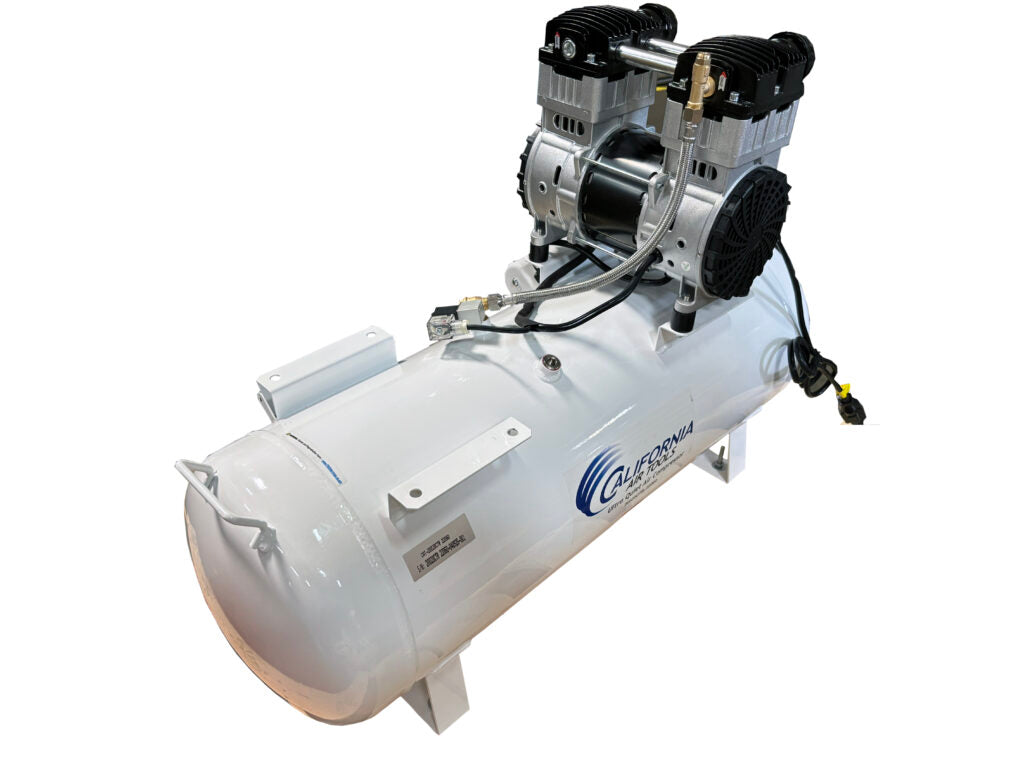

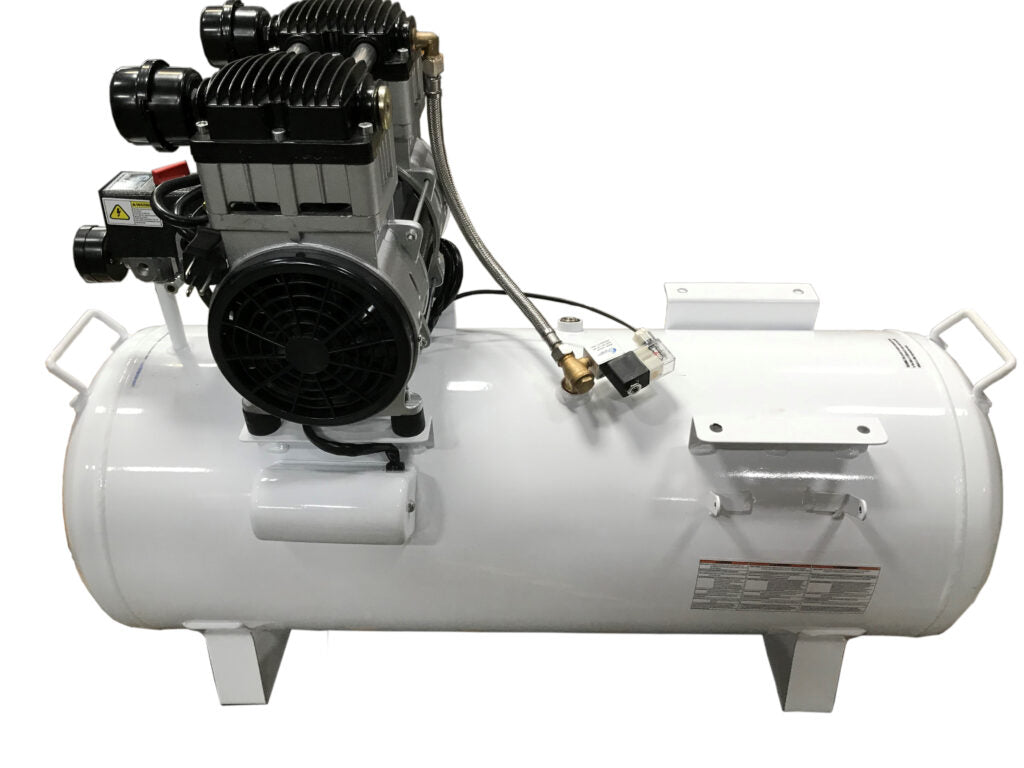

The large horizontal 20-gallon steel tank is designed particularly for mobile service vans and trucks performing tire service and repair. It also provides additional air storage for higher-demand air tools such as spray guns and sanders.

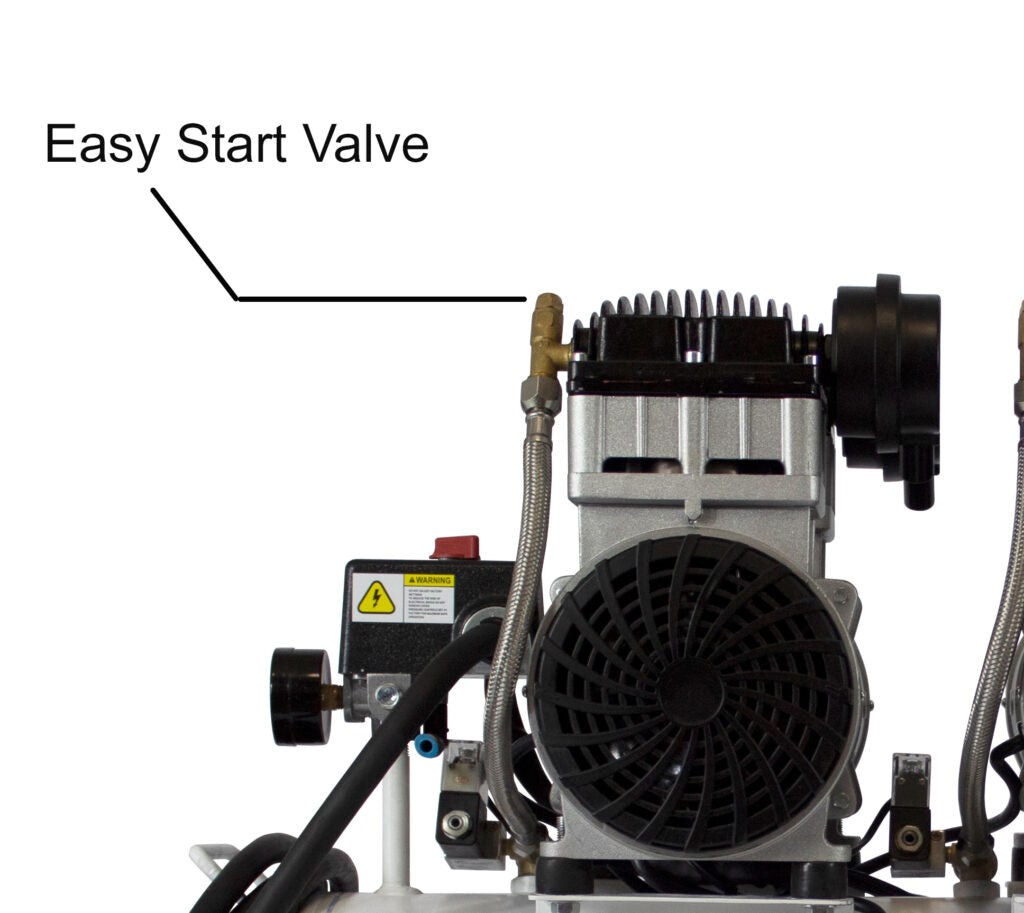

The Easy Start Valve reduces starting amperage by allowing the motor to start under a no-load condition. The compressor operates at 110V and 60 Hz and includes a wheel-free horizontal configuration designed for mobile service applications.

Key Features

• 2.0 HP rated/running motor
• Ultra-quiet 70 dB operation
• Oil-free dual-piston pump
• 20-gallon horizontal steel air tank
• Designed for mobile tire service and repair vans and trucks
• SP-9421 motor operating at 1680 RPM
• Designed for a 3,000+ hour pump life cycle before wear
• Easy Start Valve for reduced starting amperage
• Two pressure control gauges
• 1/4-inch NPT female industrial push-to-connect quick connector
• Pressure switch
• Thermal overload protector
• 70/30 duty cycle
• Non-ASME steel air tank
• 110V / 60 Hz operation
• NEMA 5-15P plug

Specifications

• Model: 20020CTR
• Motor: 2.0 HP rated/running
• Motor Model: SP-9421
• Motor Speed: 1680 RPM
• Pump: Oil-Free Dual Piston
• Tank Capacity: 20 gallons
• Tank Material: Steel
• Tank Configuration: Horizontal
• Noise Level: 70 dB
• Voltage: 110V
• Frequency: 60 Hz
• Phase: Single Phase
• Current Draw: 13 Amps
• Air Delivery: 6.40 CFM @ 40 PSI
• Air Delivery: 5.30 CFM @ 90 PSI
• Working Pressure: 90–125 PSI ±5 PSI
• Maximum Kick-On: 105 PSI
• Maximum Kick-Off: 130 PSI
• Tank Fill Time: 4 minutes
• Recovery Time: 1 minute from 95 PSI to 125 PSI
• Duty Cycle: 70/30
• Power Cord/Plug: NEMA 5-15P
• Minimum Generator: 5,500 running watts
• Dimensions: 39 × 15 × 28 inches
• Weight: 120 lbs
• Tank Rating: Non-ASME
• Warranty: 1-Year Limited Manufacturer Warranty

What's Included

• California Air Tools 20020CTR Air Compressor
• 20-gallon horizontal steel air tank
• Oil-free dual-piston pump system
• Two pressure control gauges
• 1/4-inch NPT female industrial push-to-connect quick connector
• Easy Start Valve
• Thermal overload protector
• 25-foot, 14-gauge power cord

Applications

• Mobile tire service
• Tire repair vans and trucks
• Roadside tire repair
• Truck air service
• General shop and garage applications
• Pneumatic tools
• Spray guns
• Sanders
• Applications requiring additional air storage

Maintenance

Replace the two 2 HP air filters every two years, or annually if the compressor is exposed to a dirty or dusty environment. Replacement air filter part number: 90260.

The oil-free dual-piston pump eliminates the need for regular pump oil changes. Keep the compressor clean and ensure the air intake and surrounding areas remain unobstructed during operation.

The 20020CTR does not include a pressure regulator. A compatible 120 PSI pressure regulator assembly is available separately.
