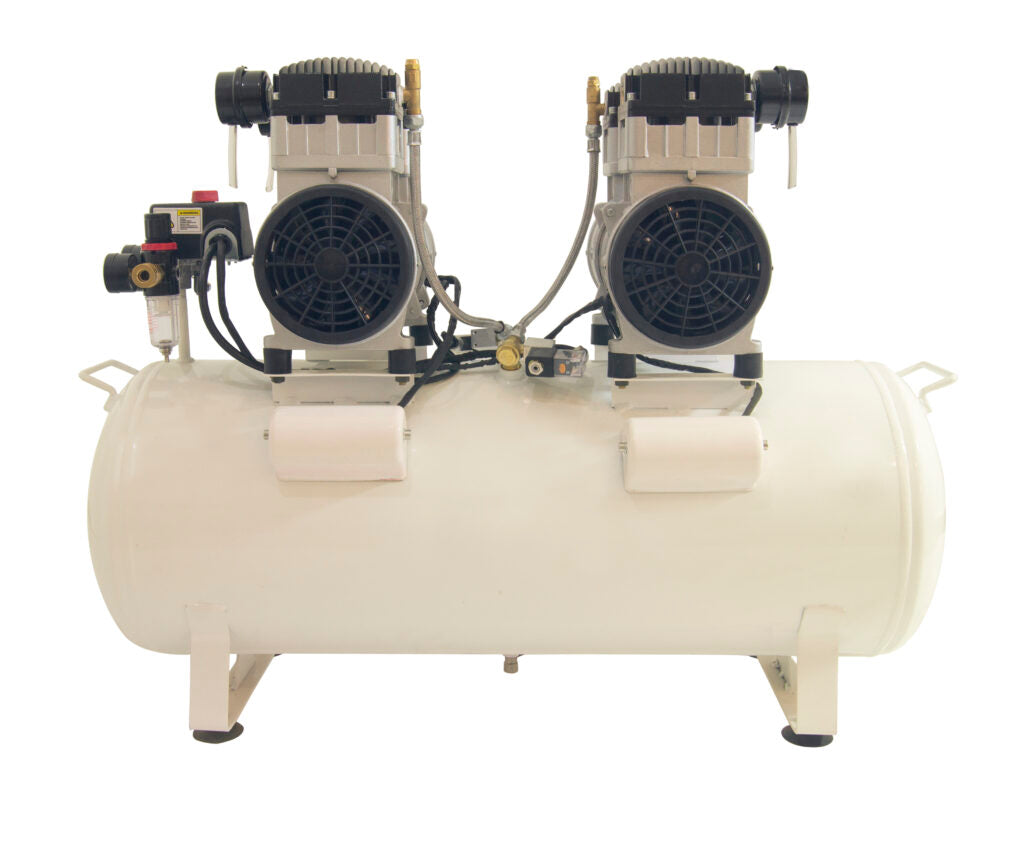

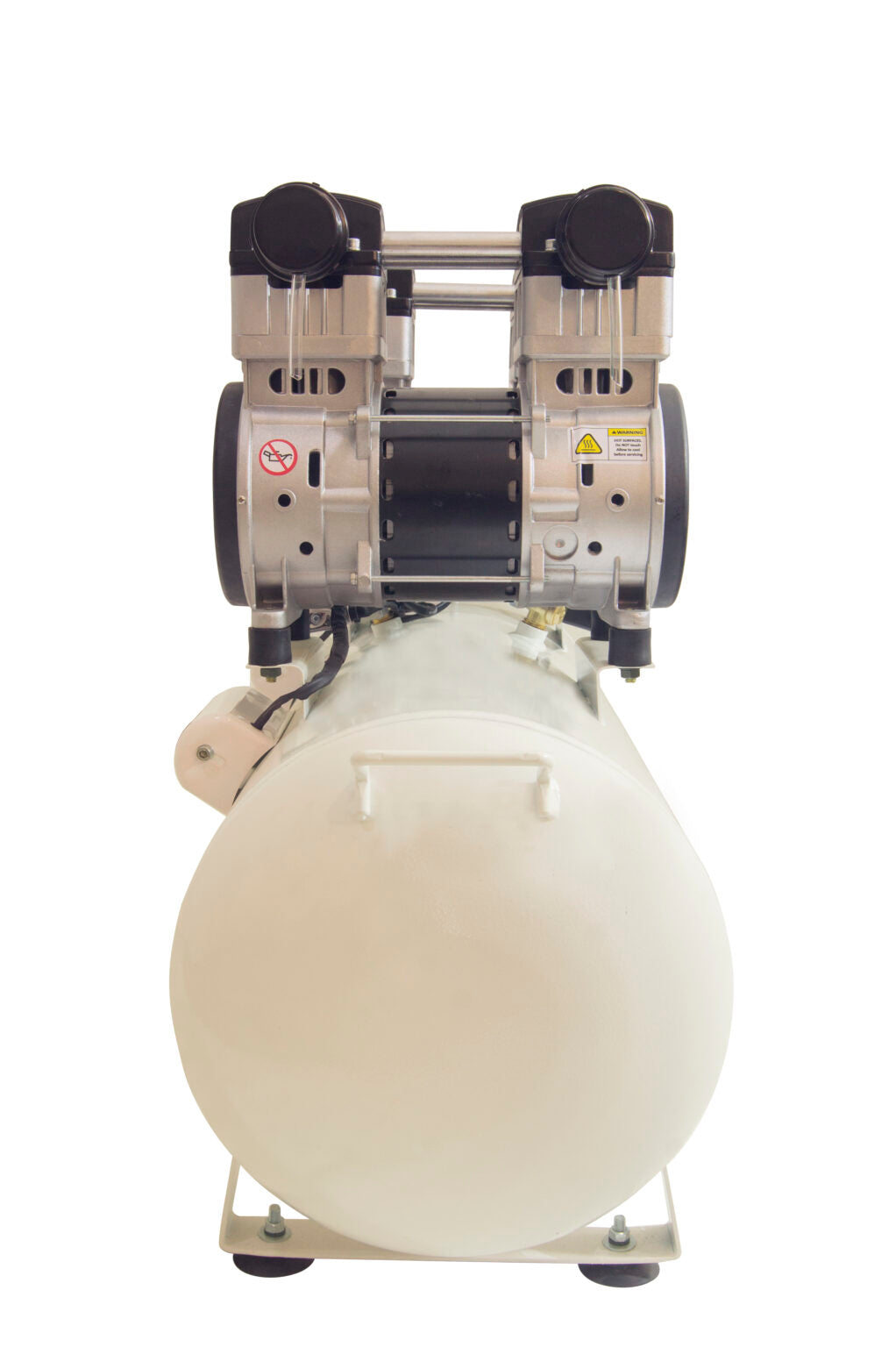

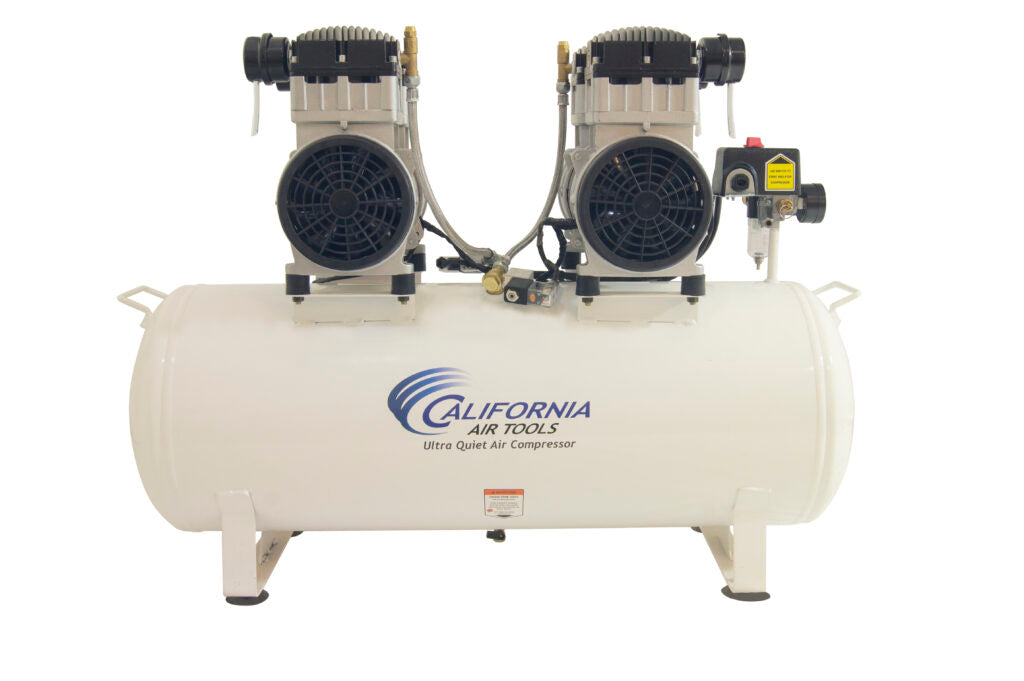

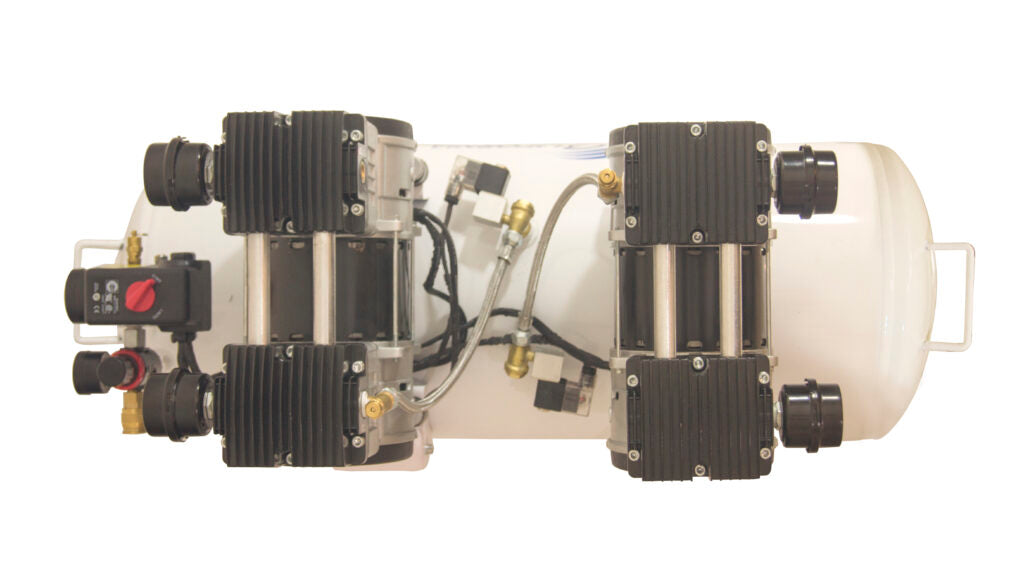

California Air Tools 20040C Powerful 4.0 HP Ultra Quiet & Oil-Free 20 Gallon Horizontal Air Compressor – 220V

Product Description

The California Air Tools 20040C is a powerful 4.0 HP ultra-quiet and oil-free stationary air compressor designed for professional workshops, garages, CNC applications, milling equipment, and other demanding pneumatic applications. With a large 20-gallon horizontal steel tank, the compressor provides substantial air storage while maintaining a relatively low operating noise level of 75 dB.

The 20040C uses two powerful 2.0 HP SP-9421-22060 motors operating at only 1,680 RPM. Its oil-free dual-piston pump system is engineered for high performance, durability, and reduced maintenance, with a pump life cycle of 3,000+ hours before wear. The compressor delivers 12.80 CFM at 40 PSI and 10.60 CFM at 90 PSI with a maximum pressure of 125 PSI.

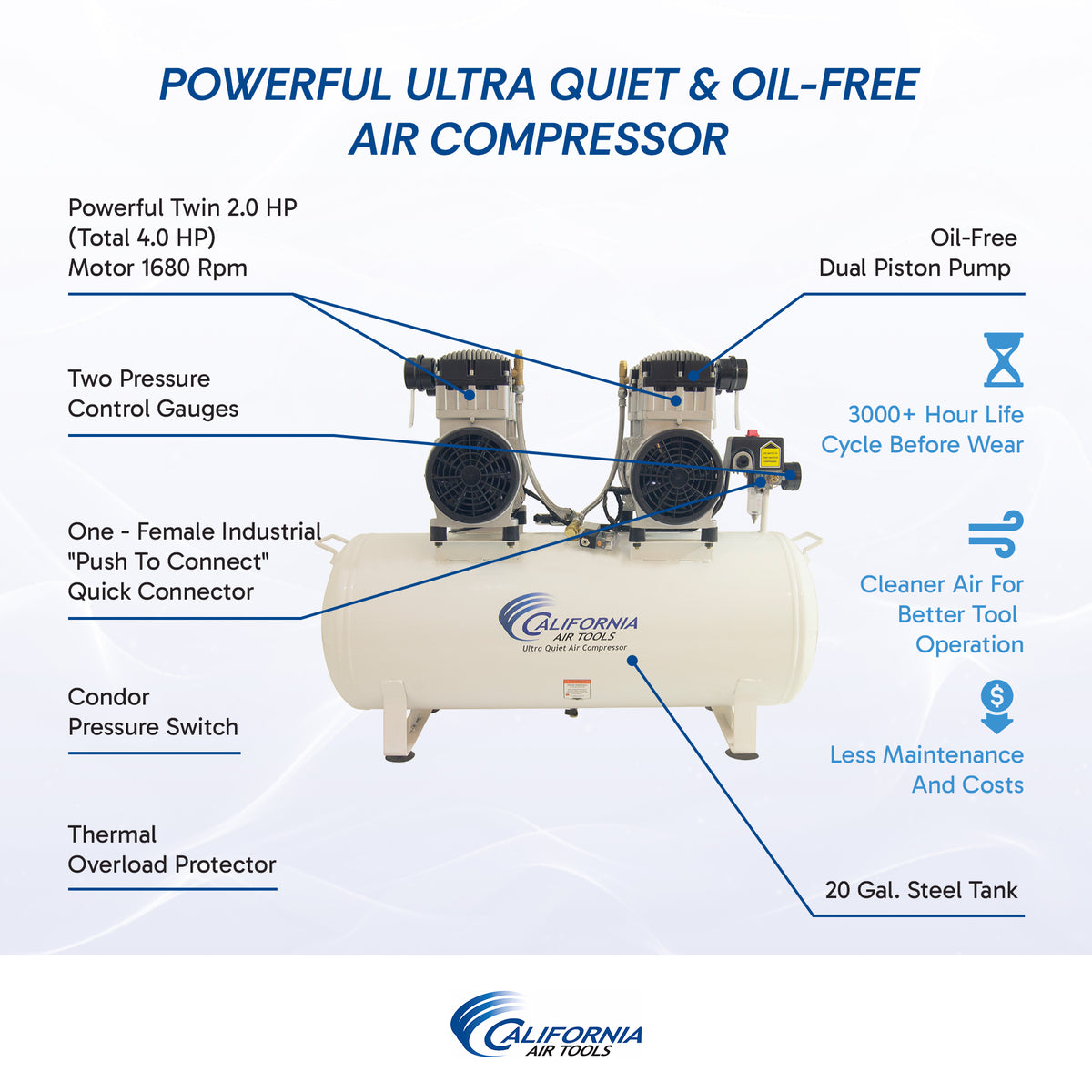

Key Features

• 4.0 HP rated/running power
• Twin 2.0 HP SP-9421-22060 motors
• Oil-free dual-piston pump system
• 20-gallon horizontal steel air tank
• 12.80 CFM at 40 PSI
• 10.60 CFM at 90 PSI
• 125 PSI maximum pressure
• Ultra-quiet 75 dB operating noise level
• Motors operate at only 1,680 RPM for reduced noise and wear
• Designed for longer continuous run times with a 70/30 duty cycle
• Two pressure control gauges
• Female industrial push-to-connect quick connector
• Condor pressure switch
• Thermal overload protector
• Low 14-amp draw
• Oil-free operation supports cold starts and uneven terrain
• Non-ASME steel air tank
• Assembled in the USA with global components

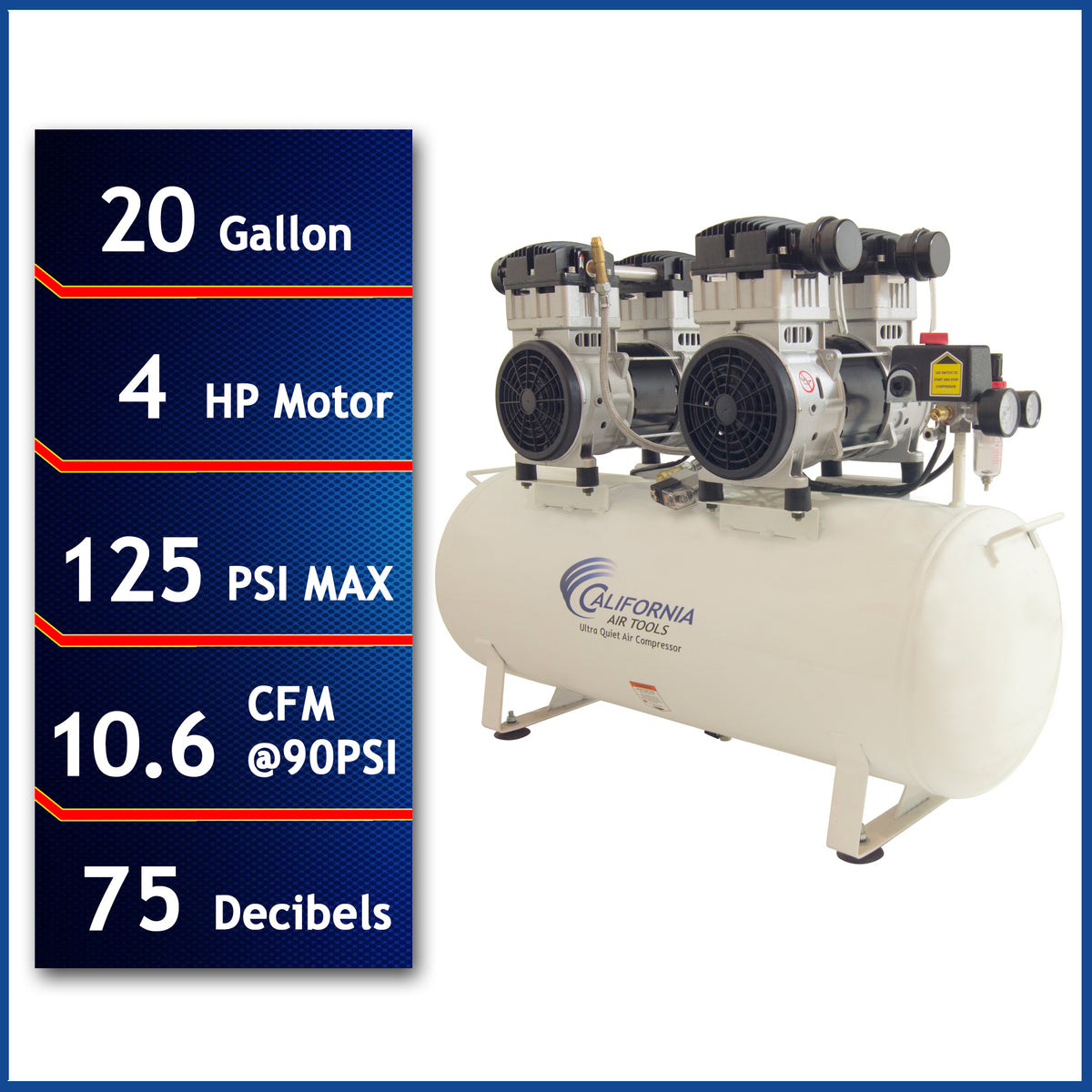

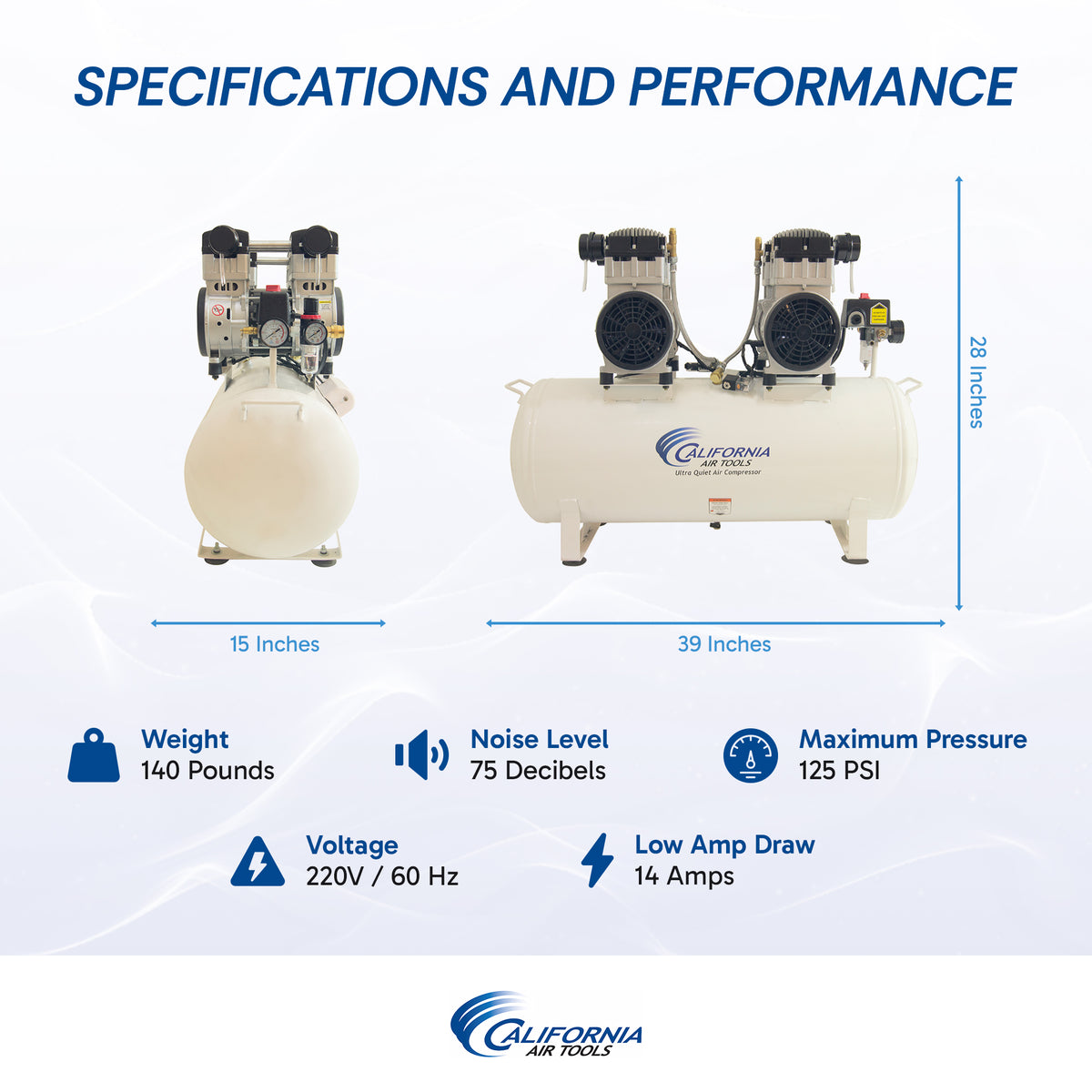

Specifications

• Brand: California Air Tools
• Model: 20040C
• SKU: 20040C-1
• Motor Power: 4.0 HP Rated/Running
• Motor Configuration: Twin 2.0 HP Motors
• Motor Model: SP-9421-22060
• Motor Speed: 1,680 RPM
• Pump Type: Oil-Free Dual Piston
• Tank Capacity: 20 Gallons
• Tank Material: Steel
• Tank Orientation: Horizontal
• CFM at 40 PSI: 12.80 CFM
• CFM at 90 PSI: 10.60 CFM
• Maximum Pressure: 125 PSI
• Noise Level: 75 dB
• Voltage: 220V
• Frequency: 60 Hz
• Phase: Single Phase
• Current Draw: 14 Amps
• Tank Fill Time: Approximately 150 Seconds
• Recovery Time: Approximately 40 Seconds from 95 to 125 PSI
• Duty Cycle: 70/30
• Plug Type: NEMA 6-15P
• Dimensions: 37.5 × 15 × 28 Inches
• Weight: 148 lbs
• Tank Rating: Non-ASME
• Warranty: 1-Year Limited Manufacturer Warranty

What's Included

• California Air Tools 20040C Air Compressor
• 20-Gallon Steel Air Tank
• Twin 2.0 HP SP-9421-22060 Motors
• Oil-Free Dual-Piston Pump System
• Two Pressure Control Gauges
• Female Industrial Push-to-Connect Quick Connector
• Four Air Filters
• Condor Pressure Switch
• Thermal Overload Protector

Applications

The California Air Tools 20040C is designed for professional and medium-duty equipment applications where higher airflow and quieter operation are important.

• CNC equipment
• Milling equipment
• Lathe applications
• Workshop and garage applications
• Medium equipment applications
• Pneumatic tools
• General shop applications
• Dental office and dental laboratory applications
• Air-powered equipment requiring up to 10.6 CFM at 90 PSI

Maintenance

The 20040C uses an oil-free dual-piston pump, eliminating the need for compressor oil and reducing routine maintenance. The two air filters attached to the motor-pump should be replaced every two years under normal operating conditions or every year when the compressor is exposed to dirty or dusty environments. Replacement air filter part number is 90260.
