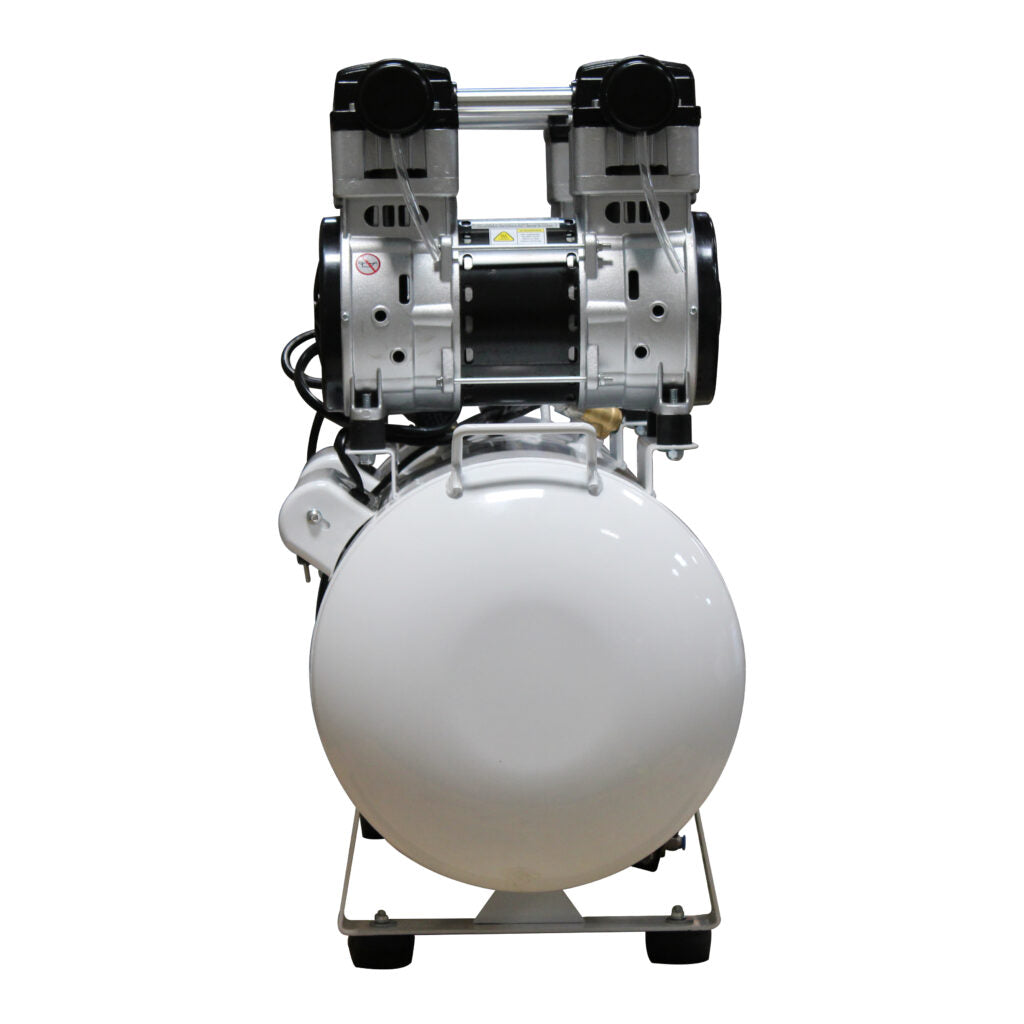

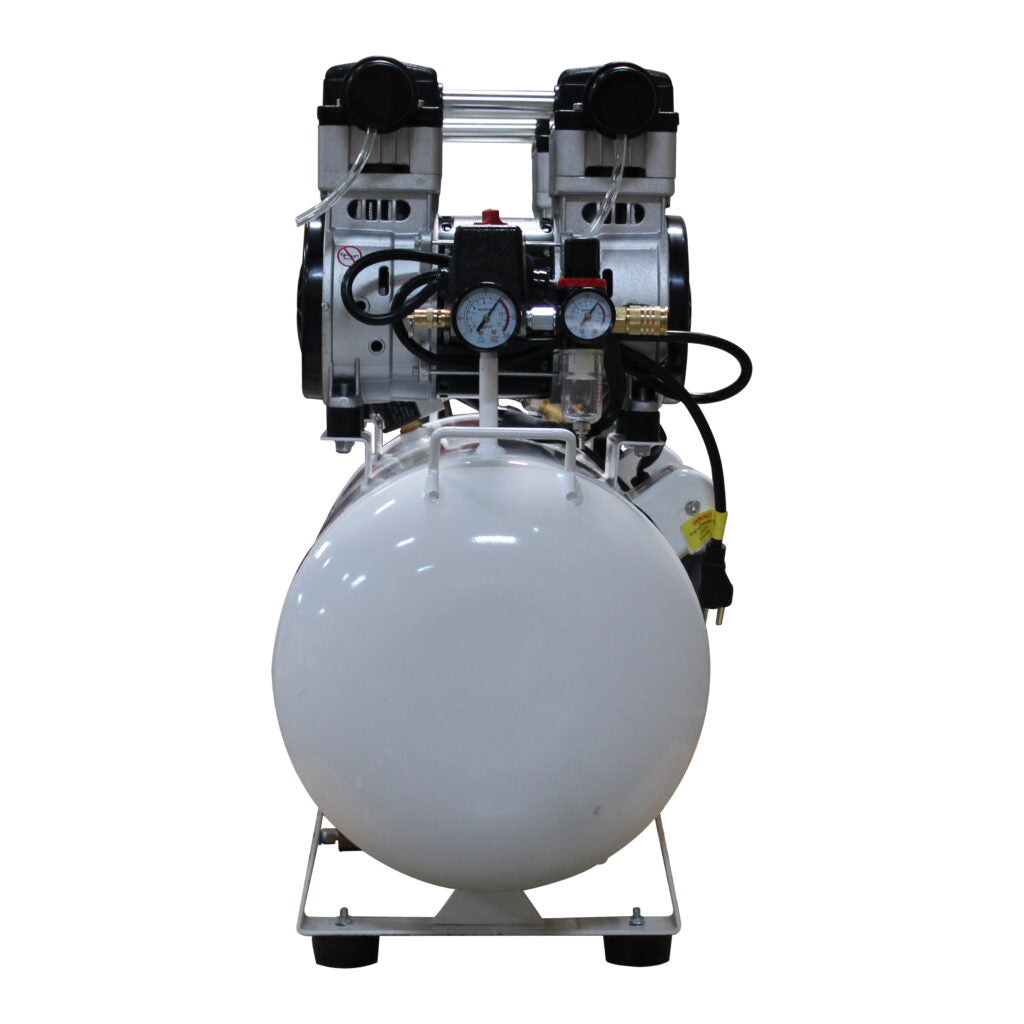

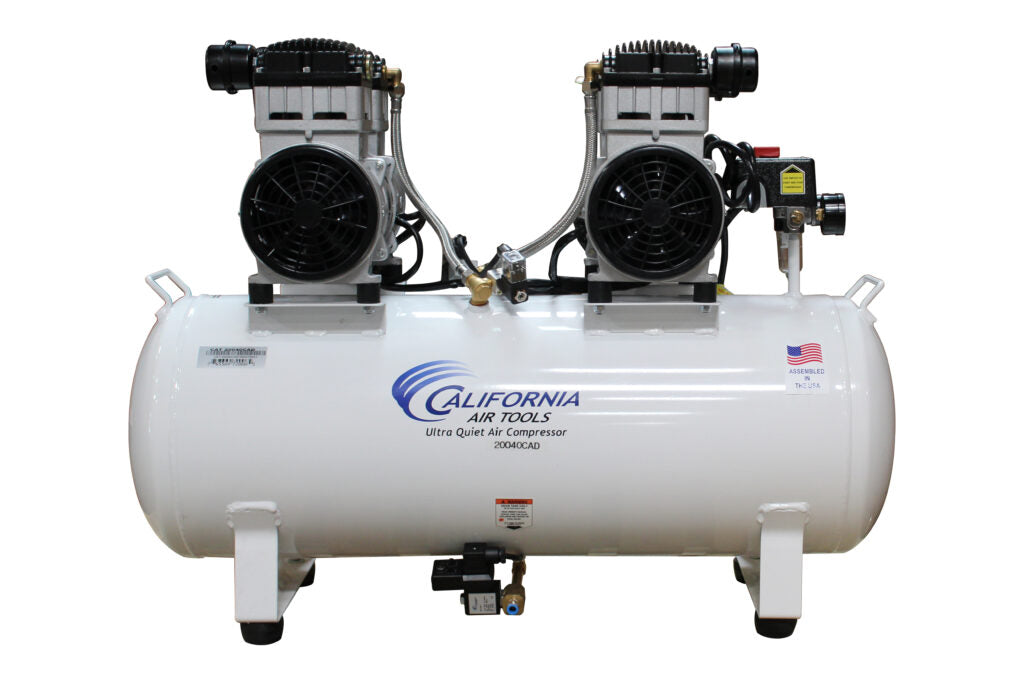

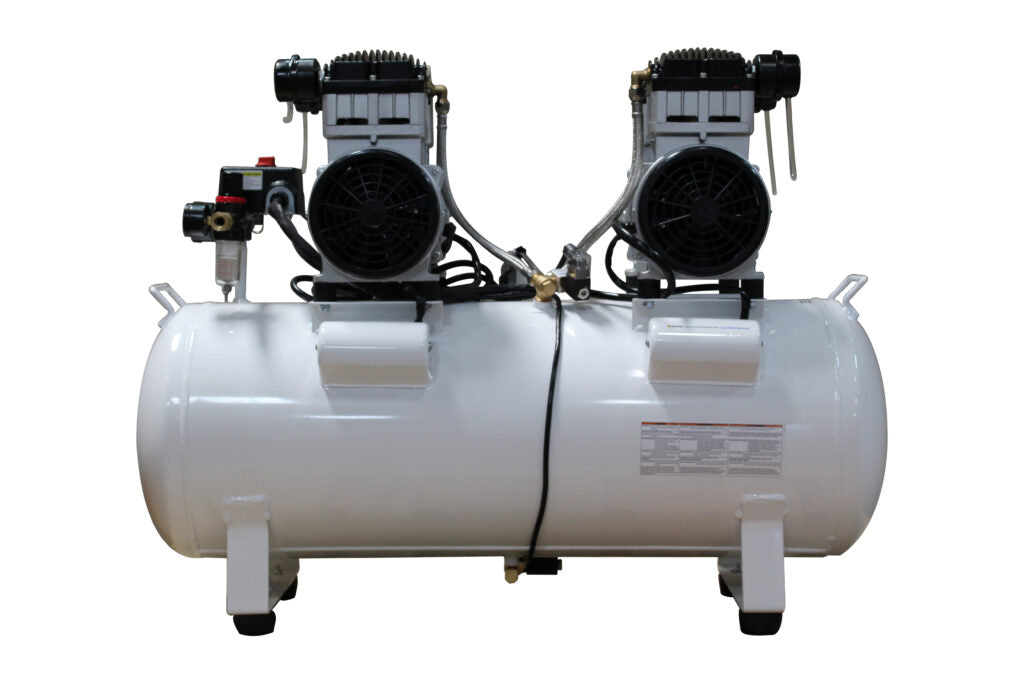

California Air Tools 20040CAD Powerful 4.0 HP Ultra Quiet & Oil-Free 20 Gallon Air Compressor with Automatic Drain Valve – 220V

Product Description

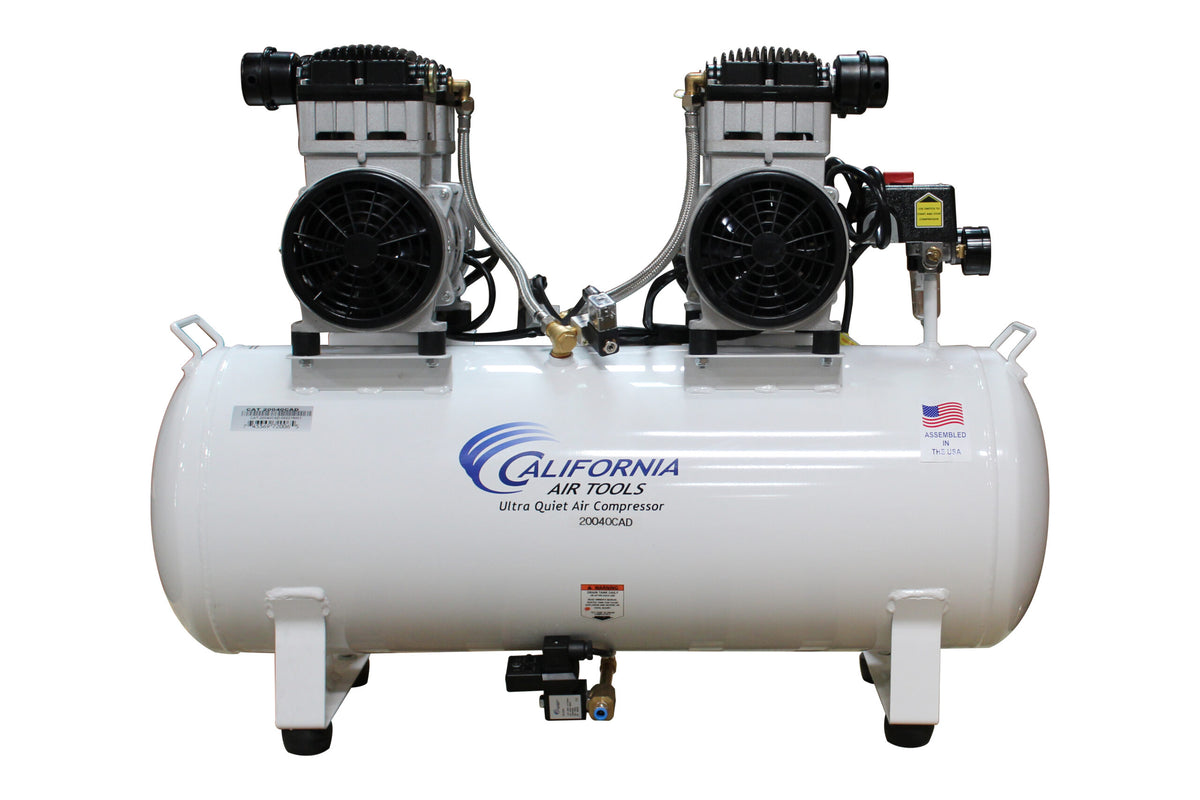

The California Air Tools 20040CAD is a powerful 4.0 HP ultra-quiet and oil-free air compressor designed for professional shops, garages, CNC applications, milling equipment, and medium-duty pneumatic applications. It features a large 20-gallon horizontal steel tank and a factory-installed automatic drain valve that helps eliminate the need to manually drain accumulated moisture from the tank.

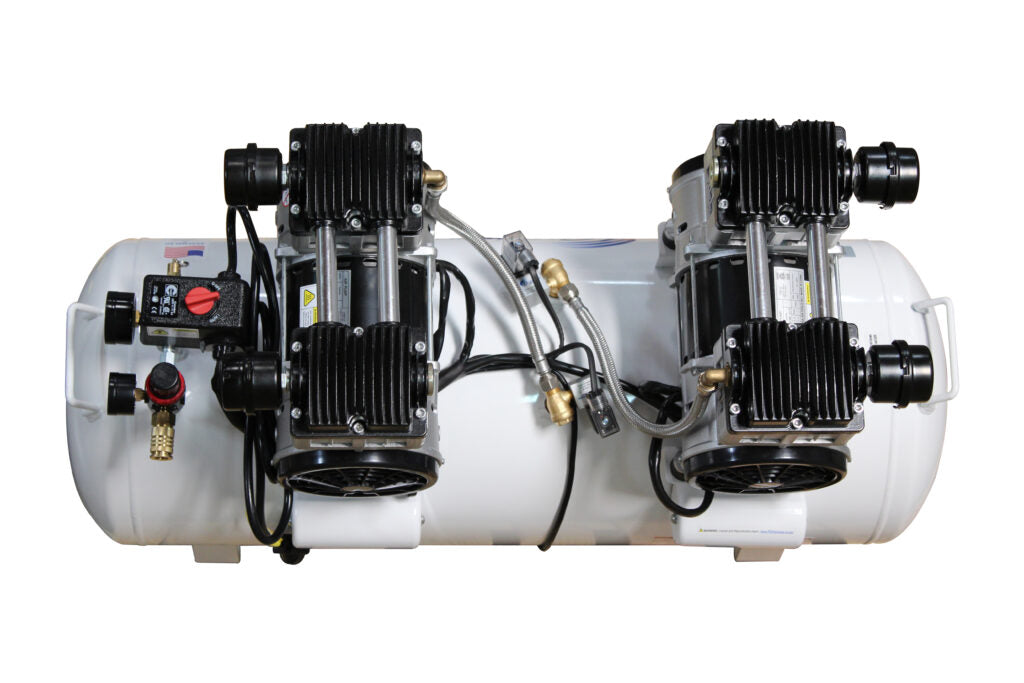

The compressor uses twin 2.0 HP SP-9421-22060 motor pumps operating at only 1,680 RPM to provide strong airflow with reduced noise and wear. It delivers 12.80 CFM at 40 PSI and 10.60 CFM at 90 PSI while operating at only 75 dB.

The oil-free dual-piston pump is designed for high performance and durability, with a life cycle of 3,000+ hours before wear. The factory-installed EZ-1 automatic drain valve uses a manually adjustable timer to control both the frequency and duration of the tank-draining process.

Key Features

• 4.0 HP rated/running power
• Twin 2.0 HP SP-9421-22060 motor pumps
• Oil-free dual-piston pump system
• 20-gallon steel horizontal air tank
• 12.80 CFM at 40 PSI
• 10.60 CFM at 90 PSI
• 75 dB ultra-quiet operating noise level
• 125 PSI adjustable output pressure regulator
• Factory-installed EZ-1 automatic drain valve
• Adjustable automatic drain frequency and duration timer
• Two pressure control gauges
• Female industrial push-to-connect quick connector

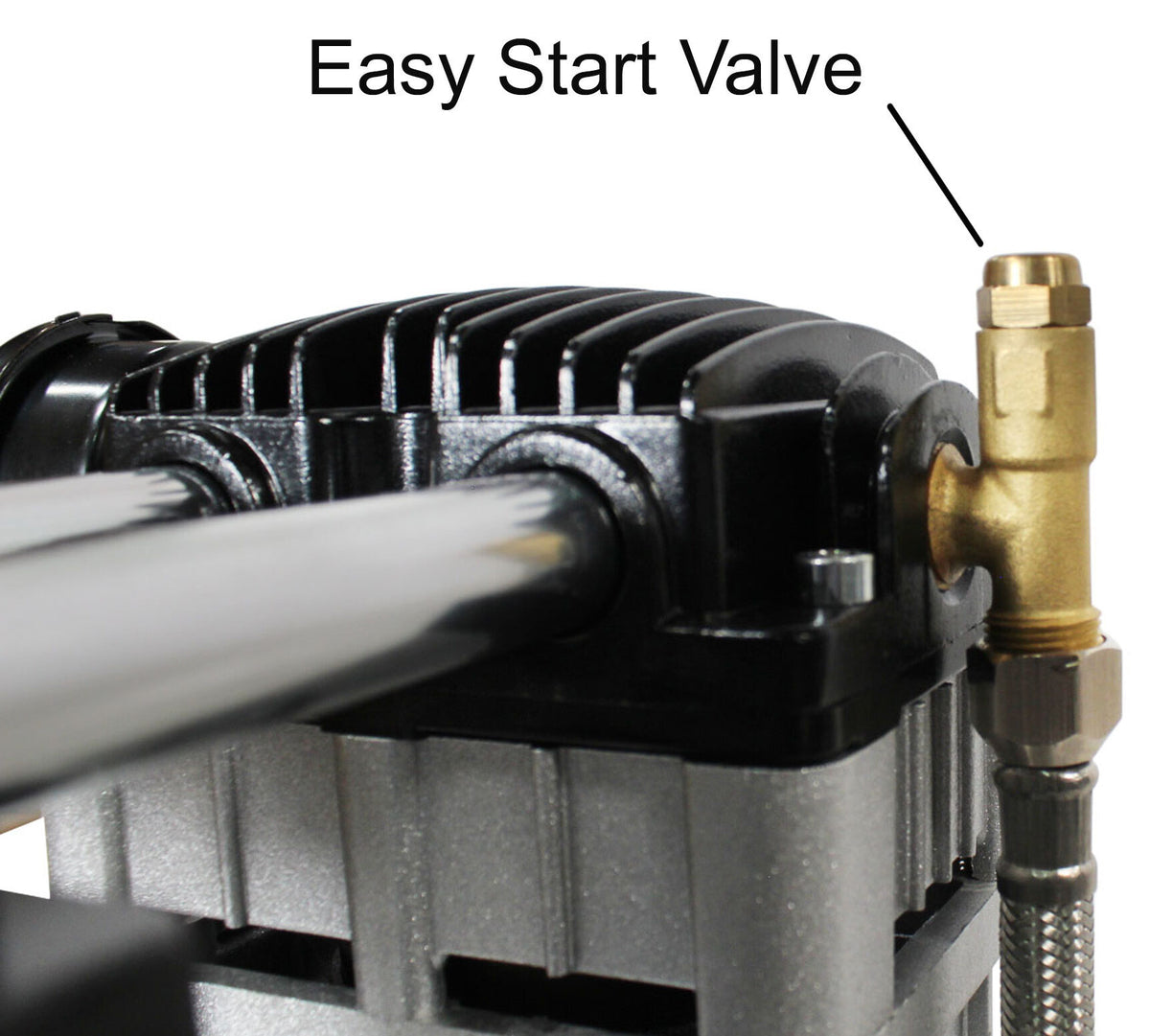

• Two Easy Start Valves for reduced starting amperage
• Condor pressure switch
• Thermal overload protection
• 70/30 duty cycle
• Low 14-amp draw
• Designed for cold starts and uneven terrain
• Non-ASME steel air tank
• Assembled in the USA with global components

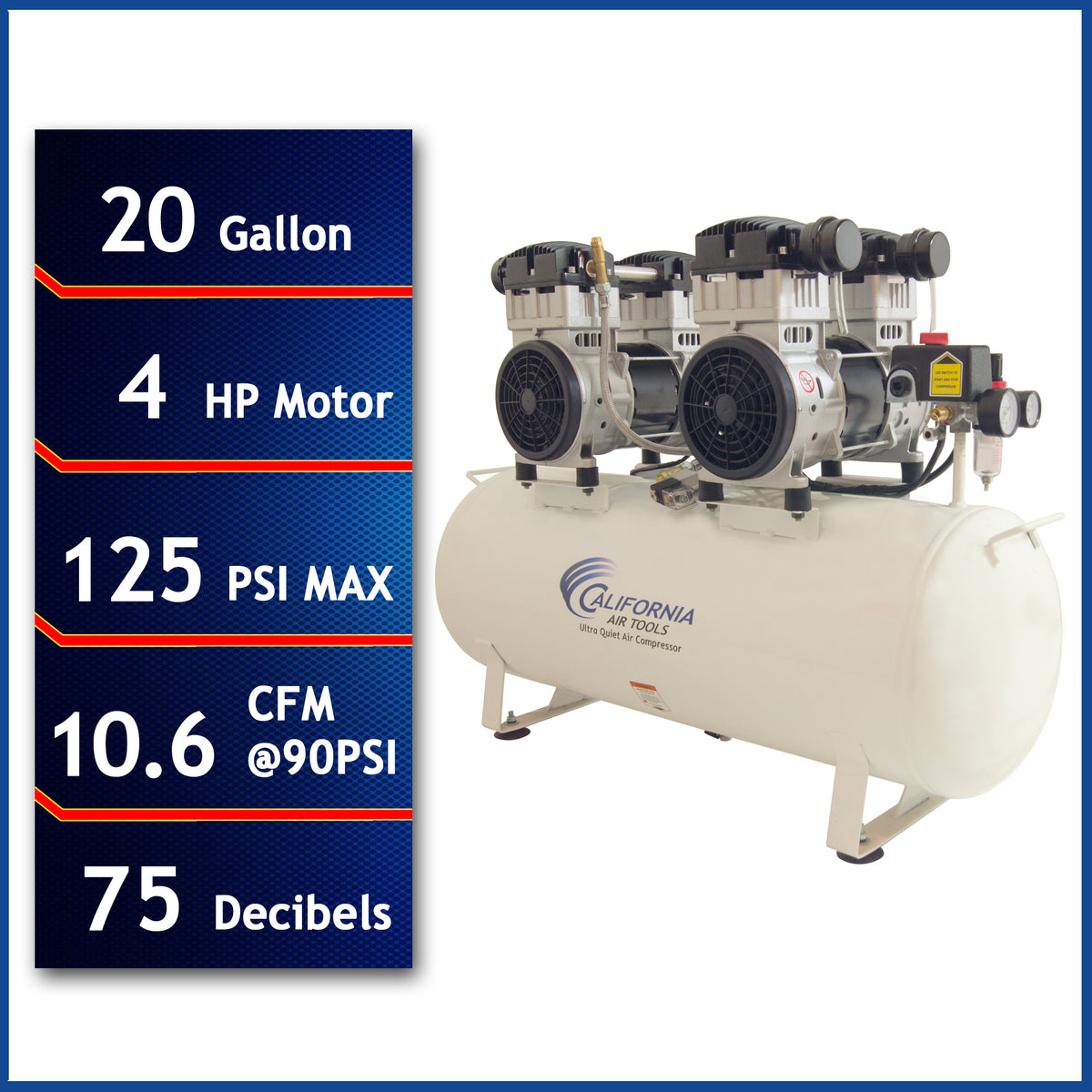

Specifications

• Brand: California Air Tools
• Model: 20040CAD
• SKU: 20040CAD-2
• Motor Power: 4.0 HP Rated/Running
• Motor Configuration: Twin 2.0 HP Motors
• Motor Model: SP-9421-22060
• Motor Speed: 1,680 RPM
• Pump Type: Oil-Free Dual Piston
• Tank Capacity: 20 Gallons
• Tank Material: Steel
• Tank Orientation: Horizontal
• CFM at 40 PSI: 12.80 CFM
• CFM at 90 PSI: 10.60 CFM
• Working Pressure: 90–125 PSI
• Output Pressure Regulator: 0–125 PSI
• Noise Level: 75 dB
• Voltage: 220V
• Frequency: 60 Hz
• Phase: Single Phase
• Current Draw: 14 Amps
• Tank Fill Time: Approximately 150 Seconds
• Recovery Time: Approximately 40 Seconds from 95 to 125 PSI
• Duty Cycle: 70/30
• Plug Type: NEMA 6-15P
• Dimensions: 37.5 × 15 × 28 Inches
• Weight: 148 lbs
• Tank Rating: Non-ASME
• Warranty: 1-Year Limited Manufacturer Warranty

What's Included

• California Air Tools 20040CAD Air Compressor
• 20-Gallon Horizontal Steel Air Tank
• Twin 2.0 HP SP-9421-22060 Motor Pumps
• Oil-Free Dual-Piston Pump System
• Factory-Installed EZ-1 Automatic Drain Valve
• Two Pressure Control Gauges
• Female Industrial Push-to-Connect Quick Connector
• Two Easy Start Valves
• Condor Pressure Switch
• Four Air Filters
• Thermal Overload Protector

Applications

The California Air Tools 20040CAD is designed for applications requiring higher airflow, reliable compressed air, and quieter operation.

• Professional workshops
• Garages and automotive shops
• CNC equipment
• Milling equipment
• Lathe applications
• Medium equipment applications
• Large bandsaw applications
• General pneumatic equipment
• HVLP painting
• General shop applications
• Compressed-air tools

Maintenance

The oil-free dual-piston pump eliminates the need for compressor oil and reduces routine lubrication requirements. The factory-installed automatic drain valve helps eliminate manual tank draining by automatically releasing accumulated moisture according to its timer settings.

The two air filters attached to the motor-pump should be replaced every two years under normal conditions or every year when the compressor is exposed to a dirty or dusty environment. Replacement air filter part number is 90260.
