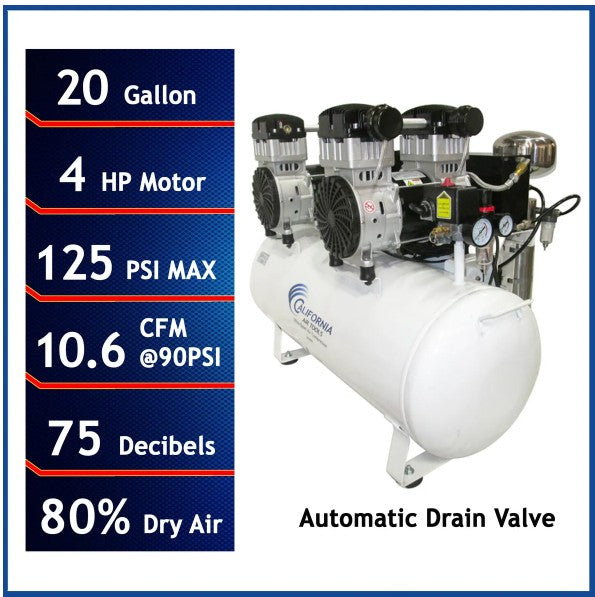

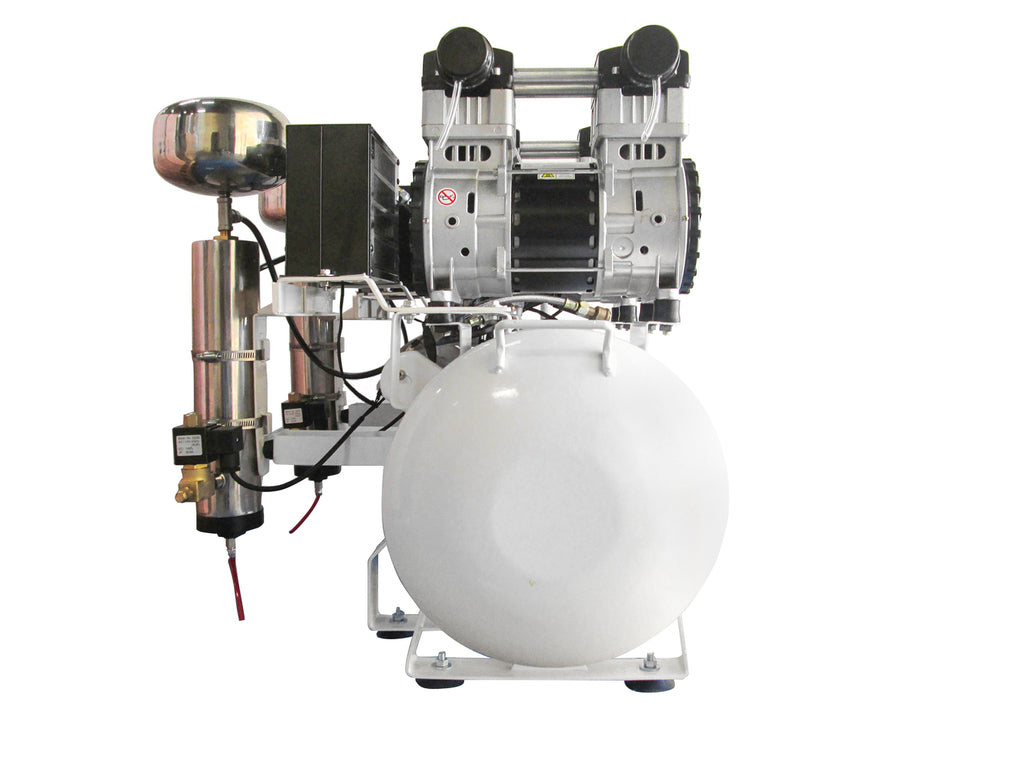

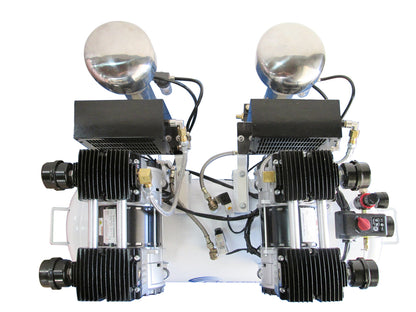

California Air Tools 20040DCAD Powerful 4.0 HP Ultra Quiet & Oil-Free 20 Gallon Air Compressor with 80% Air Drying System and Automatic Drain Valve – 220V

Product Description

The California Air Tools 20040DCAD is a powerful 4.0 HP ultra-quiet and oil-free air compressor designed for applications requiring reliable airflow, reduced noise, and drier compressed air. It combines a 20-gallon horizontal steel air tank with an integrated 80% air drying system and factory-installed automatic drain valve.

The compressor is powered by twin 2.0 HP SP-9421-22060 motors operating at only 1,680 RPM, delivering 12.80 CFM at 40 PSI and 10.60 CFM at 90 PSI while producing only 75 dB of noise. The oil-free dual-piston pump is engineered for high performance and durability with a rated life cycle of 3,000+ hours before wear.

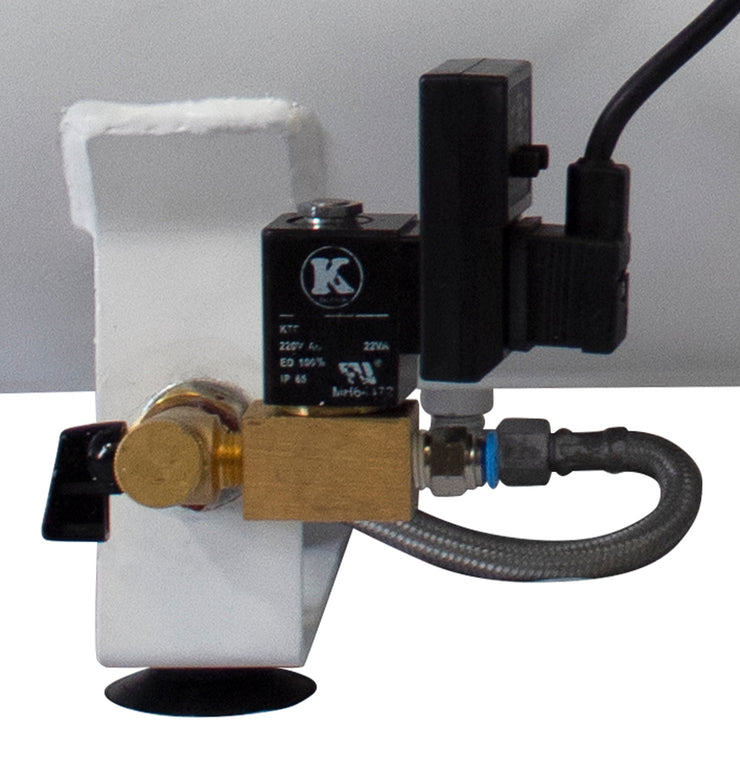

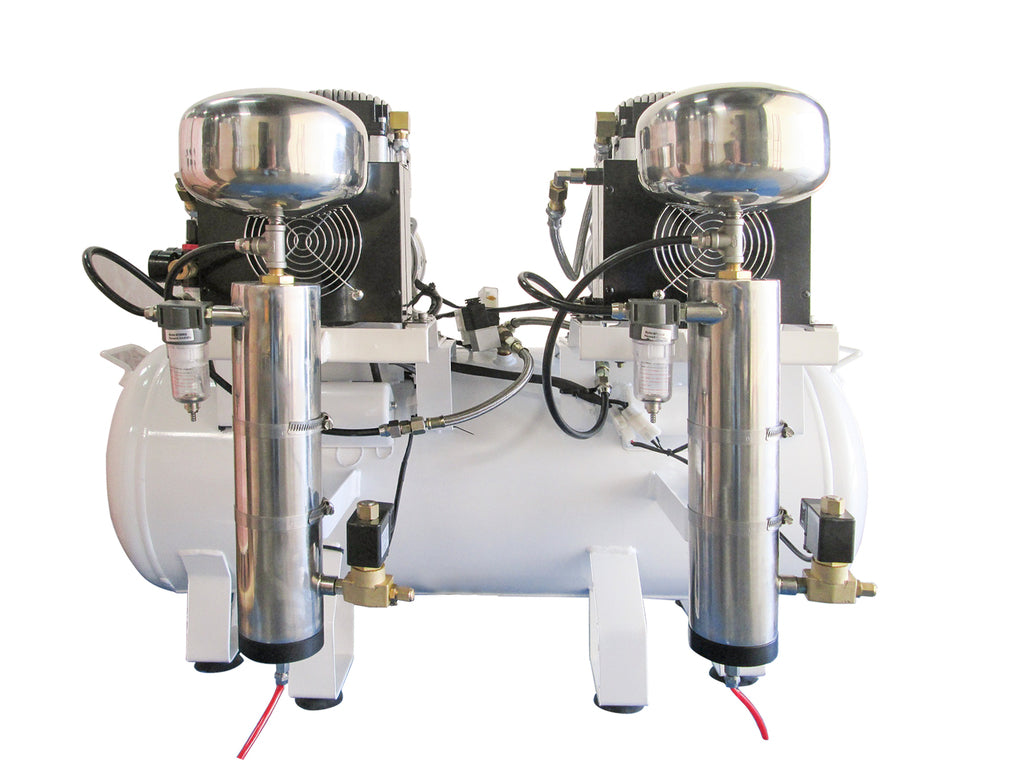

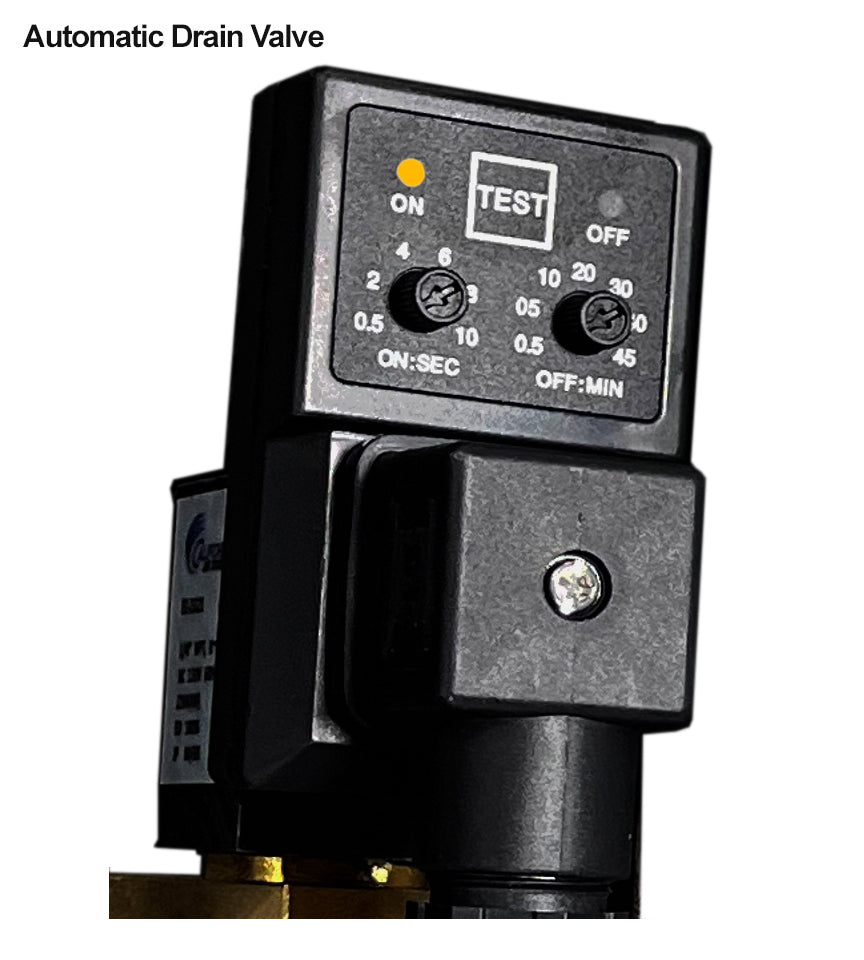

The integrated air drying system uses an aftercooler and activated alumina desiccant to remove approximately 80% of water vapor from compressed air, helping protect sensitive tools and machinery. The factory-installed EZ-1 automatic drain valve uses an adjustable timer to control the frequency and duration of tank draining.

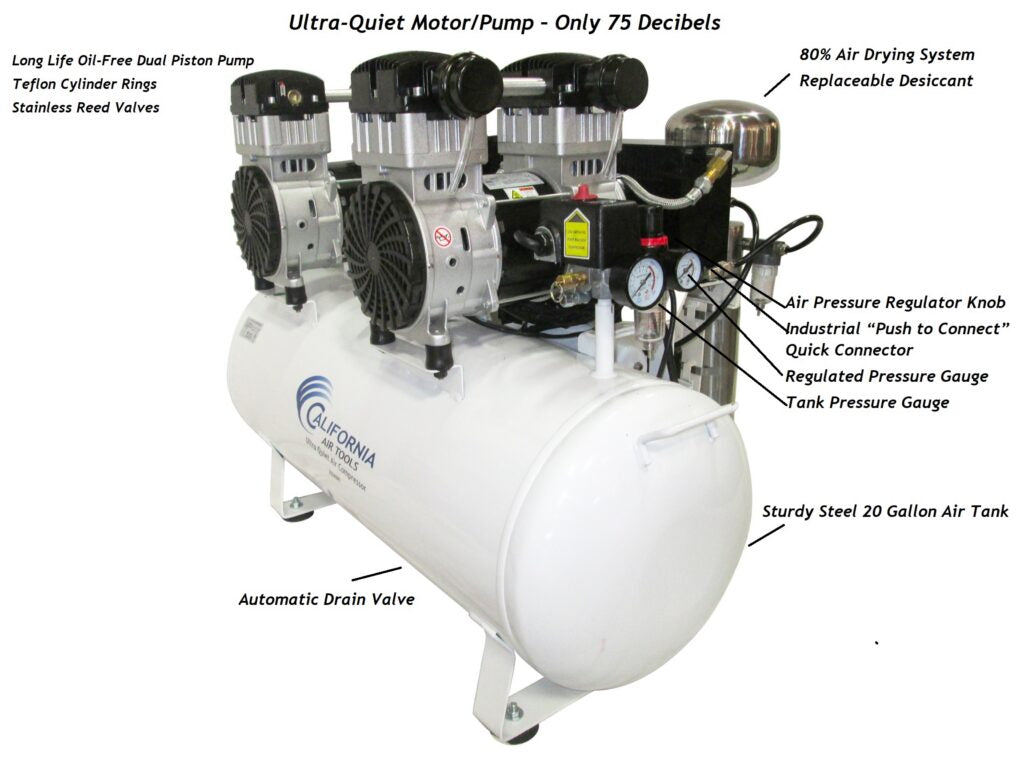

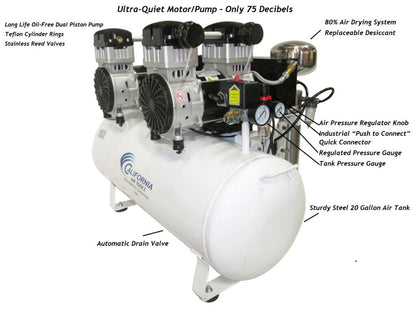

Key Features

• 4.0 HP rated/running power
• Twin 2.0 HP SP-9421-22060 motors
• Oil-free dual-piston pump system
• 20-gallon horizontal steel air tank
• Integrated 80% air drying system
• Aftercooler and activated alumina desiccant dryer
• 12.80 CFM at 40 PSI
• 10.60 CFM at 90 PSI
• 125 PSI maximum pressure
• Ultra-quiet 75 dB operating noise level
• Motors operate at only 1,680 RPM for reduced noise and wear
• Factory-installed EZ-1 automatic drain valve
• Adjustable automatic drain frequency and duration
• Two pressure control gauges
• Female industrial push-to-connect quick connector
• Condor pressure switch
• Thermal overload protection
• 70/30 duty cycle
• Low 14-amp draw
• Non-ASME steel air tank
• Assembled in the USA with global components

Specifications

• Brand: California Air Tools
• Model: 20040DCAD
• Motor Power: 4.0 HP Rated/Running
• Motor Configuration: Twin 2.0 HP Motors
• Motor Model: SP-9421-22060
• Motor Speed: 1,680 RPM
• Pump Type: Oil-Free Dual Piston
• Tank Capacity: 20 Gallons
• Tank Material: Steel
• Tank Orientation: Horizontal
• CFM at 40 PSI: 12.80 CFM
• CFM at 90 PSI: 10.60 CFM
• Maximum Pressure: 125 PSI
• Noise Level: 75 dB
• Voltage: 220V
• Frequency: 60 Hz
• Phase: Single Phase
• Current Draw: 14 Amps
• Plug Type: NEMA 6-15P
• Tank Fill Time: Approximately 150 Seconds
• Recovery Time: Approximately 40 Seconds from 95 to 125 PSI
• Duty Cycle: 70/30
• Air Drying System: 80% Air Drying
• Drying System: Aftercooler with Activated Alumina Desiccant
• Desiccant Life: Approximately 3,000–4,000 motor/pump running hours
• Dimensions: 37.5 × 25 × 28 Inches
• Weight: 192 lbs
• Tank Rating: Non-ASME
• Warranty: 1-Year Limited Manufacturer Warranty

What's Included

• California Air Tools 20040DCAD Air Compressor
• 20-Gallon Horizontal Steel Air Tank
• Twin 2.0 HP SP-9421-22060 Motors
• Oil-Free Dual-Piston Pump System
• Integrated 80% Air Drying System
• Aftercooler
• Activated Alumina Desiccant
• Factory-Installed EZ-1 Automatic Drain Valve
• Two Pressure Control Gauges
• Female Industrial Push-to-Connect Quick Connector
• Four Air Filters
• Condor Pressure Switch
• Thermal Overload Protector

Applications

The California Air Tools 20040DCAD is suitable for applications requiring higher airflow and reduced moisture in compressed air, including:

• Dental offices and dental laboratories
• Dental milling equipment
• Dental air tools
• CNC equipment
• Milling equipment
• Machine shops
• Workshops and garages
• Medium-duty pneumatic equipment
• HVLP painting applications
• General compressed-air applications requiring dry air
• Tools and machinery sensitive to moisture

Maintenance

The oil-free dual-piston pump eliminates the need for compressor oil and reduces routine lubrication requirements. The integrated air drying system uses activated alumina desiccant, which should be replaced approximately every 3,000–4,000 motor/pump running hours, typically every 1–2 years depending on usage.

The automatic drain valve helps eliminate manual tank draining by releasing accumulated moisture according to its adjustable timer settings.

The two air filters attached to the motor-pump should be replaced every two years under normal conditions or annually when the compressor is exposed to dirty or dusty environments. Replacement air filter part number is 90260.
