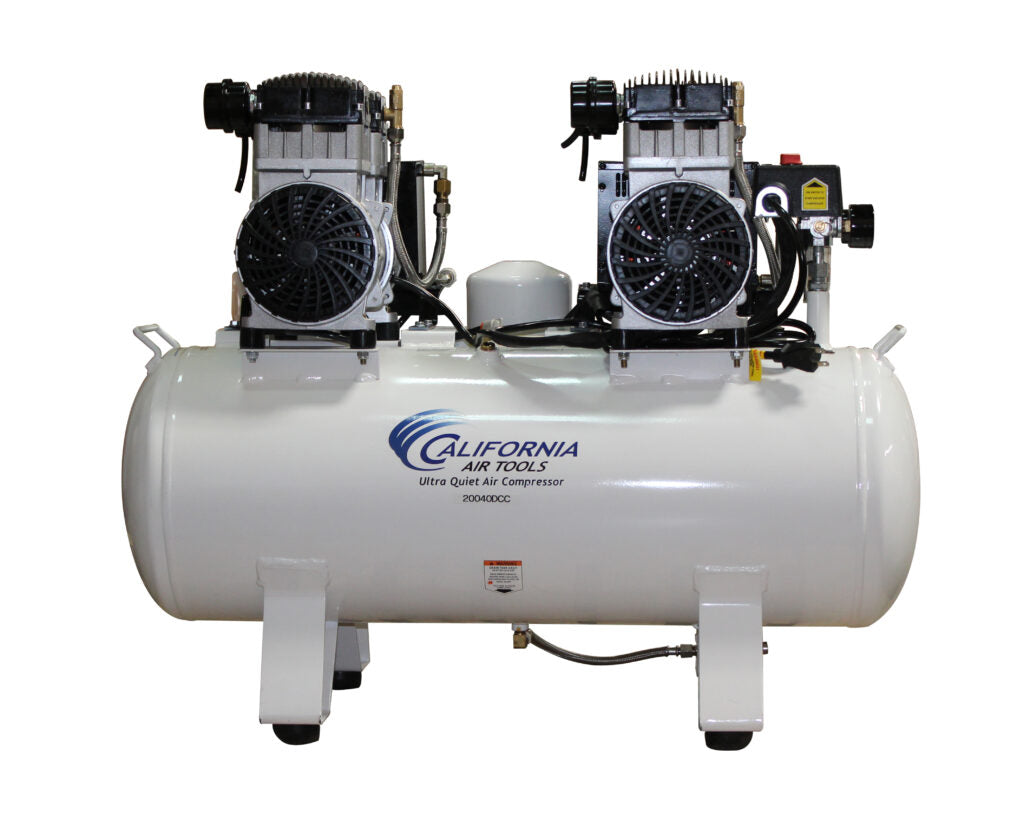

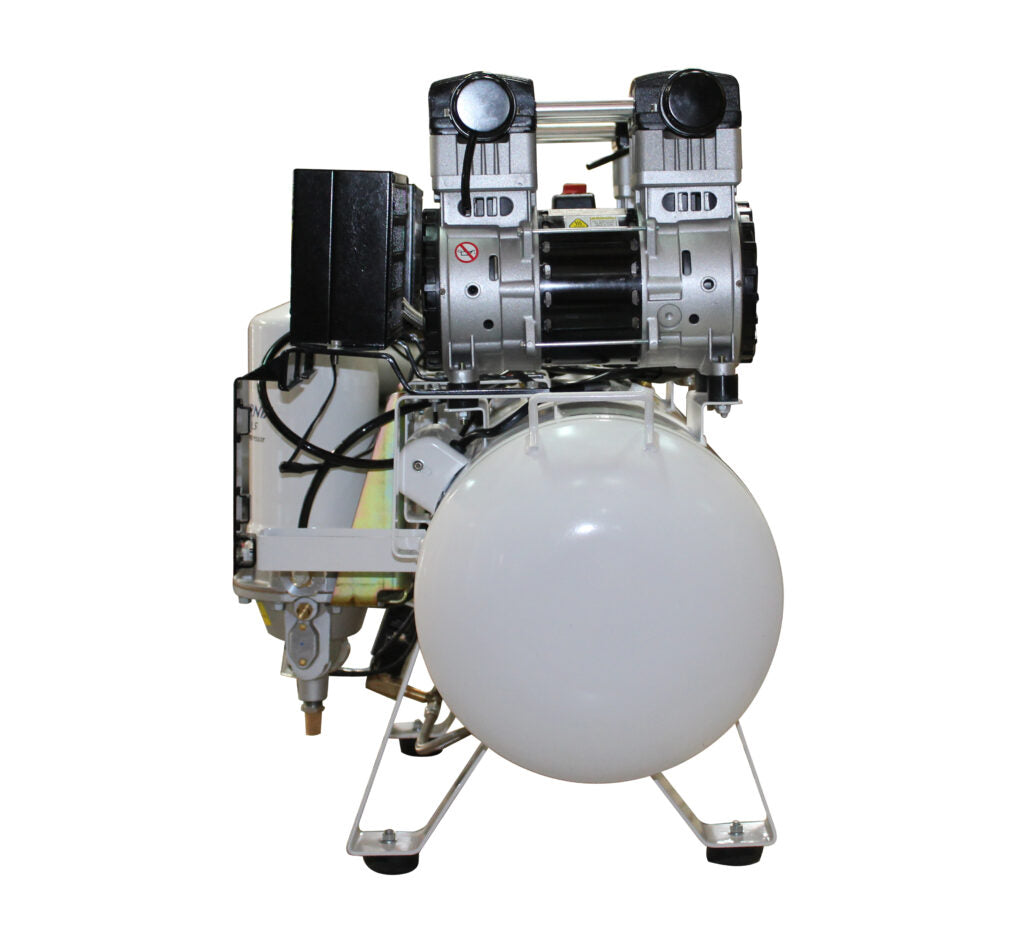

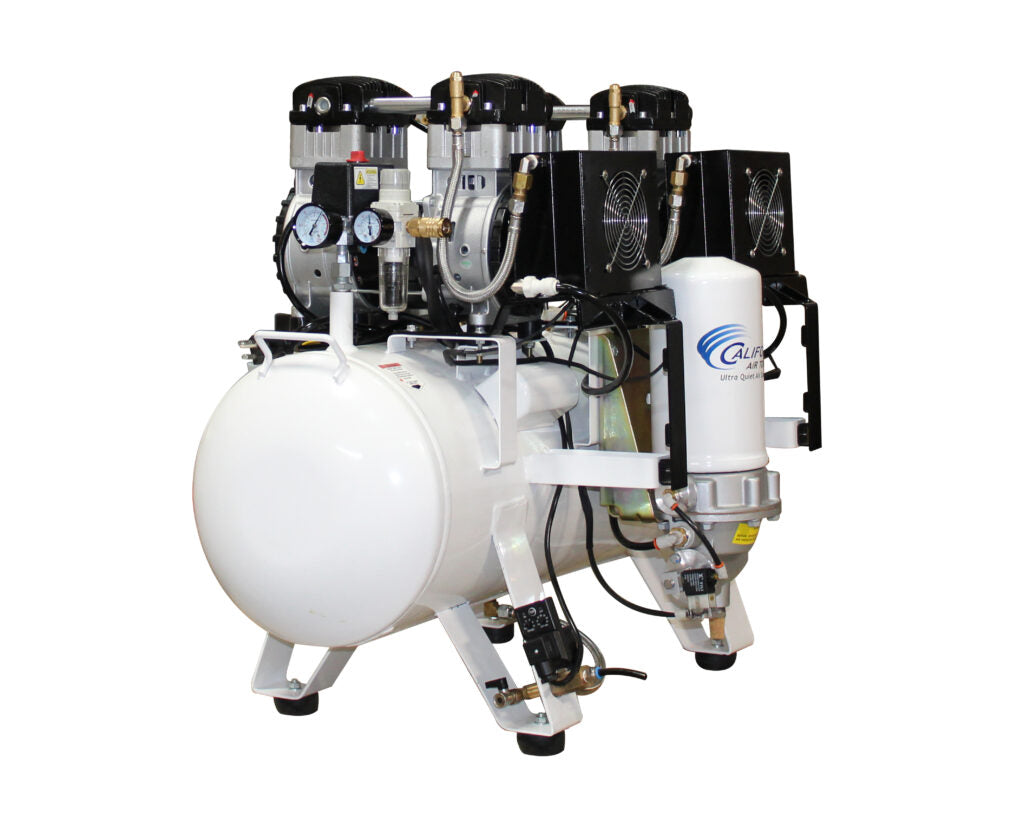

California Air Tools 20040DCADC Powerful 4.0 HP Ultra Quiet & Ultra Dry Oil-Free 20 Gallon Air Compressor with 98% Air Drying System & Automatic Drain Valve – 220V

Product Description

The California Air Tools 20040DCADC is a powerful 4.0 HP ultra-quiet, ultra-dry, and oil-free air compressor designed for applications that require clean, dry compressed air. It combines a 20-gallon steel tank with an integrated 98% air drying system and factory-installed EZ-1 automatic drain valve.

Powered by twin 2.0 HP motors operating at only 1,680 RPM, the 20040DCADC delivers 12.80 CFM at 40 PSI and 10.60 CFM at 90 PSI while producing only 75 dB of operating noise. Its oil-free dual-piston pump is engineered for high performance and durability with a life cycle of 3,000+ hours before wear.

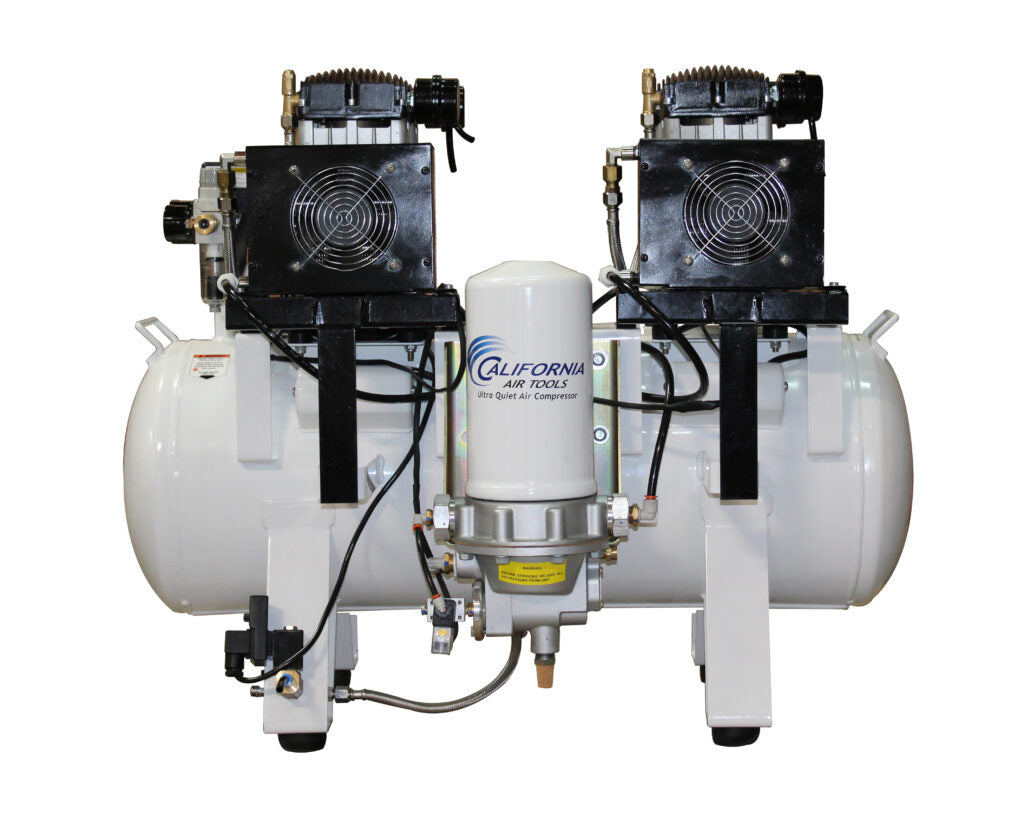

The integrated air drying system uses an aftercooler and a replaceable spin-on cartridge containing regenerating high-temperature molecular sieve desiccant. The system is designed to remove up to 98% of water vapor and provides ISO 8573 Class 2.3.1 air quality, making this compressor suitable for applications where moisture control and clean air are important.

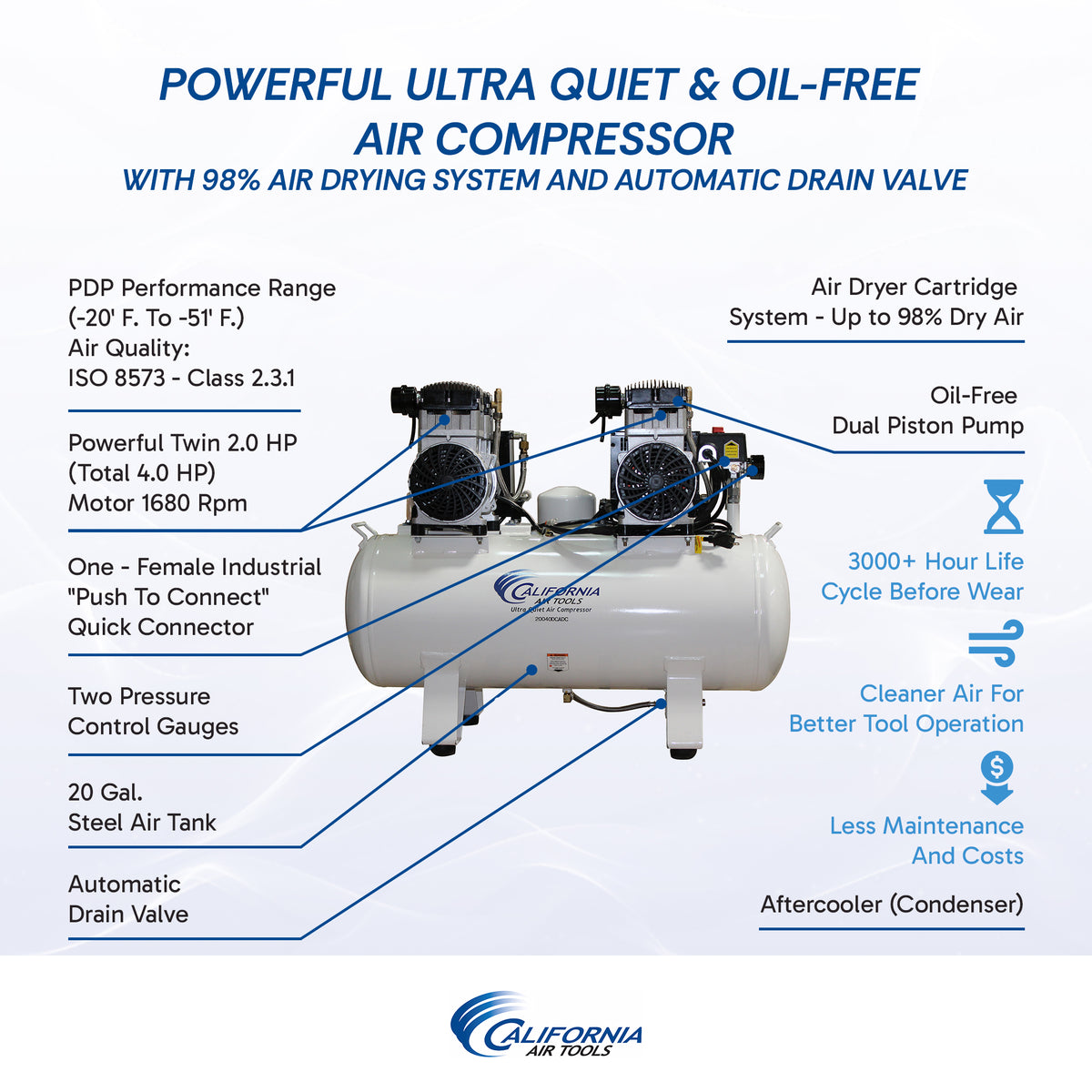

Key Features

• 4.0 HP rated/running power
• Twin 2.0 HP motors operating at 1,680 RPM
• Oil-free dual-piston pump system
• 20-gallon steel air tank
• Integrated 98% air drying system
• ISO 8573 Class 2.3.1 compliant air quality
• 12.80 CFM at 40 PSI
• 10.60 CFM at 90 PSI
• 125 PSI maximum pressure
• Ultra-quiet 75 dB operating noise level
• Aftercooler for cooling compressed discharge air
• Spin-on air dryer cartridge with molecular sieve desiccant
• Factory-installed EZ-1 automatic drain valve
• Adjustable automatic drain frequency and duration timer

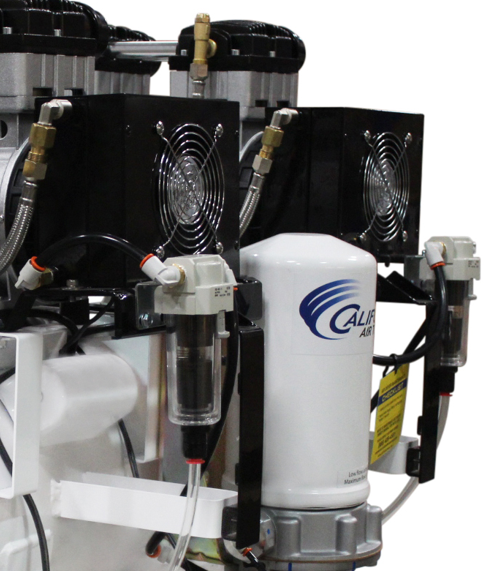

• Two 0.01 micron prefilters
• 5.0 micron air filter regulator

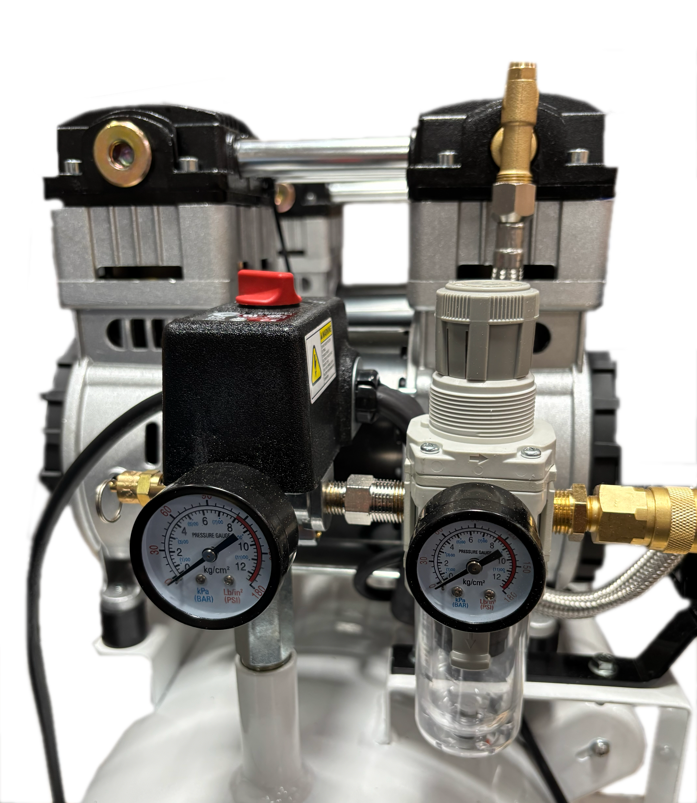

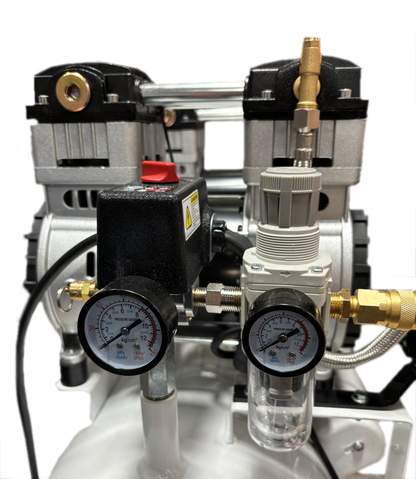

• Two pressure control gauges

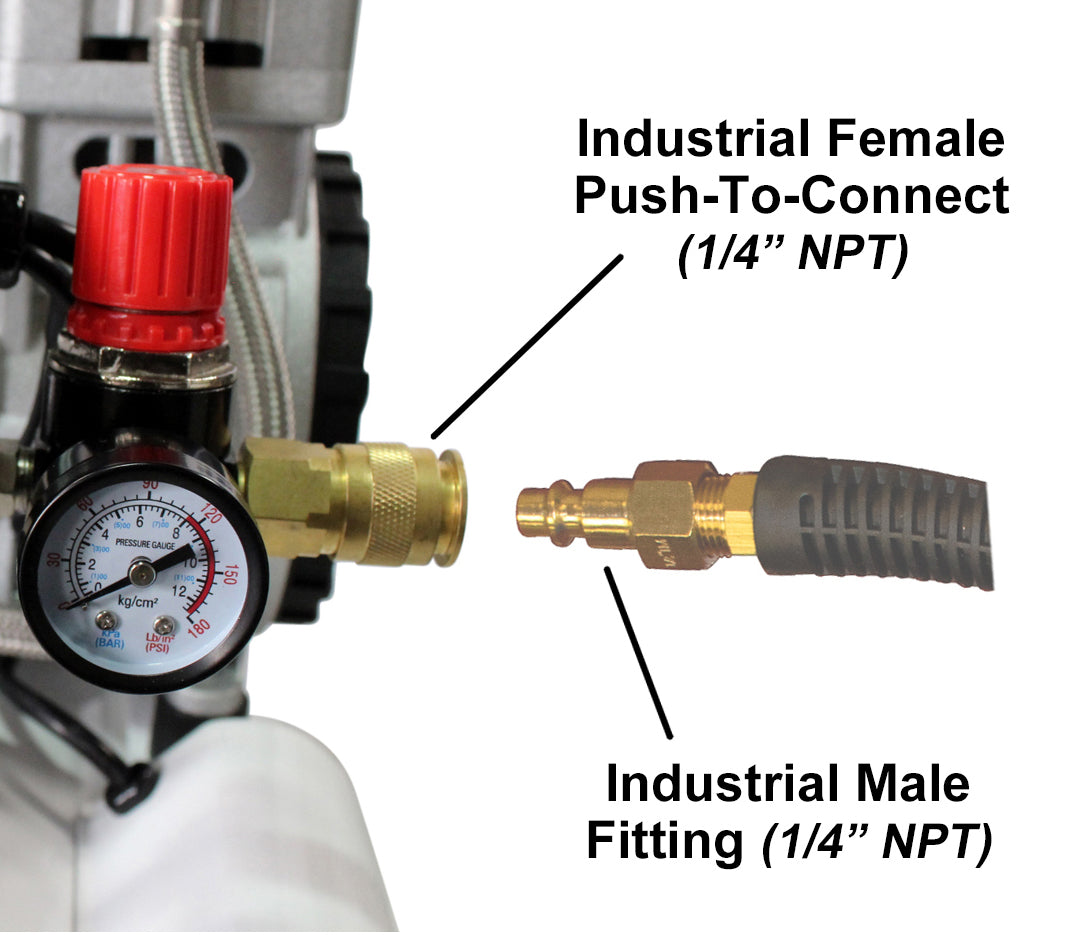

• Female industrial push-to-connect quick connector
• Condor pressure switch
• Thermal overload protection
• 70/30 duty cycle
• Low 14-amp draw
• Non-ASME air tank
• Assembled in the USA with global components

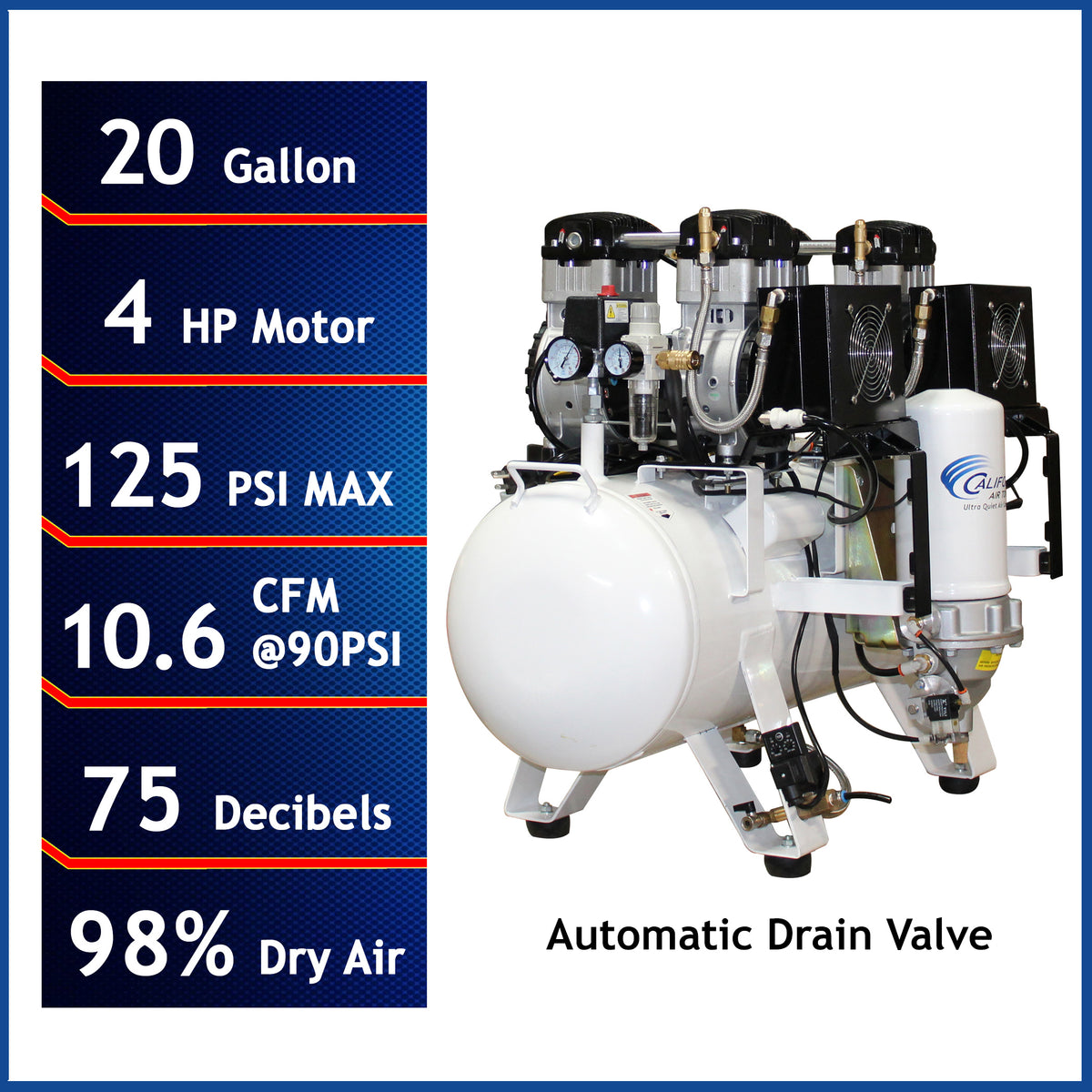

Specifications

• Brand: California Air Tools
• Model: 20040DCADC
• SKU: 20040DCADC
• Motor Power: 4.0 HP Rated/Running
• Motor Configuration: Twin 2.0 HP Motors
• Motor Speed: 1,680 RPM
• Pump Type: Oil-Free Dual Piston
• Tank Capacity: 20 Gallons
• Tank Material: Steel
• Tank Orientation: Horizontal
• CFM at 40 PSI: 12.80 CFM
• CFM at 90 PSI: 10.60 CFM
• Maximum Pressure: 125 PSI
• Working Pressure: 90–125 PSI
• Noise Level: 75 dB
• Voltage: 220V
• Frequency: 60 Hz
• Phase: Single Phase
• Current Draw: 14 Amps
• Plug Type: NEMA 6-15P
• Tank Fill Time: Approximately 150 Seconds
• Recovery Time: Approximately 40 Seconds from 95 to 125 PSI
• Duty Cycle: 70/30
• Air Drying: Up to 98% Dry Air
• Air Quality: ISO 8573 Class 2.3.1
• Drying System: Aftercooler with Molecular Sieve Desiccant
• Dryer Cartridge Life: Approximately 4,000 operating hours or 2 years
• PDP Performance Range: -20°F to -51°F
• Dimensions: 37.1 × 22 × 30.5 Inches
• Weight: 170 lbs
• Tank Rating: Non-ASME
• Warranty: 1-Year Limited Manufacturer Warranty

What's Included

• California Air Tools 20040DCADC Air Compressor
• 20-Gallon Steel Air Tank
• Twin 2.0 HP Motor System
• Oil-Free Dual-Piston Pump System
• Integrated 98% Air Drying System
• Aftercooler
• 98% Air Dryer Cartridge
• Two 0.01 Micron Prefilters
• 5.0 Micron Air Filter Regulator
• Factory-Installed EZ-1 Automatic Drain Valve
• Two Pressure Control Gauges
• Female Industrial Push-to-Connect Quick Connector
• Condor Pressure Switch
• Thermal Overload Protector
• Four Air Filters

Applications

The California Air Tools 20040DCADC is designed for professional applications requiring clean, dry, low-moisture compressed air, including:

• Dental offices and dental laboratories

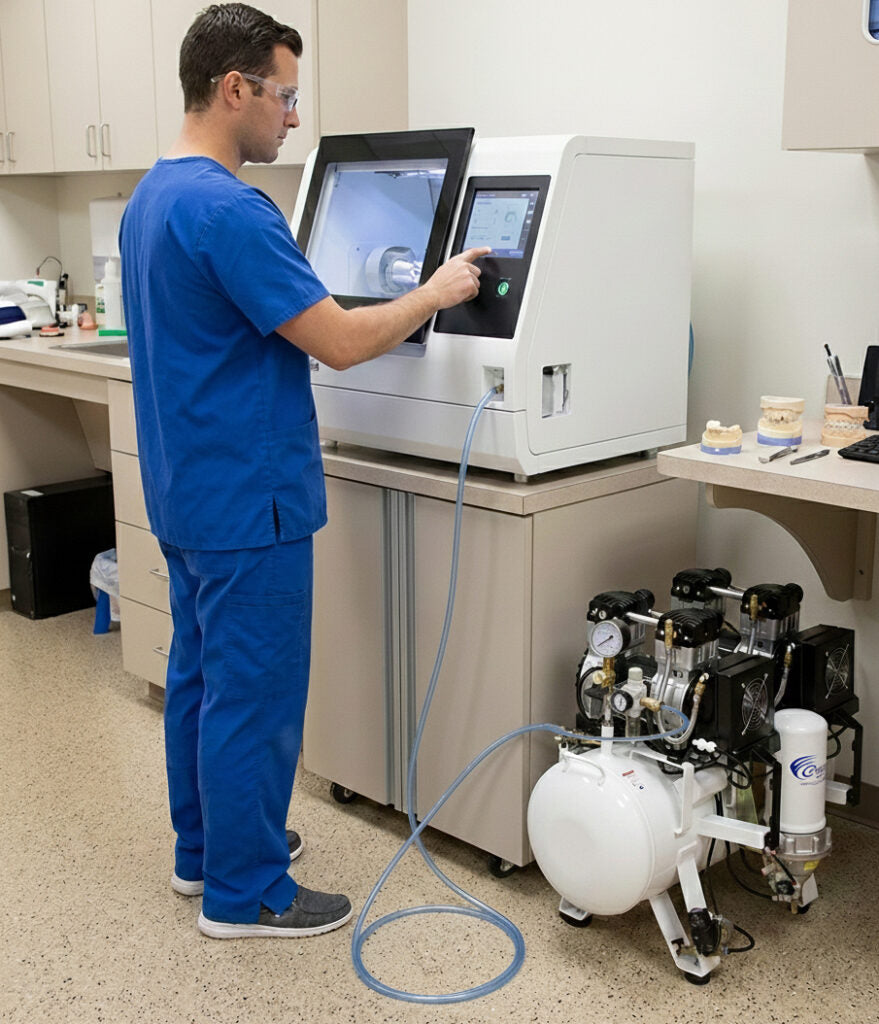

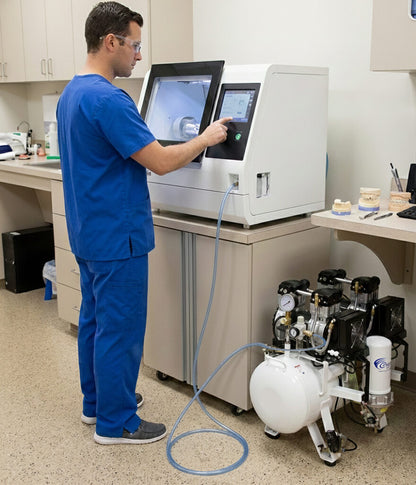

• Dental milling applications
• Surgical applications
• Manufacturing clean rooms
• Restaurant applications
• General engineering applications
• CNC and machining applications
• Workshops and garages
• General pneumatic equipment
• Applications involving moisture-sensitive tools and machinery

Maintenance

The oil-free dual-piston pump eliminates the need for compressor oil. The 98% air dryer cartridge should be replaced every 4,000 operating hours, approximately every two years under average use.

The two 2 HP air filters attached to the motor-pump should be replaced every two years under normal conditions or annually when the compressor is exposed to dirty or dusty environments. Replacement air filter part number is 90260.

The EZ-1 automatic drain valve eliminates the need for routine manual tank draining. Its manually adjustable timer controls both the frequency and duration of the draining process.
