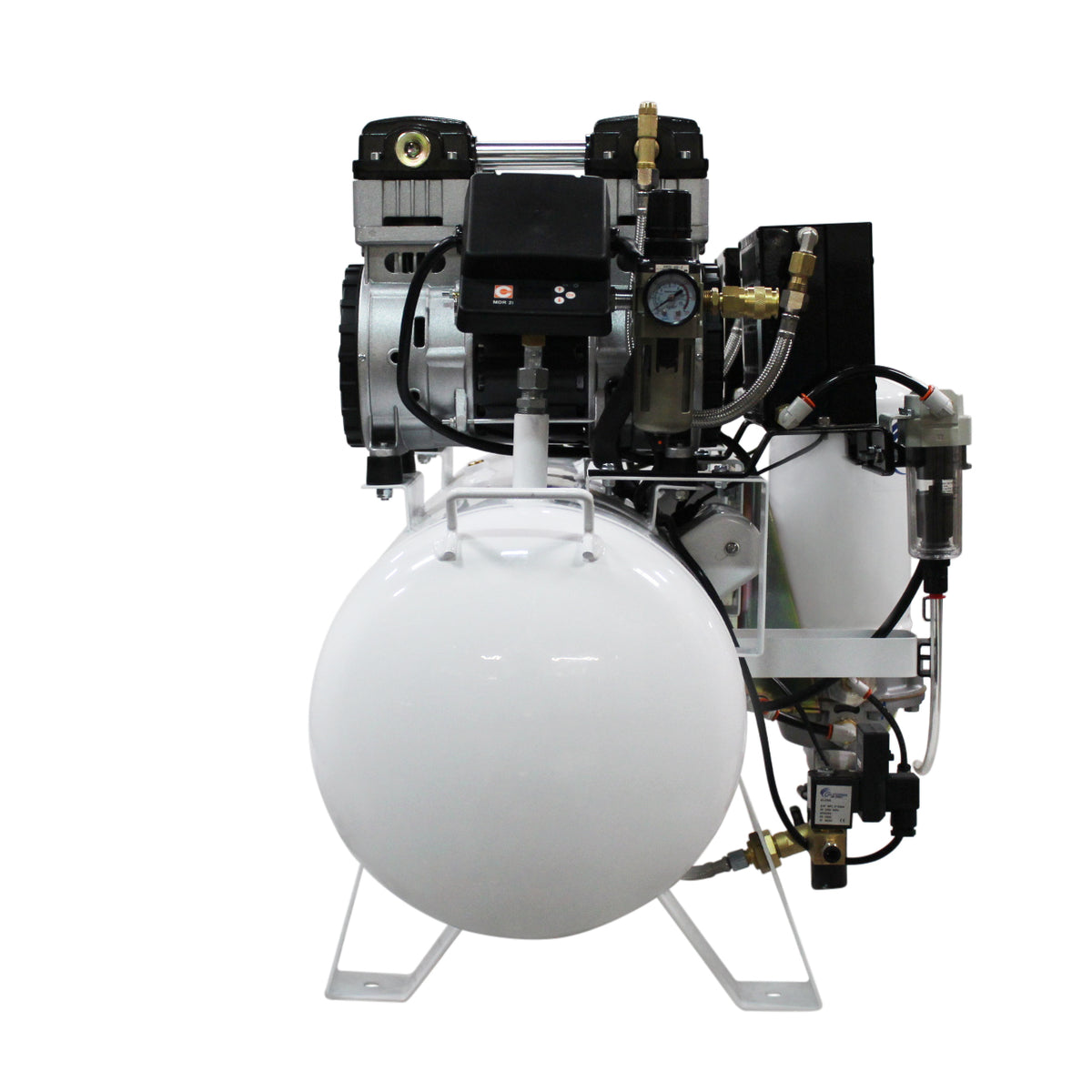

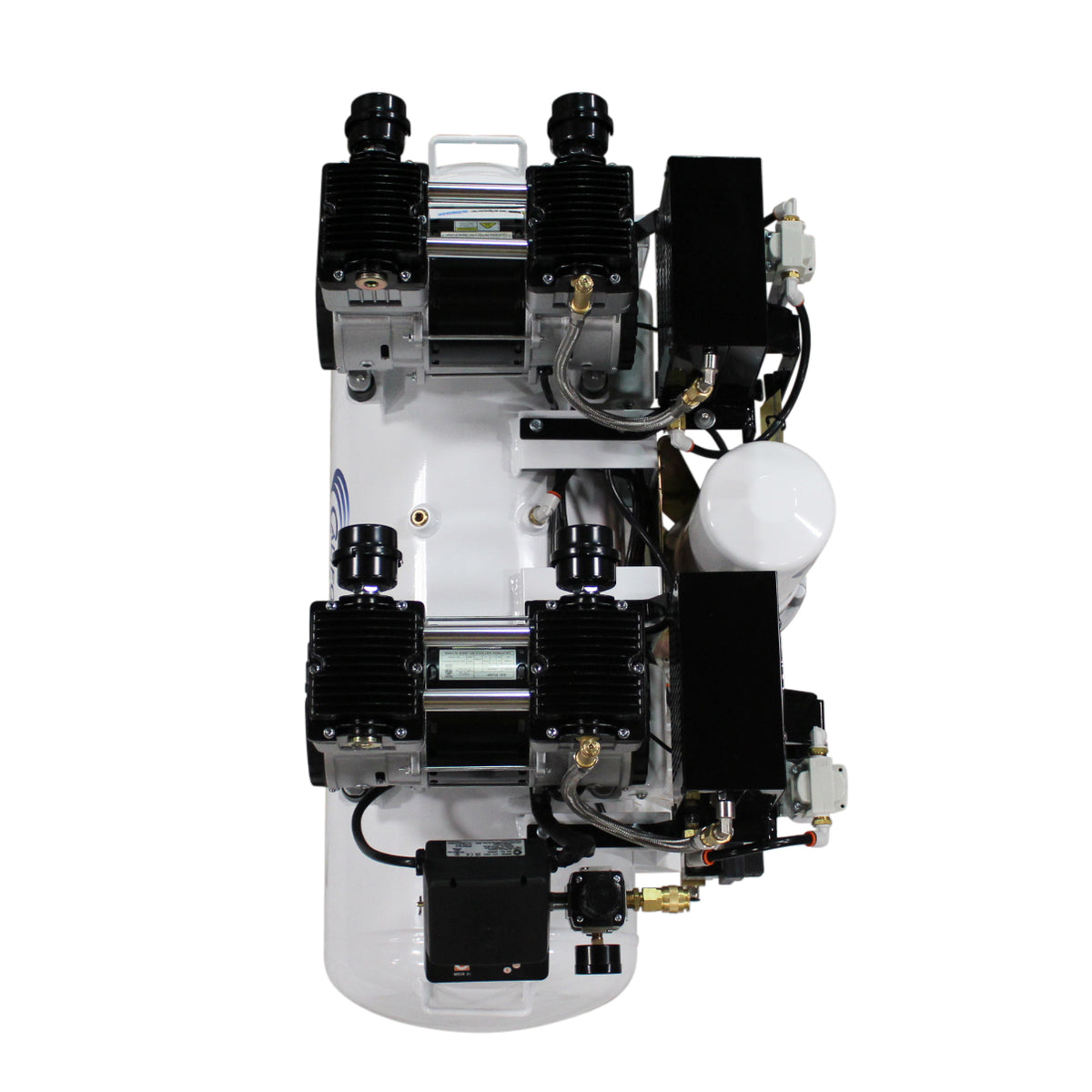

California Air Tools 20040DSMADC Powerful 4.0 HP SMART Ultra Quiet & Oil-Free 20 Gallon Air Compressor with 98% Air Dryer & Automatic Drain Valve – 220V

Product Description

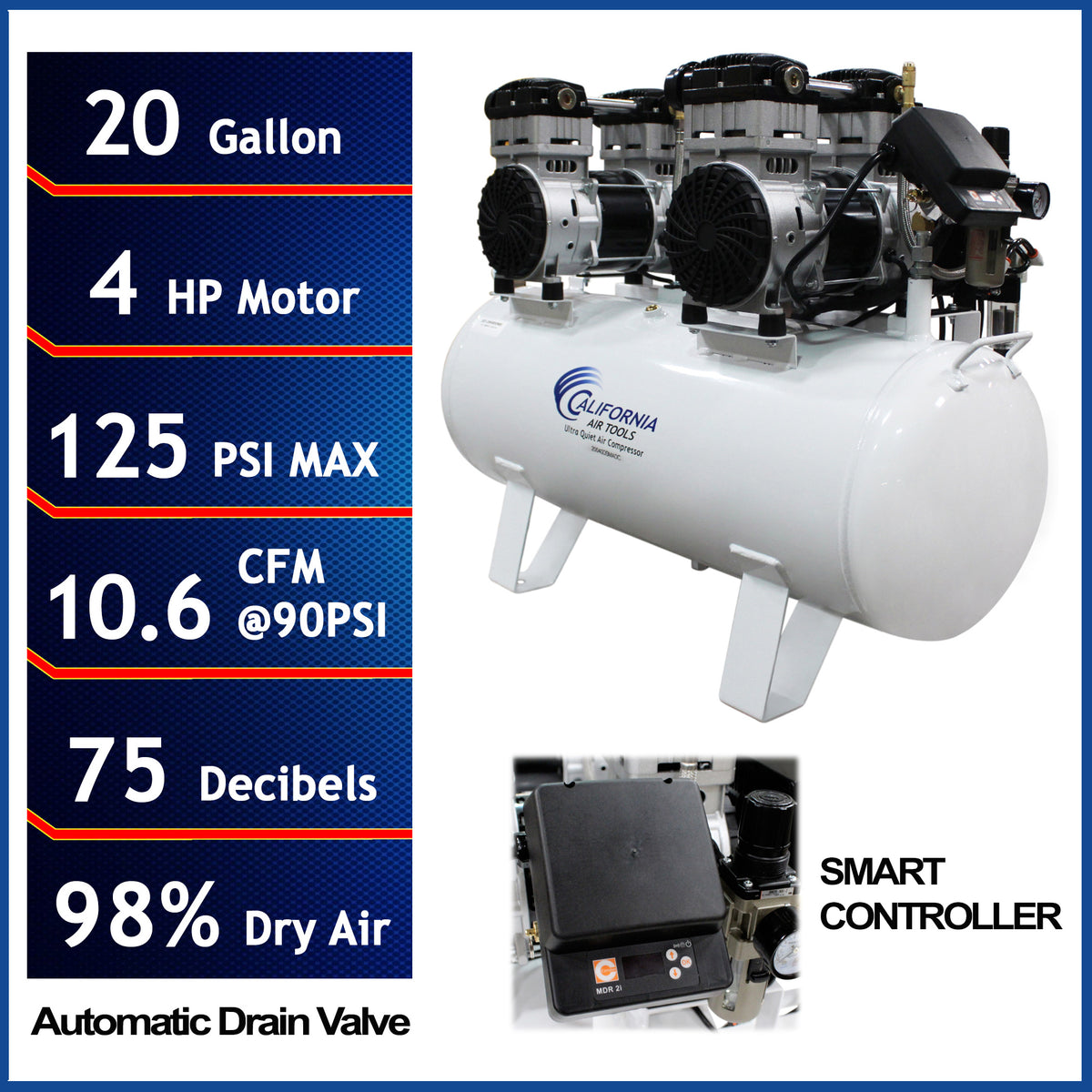

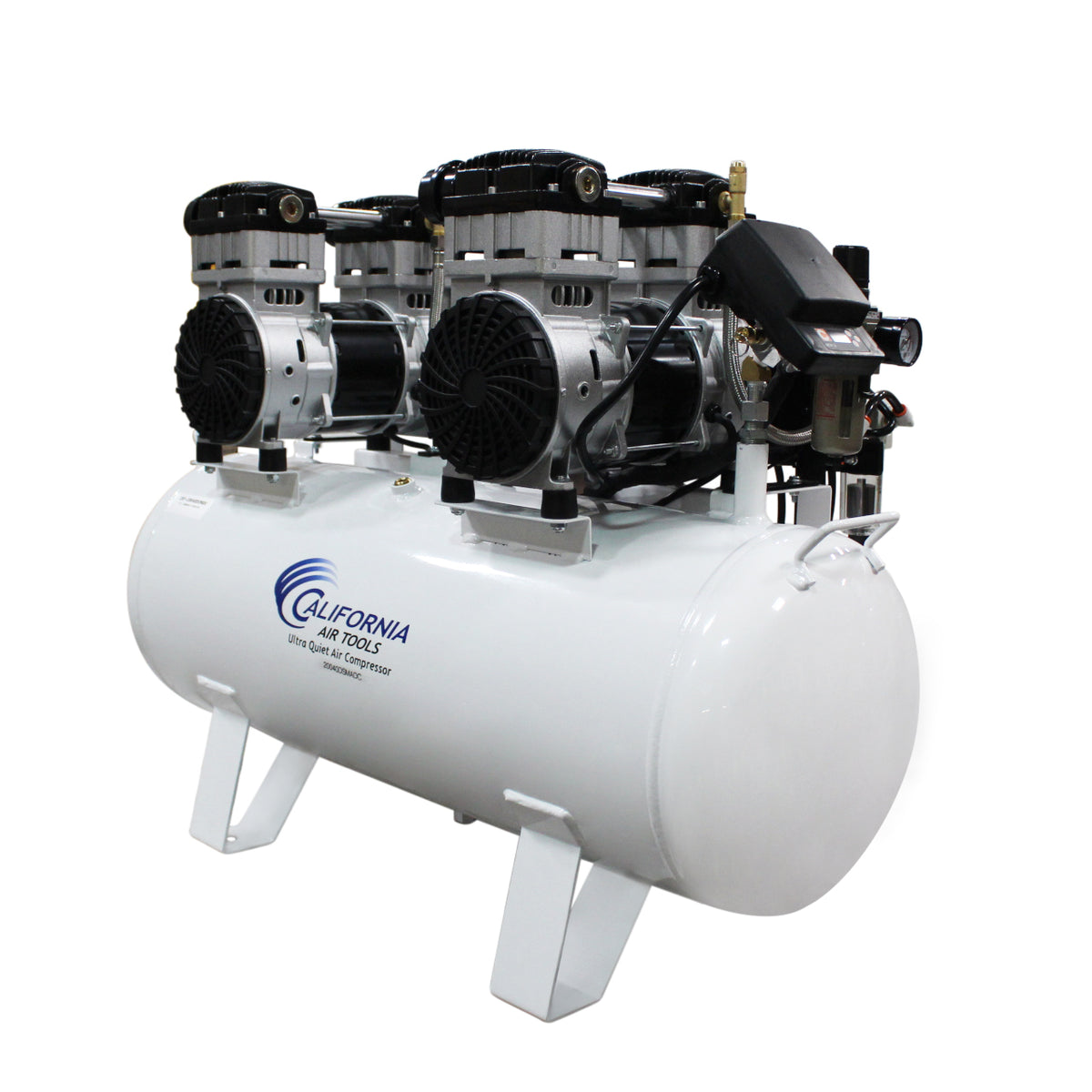

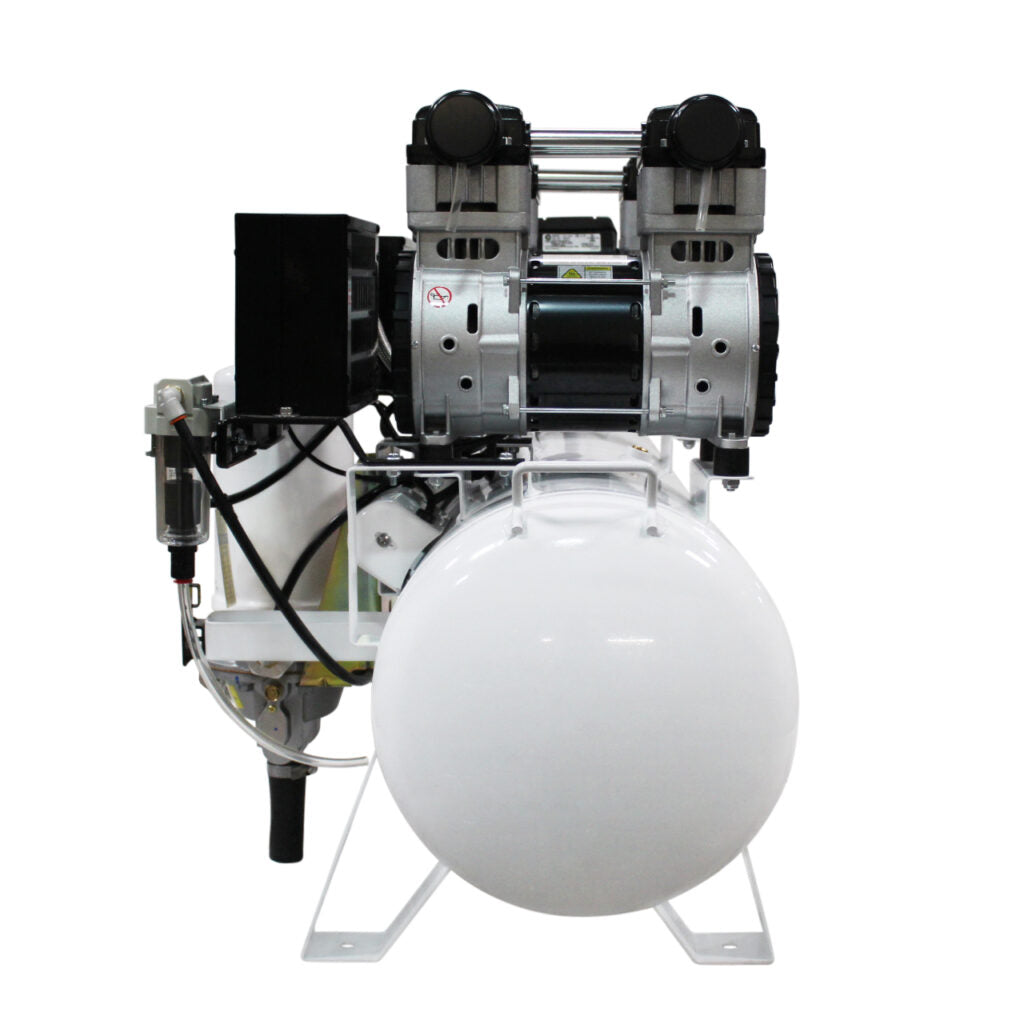

The California Air Tools 20040DSMADC is a 4.0 HP SMART ultra-quiet and oil-free air compressor designed for professional applications requiring powerful airflow, low noise, and exceptionally dry compressed air. It combines a 20-gallon horizontal steel tank with an integrated 98% air drying system, automatic drain valve, and SMART remote monitoring and control.

Powered by twin 2.0 HP SP-9421-22060 motors operating at only 1,680 RPM, the compressor delivers 12.80 CFM at 40 PSI and 10.60 CFM at 90 PSI while producing only 75 dB of operating noise. The oil-free dual-piston pump is designed for a minimum 3,000 hours of operation before service.

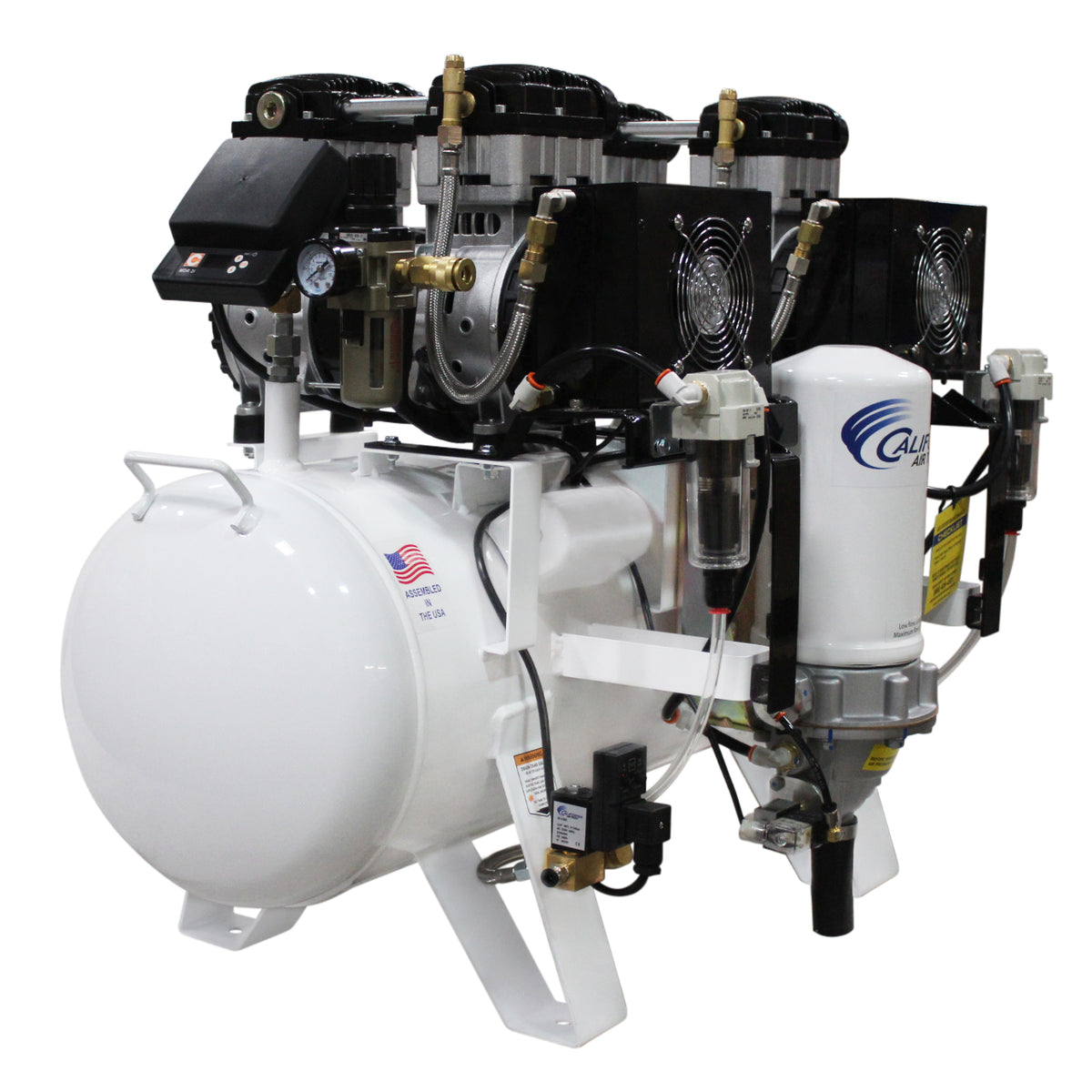

The integrated 98% air drying system uses an aftercooler and replaceable spin-on cartridge containing regenerating high-temperature molecular sieve desiccant. It is designed to provide ISO 8573 Class 2.3.1 air quality. The EZ-1 automatic drain valve removes accumulated moisture according to an adjustable timer.

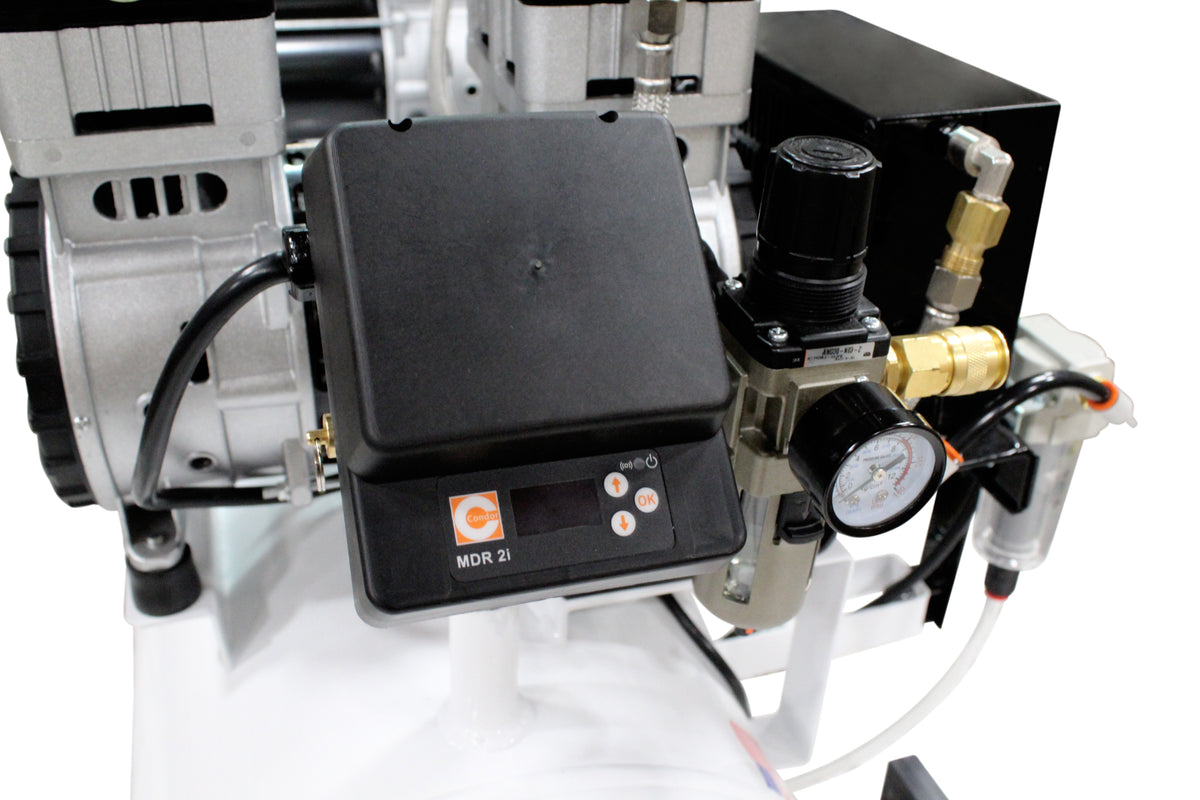

The included MDR2i OLED SMART Controller allows remote monitoring and control from mobile phones, tablets, notebooks, and computers. Users can program operating times, pressure settings, auto-drain settings, unloader relay delay, overcurrent limits, pressure units, and monitor total motor-pump running hours.

Key Features

• 4.0 HP rated/running power
• Twin 2.0 HP SP-9421-22060 motors
• Oil-free dual-piston pump system
• 20-gallon horizontal steel air tank
• 98% air drying system
• ISO 8573 Class 2.3.1 air quality
• Aftercooler and molecular sieve desiccant dryer
• 12.80 CFM at 40 PSI
• 10.60 CFM at 90 PSI
• 75 dB ultra-quiet operation
• Factory-installed EZ-1 automatic drain valve
• MDR2i OLED SMART Controller
• Remote monitoring and control through Wi-Fi or access-point connection
• Programmable ON/OFF operating times
• Adjustable pressure ON and OFF levels
• Programmable automatic drain timing
• Adjustable drain valve opening duration
• Overcurrent protection settings
• Two 0.01-micron prefilters
• 5-micron air filter and output pressure regulator

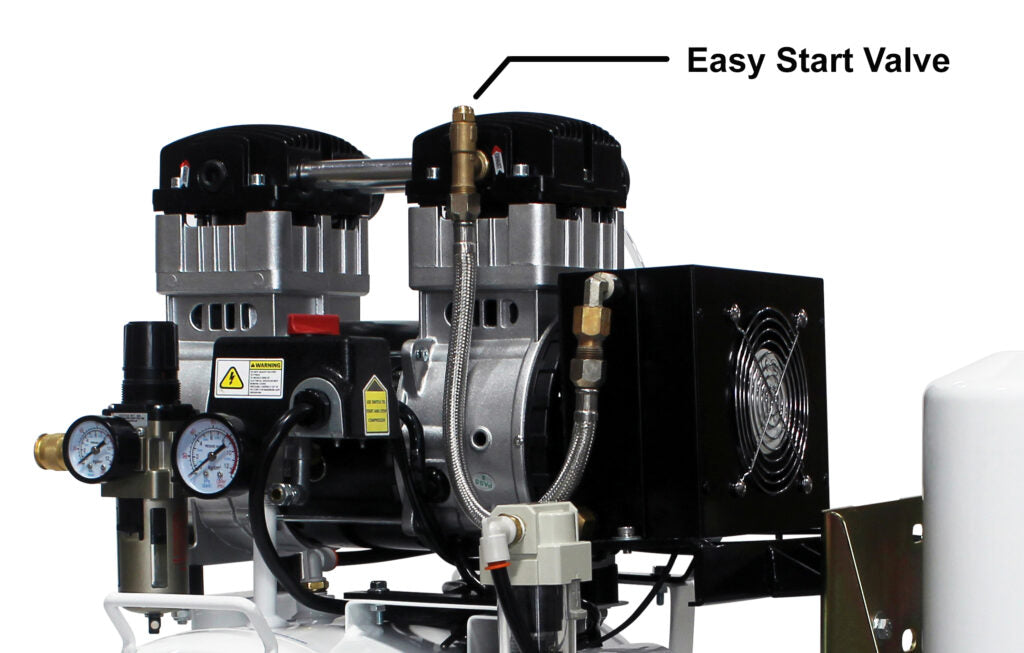

• Two Easy Start Valves
• Thermal overload protection
• 70/30 duty cycle
• Low 14-amp draw

Specifications

• Brand: California Air Tools
• Model: 20040DSMADC
• SKU: 20040DSMADC-1-1
• Motor Power: 4.0 HP Rated/Running
• Motor Configuration: Twin 2.0 HP Motors
• Motor Model: SP-9421-22060
• Motor Speed: 1,680 RPM
• Pump Type: Oil-Free Dual Piston
• Tank Capacity: 20 Gallons
• Tank Material: Steel
• Tank Orientation: Horizontal
• CFM at 40 PSI: 12.80 CFM
• CFM at 90 PSI: 10.60 CFM
• Working Pressure: 90–120 PSI
• Adjustable Kick-On Pressure: Up to 105 PSI
• Maximum Kick-Off Pressure: 130 PSI
• Noise Level: 75 dB
• Voltage: 220V
• Frequency: 60 Hz
• Phase: Single Phase
• Current Draw: 14 Amps
• Plug Type: NEMA 6-15P
• Tank Fill Time: Approximately 150 Seconds
• Recovery Time: Approximately 40 Seconds from 95 to 125 PSI
• Duty Cycle: 70/30
• Air Drying: Up to 98% Dry Air
• Air Quality: ISO 8573 Class 2.3.1
• Drying System: Aftercooler with Molecular Sieve Desiccant
• Dryer Cartridge Life: Approximately 4,000 running hours or 2 years
• Dryer PDP Performance Range: -20°F to -51°F
• SMART Controller: MDR2i OLED
• Dimensions: 37.1 × 22 × 30.5 Inches
• Weight: 170 lbs
• Tank Rating: Non-ASME
• Warranty: 1-Year Limited Manufacturer Warranty

What's Included

• California Air Tools 20040DSMADC Air Compressor
• 20-Gallon Horizontal Steel Air Tank
• Twin 2.0 HP SP-9421-22060 Motors
• Oil-Free Dual-Piston Pump System
• MDR2i OLED SMART Controller
• 98% Air Dryer System
• Aftercooler
• Spin-On Molecular Sieve Desiccant Dryer Cartridge
• EZ-1 Automatic Drain Valve
• Two 0.01-Micron Prefilters
• 5-Micron Air Filter and Output Pressure Regulator
• Two Pressure Control Gauges

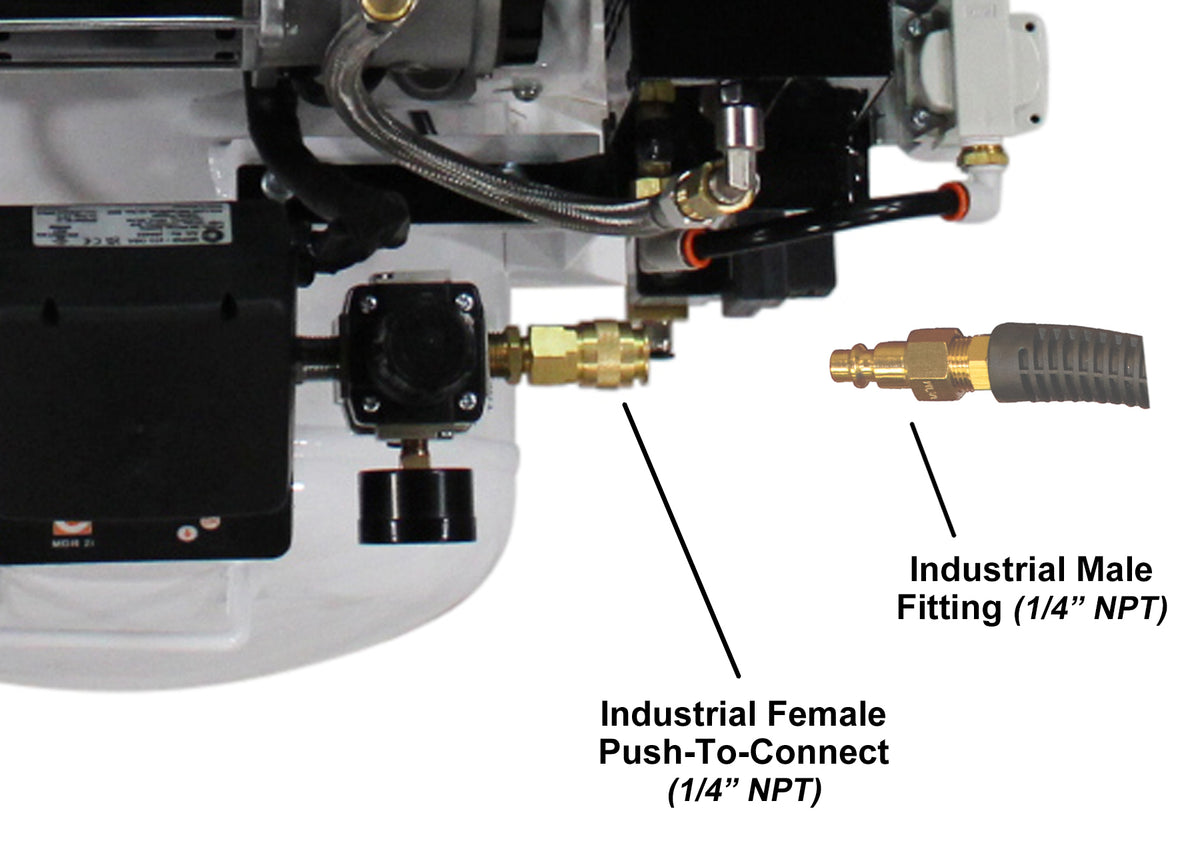

• Female Industrial Push-to-Connect Quick Connector
• Two Easy Start Valves
• Condor Pressure Switch
• Thermal Overload Protector
• Four Air Filters

Applications

The California Air Tools 20040DSMADC is designed for professional applications requiring powerful, quiet, and exceptionally dry compressed air.

• Dental offices and dental laboratories
• Dental milling applications
• Bio-tech applications
• Manufacturing
• Packaging
• Restaurant applications
• General engineering
• CNC and machining applications
• Workshops and garages
• Moisture-sensitive pneumatic equipment
• Professional tools and machinery requiring dry compressed air

Maintenance

The oil-free dual-piston pump eliminates the need for compressor oil and reduces routine lubrication requirements. The 98% air dryer cartridge uses regenerating high-temperature molecular sieve desiccant and should be replaced approximately every 4,000 operating hours, or about every two years under average use.

The two 2 HP air filters attached to the motor-pump should be replaced every two years under normal conditions or annually when the compressor is exposed to dirty or dusty environments. Replacement air filter part number is 90260.

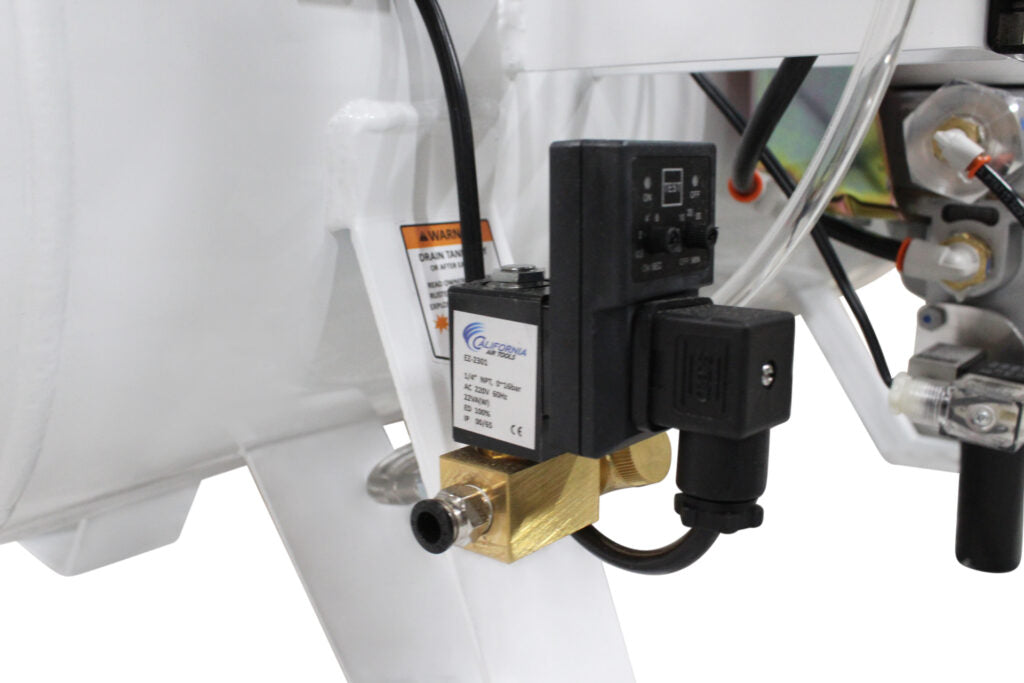

The EZ-1 automatic drain valve eliminates routine manual tank draining. The SMART controller allows the drain frequency and valve-opening duration to be programmed remotely.
