California Air Tools 20040DSPCAD Powerful 4.0 HP Ultra Quiet & Oil-Free 20 Gallon Air Compressor with 80% Air Drying System & Automatic Drain – Soundproof Cabinet, 220V

Product Description

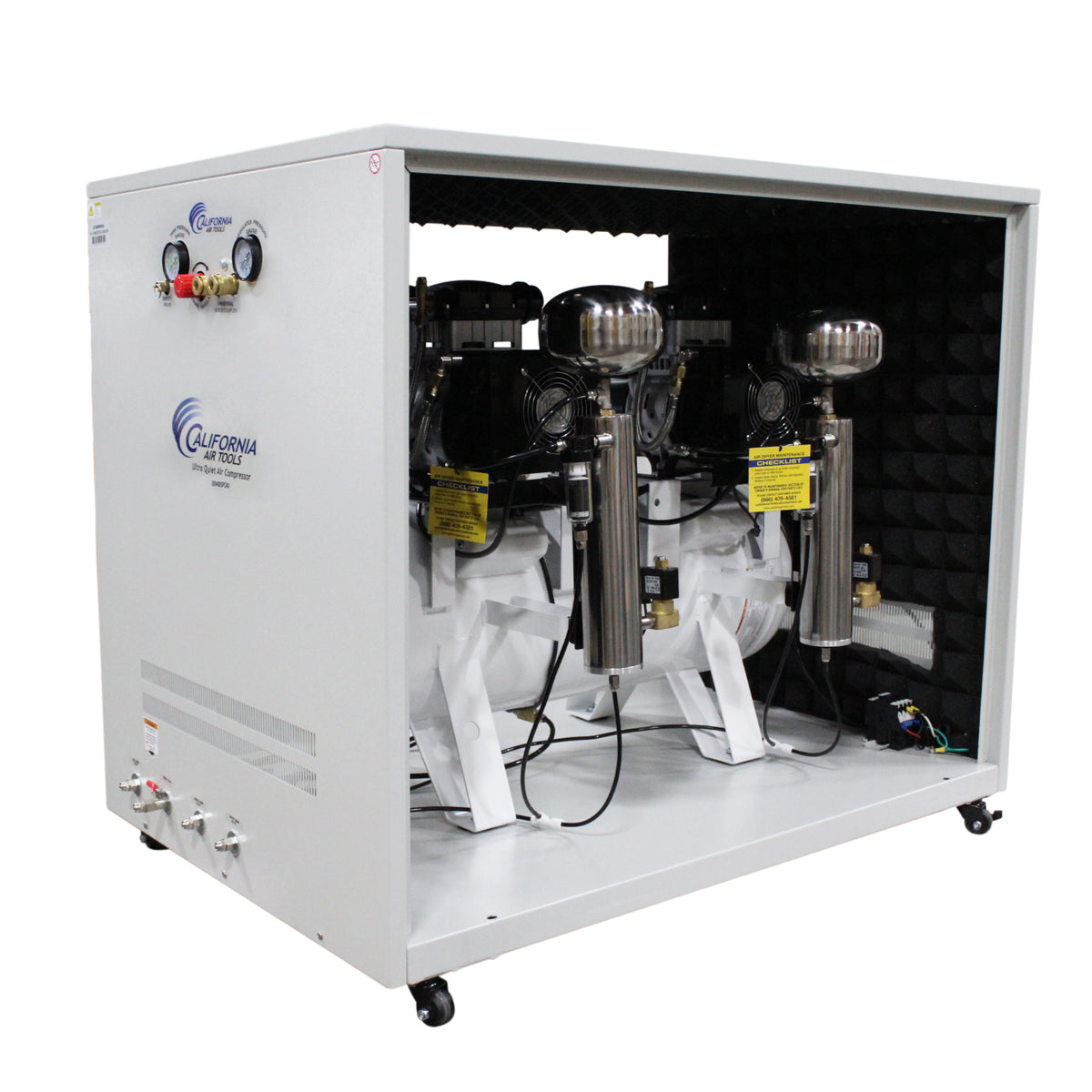

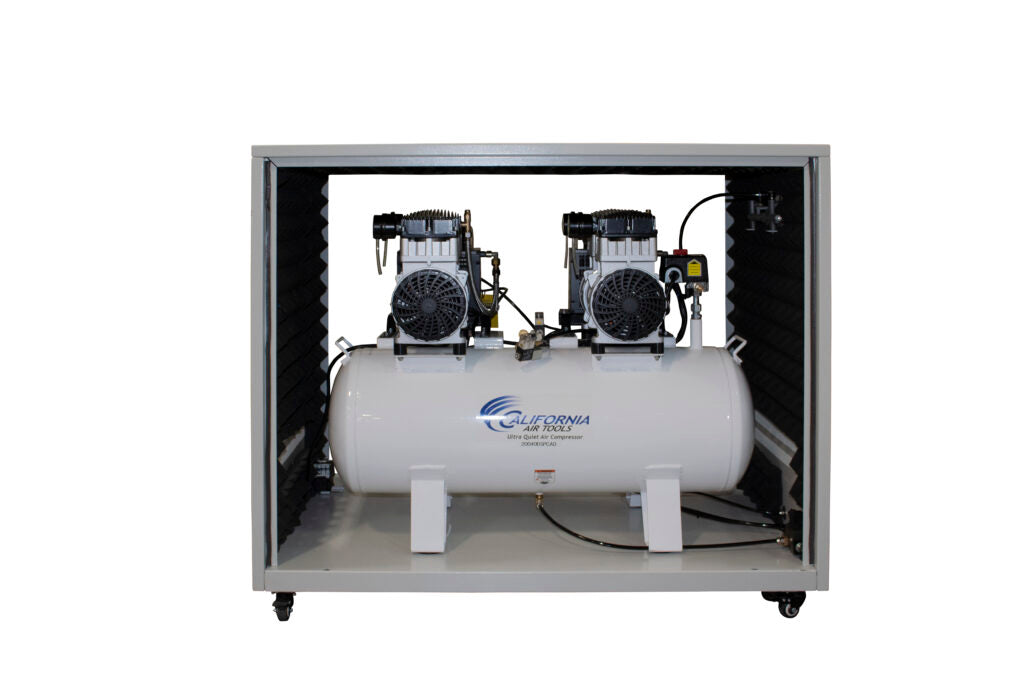

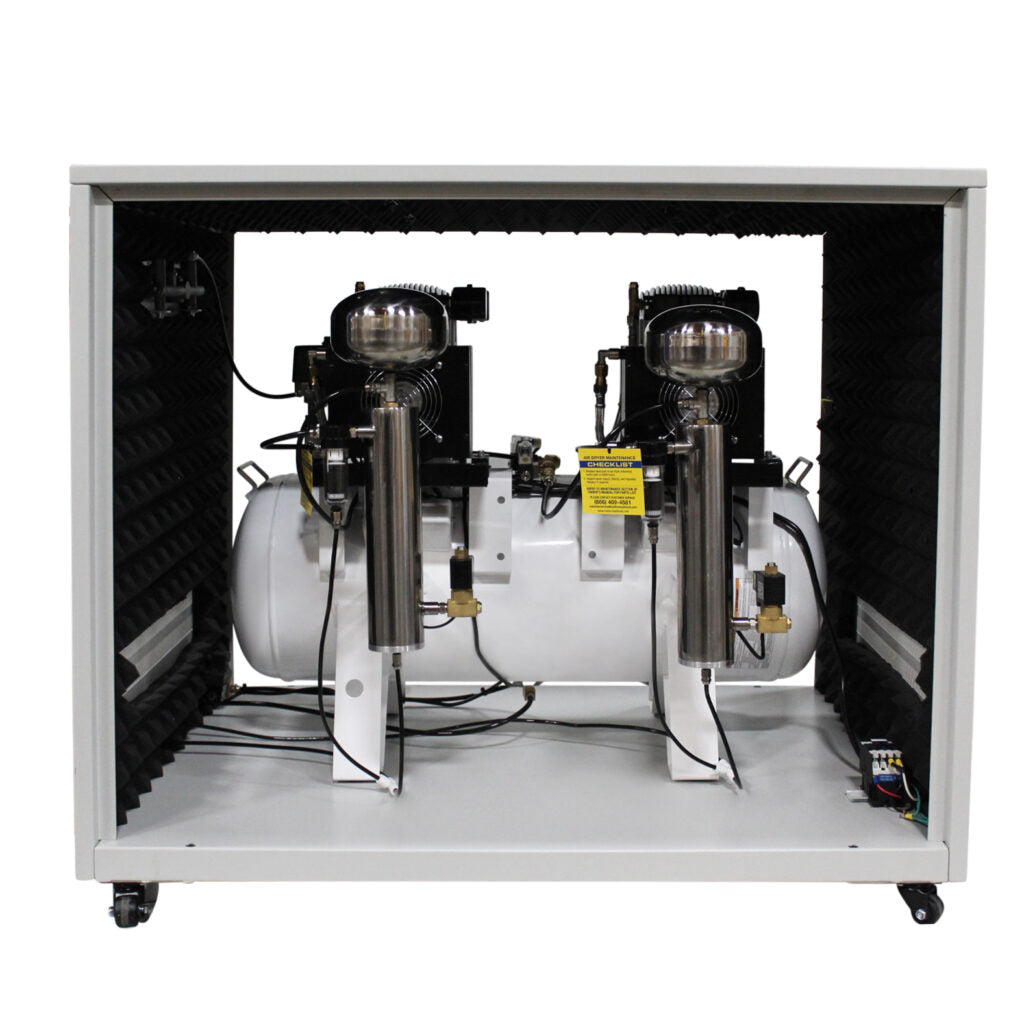

The California Air Tools 20040DSPCAD is a powerful 4.0 HP ultra-quiet and oil-free air compressor designed for professional environments where reduced noise and dry compressed air are important. It combines a 20-gallon steel air tank, an integrated 80% air drying system, an automatic drain valve, and a soundproof cabinet in one complete compressed-air system.

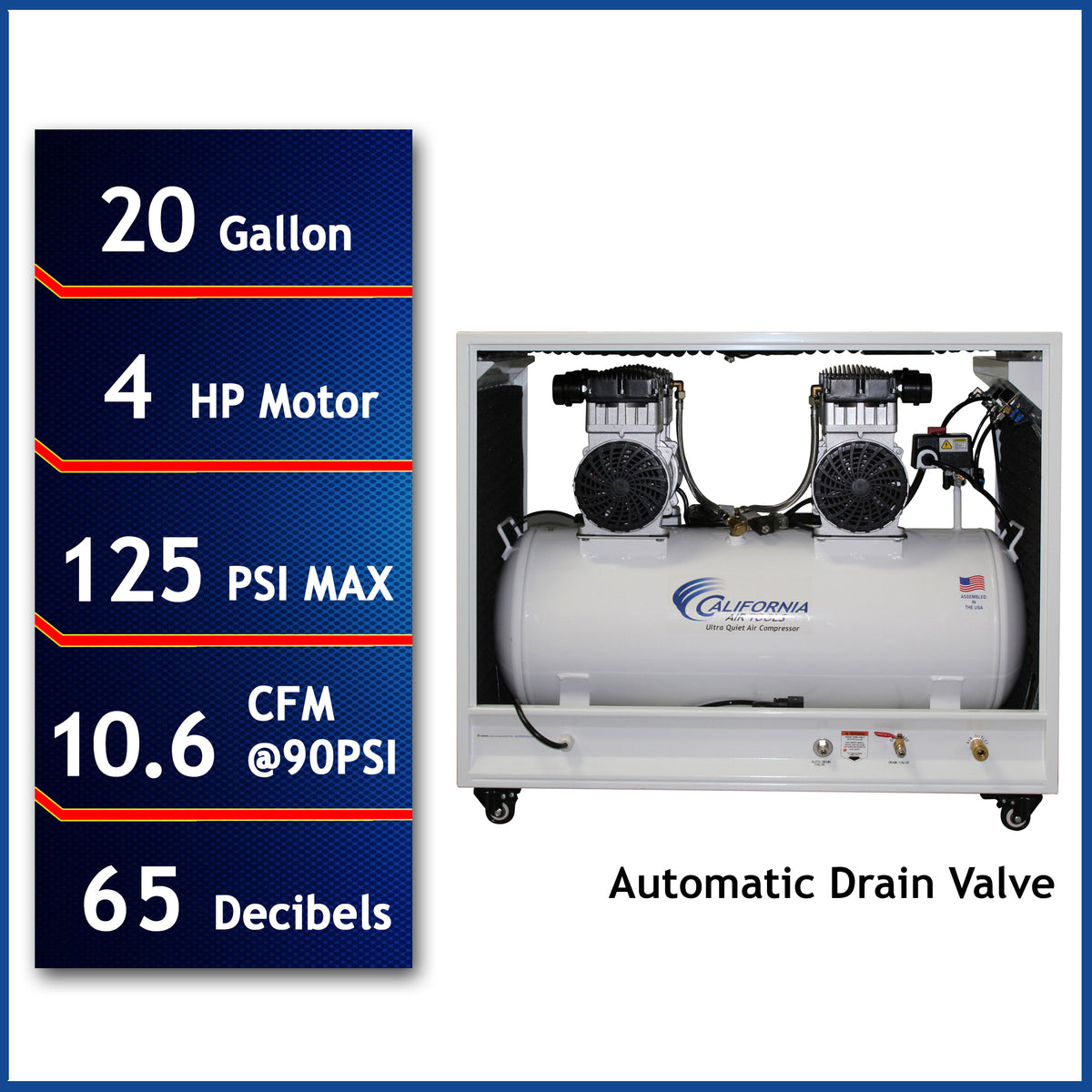

The compressor features twin 2.0 HP motors operating at only 1,680 RPM, delivering 12.80 CFM at 40 PSI and 10.60 CFM at 90 PSI. The soundproof cabinet is lined with acoustic insulation to reduce noise and vibration, resulting in an operating noise level of only 65 dB.

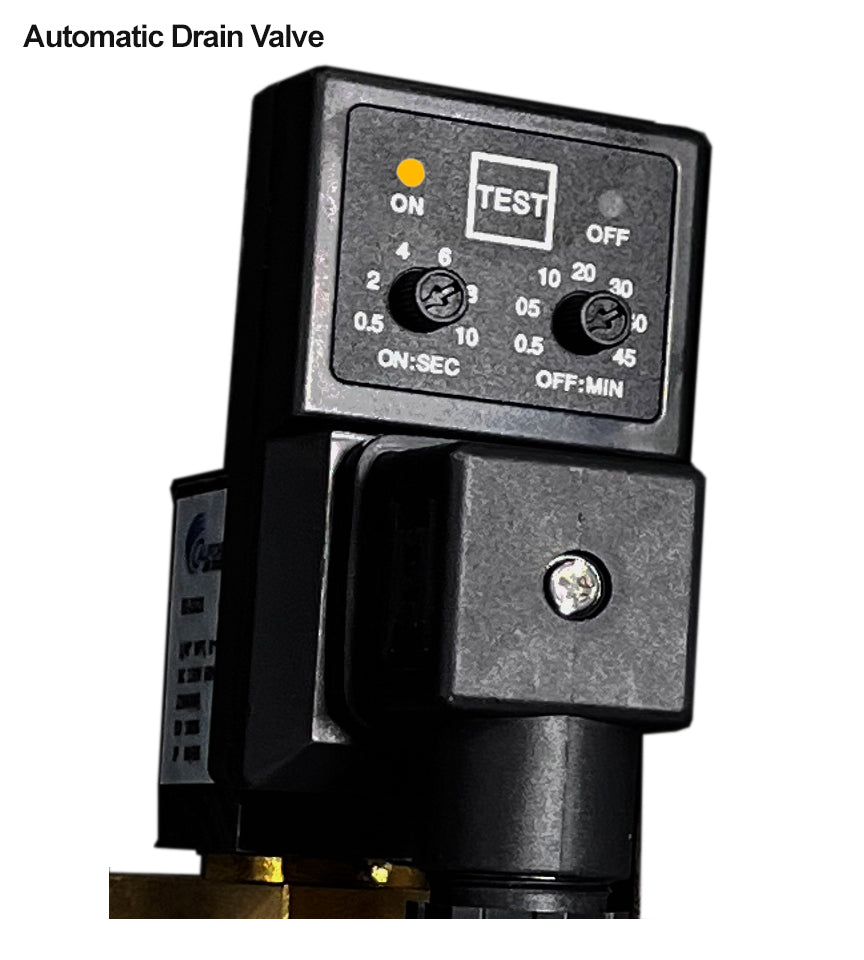

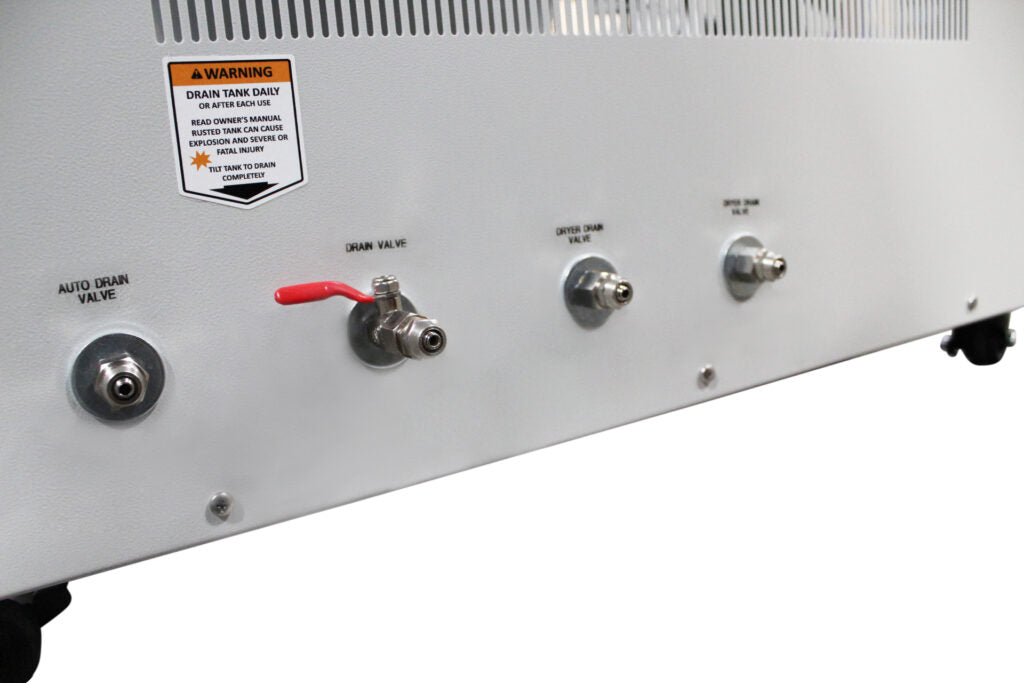

The integrated 80% air drying system uses an aftercooler and activated alumina desiccant to reduce water vapor in the compressed air. The factory-installed EZ-1 automatic drain valve uses an adjustable timer to control the frequency and duration of tank draining, reducing the need for manual moisture removal.

Key Features

• 4.0 HP rated/running power
• Twin 2.0 HP motors operating at 1,680 RPM
• Oil-free dual-piston pump system
• 20-gallon horizontal steel air tank
• 80% air drying system
• Aftercooler with activated alumina desiccant
• Soundproof cabinet with acoustic insulation
• Ultra-quiet 65 dB operating noise level
• 12.80 CFM at 40 PSI
• 10.60 CFM at 90 PSI
• 130 PSI maximum pressure
• Factory-installed EZ-1 automatic drain valve
• Adjustable automatic drain frequency and duration
• Four exhaust fans for cabinet ventilation
• Two latching cabinet door handles for easy access

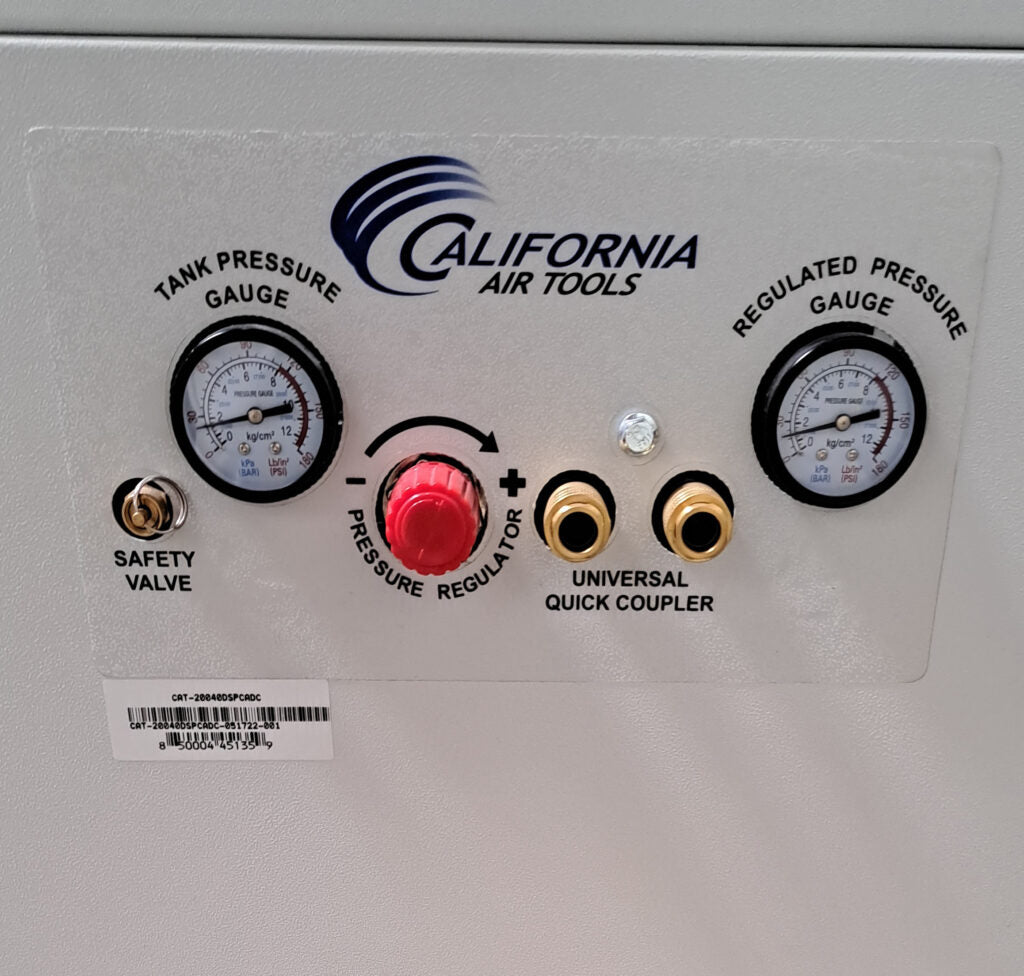

• Two pressure control gauges
• Two female industrial push-to-connect quick connectors
• Condor pressure switch
• Thermal overload protection
• 70/30 duty cycle
• Low 14-amp draw
• Caster wheels for easier movement
• Non-ASME steel air tank

Specifications

• Brand: California Air Tools
• Model: 20040DSPCAD
• SKU: 20040DSPCAD-1
• Motor Power: 4.0 HP Rated/Running
• Motor Configuration: Twin 2.0 HP Motors
• Motor Speed: 1,680 RPM
• Pump Type: Oil-Free Dual Piston
• Tank Capacity: 20 Gallons
• Tank Material: Steel
• Tank Orientation: Horizontal
• CFM at 40 PSI: 12.80 CFM
• CFM at 90 PSI: 10.60 CFM
• Maximum Pressure: 130 PSI
• Noise Level: 65 dB
• Voltage: 220V
• Frequency: 60 Hz
• Phase: Single Phase
• Current Draw: 14 Amps
• Plug Type: NEMA 6-15P
• Tank Fill Time: Approximately 150 Seconds
• Recovery Time: Approximately 40 Seconds from 100 to 130 PSI
• Duty Cycle: 70/30
• Air Drying System: 80% Air Drying
• Drying System: Aftercooler with Activated Alumina Desiccant
• Desiccant Life: Approximately 3,000–4,000 motor/pump running hours
• Dimensions: 31 × 46 × 39 Inches
• Weight: 370 lbs
• Tank Rating: Non-ASME
• Warranty: 1-Year Limited Manufacturer Warranty

What's Included

• California Air Tools 20040DSPCAD Air Compressor
• 20-Gallon Steel Air Tank
• Twin 2.0 HP Motor System
• Oil-Free Dual-Piston Pump System
• Soundproof Cabinet
• Acoustic Soundproofing Foam Insulation
• Integrated 80% Air Drying System
• Aftercooler
• Activated Alumina Desiccant
• Factory-Installed EZ-1 Automatic Drain Valve
• Two Pressure Control Gauges
• Two Female Industrial Push-to-Connect Quick Connectors
• Four Air Filters
• Condor Pressure Switch
• Thermal Overload Protector

Applications

The California Air Tools 20040DSPCAD is designed for professional indoor environments where compressed-air performance, moisture reduction, and low operating noise are important.

• Dental offices and dental laboratories
• Dental milling applications
• Offices and commercial spaces
• Workshops and stores
• Warehouses
• Home workshops
• CNC and machining applications
• General engineering applications
• Medium-duty pneumatic equipment
• Moisture-sensitive tools and machinery
• General compressed-air applications requiring reduced noise

Maintenance

The oil-free dual-piston pump eliminates the need for compressor oil and reduces routine lubrication requirements. The 80% air drying system uses activated alumina desiccant, which should be replaced approximately every 3,000–4,000 motor/pump running hours, typically every 1–2 years depending on usage.

The EZ-1 automatic drain valve reduces the need for manual tank draining. Its manually adjustable timer controls both the frequency and duration of the draining process.

The two air filters attached to the motor-pump should be replaced every two years under normal conditions or annually when the compressor is exposed to dirty or dusty environments. Replacement air filter part number is 90260.
