California Air Tools 20040DSPCADC Powerful 4.0 HP Ultra Quiet & Oil-Free 20 Gallon Air Compressor with 98% Air Drying System & Automatic Drain – Soundproof Cabinet, 220V

Product Description

The California Air Tools 20040DSPCADC is a powerful 4.0 HP ultra-quiet and oil-free air compressor designed for professional applications requiring high airflow, exceptionally dry compressed air, and reduced operating noise. It combines a 20-gallon steel air tank with an integrated 98% air drying system, automatic drain valve, and soundproof cabinet.

Powered by twin 2.0 HP motors operating at only 1,680 RPM, the 20040DSPCADC delivers 12.80 CFM at 40 PSI and 10.60 CFM at 90 PSI while producing only 65 dB of noise. The oil-free dual-piston pump is engineered for high performance, durability, and a minimum pump life of 3,000 hours before service.

The integrated 98% air drying system uses an aftercooler and a replaceable spin-on cartridge containing regenerating high-temperature molecular sieve desiccant. The system is designed to remove up to 98% of water vapor and provides ISO 8573 Class 2.3.1 air quality, helping protect sensitive tools and machinery from moisture.

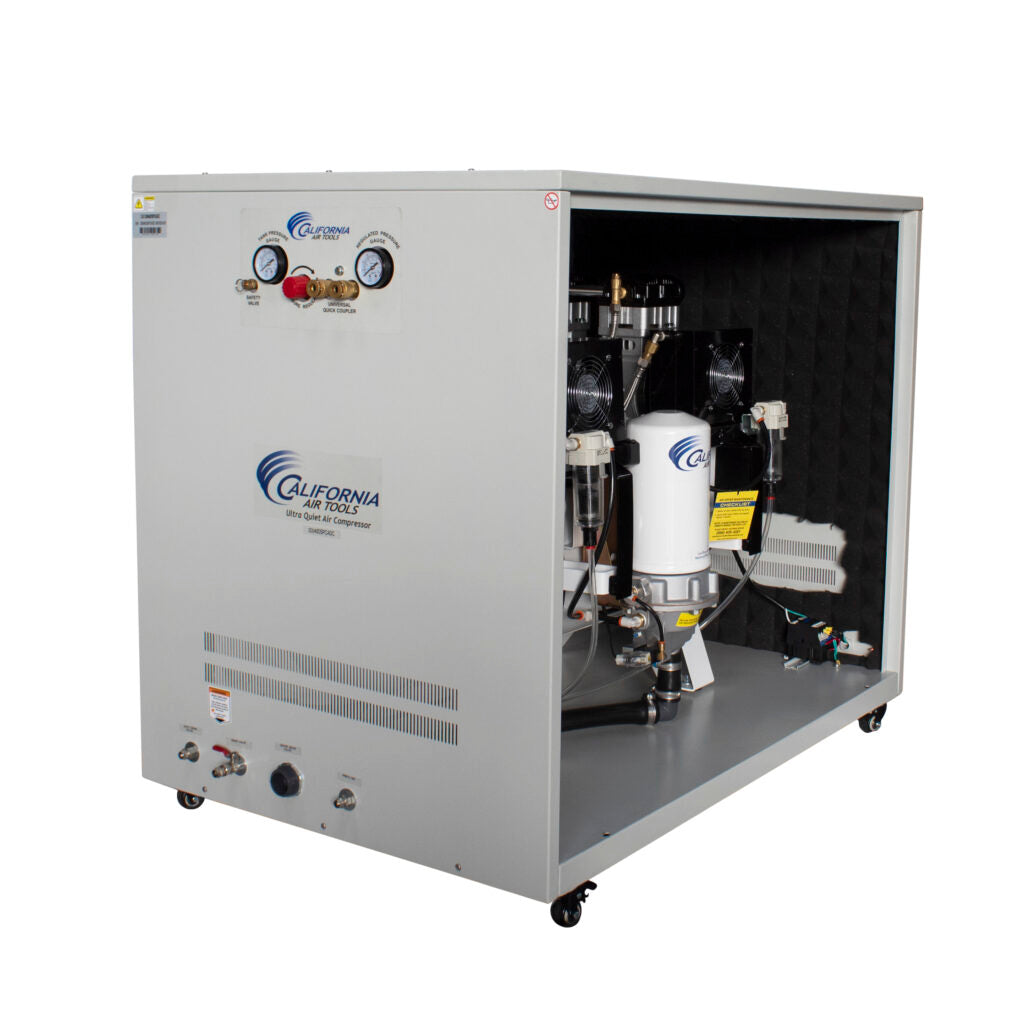

The sturdy soundproof cabinet is lined with acoustic insulation to reduce noise and vibration. Four exhaust fans help remove heat from the cabinet, while the factory-installed EZ-1 automatic drain valve automatically removes accumulated moisture according to its adjustable timer settings.

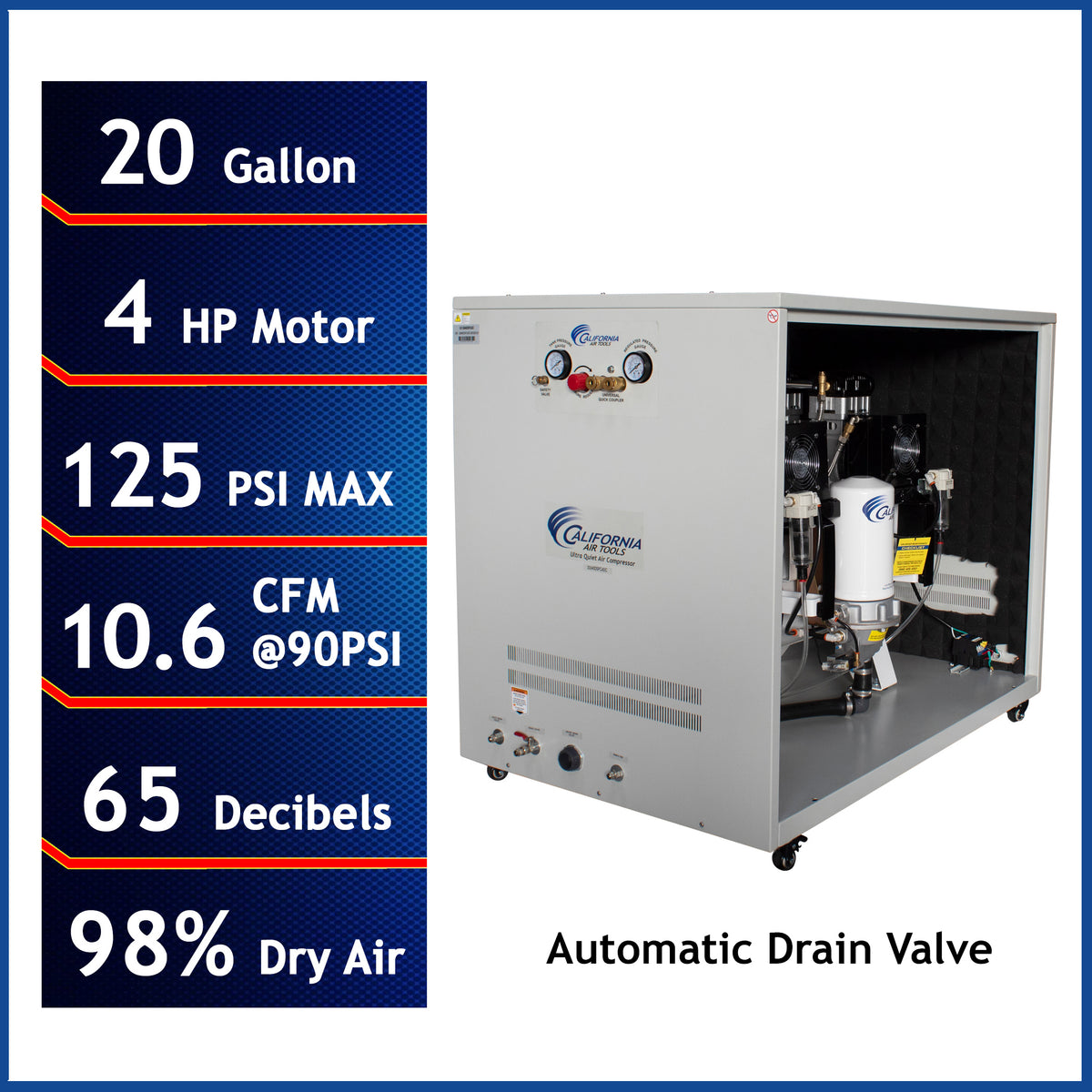

Key Features

• 4.0 HP rated/running power
• Twin 2.0 HP motors operating at 1,680 RPM
• Oil-free dual-piston pump system

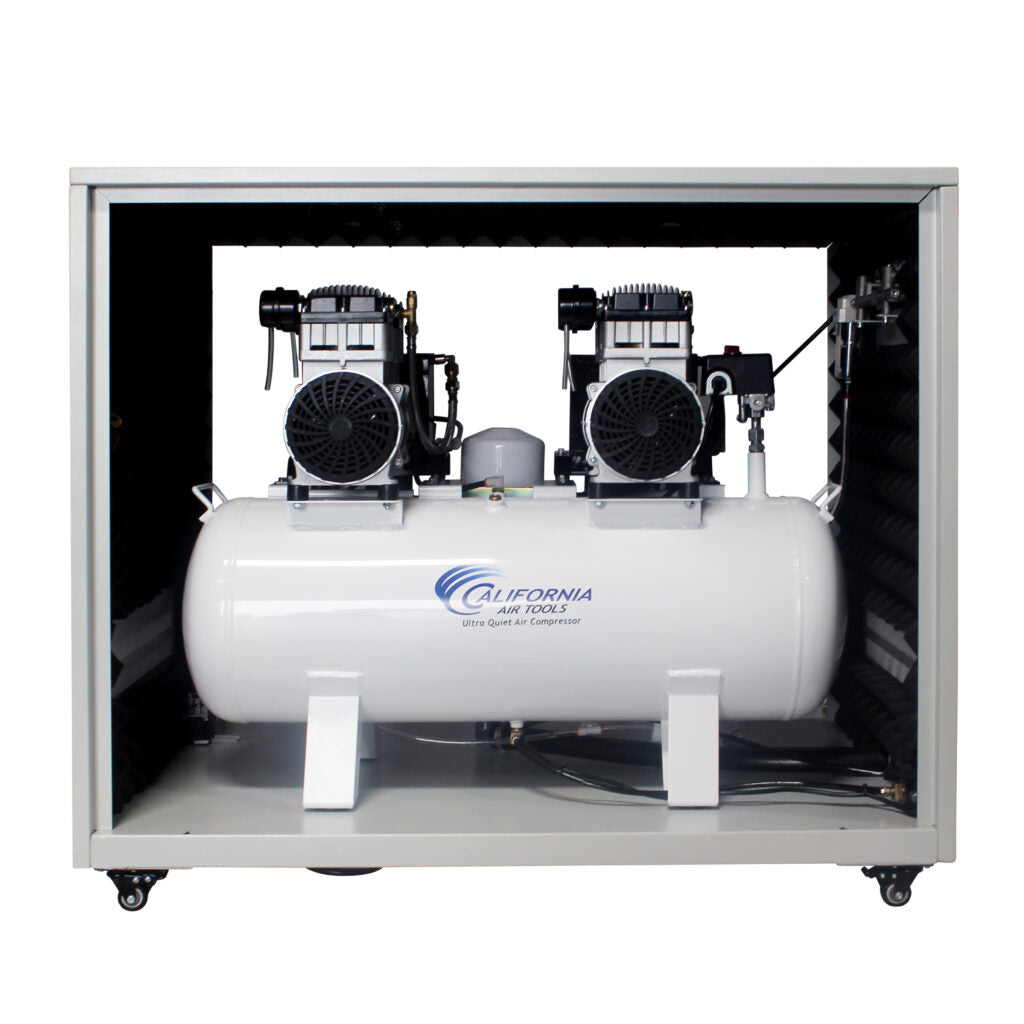

• 20-gallon horizontal steel air tank
• Integrated 98% air drying system
• ISO 8573 Class 2.3.1 air quality
• Aftercooler with molecular sieve desiccant dryer
• Ultra-quiet 65 dB operating noise level
• 12.80 CFM at 40 PSI
• 10.60 CFM at 90 PSI
• 125 PSI maximum pressure
• Soundproof cabinet with acoustic insulation

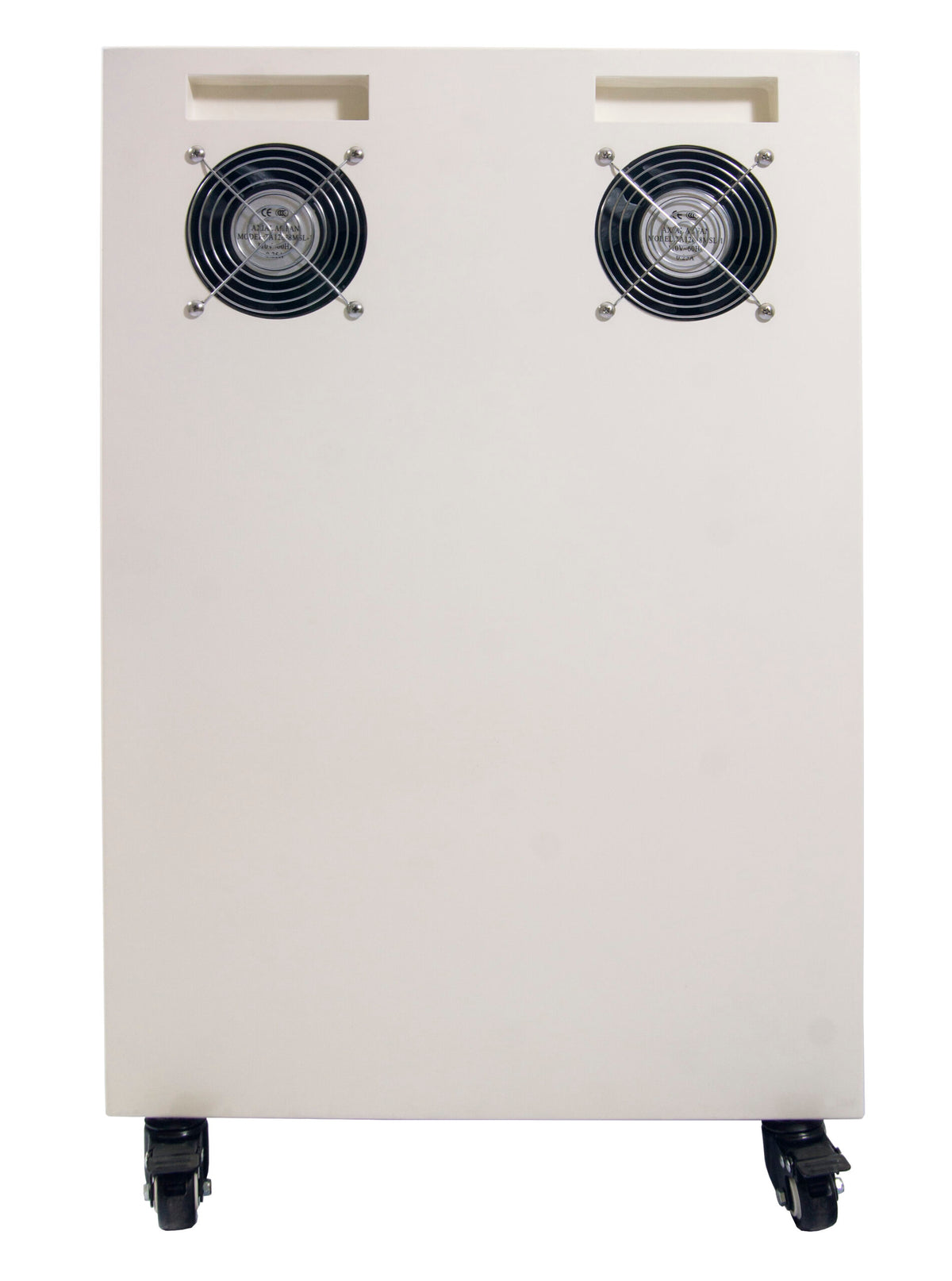

• Four exhaust fans for cabinet ventilation
• Factory-installed EZ-1 automatic drain valve
• Adjustable automatic drain frequency and duration timer
• Two 0.01-micron prefilters
• 5.0-micron air filter and output pressure regulator
• Two pressure control gauges
• Two female industrial push-to-connect quick connectors
• Thermal overload protection
• 70/30 duty cycle
• Low 14-amp draw
• Caster wheels for easier movement

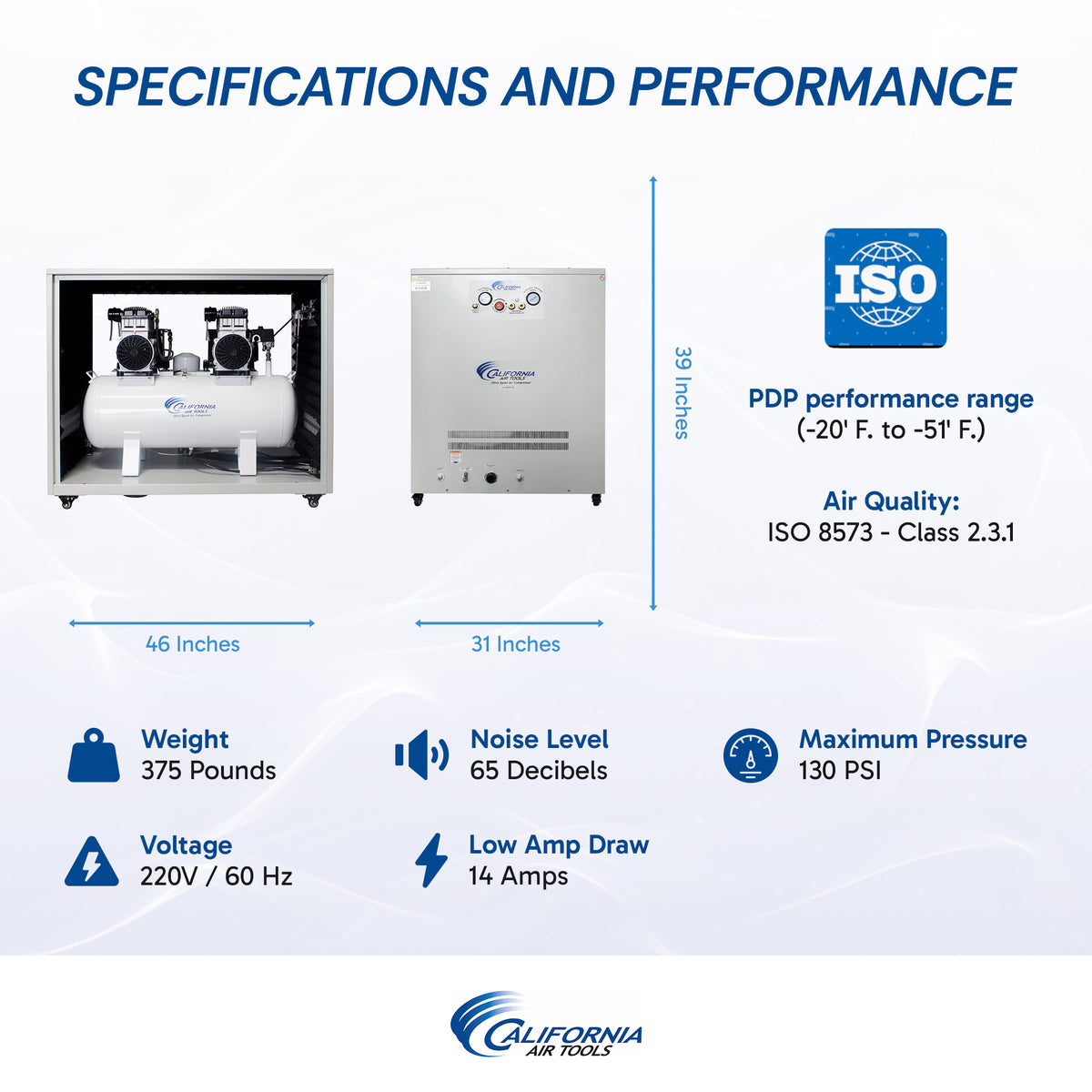

Specifications

• Brand: California Air Tools
• Model: 20040DSPCADC
• Motor Power: 4.0 HP Rated/Running
• Motor Configuration: Twin 2.0 HP Motors
• Motor Speed: 1,680 RPM
• Pump Type: Oil-Free Dual Piston
• Tank Capacity: 20 Gallons
• Tank Material: Steel
• Tank Orientation: Horizontal
• CFM at 40 PSI: 12.80 CFM
• CFM at 90 PSI: 10.60 CFM
• Maximum Pressure: 125 PSI
• Noise Level: 65 dB
• Voltage: 220V
• Frequency: 60 Hz
• Phase: Single Phase
• Current Draw: 14 Amps
• Plug Type: NEMA 6-15P
• Duty Cycle: 70/30
• Air Drying: Up to 98% Dry Air
• Air Quality: ISO 8573 Class 2.3.1
• Drying System: Aftercooler with Molecular Sieve Desiccant
• Dryer Cartridge Life: Approximately 4,000 operating hours or 2 years
• Dryer PDP Performance Range: -20°F to -51°F
• Cabinet: Soundproof Steel Cabinet
• Cabinet Ventilation: Four Exhaust Fans
• Dimensions: 31 × 46 × 39 Inches
• Weight: 375 lbs
• Warranty: 1-Year Manufacturer Limited Warranty

What's Included

• California Air Tools 20040DSPCADC Air Compressor
• 20-Gallon Steel Air Tank
• Twin 2.0 HP Motor System
• Oil-Free Dual-Piston Pump System
• Soundproof Cabinet with Acoustic Insulation
• Integrated 98% Air Drying System
• Aftercooler
• Spin-On Molecular Sieve Desiccant Dryer Cartridge
• EZ-1 Automatic Drain Valve
• Two 0.01-Micron Prefilters
• 5.0-Micron Air Filter and Output Pressure Regulator
• Two Pressure Control Gauges
• Two Female Industrial Push-to-Connect Quick Connectors
• Four Exhaust Fans
• Caster Wheels

Applications

The California Air Tools 20040DSPCADC is designed for professional environments requiring powerful, quiet, and exceptionally dry compressed air.

• Dental offices and dental laboratories
• Dental milling applications
• Surgical applications
• Manufacturing clean rooms
• Restaurant applications
• General engineering
• CNC and machining applications
• Workshops and commercial spaces
• Moisture-sensitive pneumatic equipment
• Professional tools and machinery requiring dry compressed air

Maintenance

The oil-free dual-piston pump eliminates the need for compressor oil and reduces routine lubrication requirements. The 98% air dryer cartridge uses regenerating high-temperature molecular sieve desiccant and should be replaced approximately every 4,000 operating hours, or about every two years under average use.

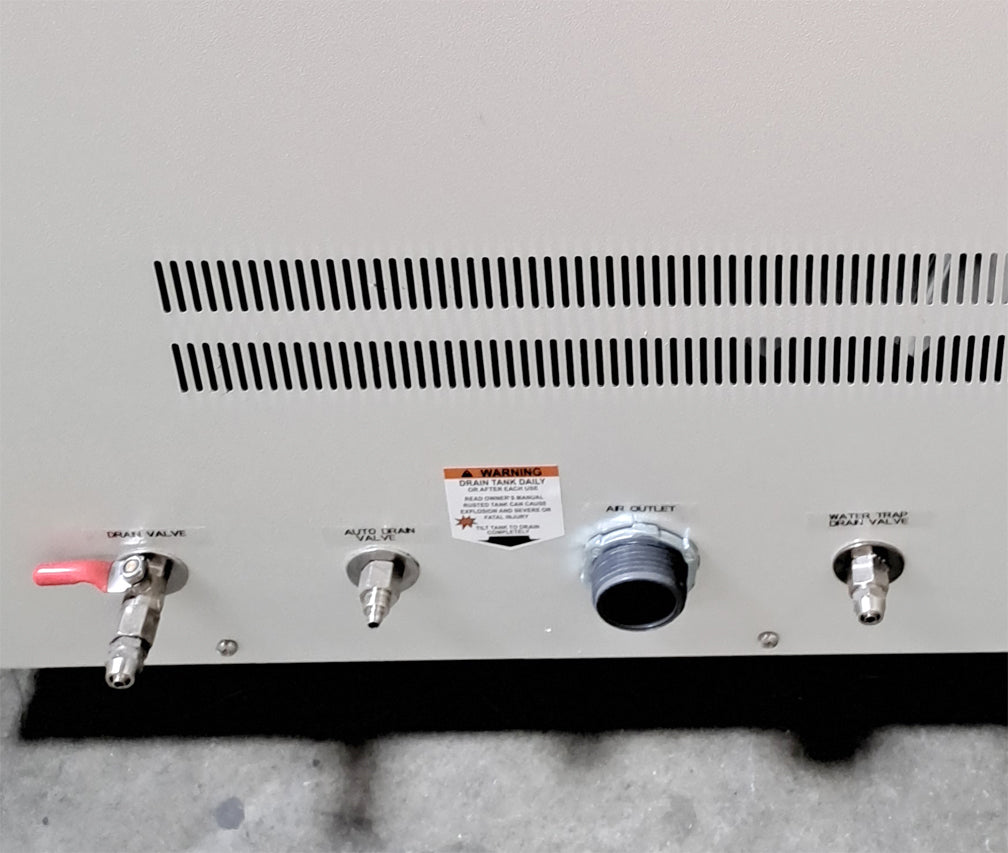

The EZ-1 automatic drain valve reduces the need for manual tank draining. Its manually adjustable timer controls both the frequency and duration of the draining process.

The two air filters attached to the motor-pump should be replaced every two years under normal conditions or annually when the compressor is exposed to dirty or dusty environments. Replacement air filter part number is 90260.
