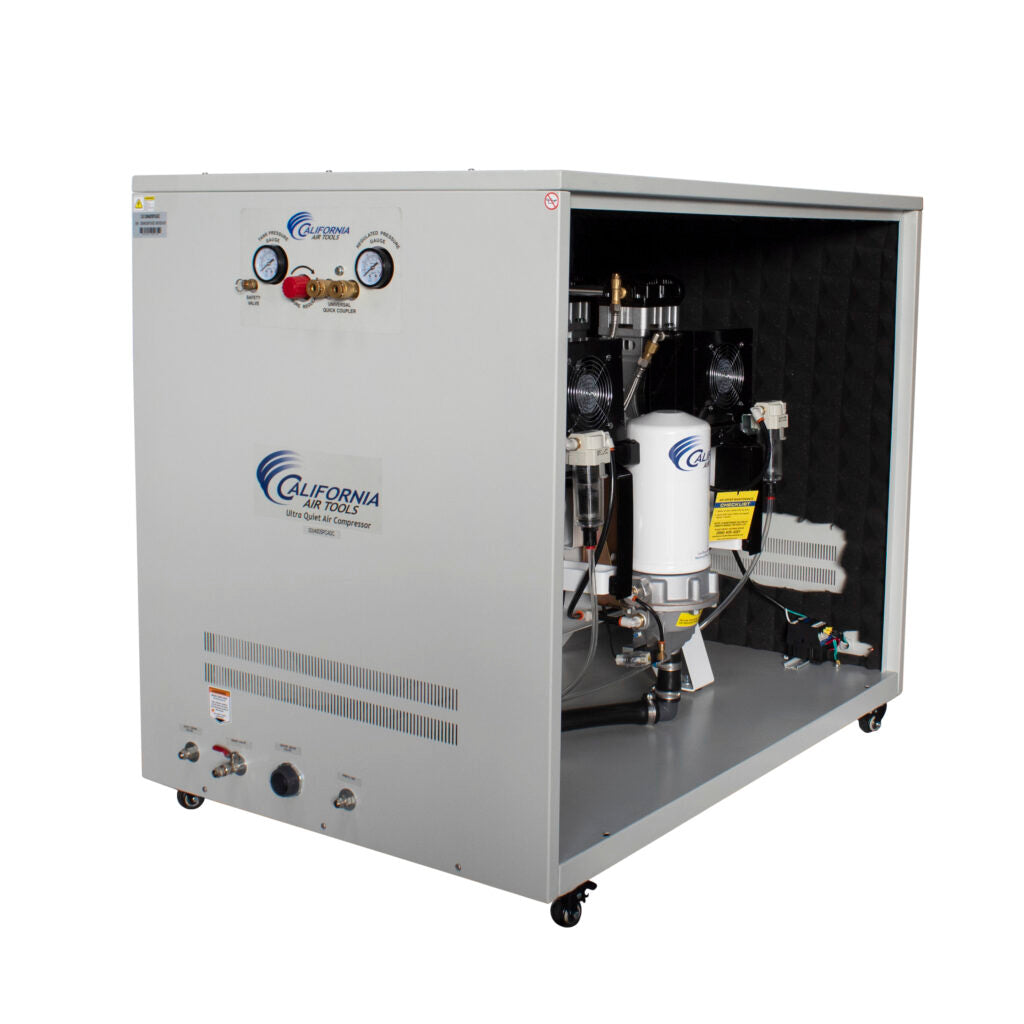

California Air Tools 20040DSPCADC 4.0 HP Ultra Quiet Oil-Free 20 Gallon Air Compressor with 98% Air Dryer, Automatic Drain & Soundproof Cabinet

Product Description

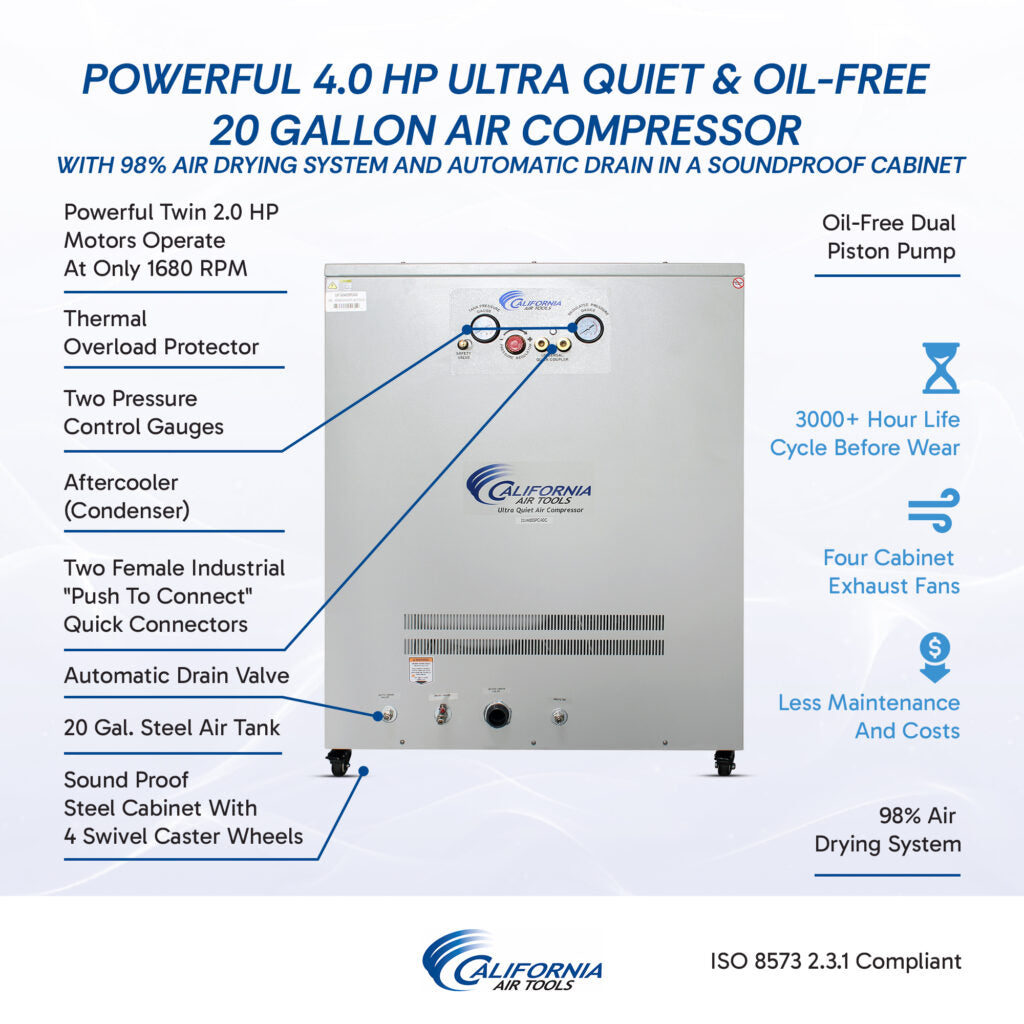

The California Air Tools 20040DSPCADC is a 4.0 HP ultra-quiet, oil-free 20-gallon air compressor designed for applications requiring powerful compressed air, low operating noise, and highly dry air. It combines a 20-gallon steel air tank, 98% air drying system, automatic drain valve, and soundproof cabinet into one complete compressed-air system.

Operating at only 65 dB, the 20040DSPCADC is designed for professional indoor environments where noise reduction is important. The powerful twin 2.0 HP motors operate at 1680 RPM, while the oil-free dual piston pump is engineered for high performance and durability.

The integrated aftercooler and 98% air dryer remove up to 98% of water vapor from the compressed air. The air drying system provides ISO 8573 Class 2.3.1 air quality and uses a replaceable spin-on cartridge containing regenerating high-temperature molecular sieve desiccant.

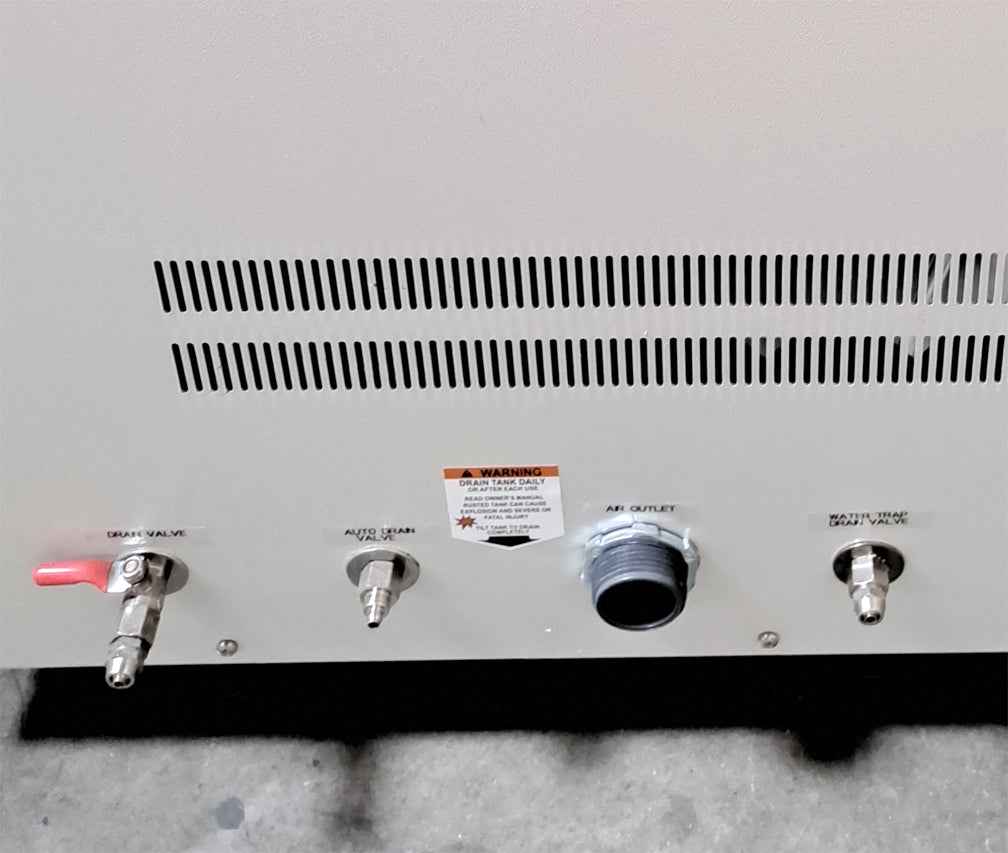

The factory-installed California Air Tools EZ-1 automatic drain valve eliminates the need for manually draining the air tank. Its adjustable timer allows the frequency and duration of the automatic draining process to be configured.

Key Features

• 4.0 HP rated/running power
• Twin 2.0 HP motors
• Ultra-quiet 65 dB operation
• 20-gallon steel air tank

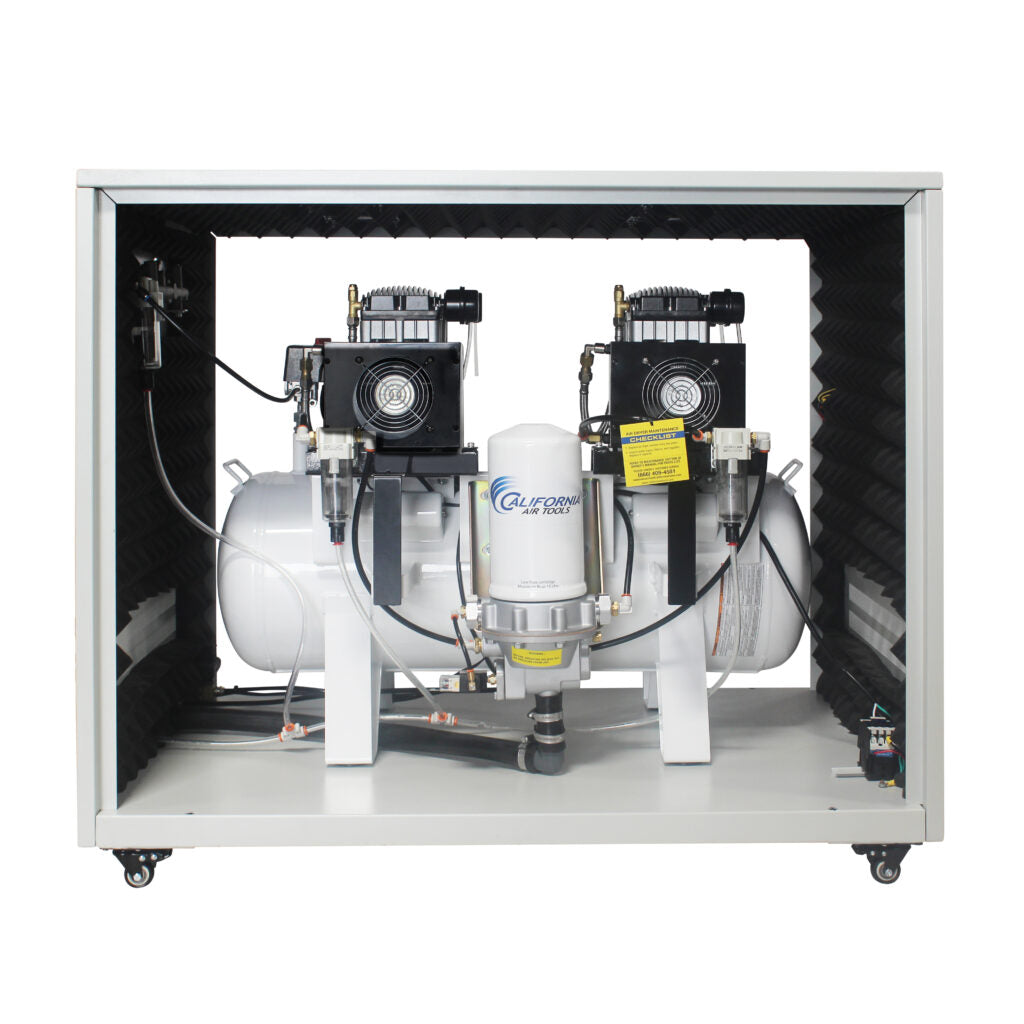

• Soundproof cabinet with acoustic insulation
• 98% air drying system
• ISO 8573 Class 2.3.1 air quality
• Factory-installed EZ-1 automatic drain valve

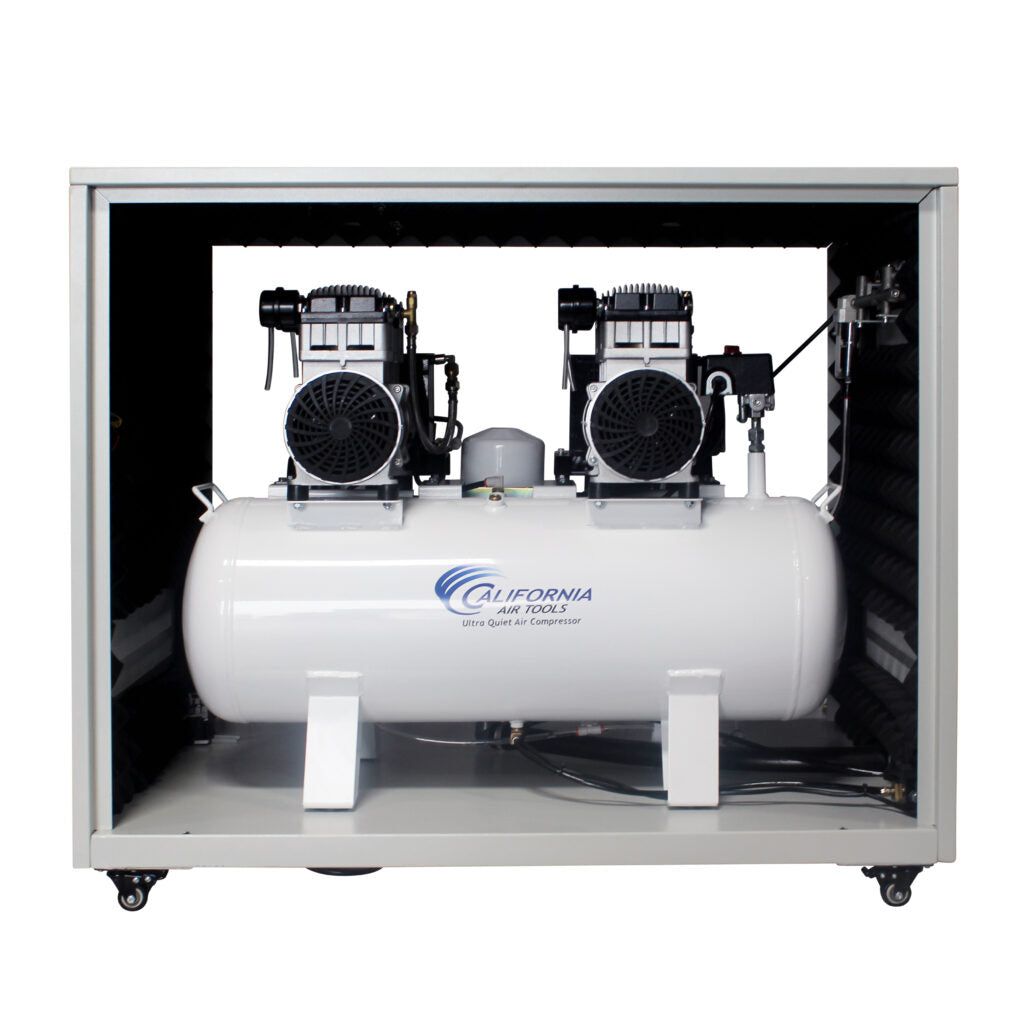

• Oil-free dual piston pump
• 1680 RPM motor speed
• 12.80 CFM at 40 PSI
• 10.60 CFM at 90 PSI
• Aftercooler for compressed-air cooling and moisture removal
• Replaceable spin-on air dryer cartridge
• 0.01 micron prefilters
• 5.0 micron air filter and output pressure regulator
• Two pressure control gauges

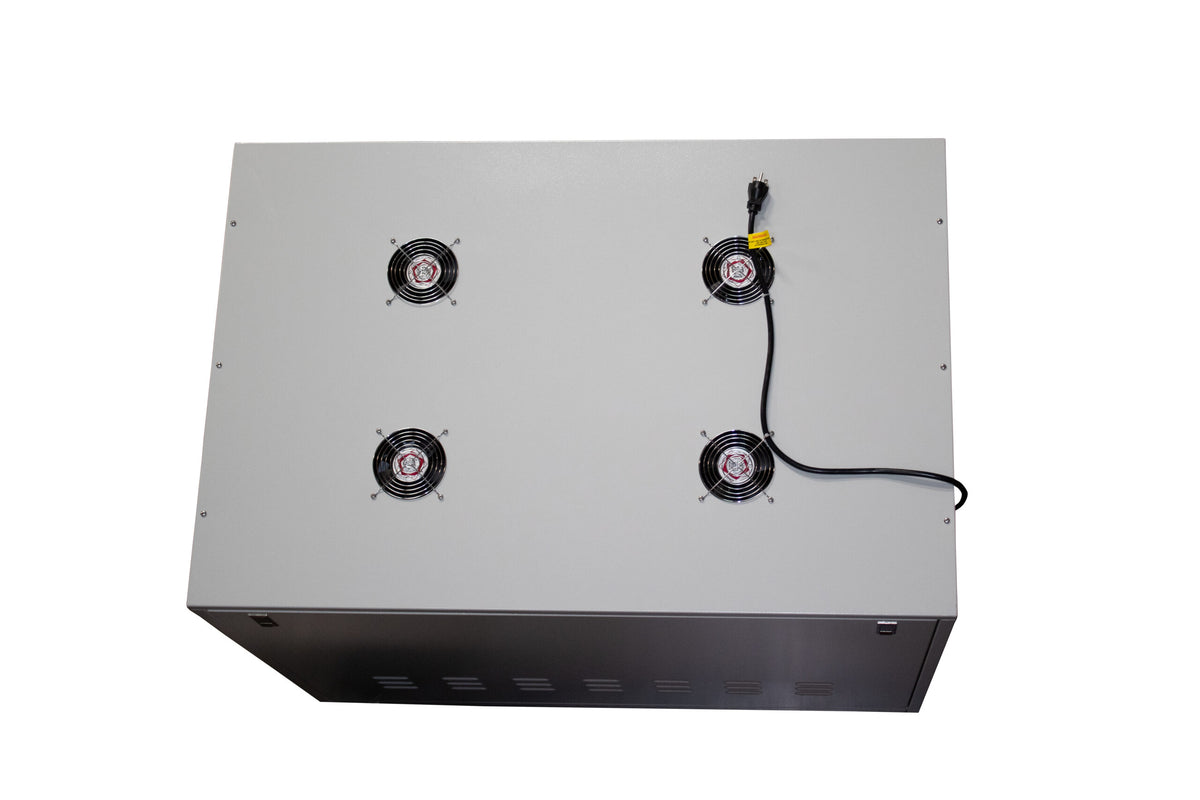

• Four cabinet exhaust fans
• Two latching cabinet doors
• Caster wheels for easier movement
• 70/30 duty cycle

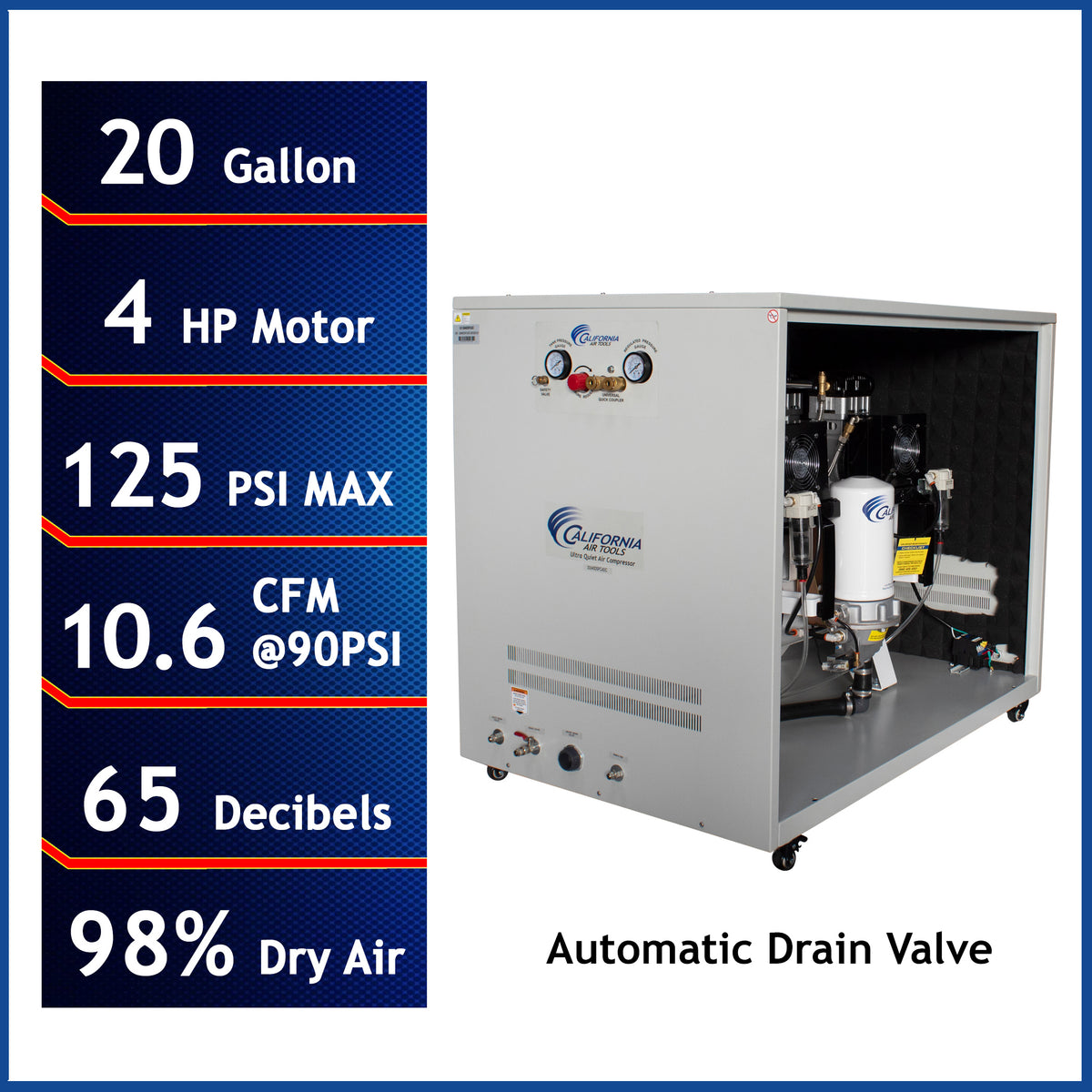

Specifications

• Model: 20040DSPCADC
• Motor Power: 4.0 HP
• Motor Configuration: Twin 2.0 HP Motors
• Pump Type: Oil-Free Dual Piston
• Tank Capacity: 20 Gallons
• Tank Material: Steel
• Cabinet: Soundproof
• Noise Level: 65 dB
• Voltage: 220V
• Frequency: 60 Hz
• Phase: Single Phase
• Airflow: 12.80 CFM @ 40 PSI
• Airflow: 10.60 CFM @ 90 PSI
• Air Drying: Up to 98%
• Air Quality: ISO 8573 Class 2.3.1
• Automatic Drain: EZ-1
• Motor Speed: 1680 RPM
• Duty Cycle: 70/30
• Air Dryer Cartridge Life: Approximately 2 years
• Pump Life Before Wear: 3000+ hours
• Weight: 375 lbs
• Dimensions: 31" L x 46" W x 39" H

What's Included

• California Air Tools 20040DSPCADC Air Compressor
• 20-gallon steel air tank
• Soundproof cabinet
• 98% air drying system
• EZ-1 automatic drain valve
• Aftercooler
• Two 0.01 micron prefilters
• 5.0 micron air filter and output pressure regulator
• Two pressure control gauges
• Four cabinet exhaust fans
• Two latching cabinet doors
• Caster wheels

Applications

The California Air Tools 20040DSPCADC is designed for applications requiring powerful, quiet, and highly dry compressed air. Suitable applications include dental offices, dental laboratories, dental milling, surgical environments, manufacturing clean rooms, restaurants, general engineering, workshops, and other professional environments requiring reduced moisture in compressed air.

Maintenance

The 98% air dryer cartridge should be replaced approximately every 2 years or according to operating conditions. California Air Tools recommends replacing the 2 HP motor-pump air filters every 2 years, or annually when the compressor is operated in dusty or dirty environments. The automatic drain valve should be checked periodically to ensure proper operation, and the cabinet exhaust fans and ventilation areas should be kept clean for proper airflow and cooling.
