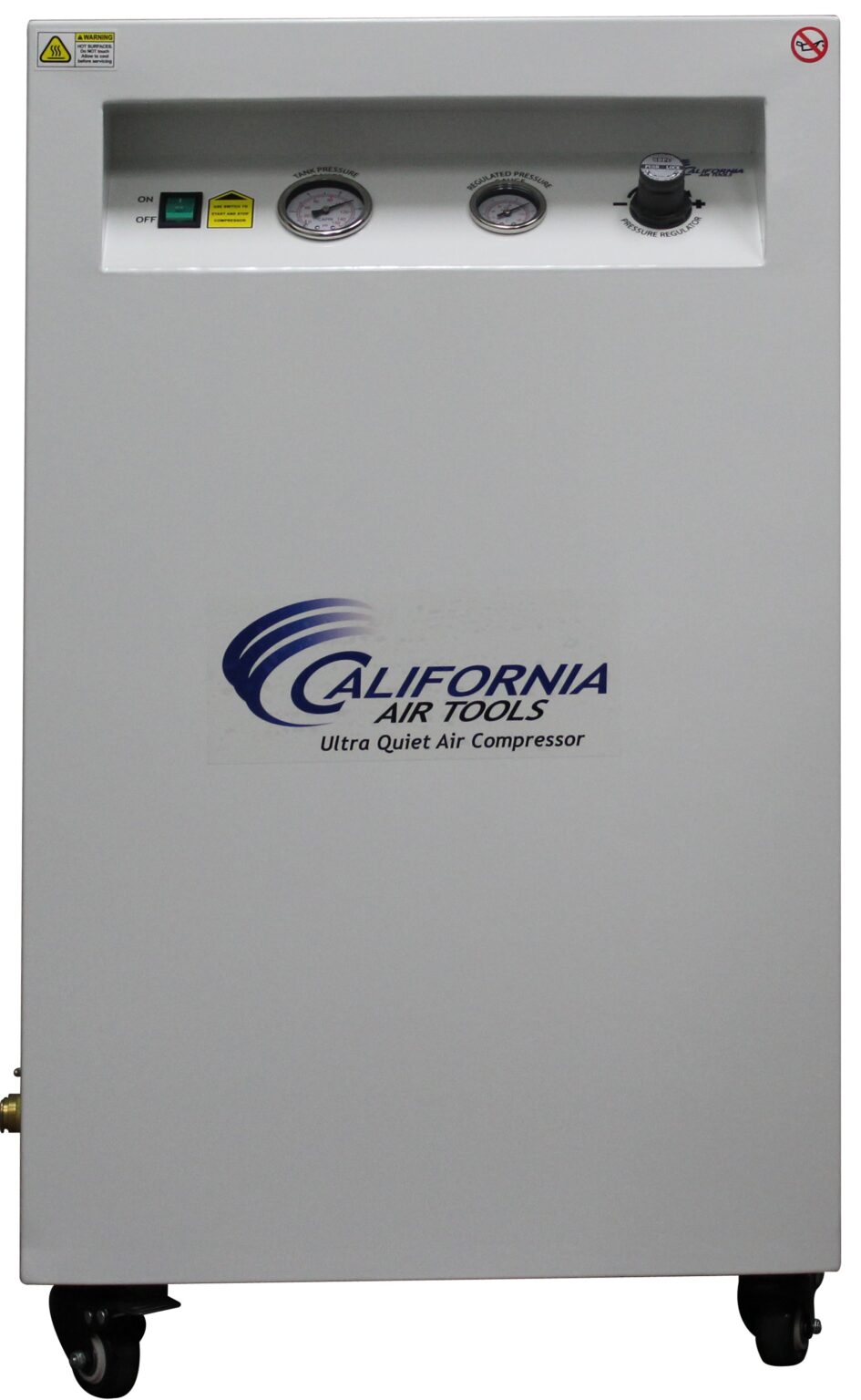

California Air Tools 20040SPCAD 4.0 HP Ultra Quiet Oil-Free 20 Gallon Air Compressor with Automatic Drain & Soundproof Cabinet, 220V

Product Description

The California Air Tools 20040SPCAD is a 4.0 HP ultra-quiet and oil-free air compressor designed for professional applications where reliable compressed air and reduced operating noise are important. It features a 20-gallon steel air tank enclosed in a soundproof cabinet and operates at only 65 dB.

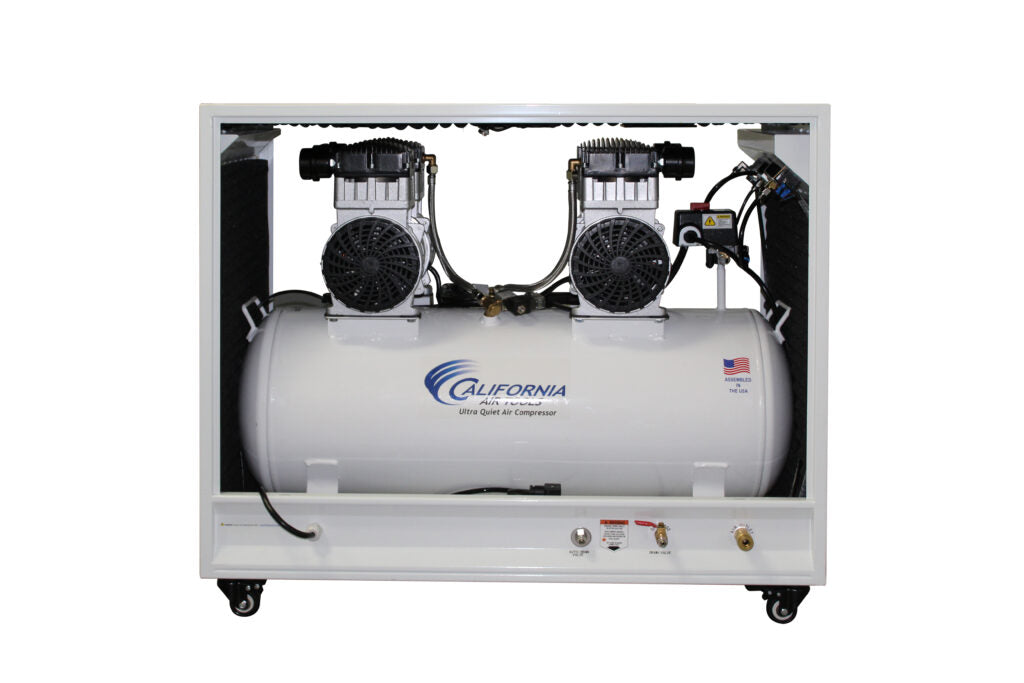

The compressor uses twin 2.0 HP oil-free dual piston motors operating at 1680 RPM. This configuration is designed to provide strong airflow while reducing noise, vibration, and wear. The compressor delivers 12.80 CFM at 40 PSI and 10.60 CFM at 90 PSI, with a maximum pressure of 125 PSI.

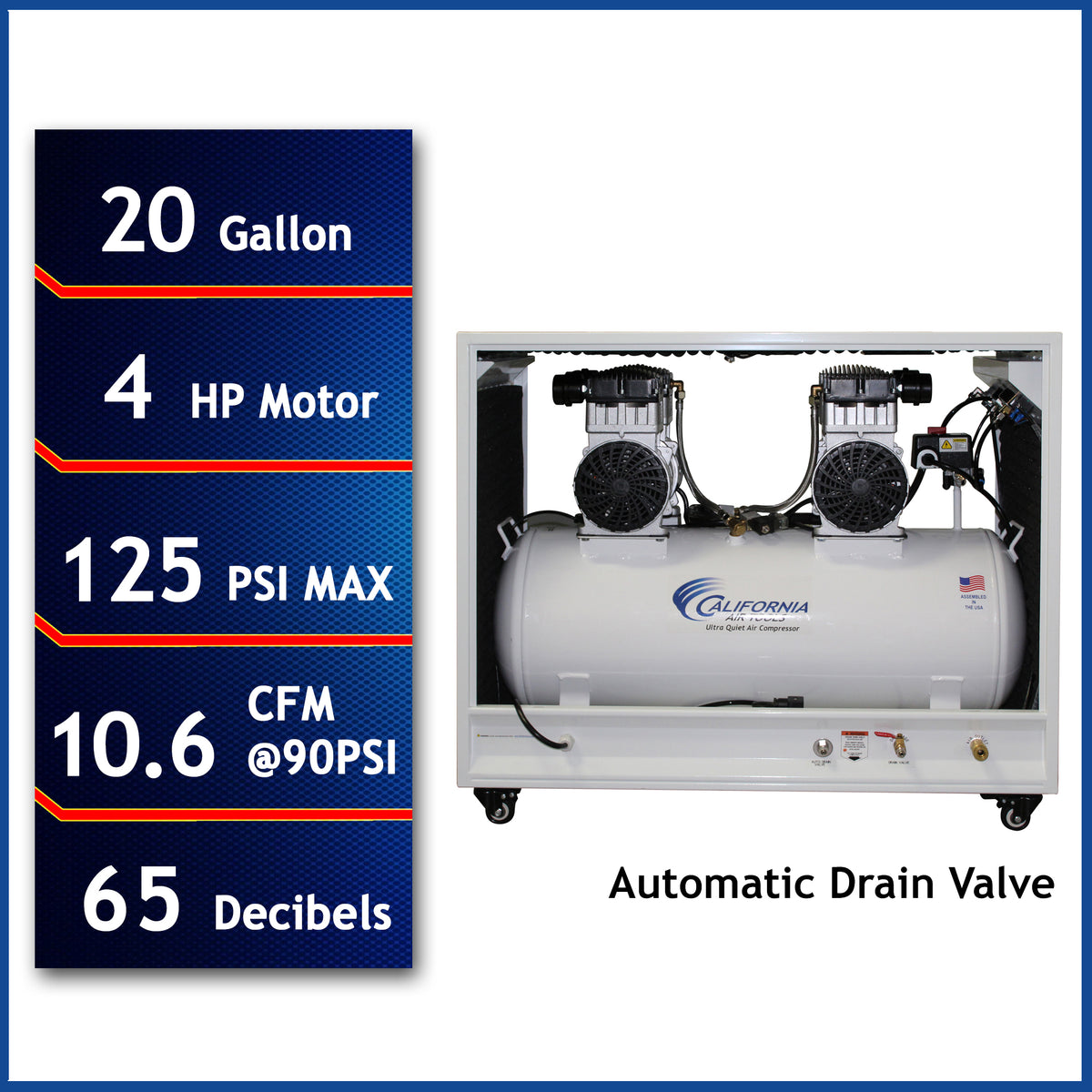

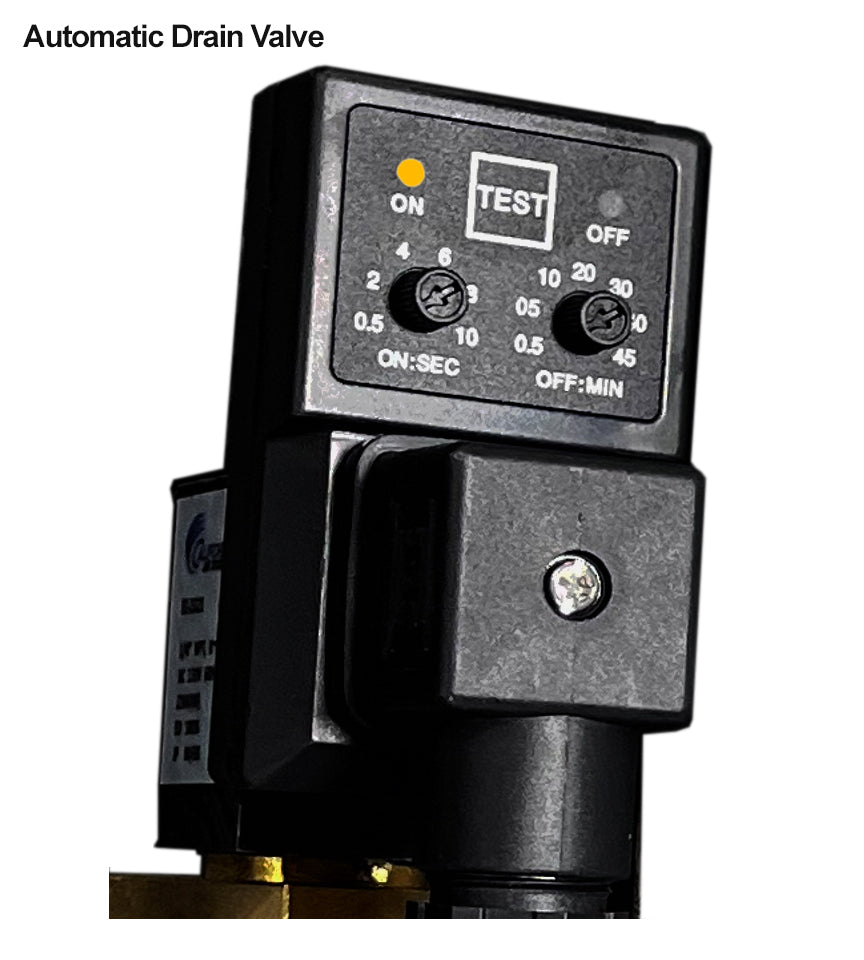

The 20040SPCAD includes a factory-installed EZ-1-2321 automatic drain valve. The automatic drain is designed to eliminate the need to manually drain accumulated moisture from the air tank. Its timer can be configured for the frequency and duration of the draining process.

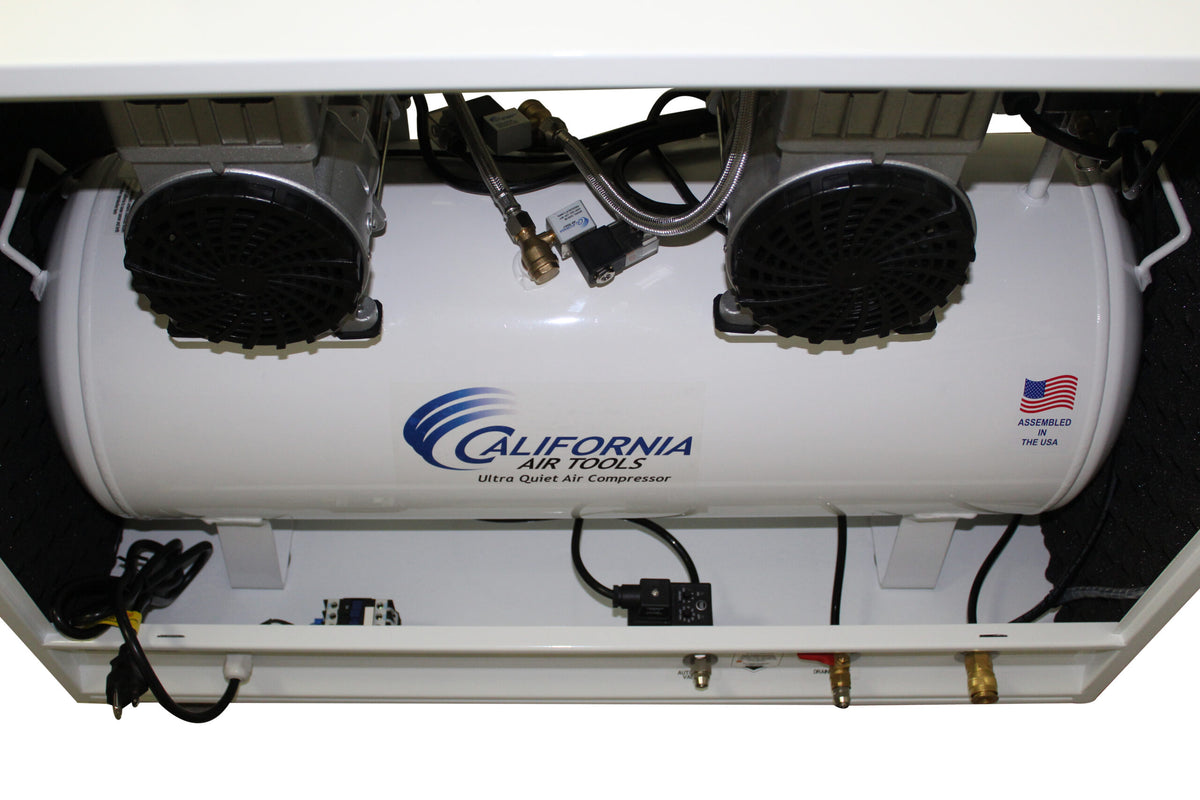

The soundproof cabinet includes two latching doors for access to the compressor components, three exhaust fans to help remove heat, and four swivel caster wheels for easier movement.

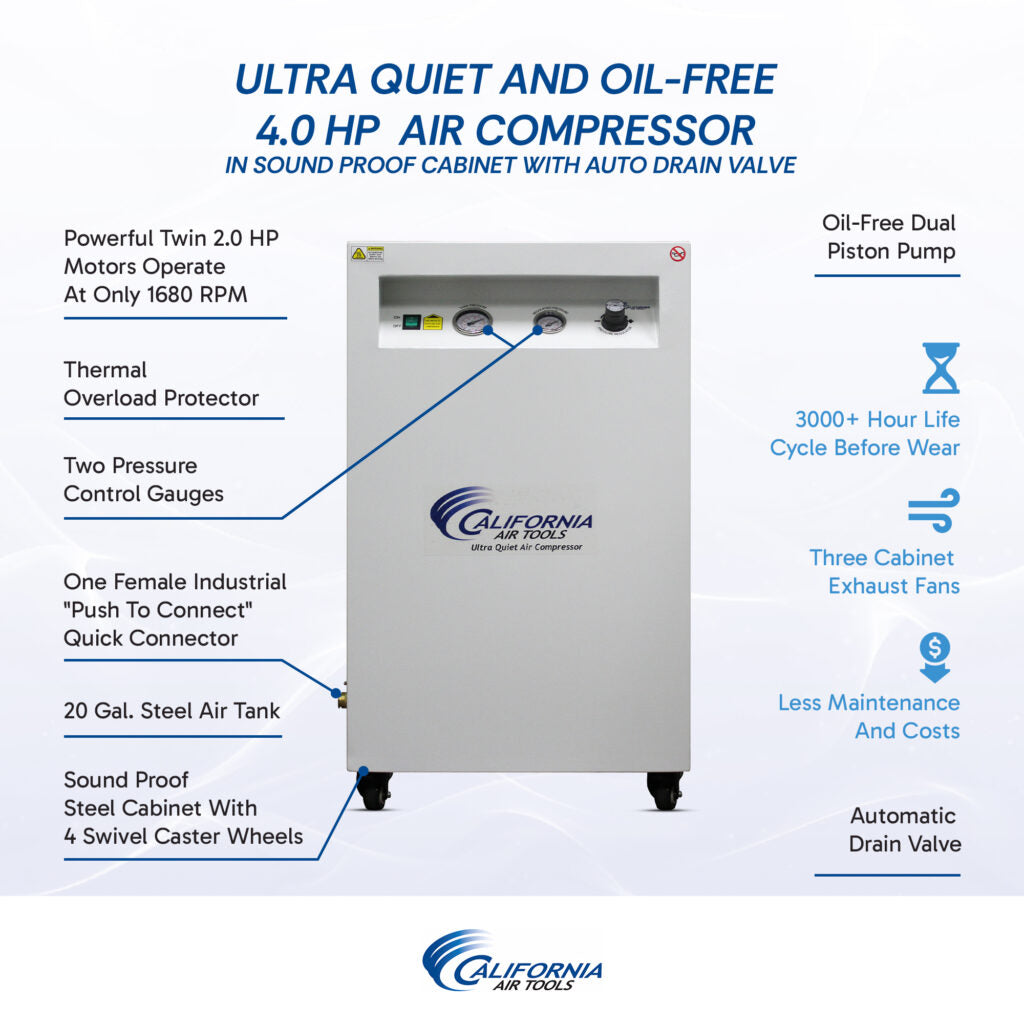

Key Features

• 4.0 HP rated/running power
• Twin 2.0 HP oil-free motors
• Ultra-quiet 65 dB operation
• 20-gallon steel air tank
• Soundproof cabinet with acoustic insulation
• Factory-installed EZ-1-2321 automatic drain valve
• Automatic tank draining with adjustable timer
• Oil-free dual piston pump system
• 1680 RPM motor speed
• 12.80 CFM at 40 PSI
• 10.60 CFM at 90 PSI
• 125 PSI maximum pressure

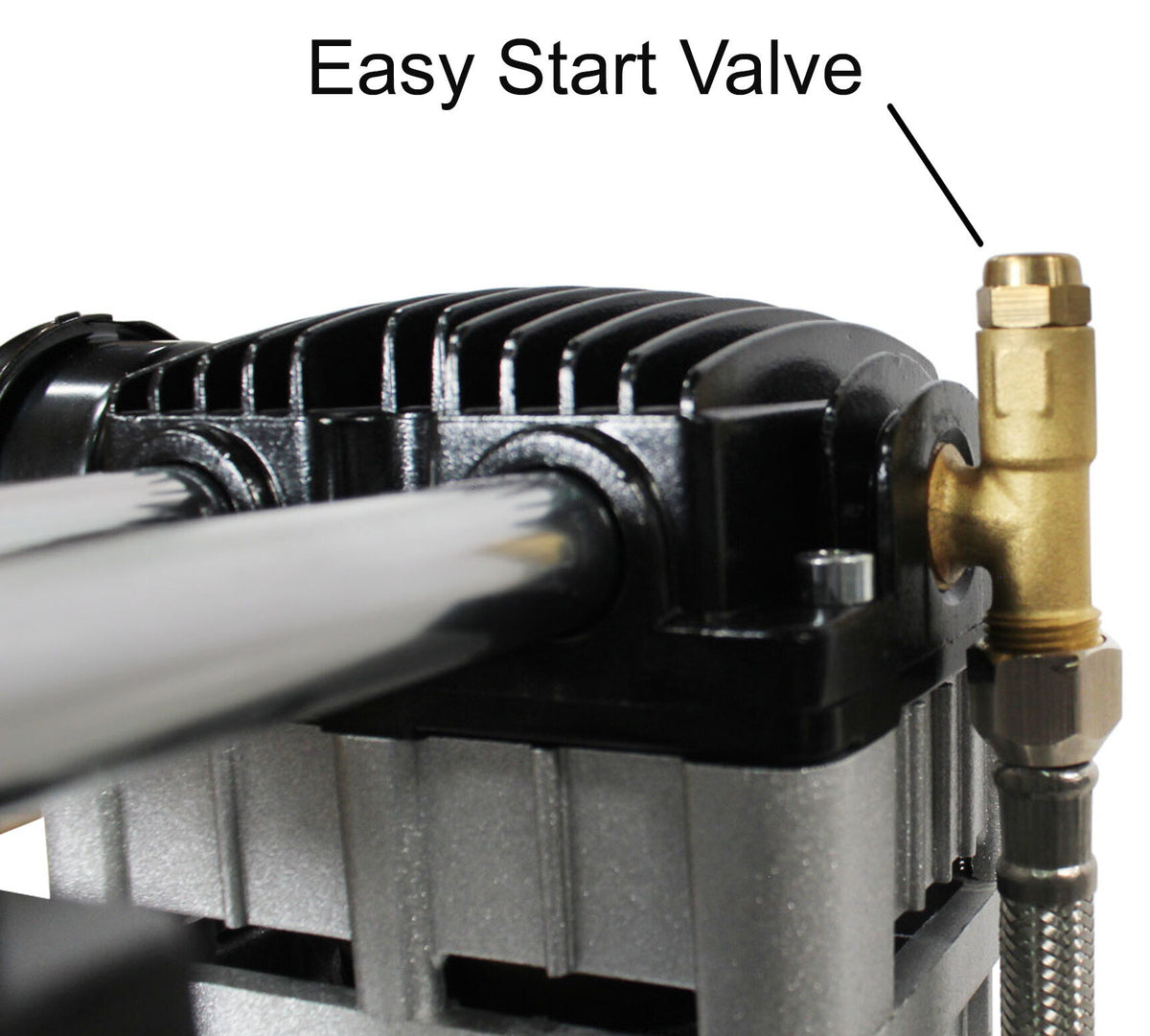

• Easy Start Valve for reduced starting amperage

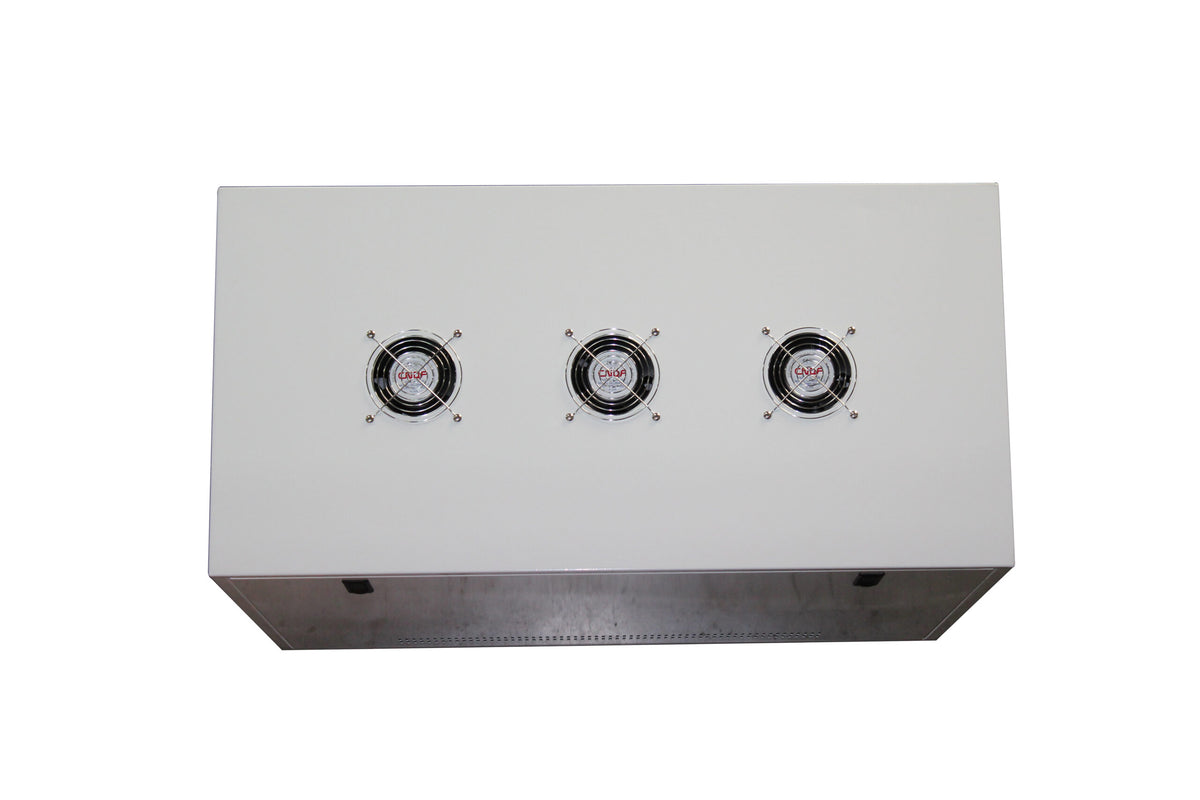

• Three cabinet exhaust fans
• Two latching cabinet doors
• Two pressure control gauges
• One female industrial push-to-connect quick connector
• Thermal overload protection
• Four swivel caster wheels
• 70/30 duty cycle
• Four air filters included

Specifications

• Model: 20040SPCAD
• Motor Power: 4.0 HP
• Motor Configuration: Twin 2.0 HP Motors
• Pump Type: Oil-Free Dual Piston
• Tank Capacity: 20 Gallons
• Tank Material: Steel
• Cabinet: Soundproof
• Noise Level: 65 dB
• Voltage: 220V
• Frequency: 60 Hz
• Phase: Single Phase
• Amperage: 14A
• Airflow: 12.80 CFM @ 40 PSI
• Airflow: 10.60 CFM @ 90 PSI
• Maximum Pressure: 125 PSI
• Motor Speed: 1680 RPM
• Duty Cycle: 70/30
• Tank Fill Time: Approximately 150 seconds
• Recovery Time: Approximately 40 seconds from 95 to 125 PSI
• Automatic Drain: EZ-1-2321 Factory Installed
• Tank Type: Non-ASME

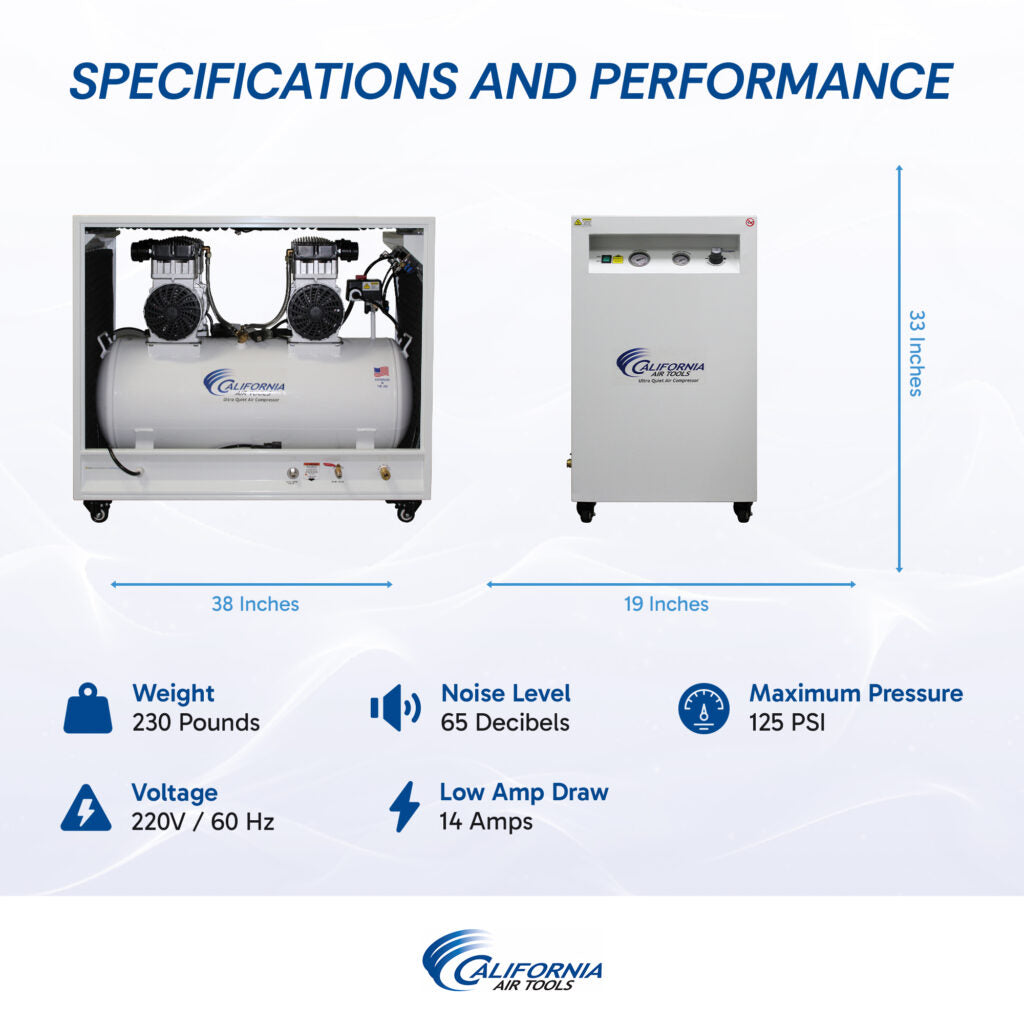

• Dimensions: 19" L x 38" W x 33" H
• Weight: 230 lbs
• Plug Type: NEMA 6-15P
• Warranty: 1 Year Limited Warranty
• Assembly: Assembled in USA with global components

What's Included

• California Air Tools 20040SPCAD Air Compressor
• 20-gallon steel air tank
• Soundproof cabinet
• EZ-1-2321 automatic drain valve
• Two pressure control gauges
• Female industrial push-to-connect quick connector
• Easy Start Valve
• Thermal overload protector
• Four air filters
• Three cabinet exhaust fans
• Four swivel caster wheels

Applications

The California Air Tools 20040SPCAD is suitable for professional workshops, milling applications, commercial workspaces, stores, warehouses, manufacturing environments, pneumatic tools, and other applications where high airflow and reduced compressor noise are important.

Maintenance

The oil-free dual piston pump eliminates the need for routine pump oil changes. California Air Tools recommends replacing the 2 HP motor-pump air filters every 2 years, or annually when the compressor is operated in a dusty or dirty environment. The automatic drain valve should be checked periodically to ensure proper operation, while the cabinet exhaust fans and ventilation areas should be kept clean for proper airflow and cooling.
