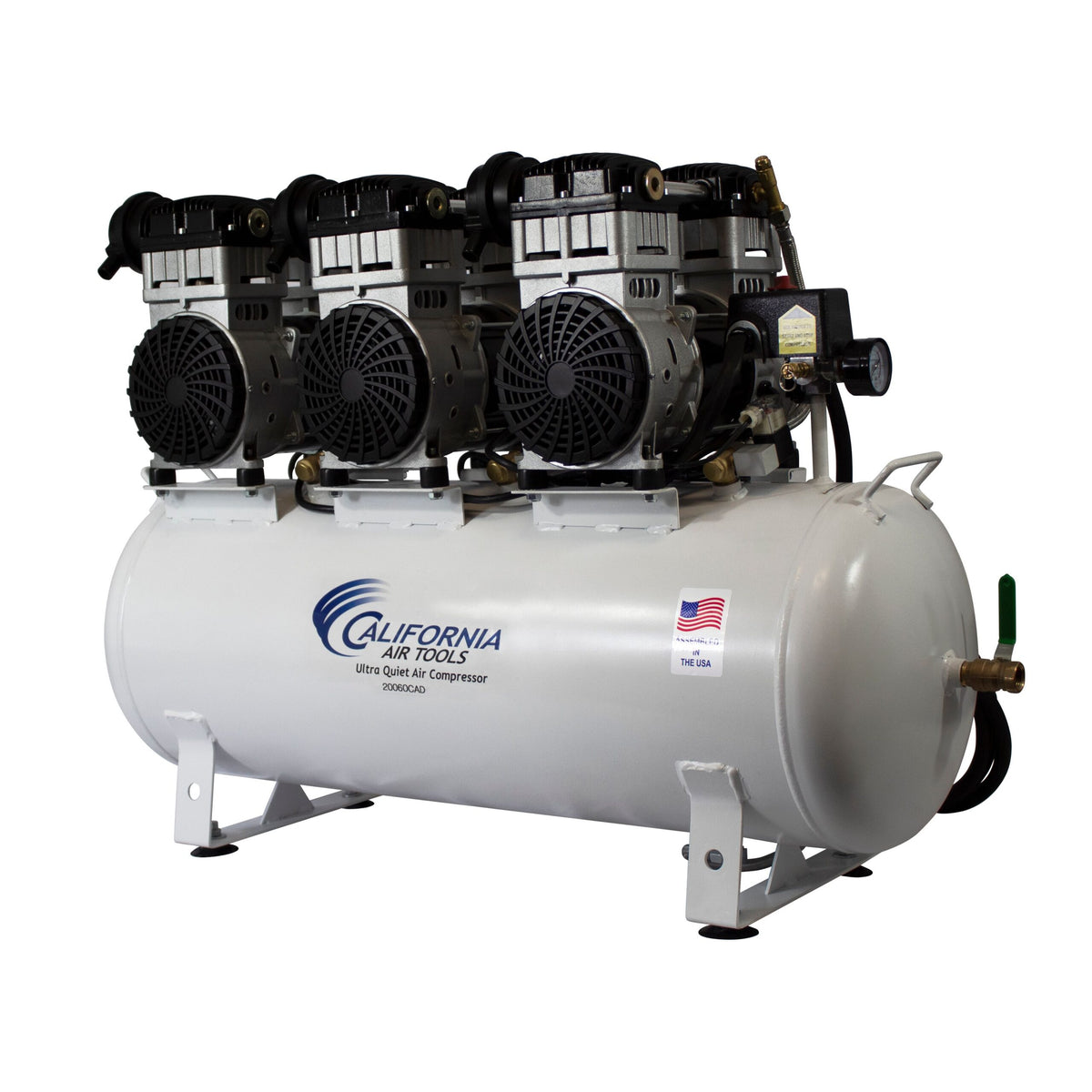

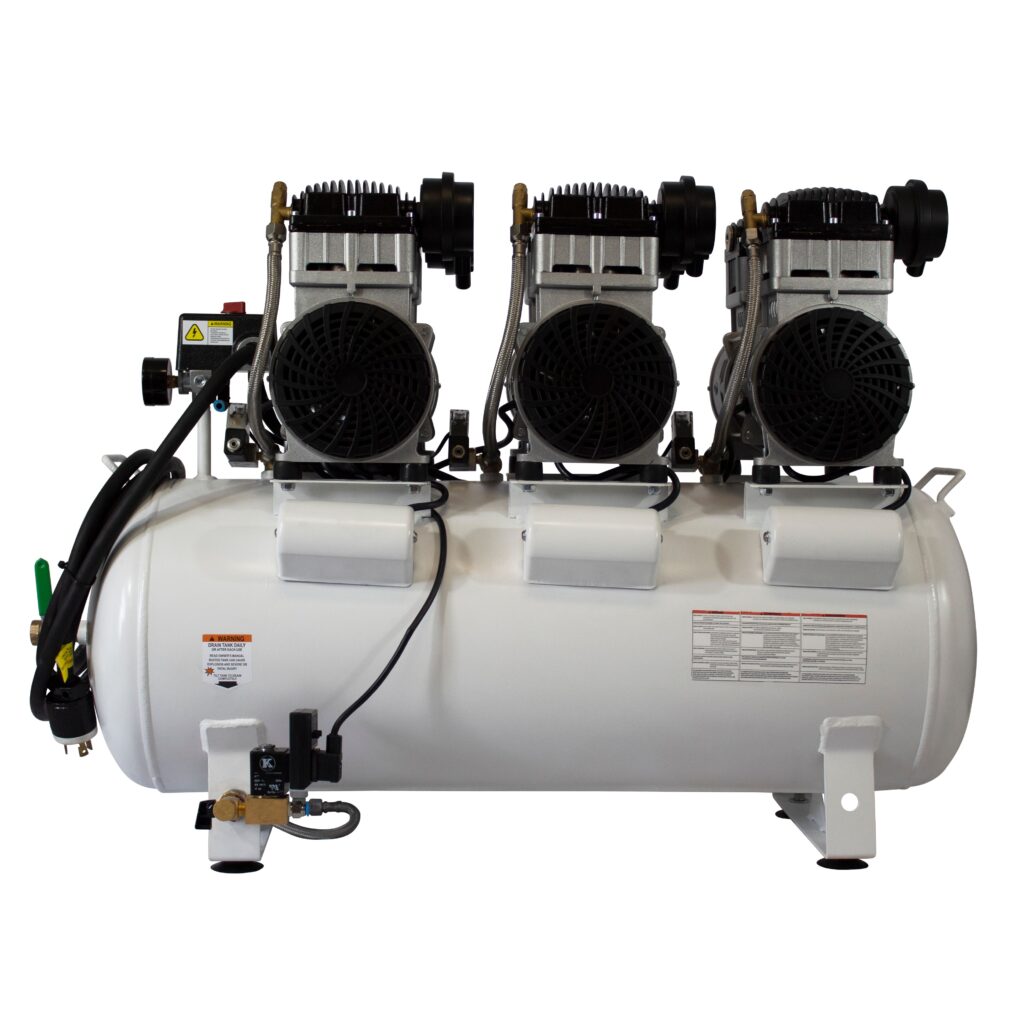

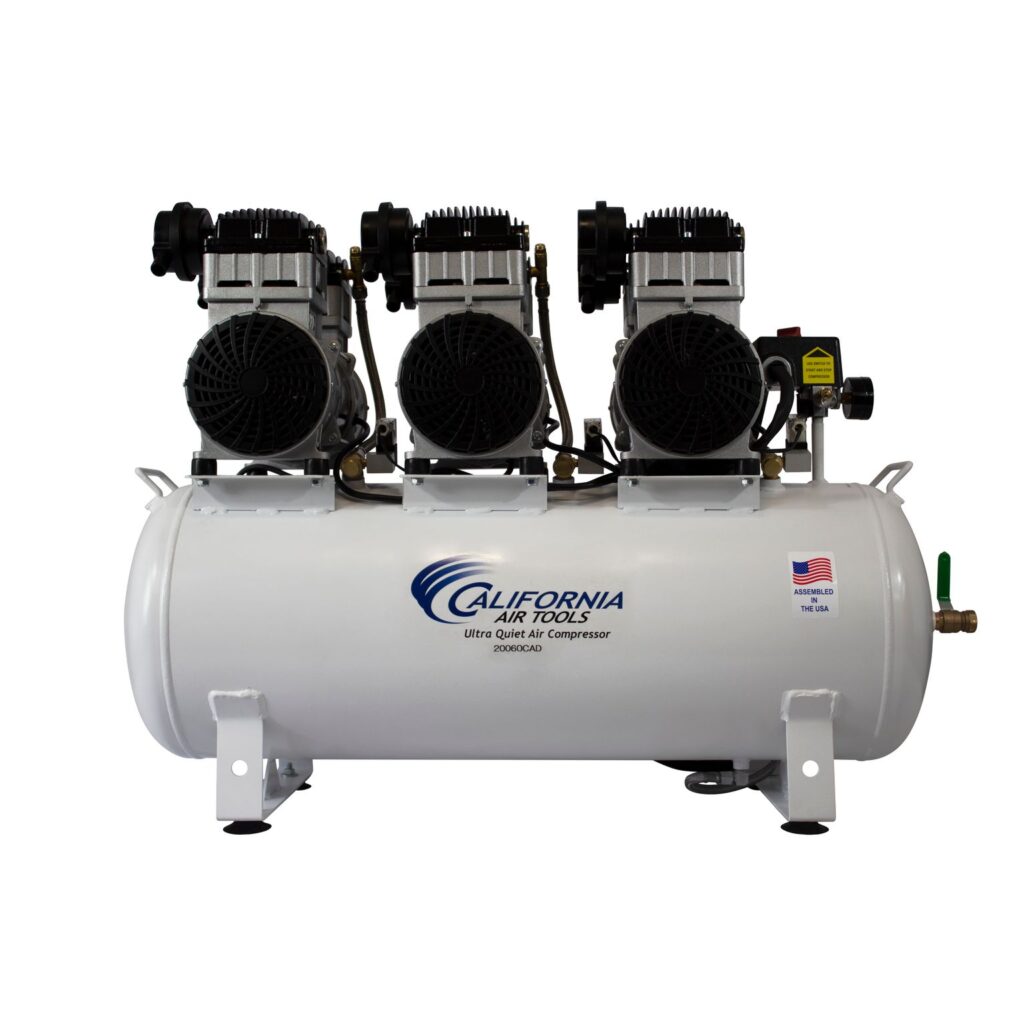

California Air Tools 20060CAD Ultra Quiet & Oil-Free 6.0 HP 20 Gallon Air Compressor with Automatic Drain Valve – 220V

Product Description

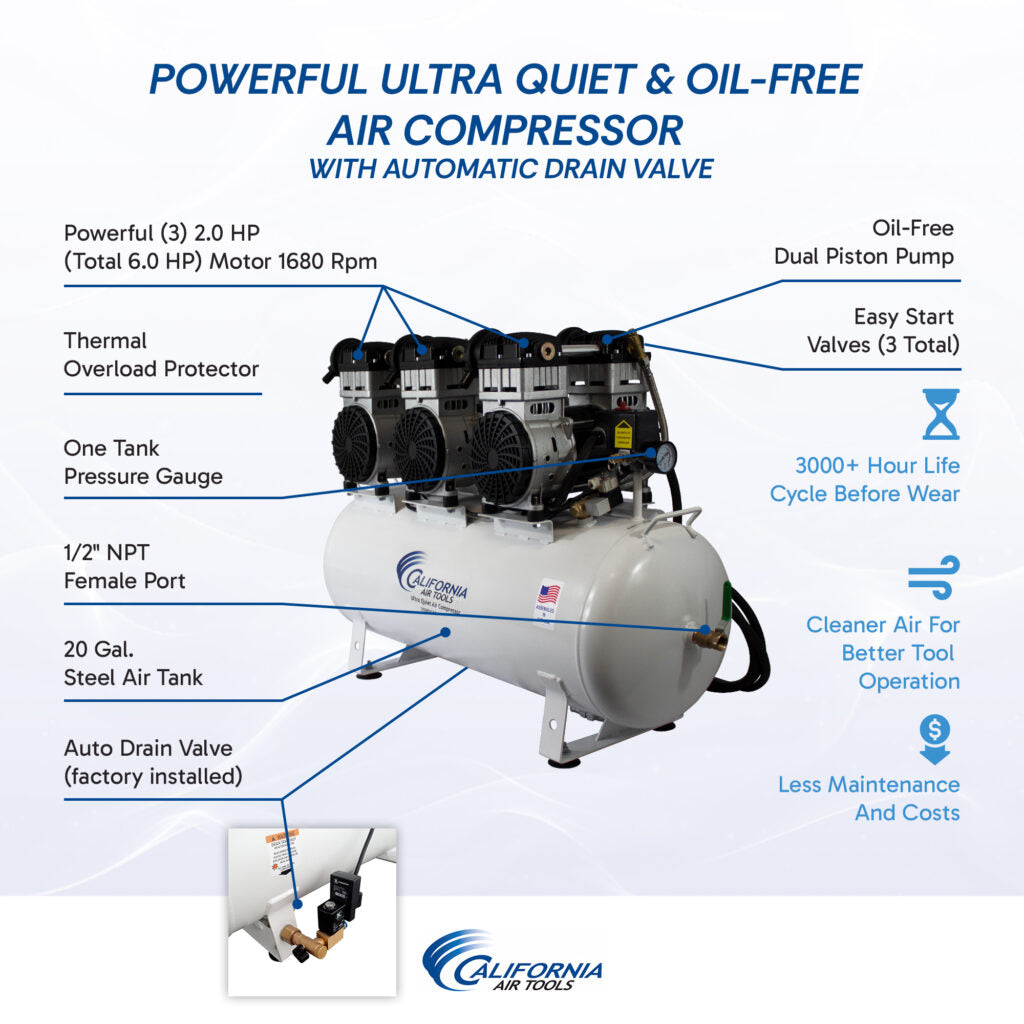

The California Air Tools 20060CAD is a powerful 6.0 HP ultra-quiet and oil-free air compressor designed for demanding shop, garage, industrial, CNC, and milling applications. It combines three 2.0 HP motors with an oil-free dual-piston pump system to deliver high airflow while maintaining a relatively low 78 dB noise level.

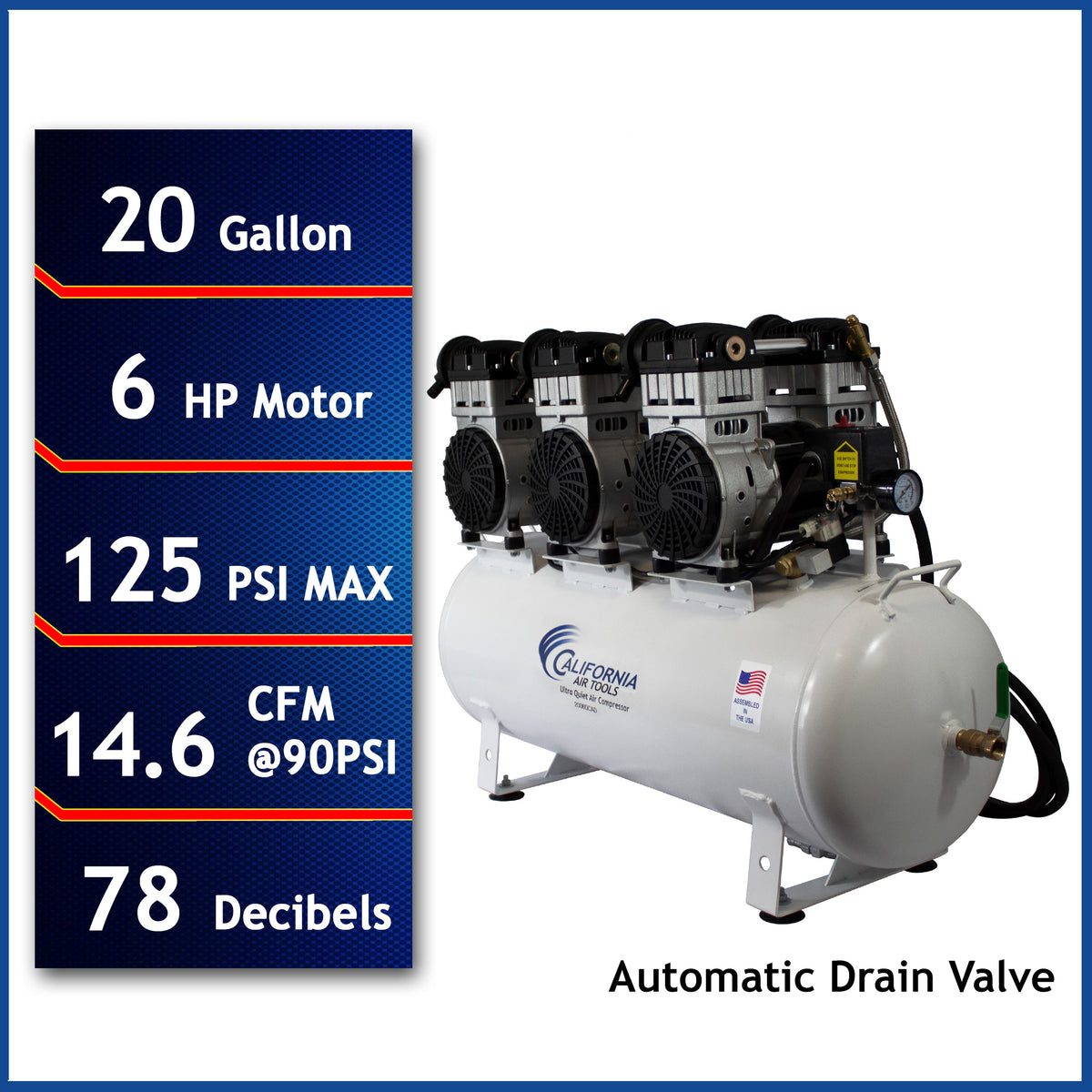

The compressor features a 20-gallon steel air tank and delivers up to 14.60 CFM at 90 PSI and 19.80 CFM at 40 PSI. A factory-installed EZ-1-2301 automatic drain valve helps reduce moisture accumulation inside the tank and minimizes the need for manual draining.

Key Features

• 6.0 HP rated/running power
• Ultra-quiet 78 dB operation
• Oil-free dual-piston pump system
• Three 2.0 HP motors operating at 1680 RPM
• 20-gallon steel air tank
• 19.80 CFM at 40 PSI
• 14.60 CFM at 90 PSI
• 125 PSI maximum pressure

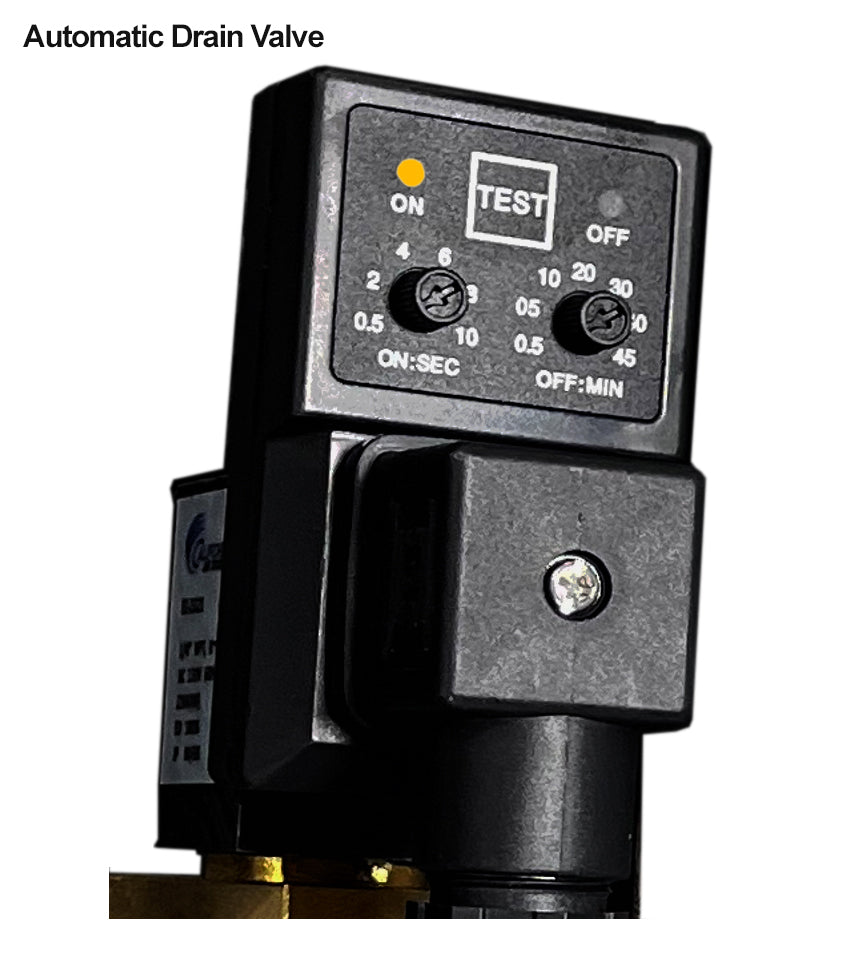

• Factory-installed EZ-1-2301 automatic drain valve
• 70/30 duty cycle
• 20-second recovery from 95 to 125 PSI
• 70-second tank fill time from empty to full
• Condor pressure switch
• Thermal overload protection
• Low-amp design with 24-amp draw
• Includes six air filters
• NEMA L6-30P plug
• Assembled in the USA with global components

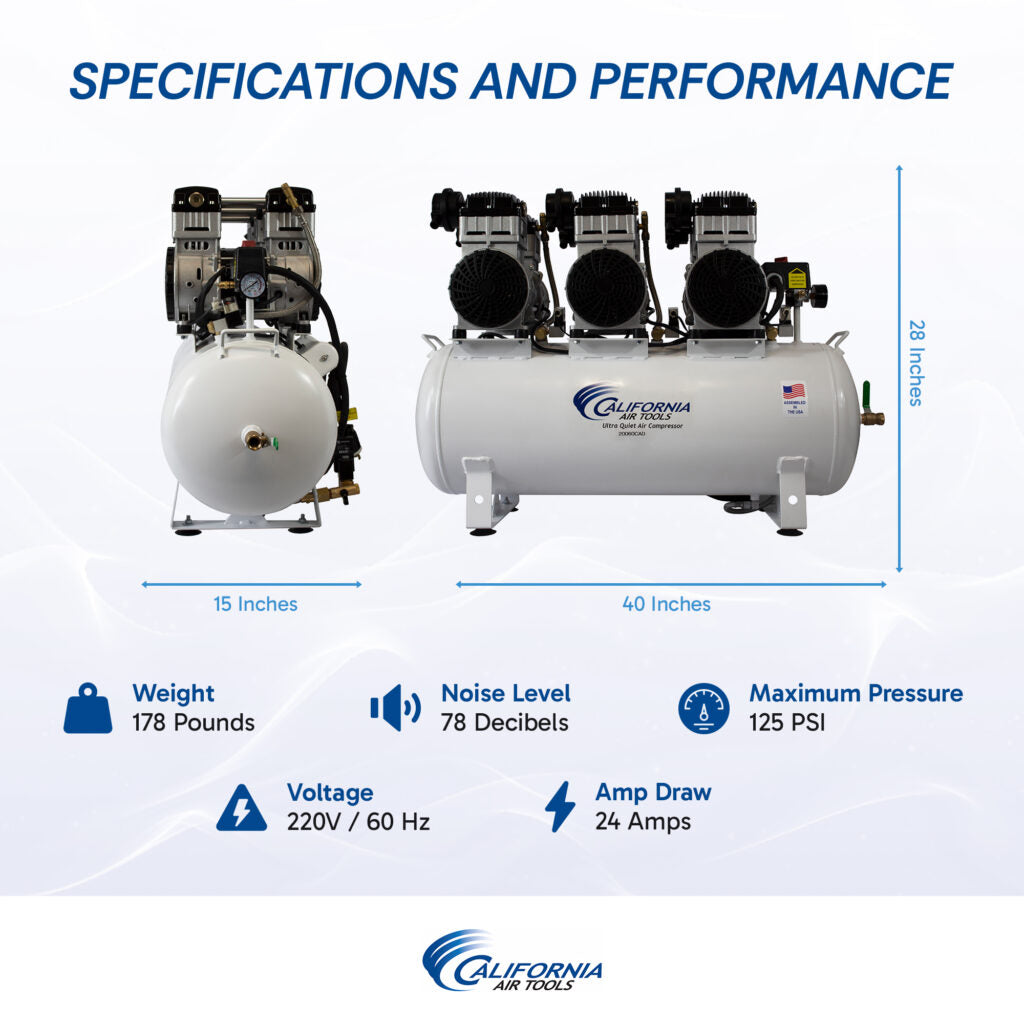

Specifications

• Brand: California Air Tools
• Model: 20060CAD
• Motor Power: 6.0 HP
• Motor Configuration: Three 2.0 HP motors
• Pump Type: Oil-Free Dual Piston
• Tank Capacity: 20 gallons
• Tank Material: Steel
• Noise Level: 78 dB
• Airflow: 19.80 CFM @ 40 PSI
• Airflow: 14.60 CFM @ 90 PSI
• Maximum Pressure: 125 PSI
• Voltage: 220V
• Frequency: 60 Hz
• Phase: Single Phase
• Current: 24 Amps
• Recommended Breaker: 30 Amp
• Duty Cycle: 70/30
• Dimensions: 40" L × 15" W × 28" H
• Weight: 178 lbs

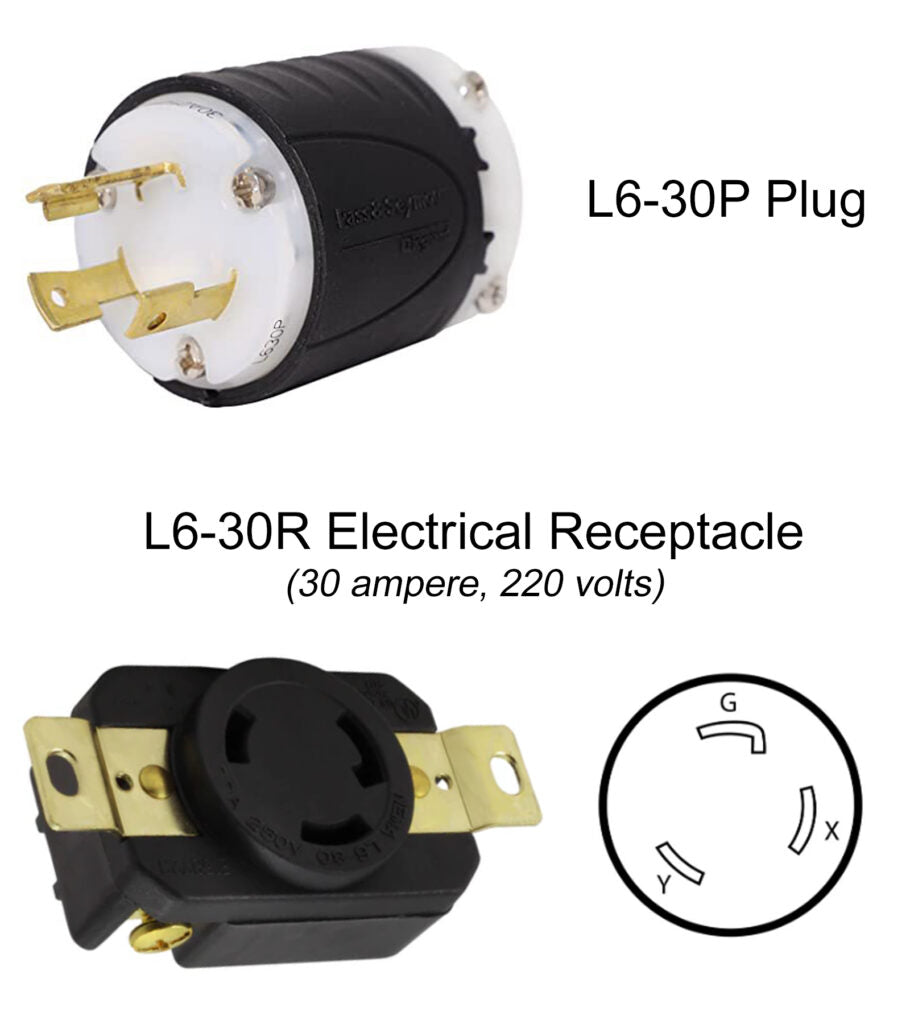

• Plug: NEMA L6-30P
• Cord Length: 7 ft
• Automatic Drain Valve: EZ-1-2301
• Warranty: 1-Year Limited Manufacturer Warranty

What's Included

• California Air Tools 20060CAD 6.0 HP Air Compressor
• 20-gallon steel air tank
• Factory-installed EZ-1-2301 automatic drain valve
• Six air filters
• 7-foot power cord

Applications

The California Air Tools 20060CAD is suitable for applications requiring high airflow and reduced operating noise, including professional workshops, garages, industrial environments, CNC equipment, milling applications, pneumatic tools, and other demanding compressed-air applications.

Maintenance

The oil-free pump eliminates the need for compressor oil changes and helps reduce routine maintenance. The automatic drain valve helps remove moisture from the air tank. Regularly inspect the air filters, connections, pressure switch, and drain system, and follow the manufacturer's maintenance recommendations for continued performance.
