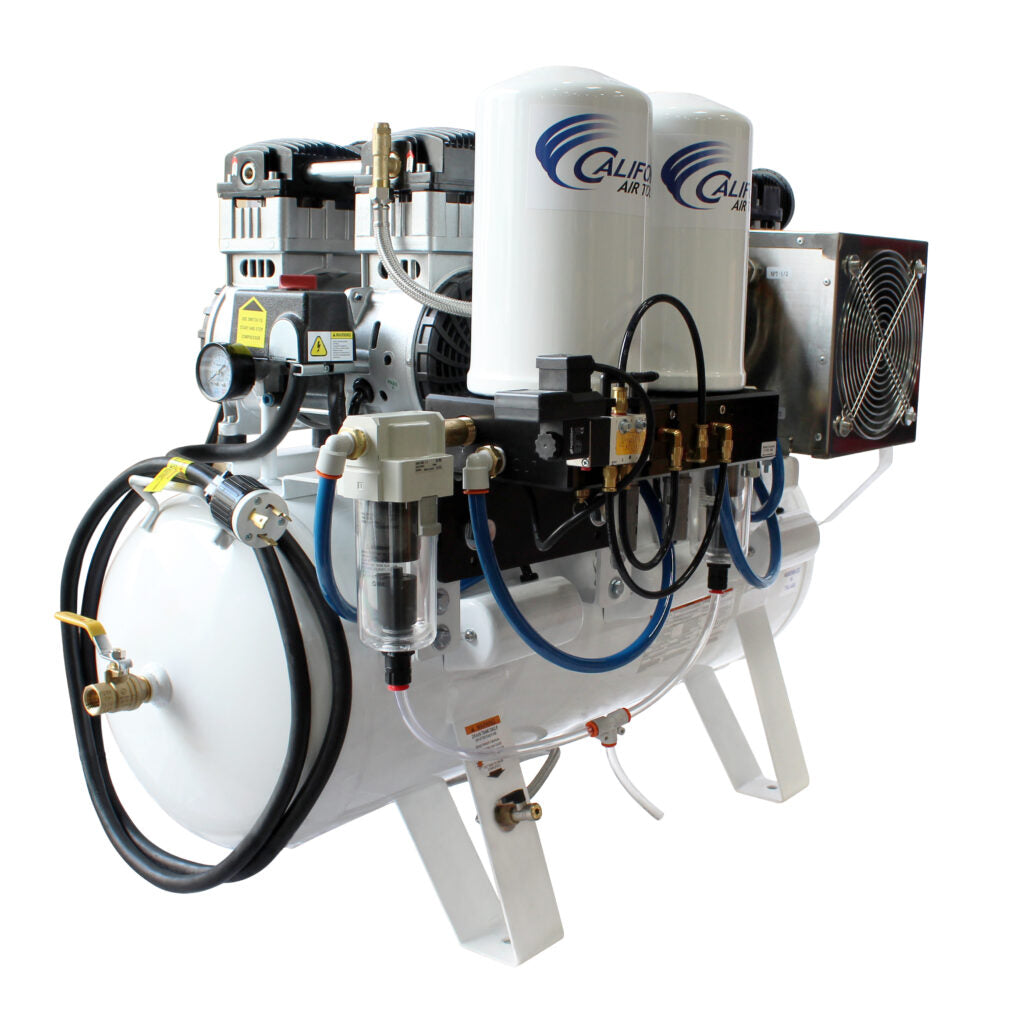

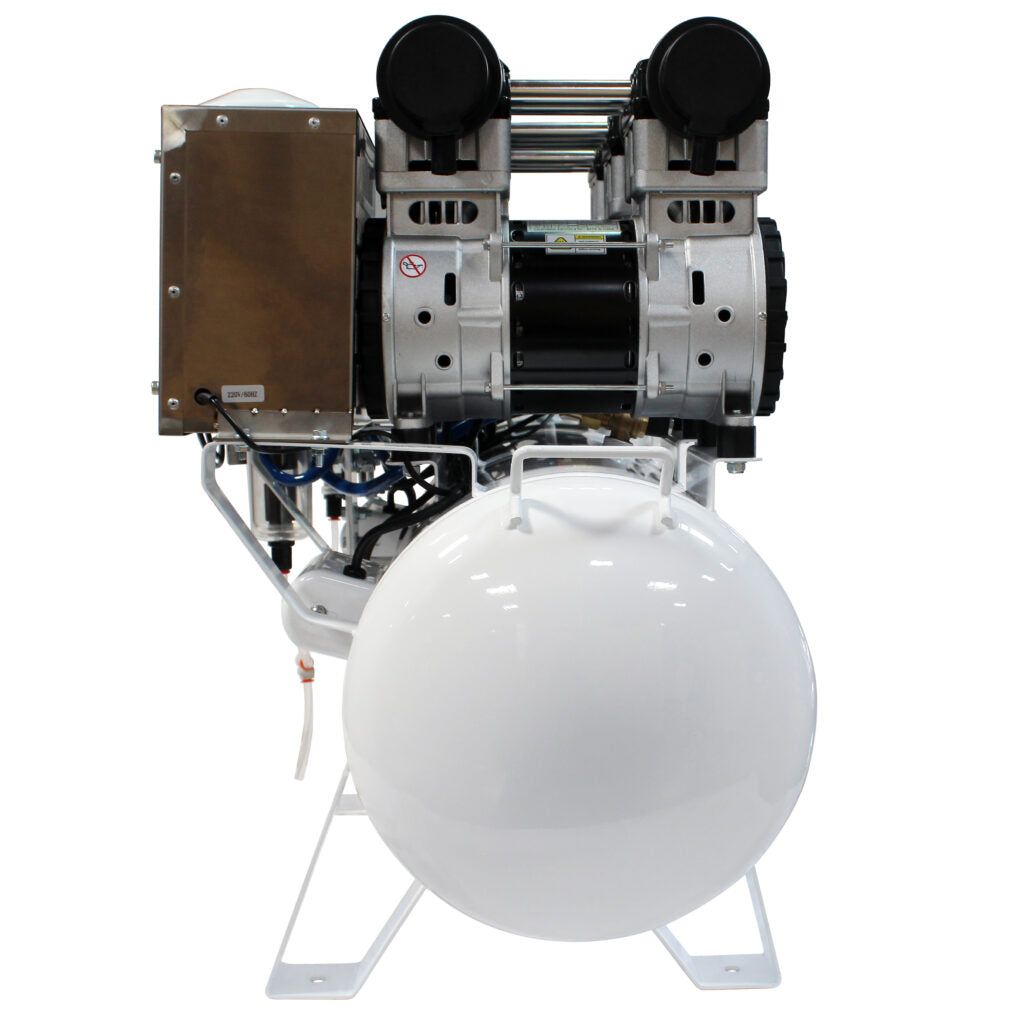

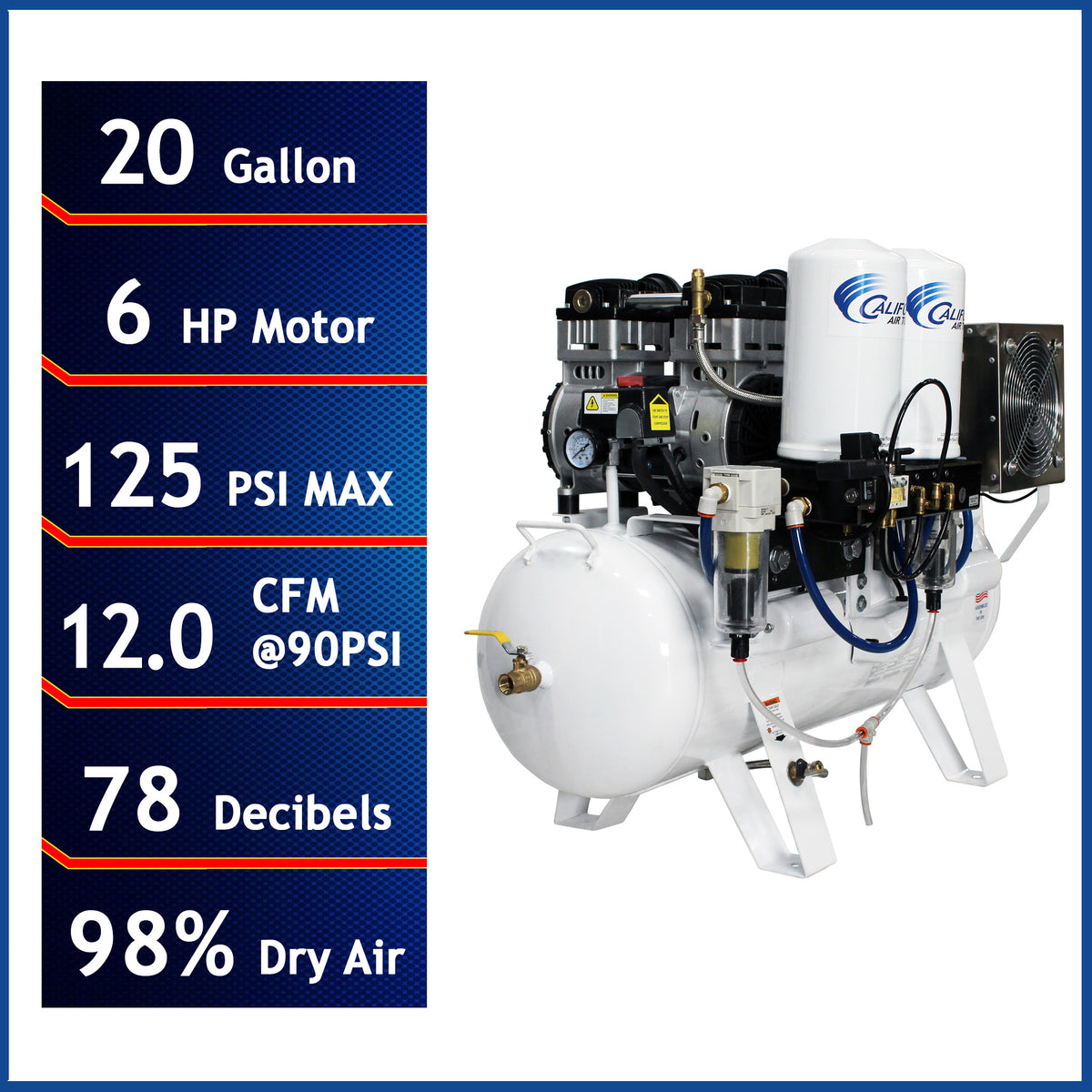

California Air Tools 20060DCC Ultra Quiet & Oil-Free 6.0 HP 20 Gallon Air Compressor with 98% Air Drying System – 220V

Product Description

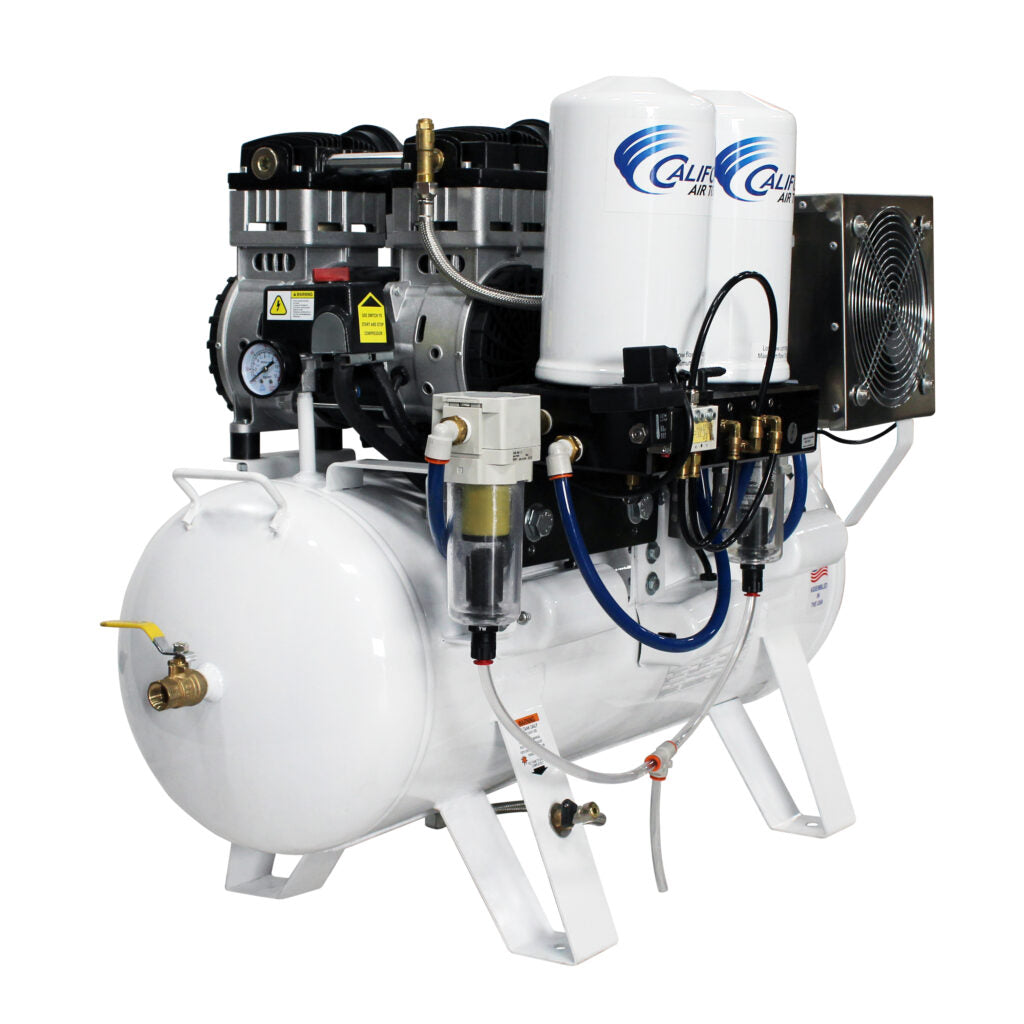

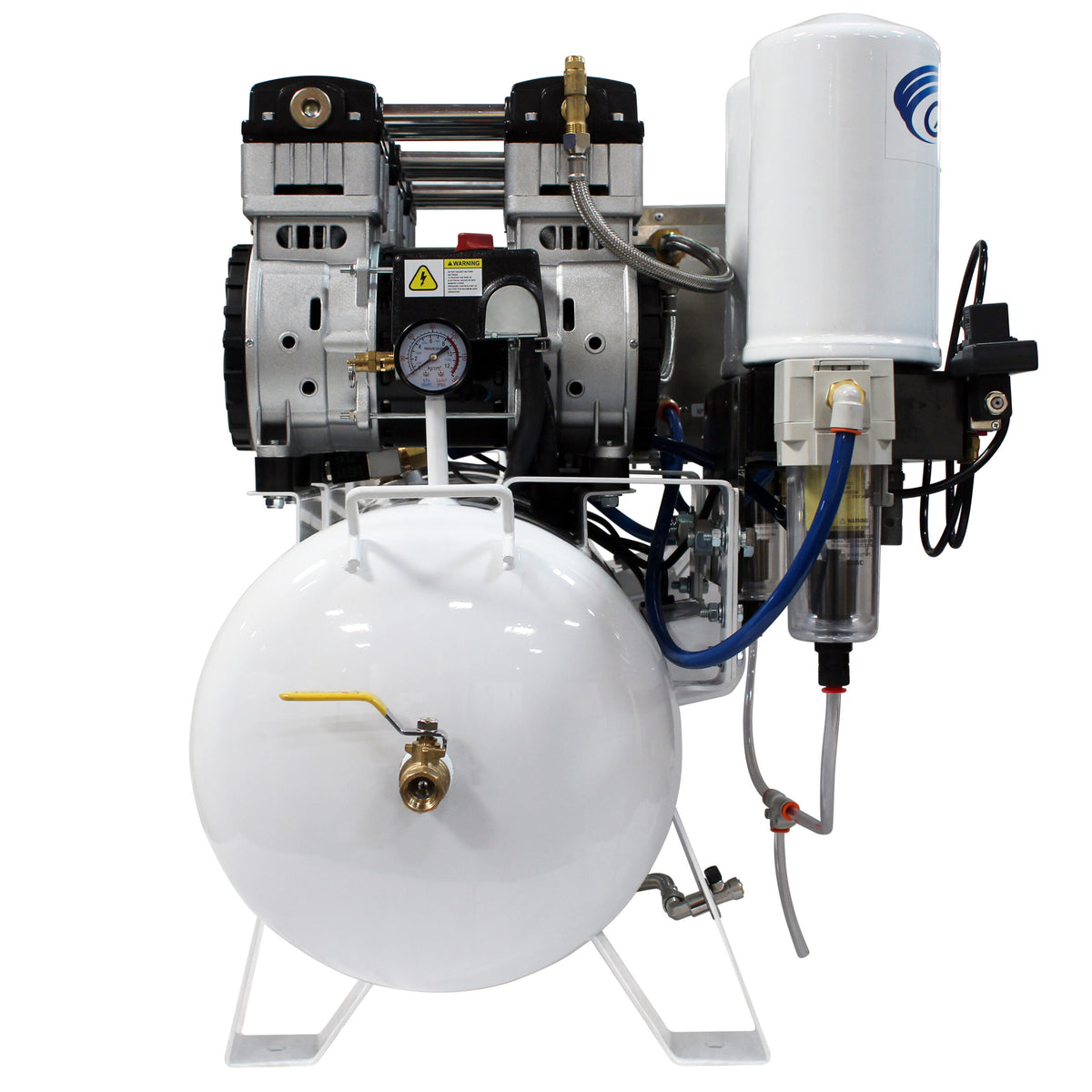

The California Air Tools 20060DCC is a powerful 6.0 HP ultra-quiet, ultra-dry and oil-free air compressor designed for applications requiring clean, dry compressed air. It combines three 2.0 HP motor-pumps with a 20-gallon steel air tank and an integrated 98% air drying system to deliver reliable compressed air for dental practices, dental milling, manufacturing clean rooms, restaurants, bakeries and general pneumatic applications.

The integrated twin-tower auto-purge dryer system removes up to 98% of water vapor from compressed air and provides ISO 8573 Class 2.3.1 air quality. The oil-free dual-piston pump is designed for a 3000+ hour life cycle before wear while operating at only 1680 RPM for reduced noise and wear.

Key Features

• 6.0 HP rated/running power
• Ultra-quiet 78 dB operation
• Oil-free dual-piston pump system

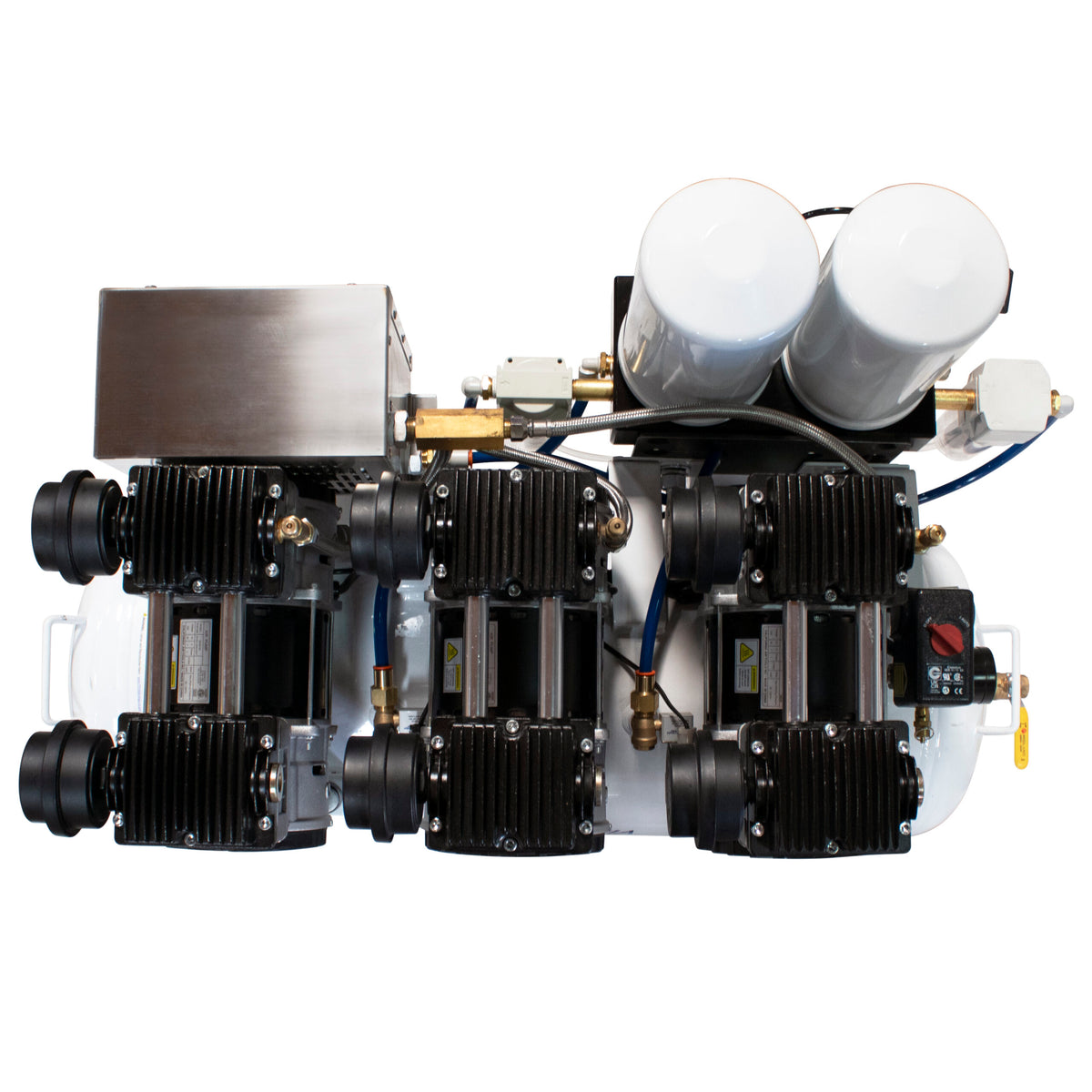

• Three 2.0 HP motor-pumps operating at 1680 RPM
• 20-gallon steel air tank
• 98% air drying system

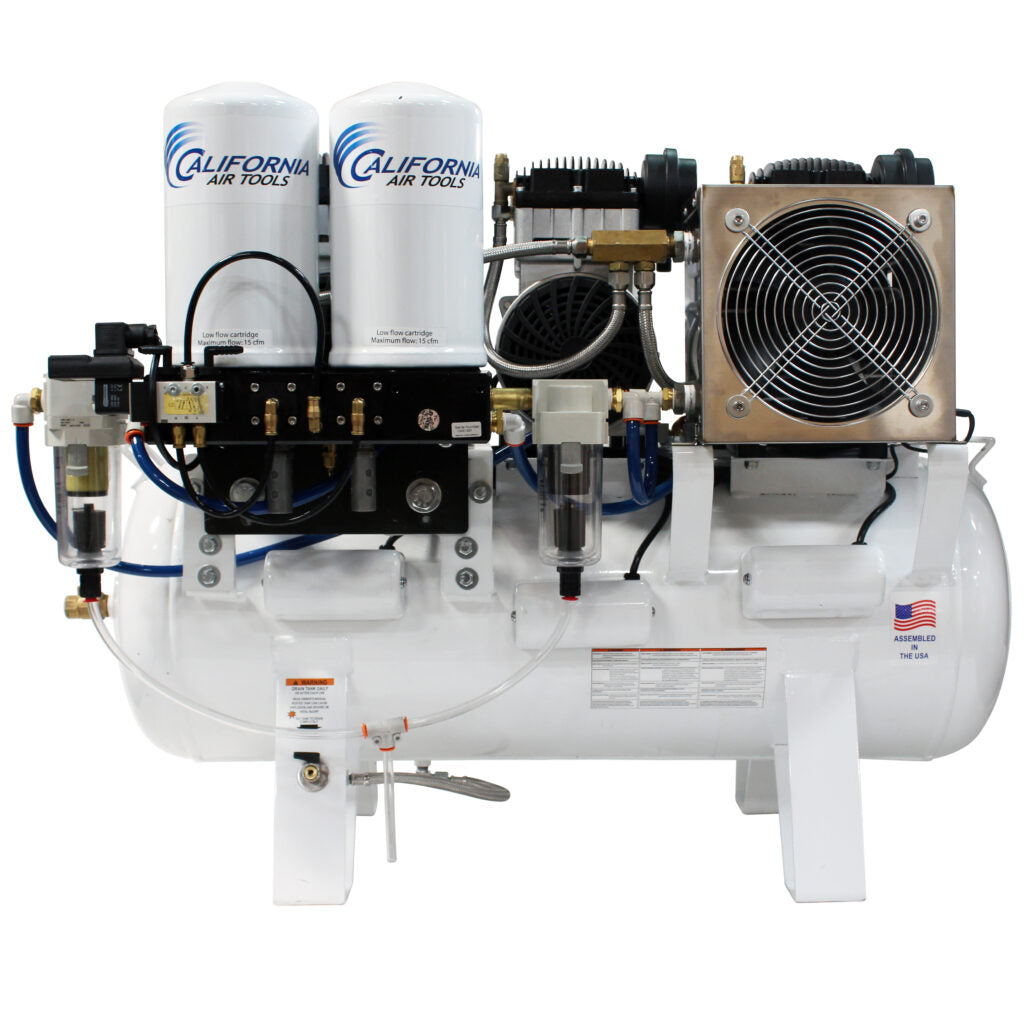

• Twin-tower auto-purge dryer system
• 16.30 CFM at 40 PSI
• 12.00 CFM at 90 PSI
• ISO 8573 Class 2.3.1 air quality
• PDP performance range of -20°F to -51°F
• Aftercooler/condenser for moisture removal
• Two 0.01-micron prefilters
• 70/30 duty cycle
• 125 PSI maximum pressure
• Condor pressure switch
• Thermal overload protector
• 30-amp breaker required

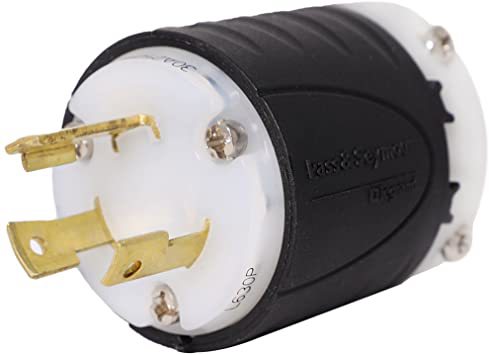

• NEMA L6-30P plug
• Assembled in the USA with global components

Specifications

• Brand: California Air Tools
• Model: 20060DCC
• Motor Power: 6.0 HP
• Motor Configuration: Three 2.0 HP motors
• Motor Speed: 1680 RPM
• Pump Type: Oil-Free Dual Piston
• Pump Life: 3000+ hours
• Tank Capacity: 20 gallons
• Tank Material: Steel
• Noise Level: 78 dB
• Airflow: 16.30 CFM @ 40 PSI
• Airflow: 12.00 CFM @ 90 PSI
• Maximum Pressure: 125 PSI
• Voltage: 220V
• Frequency: 60 Hz
• Phase: Single Phase
• Amp Draw: 24 Amps
• Typical Operating Current: 18–20 Amps
• Required Breaker: 30 Amp
• Duty Cycle: 70/30
• Dryer System: 98% Air Dryer
• Dryer Type: Twin-Tower Auto Purge
• Air Quality: ISO 8573 Class 2.3.1
• Prefilters: Two 0.01-Micron Prefilters
• Dimensions: 44" L × 24" W × 30" H
• Weight: 239 lbs
• Plug: NEMA L6-30P
• Cord Length: 7 ft

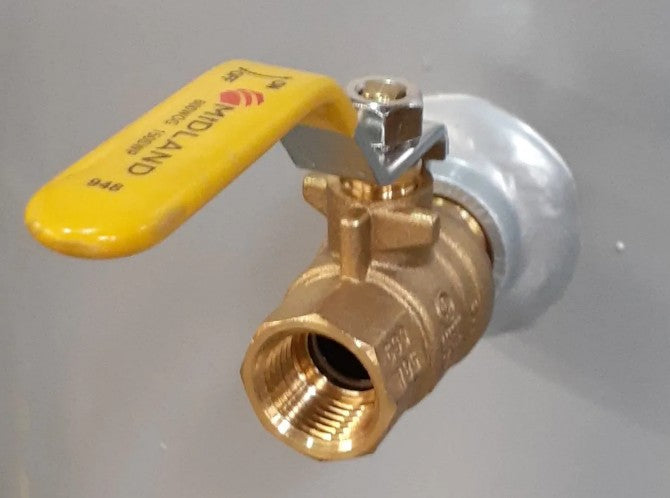

• Air Port: 1/2" NPT Female
• Air Tank: Non-ASME
• Warranty: 1-Year Limited Manufacturer Warranty

What's Included

• California Air Tools 20060DCC 6.0 HP Air Compressor
• 20-gallon steel air tank
• Integrated 98% air drying system
• Twin-tower auto-purge dryer system
• Aftercooler/condenser
• Two 0.01-micron prefilters
• Six air filters
• 7-foot power cord

Applications

The California Air Tools 20060DCC is designed for applications requiring clean and ultra-dry compressed air. It is suitable for dental practices, dental laboratories, dental milling, manufacturing clean rooms, restaurants, bakeries, pneumatic applications and other environments where moisture-free air is important for protecting sensitive tools and machinery.

Maintenance

The oil-free pump eliminates the need for compressor oil and helps reduce routine maintenance. The 98% air dryer cartridges should be replaced every 4,000 operating hours, approximately every two years under average use. The 2 HP motor air filters should be replaced every two years, or annually when the compressor operates in a dirty or dusty environment. The twin-tower auto-purge system eliminates the need for an automatic tank drain valve on this model.
