California Air Tools
California Air Tools 200CR 2.0 HP Continuous Run Ultra Quiet Oil-Free Motor/Pump – 100% Duty Cycle
California Air Tools 200CR 2.0 HP Continuous Run Ultra Quiet Oil-Free Motor/Pump – 100% Duty Cycle
- Regular price
- Price: $930.00
- Regular price
- List Price:
- Sale price
- Price: $930.00
- Unit price
- per
Couldn't load pickup availability
12 in stock
PRODUCT DESCRIPTION
Product Description

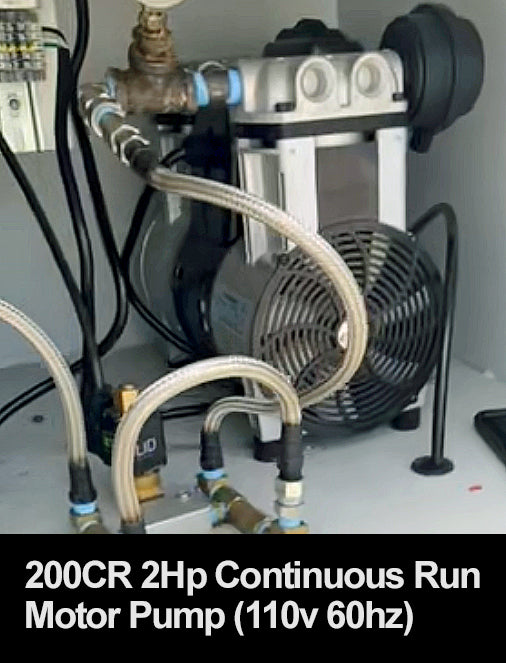

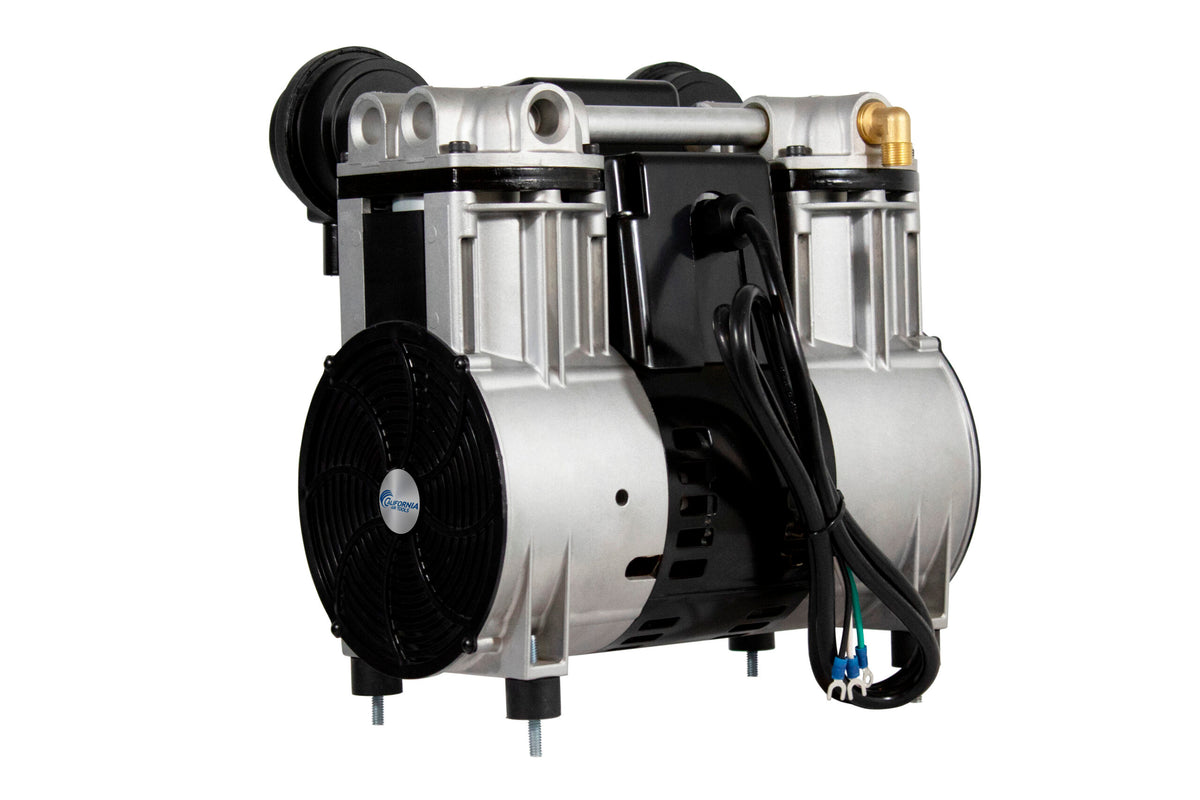

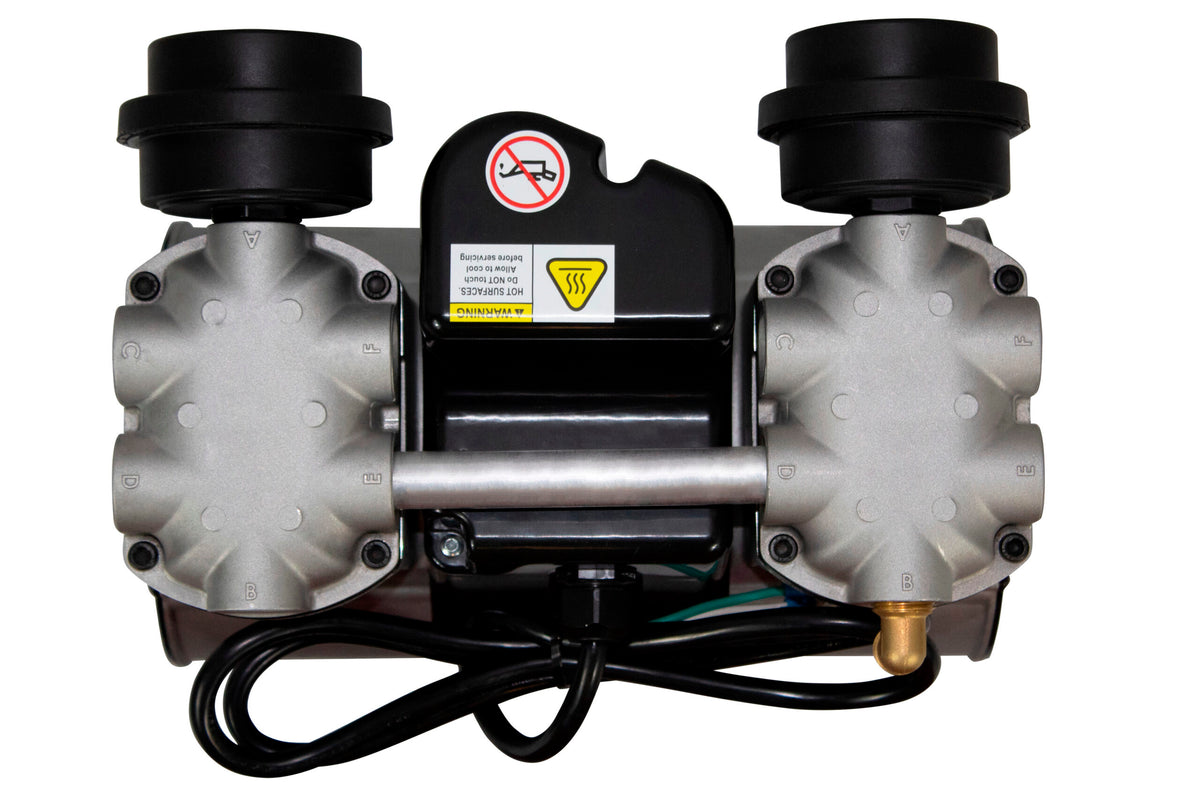

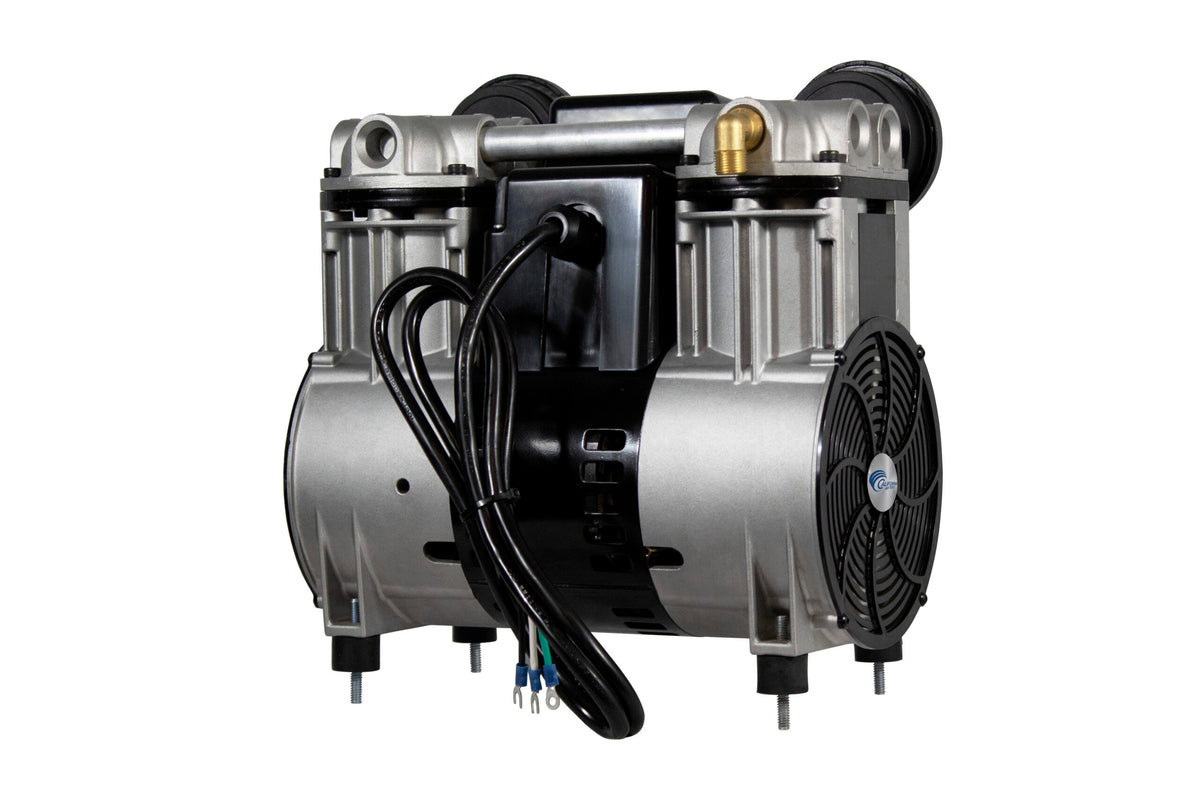

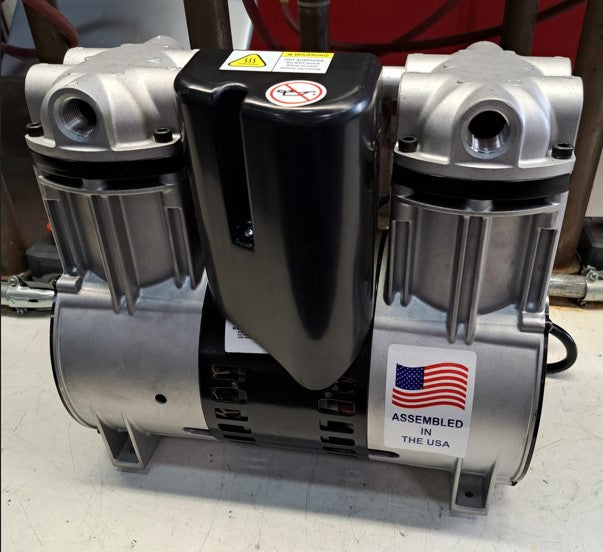

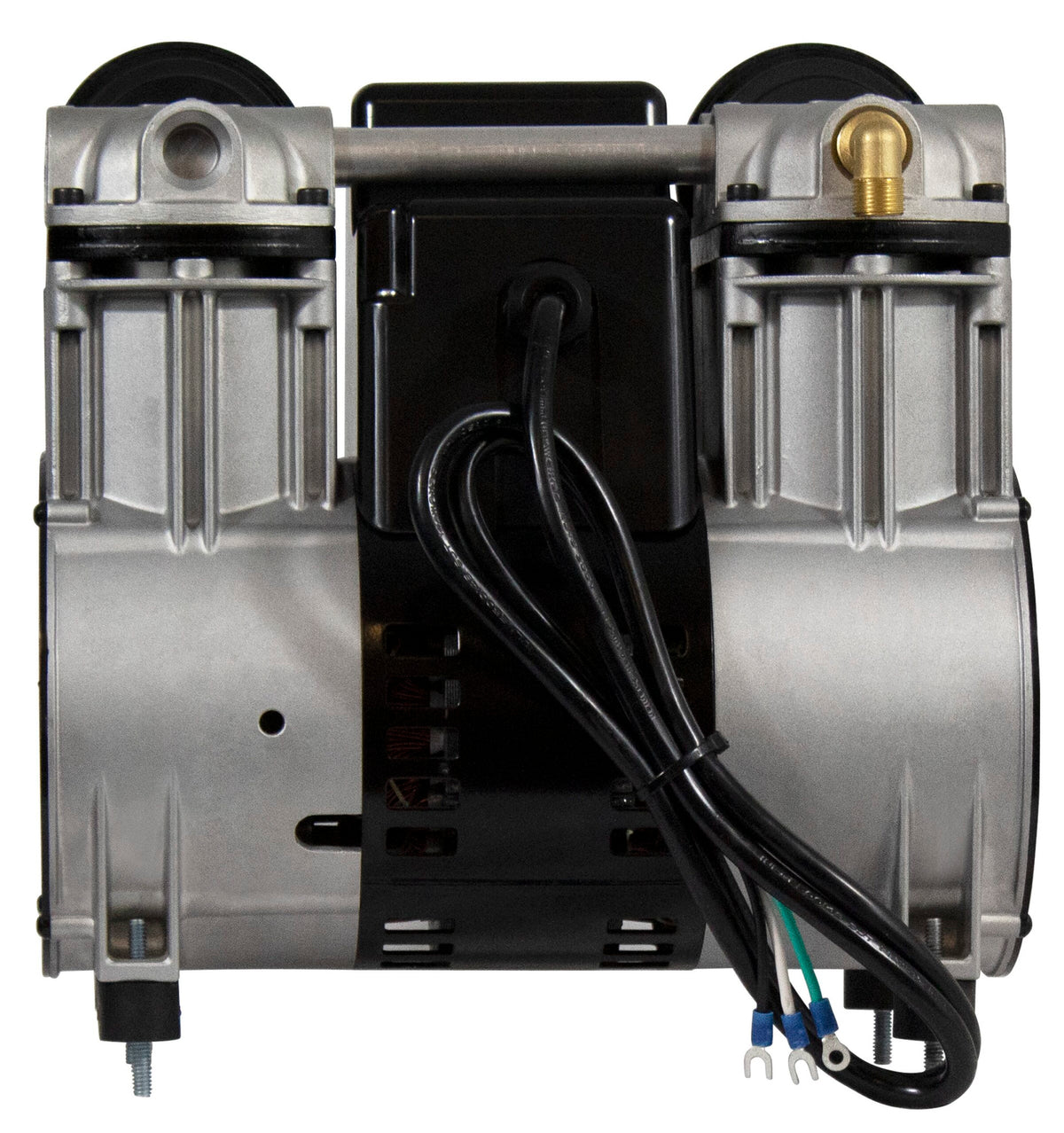

The California Air Tools 200CR is a 2.0 HP continuous-run, ultra-quiet, oil-free replacement motor/pump designed for California Air Tools air compressor equipment. Built for 100% duty cycle operation, the 200CR can run for up to 8 hours continuously at 90 PSI or up to 12 hours at 40 PSI.
The oil-free dual piston pump system delivers 6.50 CFM at 40 PSI and 5.00 CFM at 90 PSI while operating at only 77 dB. The 1,700 RPM motor is designed to reduce noise and wear, and the motor/pump is tested for a minimum life of 5,000 hours before wear.
This replacement motor/pump is compatible with California Air Tools 2.0 HP, 110V/60Hz compressor models. It is not a complete air compressor and requires proper installation, including an unloader and/or bleeder valve and appropriate check-valve configuration.
Key Features
- 2.0 HP continuous-run motor/pump
- 100% duty cycle design
- Ultra-quiet operation at only 77 dB
- Oil-free dual piston pump system
- 6.50 CFM at 40 PSI
- 5.00 CFM at 90 PSI
- 125 PSI maximum pressure
- 1,700 RPM motor speed
- Designed for up to 8 hours continuous operation at 90 PSI
- Designed for up to 12 hours continuous operation at 40 PSI
- Thermal overload protector
- 14 amp draw
- 110V / 60Hz / single phase
- 1/2-inch NPT ports
- 1/2-inch NPT output elbow
- Minimum tested life of 5,000 hours before wear
Specifications
| Model | 200CR |
| Product Type | Replacement Motor/Pump |
| Motor Power | 2.0 HP |
| Pump Type | Oil-Free Dual Piston |
| Duty Cycle | 100% |
| Air Delivery | 6.50 CFM @ 40 PSI; 5.00 CFM @ 90 PSI |
| Maximum Pressure | 125 PSI |
| Voltage | 110V |
| Frequency | 60 Hz |
| Phase | Single Phase |
| Current Draw | 14 Amps |
| Motor Speed | 1,700 RPM |
| Noise Level | 77 dB |
| Ports | 1/2-inch NPT |
| Output Elbow | 1/2-inch NPT |
| Run Capacitor | 45 uF |
| Start Capacitor | 110V, 189–227 uF |
| Weight | 37 lbs |
| Dimensions | 11.75 × 6.75 × 12.5 inches |
| Operating Temperature | 0–50°C (32–122°F) |
| Warranty | 1 Year Limited Warranty |
| Assembly | Assembled in California, USA using global components |
What's Included
- California Air Tools 200CR 2.0 HP Motor/Pump
- Attached 1/2-inch elbow
- 2 Air Filters
- 4 Shock Struts
Applications
Designed as a replacement motor/pump for compatible California Air Tools 2.0 HP, 110V/60Hz air compressor models. It is suitable for continuous-run compressor applications requiring an oil-free, ultra-quiet motor/pump system.
Maintenance
The oil-free pump design eliminates the need for compressor oil changes. Keep the air filters clean and inspect the pump, fittings, electrical connections, and wear components regularly. Proper installation requires an unloader and/or bleeder valve and a correctly configured check valve to prevent damage to the motor/pump.
