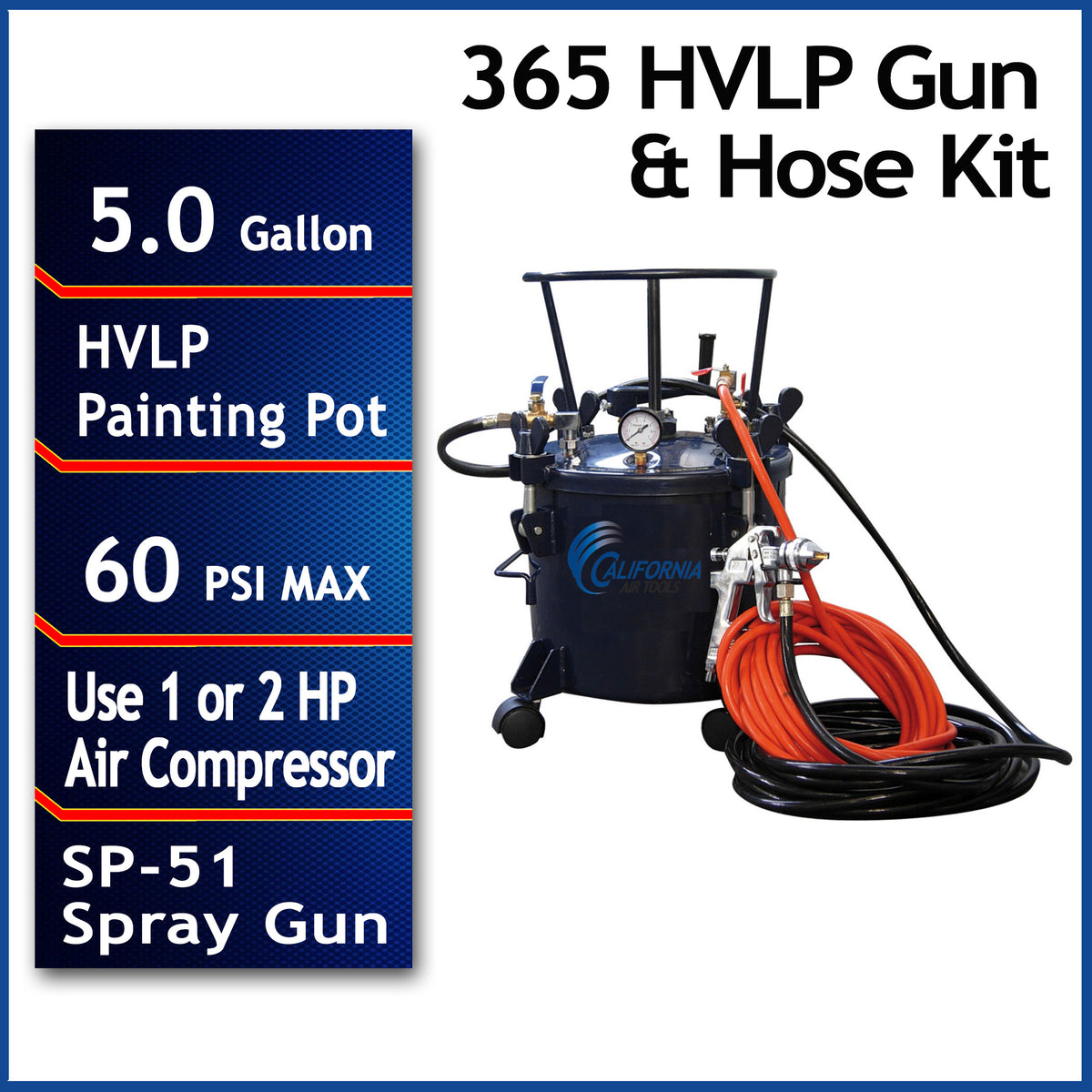

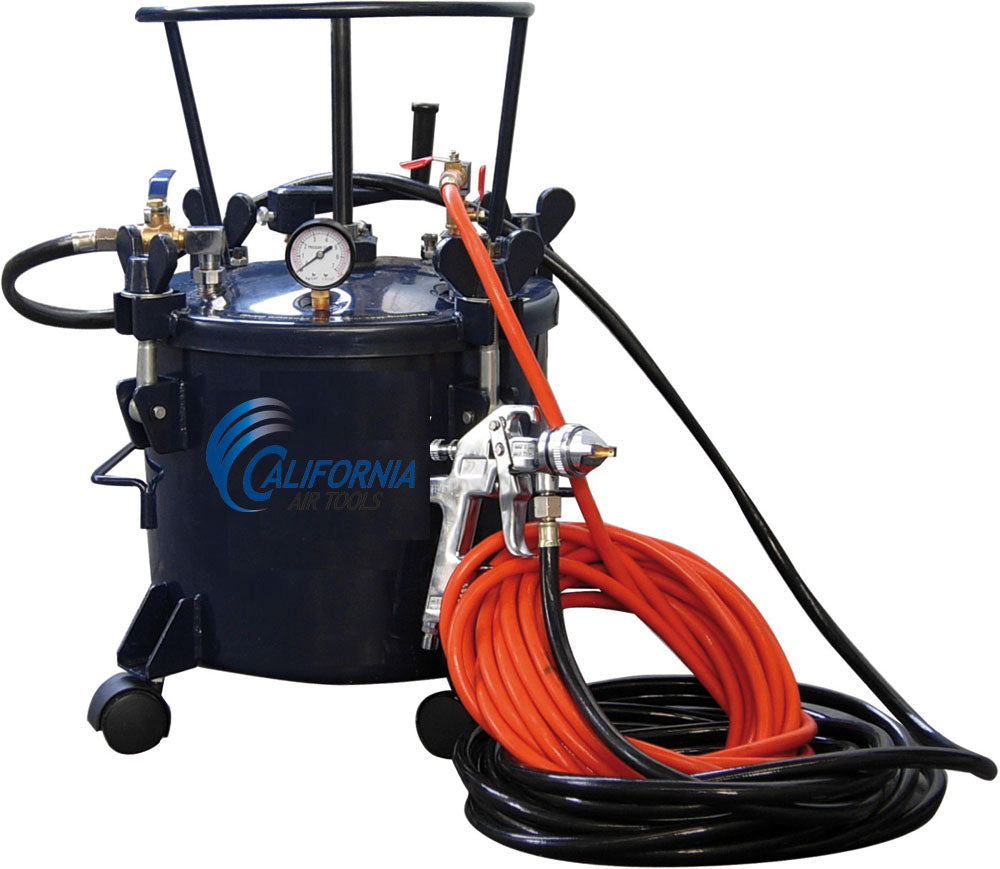

California Air Tools 365 5 Gallon Pressure Pot Paint Sprayer Kit with HVLP Gun & Hoses – 60 PSI

California Air Tools 365 5 Gallon Pressure Pot with HVLP Gun & Hose Kit

The California Air Tools 365 is a 5-gallon pressure pot painting system designed for spray-painting applications. It features a Teflon-coated steel tank for easier cleanup, a built-in agitator to help keep coatings mixed, and a double-output regulator for controlling tank and spray-gun pressure.

The complete kit includes an SP-51-IMP HVLP spray gun, a 33-foot air hose, and a 33-foot fluid hose. Removable caster wheels provide mobility, while the on/off ball valve and pressure relief valve support controlled operation.

Key Features

• 5-gallon pressure pot painting system
• Teflon-coated steel tank for easier cleanup
• Built-in agitator to help maintain coating consistency
• Double-output pressure regulator
• Maximum tank pressure of 60 PSI
• On/off ball valve and pressure relief valve
• Removable caster wheels for mobility and stability

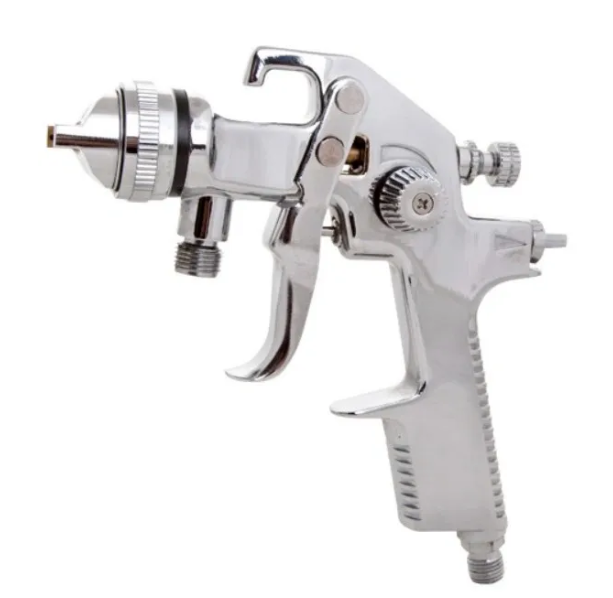

• SP-51-IMP HVLP spray gun with 1.4 mm nozzle

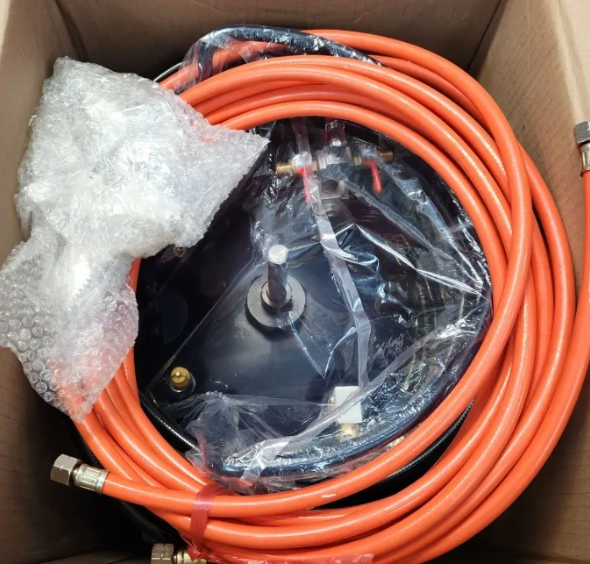

• 33-foot PVC air hose with 1/4-inch fitting

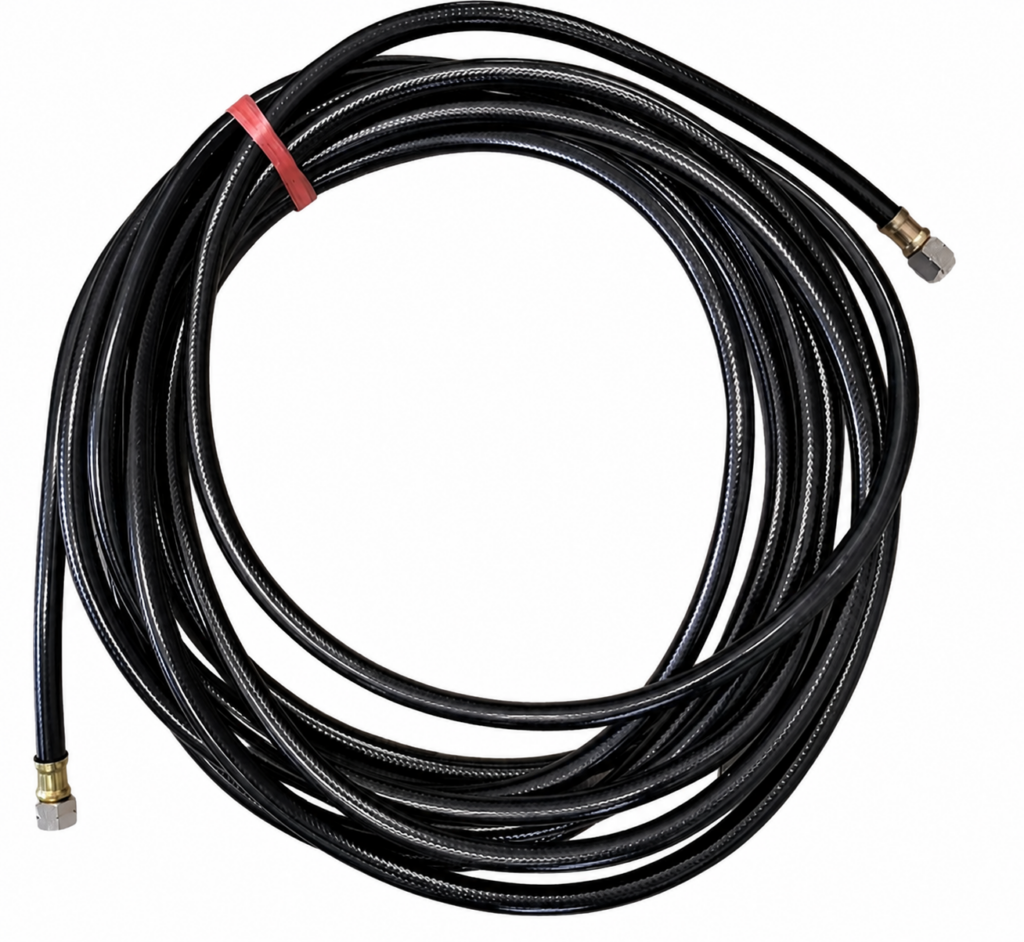

• 33-foot PVC fluid hose with 3/8-inch fitting
• Non-ASME tank

Specifications

Included Components

• 5-gallon pressure pot with built-in agitator
• SP-51-IMP HVLP spray gun with 1.4 mm nozzle
• 33-foot PVC air hose
• 33-foot PVC fluid hose

Painting Applications

The California Air Tools 365 is designed for painting applications requiring a pressurized paint supply, including compatible coatings used in workshops and finishing environments. The built-in agitator helps maintain coating consistency during use.

Important Usage Information

This model is intended for painting purposes and is not designed for resin casting. The manufacturer suggests a 1 HP air compressor for lighter, low-viscosity coatings and a 2 HP compressor for heavier coatings, including oil-based products.

For commercial use, refer to applicable state and city codes.

Warranty

Includes a 1-year manufacturer limited warranty.
